Banana PI BPI-W2是一个高度集成的多媒体网络路由器，可用于高无线性能、Nas路由，家庭娱乐、家庭自动化等…
BPI-W2集成了一个四核ARM cortex- a53 MPcore，运行到1.5 ghz，路由器还包括各种外设，包括HDMI RX/ TX,Mini DP,PCIe2.0,pcie1.1 & sdio,M.2接口、USB2.0 USB3.0端口,SATA端口,2 Gbps端口千兆以太网端口,也支持802.11 ac / n WLAN连接通过PCI-e接口连接，BPI-W2可以运行Android6.0。它还可以运行OpenWRT,Debian linux,Ubuntu linux,Raspbian和其他操作系统。它还可以运行OpenWRT,Debian linux,Ubuntu linux,Raspbian和其他操作系统。
BPI-W2的大小与BPI-R２的尺寸大小相同，它可以很容易的运行它支持1080P高清视频输出，GPIO与Raspberry PI 3 兼容。

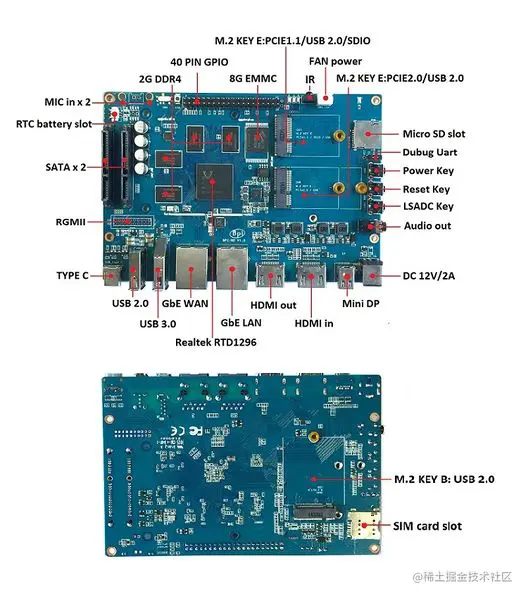

硬件接口示意图：
硬件规格：
| 香蕉派 BPI-W2 硬件规格表 | |
|---|---|
| Soc芯片 | Realtek RTD1296 quad-core ARM A53 |
| GPU | Mali T820 MP3 GPU |
| SDRAM | 2GB DDR4 (shared with GPU) |
| 供电 | 12V @ 2A via DC power 5.0mmx2.0mm jack |
| Low-level peripherals | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
| 有线网口 | 2x 10/100/1000Mbps Ethernet |
| Wifi无线/Bluetooth蓝牙 | Option ,not support onboard WIFI & BT |
| RGMII | 1 RGMII interface with PIN |
| 存储 | MicroSD (TF) card; 2 native SATA 3 6Gbps ;eMMC;SIM card slot |
| 显示 | HDMI (Type A) output with HDCP 1.4, resolutions up 1920x1200； MIPI DP |
| Video decoder/encode | The Video DSP of RTD1296 is dedicated to manipulating,decoding and encoding of video streams in various formats, e.g. decoding 4K2K H.265,Full HD MPEG1/2/4/H.264/H.264 MVC,AVC/VC-1,VP8,AVS,AVS Plus,HD jpeg,etc.Video decoding and encoding can run simultaneously. support 3D de-intrlacing,video scaling up to 4K2K and so on. |
| Aideo decoding | Audio decoding is carried out by an Audio DSP that is capable of decoding a set of audio formats,e.g. DTS HD,Dolby Digital Plus,TrueHD,and other popular formats.the Audio DSP also performs audio post processing |
| Audio | support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 2 MIC in |
| HDMI 输入/输出 | 1* HDMI 2.0a out port and 1* HDMI 2.0a In port |
| Audio outputs/Inputs | HDMI, I2S audio,Audio micro out, Audio out/in with PIN define |
| M.2 KEY E：PCIE 2.0/USB 2.0 | 1 pcie 2.0 interface |
| M.2 KEY E:PCIe 1.1 / SDIO / USB 2.0 | 1 pcie 1.1 and SDIO interface |
| USB 3.0 | 1x USB 3.0 host |
| USB 2.0 | 2x USB 2.0 OTG, 1 with standard USB port , 1 define with PIN |
| M.2 KEY B | 1 * M.2 interface USB 2.0 for 4G with Micro SIM card slot |
| Mini DP | 1* Mini DP |
| TYPE C | 1 type C interface |
| RTC 实时时钟供电 | RTC battery power interface |
| 按键 | Reset button, Power button, U-boot button |
| Led灯 | Red, Green, Blue |
| 红外 | IR 红外遥控接收 |
| 尺寸 | 148 mm × 100.5mm |
| 重量 | 100g |
在线Wiki开发文档: wiki.banana-pi.org/Banana_Pi_B…
