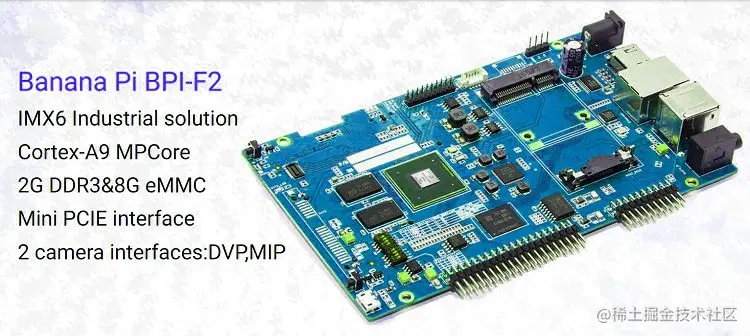

香蕉派 BPI-F2采用飞思卡尔IMX6工业芯片设计。IMX6采用ARM Cortex-A9 MP Core 4xCPU处理器(带TrustZone)，这是第一个采用飞思卡尔芯片设计的香蕉派开源硬件开发板。
关键特性:
- 飞思卡尔 IMX6 工业级控制芯片.
- 2G DDR3 内存
- 8G eMMC flash 存储
- CAN bus 功能支持
- Mini PCIE 接口
- 2 camera 摄像头接口:DVP and MIP

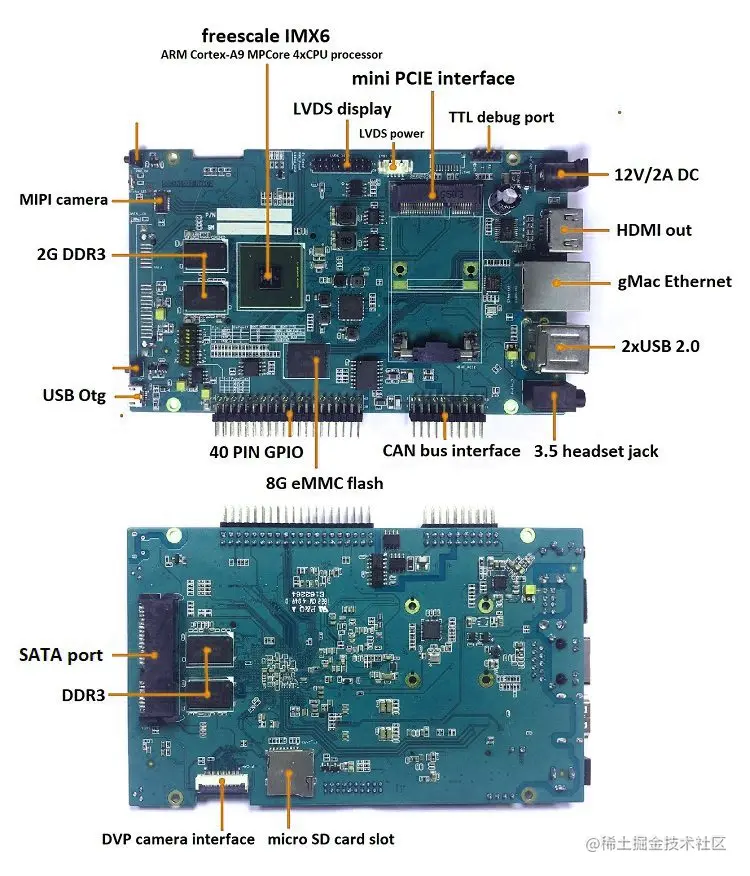

硬件接口示意图:
硬件规格表:
| Banana Pi BPI-F2 硬件规格表 | |
|---|---|
| 主芯片 | 飞思卡尔 freescale IMX6 |
| CPU | ARM Cortex-A9 MPCore 4xCPU processor(with TrustZone) |
| GPU | OpenGL ES 2.0 3D graphics accelerator with forshaders,2D graphics accelerator,and didicated OpenVG 1.1 accelerator |
| SDRAM | 2G DDR3 |
| PCIE | 1 mini PCIE interface |
| CAN bus | 1 CAN bus interface |
| SATA硬盘 | support 1*SATA interface |
| GPIO | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
| On board Network | 10/100/1000 Mbit/s Ethernet |
| Wifi 无线 | N/A |
| Bluetooth蓝牙 | N/A |
| 板载存储 | MicroSD (TF) card,8G eMMC onboard (option 8-64G) |
| 显示 | HDMI out, LVDS out |
| 视频接口 | HDMI out, LVDS out |
| Audio outputs | 1 * 3.5 headset jack |
| Camera摄像头 | 1 * DVP camera interface and 1* MIP camera interface |
| Audio 输入 | N/A |
| USB | 2 * USB 2.0 1* USB Otg |
| 按键 | Power & Reset |
| Leds | 3* RGB leds |
| IR控制 | N/A |
| DC Power | 12V/2A with DC port |
| 电池接口 | No 3.7V lithium battery power support |
| Sizes | |
| 重量 | 80克 |
在线wiki开发文档: wiki.banana-pi.org/Banana_Pi_B…
