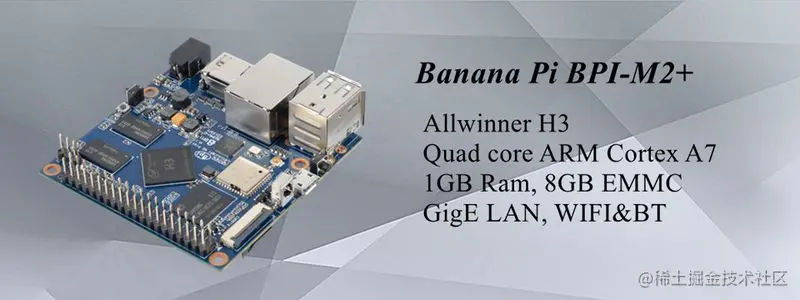

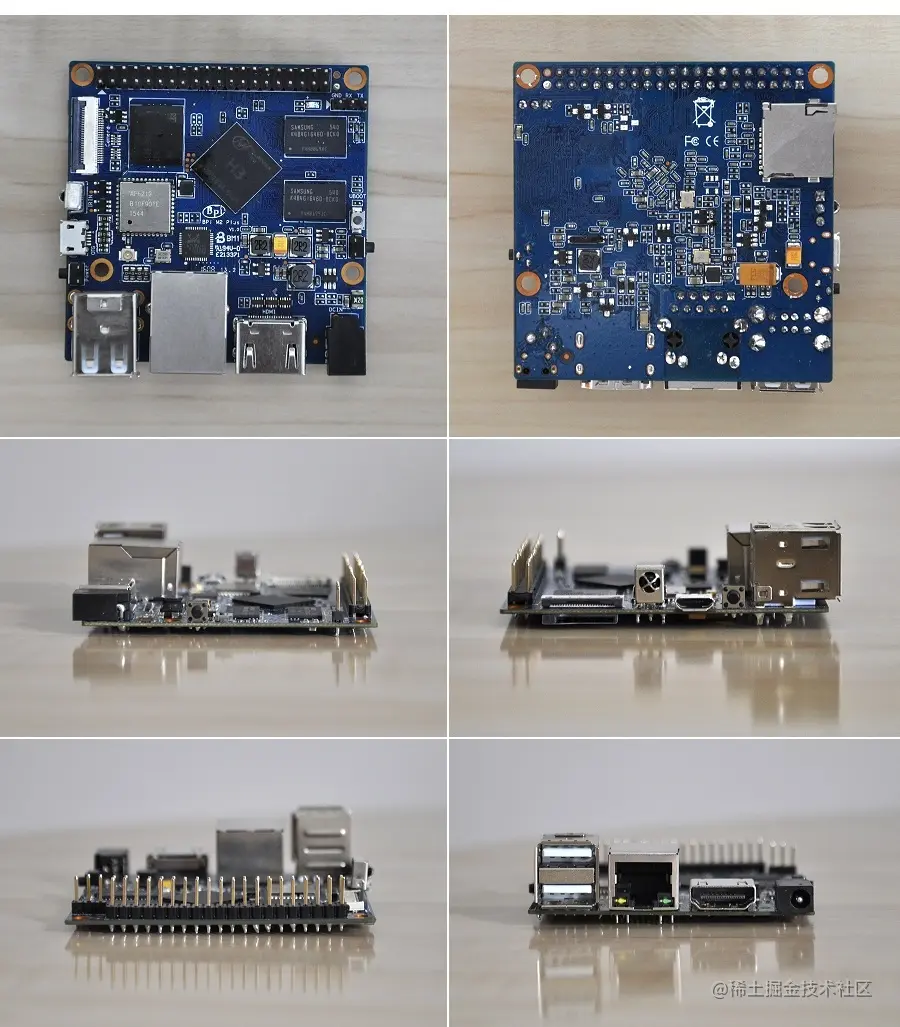

Banana PI BPI-M2+ 是一款四核高性能单板计算机，采用全志H3处理器。Banana PI BPI-M2+兼容性强大,可以跑android系统,Debian linux,Ubuntu linux, Raspberry Pi系统 .
Banana PI BPI-M2+硬件：全志H3四 核处理器，1GB DDR3内存，千兆以太网口，板载无线与蓝牙，板载8G EMMC flash,2 USB 接口 流畅运行Android4.4。Banana PI BPI-M2+体积精小 仅为65*65mm，轻松运行《雷神之锤三：竞技场》这样的游戏，支持4K高清视频输出，GPIO兼容Raspberry PiB+并能运行其ROM Image。

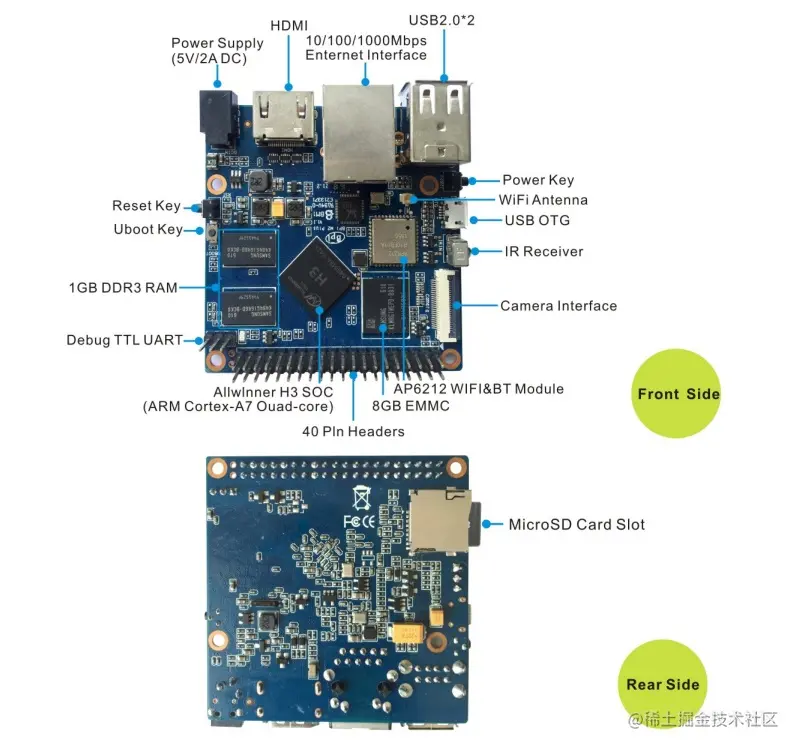

Hardware interface:
Hardware spec:
| 香蕉派 BPI-M2+( BPI-M2 Plus)硬件规格 | |
|---|---|
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | Mali400MP2 GPU @600 MHz,Supports OpenGL ES 2.0 |
| Memory | 1GB DDR3 (shared with GPU) |
| Flash | 8GB eMMC flash onboard |
| Network | 10/100/1000 Ethernet |
| WIFI&BT | SDIO AP6212 for Wifi &BT 4.0（option AP6181 AP6335） |
| Video Input | A CSI input connector Camera:1 Supports 8-bit YUV422 CMOS sensor interface,2 Supports CCIR656 protocol for NTSC and PAL, 3 Supports SM pixel camera sensor, 4 Supports video capture solution up to 1080p@30fps |
| Video Outputs | Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS |
| Audio Outputs | HDMI |
| Power | 5V/2A DC input can supply power, but USB OTG input don’t supply power |
| USB 2.0 ports | two USB 2.0 HOST, one USB 2.0 OTG |
| GPIO | 40 Pins Header,compatible with Raspberry Pi B+ |
| LED | Power led & Status led |
| IR | IR input on board |
| OS | Android, Ubuntu, Debian, Raspberry Pi Image |

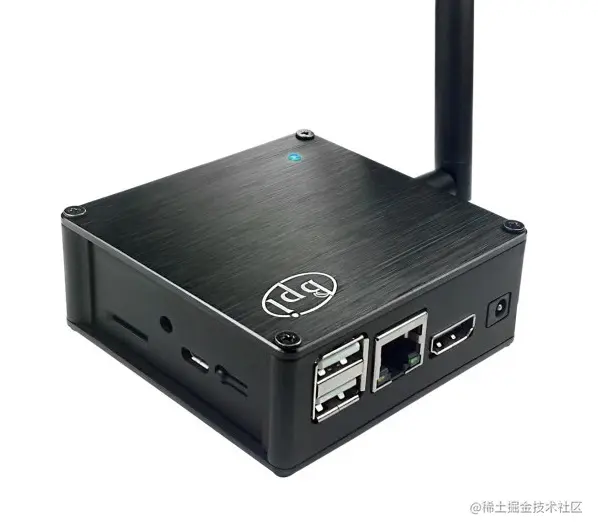

BPI-M2+外壳设计：
在线wiki开发文档：wiki.banana-pi.org/Banana_Pi_B…
