IPVS

IPVS 专门用于负载均衡，并使用更高效的数据结构（哈希表），允许几乎无限的规模扩张。

Ipvs和Iptables区别

Netfilter Hook作用IptablesIpvs
NF_IP_PRE_ROUTING接收的数据包进入协议栈后立即触发此回调函数。发生在路由判断之前✓✕
NF_IP_LOCAL_IN接收的数据包经过路由判断后，如果目标地址在本机上，则将触发此回调函数✓✓
NF_IP_FORWARD接收的数据包经过路由判断后，如果目标地址在其他机器上，则将触发此回调函数✓✓
NF_IP_LOCAL_OUT本机产生的准备发送的数据包，在进入协议栈后立即触发此回调函数✓✓
NF_IP_POST_ROUTING本机产生的准备发送的数据包或者经由本机转发的数据包，在经过路由判断之后，将触发此回调函数。✓✕

服务网络拓扑

创建 ClusterIP 类型服务时，IPVS proxier 将执行以下三项操作：

  • 确保节点存在虚拟接口，默认是kube-ipvs0
  • 将ClusterIP绑定到虚拟接口
  • 分别为每个ClusterIP地址创建IPVS虚拟服务器

端口映射

IPVS中有三种代理模式: NAT、IPIP和DR。目前只有NAT模式支持端口映射。kube-proxy利用NAT模式实现端口映射

# ipvsadm -ln
#  IPVS 服务端口443到Pod端口5443的映射
TCP  10.96.176.171:443 rr
  -> 10.244.110.164:5443          Masq    1      1          0
  -> 10.244.162.180:5443          Masq    1      3          0

会话关系

IPVS 支持客户端IP会话关联（持久连接）。 当服务指定会话关系时，IPVS 代理将在 IPVS 虚拟服务器中设置超时值（默认为180分钟= 10800秒）

# kubectl describe svc nginx
Name:			nginx
...
IP:			    10.102.128.4
Port:			http	3080/TCP
Session Affinity:	ClientIP  # 会话保持

# ipvsadm -ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.96.176.175:80 rr persistent 10800

Iptables和Ipset

ipvs 会使用 iptables 进行**包过滤、SNAT、masquared(伪装)**，并使用ipset来简化iptables的规则管理

kube-proxy ipvs模式在如下情况中依赖iptables实现:

  • kube-proxy配置参数--masquerade-all = true
  • kube-proxy启动时指定集群CIDR
  • 支持Loadbalancer和NodePort类型的Service
名称条目使用场景
KUBE-CLUSTER-IPAll service IP + portMark-Masq for cases that masquerade-all=true or clusterCIDR specified
KUBE-LOOP-BACKAll service IP + port + IPmasquerade for solving hairpin purpose
KUBE-EXTERNAL-IPservice external IP + portmasquerade for packages to external IPs
KUBE-LOAD-BALANCERload balancer ingress IP + portmasquerade for packages to load balancer type service
KUBE-LOAD-BALANCER-LOCALLB ingress IP + port with externalTrafficPolicy=localaccept packages to load balancer with externalTrafficPolicy=local
KUBE-LOAD-BALANCER-FWload balancer ingress IP + port with loadBalancerSourceRangespackage filter for load balancer with loadBalancerSourceRanges specified
KUBE-LOAD-BALANCER-SOURCE-CIDRload balancer ingress IP + port + source CIDRpackage filter for load balancer with loadBalancerSourceRanges specified
KUBE-NODE-PORT-TCPnodeport type service TCP portmasquerade for packets to nodePort(TCP)
KUBE-NODE-PORT-LOCAL-TCPnodeport type service TCP port with externalTrafficPolicy=localaccept packages to nodeport service with externalTrafficPolicy=local
KUBE-NODE-PORT-UDPnodeport type service UDP portmasquerade for packets to nodePort(UDP)
KUBE-NODE-PORT-LOCAL-UDPnodeport type service UDP port with externalTrafficPolicy=localaccept packages to nodeport service with externalTrafficPolicy=local

入网流量

  1. nat表

    PREROUTING -> KUBE-SERVICES -> KUBE-MARK-MASQ -> ACCEPT

    Chain PREROUTING (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination
    7   491 KUBE-SERVICES  all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* kubernetes service portals */
    2   191 DOCKER_OUTPUT  all  --  *      *       0.0.0.0/0            172.18.0.1

    Chain KUBE-SERVICES (2 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 KUBE-MARK-MASQ  all  --  *      *      !10.244.0.0/16        0.0.0.0/0            /* Kubernetes service cluster ip + port for masquerade purpose */ match-set KUBE-CLUSTER-IP dst,dst
   20  1200 KUBE-NODE-PORT  all  --  *      *       0.0.0.0/0            0.0.0.0/0            ADDRTYPE match dst-type LOCAL
    0     0 ACCEPT     all  --  *      *       0.0.0.0/0            0.0.0.0/0            match-set KUBE-CLUSTER-IP dst,dst

    Chain KUBE-MARK-MASQ (2 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 MARK       all  --  *      *       0.0.0.0/0            0.0.0.0/0            MARK or 0x4000

  2. filter表

    INPUT -> KUBE-NODE-PORT -> KUBE-FIREWALL -> IPVS[kube-ipvs0]

    Chain INPUT (policy ACCEPT 1021 packets, 145K bytes)
 pkts bytes target     prot opt in     out     source               destination
2761K  402M KUBE-NODE-PORT  all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* kubernetes health check rules */
2768K  404M KUBE-FIREWALL  all  --  *      *       0.0.0.0/0            0.0.0.0/0

    Chain KUBE-NODE-PORT (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 ACCEPT     all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* Kubernetes health check node port */ match-set KUBE-HEALTH-CHECK-NODE-PORT dst

    Chain KUBE-FIREWALL (2 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 DROP       all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* kubernetes firewall for dropping marked packets */ mark match 0x8000/0x8000
    0     0 DROP       all  --  *      *      !127.0.0.0/8          127.0.0.0/8          /* block incoming localnet connections */ ! ctstate RELATED,ESTABLISHED,DNAT

    root@ipvs-control-plane:/# ip addr show dev kube-ipvs0
7: kube-ipvs0: <BROADCAST,NOARP> mtu 1500 qdisc noop state DOWN group default
    link/ether 82:b2:e2:12:d9:77 brd ff:ff:ff:ff:ff:ff
    inet 10.96.0.1/32 scope global kube-ipvs0
       valid_lft forever preferred_lft forever
    inet 10.96.0.10/32 scope global kube-ipvs0
       valid_lft forever preferred_lft forever

    root@ipvs-control-plane:/# ipset list

...

Name: KUBE-LOOP-BACK
Type: hash:ip,port,ip
Revision: 5
Header: family inet hashsize 1024 maxelem 65536
Size in memory: 680
References: 1
Number of entries: 6
Members:
10.244.0.2,tcp:9153,10.244.0.2
10.244.0.2,udp:53,10.244.0.2
10.244.0.4,tcp:9153,10.244.0.4
10.244.0.4,udp:53,10.244.0.4
10.244.0.4,tcp:53,10.244.0.4
10.244.0.2,tcp:53,10.244.0.2

Name: KUBE-LOAD-BALANCER
Type: hash:ip,port
Revision: 5
Header: family inet hashsize 1024 maxelem 65536
Size in memory: 192
References: 0
Number of entries: 0
Members:

Name: KUBE-NODE-PORT-LOCAL-SCTP-HASH
Type: hash:ip,port
Revision: 5
Header: family inet hashsize 1024 maxelem 65536
Size in memory: 192
References: 0
Number of entries: 0
Members:

Name: KUBE-CLUSTER-IP
Type: hash:ip,port
Revision: 5
Header: family inet hashsize 1024 maxelem 65536
Size in memory: 448
References: 2
Number of entries: 4
Members:
10.96.0.1,tcp:443
10.96.0.10,tcp:53
10.96.0.10,udp:53
10.96.0.10,tcp:9153

...

    root@ipvs-control-plane:/# ipvsadm -ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.96.0.1:443 rr
  -> 172.18.0.5:6443              Masq    1      3          0
TCP  10.96.0.10:53 rr
  -> 10.244.0.2:53                Masq    1      0          0
  -> 10.244.0.4:53                Masq    1      0          0
TCP  10.96.0.10:9153 rr
  -> 10.244.0.2:9153              Masq    1      0          0
  -> 10.244.0.4:9153              Masq    1      0          0
UDP  10.96.0.10:53 rr
  -> 10.244.0.2:53                Masq    1      0          0
  -> 10.244.0.4:53                Masq    1      0          0

如上所示，kube-proxy 通过 iptables 允许访问 KUBE-CLUSTER-IP 的流量，并通过在虚拟网卡 kube-ipvs0 上配置 ClusterIP 的方式，让内核以为 ClusterIP 为本机 IP，从而走 iptables 的 INPUT 链进入本机，继而通过 IP Virtual Server 找到 Real Server 提供服务。

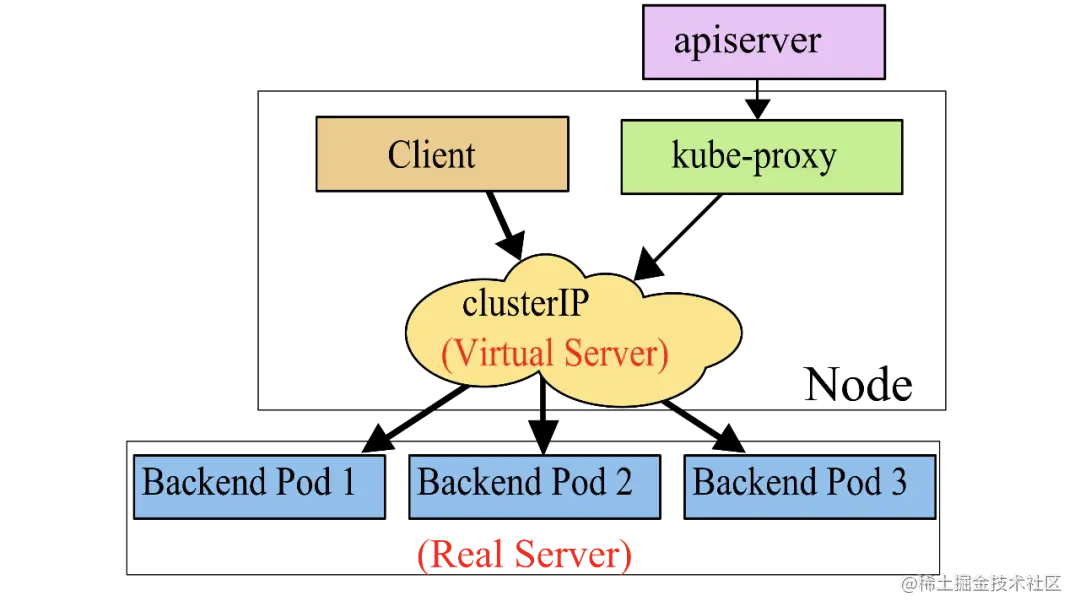

IPVS模式工作原理示意图:


FAQ

Q: 为什么每个svc会在ipvs网卡增加vip地址

A: 由于IPVS没有实现 NF_IP_PRE_ROUTING，就不会在进入NF_IP_LOCAL_IN之前进行地址转换。那么数据包经过路由判断后，会进入NF_IP_LOCAL_IN Hook点，IPVS回调函数如果发现目标IP地址不属于该节点，就会丢弃数据包。因此，K8S创建dummy网络接口k8s-ipvs0，然后将service cluster ip绑定到该接口上，内核在处理数据包时，会发现该目标 IP 地址属于该节点，于是可以继续处理数据包。
