springboot web应用（二）：WebMvc 装配过程

Funcy
321 阅读9分钟

注：本系列源码分析基于springboot 2.2.2.RELEASE，对应的spring版本为5.2.2.RELEASE，源码的gitee仓库仓库地址：gitee.com/funcy/sprin….

平时工作中，springboot 绝大多数情况下运行的是web项目，本文将分析 springboot 自动 springMvc 项目的流程。

1. springMvc 的自动装配类

springMvc 的自动装配类为

@Configuration(proxyBeanMethods = false)
// 几个装配条件
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class })
// 如果没有自定义WebMvc的配置类，则使用本配置
@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)
// 装配顺序
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
@AutoConfigureAfter({
        // DispatcherServlet 的自动装配
        DispatcherServletAutoConfiguration.class,
        // 线程池的自动装配
        TaskExecutionAutoConfiguration.class,
        // jsr 303 验证框架的自动装配
        ValidationAutoConfiguration.class })
public class WebMvcAutoConfiguration {
    ...
}

从上面的@AutoConfigureAfter注解中，WebMvcAutoConfiguration 需要在 DispatcherServletAutoConfiguration、TaskExecutionAutoConfiguration、ValidationAutoConfiguration 等类装配完成之后再装配，对这些类的作用列举如下：

  • DispatcherServletAutoConfiguration：DispatcherServlet 自动装配
  • TaskExecutionAutoConfiguration：任务执行器，其实就是创建了一个线程池
  • ValidationAutoConfiguration：jsr 303 验证器的自动装配，验证器用来处理@NotNull、@NotEmpty等注解的验证功能

这3个类中，与 springMvc 有关的只有DispatcherServletAutoConfiguration，我们来认识一下它：

@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass(DispatcherServlet.class)
// 需要在 ServletWebServerFactoryAutoConfiguration 自动装配完成后处理
@AutoConfigureAfter(ServletWebServerFactoryAutoConfiguration.class)
public class DispatcherServletAutoConfiguration {
    ...
}

DispatcherServletAutoConfiguration需要等ServletWebServerFactoryAutoConfiguration自动装配完成才进行装配，这个类是做什么的呢？剧透下，它是处理 servlet 容器（tomcat, jetty, undertow等）的生成的，我们再来看看ServletWebServerFactoryAutoConfiguration：

@Configuration(proxyBeanMethods = false)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@ConditionalOnClass(ServletRequest.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(ServerProperties.class)
// 引入了一些类
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
        // 3个 web 容器
        ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
        ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
        ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
public class ServletWebServerFactoryAutoConfiguration {
    ...
}

可以看到，这个类中总算是没有@AutoConfigureAfter注解了，因此这个类 springMvc 就是最初自动装配的类，我们的分析就从这个类开始。

总结下以上几个类的装配顺序：

  1. ServletWebServerFactoryAutoConfiguration
  2. DispatcherServletAutoConfiguration
  3. WebMvcAutoConfiguration

接下来我们的分析也按这样的顺序，逐一分析这些自动装配类。

2. ServletWebServerFactoryAutoConfiguration 的自动装配

ServletWebServerFactoryAutoConfiguration 类如下：

@Configuration(proxyBeanMethods = false)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@ConditionalOnClass(ServletRequest.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(ServerProperties.class)
// 引入了一些类
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
        // 3个 web 容器
        ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
        ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
        ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
public class ServletWebServerFactoryAutoConfiguration {
    ...
}

这个类引入了BeanPostProcessorsRegistrar、EmbeddedTomcat、EmbeddedJetty、EmbeddedUndertow，我们来逐一分析吧！

2.1 BeanPostProcessorsRegistrar

BeanPostProcessorsRegistrar 是 ServletWebServerFactoryAutoConfiguration 的内部类，代码如下：

public static class BeanPostProcessorsRegistrar
        implements ImportBeanDefinitionRegistrar, BeanFactoryAware {

    ...

    /**
     * 来自 ImportBeanDefinitionRegistrar 的方法
     */
    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata,
            BeanDefinitionRegistry registry) {
        if (this.beanFactory == null) {
            return;
        }
        // 注册组件
        registerSyntheticBeanIfMissing(registry, "webServerFactoryCustomizerBeanPostProcessor",
                WebServerFactoryCustomizerBeanPostProcessor.class);
        registerSyntheticBeanIfMissing(registry, "errorPageRegistrarBeanPostProcessor",
                ErrorPageRegistrarBeanPostProcessor.class);
    }

    /**
     * 具体的注册操作
     */
    private void registerSyntheticBeanIfMissing(BeanDefinitionRegistry registry,
            String name, Class<?> beanClass) {
        if (ObjectUtils.isEmpty(this.beanFactory.getBeanNamesForType(beanClass, true, false))) {
            RootBeanDefinition beanDefinition = new RootBeanDefinition(beanClass);
            beanDefinition.setSynthetic(true);
            registry.registerBeanDefinition(name, beanDefinition);
        }
    }
}

这个类主要是向 spring 容器中注册了两个类：WebServerFactoryCustomizerBeanPostProcessor、ErrorPageRegistrarBeanPostProcessor，我们来看下它们分别是个啥。

1. WebServerFactoryCustomizerBeanPostProcessor

WebServerFactoryCustomizerBeanPostProcessor 的代码如下：

public class WebServerFactoryCustomizerBeanPostProcessor
        implements BeanPostProcessor, BeanFactoryAware {

    ...

    @Override
    public Object postProcessBeforeInitialization(Object bean, String beanName)
            throws BeansException {
        // bean 的类型是 WebServerFactory 才处理
        if (bean instanceof WebServerFactory) {
            postProcessBeforeInitialization((WebServerFactory) bean);
        }
        return bean;
    }

    @SuppressWarnings("unchecked")
    private void postProcessBeforeInitialization(WebServerFactory webServerFactory) {
        LambdaSafe.callbacks(WebServerFactoryCustomizer.class, getCustomizers(), webServerFactory)
                .withLogger(WebServerFactoryCustomizerBeanPostProcessor.class)
                // 处理配置
                .invoke((customizer) -> customizer.customize(webServerFactory));
    }

    /**
     * 获取 WebServerFactoryCustomizer，得到的是一个不可变的 List
     */
    private Collection<WebServerFactoryCustomizer<?>> getCustomizers() {
        if (this.customizers == null) {
            this.customizers = new ArrayList<>(getWebServerFactoryCustomizerBeans());
            this.customizers.sort(AnnotationAwareOrderComparator.INSTANCE);
            this.customizers = Collections.unmodifiableList(this.customizers);
        }
        return this.customizers;
    }

    /**
     * 获取 beanFactory 中所有的 WebServerFactoryCustomizer
     */
    private Collection<WebServerFactoryCustomizer<?>> getWebServerFactoryCustomizerBeans() {
        return (Collection) this.beanFactory.getBeansOfType(
                WebServerFactoryCustomizer.class, false, false).values();
    }

}

这个类是用来处理WebServerFactory的自定义配置的，它实现了BeanPostProcessor， 我们主要关注它的postProcessBeforeInitialization(...)方法。

在WebServerFactoryCustomizerBeanPostProcessor的postProcessBeforeInitialization(...)方法中，如果当前bean的类型是 WebServerFactory，会先获取beanFactory中所有类型为WebServerFactoryCustomizer的bean，然后将这些WebServerFactoryCustomizer配置到WebServerFactorybean中。

如果我们要自定义Tomcat的配置，可以这样处理：

@Component
public class MyCustomizer implements WebServerFactoryCustomizer<TomcatServletWebServerFactory> {

    @Override
    public void customize(TomcatServletWebServerFactory factory) {
        factory.setPort(8091);
        factory.setContextPath("/");
        // 设置其他配置
        ...
    }

}

在ServletWebServerFactoryAutoConfiguration中提供了两个WebServerFactoryCustomizer:

public class ServletWebServerFactoryAutoConfiguration {

    @Bean
    public ServletWebServerFactoryCustomizer servletWebServerFactoryCustomizer(
            ServerProperties serverProperties) {
        return new ServletWebServerFactoryCustomizer(serverProperties);
    }

    @Bean
    @ConditionalOnClass(name = "org.apache.catalina.startup.Tomcat")
    public TomcatServletWebServerFactoryCustomizer tomcatServletWebServerFactoryCustomizer(
            ServerProperties serverProperties) {
        return new TomcatServletWebServerFactoryCustomizer(serverProperties);
    }

    ...

}

从方法参数来看，这两个类的配置都来自于ServerProperties：

@ConfigurationProperties(prefix = "server", ignoreUnknownFields = true)
public class ServerProperties {
    ...
}

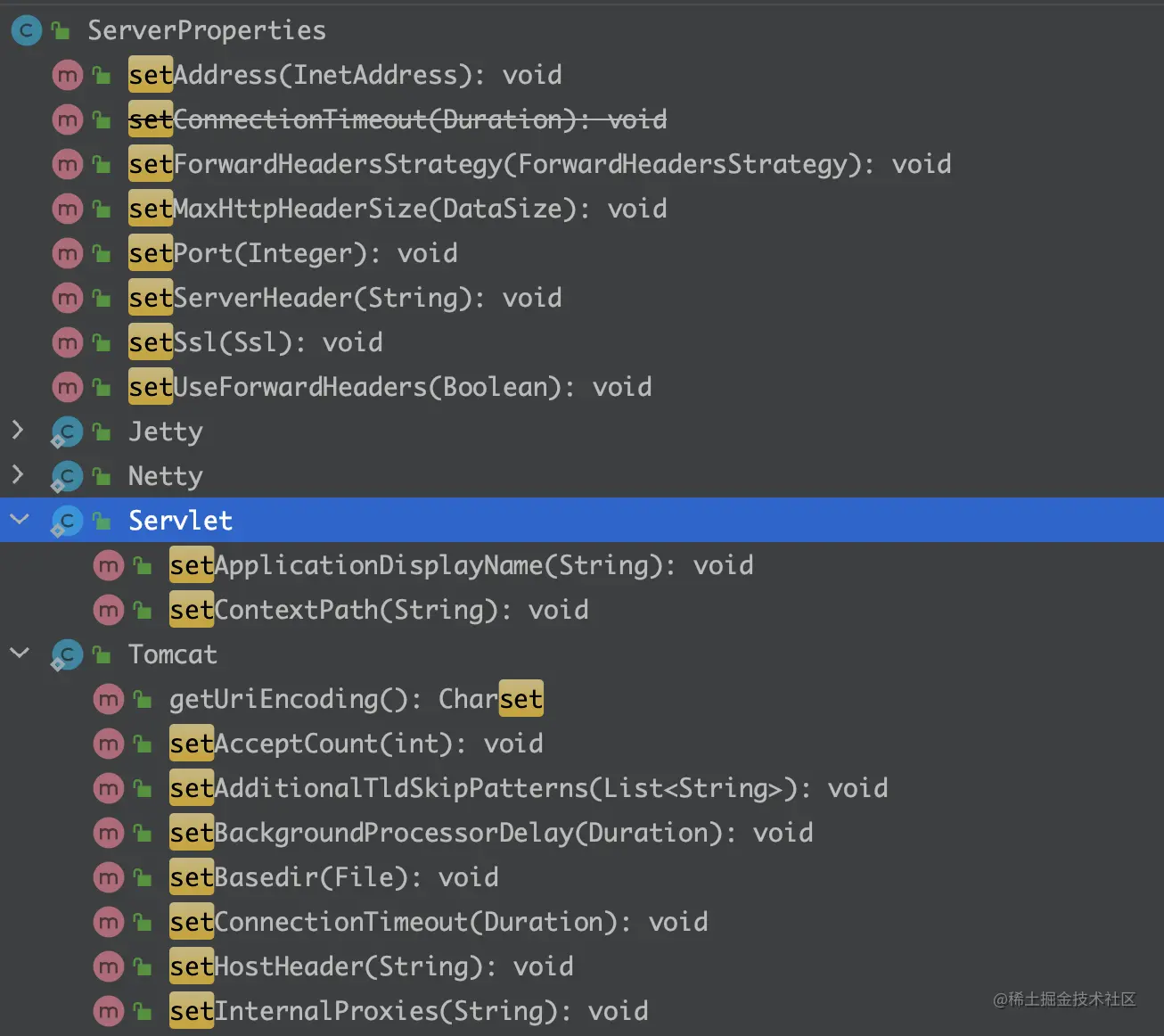

它上面了ConfigurationProperties注解，prefix 为 "server"，这表明它的配置都是以server开头，支持的配置如下：

例如，我们要配置它的端口，只需在application.properties中这样配置即可：

server.port=8080

至于其他配置，这里就不多作分析了。

2. ErrorPageRegistrarBeanPostProcessor

ErrorPageRegistrarBeanPostProcessor的代码如下：

public class ErrorPageRegistrarBeanPostProcessor implements BeanPostProcessor, BeanFactoryAware {

    /**
     * 来自BeanPostProcessor的方法，在bean初始化前执行
     */
    @Override
    public Object postProcessBeforeInitialization(Object bean, String beanName)
            throws BeansException {
        if (bean instanceof ErrorPageRegistry) {
            // 如果 bean 是 ErrorPageRegistry
            postProcessBeforeInitialization((ErrorPageRegistry) bean);
        }
        return bean;
    }

    private void postProcessBeforeInitialization(ErrorPageRegistry registry) {
        for (ErrorPageRegistrar registrar : getRegistrars()) {
            // 注册错误页
            registrar.registerErrorPages(registry);
        }
    }

    private Collection<ErrorPageRegistrar> getRegistrars() {
        if (this.registrars == null) {
            // 获取所有的错误页
            this.registrars = new ArrayList<>(this.beanFactory.getBeansOfType(
                    ErrorPageRegistrar.class, false, false).values());
            this.registrars.sort(AnnotationAwareOrderComparator.INSTANCE);
            this.registrars = Collections.unmodifiableList(this.registrars);
        }
        return this.registrars;
    }

    ...
}

我们主要关注postProcessBeforeInitialization的流程：

  1. 如果 bean 的类型是 ErrorPageRegistry，进行第2步
  2. 获取 beanFactory 中所有ErrorPageRegistrar类型的bean，遍历进行第3步
  3. 调用registrar.registerErrorPages(registry)进行错误页操作

这里有两个类需要说明：

  • ErrorPageRegistrar：错误页注册器（让ErrorPageRegistry干活的类）
  • ErrorPageRegistry：错误的注册器类（实际干活的类）

如果我们想要自定义错误页，可以实现ErrorPageRegistry接口：

@Component
public class MyErrorPage implements ErrorPageRegistrar {

    /**
     * 注册错误页
     */
    @Override
    public void registerErrorPages(ErrorPageRegistry errorPageRegistry) {
        // 最终调用的是 ErrorPageRegistry#addErrorPages 进行注册
        errorPageRegistry.addErrorPages(new ErrorPage("/error/page"));
    }
}

2.2 EmbeddedTomcat

进入ServletWebServerFactoryConfiguration.EmbeddedTomcat类：

@Configuration(proxyBeanMethods = false)
class ServletWebServerFactoryConfiguration {

    @Configuration(proxyBeanMethods = false)
    // 条件注解，条件存在时才引入
    @ConditionalOnClass({ Servlet.class, Tomcat.class, UpgradeProtocol.class })
    // 注意 ServletWebServerFactory，我们可以自主实现 tomcat 容器的装配
    @ConditionalOnMissingBean(value = ServletWebServerFactory.class,
        search = SearchStrategy.CURRENT)
    public static class EmbeddedTomcat {

        @Bean
        public TomcatServletWebServerFactory tomcatServletWebServerFactory(
                ObjectProvider<TomcatConnectorCustomizer> connectorCustomizers,
                ObjectProvider<TomcatContextCustomizer> contextCustomizers,
                ObjectProvider<TomcatProtocolHandlerCustomizer<?>> protocolHandlerCustomizers) {
            TomcatServletWebServerFactory factory = new TomcatServletWebServerFactory();
            // 配置一些参数
            factory.getTomcatConnectorCustomizers()
                    .addAll(connectorCustomizers.orderedStream().collect(Collectors.toList()));
            factory.getTomcatContextCustomizers()
                    .addAll(contextCustomizers.orderedStream().collect(Collectors.toList()));
            factory.getTomcatProtocolHandlerCustomizers()
                    .addAll(protocolHandlerCustomizers.orderedStream()
                    .collect(Collectors.toList()));
            return factory;
        }

    }

    ...
}

这个类主要就是返回TomcatServletWebServerFactory bean，可以注入一些connectorCustomizers、contextCustomizers、protocolHandlerCustomizers等参数进行自定义配置，这些参数就是从BeanPostProcessorsRegistrar中来的。

这里有个地方需要提一下，如果不想使用 springboot 提供的TomcatServletWebServerFactory，我们可以自己实现TomcatServletWebServerFactory，像这样：

@Bean
public ServletWebServerFactory servletWebServerFactory() {
    TomcatServletWebServerFactory tomcat = new TomcatServletWebServerFactory();
    // 处理自定义的各种配置
    ...
    return tomcat;
}

这样处理之后，springboot提供的 tomcatServletWebServerFactory 就不会处理了。

其他两个类EmbeddedJetty、EmbeddedUndertow，跟EmbeddedTomcat的处理基本相似，就不多说了。

3. DispatcherServletAutoConfiguration

我们再来看看DispatcherServletAutoConfiguration，关键代码如下：

public class DispatcherServletAutoConfiguration {

    public static final String DEFAULT_DISPATCHER_SERVLET_BEAN_NAME = "dispatcherServlet";

    public static final String DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME
            = "dispatcherServletRegistration";

    @Configuration(proxyBeanMethods = false)
    @Conditional(DefaultDispatcherServletCondition.class)
    @ConditionalOnClass(ServletRegistration.class)

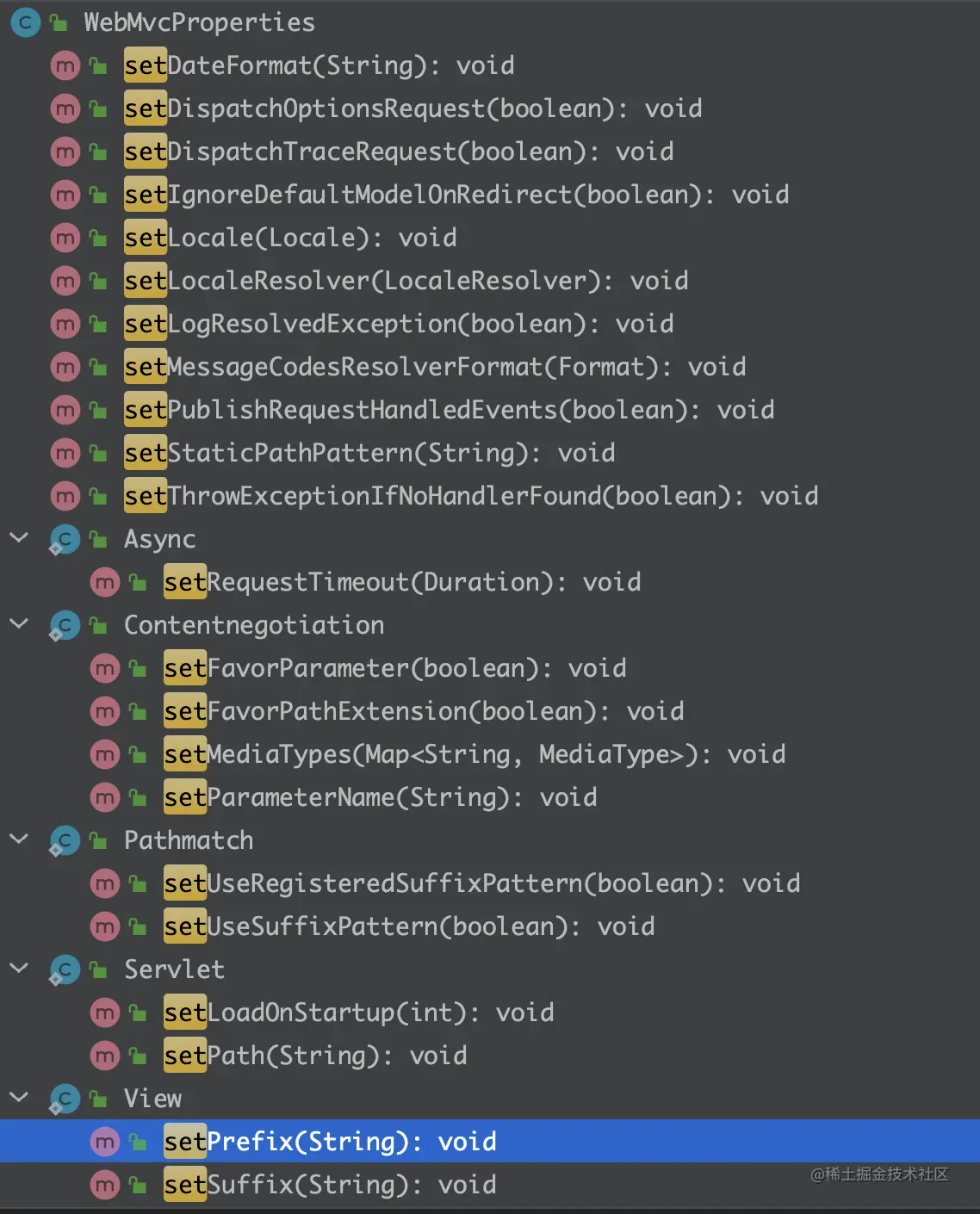

    @EnableConfigurationProperties({ HttpProperties.class, WebMvcProperties.class })
    protected static class DispatcherServletConfiguration {

        /**
         * 大名鼎鼎的 DispatcherServlet.
         * @param httpProperties http属性.
         * @param webMvcProperties webMvc 属性.
         * @return 返回对象
         */
        @Bean(name = DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)
        public DispatcherServlet dispatcherServlet(HttpProperties httpProperties,
                WebMvcProperties webMvcProperties) {
            DispatcherServlet dispatcherServlet = new DispatcherServlet();
            dispatcherServlet.setDispatchOptionsRequest(
                    webMvcProperties.isDispatchOptionsRequest());
            dispatcherServlet.setDispatchTraceRequest(webMvcProperties.isDispatchTraceRequest());
            dispatcherServlet.setThrowExceptionIfNoHandlerFound(
                    webMvcProperties.isThrowExceptionIfNoHandlerFound());
            dispatcherServlet.setPublishEvents(webMvcProperties.isPublishRequestHandledEvents());
            dispatcherServlet.setEnableLoggingRequestDetails(httpProperties.isLogRequestDetails());
            return dispatcherServlet;
        }

        /**
         * 文件上传组件.
         * @param resolver 参数.
         * @return 返回值.
         */
        @Bean
        @ConditionalOnBean(MultipartResolver.class)
        @ConditionalOnMissingBean(name = DispatcherServlet.MULTIPART_RESOLVER_BEAN_NAME)
        public MultipartResolver multipartResolver(MultipartResolver resolver) {
            return resolver;
        }

    }

    /**
     * 生成 DispatcherServletRegistrationBean
     * 它会将dispatcherServlet注册到servlet容器
     */
    @Configuration(proxyBeanMethods = false)
    @Conditional(DispatcherServletRegistrationCondition.class)
    @ConditionalOnClass(ServletRegistration.class)
    @EnableConfigurationProperties(WebMvcProperties.class)
    @Import(DispatcherServletConfiguration.class)
    protected static class DispatcherServletRegistrationConfiguration {

        @Bean(name = DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME)
        @ConditionalOnBean(value = DispatcherServlet.class,
                name = DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)
        public DispatcherServletRegistrationBean dispatcherServletRegistration(
                DispatcherServlet dispatcherServlet, WebMvcProperties webMvcProperties,
                ObjectProvider<MultipartConfigElement> multipartConfig) {
            // 生成 DispatcherServletRegistrationBean（它会将dispatcherServlet注册到servlet容器）
            DispatcherServletRegistrationBean registration =
                    new DispatcherServletRegistrationBean(dispatcherServlet,
                    webMvcProperties.getServlet().getPath());
            registration.setName(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME);
            registration.setLoadOnStartup(webMvcProperties.getServlet().getLoadOnStartup());
            multipartConfig.ifAvailable(registration::setMultipartConfig);
            return registration;
        }

    }

    ...

}

它主要是注册了3个bean：

  • dispatcherServlet：springMvc 的请求入口，url 请求由此进入，然后转化到 requestMapping
  • multipartResolver：处理文件上传
  • dispatcherServletRegistration：处理dispatcherServlet的注册，它会将dispatcherServlet注册到servlet容器中（关于springboot注册servlet组件的内容，可以参考springboot web应用之servlet 组件的注册流程）

4. WebMvcAutoConfiguration

继续看WebMvcAutoConfiguration:

@Configuration(proxyBeanMethods = false)
...
// 如果没有自定义WebMvc的配置类，则使用本配置
@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)
...
public class WebMvcAutoConfiguration {
    ...
}

WebMvcAutoConfiguration上有个注解需要注意下：

@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)

这行代码表明了WebMvcAutoConfiguration只有在WebMvcConfigurationSupport类型的bean不存在时，它才会进行自动装配。

WebMvcConfigurationSupport是个啥呢？在springmvc demo 与 @EnableWebMvc 注解一文中，我们提到引入springMvc组件的两种方式：

  • 使用@EnableWebMvc注解
  • 继承WebMvcConfigurationSupport类

而这种方法最终都会向spring容器中引入类型为WebMvcConfigurationSupport的 bean，因此在springboot项目中，如果我们进行了以上两种操作之一，那么就引入了WebMvcConfigurationSupport，WebMvcAutoConfiguration的自动装配就不执行了。

我们再来看看WebMvcAutoConfiguration装配的bean。

4.1 WebMvcAutoConfigurationAdapter

WebMvcAutoConfigurationAdapter是WebMvcAutoConfiguration的内部类，定义如下：

@Configuration(proxyBeanMethods = false)
// 引入了 EnableWebMvcConfiguration
@Import(EnableWebMvcConfiguration.class)
@EnableConfigurationProperties({ WebMvcProperties.class, ResourceProperties.class })
@Order(0)
public static class WebMvcAutoConfigurationAdapter implements WebMvcConfigurer {
    ...
}

它实现了WebMvcConfigurer，且引入了EnableWebMvcConfiguration。WebMvcConfigurer可以用来处理springMvc的配置，只需要重写其中对应的方法即可，EnableWebMvcConfiguration从名称来看，是“启用webMvc配置”，它也是WebMvcAutoConfiguration的内部类，我们来看看它做了啥：

@Configuration(proxyBeanMethods = false)
public static class EnableWebMvcConfiguration extends DelegatingWebMvcConfiguration
        implements ResourceLoaderAware {
    ...
}

可以看到，它是DelegatingWebMvcConfiguration的子类，而DelegatingWebMvcConfiguration又是个啥呢？我们也来看看它的定义：

@Configuration(proxyBeanMethods = false)
public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport {
    ...
}

DelegatingWebMvcConfiguration是由 springMvc 提供的，可以看到，它实现了WebMvcConfigurationSupport，因此，springboot 通过@Import(EnableWebMvcConfiguration.class)的方式向spring容器中引入了WebMvcConfigurationSupport类型的bean。

事实上，DelegatingWebMvcConfiguration 正是@EnableWebMvc引入的bean：

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
// 引入了 DelegatingWebMvcConfiguration
@Import(DelegatingWebMvcConfiguration.class)
public @interface EnableWebMvc {
    ...
}

springbot 不直接引入DelegatingWebMvcConfiguration而是引入它的子类EnableWebMvcConfiguration，虽然它是做了一些自定义配置的。

关于EnableWebMvcConfiguration配置了些啥，我们一会再分析，继续分析WebMvcAutoConfigurationAdapter的引入bean：

/**
 * http 消息转换器.
 */
@Override
public void configureMessageConverters(List<HttpMessageConverter<?>> converters) {
    this.messageConvertersProvider.ifAvailable(
            (customConverters) -> converters.addAll(customConverters.getConverters()));
}

/**
 * 视图解析器.
 */
@Bean
@ConditionalOnMissingBean
public InternalResourceViewResolver defaultViewResolver() {
    InternalResourceViewResolver resolver = new InternalResourceViewResolver();
    resolver.setPrefix(this.mvcProperties.getView().getPrefix());
    resolver.setSuffix(this.mvcProperties.getView().getSuffix());
    return resolver;
}

@Bean
@ConditionalOnBean(View.class)
@ConditionalOnMissingBean
public BeanNameViewResolver beanNameViewResolver() {
    BeanNameViewResolver resolver = new BeanNameViewResolver();
    resolver.setOrder(Ordered.LOWEST_PRECEDENCE - 10);
    return resolver;
}

@Bean
@ConditionalOnBean(ViewResolver.class)
@ConditionalOnMissingBean(name = "viewResolver", value = ContentNegotiatingViewResolver.class)
public ContentNegotiatingViewResolver viewResolver(BeanFactory beanFactory) {
    ContentNegotiatingViewResolver resolver = new ContentNegotiatingViewResolver();
    resolver.setContentNegotiationManager(beanFactory.getBean(ContentNegotiationManager.class));
    resolver.setOrder(Ordered.HIGHEST_PRECEDENCE);
    return resolver;
}

/**
 * 引入国际化配置.
 */
@Bean
@ConditionalOnMissingBean
@ConditionalOnProperty(prefix = "spring.mvc", name = "locale")
public LocaleResolver localeResolver() {
    if (this.mvcProperties.getLocaleResolver() == WebMvcProperties.LocaleResolver.FIXED) {
        return new FixedLocaleResolver(this.mvcProperties.getLocale());
    }
    AcceptHeaderLocaleResolver localeResolver = new AcceptHeaderLocaleResolver();
    localeResolver.setDefaultLocale(this.mvcProperties.getLocale());
    return localeResolver;
}

/**
 * 静态资源映射
 */
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
    if (!this.resourceProperties.isAddMappings()) {
        logger.debug("Default resource handling disabled");
        return;
    }
    // 映射webjars
    Duration cachePeriod = this.resourceProperties.getCache().getPeriod();
    CacheControl cacheControl = this.resourceProperties.getCache()
            .getCachecontrol().toHttpCacheControl();
    if (!registry.hasMappingForPattern("/webjars/**")) {
        customizeResourceHandlerRegistration(registry.addResourceHandler("/webjars/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/")
                .setCachePeriod(getSeconds(cachePeriod)).setCacheControl(cacheControl));
    }
    // 映射静态资源路径
    String staticPathPattern = this.mvcProperties.getStaticPathPattern();
    if (!registry.hasMappingForPattern(staticPathPattern)) {
        customizeResourceHandlerRegistration(registry.addResourceHandler(staticPathPattern)
                // staticLocations 默认为 classpath:[/META-INF/resources/,
                // /resources/, /static/, /public/]
                .addResourceLocations(getResourceLocations(
                    this.resourceProperties.getStaticLocations()))
                .setCachePeriod(getSeconds(cachePeriod)).setCacheControl(cacheControl));
    }
}

可以看到，WebMvcAutoConfigurationAdapter引入了三类bean:

  1. http消息转换器
  2. 视图解析器
  3. 国际化配置

这里我们重点来看看http消息转换器。在使用 springMvc 时，通过在Controller类或其中的方法上标记@ResponseBody，返回参数就会转换为json，这就是http消息转换器所做的工作了。springboot 默认的 jaon 处理是jackson，它的实例化在JacksonAutoConfiguration 中，装配为HttpMessageConverter的处理在JacksonHttpMessageConvertersConfiguration，这里就不展开了。

在上面 的分析中，多次出现了WebMvcProperties配置，我们来看看它是个啥：

@ConfigurationProperties(prefix = "spring.mvc")
public class WebMvcProperties {
    ...
}

很明显，它是个配置类 ，可以看到，它的配置前缀为 spring.mvc，支持的配置如下：

4.2 EnableWebMvcConfiguration

我们来看看EnableWebMvcConfiguration自定义的配置：

public static class EnableWebMvcConfiguration extends DelegatingWebMvcConfiguration
        implements ResourceLoaderAware {

    /**
     * 配置适配器
     */
    @Bean
    @Override
    public RequestMappingHandlerAdapter requestMappingHandlerAdapter(
            @Qualifier("mvcContentNegotiationManager")
                ContentNegotiationManager contentNegotiationManager,
            @Qualifier("mvcConversionService") FormattingConversionService conversionService,
            @Qualifier("mvcValidator") Validator validator) {
        RequestMappingHandlerAdapter adapter = super.requestMappingHandlerAdapter(
                contentNegotiationManager, conversionService, validator);
        adapter.setIgnoreDefaultModelOnRedirect(this.mvcProperties == null
                || this.mvcProperties.isIgnoreDefaultModelOnRedirect());
        return adapter;
    }

    /**
     * 路径映射
     */
    @Bean
    @Primary
    @Override
    public RequestMappingHandlerMapping requestMappingHandlerMapping(
            @Qualifier("mvcContentNegotiationManager")
                    ContentNegotiationManager contentNegotiationManager,
            @Qualifier("mvcConversionService") FormattingConversionService conversionService,
            @Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {
        // Must be @Primary for MvcUriComponentsBuilder to work
        return super.requestMappingHandlerMapping(contentNegotiationManager, conversionService,
                resourceUrlProvider);
    }

    /**
     * 欢迎页
     */
    @Bean
    public WelcomePageHandlerMapping welcomePageHandlerMapping(
            ApplicationContext applicationContext,
            FormattingConversionService mvcConversionService,
            ResourceUrlProvider mvcResourceUrlProvider) {
        WelcomePageHandlerMapping welcomePageHandlerMapping = new WelcomePageHandlerMapping(
                new TemplateAvailabilityProviders(applicationContext), applicationContext,
                getWelcomePage(), this.mvcProperties.getStaticPathPattern());
        welcomePageHandlerMapping.setInterceptors(getInterceptors(
                mvcConversionService, mvcResourceUrlProvider));
        return welcomePageHandlerMapping;
    }

    /**
     * mvc配置，添加了日期格式的处理
     */
    @Bean
    @Override
    public FormattingConversionService mvcConversionService() {
        WebConversionService conversionService
            = new WebConversionService(this.mvcProperties.getDateFormat());
        addFormatters(conversionService);
        return conversionService;
    }

    /**
     * 参数校验器
     */
    @Bean
    @Override
    public Validator mvcValidator() {
        if (!ClassUtils.isPresent("javax.validation.Validator", getClass().getClassLoader())) {
            return super.mvcValidator();
        }
        return ValidatorAdapter.get(getApplicationContext(), getValidator());
    }

    /**
     * 异常处理
     */
    @Override
    protected ExceptionHandlerExceptionResolver createExceptionHandlerExceptionResolver() {
        if (this.mvcRegistrations != null
                && this.mvcRegistrations.getExceptionHandlerExceptionResolver() != null) {
            return this.mvcRegistrations.getExceptionHandlerExceptionResolver();
        }
        return super.createExceptionHandlerExceptionResolver();
    }

    @Override
    protected void extendHandlerExceptionResolvers(
                List<HandlerExceptionResolver> exceptionResolvers) {
        super.extendHandlerExceptionResolvers(exceptionResolvers);
        if (this.mvcProperties.isLogResolvedException()) {
            for (HandlerExceptionResolver resolver : exceptionResolvers) {
                if (resolver instanceof AbstractHandlerExceptionResolver) {
                    ((AbstractHandlerExceptionResolver) resolver).setWarnLogCategory(
                            resolver.getClass().getName());
                }
            }
        }
    }
    ...
}

相比于原生的springMvc，它额外配置了适配器、路径映射、参数校验、异常处理等。

5. 总结

  1. webMvc在装配时，先装配 ServletWebServerFactoryAutoConfiguration，再装配DispatcherServletAutoConfiguration，最后装配 WebMvcAutoConfiguration
  2. ServletWebServerFactoryAutoConfiguration 处理 servlet 容器的装配，DispatcherServletAutoConfiguration处理DispatcherServlet的装配，WebMvcAutoConfiguration处理 webMvc 组件（消息转换器、视图解析器、静态资源映射等）的装配
  3. 如果向spring容器中引入了WebMvcConfigurationSupport， WebMvcAutoConfiguration 的装配操作将不会执行
  4. servlet的相关配置以servlet为前缀，webMvc的配置以spring.mvc为前缀，我们可以在配置文件（一般为application.properties/application.yml）中进行配置

本文原文链接：my.oschina.net/funcy/blog/… ，限于作者个人水平，文中难免有错误之处，欢迎指正！原创不易，商业转载请联系作者获得授权，非商业转载请注明出处。

【springboot源码分析】springboot源码分析系列文章汇总

avatar
文章
阅读
粉丝
