安装k8s组件

1.下载k8s组件

wget https://dl.k8s.io/v1.27.2/kubernetes-server-linux-amd64.tar.gz

2.解压k8s组件，查看版本

#解压
tar -xf kubernetes-server-linux-amd64.tar.gz  --strip-components=3 -C /usr/local/bin kubernetes/server/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy}

#查看版本
kubelet --version
#结果
#Kubernetes v1.27.2

#复制组件master02上执行
scp k8s@master01:/usr/local/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy} /usr/local/bin

#复制组件master03上执行
scp k8s@master01:/usr/local/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy} /usr/local/bin

3.生成k8s组件证书

#在master01上执行
cat > ca-csr.json <<EOF
{
  "CN": "kubernetes",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "Kubernetes",
      "OU": "Kubernetes-manual"
    }
  ],
  "ca": {
    "expiry": "876000h"
  }
}
EOF

#master01上生成根证书
cfssl gencert -initca ca-csr.json | cfssljson -bare /etc/kubernetes/pki/ca

3.1 生成apiserver证书

#master01上执行
cat > ca-config.json <<EOF
{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "kubernetes": {
        "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ],
        "expiry": "876000h"
      }
    }
  }
}
EOF

#master01上执行
cat > apiserver-csr.json <<EOF
{
  "CN": "kube-apiserver",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "Kubernetes",
      "OU": "Kubernetes-manual"
    }
  ]
}
EOF

#master01上执行
cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem -config=ca-config.json -hostname=10.96.0.1,192.188.3.240,127.0.0.1,kubernetes,kubernetes.default,kubernetes.default.svc,kubernetes.default.svc.cluster,kubernetes.default.svc.cluster.local,192.188.3.200,192.188.3.201,192.188.3.202 -profile=kubernetes apiserver-csr.json | cfssljson -bare /etc/kubernetes/pki/apiserver

3.2生成apiserver聚合证书

#master01上执行
cat > front-proxy-ca-csr.json <<EOF
{
  "CN": "kubernetes",
  "key": {
     "algo": "rsa",
     "size": 2048
  }
}
EOF

#master01上执行
cfssl gencert -initca front-proxy-ca-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-ca

#master01上执行
cat > front-proxy-client-csr.json <<EOF
{
  "CN": "front-proxy-client",
  "key": {
     "algo": "rsa",
     "size": 2048
  }
}
EOF

#master01上执行
cfssl gencert -ca=/etc/kubernetes/pki/front-proxy-ca.pem -ca-key=/etc/kubernetes/pki/front-proxy-ca-key.pem -config=ca-config.json -profile=kubernetes front-proxy-client-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-client

3.3 生成controller-manager证书

#master01上执行
cat > manager-csr.json <<EOF
{
  "CN": "system:kube-controller-manager",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:kube-controller-manager",
      "OU": "Kubernetes-manual"
    }
  ]
}
EOF

#master01上执行
cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem  -config=ca-config.json -profile=kubernetes manager-csr.json | cfssljson -bare /etc/kubernetes/pki/controller-manager

3.4 设置集群

#master01上执行
# set-cluster：设置一个集群项，注意ip修改为高可以的虚IP地址
kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://192.188.3.240:8443 --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

#master01上执行set-credentials 设置一个用户项
kubectl config set-credentials system:kube-controller-manager --client-certificate=/etc/kubernetes/pki/controller-manager.pem --client-key=/etc/kubernetes/pki/controller-manager-key.pem --embed-certs=true --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

#master01上执行设置一个环境项，一个上下文
kubectl config set-context system:kube-controller-manager@kubernetes --cluster=kubernetes --user=system:kube-controller-manager --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

#master01上执行设置上下文默认环境
kubectl config use-context system:kube-controller-manager@kubernetes --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

3.5 生成scheduler的证书和配置文件

#master01上执行
cat > scheduler-csr.json <<EOF
{
  "CN": "system:kube-scheduler",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:kube-scheduler",
      "OU": "Kubernetes-manual"
    }
  ]
}
EOF
#master01上执行

#master01上执行
cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   scheduler-csr.json | cfssljson -bare /etc/kubernetes/pki/scheduler

#master01上执行，注意ip修改为高可以的虚IP地址
kubectl config set-cluster kubernetes \
     --certificate-authority=/etc/kubernetes/pki/ca.pem \
     --embed-certs=true \
     --server=https://192.188.3.240:8443 \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

#master01上执行
kubectl config set-credentials system:kube-scheduler \
     --client-certificate=/etc/kubernetes/pki/scheduler.pem \
     --client-key=/etc/kubernetes/pki/scheduler-key.pem \
     --embed-certs=true \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

#master01上执行
kubectl config set-context system:kube-scheduler@kubernetes \
     --cluster=kubernetes \
     --user=system:kube-scheduler \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

#master01上执行
kubectl config use-context system:kube-scheduler@kubernetes \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

3.6 生成admin证书和配置文件

#master01上执行
cat > admin-csr.json <<EOF
{
  "CN": "admin",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:masters",
      "OU": "Kubernetes-manual"
    }
  ]
}
EOF

#master01上执行
 cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   admin-csr.json | cfssljson -bare /etc/kubernetes/pki/admin

#master01上执行 注意ip修改为高可以的虚IP地址
kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://192.188.3.240:8443 --kubeconfig=/etc/kubernetes/admin.kubeconfig

#master01上执行
kubectl config set-credentials kubernetes-admin --client-certificate=/etc/kubernetes/pki/admin.pem --client-key=/etc/kubernetes/pki/admin-key.pem --embed-certs=true --kubeconfig=/etc/kubernetes/admin.kubeconfig

#master01上执行
kubectl config set-context kubernetes-admin@kubernetes --cluster=kubernetes     --user=kubernetes-admin --kubeconfig=/etc/kubernetes/admin.kubeconfig


#master01上执行
kubectl config use-context kubernetes-admin@kubernetes --kubeconfig=/etc/kubernetes/admin.kubeconfig

3.7 创建一个ServiceAccount的根证书和key

#master01上执行
openssl genrsa -out /etc/kubernetes/pki/sa.key 2048
openssl rsa -in /etc/kubernetes/pki/sa.key -pubout -out /etc/kubernetes/pki/sa.pub

3.8 将master01上的证书复制到master02和03上

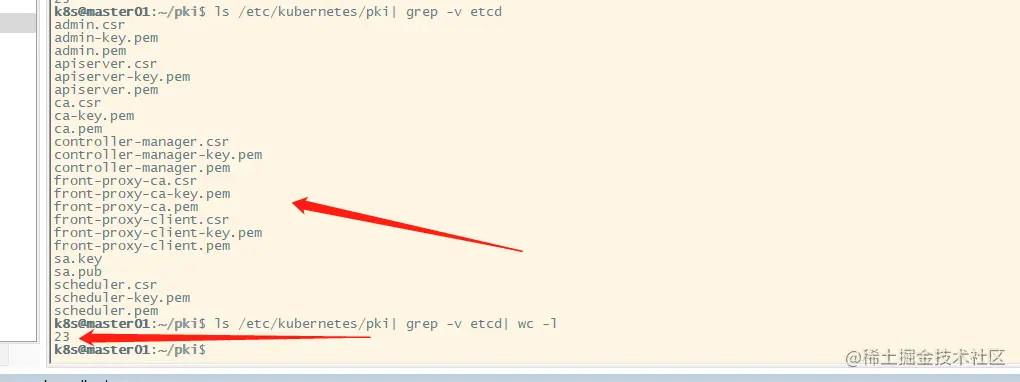

#master02和master03上都执行,复制过去一共有23个
scp k8s@master01:/etc/kubernetes/pki/*.pem /etc/kubernetes/pki/
scp k8s@master01:/etc/kubernetes/pki/*.csr /etc/kubernetes/pki/
scp k8s@master01:/etc/kubernetes/pki/sa.* /etc/kubernetes/pki/

scp k8s@master01:/etc/kubernetes/*.kubeconfig /etc/kubernetes/


3.9 k8s组件配置

3.9.1 创建目录：master01、master02、master03上都要执行

sudo chmod 777 /etc/systemd/system/ && sudo chmod 777 /var/lib && sudo chmod 777 /var/log/

mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

3.9.2 创建kube-apiserver启动服务

注意本文档使用的k8s service网段为10.96.0.0/12，该网段不能和宿主机的网段、Pod网段的重复，请按需修改。注意修改高可以虚IP地址和service网段地址。

启动参数logtostderr会报错，后续查找原因再补上

#在master01、master02、master03上执行
sudo chmod 777 /lib/systemd/system

#master01上执行
cat > /lib/systemd/system/kube-apiserver.service <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \\
      --v=2  \\
      #--logtostderr=true  \\
      --allow-privileged=true  \\
      --bind-address=0.0.0.0  \\
      --secure-port=6443  \\
      --advertise-address=192.188.3.200 \\
      --service-cluster-ip-range=10.96.0.0/12  \\
      --service-node-port-range=30000-32767  \\
      --etcd-servers=https://192.188.3.200:2379,https://192.188.3.201:2379,https://192.188.3.202:2379 \\
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \\
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \\
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \\
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \\
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \\
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \\
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \\
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \\
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \\
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \\
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \\
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \\
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \\
      --authorization-mode=Node,RBAC  \\
      --enable-bootstrap-token-auth=true  \\
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \\
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \\
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \\
      --requestheader-allowed-names=aggregator  \\
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \\
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

#master02上执行
cat > /lib/systemd/system/kube-apiserver.service <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \\
      --v=2  \\
      --logtostderr=true  \\
      --allow-privileged=true  \\
      --bind-address=0.0.0.0  \\
      --secure-port=6443  \\
      --advertise-address=192.188.3.201 \\
      --service-cluster-ip-range=10.96.0.0/12  \\
      --service-node-port-range=30000-32767  \\
      --etcd-servers=https://192.188.3.200:2379,https://192.188.3.201:2379,https://192.188.3.202:2379 \\
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \\
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \\
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \\
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \\
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \\
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \\
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \\
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \\
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \\
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \\
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \\
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \\
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \\
      --authorization-mode=Node,RBAC  \\
      --enable-bootstrap-token-auth=true  \\
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \\
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \\
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \\
      --requestheader-allowed-names=aggregator  \\
      --requestheader-group-headers=X-Remote-Group  \\
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \\
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

#master03上执行
cat > /lib/systemd/system/kube-apiserver.service <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \\
      --v=2  \\
      --logtostderr=true  \\
      --allow-privileged=true  \\
      --bind-address=0.0.0.0  \\
      --secure-port=6443  \\
      --advertise-address=192.188.3.202 \\
      --service-cluster-ip-range=10.96.0.0/12  \\
      --service-node-port-range=30000-32767  \\
      --etcd-servers=https://192.188.3.200:2379,https://192.188.3.201:2379,https://192.188.3.202:2379 \\
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \\
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \\
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \\
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \\
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \\
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \\
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \\
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \\
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \\
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \\
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \\
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \\
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \\
      --authorization-mode=Node,RBAC  \\
      --enable-bootstrap-token-auth=true  \\
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \\
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \\
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \\
      --requestheader-allowed-names=aggregator  \\
      --requestheader-group-headers=X-Remote-Group  \\
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \\
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

3.9.3 启动apiserver服务

#master01、master02、master03都执行
sudo systemctl daemon-reload && sudo systemctl enable --now kube-apiserver

3.9.4 配置### ControllerManager启动服务

注意本文档使用的k8s Pod网段为172.6.0.0/20，该网段不能和宿主机的网段、k8s Service网段的重复，我这里共4096个地址。

#将/etc/kubernetes/controller-manager.kubeconfig复制到master02、master03
#master02、master03都执行，不用执行了之前执行过了
#scp k8s@master01:/etc/kubernetes/*.kubeconfig /etc/kubernetes/

#master01、master02、master03上都执行
cat > /lib/systemd/system/kube-controller-manager.service <<EOF
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-controller-manager \\
      --v=2 \\
      --logtostderr=true \\
      --bind-address=127.0.0.1 \\
      --root-ca-file=/etc/kubernetes/pki/ca.pem \\
      --cluster-signing-cert-file=/etc/kubernetes/pki/ca.pem \\
      --cluster-signing-key-file=/etc/kubernetes/pki/ca-key.pem \\
      --service-account-private-key-file=/etc/kubernetes/pki/sa.key \\
      --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig \\
      --leader-elect=true \\
      --use-service-account-credentials=true \\
      --node-monitor-grace-period=40s \\
      --node-monitor-period=5s \\
      --pod-eviction-timeout=2m0s \\
      --controllers=*,bootstrapsigner,tokencleaner \\
      --allocate-node-cidrs=true \\
      --cluster-cidr=172.4.0.0/20 \\
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem \\
      --node-cidr-mask-size=24

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target
EOF

#master01、master02、master03上都执行
sudo systemctl daemon-reload && sudo systemctl enable --now kube-controller-manager

3.9.5 配置scheduler启动服务

#master01、master02、master03都执行

cat > /lib/systemd/system/kube-scheduler.service <<EOF
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-scheduler \\
      --v=2 \\
      --logtostderr=true \\
      --bind-address=127.0.0.1 \\
      --leader-elect=true \\
      --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target
EOF

#启动scheduler
sudo systemctl daemon-reload && sudo systemctl enable --now kube-scheduler

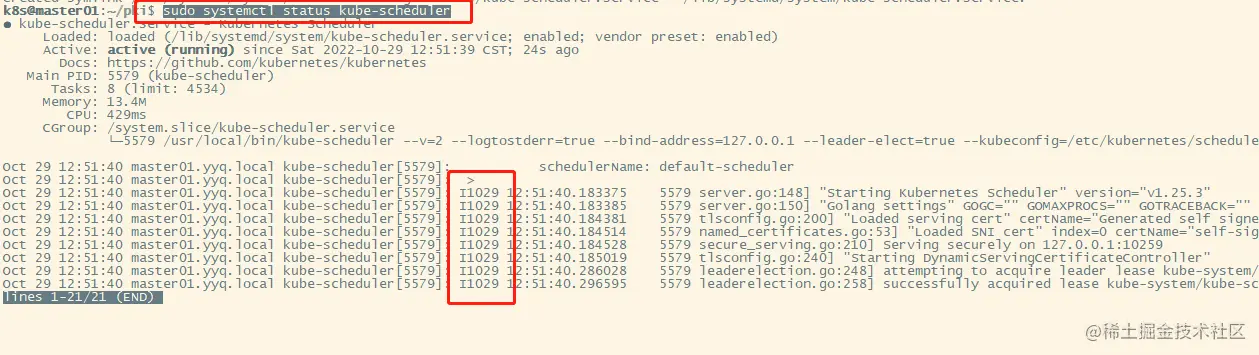

#查看启动状态
sudo systemctl status kube-scheduler


3.9.6 TLS Bootstrapping配置

在master01上创建

cat > bootstrap.secret.yaml <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: bootstrap-token-c8ad9c
  namespace: kube-system
type: bootstrap.kubernetes.io/token
stringData:
  description: "The default bootstrap token generated by 'kubelet '."
  token-id: c8ad9c
  token-secret: 2e4d610cf3e7426e
  usage-bootstrap-authentication: "true"
  usage-bootstrap-signing: "true"
  auth-extra-groups:  system:bootstrappers:default-node-token,system:bootstrappers:worker,system:bootstrappers:ingress

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubelet-bootstrap
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:node-bootstrapper
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:bootstrappers:default-node-token
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: node-autoapprove-bootstrap
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:certificates.k8s.io:certificatesigningrequests:nodeclient
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:bootstrappers:default-node-token
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: node-autoapprove-certificate-rotation
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:certificates.k8s.io:certificatesigningrequests:selfnodeclient
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:nodes
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:kube-apiserver-to-kubelet
rules:
  - apiGroups:
      - ""
    resources:
      - nodes/proxy
      - nodes/stats
      - nodes/log
      - nodes/spec
      - nodes/metrics
    verbs:
      - "*"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:kube-apiserver
  namespace: ""
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:kube-apiserver-to-kubelet
subjects:
  - apiGroup: rbac.authorization.k8s.io
    kind: User
    name: kube-apiserver
EOF

# #master01上执行，注意，如果不是高可用集群，192.188.3.240:8443改为master01的地址
kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://192.188.3.240:8443 --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
#Cluster "kubernetes" set.

#master01上执行
kubectl config set-credentials tls-bootstrap-token-user --token=c8ad9c.2e4d610cf3e7426e --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
#User "tls-bootstrap-token-user" set.

#master01上执行
kubectl config set-context tls-bootstrap-token-user@kubernetes --cluster=kubernetes --user=tls-bootstrap-token-user --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
#Context "tls-bootstrap-token-user@kubernetes" modified.

#master01上执行
kubectl config use-context tls-bootstrap-token-user@kubernetes --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
#Switched to context "tls-bootstrap-token-user@kubernetes".

#修改文件夹权限
#master01上执行
mkdir -p /home/k8s/.kube ; cp /etc/kubernetes/admin.kubeconfig /home/k8s/.kube/config

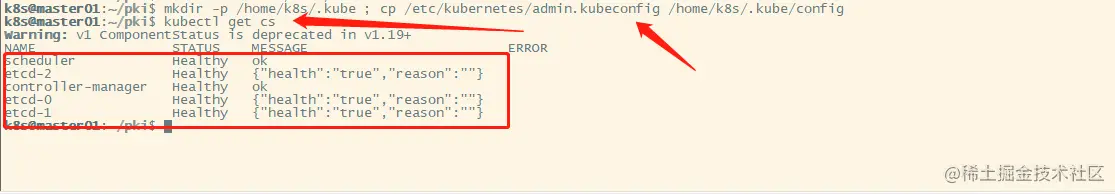

#查看资源状态
#master01上执行
kubectl get cs


#master01上执行创建bootstrap
kubectl create -f bootstrap.secret.yaml

#将master01上的bootstrap-kubelet.kubeconfig复制到master02、master03上
scp k8s@master01:/etc/kubernetes/bootstrap-kubelet.kubeconfig /etc/kubernetes/

#master02、master03上执行
mkdir -p /home/k8s/.kube ; cp /etc/kubernetes/admin.kubeconfig /home/k8s/.kube/config

4. 配置kubelet

4.1 配置kubelet启动服务

#master01、master02、master03上都要执行
cat > /lib/systemd/system/kubelet.service <<EOF
[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes
After=containerd.service
Requires=containerd.service

[Service]
ExecStart=/usr/local/bin/kubelet

Restart=always
StartLimitInterval=0
RestartSec=10

[Install]
WantedBy=multi-user.target
EOF

4.2 配置kubelet的配置文件

#master01上执行
cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=192.188.3.200"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet \$KUBELET_KUBECONFIG_ARGS \$KUBELET_CONFIG_ARGS \$KUBELET_SYSTEM_ARGS \$KUBELET_EXTRA_ARGS \$KUBELET_RINTIME
EOF

#master02上执行
cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=192.188.3.201"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet \$KUBELET_KUBECONFIG_ARGS \$KUBELET_CONFIG_ARGS \$KUBELET_SYSTEM_ARGS \$KUBELET_EXTRA_ARGS \$KUBELET_RINTIME
EOF

#master03上执行
cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=192.188.3.202"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet \$KUBELET_KUBECONFIG_ARGS \$KUBELET_CONFIG_ARGS \$KUBELET_SYSTEM_ARGS \$KUBELET_EXTRA_ARGS \$KUBELET_RINTIME
EOF

4.3 配置

#master01、master02、master03上都要执行

cat > /etc/kubernetes/kubelet-conf.yml <<EOF
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
cgroupDriver: systemd
cgroupsPerQOS: true
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
containerLogMaxFiles: 5
containerLogMaxSize: 10Mi
contentType: application/vnd.kubernetes.protobuf
cpuCFSQuota: true
cpuManagerPolicy: none
cpuManagerReconcilePeriod: 10s
enableControllerAttachDetach: true
enableDebuggingHandlers: true
enforceNodeAllocatable:
- pods
eventBurst: 10
eventRecordQPS: 5
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
evictionPressureTransitionPeriod: 5m0s
failSwapOn: true
fileCheckFrequency: 20s
hairpinMode: promiscuous-bridge
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 20s
imageGCHighThresholdPercent: 85
imageGCLowThresholdPercent: 80
imageMinimumGCAge: 2m0s
iptablesDropBit: 15
iptablesMasqueradeBit: 14
kubeAPIBurst: 10
kubeAPIQPS: 5
makeIPTablesUtilChains: true
maxOpenFiles: 1000000
maxPods: 110
nodeStatusUpdateFrequency: 10s
oomScoreAdj: -999
podPidsLimit: -1
registryBurst: 10
registryPullQPS: 5
resolvConf: /etc/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 2m0s
serializeImagePulls: true
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 4h0m0s
syncFrequency: 1m0s
volumeStatsAggPeriod: 1m0s
EOF

#master01、master02、master03都要执行，启动服务
sudo systemctl daemon-reload && sudo systemctl enable --now kubelet
#查看服务状态
sudo systemctl status kubelet

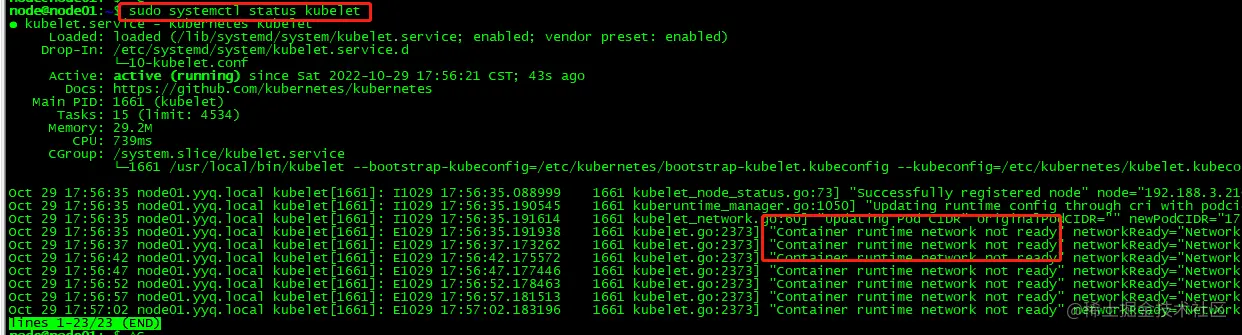

出现这个报错是正常的，因为网络组件没有安装 image.png

4.4查看集群节点状态

#master01
kubectl get nodes

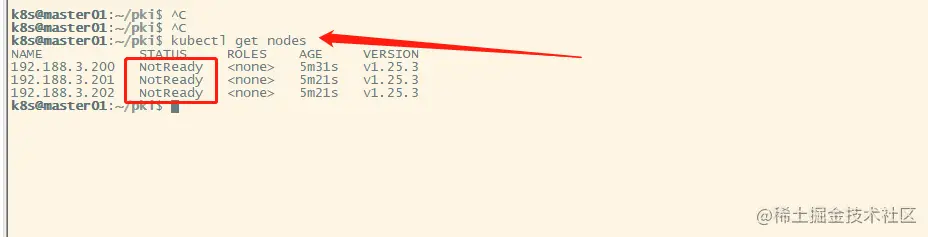

出现NotReady是正常 image.png

5. 配置kube-proxy

5.1 创建kube-proxy的访问权限

#master01上执行
kubectl -n kube-system create serviceaccount kube-proxy

#master01上执行
kubectl create clusterrolebinding system:kube-proxy --clusterrole system:node-proxier --serviceaccount kube-system:kube-proxy

#master01上执行
cat > kube-proxy-scret.yml <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: kube-proxy
  namespace: kube-system
  annotations:
    kubernetes.io/service-account.name: "kube-proxy"
type: kubernetes.io/service-account-token
EOF


#master01上执行
kubectl apply -f kube-proxy-scret.yml

#master01上执行
JWT_TOKEN=$(kubectl -n kube-system get secret/kube-proxy \ --output=jsonpath='{.data.token}' | base64 -d)

#master01上执行
kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://192.188.3.240:8443  --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

#master01上执行
kubectl config set-credentials kubernetes --token=${JWT_TOKEN} --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

#master01上执行
kubectl config set-context kubernetes --cluster=kubernetes --user=kubernetes --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

#master01上执行
kubectl config use-context kubernetes --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

5.2 配置kube-proxy启动服务

#master01、master02、master03都执行
cat > /etc/kubernetes/kube-proxy.conf <<EOF
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
clientConnection:
  acceptContentTypes: ""
  burst: 10
  contentType: application/vnd.kubernetes.protobuf
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
  qps: 5
clusterCIDR: 172.4.0.0/20
configSyncPeriod: 15m0s
conntrack:
  max: null
  maxPerCore: 32768
  min: 131072
  tcpCloseWaitTimeout: 1h0m0s
  tcpEstablishedTimeout: 24h0m0s
enableProfiling: false
healthzBindAddress: 0.0.0.0:10256
hostnameOverride: ""
iptables:
  masqueradeAll: false
  masqueradeBit: 14
  minSyncPeriod: 0s
  syncPeriod: 30s
ipvs:
  masqueradeAll: true
  minSyncPeriod: 5s
  scheduler: "rr"
  syncPeriod: 30s
kind: KubeProxyConfiguration
metricsBindAddress: 127.0.0.1:10249
mode: "ipvs"
nodePortAddresses: null
oomScoreAdj: -999
portRange: ""
udpIdleTimeout: 250ms
EOF

#master01、master02、master03都执行
cat > /lib/systemd/system/kube-proxy.service <<EOF
[Unit]
Description=Kubernetes Kube Proxy
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-proxy \\
  --config=/etc/kubernetes/kube-proxy.conf \\
  --v=2

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target
EOF

#master01、master02、master03都执行
sudo systemctl daemon-reload && sudo systemctl enable --now kube-proxy

#查看kube-proxy状态
sudo systemctl status kube-proxy

6.在node节点安装kubelet和kube-proxy

6.1 复制证书和k8s软件

#node01,node02,node03上都执行
#将组件复制到node
scp k8s@master01:/usr/local/bin/kube{let,-proxy} /usr/local/bin/
#创建cni文件夹
sudo chmod 777 /opt && mkdir -p /opt/cni/bin

6.2 复制etcd证书

#node01,node02,node03上都执行
#创建目录
mkdir /etc/etcd/ssl -p && mkdir /etc/kubernetes/pki/etcd -p
#复制证书
scp k8s@master01:/etc/etcd/ssl/*.pem /etc/etcd/ssl
#创建连接
ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/

6.4 复制k8s证书和配置文件

#node01,node02,node03上都执行
mkdir -p /etc/kubernetes/pki
scp k8s@master01:/etc/kubernetes/pki/ca.pem /etc/kubernetes/pki
scp k8s@master01:/etc/kubernetes/pki/ca-key.pem /etc/kubernetes/pki
scp k8s@master01:/etc/kubernetes/pki/front-proxy-ca.pem /etc/kubernetes/pki
scp k8s@master01:/etc/kubernetes/bootstrap-kubelet.kubeconfig /etc/kubernetes

6.5 配置kubelet

#node01,node02,node03上都执行
sudo chmod 777 /etc/systemd/system && sudo chmod 777 /var/lib && sudo chmod 777 /var/log

mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

sudo chmod 777 /lib/systemd/system
scp k8s@master01:/lib/systemd/system/kubelet.service /lib/systemd/system/

#node01上执行
cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=192.188.3.210"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet \$KUBELET_KUBECONFIG_ARGS \$KUBELET_CONFIG_ARGS \$KUBELET_SYSTEM_ARGS \$KUBELET_EXTRA_ARGS \$KUBELET_RINTIME
EOF

#node02上执行
cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=192.188.3.211"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet \$KUBELET_KUBECONFIG_ARGS \$KUBELET_CONFIG_ARGS \$KUBELET_SYSTEM_ARGS \$KUBELET_EXTRA_ARGS \$KUBELET_RINTIME
EOF

#node03上执行
cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=192.188.3.212"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet \$KUBELET_KUBECONFIG_ARGS \$KUBELET_CONFIG_ARGS \$KUBELET_SYSTEM_ARGS \$KUBELET_EXTRA_ARGS \$KUBELET_RINTIME
EOF

#将配置文件复制到node01、node02、node03上
scp k8s@master01:/etc/kubernetes/kubelet-conf.yml /etc/kubernetes/

#node01、node02、node03上启动服务
sudo systemctl daemon-reload && sudo systemctl enable --now kubelet

#查看kubelet状态


6.6 配置kube-proxy

#复制配置文件node01、node02、node03上都执行
scp k8s@master01:/etc/kubernetes/kube-proxy.kubeconfig /etc/kubernetes/kube-proxy.kubeconfig
scp k8s@master01:/etc/kubernetes/kube-proxy.conf /etc/kubernetes/kube-proxy.conf
scp k8s@master01:/lib/systemd/system/kube-proxy.service /lib/systemd/system/kube-proxy.service

#node01、node02、node03上启动kube-proxy服务
sudo systemctl daemon-reload && sudo systemctl enable --now kube-proxy

9.安装Calico

以下所有操作在master01上执行

#下载Calico组件yaml文件
curl https://docs.projectcalico.org/manifests/calico-etcd.yaml -O

#修改calico-etcd.yaml文件
grep "etcd_endpoints:.*" calico-etcd.yaml

sed -i 's#etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"#etcd_endpoints: "https://192.188.3.200:2379,https://192.188.3.201:2379,https://192.188.3.202:2379"#g' calico-etcd.yaml

ETCD_KEY=`cat /etc/kubernetes/pki/etcd/etcd-key.pem | base64 | tr -d '\n'`
ETCD_CERT=`cat /etc/kubernetes/pki/etcd/etcd.pem | base64 | tr -d '\n'`
ETCD_CA=`cat /etc/kubernetes/pki/etcd/etcd-ca.pem | base64 | tr -d '\n'`

sed -i "s@# etcd-key: null@etcd-key: ${ETCD_KEY}@g; s@# etcd-cert: null@etcd-cert: ${ETCD_CERT}@g; s@# etcd-ca: null@etcd-ca: ${ETCD_CA}@g" calico-etcd.yaml

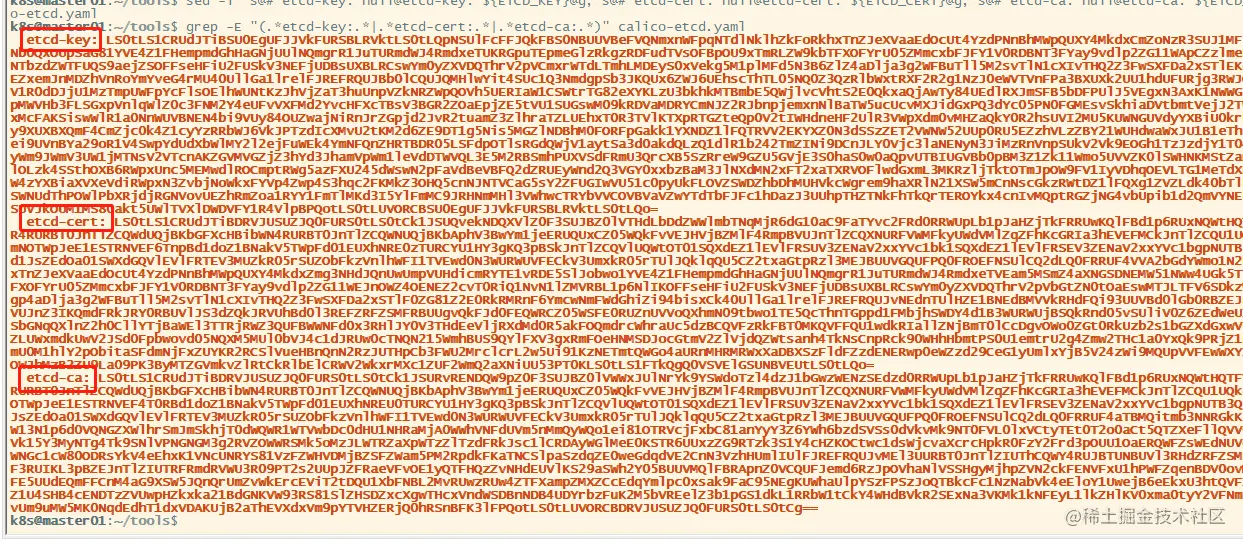

grep -E "(.*etcd-key:.*|.*etcd-cert:.*|.*etcd-ca:.*)" calico-etcd.yaml


grep -E "(.*etcd_ca:.*|.*etcd_cert:.*|.*etcd_key:.*)" calico-etcd.yaml

sed -i 's#etcd_ca: ""#etcd_ca: "/calico-secrets/etcd-ca"#g; s#etcd_cert: ""#etcd_cert: "/calico-secrets/etcd-cert"#g; s#etcd_key: "" #etcd_key: "/calico-secrets/etcd-key" #g' calico-etcd.yaml

grep -E "(.*etcd_ca:.*|.*etcd_cert:.*|.*etcd_key:.*)" calico-etcd.yaml

POD_SUBNET="172.4.0.0/20"

grep -E "(.*CALICO_IPV4POOL_CIDR.*|.*192.168.0.0.*)" calico-etcd.yaml
sed -i 's@# - name: CALICO_IPV4POOL_CIDR@- name: CALICO_IPV4POOL_CIDR@g; s@#   value: "192.168.0.0/16"@  value: '"${POD_SUBNET}"'@g' calico-etcd.yaml

grep -E "(.*CALICO_IPV4POOL_CIDR.*|.*172.4.0.0.*)" calico-etcd.yaml

#镜像使用docker.io,如何下载不下来可以将docker.io替换为registry.cn-hangzhou.aliyuncs.com
grep "image:" calico-etcd.yaml


#创建pod
kubectl apply -f calico-etcd.yaml


10.安装coredns

以下操作均在master01上执行

#下载
wget https://dl.k8s.io/v1.25.3/kubernetes.tar.gz
#解压
tar xf kubernetes.tar.gz
#复制
cp kubernetes/cluster/addons/dns/coredns/coredns.yaml.base /home/k8s/coredns.yaml
#编辑

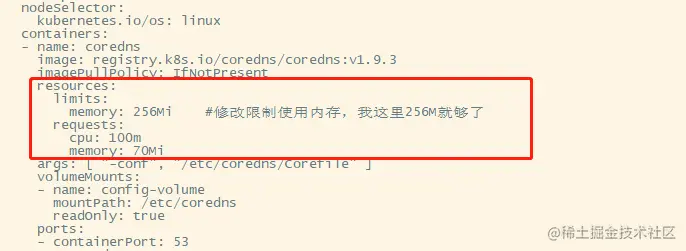

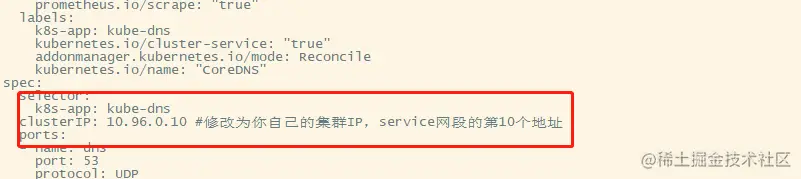

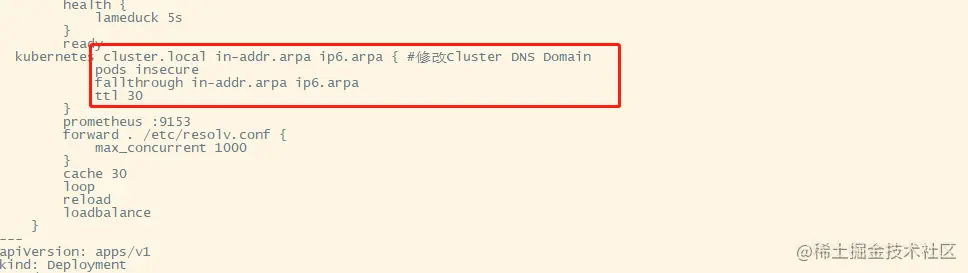

vim /home/k8s/coredns.yaml

#修改有注释的地方即可





#创建组件
kubectl apply -f coredns.yaml

#此时coredns创建pod报错，别急，往下走
kubectl get pod -A -o wide|grep coredns

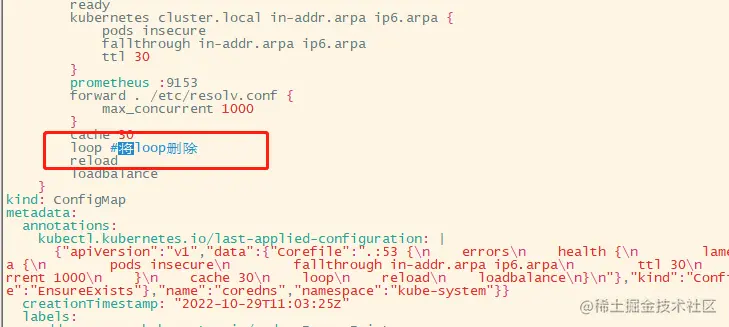

#将coredns的配置loop删除，避免ubuntu造成的本地回环
kubectl edit -n kube-system cm coredns


#再次查看coredns的pod状态正常。
kubectl get pod -A -o wide |grep coredns


10.至此k8s的集群安装结算，下一章将继续安装dashboard和metrics-servers

avatar
文章
阅读
粉丝
