前言

需求：同一个模块的主题要求是一致的 实现：通过自定义导航条来进行统一控制样式

• 设置导航条渐变颜色
• 设置全局导航条按钮主题
• 拦截push: 通过自定义类，重写自带的方法实现

I 自定义导航栏

1.1 自定义导航条

#import <UIKit/UIKit.h>
#import "UIBarButtonItem+Extension.h"
#import "ImageTools.h"

@interface HWNavigationController : UINavigationController

+ (void) setttingAppearance;

- (void)setupNavigationBarBarStyle:(NSInteger)barStyle;
#pragma mark - ******** 设置列表控制器的样式
+ (void)setupListnavigationItemAndBarStyle:(UIViewController*)vc;
+ (void)setupDetailnavigationItemAndBarStyle:(UIViewController*)vc;
@end

1.2 设置全局导航条按钮主题

setttingAppearance

#import "HWNavigationController.h"
#import "GYQBaseBarItem.h"
@implementation HWNavigationController



#pragma mark - 设置导航栏主题


+ (void) setttingAppearance{
    //设置全局导航条外观
    [self settingUINavigationBarAppearance];
    if (IOS7) {
        return;//不需要设置全局导航条按钮主题
    }
    //设置全局导航条按钮主题
    [self settingbarButtonItenAppearance];
}

settingUINavigationBarAppearance

+ (void) settingUINavigationBarAppearance{
    /*
     @protocol UIAppearance <NSObject>  协议的代理方法+ (instancetype)appearance;

     @interface UIView : UIResponder < UIAppearance>
     */
    //方式一：获取全局外观
    //    UINavigationBar *navigationBar =[UINavigationBar appearance];//获取所有导航条外观
    //方式二：获取我们自己导航控制器的导航条－－ 确保系统的其它功能（短信）的导航条与自己的冲突，尤其在短信分享这方面要注意
    UINavigationBar *navigationBar;
    if (IOS9) {
        //9.0的API
        navigationBar = [UINavigationBar appearanceWhenContainedInInstancesOfClasses:@[[HWNavigationController class]]];
    }else{
        navigationBar = [UINavigationBar appearanceWhenContainedIn:[HWNavigationController class],nil];
    }

    /**
     导航栏背景的出图规格
     iOS6导航栏背景的出图规格
     非retina：320x44 px
     retina：640x88 px
     iOS7导航栏背景的出图规格
     retina：640x128 px
     */



    [self setupUINavigationBarsetBackgroundImage:navigationBar];
    /*2.
     ＊标题：@property(nonatomic,copy) NSDictionary *titleTextAttributes;// 字典中能用到的key在UIStringDrawing.h中// 最新版本的key在UIKit框架的NSAttributedString.h中

     */
    //    NSDictionary *dict = @{UITextAttributeTextColor:[UIColor whiteColor]};
    NSDictionary *dict = @{NSForegroundColorAttributeName:[UIColor whiteColor],NSFontAttributeName:kNavListNSFontAttributeName};
    [navigationBar setTitleTextAttributes:dict];
    //2、The tint color to apply to the navigation items and bar button items. 导航条的主题颜色
    [navigationBar setTintColor:[UIColor whiteColor]];


}

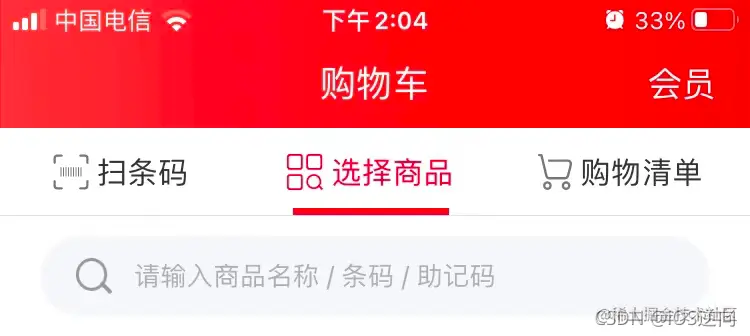

1.3 设置导航条渐变颜色

setupUINavigationBarsetBackgroundImage

+ (void)setupUINavigationBarsetBackgroundImage:(UINavigationBar*)navigationBar{

    UIImage *bgImg = [UIImage getMaingradientColorImage];
    [navigationBar setBackgroundImage:bgImg forBarMetrics:UIBarMetricsDefault];


}

1.4 拦截push

#pragma mark - 拦截push;--//90%的拦截，都是通过自定义类，重写自带的方法实现
- (void)pushViewController:(UIViewController *)viewController animated:(BOOL)animated{
    if (self.viewControllers.count>0) {

        [self setNavigationBarHidden:NO animated:NO];
        viewController.hidesBottomBarWhenPushed =YES;



        if ([viewController respondsToSelector:@selector(KNbackAction)]) {

            UIBarButtonItem *tmp =[[UIBarButtonItem alloc]initWithImage:[UIImage imageNamed:QCTNAVicon_left] style:0 target:viewController action:@selector(KNbackAction)];

            viewController.navigationItem.leftBarButtonItem = tmp;

        }else{

            UIBarButtonItem *tmp =[[UIBarButtonItem alloc]initWithImage:[UIImage imageNamed:QCTNAVicon_left] style:0 target:self action:@selector(backAction)];
            viewController.navigationItem.leftBarButtonItem = tmp;

        }






    }
    [super pushViewController:viewController animated:animated];

}
#pragma mark - 重写: animated:
/**
 1）自定义导航控制器的价值
 重写push方法就可以拦截所有压入栈中的子控制器，统一做一些处理
 */

- (void)presentViewController:(UIViewController *)viewControllerToPresent animated:(BOOL)flag completion:(void (^)(void))completion{



//    if ([[viewControllerToPresent topViewController] respondsToSelector:@selector(KNprebackAction)]) {


        if ( [viewControllerToPresent  isKindOfClass:[UINavigationController class]]) {








            UINavigationController  *viewControllerToPresenttmp = (UINavigationController*)viewControllerToPresent;

            weakSelf(weakSelf);

            if ([[viewControllerToPresenttmp topViewController] respondsToSelector:@selector(KNprebackAction)]) {

                GYQBaseBarItem *tmp =[[GYQBaseBarItem alloc]initWithImage:[UIImage imageNamed:QCTNAVicon_left] style:0 target:[viewControllerToPresenttmp topViewController] action:@selector(KNprebackAction)];
                tmp.baseVC = viewControllerToPresent;
                viewControllerToPresenttmp.topViewController.navigationItem.leftBarButtonItem = tmp;



            }else{

                GYQBaseBarItem *tmp =[[GYQBaseBarItem alloc]initWithImage:[UIImage imageNamed:QCTNAVicon_left] style:0 target:weakSelf action:@selector(presenbackAction:)];
                tmp.baseVC = viewControllerToPresent;
                viewControllerToPresenttmp.topViewController.navigationItem.leftBarButtonItem = tmp;

            }


        }




    [super presentViewController:viewControllerToPresent animated:flag completion:completion];
}

-(void)presenbackAction:(GYQBaseBarItem *)bar{

    //一旦点击返回，就要打断首次流程
    [bar.baseVC dismissViewControllerAnimated:YES completion:nil];
}

- (void)backAction{

    [self popViewControllerAnimated:YES];




}

1.5 去掉透明后导航栏下边的黑边(iOS15适配)

iOS15之前: [self.navigationBar setShadowImage:[[UIImage alloc] init]];

        [vc.navigationController.navigationBar setBackgroundImage:[ImageTools createImageWithColor: [UIColor whiteColor]] forBarMetrics:UIBarMetricsDefault];

iOS15之后

    if(@available(iOS 15.0, *)) {
        UINavigationBarAppearance *appearance = [[UINavigationBarAppearance alloc] init];

        //去掉透明后导航栏下边的黑边
        appearance.shadowImage =[[UIImage alloc] init];

        appearance.shadowColor= UIColor.clearColor;



        navigationBar.standardAppearance = appearance;

        navigationBar.scrollEdgeAppearance = appearance;

    }

1.6 设置导航栏下边的黑边(iOS13适配)

// 设置导航栏下边的黑边
+ (void)setupnavigationBar:(UIViewController*)vc{



    if (@available(iOS 13.0, *)) {

        UINavigationBar *navigationBar = vc.navigationController.navigationBar;

        UINavigationBarAppearance *appearance =navigationBar.standardAppearance;


        appearance.shadowImage =[UIImage createImageWithColor:k_tableView_Line];

        appearance.shadowColor=k_tableView_Line;


        navigationBar.standardAppearance = appearance;
        navigationBar.scrollEdgeAppearance = appearance;

    } else {
        // Fallback on earlier versions

        UINavigationBar *navigationBar = vc.navigationController.navigationBar;
        [navigationBar setBackgroundImage:[[UIImage alloc] init] forBarPosition:UIBarPositionAny barMetrics:UIBarMetricsDefault]; //此处使底部线条颜色为红色
//        [navigationBar setShadowImage:[UIImage createImageWithColor:[UIColor redColor]]];

        [navigationBar setShadowImage:[UIImage createImageWithColor:k_tableView_Line]];

    }



}

II 相关代码

宏

#define kAdjustRatio(num) (ceil((SCREENW/375.0)*(num)))

#define kPingFangFont(fontSize) [UIFont fontWithName:@"PingFang-SC-Medium" size:(kAdjustRatio(fontSize))]

#define kTextFont(size) [UIFont systemFontOfSize:(kAdjustRatio(size))]


#define kPingFangHeavyFont(fontSize) [UIFont fontWithName:@"PingFang-SC-Heavy" size:(kAdjustRatio(fontSize))]

#define kPingFangNOkAdjustRatioFont(fontSize) [UIFont fontWithName:@"PingFang-SC-Medium" size:((fontSize))]



#define kBoldFont(fontSize) [UIFont fontWithName:@"Helvetica-Bold" size:(kAdjustRatio(fontSize))]

• searchBar 的searchField 的获取

---

 UITextField *searchField = [searchBar valueForKey:@"searchField"];

    [searchField setBackgroundColor:HWColor(245, 245, 245)];

获取navigationBar

if (IOS9) {
        //9.0的API
        navigationBar = [UINavigationBar appearanceWhenContainedInInstancesOfClasses:@[[GYQNavigationControllerViewController class]]];


        [[UIBarButtonItem appearanceWhenContainedInInstancesOfClasses:@[[UISearchBar class]]] setTintColor:[UIColor blackColor]];



    }else{
        navigationBar = [UINavigationBar appearanceWhenContainedIn:[GYQNavigationControllerViewController class],nil];

        [[UIBarButtonItem appearanceWhenContainedIn: [UISearchBar class], nil] setTintColor:[UIColor blackColor]];

    }
    [navigationBar setShadowImage:[ImageTools createImageWithColor: QBW221Color]];

see also

更多内容请关注#小程序：iOS逆向,只为你呈现有价值的信息，专注于移动端技术研究领域。

自定义时间格式（适配iOS15.4之后12/24小时制的问题）:blog.csdn.net/z929118967/…
