相比于前一版，增加了多个矢量图选择的功能，并且初始化的时候按照所传的参数就能达到想要的效果

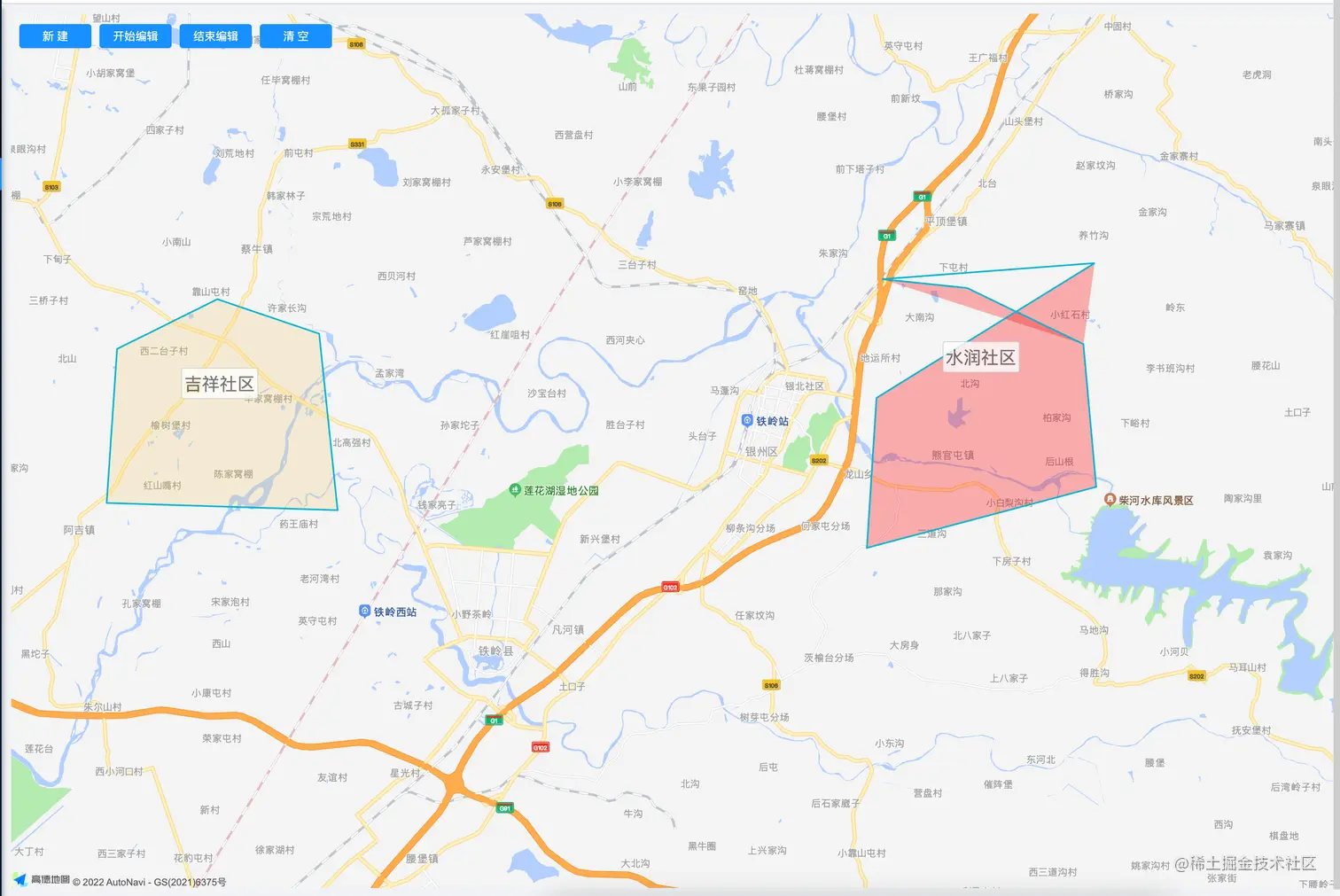

效果
baseMap.vue
<template>
<div>
<div class="container" id ="container"></div>
<div class="input-card" style="width: 100%" v-if="isEdit">
<a-button class="btn1" type="primary" @click="createPolygon()" style="margin-bottom: 5px">新建</a-button>
<a-button class="btn2" type="primary" @click="openPoly()" style="margin-bottom: 5px">开始编辑</a-button>
<a-button class="btn3" type="primary" @click="closePoly()" style="margin-bottom: 5px">结束编辑</a-button>
<a-button class="btn4" type="primary" @click="clearPoly()">清空</a-button>
</div>
</div>
</template>
<script>
export default {
name: 'baseMap',
props: {
name: {
type: String,
default: function() {
return ''
}
},
isEdit: {
type: Boolean,
default: function() {
return false
}
},
areas: {
type: Array,
default: function() {
return []
}
},
center: {
type: Array,
default: function() {
return [123.842305,42.286129]
}
},
resultList: {
type: Array
}
},
data() {
return { polyEditor: null, polygonPaths: [], map: null, polygons: [] }
},
watch: {},
mounted() {
this.init()
},
methods: {
async init() {
await this.initMap()
this.initAreas()
if (this.isEdit) {
console.log("this.isEdit",this.isEdit);
this.initPoly()
}
},
async initMap() {
this.map = new window.AMap.Map('container', {
center: this.center,
zoom: 12,
plugin: [ //一些工具插件
{
pName: 'MapType', //地图类型
defaultType: 0,
events: {
init(instance) {
}
}
}
]
})
// 缩放地图到合适的视野级别
this.map.setFitView()
},
initAreas() {
//先循环外层的数据
for (let j = 0;j < this.resultList.length; j++ ){
//这是传入的三个字段分别的坐标数组，编码和映射到地图的名称
let situation = this.resultList[j].situation
let id = this.resultList[j].id
let name = this.resultList[j].name
let path = []
let centerPoint = this.getPointsCenter(situation)
for (let i = 0; i < situation.length; i++) {
let area = situation[i]
path.push([area.lng, area.lat])
if (path.length <= 0) {
continue
}
var polygon = new window.AMap.Polygon({
path: path,
fillOpacity: 0.05,
fillColor: this.resultList[j].color,
zIndex: 50,
bubble: true,
extData: {"id":id}
})
polygon.on("click", this.polygonClick);
this.polygons.push(polygon)
}
/**if (this.polygons.length <= 0) {
return
}**/
//地图上新增矢量多边形
this.map.add(this.polygons)
var text = new window.AMap.Text({
position: new AMap.LngLat(centerPoint[0], centerPoint[1]),
anchor: 'bottom-center',
text: name,
style: {'opacity':'0.8','font-size':'22px'},
})
this.map.add(text)
}
},
initPoly() {
if (this.polygons.length > 0) {
this.polyEditor = new window.AMap.PolygonEditor(this.map, this.polygons[2])
} else {
this.polyEditor = new window.AMap.PolygonEditor(this.map)
}
// this.polyEditor.open()
let _this = this
//关闭多边形编辑polygonEditor.close()触发该方法；
this.polyEditor.on('end', function(event) {
// event.target 即为编辑后的多边形对象,event.target.getPath()得到编辑完成后的点数组
let pointArr = event.target.getPath()
this.polygonPaths = []
for (let i = 0; i < pointArr.length; i++) {
this.polygonPaths.push({ lat: pointArr[i].lat, lng: pointArr[i].lng })
}
_this.$emit('getPolygonMap', this.polygonPaths)
})
},
openPoly() {
this.polyEditor.open()
},
createPolygon(){
this.polyEditor.close();
this.polyEditor.setTarget();
this.polyEditor.open();
},
closePoly() {
this.polyEditor.close()
},
clearPoly() {
this.$emit('clearPolygonMap')
this.map.destroy()
this.reset()
this.init()
},
reset() {
this.polyEditor = null
this.polygonPaths = []
this.map = null
this.polygons = []
},
//矢量图点击事件
polygonClick(param){
console.log("param",param)
console.log("this.polygons",this.polygons[2])
this.polyEditor = new window.AMap.PolygonEditor(this.map,param.target)
},
//计算中间点
getPointsCenter(points) {
var point_num = points.length; //坐标点个数
var X = 0, Y = 0, Z = 0;
for(let i = 0; i< points.length; i++) {
if (points[i] == '') {
continue;
}
var lat, lng, x, y, z;
lat = parseFloat(points[i].lat) * Math.PI / 180;
lng = parseFloat(points[i].lng) * Math.PI / 180;
x = Math.cos(lat) * Math.cos(lng);
y = Math.cos(lat) * Math.sin(lng);
z = Math.sin(lat);
X += x;
Y += y;
Z += z;
}
X = X / point_num;
Y = Y / point_num;
Z = Z / point_num;
var tmp_lng = Math.atan2(Y, X);
var tmp_lat = Math.atan2(Z, Math.sqrt(X * X + Y * Y));
var final_lng = tmp_lng * 180 / Math.PI;
var final_lat = tmp_lat * 180 / Math.PI;
return [Math.round(final_lng*1000000)/1000000,Math.round(final_lat*1000000)/1000000];
},
}
}
</script>
<style>
.container {
width: 100%;
height: calc(100vh - 59px - 52px - 30px);
position: absolute;
}
.btn1 {
position: relative;
width: 90px;
height: 30px;
top: 13px;
left: 10px;
cursor: pointer;
z-index: 10;
}
.btn2 {
position: relative;
width: 90px;
height: 30px;
top: 13px;
left: 20px;
cursor: pointer;
z-index: 10;
}
.btn3 {
position: relative;
width: 90px;
height: 30px;
top: 13px;
left: 30px;
cursor: pointer;
z-index: 10;
}
.btn4 {
position: relative;
width: 90px;
height: 30px;
top: 13px;
left: 40px;
cursor: pointer;
z-index: 10;
}
</style>
调用
<template>
<div>
<BaseMap ref="PolygonMap"
:isEdit="true"
:areas="areas"
:center="center"
:resultList = "resultList"
@getPolygonMap="getPolygonMap"
@clearPolygonMap="clearPolygonMap"
></BaseMap>
</div>
</template>
<script>
import BaseMap from './baseMap'
export default {
name: 'Test',
components: { BaseMap },
data() {
return {
center: [123.842305,42.286129],
areas: [],
resultList:[
{
id : "123123123123",
name : "吉祥社区",
color : "#F6CB60",
situation : [{lat: 42.318377, lng: 123.566445},{lat: 42.269618, lng: 123.561982},{lat: 42.267331, lng: 123.660859},{lat: 42.3232, lng: 123.652963},{lat: 42.334114, lng: 123.609361}]
},
{
id : "123412341234",
name : "水润社区",
color: "red",
situation : [{lat: 42.30289, lng: 123.891572},{lat: 42.255389, lng: 123.887452},{lat: 42.274698, lng: 123.985642},{lat: 42.3199, lng: 123.980149},{lat: 42.337667, lng: 123.930367},{lat: 42.340459, lng: 123.893975},{lat: 42.345534, lng: 123.984965}]
}
]
}
},
created() {
},
mounted() {
},
methods: {
getPolygonMap(polygon) {
//接收坐标集合
console.log("polygon",polygon);
},
clearPolygonMap() {
//清空坐标集合
this.areas = []
}
}
}
</script>
