Flutter StaggeredGridView网格布局

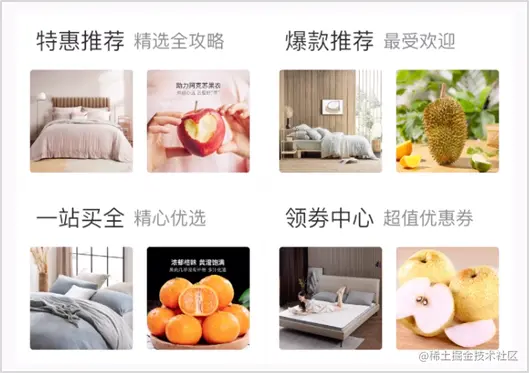

实现效果

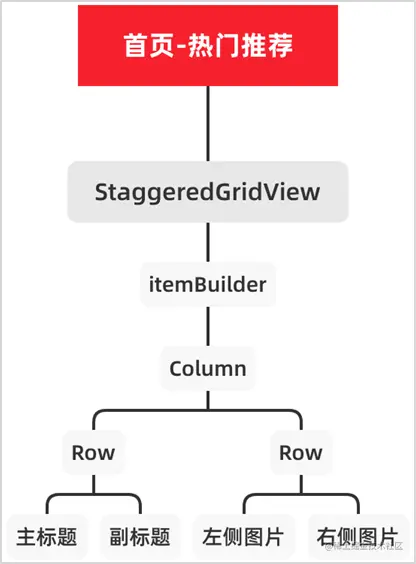

接口分析

完整代码

import 'package:erabbit_app/models/home_model.dart';
import 'package:flutter/material.dart';
import 'package:flutter_staggered_grid_view/flutter_staggered_grid_view.dart';

// ignore: must_be_immutable
class HotRecommendWidget extends StatelessWidget {
  HotRecommendWidget({
    this.hotRecommends,
  });
  // 热门推荐数据
  final List<HotRecommendsModel>? hotRecommends;

  double _imageWidth = 0.0;

  Widget _buildItem(HotRecommendsModel hotRecommendsModel) {
    return Container(
      padding: EdgeInsets.all(10.0),
      decoration: BoxDecoration(color: Colors.white),
      child: Column(
        children: [
          Row(
            children: [
              Text(
                hotRecommendsModel.title!,
                style: TextStyle(
                  color: Color(0xFF262626),
                  fontWeight: FontWeight.w400,
                  fontSize: 16.0,
                ),
              ),
              Padding(
                padding: EdgeInsets.only(left: 10.0),
                child: Text(
                  hotRecommendsModel.caption!,
                  style: TextStyle(
                    color: Color(0xFF7F7F7F),
                    fontWeight: FontWeight.w400,
                    fontSize: 12.0,
                  ),
                ),
              ),
            ],
          ),
          Padding(
            padding: EdgeInsets.only(top: 15.0),
            child: Row(
              mainAxisAlignment: MainAxisAlignment.spaceBetween,
              children: [
                Image.network(
                  hotRecommendsModel.leftIcon!,
                  width: _imageWidth,
                  height: _imageWidth,
                ),
                Image.network(
                  hotRecommendsModel.rightIcon!,
                  width: _imageWidth,
                  height: _imageWidth,
                ),
              ],
            ),
          ),
        ],
      ),
    );
  }

  @override
  Widget build(BuildContext context) {
    // 计算图片宽度 （屏幕宽度 - （8 * 10 + 1） * 0.25）
    double screenWidth = MediaQuery.of(context).size.width;
    _imageWidth = (screenWidth - (8 * 10.0 + 1.0)) * 0.25;
    if (hotRecommends != null) {
      return StaggeredGridView.countBuilder(
        crossAxisCount: 2,
        itemCount: hotRecommends!.length,
        crossAxisSpacing: 1.0,
        mainAxisSpacing: 1.0,
        // 为了解决MasonryGridView 和 CustomScrollView的滚动冲突，需要禁用滚动效果
        physics: NeverScrollableScrollPhysics(),
        // shrinkWrap 搭配禁用滚动
        shrinkWrap: true,
        itemBuilder: (BuildContext context, int index) {
          HotRecommendsModel hotRecommendsModel = hotRecommends![index];
          return _buildItem(hotRecommendsModel);
        },
        staggeredTileBuilder: (int index) {
          return StaggeredTile.fit(1);
        },
      );
    } else {
      return Container();
    }
  }
}
