大数据开发Hive数据存储格式（第二十二篇）hive没有专门的数据存储格式，默认keyi直接加载文本文件TextFile

hive没有专门的数据存储格式，默认keyi直接加载文本文件TextFile，还支持SequenceFile、RCFile等。cwiki.apache.org/confluence/…

TextFile
SequenceFile
RCFile 0.6
Avro 0.9
ORC 0.11
PARQUET 0.13

创建原始表

create external table stu_original(
 id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
location '/stu_original';

原始数据生成Java代码

package com.strivelearn.hadoop.hdfs.compress;

import java.io.BufferedWriter;
import java.io.FileWriter;
import java.io.IOException;

/**
 * @author xys
 * @version GenerateData2.java, 2022年10月23日
 */
public class GenerateData2 {
    public static void main(String[] args) throws IOException {
        String fileName = "/Users/strivelearn/Desktop/stu.data";
        System.out.println("start:开始生成2G文件->" + fileName);
        BufferedWriter bfw = new BufferedWriter(new FileWriter(fileName));
        int num = 0;
        //5千万行数据
        while (num < 50000000) {
            //生成的内容：
            //1,zhangsan1,suzhou1
            //2,zhangsan2,suzhou2
            //....
            bfw.write(num + ",zhangsan" + num + ",suzhou" + num);
            bfw.newLine();
            num++;
            if (num % 10000 == 0) {
                bfw.flush();
            }
        }
        System.out.println("end:2G文件已生成");
    }
}

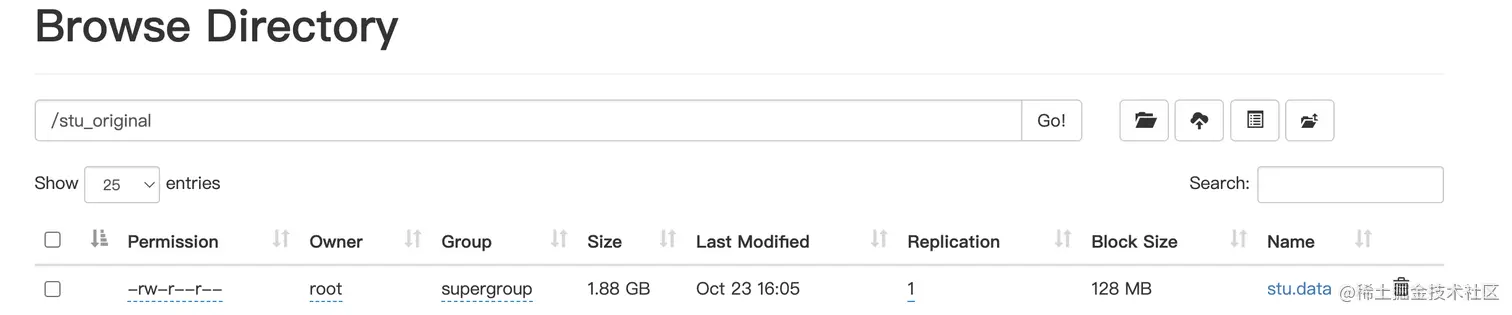

上传原始数据

hdfs dfs -put /root/data/stu.data /stu_original

一、TextFile存储格式

Hive的默认存储格式，行存储。

磁盘存储开销大，数据解析开销大。
支持压缩，压缩后的TextFile在Hive中无法切割

1.1、创建压缩格式为deflate，数据存储格式为：TextFile的hive表

create external table stu_textfile_deflate_compress(
  id int,
  name string,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
location '/stu_textfile_deflate_compress';

导入数据前，设置会话hive配置

set hive.exec.compress.output=true;
set mapreduce.output.fileoutputformat.compress=true;
set mapreduce.output.fileoutputformat.compress.codec=org.apache.hadoop.io.compress.DeflateCodec;

导入数据

set mapreduce.job.reduces=1;
insert into stu_textfile_deflate_compress select id,name,city from stu_original group by id,name,city;

验证是否可进行split

select id,count(*) from stu_textfile_deflate_compress group by id;

1.2、创建压缩格式为bzip2，数据存储格式为：TextFile的hive表

create external table stu_textfile_bzip2_compress(
  id int,
  name string,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
location '/stu_textfile_bzip2_compress';

导入数据前，设置会话hive配置

set hive.exec.compress.output=true;
set mapreduce.output.fileoutputformat.compress=true;
set mapreduce.output.fileoutputformat.compress.codec=org.apache.hadoop.io.compress.BZip2Codec;

导入数据

set mapreduce.job.reduces=1;
insert into stu_textfile_bzip2_compress select id,name,city from stu_original group by id,name,city;

验证是否可进行split

select id,count(*) from stu_textfile_bzip2_compress group by id;

hive默认拆分的大小

set mapred.max.split.size;
默认是256M

二、SequenceFile存储格式（实际项目，不常用）

二进制文件，内部数据是<key,value>的形式，行存储
使用方便，可切分，可压缩
支持none、record、block级别的压缩

2.1、创建压缩格式为无，数据存储格式为：SequenceFile的hive表

create external table stu_seqfile_none_compress(
 id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as sequencefile
location '/stu_seqfile_none_compress';

确认创建的表的格式

show create table stu_seqfile_none_compress;

导入数据

set mapreduce.job.reduces=1;
insert into stu_seqfile_none_compress select id,name,city from stu_original group by id,name,city;

验证是否可以进行split

select id,count(*) from stu_seqfile_none_compress group by id;

2.2、创建压缩格式为deflate，数据存储格式为：SequenceFile的hive表

create external table stu_seqfile_deflate_compress(
 id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as sequencefile
location '/stu_seqfile_deflate_compress';

导入数据前，设置会话hive配置

set hive.exec.compress.output=true;
set mapreduce.output.fileoutputformat.compress=true;
set mapreduce.output.fileoutputformat.compress.codec=org.apache.hadoop.io.compress.DeflateCodec;
set io.seqfile.compression.type=BLOCK;

导入数据

set mapreduce.job.reduces=1;
insert into stu_seqfile_deflate_compress select id,name,city from stu_original group by id,name,city;

验证是否进行split

select id,count(*) from stu_seqfile_deflate_compress group by id;

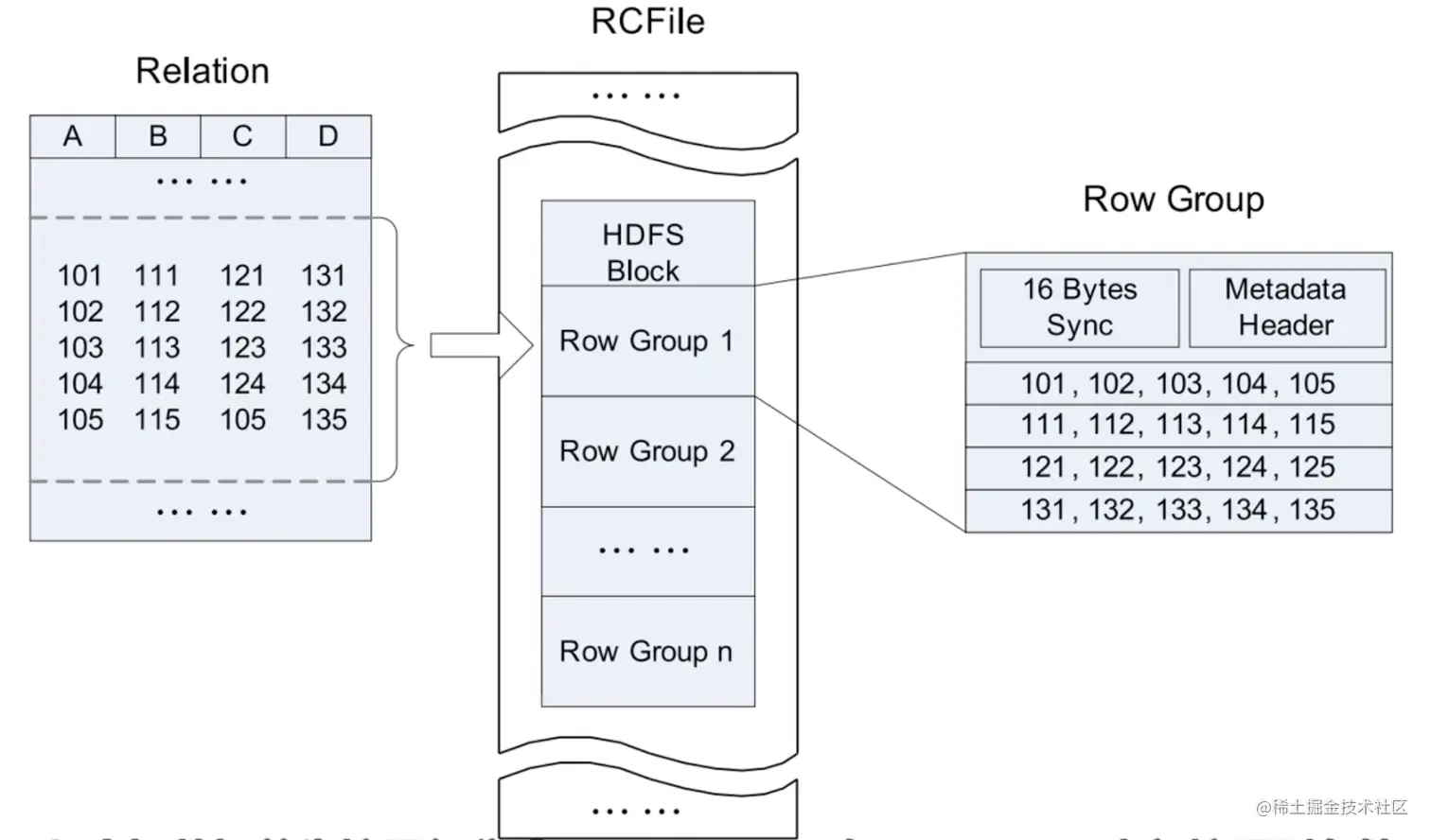

三、RCFile存储格式

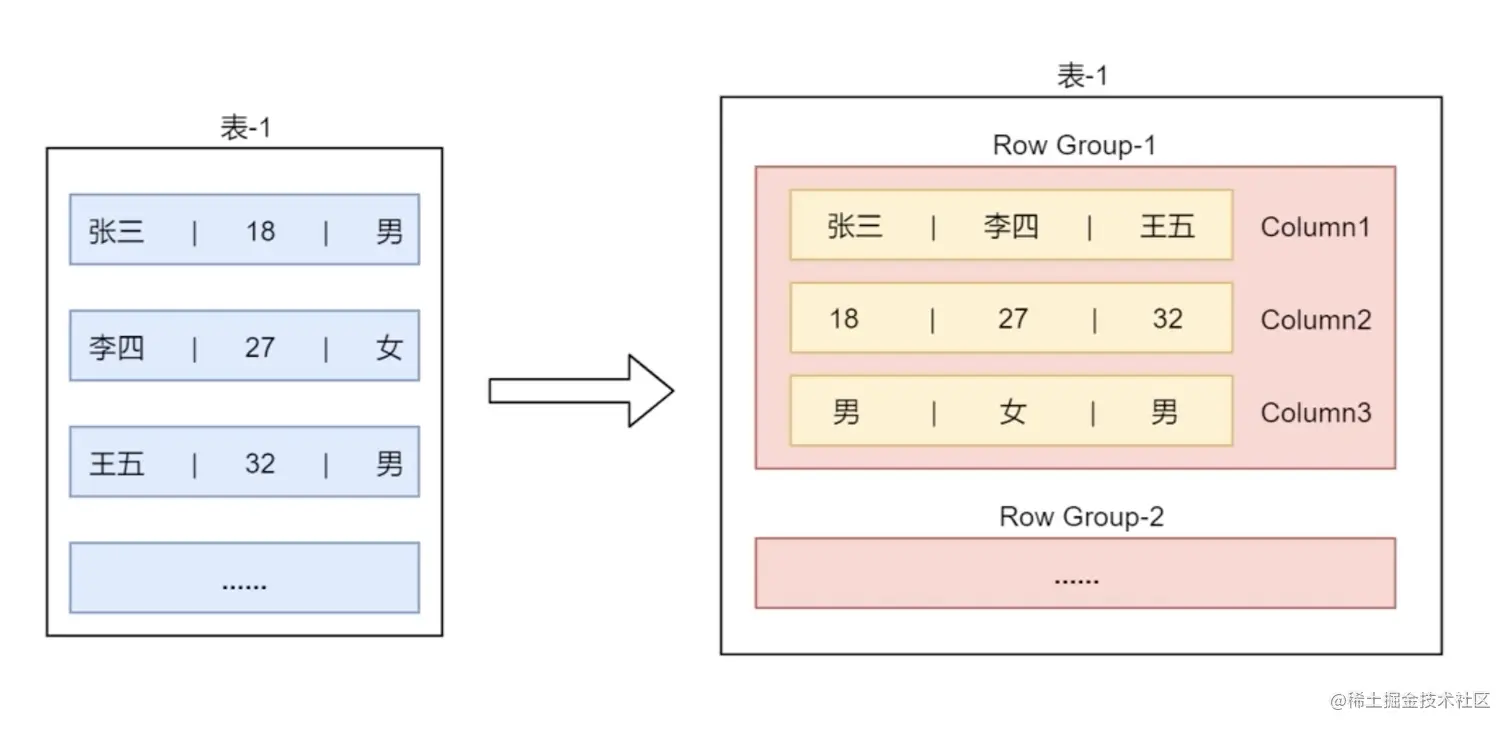

数据按行分组，每组按照列存储，整合了行存储和列存储的优点，属于行列式存储。
压缩快，可分割，支持快速列存储

3.1、创建压缩格式为无，数据存储格式为：RCFile的hive表

create external table stu_seqfile_deflate_compress(
 id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as rcfile
location '/stu_rcfile_none_compress';

导入数据

set mapreduce.job.reduces=1;
insert into stu_rcfile_none_compress select id,name,city from stu_original group by id,name,city;

验证是否可以进行split

select id,count(*) from stu_rcfile_none_compress group by id;

3.2、创建压缩格式为deflate，数据存储格式为：RCFile的hive表

create external table stu_rcfile_deflate_compress(
 id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as rcfile
location '/stu_rcfile_deflate_compress';

导入数据前，设置会话hive配置

set hive.exec.compress.output=true;
set mapreduce.output.fileoutputformat.compress=true;
set mapreduce.output.fileoutputformat.compress.codec=org.apache.hadoop.io.compress.DeflateCodec;

导入数据

set mapreduce.job.reduces=1;
insert into stu_rcfile_deflate_compress select id,name,city from stu_original group by id,name,city;

验证是否可以进行split

select id,count(*) from stu_rcfile_deflate_compress group by id;

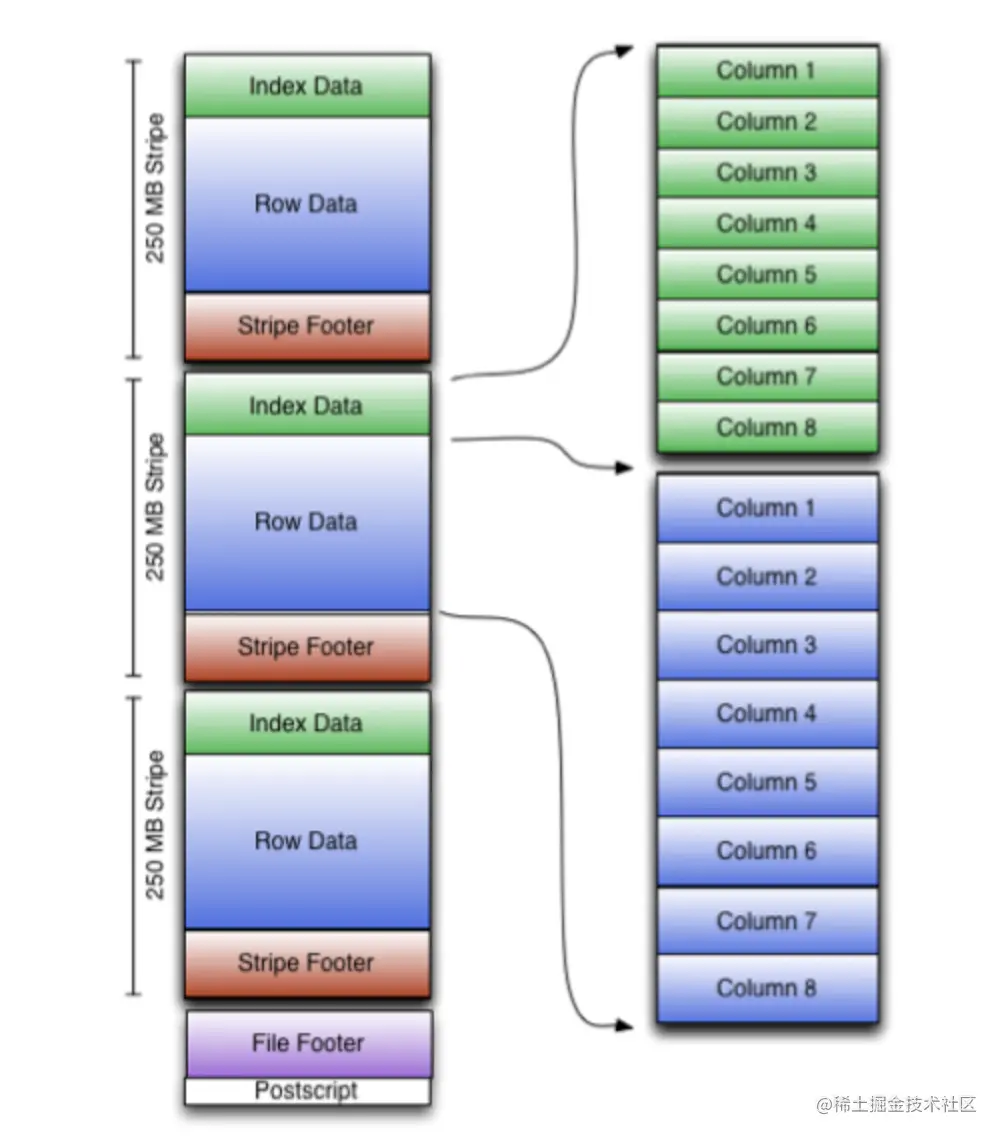

四、ORC存储格式

orc存储格式是在RCFile的基础之上做了些升级，在性能上大幅度提升。

在创建orc存储格式的时候，可以在创建表的语句中，指定压缩格式。

create table t1(
 id int,
 name string
)stored as orc tabproperties("orc.compress"="NONE");

下面为tabproperties的各个参数名。多个参数，用逗号分割

orc.compress	ZLIB	high level compression (one of NONE, ZLIB, SNAPPY)
orc.compress.size	262,144	number of bytes in each compression chunk
orc.stripe.size	67,108,864	number of bytes in each stripe
orc.row.index.stride	10,000	number of rows between index entries (must be >= 1000)
orc.create.index	true	whether to create row indexes
orc.bloom.filter.columns	""	comma separated list of column names for which bloom filter should be created
orc.bloom.filter.fpp	0.05	false positive probability for bloom filter (must >0.0 and <1.0)

4.1、创建压缩格式为无，数据存储格式为：ORC的hive表

create external table stu_orc_none_compress(
  id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as orc
location '/stu_orc_none_compress'
tblproperties("orc.compress"="NONE");

导入数据

set mapreduce.job.reduces=1;
insert into stu_orc_none_compress select id,name,city from stu_original group by id,name,city;

验证是否可以进行拆分

select id,count(*) from stu_orc_none_compress group by id;

4.2、创建压缩格式为Zlib，数据存储格式为：ORC的hive表

create external table stu_orc_zlib_compress(
  id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as orc
location '/stu_orc_zlib_compress'
tblproperties("orc.compress"="ZLIB");

导入数据

set mapreduce.job.reduces=1;
insert into stu_orc_zlib_compress select id,name,city from stu_original group by id,name,city;

验证是否可以进行拆分

select id,count(*) from stu_orc_zlib_compress group by id;

4.3、创建压缩格式为snappy，数据存储格式为：ORC的hive表

create external table stu_orc_snappy_compress(
  id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as orc
location '/stu_orc_snappy_compress'
tblproperties("orc.compress"="SNAPPY");

导入数据

set mapreduce.job.reduces=1;
insert into stu_orc_snappy_compress select id,name,city from stu_original group by id,name,city;

验证是否可以进行拆分

select id,count(*) from stu_orc_snappy_compress group by id;

orc支持的压缩格式

public enum CompressionKind {
  NONE, ZLIB, SNAPPY, LZO, LZ4
}

五、PARQUET存储格式

Parquet是一种新型的、与语言无关的，并且不和任何一种数据处理框架绑定的列式存储结构，适配多种语言和组件。Parquet可以支持Hive、Impala、Spark等计算引擎中使用。

5.1、创建压缩格式为无，数据存储格式为：Parquet的hive表

create external table stu_parquet_none_compress(
  id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as parquet
location '/stu_parquet_none_compress'
tblproperties("parquet.compression"="uncompressed");

导入数据

set mapreduce.job.reduces=1;
insert into stu_parquet_none_compress select id,name,city from stu_original group by id,name,city;

验证是否可以进行拆分（不可拆分）

select id,count(*) from stu_parquet_none_compress group by id;

5.2、创建压缩格式为gzip，数据存储格式为：Parquet的hive表

create external table stu_parquet_gzip_compress(
  id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as parquet
location '/stu_parquet_gzip_compress'
tblproperties("parquet.compression"="gzip");

5.3、创建压缩格式为snappy，数据存储格式为：Parquet的hive表

create external table stu_parquet_snappy_compress(
  id int,
  name String,
  city string
)row format delimited
fields terminated by ','
lines terminated by '\n'
stored as parquet
location '/stu_parquet_snappy_compress'
tblproperties("parquet.compression"="gzip");

六、总结

原始数据文件：2G

	TextFile	SequenceFile	RCFile	ORC	PARQUET
未压缩	2G	2.7G	1.6G	1.38G	2G
Deflate	0.37G	2.39G	0.37G	0.26G	0.34G

ORC比较好，并且自身存储能力是非常好的，并且也支持切分，所以在选择压缩格式的时候就重点考虑：压缩和解压速度。常见的压缩格式：Lzo、Snappy（更好的）的压缩和解压缩的速度是最快的。

所以一般建议：选择ORC的存储格式、Snappy的压缩格式。

但是有时候需要考虑数据存储格式的兼容度，是否支持多种计算引擎。

但是Parquet可以应用Hadoop生态圈中的任何项目中。
