在uni-app + vue3 app端中使用echarts

使用npm安装echarts插件

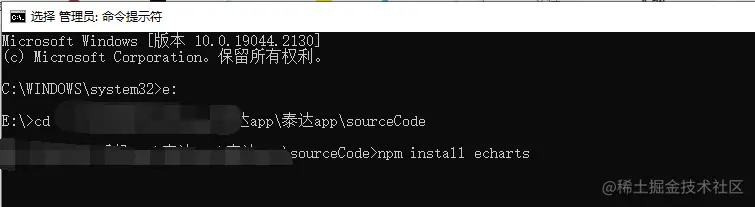

打开cmd，将目录切换到项目根路径，安装echarts

npm install echarts

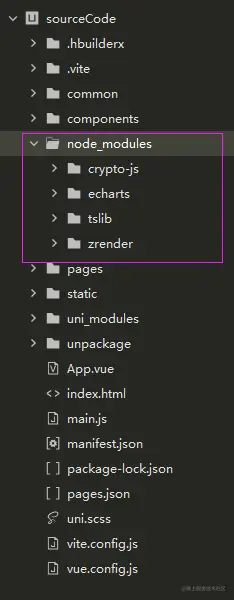

安装之后在项目中会有node_modules包，里面会有echarts包和echarts依赖的包

引入import * as echarts from 'echarts'

使用：

<template>
    <view>
        <view><l-echart class="chart" ref="chart" @finished="init"></l-echart></view>
    </view>
</template>
<script setup>
    import { onMounted, reactive,ref } from "vue"
    import * as echarts from 'echarts'

    let chart = ref(null); // 获取dom
    const state = reactive({
        option:{},
    })
    state.option = {
        legend:{
            show:true,
            data:[]
        },
        tooltip: {
          trigger: 'axis',
          axisPointer: {
            type: 'cross'
          }
        },
        grid: {
          left: '3%',
          right: '8%',
          top: '15%',
          bottom:'5%',
          containLabel: true
        },
        xAxis: {
            type: 'category',
            data: [1,2, 3, 4, 5, 6, 7,8,9,10,11,12,13,1,4,15,16,17,18,19,20,21,22,23,24],
            axisLabel: {
              // inside: true,
              // color: '#fff'
            },
            axisTick: {
              show: false
            },
            axisLine: {
              show: true,
              lineStyle:{
                color: '#83bff6'
              }
            },
            z: 10
          },
          yAxis: {
            type: 'value',
            axisLine: {
              show: true,
              lineStyle:{
                color: '#83bff6'
              }
            },
            axisTick: {
              show: false
            },
            // axisLabel: {
            //   color: '#999'
            // },
            splitLine:{
              show:true,
              lineStyle:{
                type: 'dashed',
                color: '#83bff6'
              }
            }
        },
        series: [
        {
            data: [100, 110, 113, 126, 143, 158, 165,167,152,102,,],
            type: "bar",
            itemStyle: {
                color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                  { offset: 0, color: '#83bff6' },
                  { offset: 0.5, color: '#188df0' },
                  { offset: 1, color: '#188df0' }
                ])
            },
            emphasis: {
                itemStyle: {
                  color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                    { offset: 0, color: '#2378f7' },
                    { offset: 0.7, color: '#2378f7' },
                    { offset: 1, color: '#83bff6' }
                  ])
                }
            },
            areaStyle: {
                show: true,
                color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
                  {
                    offset: 0,
                    color: '#188df0'
                  },
                  {
                    offset: 1,
                    color: '#fff'
                  }
                ])
            },
          }
        ],
        color:['#83bff6']
    }
    // 组件能被调用必须是组件的节点已经被渲染到页面上
    onMounted(() => {
        chart.value.init(echarts, chart => {
            chart.setOption(state.option);
        });
    })
</script>

<style>
.chart{
    width: 100%;
    height: 300px;
}
</style>
