服务端搭建
可以使用一键服务端安装命令 Github地址
#下载一键安装脚本
wget https://code.aliyun.com/MvsCode/frps-onekey/raw/master/install-frps.sh -O ./install-frps.sh
# 赋权限
chmod 700 ./install-frps.sh
# 开始安装
./install-frps.sh install
连接主机...
连接主机成功
Last login: Fri May 6 13:03:51 2022 from 218.108.32.98
Welcome to Huawei Cloud Service
[root@ecs-x-large-4-linux-20200316122328 /]# wget wget https://code.aliyun.com/MvsCode/frps-onekey/raw/master/install-frps.sh -O ./install-frps.sh
Resolving code.aliyun.com (code.aliyun.com)... 47.98.49.44
Connecting to code.aliyun.com (code.aliyun.com)|47.98.49.44|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: unspecified [text/plain]
Saving to: ‘./install-frps.sh’
[ <=> ] 38,090 --.-K/s in 0.01s
2022-05-07 13:18:46 (2.64 MB/s) - ‘./install-frps.sh’ saved [38090]
+------------------------------------------------------------+
| frps for Linux Server, Author Clang ，Mender MvsCode |
| A tool to auto-compile & install frps on Linux |
+------------------------------------------------------------+
Check updates for shell...
+------------------------------------------------------------+
+------------------------------------------------------------+
| frps for Linux Server, Author Clang ，Mender MvsCode |
| A tool to auto-compile & install frps on Linux |
+------------------------------------------------------------+
Please select frps download url:
[1].aliyun (default)
[2].github
Enter your choice (1, 2 or exit. default [aliyun]): 1
-----------------------------------
Your select: 1
-----------------------------------
Loading network version for frps, please wait...
frps Latest release file frp_0.42.0_linux_amd64.tar.gz
Loading You Server IP, please wait...
You Server IP:xxxxx
————————————————————————————————————————————
Please input your server setting:
————————————————————————————————————————————
Please input frps bind_port [1-65535](Default Server Port: 5443):
frps bind_port: 5443
Please input frps vhost_http_port [1-65535](Default : 80):8001
frps vhost_http_port: 8001
Please input frps vhost_https_port [1-65535](Default : 443):8453
frps vhost_https_port: 8453
Please input frps dashboard_port [1-65535](Default : 6443):
frps dashboard_port: 6443
Please input frps dashboard_user(Default : admin):
frps dashboard_user: admin
Please input frps dashboard_pwd(Default : T6PuHRDZ):
frps dashboard_pwd: T6PuHRDZ
Please input frps token(Default : mPegcSmAFcn8nwuw):
frps token: mPegcSmAFcn8nwuw
Please input frps subdomain_host(Default : 服务器IP ):
frps subdomain_host: 服务器IP
Please input frps max_pool_count [1-200]
(Default : 50):200
frps max_pool_count: 200
Please select log_level
1: info (default)
2: warn
3: error
4: debug
-------------------------
Enter your choice (1, 2, 3, 4 or exit. default [1]): 1
log_level: info
Please input frps log_max_days [1-30]
(Default : 3 day):
frps log_max_days: 3
Please select log_file
1: enable (default)
2: disable
-------------------------
Enter your choice (1, 2 or exit. default [1]):
log_file: enable
Please select tcp_mux
1: enable (default)
2: disable
-------------------------
Enter your choice (1, 2 or exit. default [1]):
tcp_mux: true
Please select kcp support
1: enable (default)
2: disable
-------------------------
Enter your choice (1, 2 or exit. default [1]):
kcp support: true
============== Check your input ==============
You Server IP : 服务器IP
Bind port : 5443
kcp support : true
vhost http port : 8001
vhost https port : 8453
Dashboard port : 6443
Dashboard user : admin
Dashboard password : T6PuHRDZ
token : mPegcSmAFcn8nwuw
subdomain_host : 服务器IP
tcp_mux : true
Max Pool count : 200
Log level : info
Log max days : 3
Log file : enable
==============================================
Press any key to start...or Press Ctrl+c to cancel
frps install path:/usr/local/frps
config file for frps ... done
download frps ... done
download /etc/init.d/frps... done
setting frps boot... done
+---------------------------------------------------------+
| Manager for Frps, Author Clang, Mender MvsCode |
+---------------------------------------------------------+
Starting Frps(0.42.0)... done
Frps (pid 31594)is running.
+------------------------------------------------------------+
| frps for Linux Server, Author Clang ，Mender MvsCode |
| A tool to auto-compile & install frps on Linux |
+------------------------------------------------------------+
Congratulations, frps install completed!
================================================
You Server IP : xxxxxxx
Bind port : 5443
KCP support : true
vhost http port : 8001
vhost https port : 8453
Dashboard port : 6443
token : mPegcSmAFcn8nwuw
subdomain_host : xxxxxxx
tcp_mux : true
Max Pool count : 200
Log level : info
Log max days : 3
Log file : enable
================================================
frps Dashboard : http://xxxxxxxx:6443/
Dashboard user : admin
Dashboard password : T6PuHRDZxxxx
================================================
frps status manage : frps {start|stop|restart|status|config|version}
Example:
start: frps start
stop: frps stop
restart: frps restart
You have new mail in /var/spool/mail/root
一般都选择默认就行，端口不要和服务器已有端口冲突，比如http的80，https的443等
一般到这里服务端就搭建好了
验证搭建

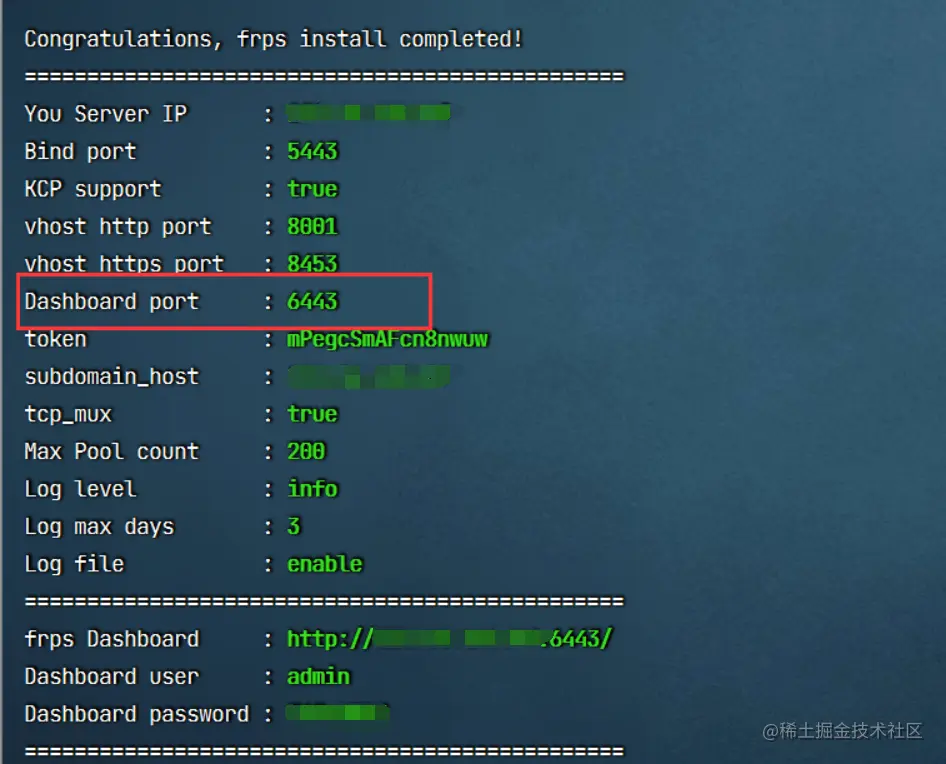

如果没做过改动的话，控制面板端口一般是6443 (Please input frps dashboard_port 前面一键安装的时候会展示这个，默认就是6443，也可以自己改)
访问地址 http://ip:6443

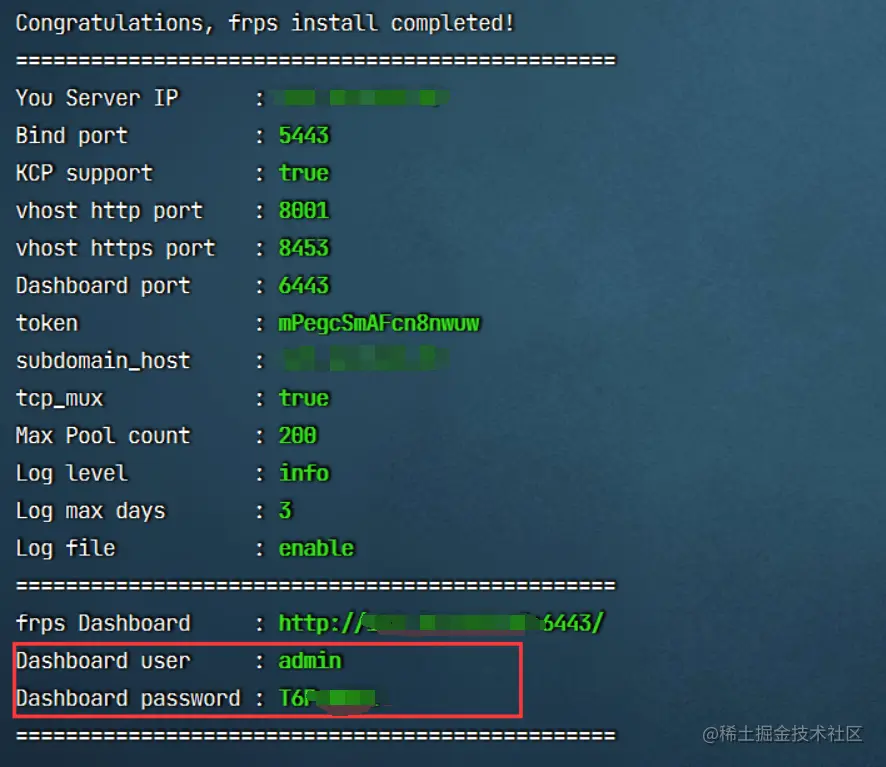

输入账户密码就是前面生成的
客户端配置

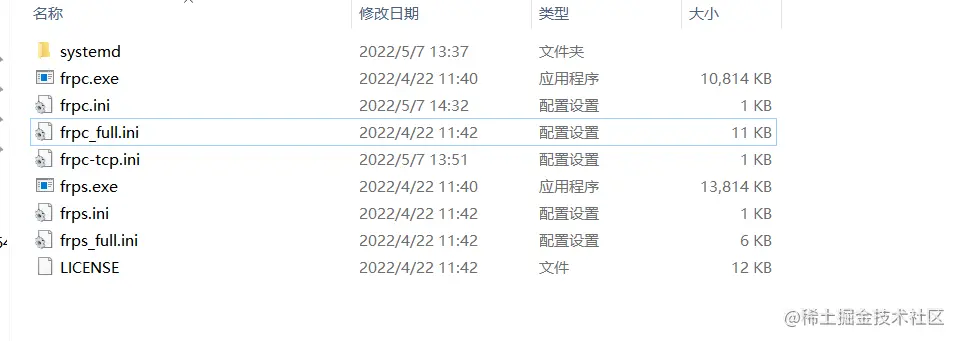

解压以后的文件
HTTP模式(修改frpc.ini)
[common]
server_addr = 服务器IP
server_port = 5443
token = mPegcSmAFcn8nwuw
[webdisc]
#访问协议
type = http
#内网服务器Ip
local_ip = 192.168.100.100
#内网web服务的端口号
local_port = 8080
#所绑定的公网服务器域名，一级、二级域名都可以
custom_domains = disc.xxxxxxx.xyz
[webjava]
#访问协议
type = http
#内网服务器Ip
local_ip = 192.168.100.100
#内网web服务的端口号
local_port = 8012
#所绑定的公网服务器域名，一级、二级域名都可以
custom_domains = server.xxxxxx.xyz
如果公网没有这么多域名的话，可以使用IP，但是内网需要Nginx做代理
TCP模式
[common]
server_addr = 服务器IP
server_port = 5443
token = mPegcSmAFcn8nwuw
[web8080]
type = http
local_ip = 127.0.0.1
local_port = 8080
remote_port = 6000

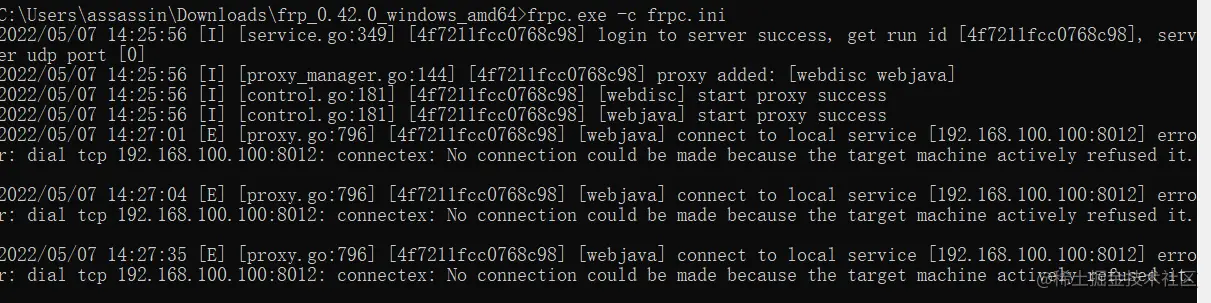

frpc.exe -c frpc.ini
