Tomcat 部署及优化（多实例部署、Nginx+Tomcat负载均衡、动静分离）

落言
92 阅读4分钟

Tomcat多实例部署

1.安装好 jdk

具体步骤见上一篇博客

2.安装 tomcat

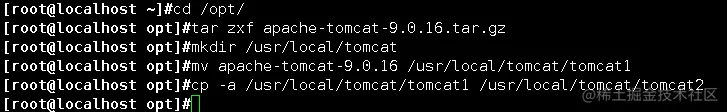

[root@localhost ~]#cd /opt/
[root@localhost opt]#tar zxf apache-tomcat-9.0.16.tar.gz
[root@localhost opt]#mkdir /usr/local/tomcat
[root@localhost opt]#mv apache-tomcat-9.0.16 /usr/local/tomcat/tomcat1
[root@localhost opt]#cp -a /usr/local/tomcat/tomcat1 /usr/local/tomcat/tomcat2


3.配置 tomcat 环境变量

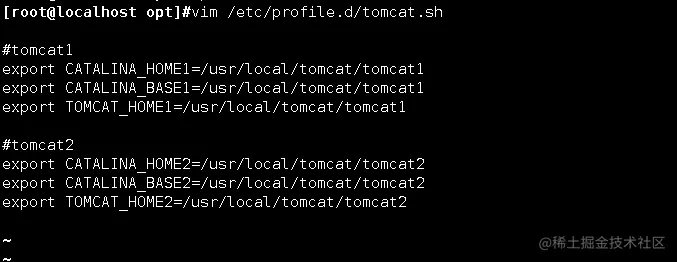

[root@localhost opt]#vim /etc/profile.d/tomcat.sh

#tomcat1
export CATALINA_HOME1=/usr/local/tomcat/tomcat1
export CATALINA_BASE1=/usr/local/tomcat/tomcat1
export TOMCAT_HOME1=/usr/local/tomcat/tomcat1

#tomcat2
export CATALINA_HOME2=/usr/local/tomcat/tomcat2
export CATALINA_BASE2=/usr/local/tomcat/tomcat2
export TOMCAT_HOME2=/usr/local/tomcat/tomcat2

[root@localhost opt]#source /etc/profile.d/tomcat.sh



4.修改 tomcat2 中的 server.xml 文件，要求各 tomcat 实例配置不能有重复的端口号

vim /usr/local/tomcat/tomcat2/conf/server.xml
<Server port="8006" shutdown="SHUTDOWN">		#22行，修改Server prot，默认为8005 -> 修改为8006
<Connector port="8081" protocol="HTTP/1.1"		#69行，修改Connector port，HTTP/1.1  默认为8080 -> 修改为8081
<Connector port="8010" protocol="AJP/1.3" redirectPort="8443" />	#116行，修改Connector port AJP/1.3，默认为8009 -> 修改为8010

----------------------------------------------------------------------------------------------------------
第一个连接器默认监听8080端口，负责建立HTTP连接。在通过浏览器访问Tomcat服务器的Web应用时，使用的就是这个连接器。
第二个连接器默认监听8009端口，AJP端口，即容器使用，如Apache能通过AJP协议访问Tomcat的8009端口。
----------------------------------------------------------------------------------------------------------

image.png image.png image.png

5.修改各 tomcat 实例中的 startup.sh 和 shutdown.sh 文件，添加 tomcat 环境变量

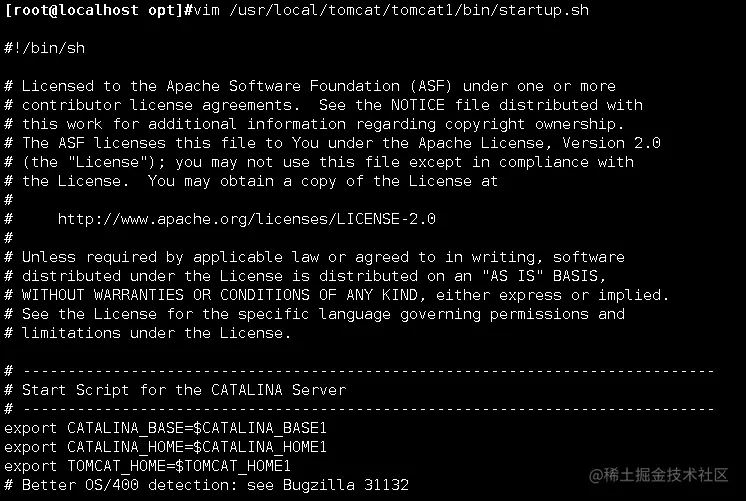

vim /usr/local/tomcat/tomcat1/bin/startup.sh
# -----------------------------------------------------------------------------
# Start Script for the CATALINA Server
# -----------------------------------------------------------------------------
##添加以下内容
export CATALINA_BASE=$CATALINA_BASE1
export CATALINA_HOME=$CATALINA_HOME1
export TOMCAT_HOME=$TOMCAT_HOME1


vim /usr/local/tomcat/tomcat1/bin/shutdown.sh
# -----------------------------------------------------------------------------
# Stop script for the CATALINA Server
# -----------------------------------------------------------------------------
export CATALINA_BASE=$CATALINA_BASE1
export CATALINA_HOME=$CATALINA_HOME1
export TOMCAT_HOME=$TOMCAT_HOME1

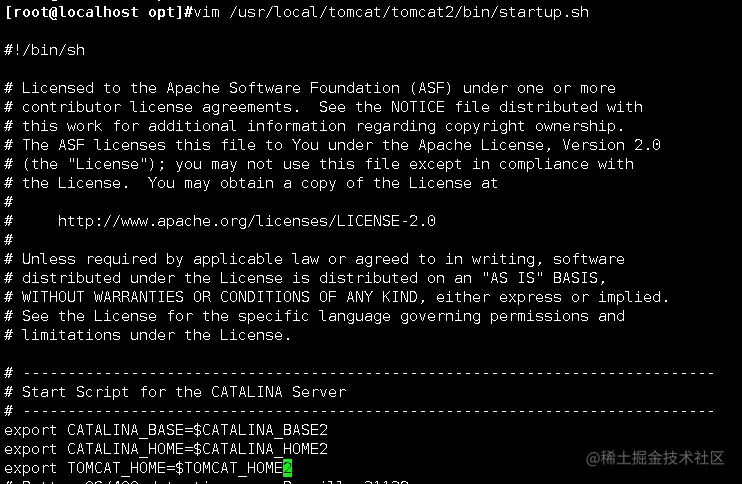

vim /usr/local/tomcat/tomcat2/bin/startup.sh
# -----------------------------------------------------------------------------
# Start Script for the CATALINA Server
# -----------------------------------------------------------------------------
export CATALINA_BASE=$CATALINA_BASE2
export CATALINA_HOME=$CATALINA_HOME2
export TOMCAT_HOME=$TOMCAT_HOME2


vim /usr/local/tomcat/tomcat2/bin/shutdown.sh
# -----------------------------------------------------------------------------
# Stop script for the CATALINA Server
# -----------------------------------------------------------------------------
export CATALINA_BASE=$CATALINA_BASE2
export CATALINA_HOME=$CATALINA_HOME2
export TOMCAT_HOME=$TOMCAT_HOME2

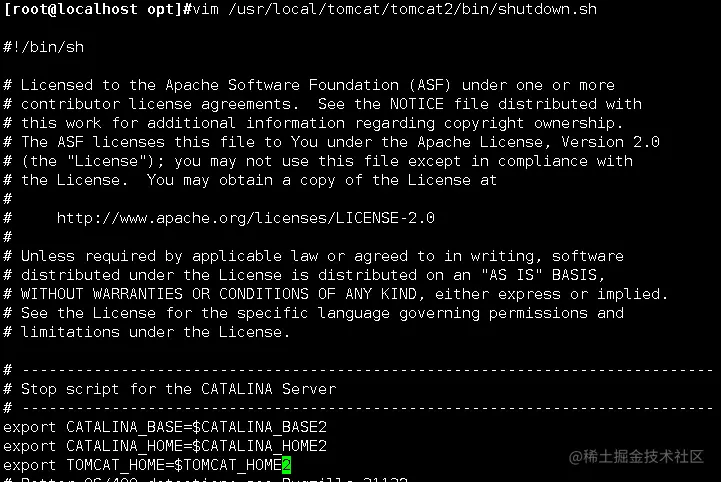

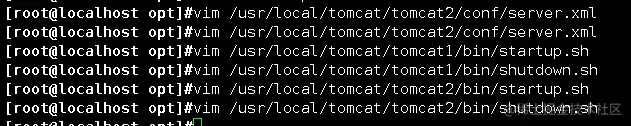

image.png image.png

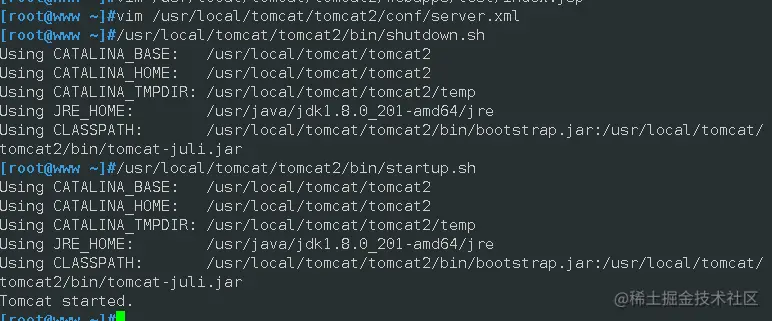

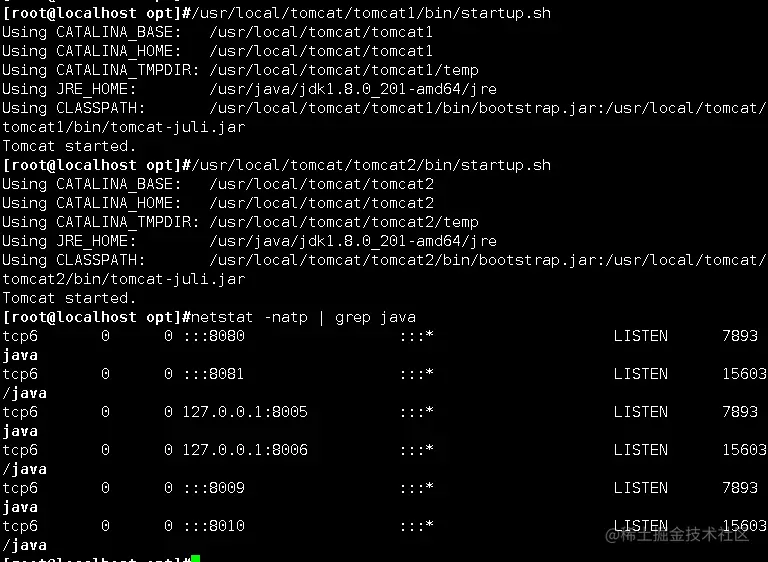

6.启动各 tomcat 中的 /bin/startup.sh

/usr/local/tomcat/tomcat1/bin/startup.sh
/usr/local/tomcat/tomcat2/bin/startup.sh

netstat -natp | grep java

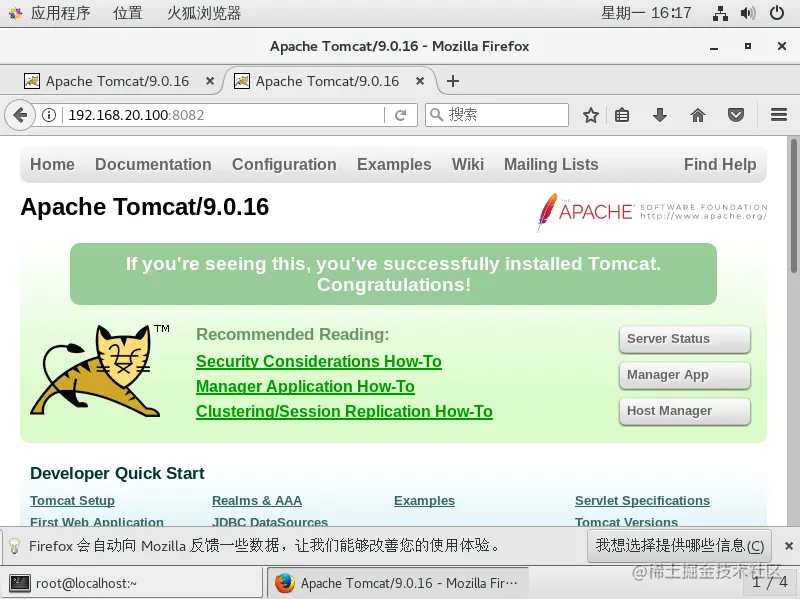

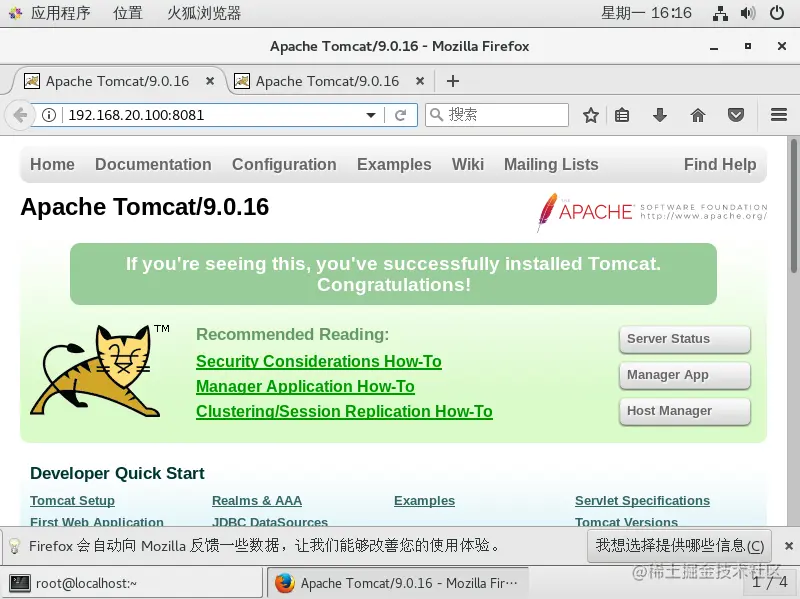

7.浏览器访问测试

image.png image.png

Nginx+Tomcat负载均衡、动静分离

实验环境

Nginx 服务器：192.168.20.10:80

Tomcat服务器1：192.168.20.20:80

Tomcat服务器2：192.168.80.100:8081 ；192.168.80.101:8082

1.部署Nginx 负载均衡器

[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# setenforce 0
[root@localhost ~]# yum -y install pcre-devel zlib-devel openssl-devel gcc gcc-c++ make

[root@localhost ~]# useradd -M -s /sbin/nologin nginx

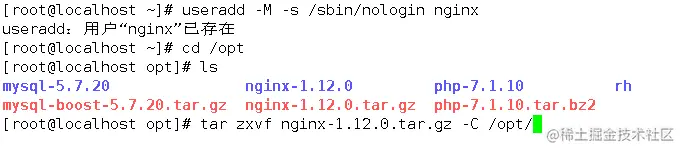

[root@localhost ~]# cd /opt
[root@localhost opt]# tar zxvf nginx-1.12.0.tar.gz -C /opt/

[root@localhost opt]# cd nginx-1.12.0/
./configure \
--prefix=/usr/local/nginx \
--user=nginx \
--group=nginx \
--with-file-aio \									#启用文件修改支持
--with-http_stub_status_module \					#启用状态统计
--with-http_gzip_static_module \					#启用 gzip静态压缩
--with-http_flv_module \							#启用 flv模块，提供对 flv 视频的伪流支持
--with-http_ssl_module								#启用 SSL模块，提供SSL加密功能
--with-stream										#启用 stream模块，提供4层调度

[root@localhost nginx-1.12.0]# make -j4 && make install

[root@localhost nginx-1.12.0]# ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/

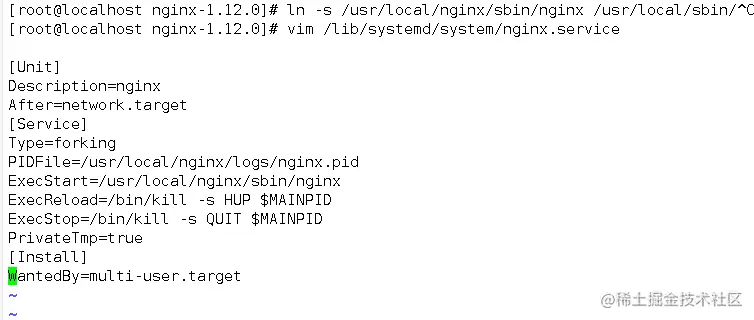

[root@localhost nginx-1.12.0]# vim /lib/systemd/system/nginx.service

[Unit]
Description=nginx
After=network.target
[Service]
Type=forking
PIDFile=/usr/local/nginx/logs/nginx.pid
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/bin/kill -s HUP $MAINPID
ExecStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true
[Install]
WantedBy=multi-user.target

[root@localhost nginx-1.12.0]# chmod 754 /lib/systemd/system/nginx.service
[root@localhost nginx-1.12.0]# systemctl start nginx.service
[root@localhost nginx-1.12.0]# systemctl enable nginx.service








2.部署2台Tomcat 应用服务器

[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# setenforce 0

[root@localhost ~]# cd /opt/

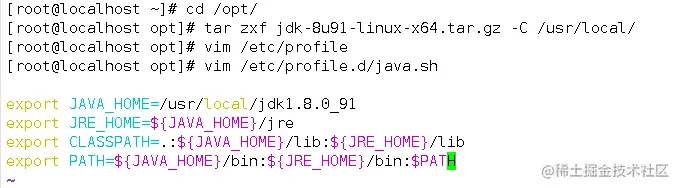

[root@localhost opt]# tar zxf jdk-8u91-linux-x64.tar.gz -C /usr/local/

[root@localhost opt]# vim /etc/profile.d/java.sh

export JAVA_HOME=/usr/local/jdk1.8.0_91
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:${JRE_HOME}/bin:$PATH

[root@localhost opt]# source /etc/profile.d/java.sh
[root@localhost opt]# tar zxf apache-tomcat-8.5.16.tar.gz
[root@localhost opt]# mv /opt/apache-tomcat-8.5.16/ /usr/local/tomcat
[root@localhost opt]# /usr/local/tomcat/bin/shutdown.sh
[root@localhost opt]# /usr/local/tomcat/bin/startup.sh

[root@localhost opt]# netstat -ntap | grep 8080





3.动静分离配置

（1）Tomcat1 server 配置

[root@localhost ~]# mkdir /usr/local/tomcat/webapps/test

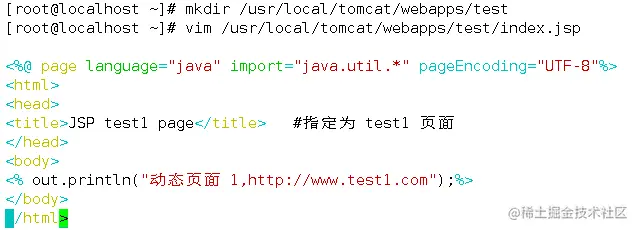

[root@localhost ~]# vim /usr/local/tomcat/webapps/test/index.jsp

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<html>
<head>
<title>JSP test1 page</title>   #指定为 test1 页面
</head>
<body>
<% out.println("动态页面 1,http://www.test1.com");%>
</body>
</html>

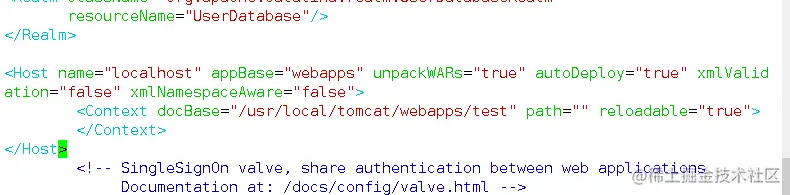

[root@localhost ~]# vim /usr/local/tomcat/conf/server.xml

#由于主机名 name 配置都为 localhost，需要删除前面的 HOST 配置
<Host name="localhost" appBase="webapps" unpackWARs="true" autoDeploy="true" xmlValidation="false" xmlNamespaceAware="false">
        <Context docBase="/usr/local/tomcat/webapps/test" path="" reloadable="true">
        </Context>
</Host>

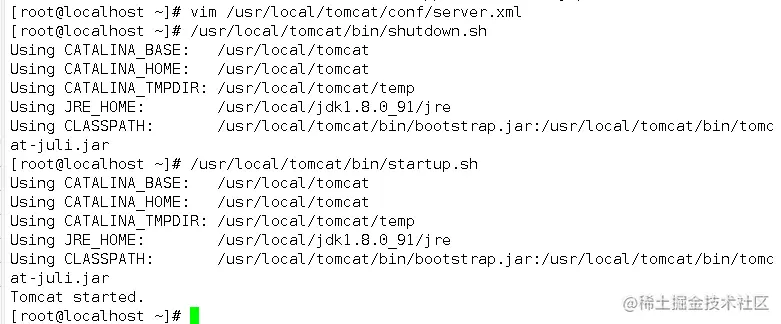

[root@localhost ~]# /usr/local/tomcat/bin/shutdown.sh
[root@localhost ~]# /usr/local/tomcat/bin/startup.sh




（2）Tomcat2 server 配置

[root@www ~]#mkdir /usr/local/tomcat/tomcat1/webapps/test /usr/local/tomcat/tomcat2/webapps/test

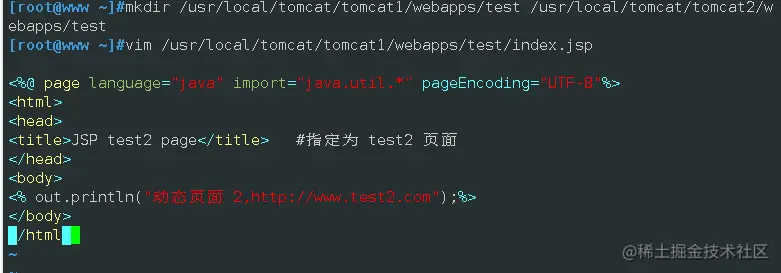

[root@www ~]#vim /usr/local/tomcat/tomcat1/webapps/test/index.jsp

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<html>
<head>
<title>JSP test2 page</title>   #指定为 test2 页面
</head>
<body>
<% out.println("动态页面 2,http://www.test2.com");%>
</body>
</html>

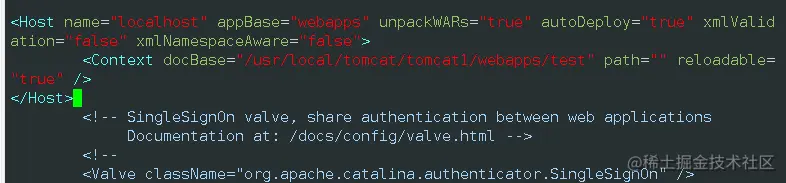

[root@www ~]#vim /usr/local/tomcat/tomcat1/conf/server.xml

#删除前面的 HOST 配置
<Host name="localhost" appBase="webapps" unpackWARs="true" autoDeploy="true" xmlValidation="false" xmlNamespaceAware="false">
        <Context docBase="/usr/local/tomcat/tomcat1/webapps/test" path="" reloadable="true" />
</Host>

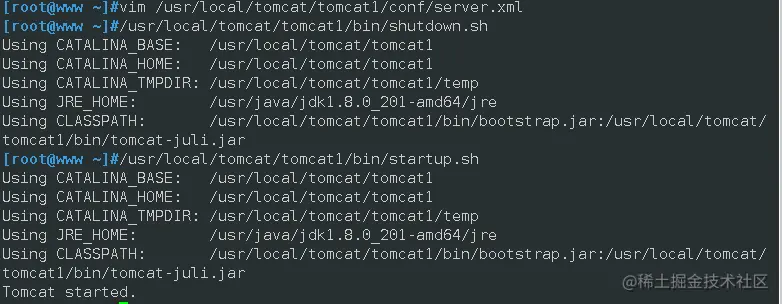

[root@www ~]#/usr/local/tomcat/tomcat1/bin/shutdown.sh
[root@www ~]#/usr/local/tomcat/tomcat1/bin/startup.sh

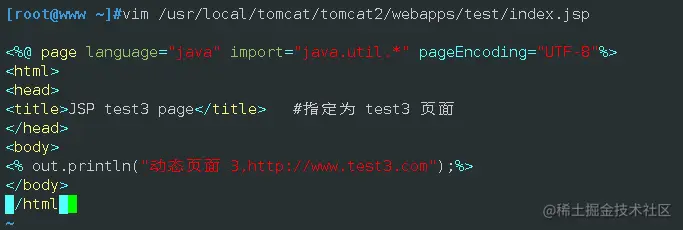

[root@www ~]#vim /usr/local/tomcat/tomcat2/webapps/test/index.jsp

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<html>
<head>
<title>JSP test3 page</title>   #指定为 test3 页面
</head>
<body>
<% out.println("动态页面 3,http://www.test3.com");%>
</body>
</html>

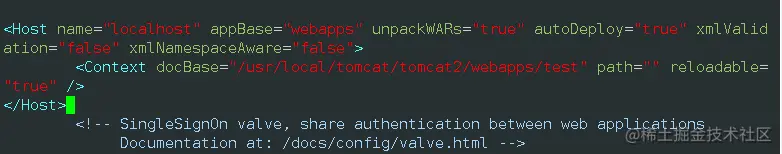

[root@www ~]#vim /usr/local/tomcat/tomcat2/conf/server.xml

#删除前面的 HOST 配置
<Host name="localhost" appBase="webapps" unpackWARs="true" autoDeploy="true" xmlValidation="false" xmlNamespaceAware="false">
	<Context docBase="/usr/local/tomcat/tomcat2/webapps/test" path="" reloadable="true" />
</Host>

[root@www ~]#/usr/local/tomcat/tomcat2/bin/shutdown.sh
[root@www ~]#/usr/local/tomcat/tomcat2/bin/startup.sh







（3）Nginx server 配置

[root@localhost ~]# echo '<html><body><h1>这是静态页面</h1></body></html>' > /usr/local/nginx/html/index.html
[root@localhost ~]# mkdir /usr/local/nginx/html/img

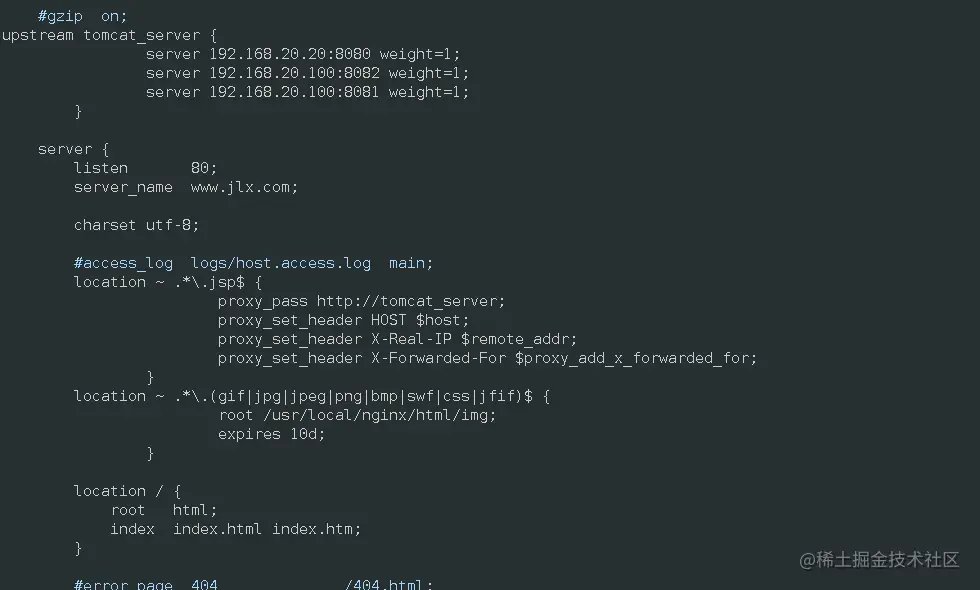

[root@localhost ~]# vim /usr/local/nginx/conf/nginx.conf

......
http {
......
	#gzip on;

	#配置负载均衡的服务器列表，weight参数表示权重，权重越高，被分配到的概率越大
	upstream tomcat_server {
		server 192.168.20.20:8080 weight=1;
		server 192.168.20.100:8082 weight=1;
		server 192.168.20.101:8081 weight=1;
	}

	server {
		listen 80;
		server_name www.jlx.com;

		charset utf-8;

		#access_log logs/host.access.log main;

		#配置Nginx处理动态页面请求，将 .jsp文件请求转发到Tomcat 服务器处理
		location ~ .*\.jsp$ {
			proxy_pass http://tomcat_server;
#设置后端的Web服务器可以获取远程客户端的真实IP
##设定后端的Web服务器接收到的请求访问的主机名（域名或IP、端口），默认HOST的值为proxy_pass指令设置的主机名。如果反向代理服务器不重写该请求头的话，那么后端真实服务器在处理时会认为所有的请求都来自反向代理服务器，如果后端有防攻击策略的话，那么机器就被封掉了。
			proxy_set_header HOST $host;
##把$remote_addr赋值给X-Real-IP，来获取源IP
			proxy_set_header X-Real-IP $remote_addr;
##在nginx 作为代理服务器时，设置的IP列表，会把经过的机器ip，代理机器ip都记录下来
			proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
		}

		#配置Nginx处理静态图片请求
		location ~ .*\.(gif|jpg|jpeg|png|bmp|swf|css)$ {
			root /usr/local/nginx/html/img;
			expires 10d;
		}

		location / {
			root html;
			index index.html index.htm;
		}
......
	}
......
}



4.测试效果

测试静态页面效果

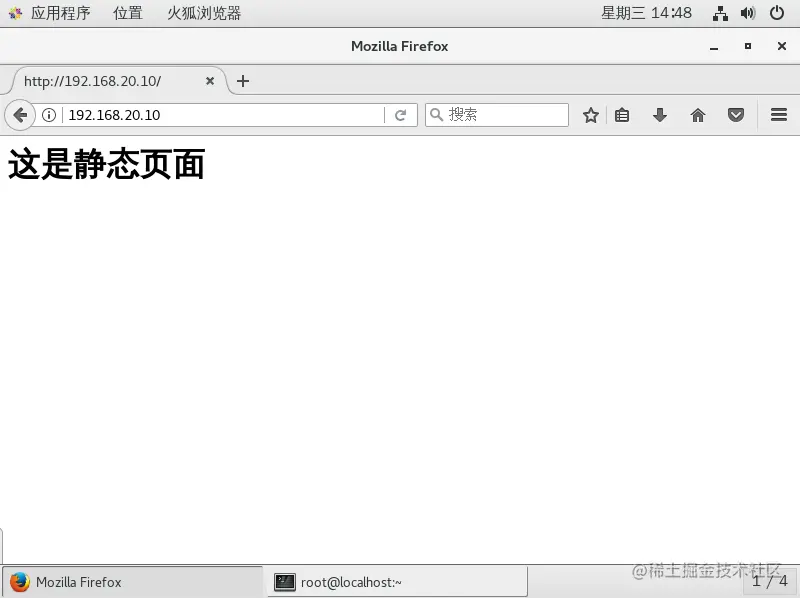

浏览器访问 http://192.168.20.10/

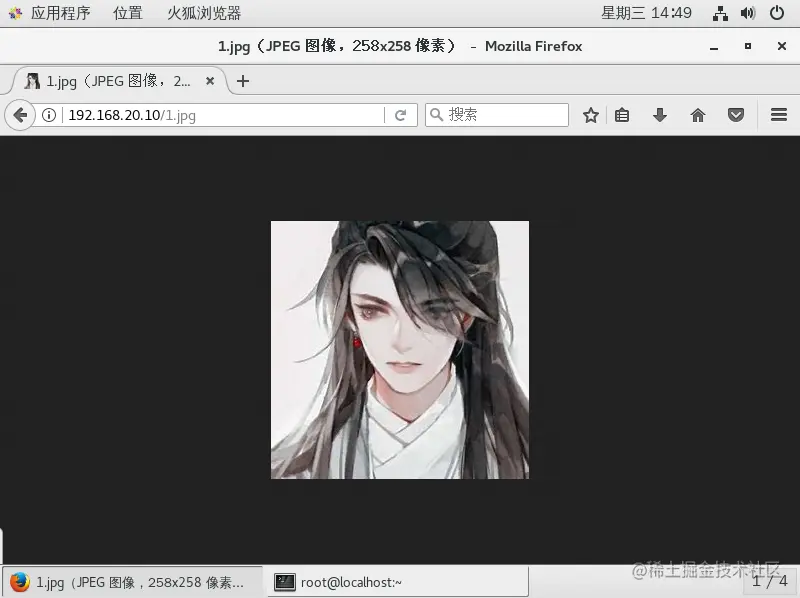

浏览器访问 http://192.168.20.10/1.jpg

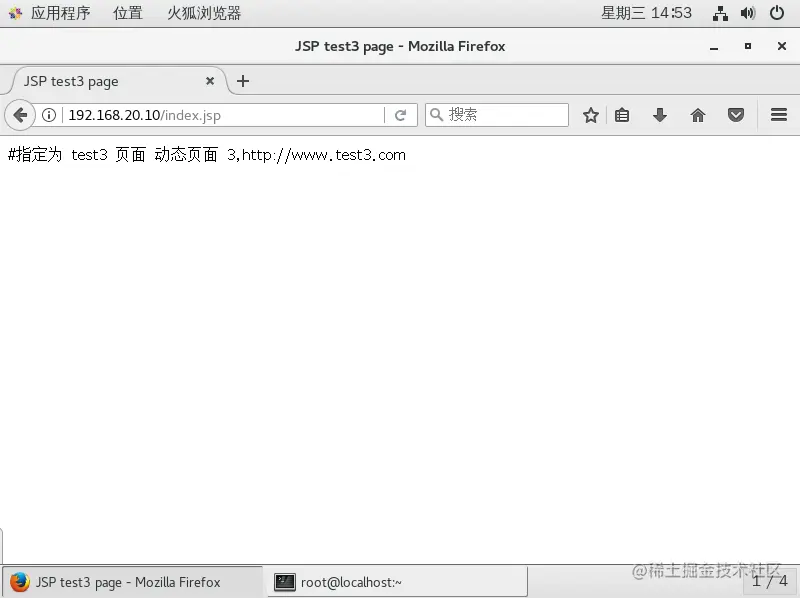

测试负载均衡效果，不断刷新浏览器测试

浏览器访问 http://192.168.20.100/index.jsp
