命令基本语法	功能描述
help	显示所有操作命令
ls path [watch]	使用 ls 命令来查看当前znode中所包含的内容
ls2 path [watch]	查看当前节点数据并能看到更新次数等数据
create	普通创建-s 含有序列-e 临时（重启或者超时消失）
get path [watch]	获得节点的值
set	设置节点的具体值
stat	查看节点状态
delete	删除节点
rmr	递归删除节点

1．启动客户端

[atguigu@hadoop103 zookeeper-3.4.10]$ bin/zkCli.sh

2．显示所有操作命令

[zk: localhost:2181(CONNECTED) 1] help

3．查看当前znode中所包含的内容

[zk: localhost:2181(CONNECTED) 0] ls /

[zookeeper]

4．查看当前节点详细数据

[zk: localhost:2181(CONNECTED) 1] ls2 /

[zookeeper]

cZxid = 0x0

ctime = Thu Jan 01 08:00:00 CST 1970

mZxid = 0x0

mtime = Thu Jan 01 08:00:00 CST 1970

[zk: localhost:2181(CONNECTED) 3] create /sanguo "jinlian"

Created /sanguo

[zk: localhost:2181(CONNECTED) 4] create /sanguo/shuguo "liubei"

Created /sanguo/shuguo

6．获得节点的值

[zk: localhost:2181(CONNECTED) 5] get /sanguo

jinlian

cZxid = 0x100000003

ctime = Wed Aug 29 00:03:23 CST 2018

mZxid = 0x100000003

mtime = Wed Aug 29 00:03:23 CST 2018

[zk: localhost:2181(CONNECTED) 6]

[zk: localhost:2181(CONNECTED) 6] get /sanguo/shuguo

liubei

cZxid = 0x100000004

ctime = Wed Aug 29 00:04:35 CST 2018

mZxid = 0x100000004

mtime = Wed Aug 29 00:04:35 CST 2018

[zk: localhost:2181(CONNECTED) 7] create -e /sanguo/wuguo "zhouyu"

Created /sanguo/wuguo

（1）在当前客户端是能查看到的

[zk: localhost:2181(CONNECTED) 3] ls /sanguo

[wuguo, shuguo]

（2）退出当前客户端然后再重启客户端

[zk: localhost:2181(CONNECTED) 12] quit

[atguigu@hadoop104 zookeeper-3.4.10]$ bin/zkCli.sh

（3）再次查看根目录下短暂节点已经删除

[zk: localhost:2181(CONNECTED) 0] ls /sanguo

[shuguo]

8．创建带序号的节点

（1）先创建一个普通的根节点/sanguo/weiguo

[zk: localhost:2181(CONNECTED) 1] create /sanguo/weiguo "caocao"

Created /sanguo/weiguo

（2）创建带序号的节点

[zk: localhost:2181(CONNECTED) 2] create -s /sanguo/weiguo/xiaoqiao "jinlian"

Created /sanguo/weiguo/xiaoqiao0000000000

[zk: localhost:2181(CONNECTED) 3] create -s /sanguo/weiguo/daqiao "jinlian"

Created /sanguo/weiguo/daqiao0000000001

[zk: localhost:2181(CONNECTED) 4] create -s /sanguo/weiguo/diaocan "jinlian"

Created /sanguo/weiguo/diaocan0000000002

如果原来没有序号节点，序号从0开始依次递增。如果原节点下已有2个节点，则再排序时从2开始，以此类推。

9．修改节点数据值

[zk: localhost:2181(CONNECTED) 6] set /sanguo/weiguo "simayi"

10．节点的值变化监听

（1）在hadoop104主机上注册监听/sanguo节点数据变化

[zk: localhost:2181(CONNECTED) 26] [zk: localhost:2181(CONNECTED) 8] get /sanguo watch

（2）在hadoop103主机上修改/sanguo节点的数据

[zk: localhost:2181(CONNECTED) 1] set /sanguo "xisi"

（3）观察hadoop104主机收到数据变化的监听

WATCHER::

WatchedEvent state:SyncConnected type:NodeDataChanged path:/sanguo

11．节点的子节点变化监听（路径变化）

（1）在hadoop104主机上注册监听/sanguo节点的子节点变化

[zk: localhost:2181(CONNECTED) 1] ls /sanguo watch

[aa0000000001, server101]

（2）在hadoop103主机/sanguo节点上创建子节点

[zk: localhost:2181(CONNECTED) 2] create /sanguo/jin "simayi"

Created /sanguo/jin

（3）观察hadoop104主机收到子节点变化的监听

WATCHER::

WatchedEvent state:SyncConnected type:NodeChildrenChanged path:/sanguo

12．删除节点

[zk: localhost:2181(CONNECTED) 4] delete /sanguo/jin

13．递归删除节点

[zk: localhost:2181(CONNECTED) 15] rmr /sanguo/shuguo

14．查看节点状态

[zk: localhost:2181(CONNECTED) 17] stat /sanguo

cZxid = 0x100000003

ctime = Wed Aug 29 00:03:23 CST 2018

mZxid = 0x100000011

mtime = Wed Aug 29 00:21:23 CST 2018

4.3 API应用

4.3.1 Eclipse环境搭建

1．创建一个Maven工程

2．添加pom文件

junit junit RELEASE org.apache.logging.log4j log4j-core 2.8.2 org.apache.zookeeper zookeeper 3.4.10

3．拷贝log4j.properties文件到项目根目录

需要在项目的src/main/resources目录下，新建一个文件，命名为"log4j.properties"，在文件中填入。

log4j.rootLogger=INFO, stdout

log4j.appender.stdout=org.apache.log4j.ConsoleAppender

log4j.appender.stdout.layout=org.apache.log4j.PatternLayout

log4j.appender.stdout.layout.ConversionPattern=%d %p [%c] - %m%n

log4j.appender.logfile=org.apache.log4j.FileAppender

log4j.appender.logfile.File=target/spring.log

log4j.appender.logfile.layout=org.apache.log4j.PatternLayout

log4j.appender.logfile.layout.ConversionPattern=%d %p [%c] - %m%n

private static String connectString ="hadoop102:2181,hadoop103:2181,hadoop104:2181"; private static int sessionTimeout = 2000; private ZooKeeper zkClient = null; @Before public void init() throws Exception { zkClient = new ZooKeeper(connectString, sessionTimeout, new Watcher() { @Override public void process(WatchedEvent event) { // 收到事件通知后的回调函数（用户的业务逻辑） System.out.println(event.getType() + "--" + event.getPath()); // 再次启动监听 try { zkClient.getChildren("/", true); } catch (Exception e) { e.printStackTrace(); } } }); }

4.3.3 创建子节点

// 创建子节点@Testpublic void create() throws Exception { // 参数1：要创建的节点的路径；参数2：节点数据；参数3：节点权限；参数4：节点的类型 String nodeCreated = zkClient.create("/atguigu", "jinlian".getBytes(), Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);}

4.3.4 获取子节点并监听节点变化

// 获取子节点@Testpublic void getChildren() throws Exception { List children = zkClient.getChildren("/", true); for (String child : children) { System.out.println(child); } // 延时阻塞 Thread.sleep(Long.MAX_VALUE);}

4.3.5 判断Znode是否存在

// 判断znode是否存在@Testpublic void exist() throws Exception { Stat stat = zkClient.exists("/eclipse", false); System.out.println(stat == null ? "not exist" : "exist");}

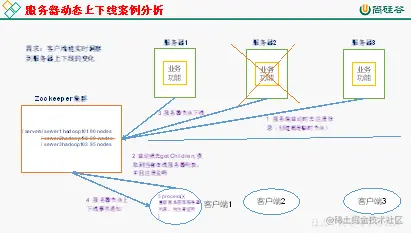

4.4 监听服务器节点动态上下线案例

1．需求

某分布式系统中，主节点可以有多台，可以动态上下线，任意一台客户端都能实时感知到主节点服务器的上下线。

[zk: localhost:2181(CONNECTED) 10] create /servers "servers"

Created /servers

（1）服务器端向Zookeeper注册代码

package com.atguigu.zkcase;import java.io.IOException;import org.apache.zookeeper.CreateMode;import org.apache.zookeeper.WatchedEvent;import org.apache.zookeeper.Watcher;import org.apache.zookeeper.ZooKeeper;import org.apache.zookeeper.ZooDefs.Ids; public class DistributeServer { private static String connectString = "hadoop102:2181,hadoop103:2181,hadoop104:2181"; private static int sessionTimeout = 2000; private ZooKeeper zk = null; private String parentNode = "/servers"; // 创建到zk的客户端连接 public void getConnect() throws IOException{ zk = new ZooKeeper(connectString, sessionTimeout, new Watcher() { @Override public void process(WatchedEvent event) { } }); } // 注册服务器 public void registServer(String hostname) throws Exception{ String create = zk.create(parentNode + "/server", hostname.getBytes(), Ids.OPEN_ACL_UNSAFE, CreateMode.EPHEMERAL_SEQUENTIAL); System.out.println(hostname +" is online "+ create); } // 业务功能 public void business(String hostname) throws Exception{ System.out.println(hostname+" is working ..."); Thread.sleep(Long.MAX_VALUE); } public static void main(String[] args) throws Exception { // 1获取zk连接 DistributeServer server = new DistributeServer(); server.getConnect(); // 2 利用zk连接注册服务器信息 server.registServer(args[0]); // 3 启动业务功能 server.business(args[0]); }}

（2）客户端代码

package com.atguigu.zkcase;import java.io.IOException;import java.util.ArrayList;import java.util.List;import org.apache.zookeeper.WatchedEvent;import org.apache.zookeeper.Watcher;import org.apache.zookeeper.ZooKeeper; public class DistributeClient { private static String connectString = "hadoop102:2181,hadoop103:2181,hadoop104:2181"; private static int sessionTimeout = 2000; private ZooKeeper zk = null; private String parentNode = "/servers"; // 创建到zk的客户端连接 public void getConnect() throws IOException { zk = new ZooKeeper(connectString, sessionTimeout, new Watcher() { @Override public void process(WatchedEvent event) { // 再次启动监听 try { getServerList(); } catch (Exception e) { e.printStackTrace(); } } }); } // 获取服务器列表信息 public void getServerList() throws Exception { // 1获取服务器子节点信息，并且对父节点进行监听 List children = zk.getChildren(parentNode, true); // 2存储服务器信息列表 ArrayList servers = new ArrayList<>(); // 3遍历所有节点，获取节点中的主机名称信息 for (String child : children) { byte[] data = zk.getData(parentNode + "/" + child, false, null); servers.add(new String(data)); } // 4打印服务器列表信息 System.out.println(servers); } // 业务功能 public void business() throws Exception{ System.out.println("client is working ...");Thread.sleep(Long.MAX_VALUE); } public static void main(String[] args) throws Exception { // 1获取zk连接 DistributeClient client = new DistributeClient(); client.getConnect(); // 2获取servers的子节点信息，从中获取服务器信息列表 client.getServerList(); // 3业务进程启动 client.business(); }}

第5章企业面试真题

（3）集群最少需要机器数：3

5.4 ZooKeeper的常用命令

ls create get delete set…
