ESP32 DEVKI TV1和GC9A01
准备硬件
- 杜邦线连接ESP32 DEVKI TV1及GC9A01

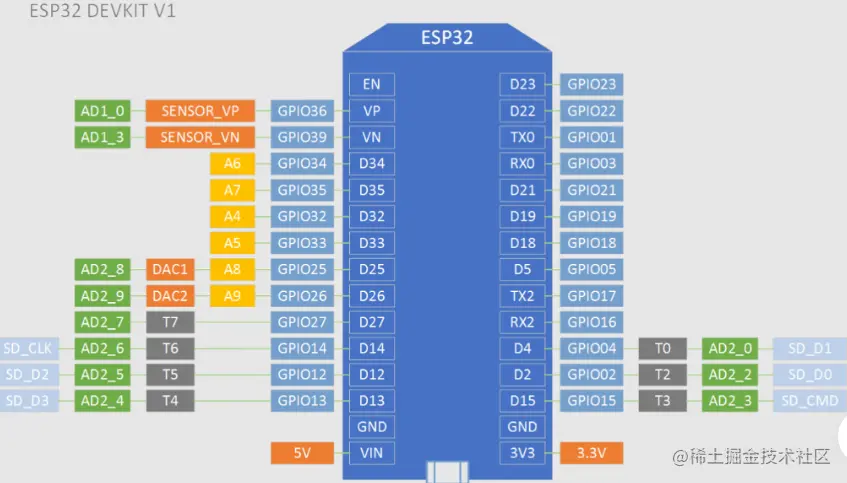

1.1. ESP32 DEVKI TV1引脚图
根据表格连接（引脚与软件相配
| 屏 | esp32 |
|---|---|
| GND | GND |
| VCC | 3V3 |
| SCL | GPIO22 |
| SDA | GPIO21 |
| RES | GPIO2 |
| DC | GPIO27 |
| CS | GPIO5 |
| BLK | GPIO16 |
1.2. 代码修改引脚 以下为主要代码
Arduino_DataBus *bus = new Arduino_ESP32SPI(27 /* DC */,5 /* CS */, 22 /* SCK */, 21 /* MOSI */, -1 /* MISO */, HSPI /* spi_num */);
Arduino_GFX *gfx = new Arduino_GC9A01(bus, 2 /* RST */, 0 /* rotation */, true /* IPS */);
准备软件
- 准备代码
#include <lvgl.h>
/*******************************************************************************
* LVGL Hello World
* This is a simple examplle for LVGL - Light and Versatile Graphics Library
*
* Dependent libraries:
* LVGL: https://github.com/lvgl/lvgl.git
******************************************************************************/
/*******************************************************************************
* Start of Arduino_GFX setting
*
* Arduino_GFX try to find the settings depends on selected board in Arduino IDE
* Or you can define the display dev kit not in the board list
* Defalult pin list for non display dev kit:
* Arduino Nano, Micro and more: CS: 9, DC: 8, RST: 7, BL: 6
* ESP32 various dev board : CS: 5, DC: 27, RST: 33, BL: 22
* ESP32-C3 various dev board : CS: 7, DC: 2, RST: 1, BL: 3
* ESP32-S2 various dev board : CS: 34, DC: 26, RST: 33, BL: 21
* ESP8266 various dev board : CS: 15, DC: 4, RST: 2, BL: 5
* Raspberry Pi Pico dev board : CS: 17, DC: 27, RST: 26, BL: 28
* RTL8720 BW16 old patch core : CS: 18, DC: 17, RST: 2, BL: 23
* RTL8720_BW16 Official core : CS: 9, DC: 8, RST: 6, BL: 3
* RTL8722 dev board : CS: 18, DC: 17, RST: 22, BL: 23
* RTL8722_mini dev board : CS: 12, DC: 14, RST: 15, BL: 13
* Seeeduino XIAO dev board : CS: 3, DC: 2, RST: 1, BL: 0
* Teensy 4.1 dev board : CS: 39, DC: 41, RST: 40, BL: 22
******************************************************************************/
#include <Arduino_GFX_Library.h>
/* More dev device declaration: https://github.com/moononournation/Arduino_GFX/wiki/Dev-Device-Declaration */
#if defined(DISPLAY_DEV_KIT)
Arduino_GFX *gfx = create_default_Arduino_GFX();
#else /* !defined(DISPLAY_DEV_KIT) */
/* More data bus class: https://github.com/moononournation/Arduino_GFX/wiki/Data-Bus-Class */
//Arduino_DataBus *bus = create_default_Arduino_DataBus();
//Arduino_DataBus *bus = new Arduino_ESP32SPI(4 /* DC */, -1 /* CS */, 22 /* SCK */, 21 /* MOSI */, -1 /* MISO */, HSPI /* spi_num */);
Arduino_DataBus *bus = new Arduino_ESP32SPI(27 /* DC */,5 /* CS */, 22 /* SCK */, 21 /* MOSI */, -1 /* MISO */, HSPI /* spi_num */);
/* More display class: https://github.com/moononournation/Arduino_GFX/wiki/Display-Class */
//Arduino_GFX *gfx = new Arduino_ILI9341(bus, DF_GFX_RST, 0 /* rotation */, false /* IPS */);
Arduino_GFX *gfx = new Arduino_GC9A01(bus, 2 /* RST */, 0 /* rotation */, true /* IPS */);
#endif /* !defined(DISPLAY_DEV_KIT) */
/*******************************************************************************
* End of Arduino_GFX setting
******************************************************************************/
#define DF_GFX_BL 22
/* Change to your screen resolution */
static uint32_t screenWidth;
static uint32_t screenHeight;
static lv_disp_draw_buf_t draw_buf;
static lv_color_t *disp_draw_buf;
static lv_disp_drv_t disp_drv;
static lv_obj_t* meter;
/* Display flushing 实现并注册一个函数，该函数可以将渲染图像复制到显示区域：*/
void my_disp_flush(lv_disp_drv_t *disp, const lv_area_t *area, lv_color_t *color_p)
{
uint32_t w = (area->x2 - area->x1 + 1);
uint32_t h = (area->y2 - area->y1 + 1);
gfx->draw16bitBeRGBBitmap(area->x1, area->y1, (uint16_t *)&color_p->full, w, h);
lv_disp_flush_ready(disp);
}
void setup()
{
Serial.begin(115200);
// while (!Serial);
Serial.println("LVGL Hello World");
// Init Display
gfx->begin();
gfx->fillScreen(BLACK);
#ifdef DF_GFX_BL
pinMode(DF_GFX_BL, OUTPUT);
digitalWrite(DF_GFX_BL, HIGH);
delay(100);
#endif
//初始化lvgl库
lv_init();
screenWidth = gfx->width();
screenHeight = gfx->height();
disp_draw_buf = (lv_color_t *)malloc(sizeof(lv_color_t) * screenWidth * 10);
if (!disp_draw_buf)
{
Serial.println("LVGL disp_draw_buf allocate failed!");
}
else
{
// 创建一个绘制缓冲区
/**
*LVGL将首先在此渲染图形，并将渲染的图像发送到显示器。
*缓冲区大小可以自由设置，但1/10屏幕大小是一个很好的起点
*/
lv_disp_draw_buf_init(&draw_buf, disp_draw_buf, NULL, screenWidth * 10);
/* Initialize the display */
lv_disp_drv_init(&disp_drv);
/* Change the following line to your display resolution */
disp_drv.hor_res = screenWidth;
disp_drv.ver_res = screenHeight;
//set your driver function
disp_drv.flush_cb = my_disp_flush;
// assign the buffer to the display
disp_drv.draw_buf = &draw_buf;
// register the driver
lv_disp_drv_register(&disp_drv);
/* Initialize the (dummy) input device driver */
static lv_indev_drv_t indev_drv;
lv_indev_drv_init(&indev_drv);
indev_drv.type = LV_INDEV_TYPE_POINTER;
lv_indev_drv_register(&indev_drv);
///* Create simple label */
lv_obj_t *label = lv_label_create(lv_scr_act());
lv_label_set_text(label, "Hello World");
lv_obj_align(label, LV_ALIGN_CENTER, 0, 0);
}
}
void loop()
{
lv_timer_handler(); /* let the GUI do its work */
delay(5);
}

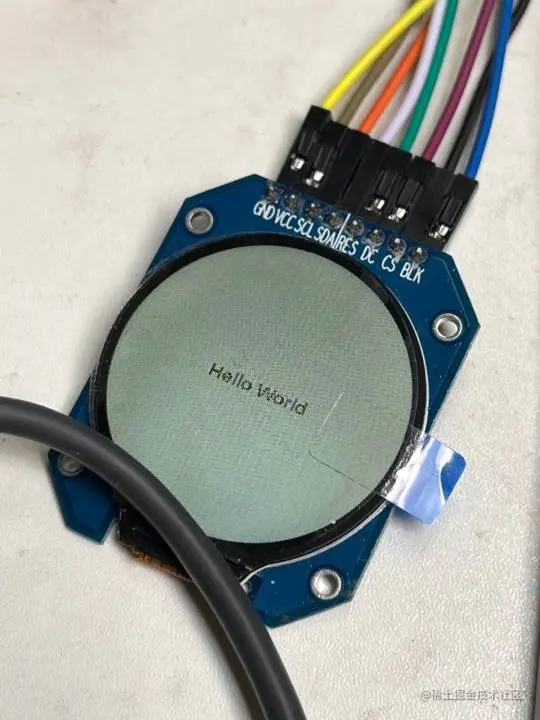

欣赏
解决问题：
- 前一天mac插上还好好的但是win 10识别不到串口，因为缺USB TO UART驱动，安装即可解决
安装USB TO UART驱动
https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloads
- 注意下载lvgl后会报lvgl.conf找不到，这个时候需要将template文件重命名放到指定目录下

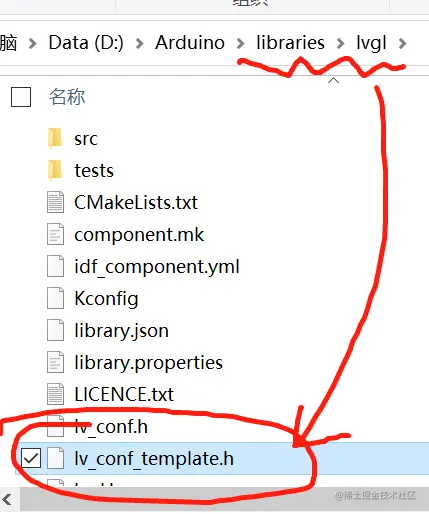

下载后,找到lv_conf_template.h文件

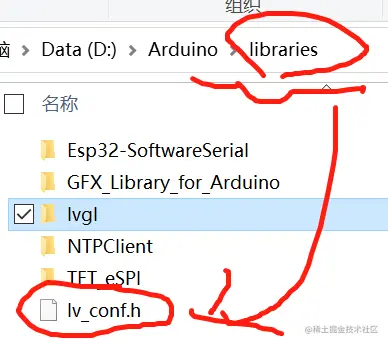

将其命名为lv_conf.h并移动到Libraries下
