vue项目使用3d高德城市地图用法

index.html 配置

<script type="text/javascript" src="http://webapi.amap.com/maps?v=1.4.3&key=你的key &plugin=AMap.ControlBar"></script>

vue.config.js

module.exports = {
    configureWebpack: {
        externals: {
          'AMap': 'AMap', // 高德地图配置
          'AMapUI': 'AMapUI'
        }
    },
}

页面使用

<template>
  <div class="box">
    <div id="container" style="width:1500px; height:900px"></div>
  </div>
</template>

<script>
import AMap from 'AMap' // 引入高德地图
import mapicon from '../../assets/map.png'
let map,marker;
export default {
  data() {
    return {
       markers : [
         {
              icon: mapicon,
              position: [121.506377, 31.243105],
              name:'张三',
          }, {
              icon: mapicon,
              position: [121.506077, 31.242105],
              name:'李四',

          }, {
              icon: mapicon,
              position: [121.506577, 31.240105],
              name:'王五',

          }
      ]
    }
  },
  mounted () {
    this.init()
  },
  methods: {
    init () {
      let that = this;
       map = new AMap.Map('container', {
          resizeEnable: true,
          rotateEnable:true,
          pitchEnable:true,
          zoom: 17,
          pitch:50,
          rotation:-15,
          viewMode:'3D',//开启3D视图,默认为关闭
          buildingAnimation:true,//楼块出现是否带动画
          // expandZoomRange:true,
          zooms:[3,20],
          center:that.markers[0].position
      })
      AMap.plugin(['AMap.ControlBar',], function(){
              // 添加 3D 罗盘控制
              map.addControl(new AMap.ControlBar());
      });
      this.addMarker(this.markers)
    },
    //拖动事件
    mapDraw(arriveCoor){
         map = new AMap.Map('container', {   //map-location是嵌地图div的id
              resizeEnable: true, //是否监控地图容器尺寸变化
              zoom:20, //初始化地图层级
              center: arriveCoor //初始化地图中心点
         });
         // 定位点
          this.addMarker(arriveCoor);
    },

    // 实例化点标记
    addMarker(arriveCoor) {
       var _this = this;
       arriveCoor.forEach(item=>{
          marker = new AMap.Marker({
              icon: item.icon,  //图片ip
              imageSize: "20px",
              position: [item.position[0], item.position[1]],
              // offset: new AMap.Pixel(-13, -30),
              content:`<div class="custom-content-marker"><span style="display:block;width:200px">${item.name}</span><img src=${mapicon} onclick="clickImgMarker(${item.name})"></div>`,
              // 设置是否可以拖拽
              draggable: true,
              cursor: 'move',
              // 设置拖拽效果
              // raiseOnDrag: true
          });
          marker.setMap(map);
      })

    },

  },

}
</script>

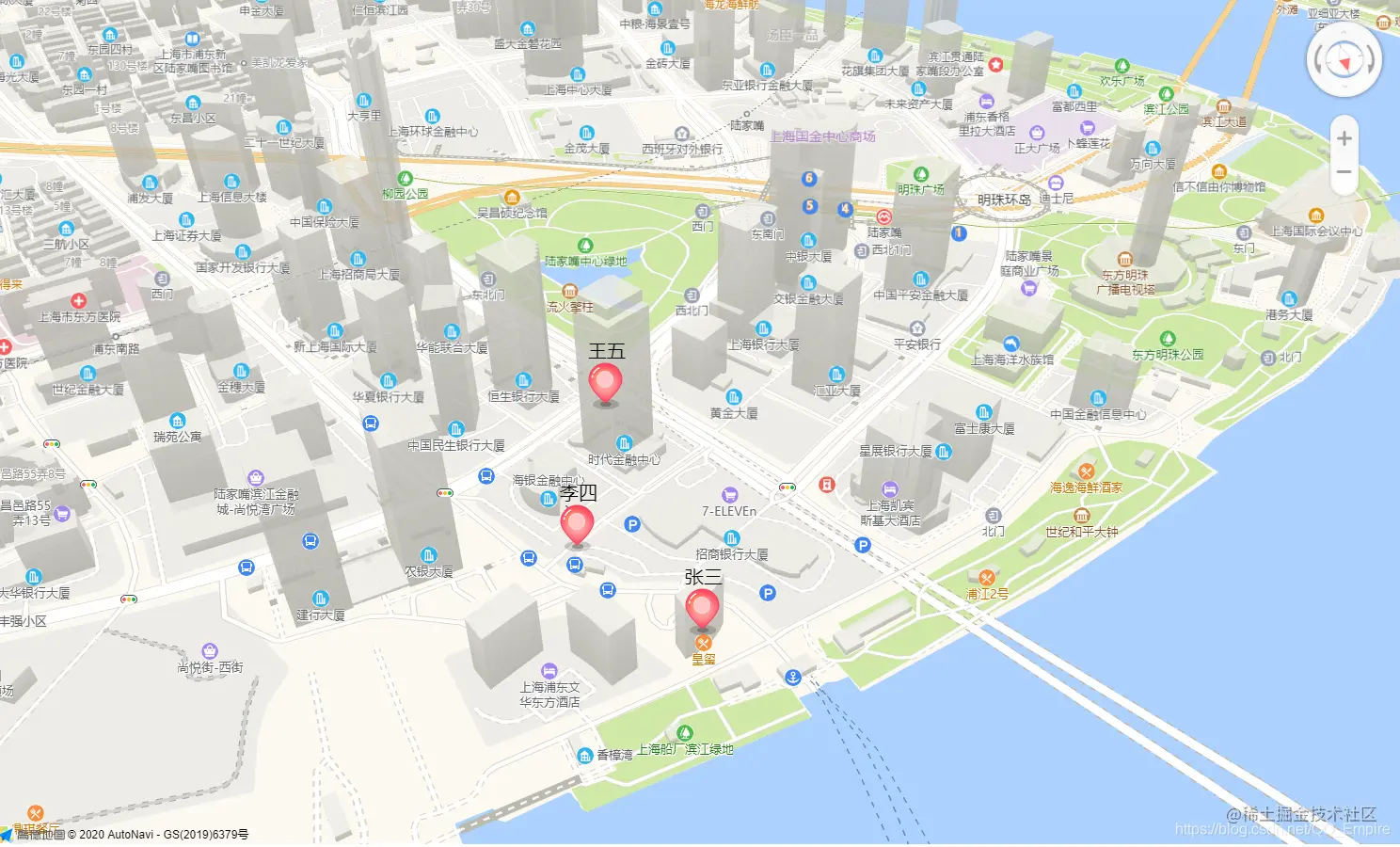

效果图
