(HAL库学习8)STM32CubeMX 驱动0.96寸IIC oled(取字模，取图模)

这一篇讲解用STM32CubeMX来使用0.96寸的IIC oled（128*64，VCC,GND,SCL,SDA四脚）

这篇文章我重新写了，如果你是第二次读到这篇文章，对不起，之前卧病额米有讲清楚，只把源码教给大家，没有教大家移植的核心，如何在我们的工程中添加文件我也没有说清楚，我应该照顾所有人的感受，有一些萌新不知道如何移植模块，我应该照顾他们的感受，我会补上一篇专门移植模块的博文，不会移植的去看看。第三，在Cube生成的工程中有一点小地方需要改我忘记说了。对不起。

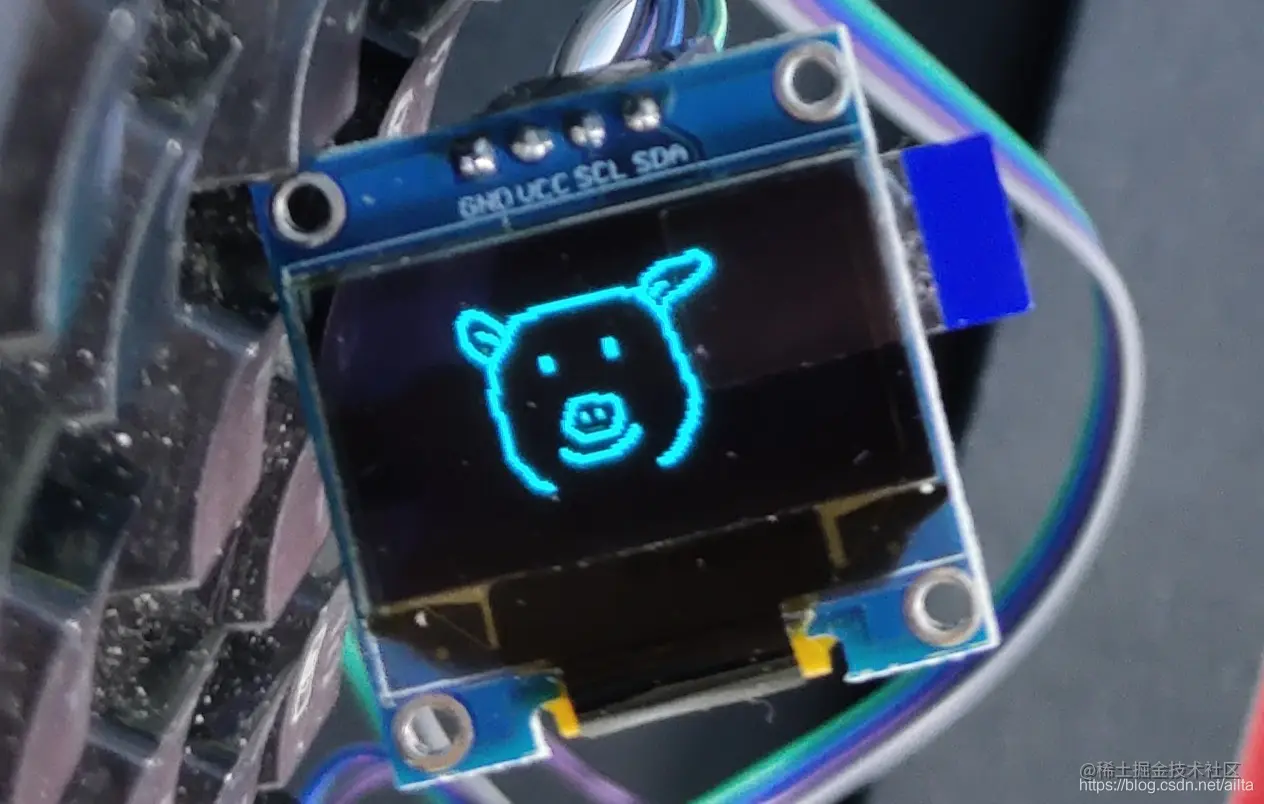

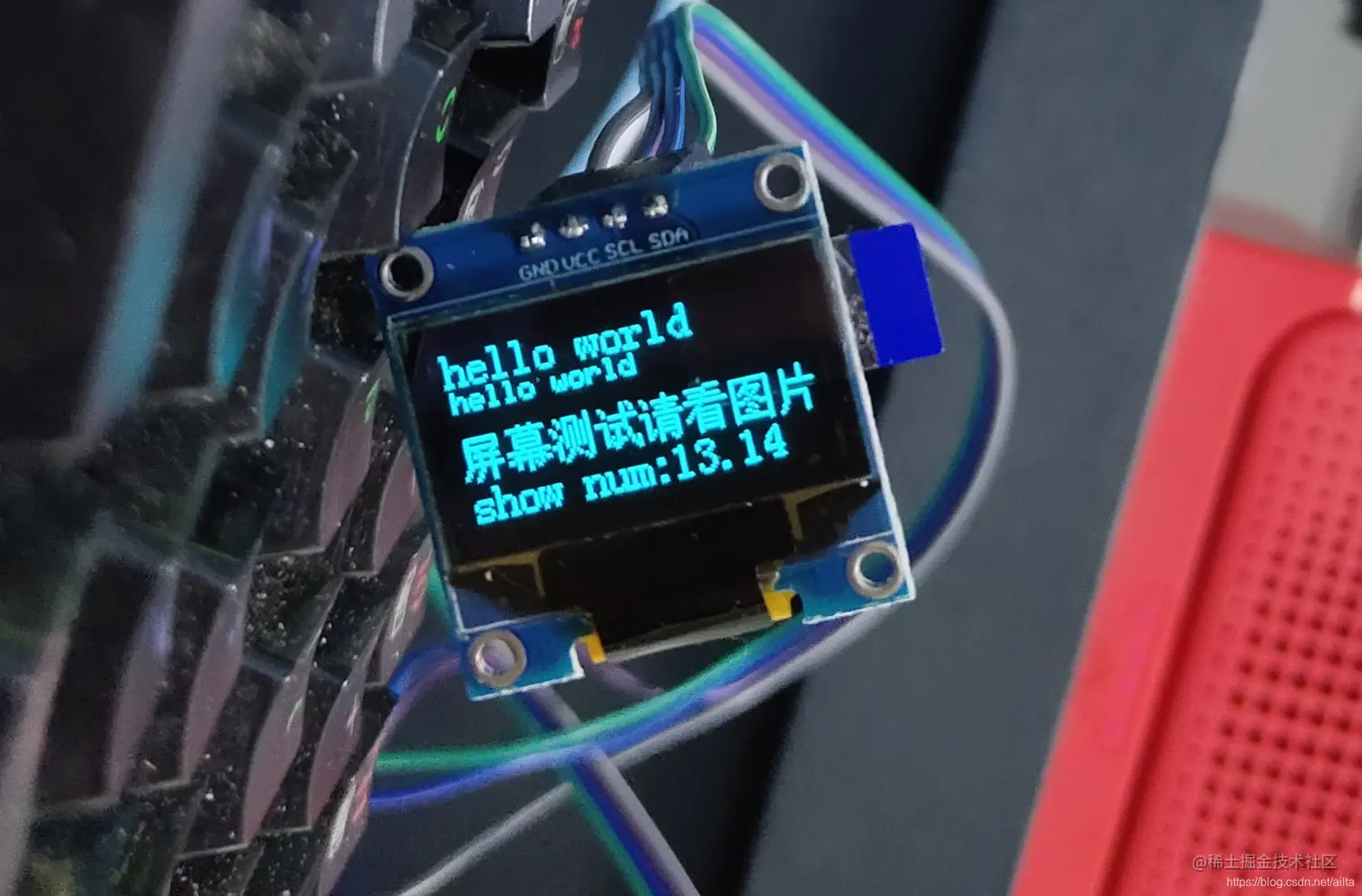

先给大家看看HAL库驱动的结果

在这里插入图片描述灵魂画师不必在意哈，0.0.

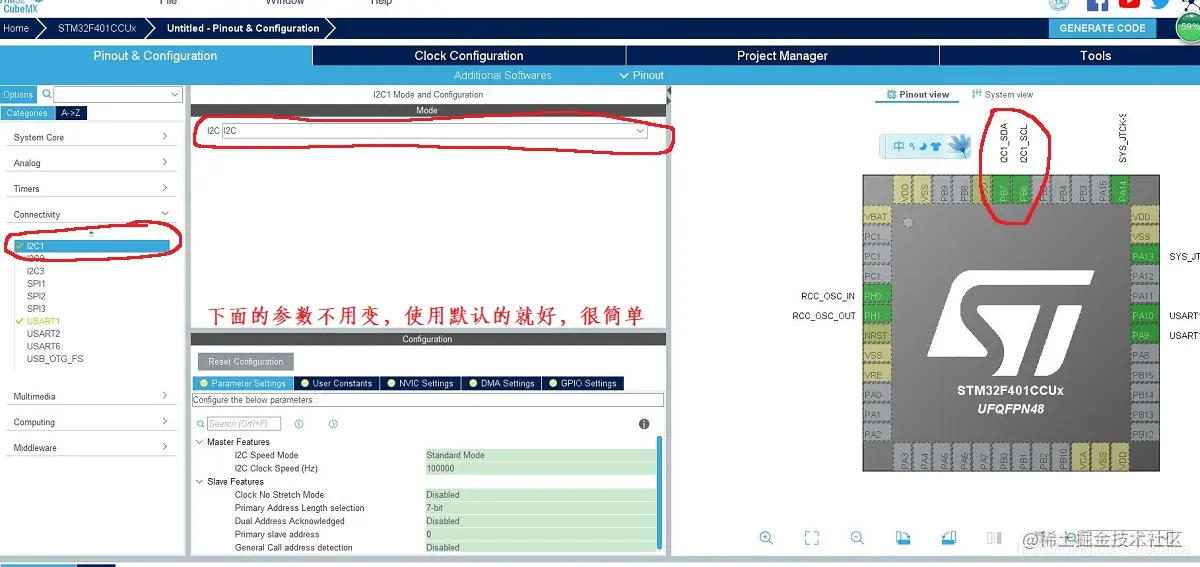

第一步：在CubeMX上开启iic1

在这里插入图片描述

第二步：移植我的最下面这三个文件

移植我文章末尾的三个文件，移植方法不会的参考我另外一篇模块移植教程，很简单。这里要先告诉大家，我们使用的是硬件iic驱动的，所以才在Cube中直接开启了IIC1，可以i2c.c中找到I2C_HandleTypeDef hi2c1; 我们就是利用hi2c1对屏幕进行操作的。可以在 oled.c里面找到void WriteCmd(unsigned char I2C_Command)//写命令 void WriteDat(unsigned char I2C_Data)//写数据这两个函数，经常玩大包片机的人肯定懂了，这其实就是核心了，只要写数据的函数移植好了，剩下的都是体力活儿而不是脑力活儿，按照官方的资料网oled写数据就行了。

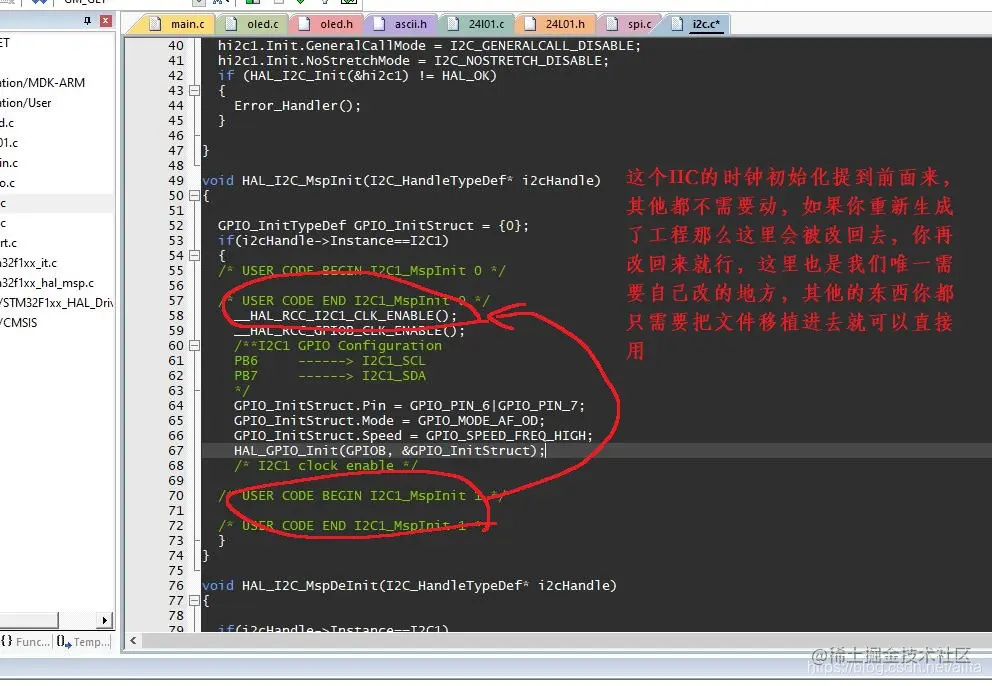

这里加一步，改一下iic.c

在这里插入图片描述

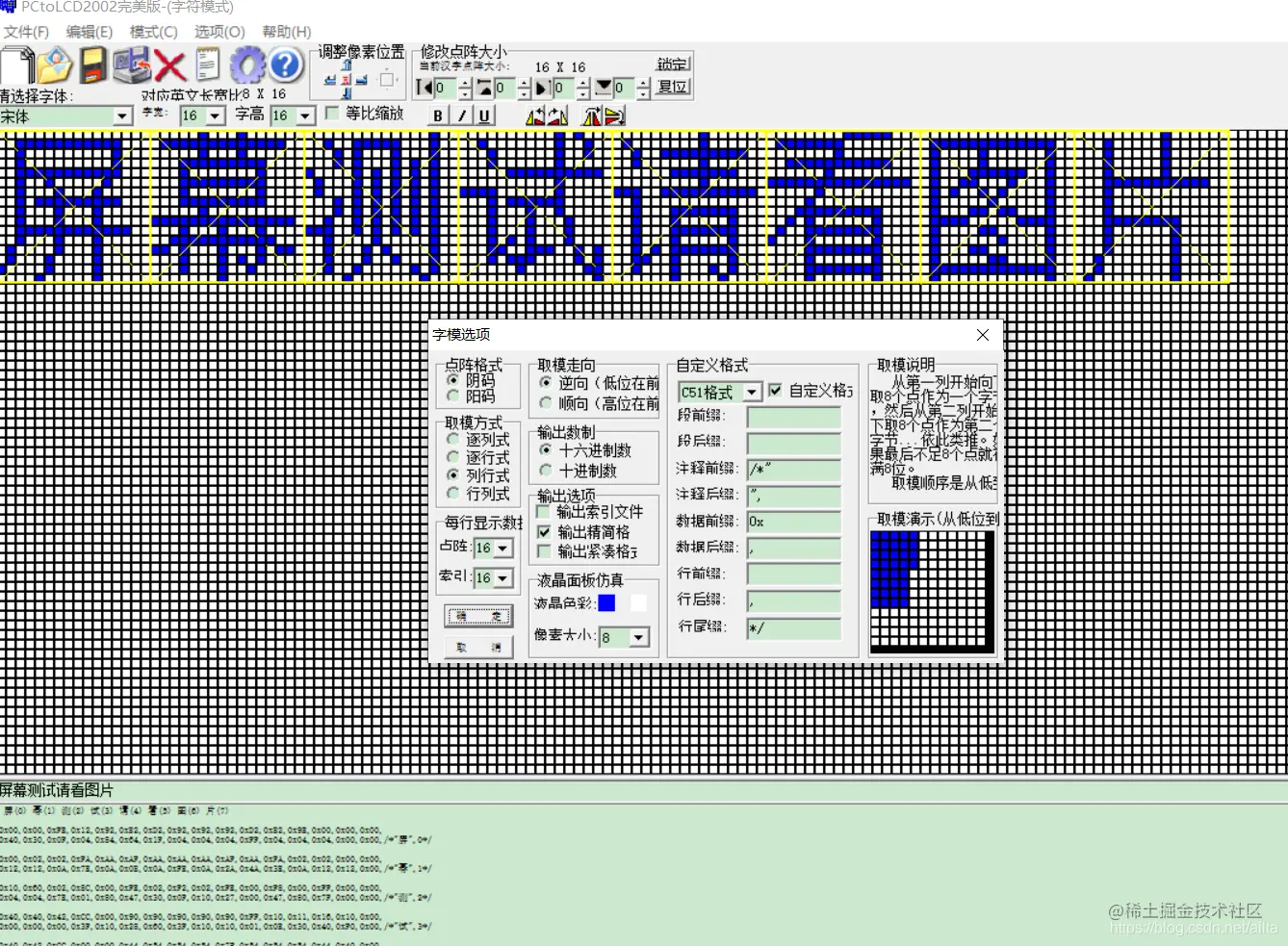

第三步：教大家取字模

在这里插入图片描述用的就是这个烂大街打的取字模软件，你买的oled资料页面下载的资料里面一定有哈，没有就随便找个淘宝卖这个oled的资料页面下载资料，里面一定有，点击上面的选项，跟着上面图片上的设置就可以了，取下来的字模放到你移植好的ascii.h那个文件里面，放到哪里进去一看便知，因为我已经放了一部分了

第四步：教大家取图模

首先这个软件取图模必须是bmp文件哈，而且要黑白二值图像，因为我们的oled就是二值屏幕，想让他五颜六色基本只有梦里能办到哈在这里插入图片描述按照上面的来即可。

第五步：给大家讲一下都移植好了什么内容

1.输出字符串（两种大小） 2.输出中文（要自己去取字模）还自己写了一个输出中文字符串的函数在oled.c里面 3.输出bmp图像 4.输出数字 5.全屏填充这些函数的用法自己看oled.c里面讲的很清楚了

下面是那三个文件

这是oled.h

#ifndef __OLED_H
#define __OLED_H

#include "i2c.h"

 #define u8 uint8_t
 #define u32 uint32_t
//    一些使用例子
//      OLED_ShowStr(0, 0, "hello world", 2);//显示字符串
//    OLED_ShowStr(0, 2, "hello world", 1);//显示字符串
//    OLED_ShowCN_STR(0, 4 , 0 , 8);
//      sprintf(num_temp_buffer,"show num:%0.2f",num);
//      OLED_ShowStr(0, 6, num_temp_buffer, 2);//显示字符串
//      OLED_CLS();
//      OLED_DrawBMP(0,0,128,7,BMP2);

#define OLED0561_ADD    0x78  // OLED的I2C地址（禁止修改）
#define COM             0x00  // OLED 指令（禁止修改）
#define DAT             0x40  // OLED 数据（禁止修改）

void WriteCmd(unsigned char I2C_Command);//写命令
void WriteDat(unsigned char I2C_Data);//写数据
void OLED_Init(void);//初始化
void OLED_SetPos(unsigned char x, unsigned char y);
void OLED_Fill(unsigned char fill_Data);//全屏填充
void OLED_CLS(void);
void OLED_ON(void);
void OLED_OFF(void);
void OLED_ShowStr(unsigned char x, unsigned char y, unsigned char ch[], unsigned char TextSize);//显示字符串
void OLED_ShowCN(unsigned char x, unsigned char y, unsigned char N);//显示汉字
void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);//显示图片（取模：阴，列行，逆，输出索引，精简）

void OLED_ShowCN_STR(u8 x , u8 y , u8 begin , u8 num);  //自己写的输出中文字符串

void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 Char_Size);
u32 oled_pow(u8 m,u8 n);
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size2);//size2(16|12)
#endif

这是oled.c

#include "oled.h"
#include "ascii.h"
#include "main.h"
void WriteCmd(unsigned char I2C_Command)//写命令
 {<!-- -->
    HAL_I2C_Mem_Write(&amp;hi2c1,OLED0561_ADD,COM,I2C_MEMADD_SIZE_8BIT,&amp;I2C_Command,1,100);
 }

void WriteDat(unsigned char I2C_Data)//写数据
 {<!-- -->
        HAL_I2C_Mem_Write(&amp;hi2c1,OLED0561_ADD,DAT,I2C_MEMADD_SIZE_8BIT,&amp;I2C_Data,1,100);
  }
    void OLED_Init(void)
{<!-- -->
    HAL_Delay(100); //这里的延时很重要

    WriteCmd(0xAE); //display off
    WriteCmd(0x20); //Set Memory Addressing Mode
    WriteCmd(0x10); //00,Horizontal Addressing Mode;01,Vertical Addressing Mode;10,Page Addressing Mode (RESET);11,Invalid
    WriteCmd(0xb0); //Set Page Start Address for Page Addressing Mode,0-7
    WriteCmd(0xc8); //Set COM Output Scan Direction
    WriteCmd(0x00); //---set low column address
    WriteCmd(0x10); //---set high column address
    WriteCmd(0x40); //--set start line address
    WriteCmd(0x81); //--set contrast control register
    WriteCmd(0xff); //亮度调节 0x00~0xff
    WriteCmd(0xa1); //--set segment re-map 0 to 127
    WriteCmd(0xa6); //--set normal display
    WriteCmd(0xa8); //--set multiplex ratio(1 to 64)
    WriteCmd(0x3F); //
    WriteCmd(0xa4); //0xa4,Output follows RAM content;0xa5,Output ignores RAM content
    WriteCmd(0xd3); //-set display offset
    WriteCmd(0x00); //-not offset
    WriteCmd(0xd5); //--set display clock divide ratio/oscillator frequency
    WriteCmd(0xf0); //--set divide ratio
    WriteCmd(0xd9); //--set pre-charge period
    WriteCmd(0x22); //
    WriteCmd(0xda); //--set com pins hardware configuration
    WriteCmd(0x12);
    WriteCmd(0xdb); //--set vcomh
    WriteCmd(0x20); //0x20,0.77xVcc
    WriteCmd(0x8d); //--set DC-DC enable
    WriteCmd(0x14); //
    WriteCmd(0xaf); //--turn on oled panel
}

void OLED_SetPos(unsigned char x, unsigned char y) //设置起始点坐标
{<!-- -->
    WriteCmd(0xb0+y);
    WriteCmd(((x&amp;0xf0)&gt;&gt;4)|0x10);
    WriteCmd((x&amp;0x0f)|0x01);
}

void OLED_Fill(unsigned char fill_Data)//全屏填充
{<!-- -->
    unsigned char m,n;
    for(m=0;m&lt;8;m++)
    {<!-- -->
        WriteCmd(0xb0+m);       //page0-page1
        WriteCmd(0x00);     //low column start address
        WriteCmd(0x10);     //high column start address
        for(n=0;n&lt;128;n++)
            {<!-- -->
                WriteDat(fill_Data);
            }
    }
}


void OLED_CLS(void)//清屏
{<!-- -->
    OLED_Fill(0x00);
}

void OLED_ON(void)
{<!-- -->
    WriteCmd(0X8D);  //设置电荷泵
    WriteCmd(0X14);  //开启电荷泵
    WriteCmd(0XAF);  //OLED唤醒
}

void OLED_OFF(void)
{<!-- -->
    WriteCmd(0X8D);  //设置电荷泵
    WriteCmd(0X10);  //关闭电荷泵
    WriteCmd(0XAE);  //OLED休眠
}

// Parameters     : x,y -- 起始点坐标(x:0~127, y:0~7); ch[] -- 要显示的字符串; TextSize -- 字符大小(1:6*8 ; 2:8*16)
// Description    : 显示codetab.h中的ASCII字符,有6*8和8*16可选择
void OLED_ShowStr(unsigned char x, unsigned char y, unsigned char ch[], unsigned char TextSize)
{<!-- -->
    unsigned char c = 0,i = 0,j = 0;
    switch(TextSize)
    {<!-- -->
        case 1:
        {<!-- -->
            while(ch[j] != '\0')
            {<!-- -->
                c = ch[j] - 32;
                if(x &gt; 126)
                {<!-- -->
                    x = 0;
                    y++;
                }
                OLED_SetPos(x,y);
                for(i=0;i&lt;6;i++)
                    WriteDat(F6x8[c][i]);
                x += 6;
                j++;
            }
        }break;
        case 2:
        {<!-- -->
            while(ch[j] != '\0')
            {<!-- -->
                c = ch[j] - 32;
                if(x &gt; 120)
                {<!-- -->
                    x = 0;
                    y++;
                }
                OLED_SetPos(x,y);
                for(i=0;i&lt;8;i++)
                    WriteDat(F8X16[c*16+i]);
                OLED_SetPos(x,y+1);
                for(i=0;i&lt;8;i++)
                    WriteDat(F8X16[c*16+i+8]);
                x += 8;
                j++;
            }
        }break;
    }
}

// Parameters     : x,y -- 起始点坐标(x:0~127, y:0~7); N:汉字在.h中的索引
// Description    : 显示ASCII_8x16.h中的汉字,16*16点阵
void OLED_ShowCN(unsigned char x, unsigned char y, unsigned char N)
{<!-- -->
    unsigned char wm=0;
    unsigned int  adder=32*N;
    OLED_SetPos(x , y);
    for(wm = 0;wm &lt; 16;wm++)
    {<!-- -->
        WriteDat(F16x16[adder]);
        adder += 1;
    }
    OLED_SetPos(x,y + 1);
    for(wm = 0;wm &lt; 16;wm++)
    {<!-- -->
        WriteDat(F16x16[adder]);
        adder += 1;
    }
}

// 这是自己写的显示中文字符串的函数，要先把中文字符串“共阴——列行式——逆向输出”取字模后存入ascll.h相应的位置(连续存入)
//传入参数分别为：x:起始横坐标
//                              y：纵坐标(填入0-7)
//                              begin:填入的中文字符串的第一个字在我们ascll.c字库里面的序号
//                num:我们要填写几个字
//                比如要填“测试”，取完字模存入后这两个字在字库中序号为0,1,横坐标0，纵坐标第二行，就填：x：0，y：2，begin：0，num：2
void OLED_ShowCN_STR(u8 x , u8 y , u8 begin , u8 num)
{<!-- -->
    u8 i;
    for(i=0;i&lt;num;i++){<!-- -->OLED_ShowCN(i*16+x,y,i+begin);}    //OLED显示标题
}

// Parameters     : x0,y0 -- 起始点坐标(x0:0~127, y0:0~7); x1,y1 -- 起点对角线(结束点)的坐标(x1:1~128,y1:1~8)
// Description    : 显示BMP位图
void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{<!-- -->
    unsigned int j=0;
    unsigned char x,y;

  if(y1%8==0)
        y = y1/8;
  else
        y = y1/8 + 1;
    for(y=y0;y&lt;y1;y++)
    {<!-- -->
        OLED_SetPos(x0,y);
    for(x=x0;x&lt;x1;x++)
        {<!-- -->
            WriteDat(BMP[j++]);
        }
    }
}

void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 Char_Size)
{<!-- -->
    unsigned char c=0,i=0;
        c=chr-' ';//得到偏移后的值
        if(x&gt;128-1){<!-- -->x=0;y=y+2;}
        if(Char_Size ==16)
            {<!-- -->
            OLED_SetPos(x,y);
            for(i=0;i&lt;8;i++)
            WriteDat(F8X16[c*16+i]);
            OLED_SetPos(x,y+1);
            for(i=0;i&lt;8;i++)
            WriteDat(F8X16[c*16+i+8]);
            }
            else {<!-- -->
                OLED_SetPos(x,y);
                for(i=0;i&lt;6;i++)
                WriteDat(F6x8[c][i]);

            }
}
u32 oled_pow(u8 m,u8 n)
{<!-- -->
    u32 result=1;
    while(n--)result*=m;
    return result;
}
//显示2个数字
//x,y :起点坐标
//len :数字的位数
//size:字体大小
//mode:模式   0,填充模式;1,叠加模式
//num:数值(0~4294967295);
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size2)
{<!-- -->
    u8 t,temp;
    u8 enshow=0;
    for(t=0;t&lt;len;t++)
    {<!-- -->
        temp=(num/oled_pow(10,len-t-1))%10;
        if(enshow==0&amp;&amp;t&lt;(len-1))
        {<!-- -->
            if(temp==0)
            {<!-- -->
                OLED_ShowChar(x+(size2/2)*t,y,' ',size2);
                continue;
            }else enshow=1;
        }
        OLED_ShowChar(x+(size2/2)*t,y,temp+'0',size2);
    }
}

这是ascii.h（里面放字库的）

#ifndef __ASCII_H
#define __ASCII_H


/***************************16*16的点阵字体取模方式：共阴——列行式——逆向输出*********/

    unsigned char F16x16[] =
{<!-- -->
0x00,0x00,0xFE,0x12,0x92,0xB2,0xD2,0x92,0x92,0x92,0xD2,0xB2,0x9E,0x00,0x00,0x00,
0x40,0x30,0x0F,0x04,0x84,0x64,0x1F,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x00,0x00,/*"屏",0*/

0x00,0x02,0x02,0xFA,0xAA,0xAF,0xAA,0xAA,0xAA,0xAF,0xAA,0xFA,0x02,0x02,0x00,0x00,
0x12,0x12,0x0A,0x7E,0x0A,0x0B,0x0A,0xFE,0x0A,0x2A,0x4A,0x3E,0x0A,0x12,0x12,0x00,/*"幕",1*/

0x10,0x60,0x02,0x8C,0x00,0xFE,0x02,0xF2,0x02,0xFE,0x00,0xF8,0x00,0xFF,0x00,0x00,
0x04,0x04,0x7E,0x01,0x80,0x47,0x30,0x0F,0x10,0x27,0x00,0x47,0x80,0x7F,0x00,0x00,/*"测",2*/

0x40,0x40,0x42,0xCC,0x00,0x90,0x90,0x90,0x90,0x90,0xFF,0x10,0x11,0x16,0x10,0x00,
0x00,0x00,0x00,0x3F,0x10,0x28,0x60,0x3F,0x10,0x10,0x01,0x0E,0x30,0x40,0xF0,0x00,/*"试",3*/

0x40,0x42,0xCC,0x00,0x00,0x44,0x54,0x54,0x54,0x7F,0x54,0x54,0x54,0x44,0x40,0x00,
0x00,0x00,0x7F,0x20,0x10,0x00,0xFF,0x15,0x15,0x15,0x55,0x95,0x7F,0x00,0x00,0x00,/*"请",4*/

0x20,0x22,0x2A,0x2A,0xAA,0x6A,0x3A,0x2E,0x29,0x29,0x29,0x29,0x29,0x20,0x20,0x00,
0x08,0x04,0x02,0x01,0xFF,0x55,0x55,0x55,0x55,0x55,0x55,0xFF,0x00,0x00,0x00,0x00,/*"看",5*/

0x00,0xFE,0x02,0x42,0x22,0x32,0x5E,0x92,0x52,0x32,0x12,0x02,0x02,0xFE,0x00,0x00,
0x00,0xFF,0x42,0x42,0x42,0x51,0x55,0x64,0x69,0x41,0x42,0x42,0x42,0xFF,0x00,0x00,/*"图",6*/

0x00,0x00,0x00,0xFE,0x20,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x20,0x20,0x00,0x00,
0x00,0x80,0x60,0x1F,0x02,0x02,0x02,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x00,/*"片",7*/

};

/************************************6*8的点阵************************************/
const unsigned char F6x8[][6] =
{<!-- -->
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
    0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
    0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
    0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
    0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
    0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
    0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &amp;
    0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
    0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
    0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
    0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
    0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
    0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
    0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
    0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
    0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
    0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
    0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
    0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
    0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
    0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
    0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
    0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
    0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
    0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
    0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
    0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
    0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
    0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// &lt;
    0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
    0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// &gt;
    0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
    0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
    0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
    0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
    0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
    0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
    0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
    0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
    0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
    0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
    0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
    0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
    0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
    0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
    0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
    0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
    0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
    0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
    0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
    0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
    0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
    0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
    0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
    0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
    0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
    0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
    0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
    0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
    0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
    0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
    0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
    0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
    0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
    0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
    0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
    0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
    0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
    0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
    0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
    0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
    0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
    0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
    0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
    0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
    0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
    0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
    0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
    0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
    0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
    0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
    0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
    0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
    0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
    0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
    0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
    0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
    0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
    0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
    0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
    0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
    0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
/****************************************8*16的点阵************************************/
const unsigned char F8X16[]=
{<!-- -->
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
  0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//&amp; 6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//&lt; 28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//&gt; 30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};

#endif

下面是我的主函数，用了这几个函数，你们可以自己品一品

unsigned char BMP2[] =
{<!-- -->
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,
0x80,0xC0,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x60,0x20,0x60,0xC0,0x80,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x83,0x01,0x00,0x21,
0x61,0x43,0xC6,0x8C,0x18,0x70,0xC0,0x60,0x30,0x18,0x08,0x08,0x08,0x08,0x0C,0x04,
0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,
0x04,0x04,0x04,0x04,0x04,0x04,0x0C,0x08,0x08,0x08,0x38,0x78,0xCE,0xA3,0x31,0x19,
0x88,0x88,0xC0,0x40,0x40,0x60,0x20,0x30,0x10,0x18,0x08,0x0C,0x06,0x03,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x06,0x0C,0x18,
0xD0,0x70,0x18,0x0D,0x06,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,
0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0E,0xFE,
0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,
0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x03,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,
0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,
0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,
0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0x70,0x18,0x08,0x88,0x08,0x08,0x08,0x98,0x10,0x10,0x10,0x30,0xE0,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x1F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,
0x07,0x0D,0x18,0x30,0x20,0x21,0x20,0x20,0x20,0x21,0x20,0x20,0x30,0x1C,0x07,0x80,
0xC0,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,
0xE0,0x3C,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0x03,0x0E,0x38,0x60,0x40,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x01,0x03,
0x02,0x06,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x06,0x02,0x03,0x01,0x01,
0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x60,0x30,0x18,0x0E,0x03,0x01,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,
0x01,0x03,0x02,0x02,0x02,0x02,0x02,0x02,0x06,0x04,0x04,0x04,0x04,0x04,0x04,0x04,
0x06,0x02,0x02,0x02,0x03,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//未命名文件0



};

int main(void)
{<!-- -->
  /* USER CODE BEGIN 1 */
    float num = 13.14;
    char num_temp_buffer[16];
  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */
  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */
  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_USART1_UART_Init();
  MX_I2C1_Init();
  /* USER CODE BEGIN 2 */
  OLED_Init();
    OLED_CLS();

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {<!-- -->
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
        OLED_ShowStr(0, 0, "hello world", 2);//显示字符串
      OLED_ShowStr(0, 2, "hello world", 1);//显示字符串
      OLED_ShowCN_STR(0, 4 , 0 , 8);
        sprintf(num_temp_buffer,"show num:%0.2f",num);
        OLED_ShowStr(0, 6, num_temp_buffer, 2);//显示字符串
        HAL_Delay(2000);
        printf("F401测试\r\n");
        OLED_CLS();
        OLED_DrawBMP(0,0,128,7,BMP2);
        HAL_Delay(2000);
        OLED_CLS();
  }
  /* USER CODE END 3 */
}
