摘要

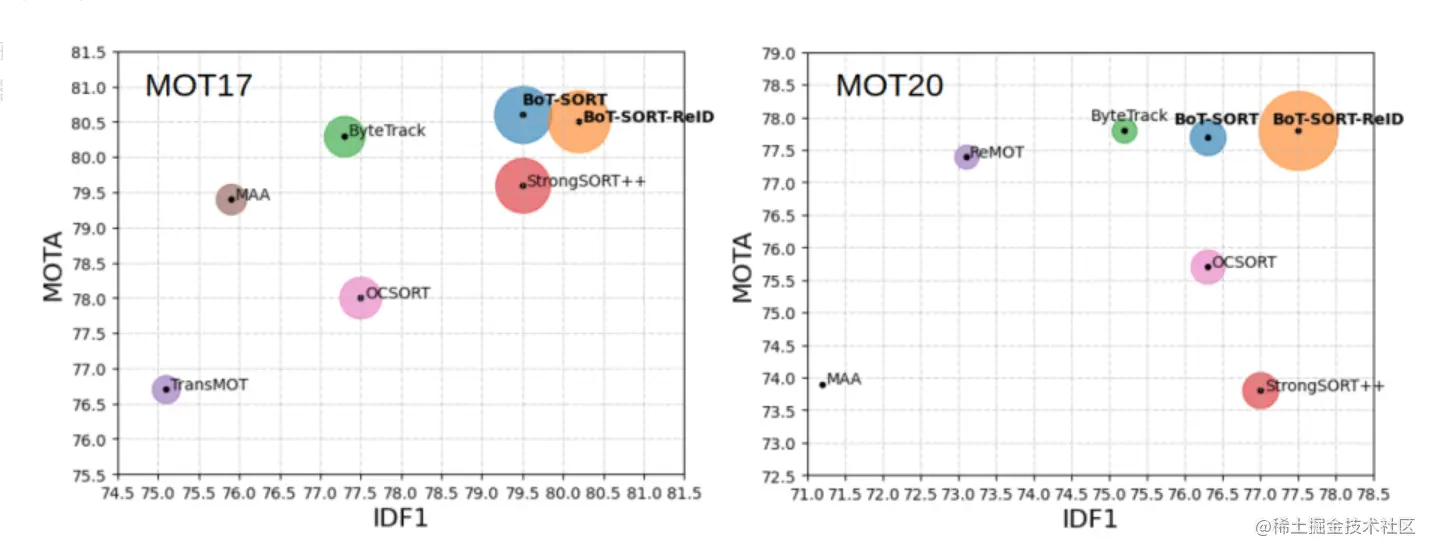

BoT-SORT是今年非常游戏的跟踪器模型。就所有主要 MOT 指标MOTA、IDF1 和 HOTA而言，BoT-SORT 和 BoT-SORT-ReID 在 MOT17 和 MOT20 测试集的 MOTChallenge数据集中排名第一。对于 MOT17：实现了 80.5 MOTA、80.2 IDF1 和 65.0 HOTA，在跟踪器的排行榜上暂居第一。 论文翻译：blog.csdn.net/hhhhhhhhhhw… 论文链接：arxiv.org/pdf/2206.14… 代码：github.com/NirAharon/B…

这篇文章主要讲述如何实现BoT-SORT训练和测试。

数据准备

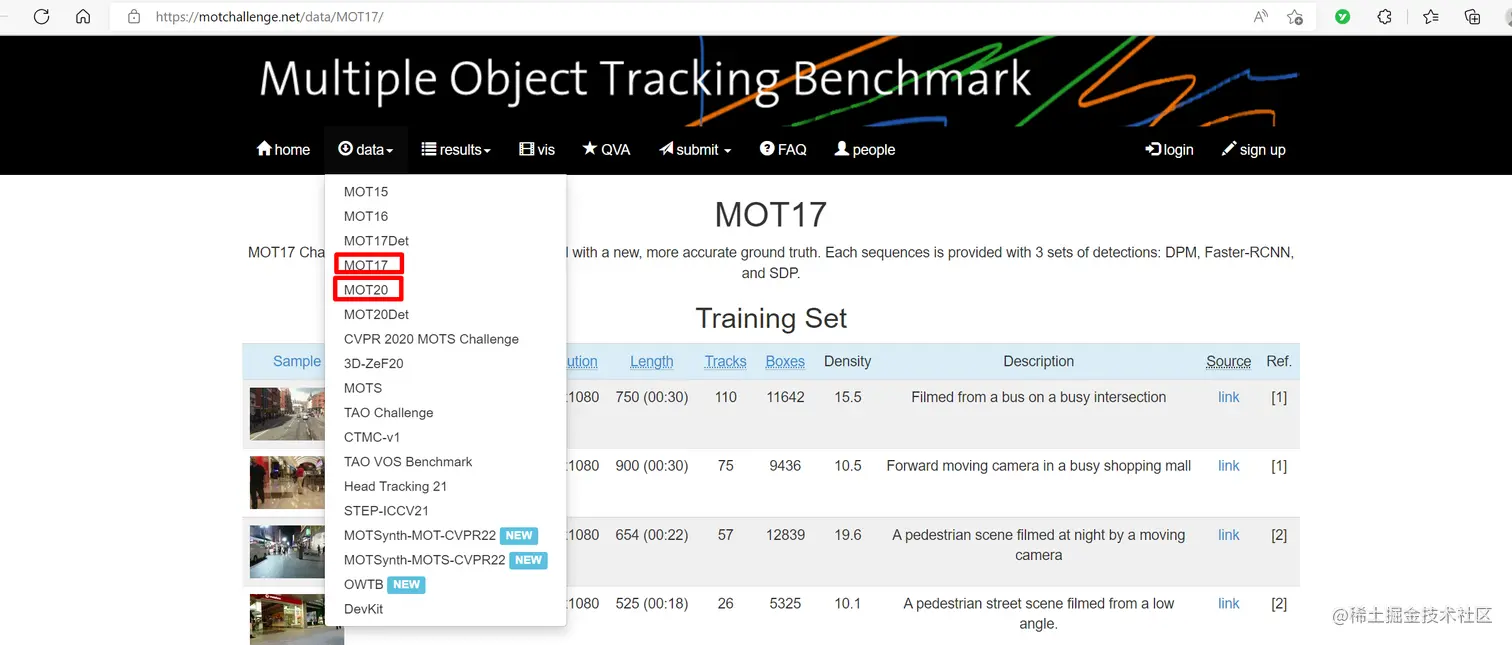

数据，我们使用MOT17和MOT20这两款数据集。下载地址： 官方网站：motchallenge.net/ 然后，点击“data”，就可以看到MOT17和MOT20。 选择MOT17，然后就可以看到MOT17的网页。

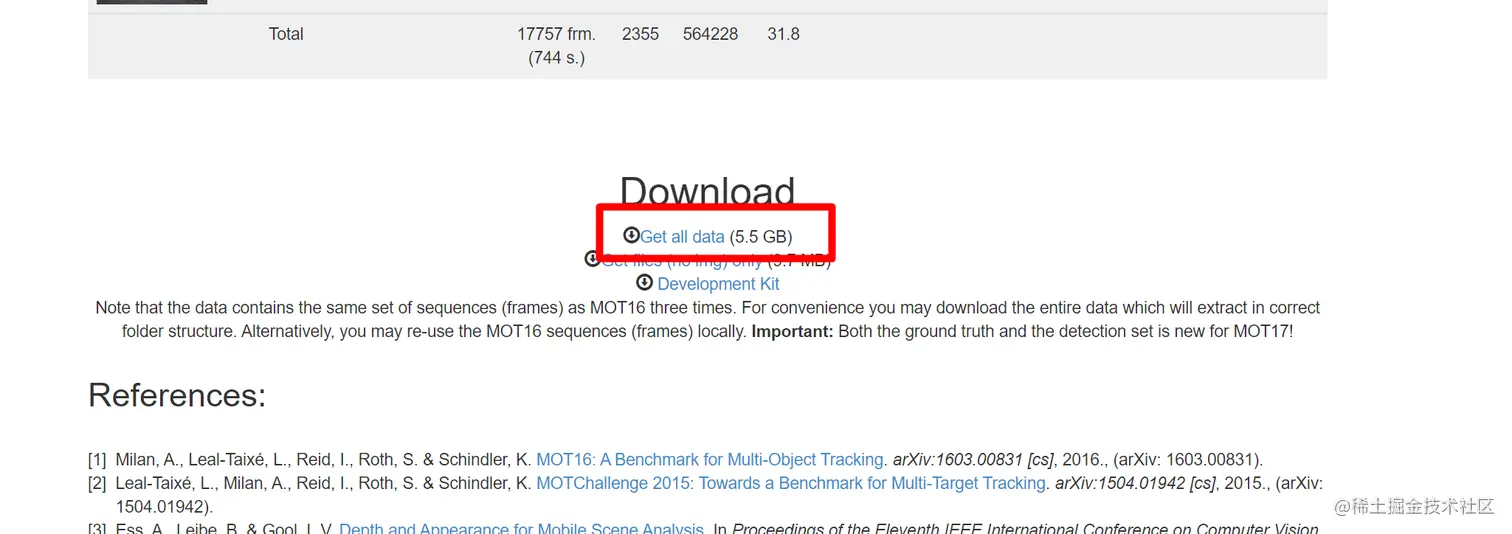

将网页下拉到最后就可以看到下载链接了。点击“Get all data”，下载MOT17。 同理，选择MOT20下载MOT20数据集。

配置BoT-SORT环境

获取代码

链接： github.com/NirAharon/B… 将其下载下来。然后放到本地磁盘，解压。

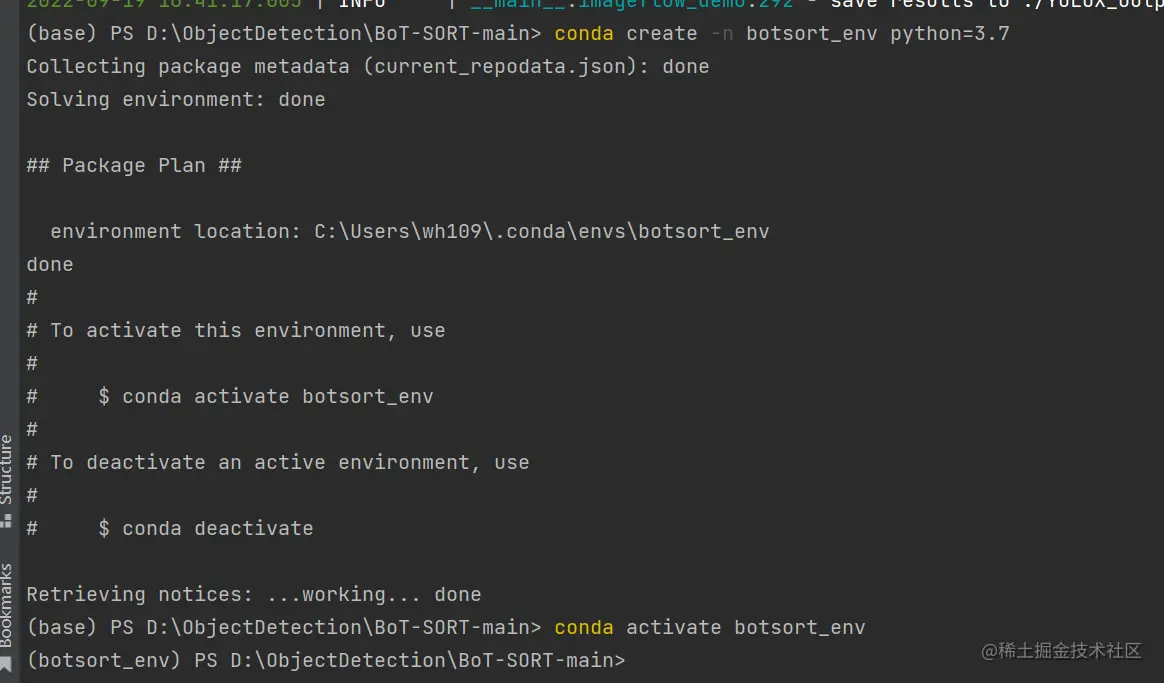

创建虚拟环境

执行如下命令：

conda create -n botsort_env python=3.7
conda activate botsort_env

安装必要的包

第一种，进入BoT-SORT-main目录 执行

pip install -r requirements.txt

安装requirements.txt所有的包，这样会安装多余的包。我通常采用另一种方式：单独安装每个包。

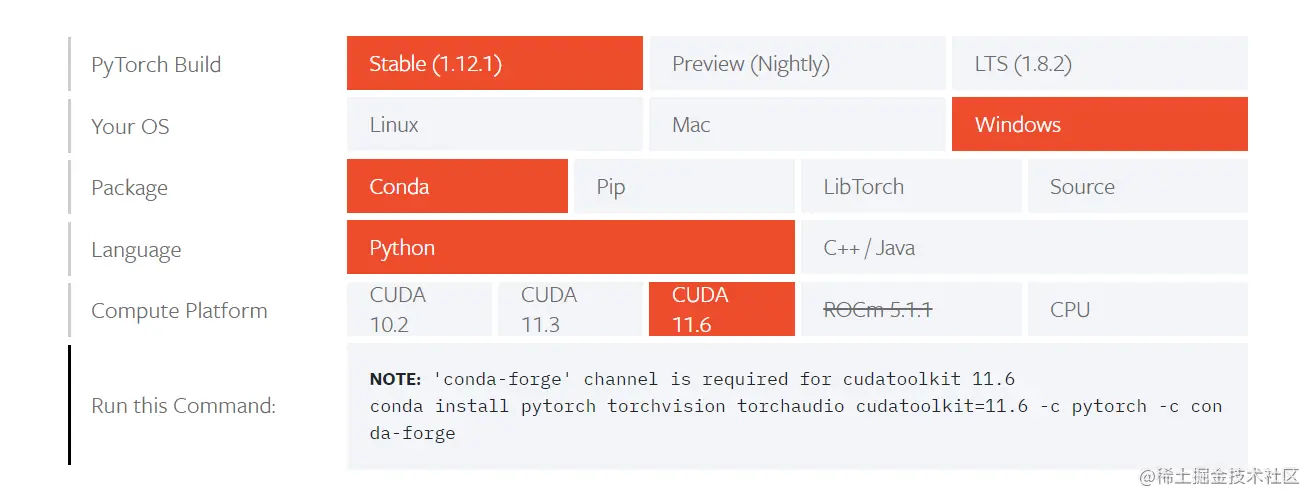

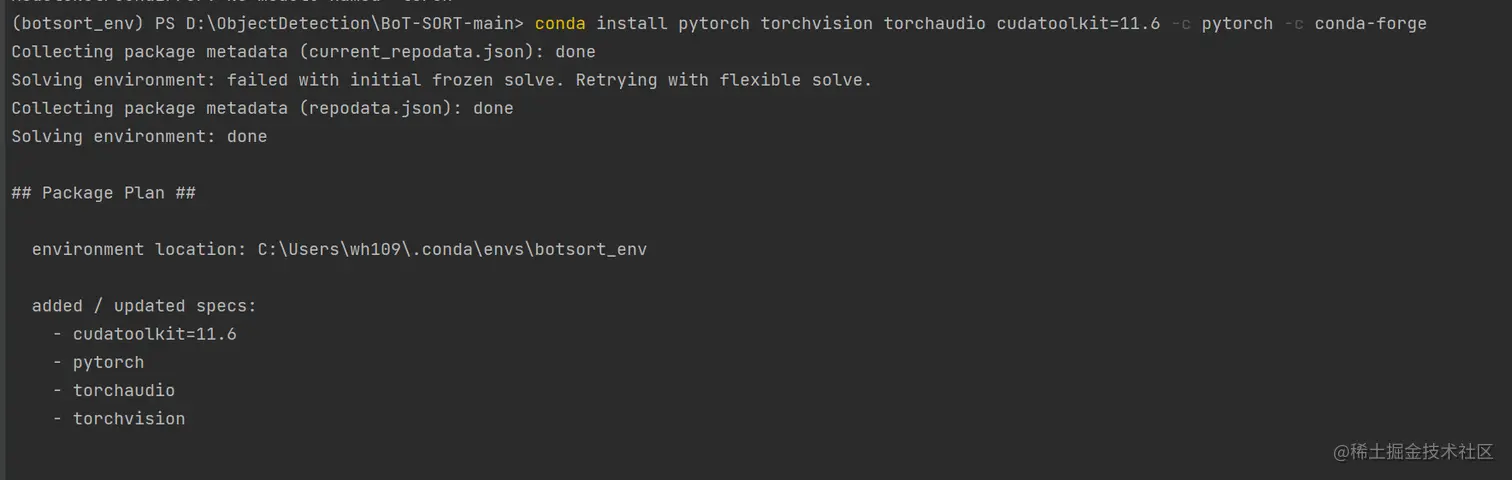

1、安装pytorch

执行命令：

conda install pytorch torchvision torchaudio cudatoolkit=11.6 -c pytorch -c conda-forge

2、安装cython

pip install cython

3、安装Cython-bbox

这里主要讲如何在Window下面安装：

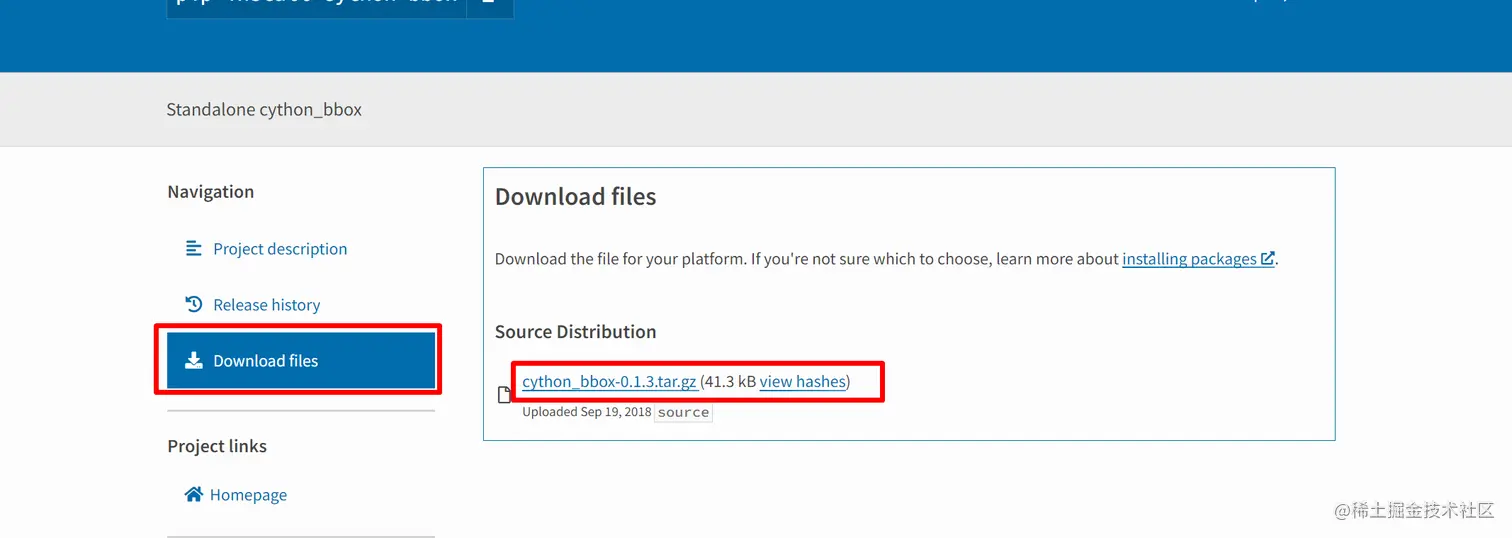

第一步：从网址pypi.org/project/cyt…

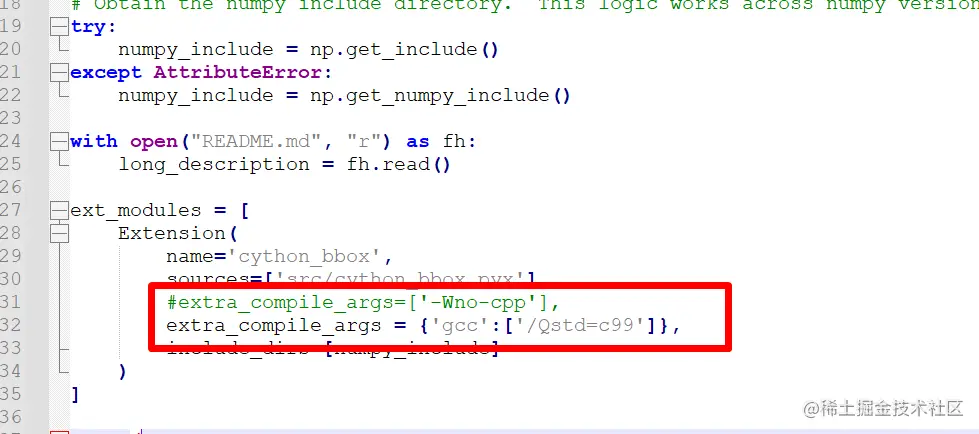

第二步：解压后，在文件夹里找到setup.py，并把extra_compile_args=[’-Wno-cpp’]，修改为 extra_compile_args = {'gcc': ['/Qstd=c99']}，如下图所示:

   extra_compile_args = {'gcc':['/Qstd=c99']},

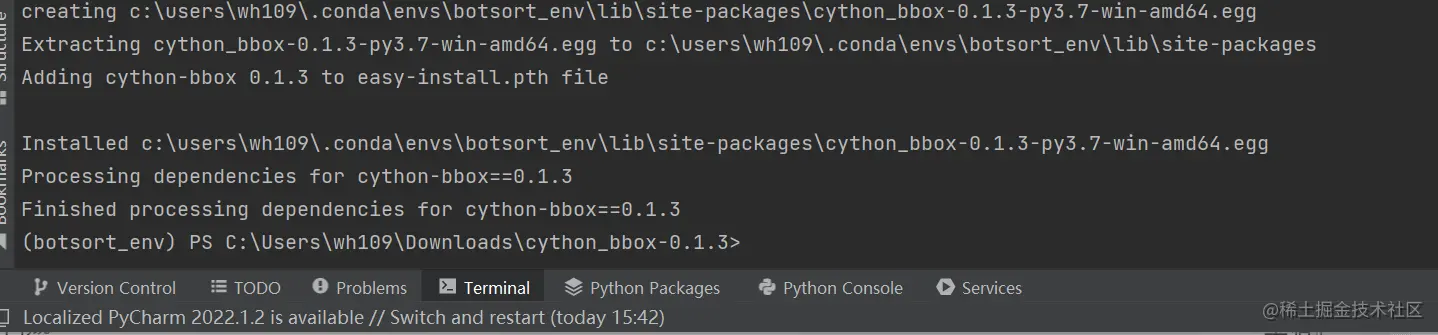

最后一步：在虚拟环境下，切换到cython_bbox-0.1.3缩在文件夹，输入命令：python setup.py build_ext install，当出现下图所示的结果，则代表cython-bbox安装成功。

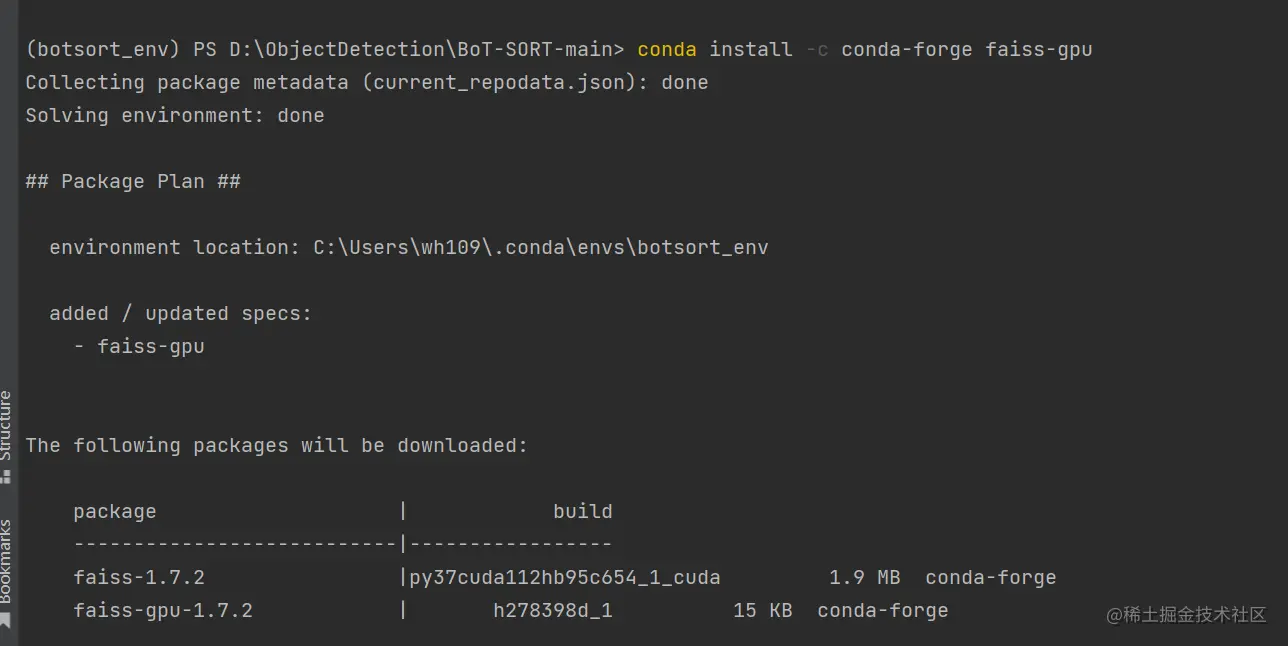

3、安装faiss

参考：github.com/facebookres…

conda install -c conda-forge faiss-gpu

4、安装其他的包

pip install loguru
pip install thop
pip install tabulate
pip install six
pip install yacs
pip install termcolor
pip install tensorboard
pip install pycocotools
pip install lap

把上面的安装包正确安装后就可以开始测试了。

训练

生成REID数据集

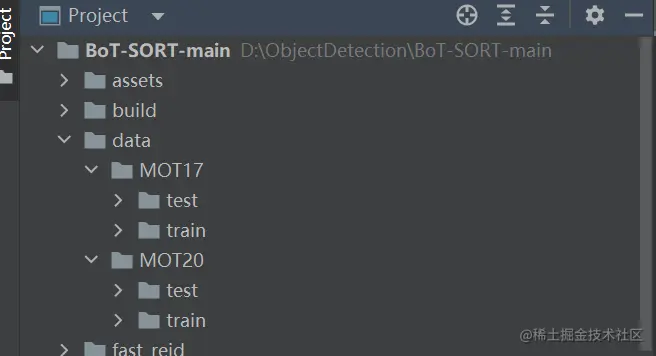

将下载好的数据集解压，放到data目录下，如下图：

执行命令：

# For MOT17
python fast_reid/datasets/generate_mot_patches.py --data_path <dataets_dir> --mot 17
# For MOT20
python fast_reid/datasets/generate_mot_patches.py --data_path <dataets_dir> --mot 20

例如:

# For MOT20
python fast_reid/datasets/generate_mot_patches.py --data_path data --mot 17

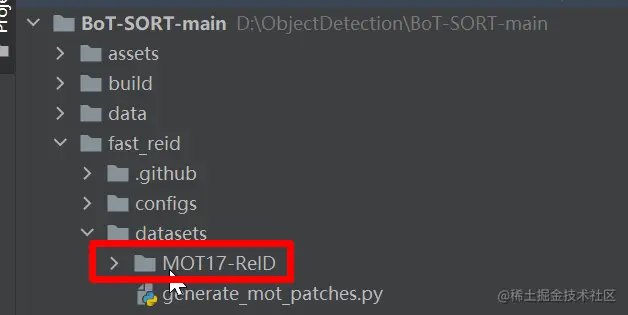

等待完成后，就可以在“fast_reid/datasets”下面找到数据集，如下图：

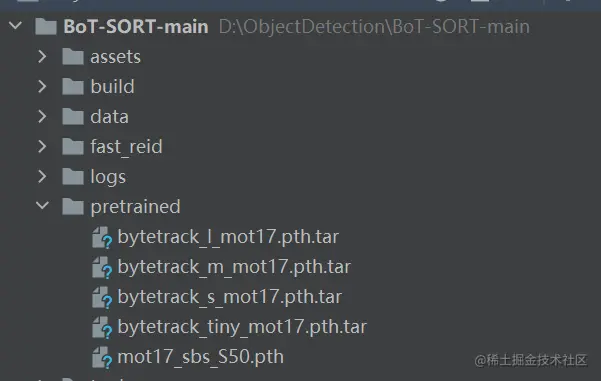

预训练模型

ByteTrack预训练模型

• Standard models

Model	MOTA	IDF1	IDs	FPS
bytetrack_x_mot17 [google], [baidu(code:ic0i)]	90.0	83.3	422	29.6
bytetrack_l_mot17 [google], [baidu(code:1cml)]	88.7	80.7	460	43.7
bytetrack_m_mot17 [google], [baidu(code:u3m4)]	87.0	80.1	477	54.1
bytetrack_s_mot17 [google], [baidu(code:qflm)]	79.2	74.3	533	64.5

• Light models

Model	MOTA	IDF1	IDs	Params(M)	FLOPs(G)
bytetrack_nano_mot17 [google], [baidu(code:1ub8)]	69.0	66.3	531	0.90	3.99
bytetrack_tiny_mot17 [google], [baidu(code:cr8i)]	77.1	71.5	519	5.03	24.45

REID预训练模型

MOT17-SBS-S50网盘链接： drive.google.com/file/d/1QZF… 或者下载我上传到CSDN的模型： download.csdn.net/download/hh… 将预训练模型统一放到pretrained文件夹

开始训练

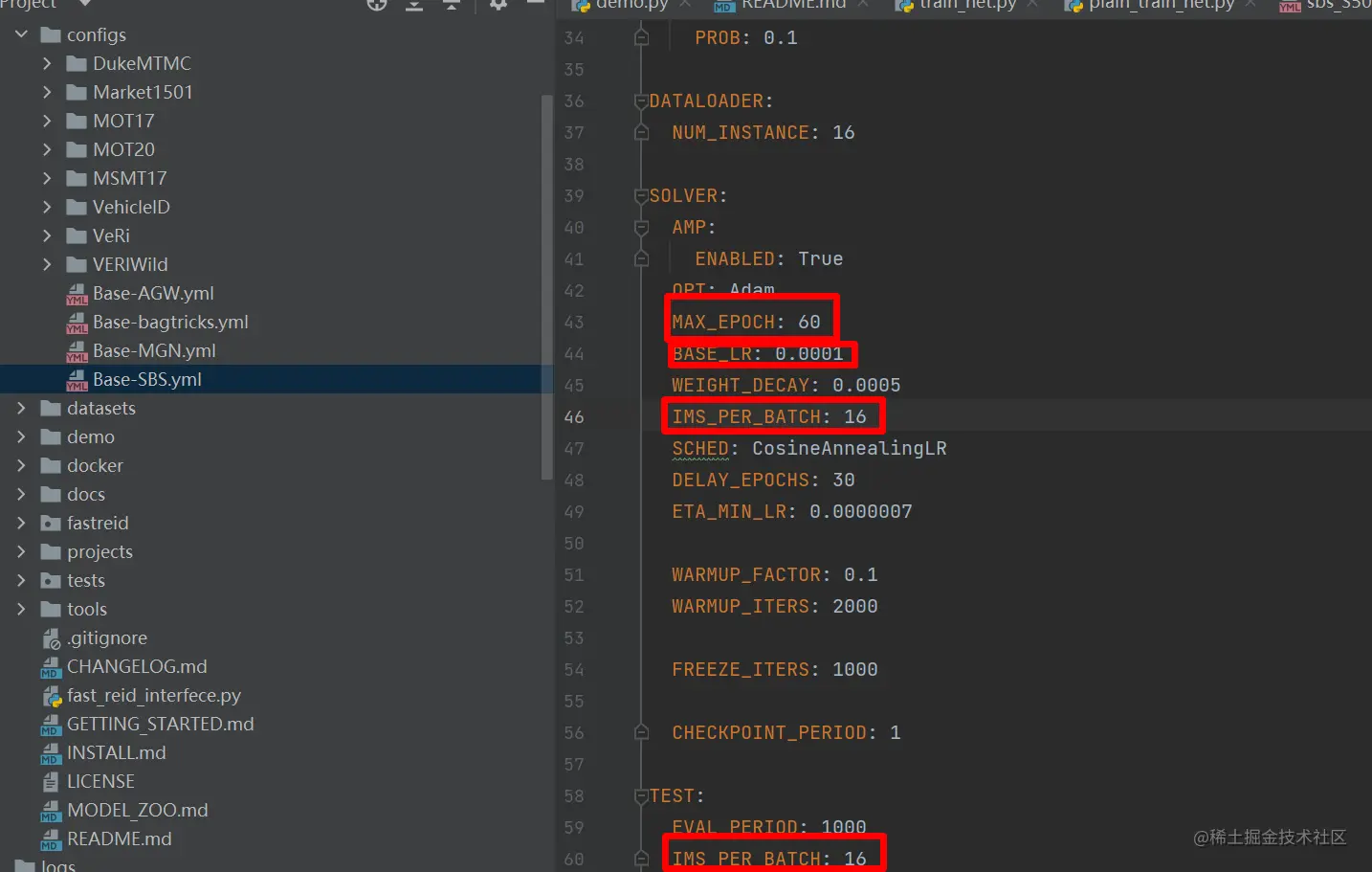

修改配置文件Base-SBS.yml里面的参数，根据自己的显卡大小调整BatchSize和学习率。 然后执行如下命令开始训练。

# For training MOT17
python fast_reid/tools/train_net.py --config-file ./fast_reid/configs/MOT17/sbs_S50.yml MODEL.DEVICE "cuda:0"

# For training MOT20
python fast_reid/tools/train_net.py --config-file ./fast_reid/configs/MOT20/sbs_S50.yml MODEL.DEVICE "cuda:0"

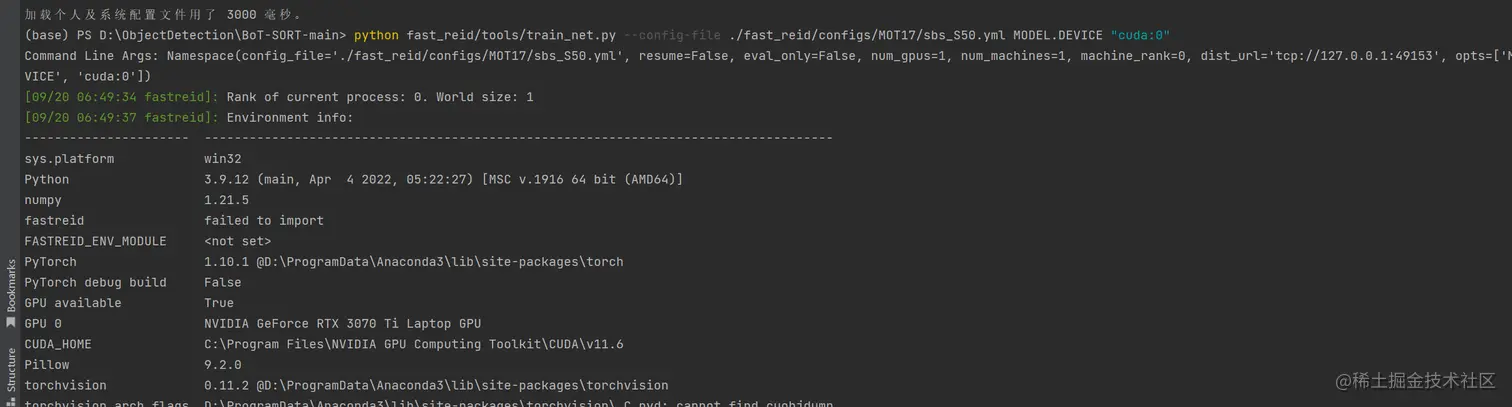

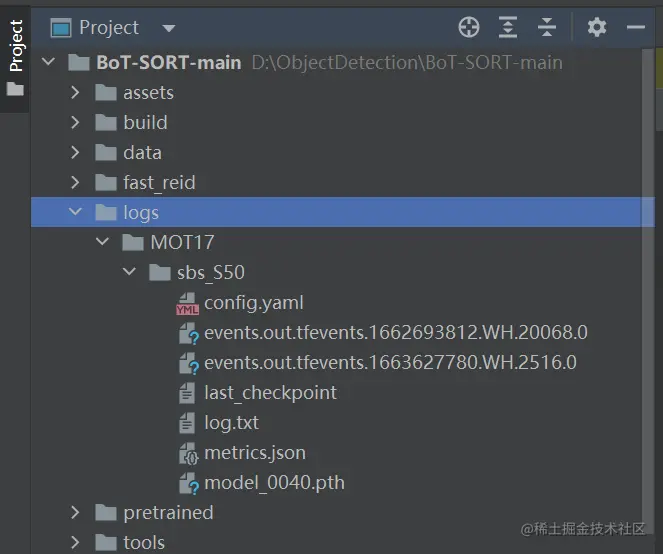

看到如下画面就表示开始训练了。在logs文件夹下面可以看到训练好的模型。

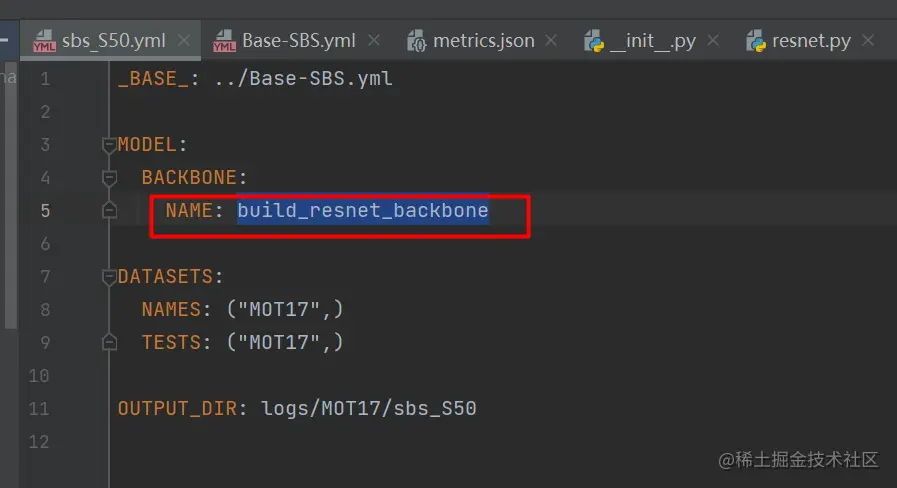

如何更改FASTREID的BackBone？

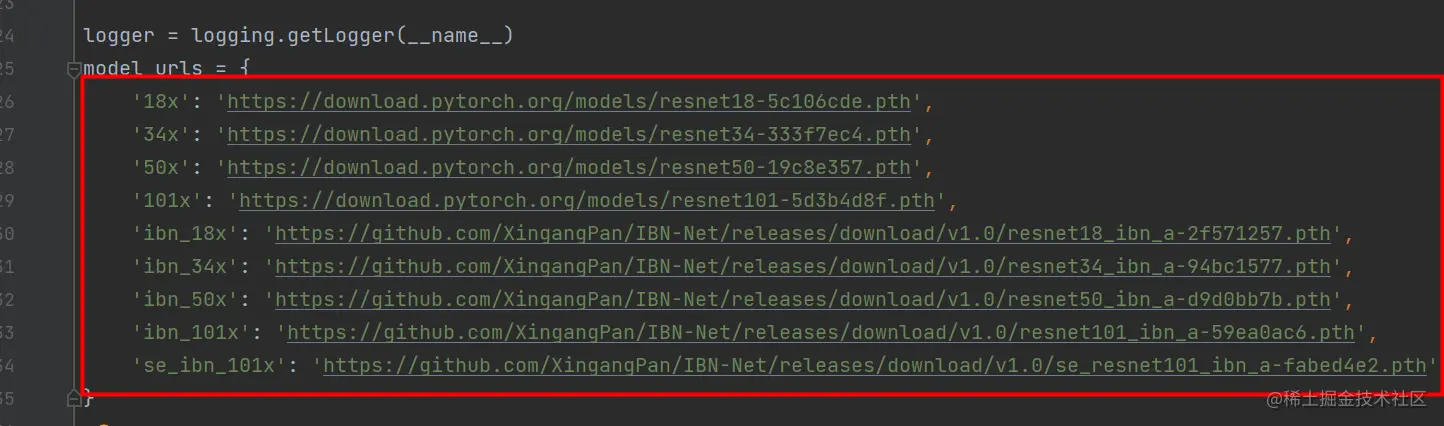

按照上图打开init.py可以看到fastreid支持的backbone。下面我们开始修改backbone，比如我们想改一个小一点的resnet18。 首先，将backbone的那么修改为build_resnet_backbone， 然后，再添加DEPTH字段，将DEPTH字段的值设置为18x，这个值可以在fastreid->modeling->backbones->resnet.py中找到。

测试

打开tools/track.py文件，修改里面的参数，需要修改的参数。

parser.add_argument("--fast-reid-config", dest="fast_reid_config", default=r"fast_reid/configs/MOT17/sbs_S50.yml", type=str, help="reid config file path")
parser.add_argument("--fast-reid-weights", dest="fast_reid_weights", default=r"pretrained/mot17_sbs_S50.pth", type=str, help="reid config file path")

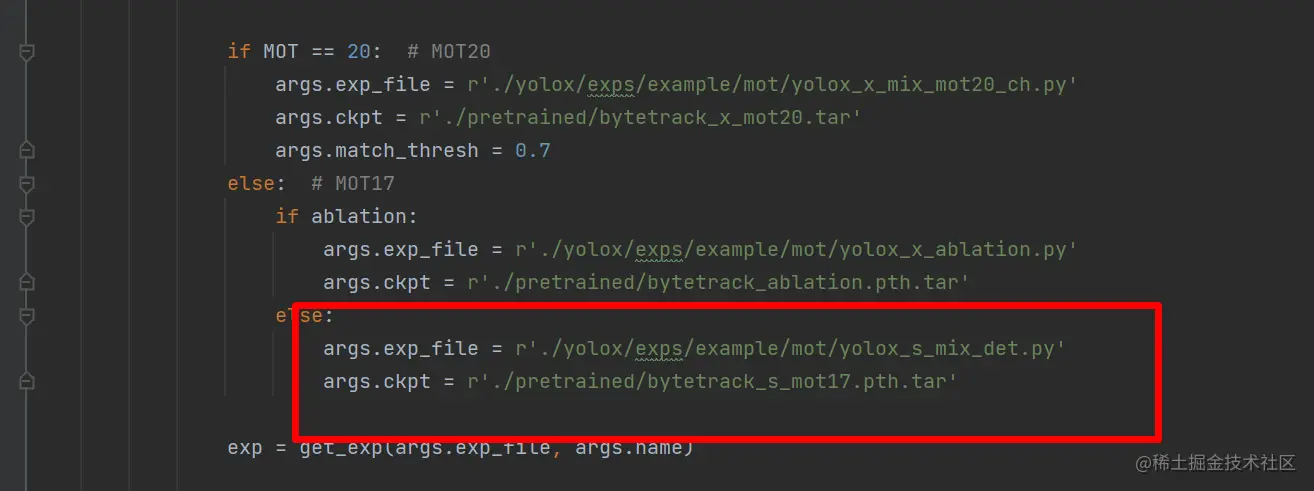

将这两个参数按照本地的实际参数修改。 跟踪模型默认是byteTrack的bytetrack_x_mot17.pth.tar文件，我们可以根据任务调整。

• Test on MOT17

cd <BoT-SORT_dir>
python tools/track.py <dataets_dir/MOT17> --default-parameters --with-reid --benchmark "MOT17" --eval "test" --fp16 --fuse
python tools/interpolation.py --txt_path <path_to_track_result>

• Test on MOT20

cd <BoT-SORT_dir>
python tools/track.py <dataets_dir/MOT20> --default-parameters --with-reid --benchmark "MOT20" --eval "test" --fp16 --fuse
python tools/interpolation.py --txt_path <path_to_track_result>

例如：

python tools/track.py data/MOT17 --default-parameters --with-reid --benchmark "MOT17" --eval "test" --fp16 --fuse

等待测试完成。

测试视频

python tools/demo.py video --path <path_to_video> -f yolox/exps/example/mot/yolox_x_mix_det.py -c pretrained/bytetrack_x_mot17.pth.tar --with-reid --fuse-score --fp16 --fuse --save_result

例如：

python tools/demo.py video --path 1.mp4 -f yolox/exps/example/mot/yolox_x_mix_det.py -c pretrained/bytetrack_x_mot17.pth.tar --with-reid --fuse-score --fp16 --fuse --save_result

测试摄像头

python tools/demo.py webcam -f yolox/exps/example/mot/yolox_x_mix_det.py -c pretrained/bytetrack_x_mot17.pth.tar --with-reid --fuse-score --fp16 --fuse --save_result

多类别测试

多类别是基于yolov7做的，使用yolov7检测出物体的box，然后输入到bot做跟踪。

python tools/mc_demo_yolov7.py --weights pretrained/yolov7-w6.pt --source 3.mp4 --fuse-score --agnostic-nms --with-reid --view-img

mc_demo_yolov7.py的代码：

import argparse
import time
from pathlib import Path
import sys

import cv2
import torch
import torch.backends.cudnn as cudnn
from numpy import random

from yolov7.models.experimental import attempt_load
from yolov7.utils.datasets import LoadStreams, LoadImages
from yolov7.utils.general import check_img_size, check_requirements, check_imshow, non_max_suppression, \
    apply_classifier, \
    scale_coords, xyxy2xywh, strip_optimizer, set_logging, increment_path
from yolov7.utils.plots import plot_one_box
from yolov7.utils.torch_utils import select_device, load_classifier, time_synchronized, TracedModel

from tracker.mc_bot_sort import BoTSORT
from tracker.tracking_utils.timer import Timer

sys.path.insert(0, './yolov7')
sys.path.append('.')

def write_results(filename, results):
    save_format = '{frame},{id},{x1},{y1},{w},{h},{s},-1,-1,-1\n'
    with open(filename, 'w') as f:
        for frame_id, tlwhs, track_ids, scores in results:
            for tlwh, track_id, score in zip(tlwhs, track_ids, scores):
                if track_id < 0:
                    continue
                x1, y1, w, h = tlwh
                line = save_format.format(frame=frame_id, id=track_id, x1=round(x1, 1), y1=round(y1, 1), w=round(w, 1),
                                          h=round(h, 1), s=round(score, 2))
                f.write(line)
    print('save results to {}'.format(filename))


def detect(save_img=False):
    source, weights, view_img, save_txt, imgsz, trace = opt.source, opt.weights, opt.view_img, opt.save_txt, opt.img_size, opt.trace
    save_img = not opt.nosave and not source.endswith('.txt')  # save inference images
    webcam = source.isnumeric() or source.endswith('.txt') or source.lower().startswith(
        ('rtsp://', 'rtmp://', 'http://', 'https://'))

    # Directories
    save_dir = Path(increment_path(Path(opt.project) / opt.name, exist_ok=opt.exist_ok))  # increment run
    (save_dir / 'labels' if save_txt else save_dir).mkdir(parents=True, exist_ok=True)  # make dir

    # Initialize
    set_logging()
    device = select_device(opt.device)
    half = device.type != 'cpu'  # half precision only supported on CUDA

    # Load model
    model = attempt_load(weights, map_location=device)  # load FP32 model
    stride = int(model.stride.max())  # model stride
    imgsz = check_img_size(imgsz, s=stride)  # check img_size

    if trace:
        model = TracedModel(model, device, opt.img_size)

    if half:
        model.half()  # to FP16

    # Second-stage classifier
    classify = False
    if classify:
        modelc = load_classifier(name='resnet101', n=2)  # initialize
        modelc.load_state_dict(torch.load('weights/resnet101.pt', map_location=device)['model']).to(device).eval()

    # Set Dataloader
    vid_path, vid_writer = None, None
    if webcam:
        view_img = check_imshow()
        cudnn.benchmark = True  # set True to speed up constant image size inference
        dataset = LoadStreams(source, img_size=imgsz, stride=stride)
    else:
        dataset = LoadImages(source, img_size=imgsz, stride=stride)

    # Get names and colors
    names = model.module.names if hasattr(model, 'module') else model.names
    colors = [[random.randint(0, 255) for _ in range(3)] for _ in range(100)]

    # Create tracker
    tracker = BoTSORT(opt, frame_rate=30.0)

    # Run inference
    if device.type != 'cpu':
        model(torch.zeros(1, 3, imgsz, imgsz).to(device).type_as(next(model.parameters())))  # run once
    t0 = time.time()
    for path, img, im0s, vid_cap in dataset:
        img = torch.from_numpy(img).to(device)
        img = img.half() if half else img.float()  # uint8 to fp16/32
        img /= 255.0  # 0 - 255 to 0.0 - 1.0
        if img.ndimension() == 3:
            img = img.unsqueeze(0)

        # Inference
        t1 = time_synchronized()
        pred = model(img, augment=opt.augment)[0]

        # Apply NMS
        pred = non_max_suppression(pred, opt.conf_thres, opt.iou_thres, classes=opt.classes, agnostic=opt.agnostic_nms)
        t2 = time_synchronized()

        # Apply Classifier
        if classify:
            pred = apply_classifier(pred, modelc, img, im0s)

        # Process detections
        results = []

        for i, det in enumerate(pred):  # detections per image
            if webcam:  # batch_size >= 1
                p, s, im0, frame = path[i], '%g: ' % i, im0s[i].copy(), dataset.count
            else:
                p, s, im0, frame = path, '', im0s, getattr(dataset, 'frame', 0)

            # Run tracker
            detections = []
            if len(det):
                boxes = scale_coords(img.shape[2:], det[:, :4], im0.shape)
                boxes = boxes.cpu().numpy()
                detections = det.cpu().numpy()
                detections[:, :4] = boxes

            online_targets = tracker.update(detections, im0)

            online_tlwhs = []
            online_ids = []
            online_scores = []
            online_cls = []
            for t in online_targets:
                tlwh = t.tlwh
                tlbr = t.tlbr
                tid = t.track_id
                tcls = t.cls
                if tlwh[2] * tlwh[3] > opt.min_box_area:
                    online_tlwhs.append(tlwh)
                    online_ids.append(tid)
                    online_scores.append(t.score)
                    online_cls.append(t.cls)

                    # save results
                    results.append(
                        f"{i + 1},{tid},{tlwh[0]:.2f},{tlwh[1]:.2f},{tlwh[2]:.2f},{tlwh[3]:.2f},{t.score:.2f},-1,-1,-1\n"
                    )

                    if save_img or view_img:  # Add bbox to image
                        if opt.hide_labels_name:
                            label = f'{tid}, {int(tcls)}'
                        else:
                            label = f'{tid}, {names[int(tcls)]}'
                        plot_one_box(tlbr, im0, label=label, color=colors[int(tid) % len(colors)], line_thickness=2)
            p = Path(p)  # to Path
            save_path = str(save_dir / p.name)  # img.jpg

            # Print time (inference + NMS)
            # print(f'{s}Done. ({t2 - t1:.3f}s)')

            # Stream results
            if view_img:
                cv2.imshow('BoT-SORT', im0)
                cv2.waitKey(1)  # 1 millisecond

            # Save results (image with detections)
            if save_img:
                if dataset.mode == 'image':
                    cv2.imwrite(save_path, im0)
                else:  # 'video' or 'stream'
                    if vid_path != save_path:  # new video
                        vid_path = save_path
                        if isinstance(vid_writer, cv2.VideoWriter):
                            vid_writer.release()  # release previous video writer
                        if vid_cap:  # video
                            fps = vid_cap.get(cv2.CAP_PROP_FPS)
                            w = int(vid_cap.get(cv2.CAP_PROP_FRAME_WIDTH))
                            h = int(vid_cap.get(cv2.CAP_PROP_FRAME_HEIGHT))
                        else:  # stream
                            fps, w, h = 30, im0.shape[1], im0.shape[0]
                            save_path += '.mp4'
                        vid_writer = cv2.VideoWriter(save_path, cv2.VideoWriter_fourcc(*'mp4v'), fps, (w, h))
                    vid_writer.write(im0)

    if save_txt or save_img:
        s = f"\n{len(list(save_dir.glob('labels/*.txt')))} labels saved to {save_dir / 'labels'}" if save_txt else ''
        # print(f"Results saved to {save_dir}{s}")

    print(f'Done. ({time.time() - t0:.3f}s)')


if __name__ == '__main__':
    parser = argparse.ArgumentParser()
    parser.add_argument('--weights', nargs='+', type=str, default='yolov7.pt', help='model.pt path(s)')
    parser.add_argument('--source', type=str, default='inference/images', help='source')  # file/folder, 0 for webcam
    parser.add_argument('--img-size', type=int, default=1920, help='inference size (pixels)')
    parser.add_argument('--conf-thres', type=float, default=0.09, help='object confidence threshold')
    parser.add_argument('--iou-thres', type=float, default=0.7, help='IOU threshold for NMS')
    parser.add_argument('--device', default='', help='cuda device, i.e. 0 or 0,1,2,3 or cpu')
    parser.add_argument('--view-img', action='store_true', help='display results')
    parser.add_argument('--save-txt', action='store_true', help='save results to *.txt')
    parser.add_argument('--save-conf', action='store_true', help='save confidences in --save-txt labels')
    parser.add_argument('--nosave', action='store_true', help='do not save images/videos')
    parser.add_argument('--classes', nargs='+', type=int, help='filter by class: --class 0, or --class 0 2 3')
    parser.add_argument('--agnostic-nms', action='store_true', help='class-agnostic NMS')
    parser.add_argument('--augment', action='store_true', help='augmented inference')
    parser.add_argument('--update', action='store_true', help='update all models')
    parser.add_argument('--project', default='runs/detect', help='save results to project/name')
    parser.add_argument('--name', default='exp', help='save results to project/name')
    parser.add_argument('--exist-ok', action='store_true', help='existing project/name ok, do not increment')
    parser.add_argument('--trace', action='store_true', help='trace model')
    parser.add_argument('--hide-labels-name', default=False, action='store_true', help='hide labels')

    # tracking args
    parser.add_argument("--track_high_thresh", type=float, default=0.3, help="tracking confidence threshold")
    parser.add_argument("--track_low_thresh", default=0.05, type=float, help="lowest detection threshold")
    parser.add_argument("--new_track_thresh", default=0.4, type=float, help="new track thresh")
    parser.add_argument("--track_buffer", type=int, default=30, help="the frames for keep lost tracks")
    parser.add_argument("--match_thresh", type=float, default=0.7, help="matching threshold for tracking")
    parser.add_argument("--aspect_ratio_thresh", type=float, default=1.6,
                        help="threshold for filtering out boxes of which aspect ratio are above the given value.")
    parser.add_argument('--min_box_area', type=float, default=10, help='filter out tiny boxes')
    parser.add_argument("--fuse-score", dest="mot20", default=False, action="store_true",
                        help="fuse score and iou for association")

    # CMC
    parser.add_argument("--cmc-method", default="orb", type=str, help="cmc method: files (Vidstab GMC) | orb | ecc")

    # ReID
    parser.add_argument("--with-reid", dest="with_reid", default=False, action="store_true", help="with ReID module.")
    parser.add_argument("--fast-reid-config", dest="fast_reid_config", default=r"fast_reid/configs/MOT17/sbs_S50.yml",
                        type=str, help="reid config file path")
    parser.add_argument("--fast-reid-weights", dest="fast_reid_weights", default=r"pretrained/mot17_sbs_S50.pth",
                        type=str, help="reid config file path")
    parser.add_argument('--proximity_thresh', type=float, default=0.5,
                        help='threshold for rejecting low overlap reid matches')
    parser.add_argument('--appearance_thresh', type=float, default=0.25,
                        help='threshold for rejecting low appearance similarity reid matches')

    opt = parser.parse_args()

    opt.jde = False
    opt.ablation = False

    print(opt)
    # check_requirements(exclude=('pycocotools', 'thop'))

    with torch.no_grad():
        if opt.update:  # update all models (to fix SourceChangeWarning)
            for opt.weights in ['yolov7.pt']:
                detect()
                strip_optimizer(opt.weights)
        else:
            detect()
