Nacos（服务注册与发现和统一配置管理）

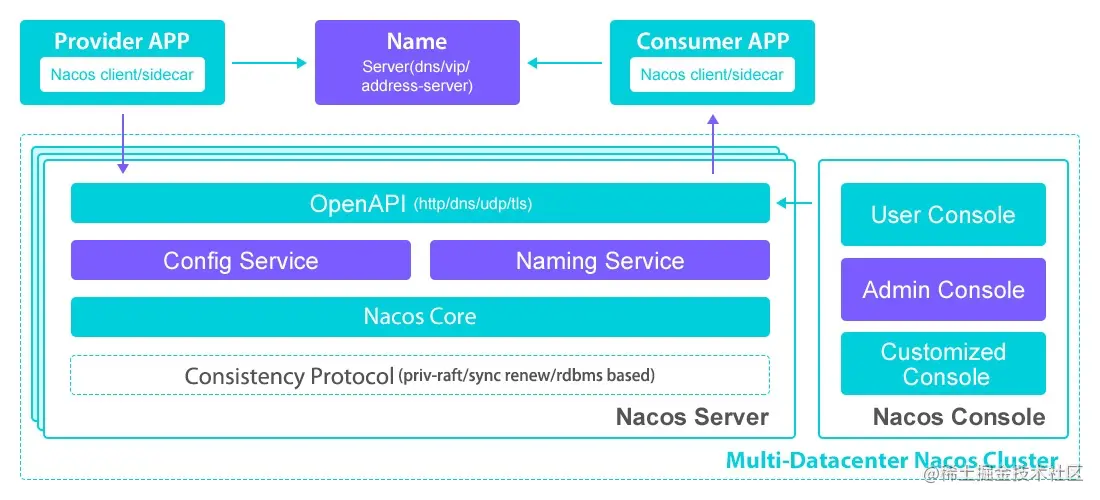

Nacos致力于帮助您发现、配置和管理微服务。Nacos 提供了一组简单易用的特性集，帮助您快速实现动态服务发现、服务配置、服务元数据及流量管理。
Nacos 帮助您更敏捷和容易地构建、交付和管理微服务平台。 Nacos 是构建以“服务”为中心的现代应用架构 (例如微服务范式、云原生范式) 的服务基础设施。
- 服务发现和服务健康监测
- 动态配置服务
- 动态DNS服务
- 服务及其元数据管理
Nacos Naming源码分析
Client临时服务实例心跳续约
Nacos临时实例使用心跳上报方式维持活性，发送心跳的周期默认是5秒。服务端节点对等，请求的节点是随机的，客户端请求失败则换一个节点重新发送请求。
com.alibaba.nacos.client.naming.beat.BeatReactor.java
class BeatTask implements Runnable {
@Override
public void run() {
// 发送心跳周期，默认5秒。配置参数[preserved.heart.beat.interval]
long nextTime = beatInfo.getPeriod();
try {
// 发送心跳 /instance/beat
JSONObject result = serverProxy.sendBeat(beatInfo, BeatReactor.this.lightBeatEnabled);
long interval = result.getIntValue("clientBeatInterval");
if (interval > 0) {
nextTime = interval;
}
} catch (NacosException ne) {}
// ScheduledExecutorService定时任务
executorService.schedule(new BeatTask(beatInfo), nextTime, TimeUnit.MILLISECONDS);
}
}
Service临时服务实例健康检查
接收到客户端心跳续约后异步更新服务心跳最后续约时间。Nacos服务端会在15秒没收到心跳后将实例设置为不健康，在30秒没收到心跳时将这个临时实例摘除。
com.alibaba.nacos.naming.healthcheck.ClientBeatCheckTask.java
@Override
public void run() {
try {
// first set health status of instances:
for (Instance instance : instances) {
// 实例不健康的心跳超时时间，默认15秒。配置参数[preserved.heart.beat.timeout]
if (System.currentTimeMillis() - instance.getLastBeat() > instance.getInstanceHeartBeatTimeOut()) {
if (!instance.isMarked()) {
if (instance.isHealthy()) {
instance.setHealthy(false); getPushService().serviceChanged(service);
ApplicationUtils.publishEvent(new InstanceHeartbeatTimeoutEvent(this, instance));
}
}
}
}
//启动服务实例健康检查，默认true。配置参数[nacos.naming.expireInstance]
if (!getGlobalConfig().isExpireInstance()) {
return;
}
for (Instance instance : instances) {
// 实例摘除的心跳超时时间，默认30秒。配置参数[preserved.ip.delete.timeout]
if (System.currentTimeMillis() - instance.getLastBeat() > instance.getIpDeleteTimeout()) {
deleteIP(instance);
}
}
} catch (Exception e) {
}
}
Service接收Client临时服务实例心跳逻辑
ClientBeatProcessor接收临时实例心跳请求，PushService注册服务更新事件，PushService发送UDP到Client并接收答复
com.alibaba.nacos.naming.healthcheck.ClientBeatProcessor.java
@Override
public void run() {
String ip = rsInfo.getIp();
String clusterName = rsInfo.getCluster();
int port = rsInfo.getPort();
Cluster cluster = service.getClusterMap().get(clusterName);
// 获取集群所有的临时服务实例
List<Instance> instances = cluster.allIPs(true);
for (Instance instance : instances) {
if (instance.getIp().equals(ip) && instance.getPort() == port) {
// 记录心跳时间
instance.setLastBeat(System.currentTimeMillis());
if (!instance.isMarked()) {
if (!instance.isHealthy()) {
instance.setHealthy(true);
// UDP发送服务改变通知
getPushService().serviceChanged(service);
}
}
}
}
}
com.alibaba.nacos.naming.push.PushService.java
// UDP发送中缓存，避免重复发送
private static Map<String, Future> futureMap = new ConcurrentHashMap<>();
// UPD发送了，未收到回复的缓存
private static volatile ConcurrentMap<String, Receiver.AckEntry> ackMap = new ConcurrentHashMap<String, Receiver.AckEntry>();
// 服务变更事件注册
public void serviceChanged(Service service) {
if (futureMap.containsKey(UtilsAndCommons.assembleFullServiceName(service.getNamespaceId(), service.getName()))) {
return;
}
this.applicationContext.publishEvent(new ServiceChangeEvent(this, service));
}
// Service变更事件处理
@Override
public void onApplicationEvent(ServiceChangeEvent event) {
Future future = udpSender.schedule(new Runnable() {
@Override
public void run() {
try {
// 获取所有需要推送的PushClient
ConcurrentMap<String, PushClient> clients = clientMap.get(UtilsAndCommons.assembleFullServiceName(namespaceId, serviceName));
Map<String, Object> cache = new HashMap<>(16);
long lastRefTime = System.nanoTime();
for (PushClient client : clients.values()) {
// 超时的删除不处理
if (client.zombie()) {
clients.remove(client.toString());
continue;
}
// 发送UDP通知Client，内部重试逻辑（10秒没有应答重新尝试，最大尝试1次）
udpPush(ackEntry);
}
} catch (Exception e) {} finally {
futureMap.remove(UtilsAndCommons.assembleFullServiceName(namespaceId, serviceName));
}
}
}, 1000, TimeUnit.MILLISECONDS);
futureMap.put(UtilsAndCommons.assembleFullServiceName(namespaceId, serviceName), future);
}
// 发送UDP数据到Client
private static Receiver.AckEntry udpPush(Receiver.AckEntry ackEntry) {
// 重试最大尝试次数，默认1
if (ackEntry.getRetryTimes() > MAX_RETRY_TIMES) {
ackMap.remove(ackEntry.key);
udpSendTimeMap.remove(ackEntry.key);
failedPush += 1;
return ackEntry;
}
try {
ackMap.put(ackEntry.key, ackEntry);
// 发送
udpSocket.send(ackEntry.origin);
// 10秒没有应答重新尝试
executorService.schedule(new Retransmitter(ackEntry), TimeUnit.NANOSECONDS.toMillis(ACK_TIMEOUT_NANOS),
TimeUnit.MILLISECONDS);
return ackEntry;
} catch (Exception e) {}
}
com.alibaba.nacos.client.naming.core.PushReceiver.java
Client接收UDP请求，并答复Service
com.alibaba.nacos.naming.push.PushService.Receiver.java
接收Client答复
Nacos-Raft原理（Leader心跳和选举）
leader隔一段时间给所有的follower发心跳。如果follower长时间没收到心跳，就认为leader已经挂了，就发起投票选举新的leader。
com.alibaba.nacos.naming.consistency.persistent.raft.RaftPeer.java
public class RaftPeer {
// 服务节点IP
public String ip;
// 选举IP
public String voteFor;
// 任期数
public AtomicLong term = new AtomicLong(0L);
// leader续约超时时间，超过此时间FOLLOWER未接收到心跳发起重新选举。15秒
public volatile long leaderDueMs = RandomUtils.nextLong(0, GlobalExecutor.LEADER_TIMEOUT_MS);
// leader发送心跳时间间隔。5秒
public volatile long heartbeatDueMs = RandomUtils.nextLong(0, GlobalExecutor.HEARTBEAT_INTERVAL_MS);
// 服务节点状态
public volatile State state = State.FOLLOWER;
// 15+(0~5)秒
public void resetLeaderDue() {
leaderDueMs = GlobalExecutor.LEADER_TIMEOUT_MS + RandomUtils.nextLong(0, GlobalExecutor.RANDOM_MS);
}
// 5秒
public void resetHeartbeatDue() {
heartbeatDueMs = GlobalExecutor.HEARTBEAT_INTERVAL_MS;
}
}
com.alibaba.nacos.naming.consistency.persistent.raft.RaftCore.java
@PostConstruct
public void init() throws Exception {
// Follower长时间没收到心跳就选举的定时任务
GlobalExecutor.registerMasterElection(new MasterElection());
// Leader发送心跳定时任务，TICK_PERIOD_MS=500
GlobalExecutor.registerHeartbeat(new HeartBeat());
}
// Leader发送心跳任务
public class HeartBeat implements Runnable {
@Override
public void run() {
try {
RaftPeer local = peers.local();
// Leader心跳发送间隔
local.heartbeatDueMs -= GlobalExecutor.TICK_PERIOD_MS;
if (local.heartbeatDueMs > 0) {
return;
}
// 重置RaftPeer.heartbeatDueMs
local.resetHeartbeatDue();
sendBeat();
} catch (Exception e) {}
}
public void sendBeat() throws IOException, InterruptedException {
RaftPeer local = peers.local();
// 判断是否Leader和集群部署
if (local.state != RaftPeer.State.LEADER && !ApplicationUtils.getStandaloneMode()) {
return;
}
// 重置RaftPeer.leaderDueMs
local.resetLeaderDue();
// 异步发送心跳给其他实例
for (final String server : peers.allServersWithoutMySelf()) {
try {
final String url = buildURL(server, API_BEAT); // API_BEAT=/raft/beat，相当于HeartBeat.receivedBeat(JSONObject beat)方法
HttpClient.asyncHttpPostLarge(url, null, compressedBytes, new AsyncCompletionHandler<Integer>() {
@Override
public Integer onCompleted(Response response) throws Exception {
peers.update(JSON.parseObject(response.getResponseBody(), RaftPeer.class));
return 0;
}
});
} catch (Exception e) {
MetricsMonitor.getLeaderSendBeatFailedException().increment();
}
}
}
}
// Follower接收Leader的心跳逻辑
public RaftPeer receivedBeat(JSONObject beat) throws Exception {
final RaftPeer local = peers.local();
final RaftPeer remote = new RaftPeer();
final JSONArray beatDatums = beat.getJSONArray("datums");
// 接收到心跳，给Leader续约
local.resetLeaderDue();
local.resetHeartbeatDue();
// 标记请求的服务节点为Leader
peers.makeLeader(remote);
for (Object object : beatDatums) {
// update datum entry，API_GET=/raft/datum
String url = buildURL(remote.ip, API_GET) + "?keys=" + URLEncoder.encode(keys, "UTF-8");
HttpClient.asyncHttpGet(url, null, null, new AsyncCompletionHandler<Integer>() {
@Override
public Integer onCompleted(Response response) throws Exception {
List<JSONObject> datumList = JSON.parseObject(response.getResponseBody(), new TypeReference<List<JSONObject>>() {});
for (JSONObject datumJson : datumList) {
aftStore.write(newDatum);
notifier.addTask(newDatum.key, ApplyAction.CHANGE);
local.resetLeaderDue();
raftStore.updateTerm(local.term.get());
}
}
}
}
}
// Follower选举任务
public class MasterElection implements Runnable {
@Override
public void run() {
try {
RaftPeer local = peers.local();
// 判断Leader过期，未过期直接返回
local.leaderDueMs -= GlobalExecutor.TICK_PERIOD_MS;
if (local.leaderDueMs > 0) {
return;
}
local.resetLeaderDue();
local.resetHeartbeatDue();
sendVote();
} catch (Exception e) {}
}
public void sendVote() {
RaftPeer local = peers.get(NetUtils.localServer());
peers.reset();
local.term.incrementAndGet();
local.voteFor = local.ip;
local.state = RaftPeer.State.CANDIDATE;
Map<String, String> params = new HashMap<>(1);
params.put("vote", JSON.toJSONString(local));
for (final String server : peers.allServersWithoutMySelf()) {
// API_VOTE=/raft/vote，相当于HeartBeat.receivedVote(RaftPeer remote)方法
final String url = buildURL(server, API_VOTE);
try {
HttpClient.asyncHttpPost(url, null, params, new AsyncCompletionHandler<Integer>() {
@Override
public Integer onCompleted(Response response) throws Exception {
RaftPeer peer = JSON.parseObject(response.getResponseBody(), RaftPeer.class);
peers.decideLeader(peer);
return 0;
}
});
} catch (Exception e) {}
}
}
}
// 接收选举逻辑
public synchronized RaftPeer receivedVote(RaftPeer remote) {
if (!peers.contains(remote)) {
throw new IllegalStateException("can not find peer: " + remote.ip);
}
RaftPeer local = peers.get(NetUtils.localServer());
// 根据term的大小比较判断谁是Leader
if (remote.term.get() <= local.term.get()) {
if (StringUtils.isEmpty(local.voteFor)) {
local.voteFor = local.ip;
}
return local;
}
local.resetLeaderDue();
local.state = RaftPeer.State.FOLLOWER;
local.voteFor = remote.ip;
local.term.set(remote.term.get());
return local;
}
Nacos Client Config
spring:
cloud:
nacos:
username: nacos
password: nacos
server-addr: 127.0.0.1:8848
config:
file-extension: yaml
shared-configs:
- data-id: light-common.yaml
refresh: false
group: DEFAULT_GROUP
discovery:
# 指定IP
ip: 127.0.0.1
# 配置元数据
metadata:
# 模式：灰度、DEMO
light.mode: ${light.mode}
light.service.version: '@light-service.version@'
light.env: ${spring.profiles.active}
user.home: ${user.home}
Nacos Server Configurations
#*************** Spring Boot Related Configurations ***************#
### Default web context path:
server.servlet.contextPath=/nacos
### Default web server port:
server.port=8848
#*************** Network Related Configurations ***************#
### If prefer hostname over ip for Nacos server addresses in cluster.conf:
# nacos.inetutils.prefer-hostname-over-ip=false
### Specify local server's IP:
# nacos.inetutils.ip-address=
#*************** Config Module Related Configurations ***************#
### If user MySQL as datasource:
spring.datasource.platform=mysql
### Count of DB:
db.num=1
### Connect URL of DB:
db.url.0=jdbc:mysql://127.0.0.1:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true
db.user=light
db.password=lightpassward
#*************** Naming Module Related Configurations ***************#
### Data dispatch task execution period in milliseconds:
# nacos.naming.distro.taskDispatchPeriod=200
### Data count of batch sync task:
# nacos.naming.distro.batchSyncKeyCount=1000
### Retry delay in milliseconds if sync task failed:
# nacos.naming.distro.syncRetryDelay=5000
### If enable data warmup. If set to false, the server would accept request without local data preparation:
# nacos.naming.data.warmup=true
### If enable the instance auto expiration, kind like of health check of instance:
# nacos.naming.expireInstance=true
### If enable the empty service auto clean, services with an empty instance are automatically cleared
nacos.naming.empty-service.auto-clean=false
### The empty service cleanup task delays startup time in milliseconds
nacos.naming.empty-service.clean.initial-delay-ms=60000
### The empty service cleanup task cycle execution time in milliseconds
nacos.naming.empty-service.clean.period-time-ms=20000
#*************** CMDB Module Related Configurations ***************#
### The interval to dump external CMDB in seconds:
# nacos.cmdb.dumpTaskInterval=3600
### The interval of polling data change event in seconds:
# nacos.cmdb.eventTaskInterval=10
### The interval of loading labels in seconds:
# nacos.cmdb.labelTaskInterval=300
### If turn on data loading task:
# nacos.cmdb.loadDataAtStart=false
#*************** Metrics Related Configurations ***************#
### Metrics for prometheus
#management.endpoints.web.exposure.include=*
### Metrics for elastic search
management.metrics.export.elastic.enabled=false
#management.metrics.export.elastic.host=http://localhost:9200
### Metrics for influx
management.metrics.export.influx.enabled=false
#management.metrics.export.influx.db=springboot
#management.metrics.export.influx.uri=http://localhost:8086
#management.metrics.export.influx.auto-create-db=true
#management.metrics.export.influx.consistency=one
#management.metrics.export.influx.compressed=true
#*************** Access Log Related Configurations ***************#
### If turn on the access log:
server.tomcat.accesslog.enabled=true
### The access log pattern:
server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i
### The directory of access log:
server.tomcat.basedir=
#*************** Access Control Related Configurations ***************#
### If enable spring security, this option is deprecated in 1.2.0:
#spring.security.enabled=false
### The ignore urls of auth, is deprecated in 1.2.0:
nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-fe/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**
### The auth system to use, currently only 'nacos' is supported:
nacos.core.auth.system.type=nacos
### If turn on auth system:
nacos.core.auth.enabled=false
### The token expiration in seconds:
nacos.core.auth.default.token.expire.seconds=18000
### The default token:
nacos.core.auth.default.token.secret.key=SecretKey012345678901234567890123456789012345678901234567890123456789
### Turn on/off caching of auth information. By turning on this switch, the update of auth information would have a 15 seconds delay.
nacos.core.auth.caching.enabled=false
#*************** Istio Related Configurations ***************#
### If turn on the MCP server:
nacos.istio.mcp.server.enabled=false
Nacos Discovery
github.com/alibaba/spr… github.com/alibaba/spr…
Nacos Config
github.com/alibaba/spr… github.com/alibaba/spr…
共享配置/覆盖配置
bootstrap.properties
# 这个时候通常的做法是通过-Dspring.profiles.active=<profile>参数指定其配置来达到环境间灵活的切换
spring.profiles.active=product
# 共享配置加载顺序是 shared-configs -> extension-configs -> service-config
# 必须使用bootstrap.properties/bootstrap.yml配置文件
spring.cloud.nacos.config.shared-configs[0].data-id=light-common.properties
spring.cloud.nacos.config.shared-configs[0].group=DEFAULT_GROUP
spring.cloud.nacos.config.shared-configs[0].refresh=false
spring.cloud.nacos.config.extension-configs[0].data-id=light-ext.properties
spring.cloud.nacos.config.extension-configs[0].group=DEFAULT_GROUP
spring.cloud.nacos.config.extension-configs[0].refresh=true
# 开启Ribbon继承
ribbon.nacos.enabled = true
# 懒加载
ribbon.eager-load.enabled
# NamingProxy发送心跳和获取服务列表的连接时间（默认3000）和超时时间（默认50000）
com.alibaba.nacos.client.naming.ctimeout = 1000
Nacos Discovery Client Configuration（NacosDiscoveryProperties.java）
spring.cloud.nacos.discovery.serverAddr =
spring.cloud.nacos.discovery.username =
spring.cloud.nacos.discovery.password =
# watch delay,duration to pull new service from nacos server.
spring.cloud.nacos.discovery.watchDelay = 30000
# Heart beat interval. Time unit: millisecond.
spring.cloud.nacos.discovery.heartBeatInterval = 5000
# if you just want to subscribe, but don't want to register your service, set it to false
spring.cloud.nacos.discovery.registerEnabled = true
# The ip address your want to register for your service instance, needn't to set it if the auto detect ip works well.
spring.cloud.nacos.discovery.ip =
