解析vue3中generate是如何生成代码的，一气呵成

前面两篇我们讲解了template会通过词法分析、语法分析解析成AST(抽象语法树)，然后利用transform对AST转换创建了更加语义化的代码生成节点codegenNode。这一篇我们就来分析generate是如何生成最后的代码的。

我们还是拿这个例子分析

<div>hi, {{message}}</div>

最后生成

import { toDisplayString as _toDisplayString, openBlock as _openBlock, createElementBlock as _createElementBlock } from "vue"

export function render(_ctx, _cache, $props, $setup, $data, $options) {
  return (_openBlock(), _createElementBlock("div", null, "hi, " + _toDisplayString(_ctx.message), 1 /* TEXT */))
}

generate

export function generate(
  ast: RootNode,
  options: CodegenOptions & {
    onContextCreated?: (context: CodegenContext) => void
  } = {}
): CodegenResult {
  // 创建代码生成上下文对象
  const context = createCodegenContext(ast, options)
  if (options.onContextCreated) options.onContextCreated(context)
  const {
    mode,
    push,
    prefixIdentifiers,
    indent,
    deindent,
    newline,
    scopeId,
    ssr
  } = context

  const hasHelpers = ast.helpers.length > 0
  const useWithBlock = !prefixIdentifiers && mode !== 'module'
  const genScopeId = !__BROWSER__ && scopeId != null && mode === 'module'
  const isSetupInlined = !__BROWSER__ && !!options.inline

  const preambleContext = isSetupInlined
    ? createCodegenContext(ast, options)
    : context
    // 生成预设代码
  if (!__BROWSER__ && mode === 'module') {
    genModulePreamble(ast, preambleContext, genScopeId, isSetupInlined)
  } else {
    genFunctionPreamble(ast, preambleContext)
  }
  // enter render function
  // 是render 还是ssrRender
  const functionName = ssr ? `ssrRender` : `render`
  const args = ssr ? ['_ctx', '_push', '_parent', '_attrs'] : ['_ctx', '_cache']
  if (!__BROWSER__ && options.bindingMetadata && !options.inline) {
    // binding optimization args
    args.push('$props', '$setup', '$data', '$options')
  }
  const signature =
    !__BROWSER__ && options.isTS
      ? args.map(arg => `${arg}: any`).join(',')
      : args.join(', ')

  if (isSetupInlined) {
    push(`(${signature}) => {`)
  } else {
    push(`function ${functionName}(${signature}) {`)
  }
  indent()

  if (!ssr) {
    push(`return `)
  }

  if (ast.codegenNode) {
    genNode(ast.codegenNode, context)
  } else {
    push(`null`)
  }

  deindent()
  push(`}`)

  return {
    ast,
    code: context.code,
    preamble: isSetupInlined ? preambleContext.code : ``,
    // SourceMapGenerator does have toJSON() method but it's not in the types
    map: context.map ? (context.map as any).toJSON() : undefined
  }
}

为了更加的直观，这里我们只保留了核心的代码。 我们大致可以分成5个步骤：创建上下文对象、生成预设代码、生成渲染函数的名称和参数、生成组件、指令、过滤器等声明代码，和返回一个vnode树。

创建代码生成上下文

function createCodegenContext(
  ast: RootNode,
  {
    mode = 'function',
    prefixIdentifiers = mode === 'module',
    sourceMap = false,
    filename = `template.vue.html`,
    scopeId = null,
    optimizeImports = false,
    runtimeGlobalName = `Vue`,
    runtimeModuleName = `vue`,
    ssrRuntimeModuleName = 'vue/server-renderer',
    ssr = false,
    isTS = false,
    inSSR = false
  }: CodegenOptions
): CodegenContext {
  const context: CodegenContext = {
    mode,
    prefixIdentifiers,
    sourceMap,
    filename,
    scopeId,
    optimizeImports,
    runtimeGlobalName,
    runtimeModuleName,
    ssrRuntimeModuleName,
    ssr,
    isTS,
    inSSR,
    source: ast.loc.source,
    code: ``,
    column: 1,
    line: 1,
    offset: 0,
    indentLevel: 0,
    pure: false,
    map: undefined,
    helper(key) {
      return `_${helperNameMap[key]}`
    },
    push(code, node) {
      context.code += code
      if (!__BROWSER__ && context.map) {
        if (node) {
          let name
          if (node.type === NodeTypes.SIMPLE_EXPRESSION && !node.isStatic) {
            const content = node.content.replace(/^_ctx\./, '')
            if (content !== node.content && isSimpleIdentifier(content)) {
              name = content
            }
          }
          addMapping(node.loc.start, name)
        }
        advancePositionWithMutation(context, code)
        if (node && node.loc !== locStub) {
          addMapping(node.loc.end)
        }
      }
    },
    indent() {
      newline(++context.indentLevel)
    },
    deindent(withoutNewLine = false) {
      if (withoutNewLine) {
        --context.indentLevel
      } else {
        newline(--context.indentLevel)
      }
    },
    newline() {
      newline(context.indentLevel)
    }
  }

  function newline(n: number) {
    context.push('\n' + `  `.repeat(n))
  }

  function addMapping(loc: Position, name?: string) {
    context.map!.addMapping({
      name,
      source: context.filename,
      original: {
        line: loc.line,
        column: loc.column - 1 // source-map column is 0 based
      },
      generated: {
        line: context.line,
        column: context.column - 1
      }
    })
  }

  if (!__BROWSER__ && sourceMap) {
    // lazy require source-map implementation, only in non-browser builds
    context.map = new SourceMapGenerator()
    context.map!.setSourceContent(filename, context.source)
  }

  return context
}

这里主要是管理一些generate的配置和数据。比如code就是当前生成的代码，还有一些辅助函数去修改context中的数据。我们拿push举例，当前代码context.code每次追加code来更新值。还有一些换行符函数，代码缩进函数。

生成预设代码

预设代码也就是预先定义好的代码模块。我们这里假设mode为module,那就要通过genModulePreamble生成import语句

function genModulePreamble(
  ast: RootNode,
  context: CodegenContext,
  genScopeId: boolean,
  inline?: boolean
) {
  const {
    push,
    newline,
    optimizeImports,
    runtimeModuleName,
    ssrRuntimeModuleName
  } = context

  if (genScopeId && ast.hoists.length) {
    ast.helpers.push(PUSH_SCOPE_ID, POP_SCOPE_ID)
  }

  // generate import statements for helpers
  if (ast.helpers.length) {
    // 生成import声明代码
    if (optimizeImports) {
      push(
        `import { ${ast.helpers
          .map(s => helperNameMap[s])
          .join(', ')} } from ${JSON.stringify(runtimeModuleName)}\n`
      )
      push(
        `\n// Binding optimization for webpack code-split\nconst ${ast.helpers
          .map(s => `_${helperNameMap[s]} = ${helperNameMap[s]}`)
          .join(', ')}\n`
      )
    } else {
      push(
        `import { ${ast.helpers
          .map(s => `${helperNameMap[s]} as _${helperNameMap[s]}`)
          .join(', ')} } from ${JSON.stringify(runtimeModuleName)}\n`
      )
    }
  }

  if (ast.imports.length) {
    genImports(ast.imports, context)
    newline()
  }

  genHoists(ast.hoists, context)
  newline()

  if (!inline) {
    push(`export `)
  }
}

这里主要是判断heplers是否存在，helpers是我们在transform的时候添加的。那这些helpers都是什么呢？我们来回忆一下transform

回忆transform

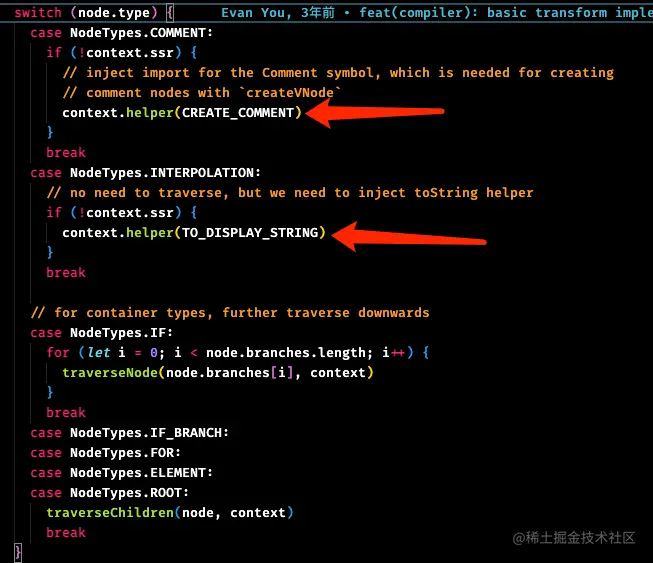

当我们通过transform遍历ast节点的时候，会对每个节点的类型做出判断

当碰到注释点和插值节点的时候会执行context.helper。而在创建transform上下文对象的时候

我们拿插值举例，通过context.helper将TO_DISPLAY_STRING存储在context.helpers中，TO_DISPLAY_STRING就是一个Symbol对象。

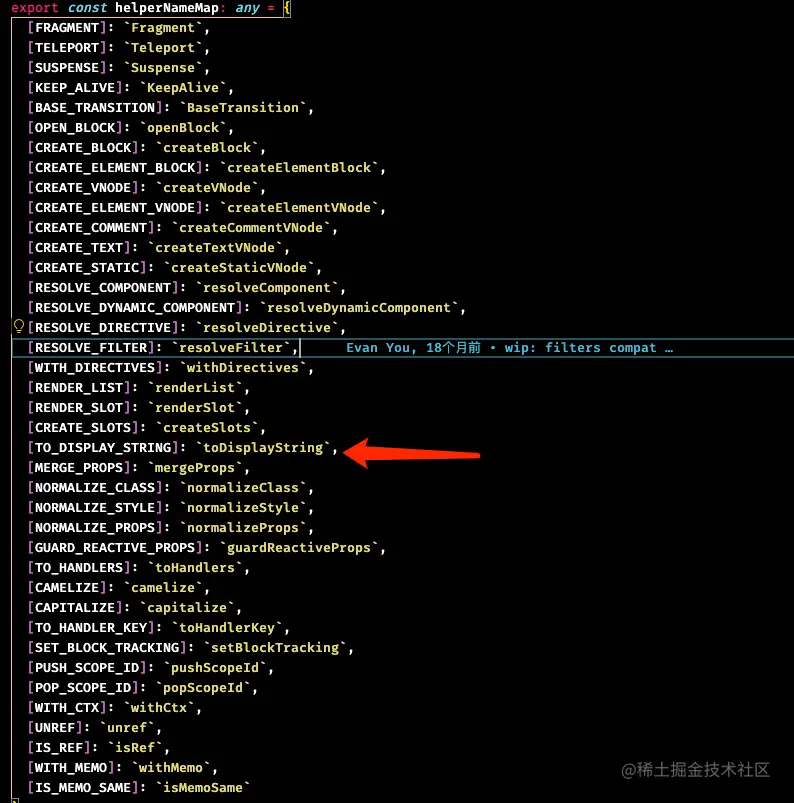

然后可以通过helperNameMap中找到对应的字符串

然后当执行

push(
    `import { ${ast.helpers
      .map(s => `${helperNameMap[s]} as _${helperNameMap[s]}`)
      .join(', ')} } from ${JSON.stringify(runtimeModuleName)}\n`
  )

就会生成如下代码

import { toDisplayString as _toDisplayString } from "vue"

生成渲染函数的名称和参数

const functionName = ssr ? `ssrRender` : `render`
const args = ssr ? ['_ctx', '_push', '_parent', '_attrs'] : ['_ctx', '_cache']
    if (!__BROWSER__ && options.bindingMetadata && !options.inline) {
    // binding optimization args
    args.push('$props', '$setup', '$data', '$options')
}
const signature =
!__BROWSER__ && options.isTS
  ? args.map(arg => `${arg}: any`).join(',')
  : args.join(', ')

if (isSetupInlined) {
    push(`(${signature}) => {`)
} else {
    push(`function ${functionName}(${signature}) {`)
}
indent()

这里首先是对函数名的定义，如果是服务端渲染则使用 ssrRender否则使用render，函数的参数也是对是否是服务端渲染判断，然后对参数进行拼接，最后把函数名和参数一起拼接完成，最后会生成如下代码

export function render(_ctx, _cache, $props, $setup, $data, $options) {

生成一些资源声明的代码这里我们就不解析了

生成VNode树

这里就要用到transform中对ast的转换为根节点创建的codegenNode了

function genNode(node: CodegenNode | symbol | string, context: CodegenContext) {
  if (isString(node)) {
    context.push(node)
    return
  }
  if (isSymbol(node)) {
    context.push(context.helper(node))
    return
  }
  switch (node.type) {
    case NodeTypes.ELEMENT:
    case NodeTypes.IF:
    case NodeTypes.FOR:
      __DEV__ &&
        assert(
          node.codegenNode != null,
          `Codegen node is missing for element/if/for node. ` +
            `Apply appropriate transforms first.`
        )
      genNode(node.codegenNode!, context)
      break
    case NodeTypes.TEXT:
      genText(node, context)
      break
    case NodeTypes.SIMPLE_EXPRESSION:
      genExpression(node, context)
      break
    case NodeTypes.INTERPOLATION:
      genInterpolation(node, context)
      break
    case NodeTypes.TEXT_CALL:
      genNode(node.codegenNode, context)
      break
    case NodeTypes.COMPOUND_EXPRESSION:
      genCompoundExpression(node, context)
      break
    case NodeTypes.COMMENT:
      genComment(node, context)
      break
    case NodeTypes.VNODE_CALL:
      genVNodeCall(node, context)
      break

    case NodeTypes.JS_CALL_EXPRESSION:
      genCallExpression(node, context)
      break
    case NodeTypes.JS_OBJECT_EXPRESSION:
      genObjectExpression(node, context)
      break
    case NodeTypes.JS_ARRAY_EXPRESSION:
      genArrayExpression(node, context)
      break
    case NodeTypes.JS_FUNCTION_EXPRESSION:
      genFunctionExpression(node, context)
      break
    case NodeTypes.JS_CONDITIONAL_EXPRESSION:
      genConditionalExpression(node, context)
      break
    case NodeTypes.JS_CACHE_EXPRESSION:
      genCacheExpression(node, context)
      break
    case NodeTypes.JS_BLOCK_STATEMENT:
      genNodeList(node.body, context, true, false)
      break

    // SSR only types
    case NodeTypes.JS_TEMPLATE_LITERAL:
      !__BROWSER__ && genTemplateLiteral(node, context)
      break
    case NodeTypes.JS_IF_STATEMENT:
      !__BROWSER__ && genIfStatement(node, context)
      break
    case NodeTypes.JS_ASSIGNMENT_EXPRESSION:
      !__BROWSER__ && genAssignmentExpression(node, context)
      break
    case NodeTypes.JS_SEQUENCE_EXPRESSION:
      !__BROWSER__ && genSequenceExpression(node, context)
      break
    case NodeTypes.JS_RETURN_STATEMENT:
      !__BROWSER__ && genReturnStatement(node, context)
      break

    /* istanbul ignore next */
    case NodeTypes.IF_BRANCH:
      // noop
      break
    default:
      if (__DEV__) {
        assert(false, `unhandled codegen node type: ${(node as any).type}`)
        // make sure we exhaust all possible types
        const exhaustiveCheck: never = node
        return exhaustiveCheck
      }
  }
}

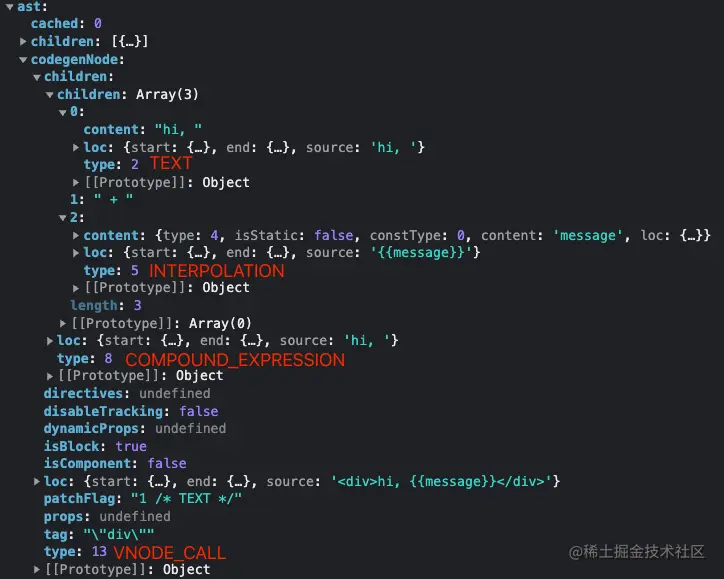

genNode主要是根据节点的类型来生成代码。 我们来看下ast.codegenNode的值

首先应该执行genVNodeCall

function genVNodeCall(node: VNodeCall, context: CodegenContext) {
  const { push, helper, pure } = context
  const {
    tag,
    props,
    children,
    patchFlag,
    dynamicProps,
    directives,
    isBlock,
    disableTracking,
    isComponent
  } = node
  if (isBlock) {
    push(`(${helper(OPEN_BLOCK)}(${disableTracking ? `true` : ``}), `)
  }
  if (pure) {
    push(PURE_ANNOTATION)
  }
  const callHelper: symbol = isBlock
    ? getVNodeBlockHelper(context.inSSR, isComponent)
    : getVNodeHelper(context.inSSR, isComponent)
  push(helper(callHelper) + `(`, node)
  genNodeList(
    genNullableArgs([tag, props, children, patchFlag, dynamicProps]),
    context
  )
  push(`)`)
  if (isBlock) {
    push(`)`)
  }
}

由于isBlock为ture,disableTracking为false所以需要把(_openBlock()拼接上去。然后执行getVNodeBlockHelper

export function getVNodeBlockHelper(ssr: boolean, isComponent: boolean) {
  return ssr || isComponent ? CREATE_BLOCK : CREATE_ELEMENT_BLOCK
}

所以需要拼接_createElementBlock(。然后就需要执行genNodeList为_createElementBlock添加参数。首先执行genNullableArgs

genNodeList(
    genNullableArgs([tag, props, children, patchFlag, dynamicProps]),
    context
  )
function genNullableArgs(args: any[]): CallExpression['arguments'] {
  let i = args.length
  while (i--) {
    if (args[i] != null) break
  }
  return args.slice(0, i + 1).map(arg => arg || `null`)
}

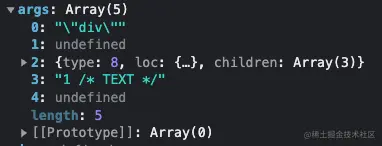

genNullableArgs是倒序遍历参数，如果碰到一个不为空的参数，则把前面所有的参数以数组的形式返回。如果参数不存在，则返回字符串'null'

然后执行genNodeList

function genNodeList(
  nodes: (string | symbol | CodegenNode | TemplateChildNode[])[],
  context: CodegenContext,
  multilines: boolean = false,
  comma: boolean = true
) {
  const { push, newline } = context
  for (let i = 0; i < nodes.length; i++) {
    const node = nodes[i]
    if (isString(node)) {
      push(node)
    } else if (isArray(node)) {
      genNodeListAsArray(node, context)
    } else {
      genNode(node, context)
    }
    if (i < nodes.length - 1) {
      if (multilines) {
        comma && push(',')
        newline()
      } else {
        comma && push(', ')
      }
    }
  }
}

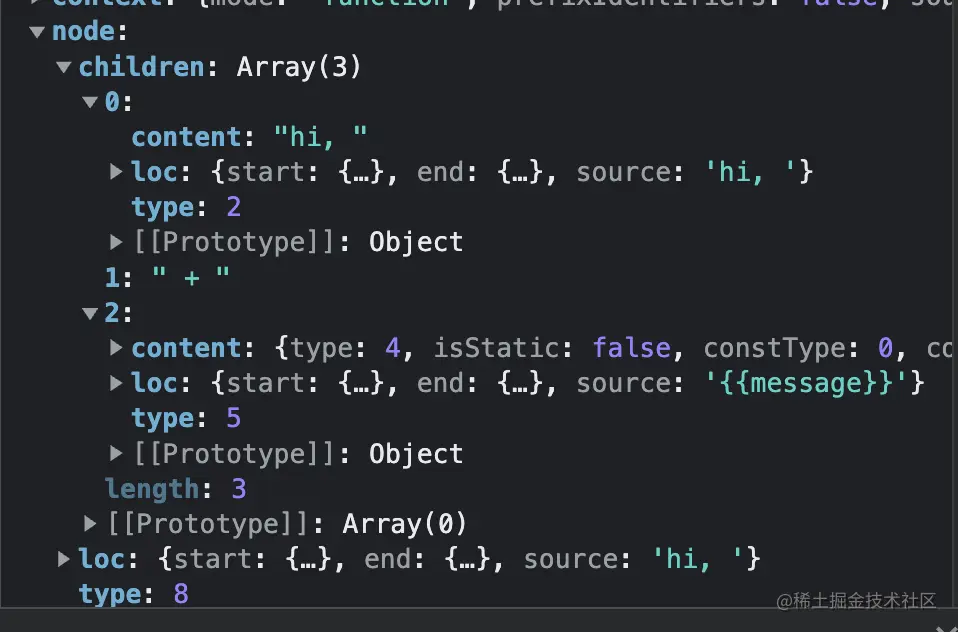

这里就是遍历我们上面处理的参数，前两个是字符串div和null则直接拼接，然后第三个参数则需要递归的执行genNode,此时的node的类型是COMPOUND_EXPRESSION，所以需要执行genCompoundExpression

function genCompoundExpression(
  node: CompoundExpressionNode,
  context: CodegenContext
) {
  for (let i = 0; i < node.children!.length; i++) {
    const child = node.children![i]
    if (isString(child)) {
      context.push(child)
    } else {
      genNode(child, context)
    }
  }
}

由于此时node还是有children并且是个数组，所以还会继续递归genNode。

第一个节点是的类型是TEXT会执行genText

function genText(
  node: TextNode | SimpleExpressionNode,
  context: CodegenContext
) {
  context.push(JSON.stringify(node.content), node)
}

genText比较简单直接拼接就好。 第二个节点是+在for循环的时候就直接被拼接了。第三个节点的类型是INTERPOLATION，所以需要执行genInterpolation

function genInterpolation(node: InterpolationNode, context: CodegenContext) {
  const { push, helper, pure } = context
  if (pure) push(PURE_ANNOTATION)
  push(`${helper(TO_DISPLAY_STRING)}(`)
  genNode(node.content, context)
  push(`)`)
}

这里就需要把Symbol对象TO_DISPLAY_STRING通过helperNameMap匹配然后拿到_toDisplayString拼接。然后继续递归插值节点里面的内容。那么此时node的节点类型是SIMPLE_EXPRESSION，则需要执行

function genExpression(node: SimpleExpressionNode, context: CodegenContext) {
  const { content, isStatic } = node
  context.push(isStatic ? JSON.stringify(content) : content, node)
}

genExpression也非常的简单，主要就是把content拼接。

最后还有两个参数都比较简单，直接拼接就好。

总结

至此我们开头的模板基本上就可以通过generate生成代码了。我们的模板比较简单，利用到的一些节点生成代码的函数也不多，但是基本的思路是差不多的。大家有兴趣可以把模板写的复杂一点看看其他类型的节点是如何处理的。

欢迎大家点评和点赞哦~写篇文章也是不容易啊 over

parse transform
