前言
分析了这么多篇Binder通信机制了,其实也是为了我们理解Android的启动流程以及客户端与SMgr通信的流程打下基础,关于Binder的总结篇会放在我们读完Android的启动源码后进行总结,希望大家会对Android的Binder通信有一层更深入的理解
注: 本系列文章Android源码均基于 aospxref.com/android-13.…
一、init进程
1.1 main.cpp
我们知道Android底层是linux,BootLoader内核初始化后启动的第一个用户进程就是init进程,解析init.rc脚本,启动init.rc脚本里声明的service.
在Linux系统中,service通常是一种被称为守护进程(daemon)的程序,它通常在系统启动时启动,它通常在系统启动时启动,并一直运行与后台,直到系统关闭时终止.
如Apache服务器的httpd守护进程,一直监听80端口以等待http请求.service程序通常通过service命令来启动或停止.
init进程的启动入口是在它的SecondStageMain方法中,但调用init的SecondStageMain方法是通过main.cpp中的main方法进行的.
int main(int argc, char** argv) {
#if __has_feature(address_sanitizer)
__asan_set_error_report_callback(AsanReportCallback);
#elif __has_feature(hwaddress_sanitizer)
__hwasan_set_error_report_callback(AsanReportCallback);
#endif
// Boost prio which will be restored later
setpriority(PRIO_PROCESS, 0, -20);
//创建设备节点、权限设定等
if (!strcmp(basename(argv[0]), "ueventd")) {
return ueventd_main(argc, argv);
}
if (argc > 1) {
//初始化日志系统
if (!strcmp(argv[1], "subcontext")) {
android::base::InitLogging(argv, &android::base::KernelLogger);
const BuiltinFunctionMap& function_map = GetBuiltinFunctionMap();
return SubcontextMain(argc, argv, &function_map);
}
//2、创建增强型Linux
if (!strcmp(argv[1], "selinux_setup")) {
return SetupSelinux(argv);
}
//解析init.rc文件、提供服务、创建epoll与处理子进程的终止等
if (!strcmp(argv[1], "second_stage")) {
return SecondStageMain(argc, argv);
}
}
//1.挂载相关文件系统
return FirstStageMain(argc, argv);
}
1.2 SecondStageMain
int SecondStageMain(int argc, char** argv) {
if (REBOOT_BOOTLOADER_ON_PANIC) {
InstallRebootSignalHandlers();
}
...
//初始化属性服务
PropertyInit();
...
Epoll epoll;
if (auto result = epoll.Open(); !result.ok()) {
PLOG(FATAL) << result.error();
}
//初始化single句柄
InstallSignalFdHandler(&epoll);
InstallInitNotifier(&epoll);
//开启属性服务
StartPropertyService(&property_fd);
// Make the time that init stages started available for bootstat to log.
RecordStageBoottimes(start_time);
// Set libavb version for Framework-only OTA match in Treble build.
if (const char* avb_version = getenv("INIT_AVB_VERSION"); avb_version != nullptr) {
SetProperty("ro.boot.avb_version", avb_version);
}
unsetenv("INIT_AVB_VERSION");
fs_mgr_vendor_overlay_mount_all();
export_oem_lock_status();
MountHandler mount_handler(&epoll);
SetUsbController();
SetKernelVersion();
const BuiltinFunctionMap& function_map = GetBuiltinFunctionMap();
Action::set_function_map(&function_map);
if (!SetupMountNamespaces()) {
PLOG(FATAL) << "SetupMountNamespaces failed";
}
InitializeSubcontext();
ActionManager& am = ActionManager::GetInstance();
ServiceList& sm = ServiceList::GetInstance();
//解析rc文件
LoadBootScripts(am, sm);
...
return 0;
}
1.3 LoadBootScripts
static void LoadBootScripts(ActionManager& action_manager, ServiceList& service_list) {
Parser parser = CreateParser(action_manager, service_list);
std::string bootscript = GetProperty("ro.boot.init_rc", "");
if (bootscript.empty()) {
parser.ParseConfig("/system/etc/init/hw/init.rc");
if (!parser.ParseConfig("/system/etc/init")) {
late_import_paths.emplace_back("/system/etc/init");
}
// late_import is available only in Q and earlier release. As we don't
// have system_ext in those versions, skip late_import for system_ext.
parser.ParseConfig("/system_ext/etc/init");
if (!parser.ParseConfig("/vendor/etc/init")) {
late_import_paths.emplace_back("/vendor/etc/init");
}
if (!parser.ParseConfig("/odm/etc/init")) {
late_import_paths.emplace_back("/odm/etc/init");
}
if (!parser.ParseConfig("/product/etc/init")) {
late_import_paths.emplace_back("/product/etc/init");
}
} else {
parser.ParseConfig(bootscript);
}
}
此时会通过Parser方法去解析当前目录下的init.rc文件中的语法
1.4 init.rc

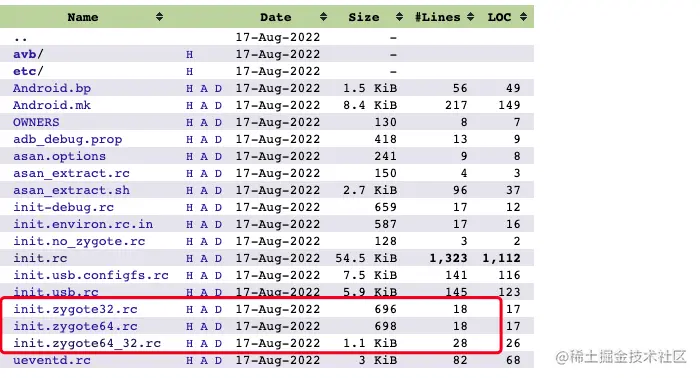

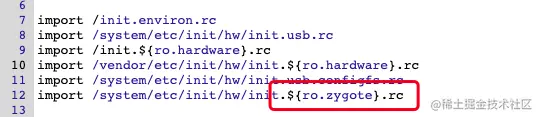

我们可以看到在init.rc系统中会根据系统的不同属性来引入不同的zygote脚本
-
init.zygote32.rc:zygote进程对应的执行程序是app_process(纯32bit模式)
-
init.zygote64.rc:zygote进程对应的执行程序是app_process(纯64bit模式)
-
init.zygote64_32.rc:启动两个zygote进程(zygote和zygote_secondary),对应的执行程序分别是app_process64(主模式),app_process32
1.5 zygote64_32.rc
system/core/rootdir/init.zygote64_32.rc
看一下其中一个zygote文件的内容
service zygote /system/bin/app_process64 -Xzygote /system/bin --zygote --start-system-server --socket-name=zygote
class main
priority -20
user root
group root readproc reserved_disk
socket zygote stream 660 root system
socket usap_pool_primary stream 660 root system
onrestart exec_background - system system -- /system/bin/vdc volume abort_fuse
onrestart write /sys/power/state on
onrestart restart audioserver
onrestart restart cameraserver
onrestart restart media
onrestart restart media.tuner
onrestart restart netd
onrestart restart wificond
task_profiles ProcessCapacityHigh MaxPerformance
critical window=${zygote.critical_window.minute:-off} target=zygote-fatal
service zygote_secondary /system/bin/app_process32 -Xzygote /system/bin --zygote --socket-name=zygote_secondary --enable-lazy-preload
class main
priority -20
user root
group root readproc reserved_disk
socket zygote_secondary stream 660 root system
socket usap_pool_secondary stream 660 root system
onrestart restart zygote
task_profiles ProcessCapacityHigh MaxPerformance
-
此时rc脚本的意思是,service启动一个服务名字是zygote,通过/system/bin/app_process64
-
为zygote创建socket,访问权限600
-
onerestart指当这些服务需要重新启动时,执行重新启动.
1.6 app_process
/frameworks/base/cmds/app_process/app_main.cpp
接下来我们终于要进入app_main的main函数看看到底发生了什么了~
二、Zygote(孵化进程)启动
Zygote初始进程的作用就像一个母鸡一样,孵化所有的App进程.
//根据上面的脚本分析,这个是启动main函数的入参
{-Xzygote
/system/bin
--zygote
--start-system-server
--socket-name=zygote
}
//argc=5
//argv是上面的参数数组
int main(int argc, char* const argv[])
{
if (!LOG_NDEBUG) {
String8 argv_String;
for (int i = 0; i < argc; ++i) {
argv_String.append(""");
argv_String.append(argv[i]);
argv_String.append("" ");
}
ALOGV("app_process main with argv: %s", argv_String.string());
}
AppRuntime runtime(argv[0], computeArgBlockSize(argc, argv));
// Process command line arguments
// ignore argv[0]
argc--;
argv++;
// Everything up to '--' or first non '-' arg goes to the vm.
//
// The first argument after the VM args is the "parent dir", which
// is currently unused.
//
// After the parent dir, we expect one or more the following internal
// arguments :
//
// --zygote : Start in zygote mode
// --start-system-server : Start the system server.
// --application : Start in application (stand alone, non zygote) mode.
// --nice-name : The nice name for this process.
//
// For non zygote starts, these arguments will be followed by
// the main class name. All remaining arguments are passed to
// the main method of this class.
//
// For zygote starts, all remaining arguments are passed to the zygote.
// main function.
//
// Note that we must copy argument string values since we will rewrite the
// entire argument block when we apply the nice name to argv0.
//
// As an exception to the above rule, anything in "spaced commands"
// goes to the vm even though it has a space in it.
const char* spaced_commands[] = { "-cp", "-classpath" };
// Allow "spaced commands" to be succeeded by exactly 1 argument (regardless of -s).
bool known_command = false;
int i;
for (i = 0; i < argc; i++) {
if (known_command == true) {
runtime.addOption(strdup(argv[i]));
// The static analyzer gets upset that we don't ever free the above
// string. Since the allocation is from main, leaking it doesn't seem
// problematic. NOLINTNEXTLINE
ALOGV("app_process main add known option '%s'", argv[i]);
known_command = false;
continue;
}
for (int j = 0;
j < static_cast<int>(sizeof(spaced_commands) / sizeof(spaced_commands[0]));
++j) {
if (strcmp(argv[i], spaced_commands[j]) == 0) {
known_command = true;
ALOGV("app_process main found known command '%s'", argv[i]);
}
}
if (argv[i][0] != '-') {
break;
}
if (argv[i][1] == '-' && argv[i][2] == 0) {
++i; // Skip --.
break;
}
runtime.addOption(strdup(argv[i]));
// The static analyzer gets upset that we don't ever free the above
// string. Since the allocation is from main, leaking it doesn't seem
// problematic. NOLINTNEXTLINE
ALOGV("app_process main add option '%s'", argv[i]);
}
// Parse runtime arguments. Stop at first unrecognized option.
bool zygote = false;
bool startSystemServer = false;
bool application = false;
String8 niceName;
String8 className;
++i; // Skip unused "parent dir" argument.
while (i < argc) {
const char* arg = argv[i++];
if (strcmp(arg, "--zygote") == 0) {
zygote = true;
niceName = ZYGOTE_NICE_NAME;
} else if (strcmp(arg, "--start-system-server") == 0) {
startSystemServer = true;
} else if (strcmp(arg, "--application") == 0) {
application = true;
} else if (strncmp(arg, "--nice-name=", 12) == 0) {
niceName.setTo(arg + 12);
} else if (strncmp(arg, "--", 2) != 0) {
className.setTo(arg);
break;
} else {
--i;
break;
}
}
Vector<String8> args;
if (!className.isEmpty()) {
// We're not in zygote mode, the only argument we need to pass
// to RuntimeInit is the application argument.
//
// The Remainder of args get passed to startup class main(). Make
// copies of them before we overwrite them with the process name.
args.add(application ? String8("application") : String8("tool"));
runtime.setClassNameAndArgs(className, argc - i, argv + i);
if (!LOG_NDEBUG) {
String8 restOfArgs;
char* const* argv_new = argv + i;
int argc_new = argc - i;
for (int k = 0; k < argc_new; ++k) {
restOfArgs.append(""");
restOfArgs.append(argv_new[k]);
restOfArgs.append("" ");
}
ALOGV("Class name = %s, args = %s", className.string(), restOfArgs.string());
}
} else {
// We're in zygote mode.
maybeCreateDalvikCache();
if (startSystemServer) {
args.add(String8("start-system-server"));
}
char prop[PROP_VALUE_MAX];
if (property_get(ABI_LIST_PROPERTY, prop, NULL) == 0) {
LOG_ALWAYS_FATAL("app_process: Unable to determine ABI list from property %s.",
ABI_LIST_PROPERTY);
return 11;
}
String8 abiFlag("--abi-list=");
abiFlag.append(prop);
args.add(abiFlag);
// In zygote mode, pass all remaining arguments to the zygote
// main() method.
for (; i < argc; ++i) {
args.add(String8(argv[i]));
}
}
if (!niceName.isEmpty()) {
runtime.setArgv0(niceName.string(), true /* setProcName */);
}
//设置启动模式
if (zygote) {
runtime.start("com.android.internal.os.ZygoteInit", args, zygote);
} else if (className) {
runtime.start("com.android.internal.os.RuntimeInit", args, zygote);
} else {
fprintf(stderr, "Error: no class name or --zygote supplied.\n");
app_usage();
LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");
}
}
这里主要分成两步
- 1、解析刚才传进来的参数
- 2、根据配置来决定app_main的启动模式
2.1 app_main
由于命令会使zygote标识变成true,此时会调用
#include <android_runtime/AndroidRuntime.h>
if (zygote) {
runtime.start("com.android.internal.os.ZygoteInit", args, zygote);
} else if (className) {
runtime.start("com.android.internal.os.RuntimeInit", args, zygote);
} else {
fprintf(stderr, "Error: no class name or --zygote supplied.\n");
app_usage();
LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");
}
2.2 AndroidRuntime
frameworks/base/core/jni/AndroidRuntime.cpp
void AndroidRuntime::start(const char* className, const Vector<String8>& options, bool zygote)
{
...
// 确认Android目录环境
const char* rootDir = getenv("ANDROID_ROOT");
if (rootDir == NULL) {
rootDir = "/system";
if (!hasDir("/system")) {
LOG_FATAL("No root directory specified, and /system does not exist.");
return;
}
setenv("ANDROID_ROOT", rootDir, 1);
}
const char* artRootDir = getenv("ANDROID_ART_ROOT");
if (artRootDir == NULL) {
LOG_FATAL("No ART directory specified with ANDROID_ART_ROOT environment variable.");
return;
}
const char* i18nRootDir = getenv("ANDROID_I18N_ROOT");
if (i18nRootDir == NULL) {
LOG_FATAL("No runtime directory specified with ANDROID_I18N_ROOT environment variable.");
return;
}
const char* tzdataRootDir = getenv("ANDROID_TZDATA_ROOT");
if (tzdataRootDir == NULL) {
LOG_FATAL("No tz data directory specified with ANDROID_TZDATA_ROOT environment variable.");
return;
}
//const char* kernelHack = getenv("LD_ASSUME_KERNEL");
//ALOGD("Found LD_ASSUME_KERNEL='%s'\n", kernelHack);
/* start the virtual machine */
//启动虚拟机
JniInvocation jni_invocation;
jni_invocation.Init(NULL);
JNIEnv* env;
if (startVm(&mJavaVM, &env, zygote, primary_zygote) != 0) {
return;
}
onVmCreated(env);
/*
* Register android functions.
*/
//注册jni方法
if (startReg(env) < 0) {
ALOGE("Unable to register all android natives\n");
return;
}
/*
* We want to call main() with a String array with arguments in it.
* At present we have two arguments, the class name and an option string.
* Create an array to hold them.
*/
//准备好环境之后,为传入的选项转化为java层的String对象
jclass stringClass;
jobjectArray strArray;
jstring classNameStr;
//根据传进来的class name,反射启动对应的类
stringClass = env->FindClass("java/lang/String");
assert(stringClass != NULL);
strArray = env->NewObjectArray(options.size() + 1, stringClass, NULL);
assert(strArray != NULL);
classNameStr = env->NewStringUTF(className);
assert(classNameStr != NULL);
env->SetObjectArrayElement(strArray, 0, classNameStr);
for (size_t i = 0; i < options.size(); ++i) {
jstring optionsStr = env->NewStringUTF(options.itemAt(i).string());
assert(optionsStr != NULL);
env->SetObjectArrayElement(strArray, i + 1, optionsStr);
}
...
}
可以看到,Zygote进程想从app_main函数入口启动com.android.internal.os.ZygoteInit类.
这是Android系统启动以来第一次要加载的Java类,此时必须保证虚拟机启动完成.
2.2.1 初始化虚拟机
/* start the virtual machine */
JniInvocation jni_invocation;
jni_invocation.Init(NULL);
JNIEnv* env;
if (startVm(&mJavaVM, &env, zygote, primary_zygote) != 0) {
return;
}
onVmCreated(env);
我们来看一下jni_invacation的初始方法
JniInvocation jni_invocation;
jni_invocation.Init(NULL);
/libnativehelper/JniInvocation.c
bool JniInvocationInit(struct JniInvocationImpl* instance, const char* library_name) {
#ifdef __ANDROID__
char buffer[PROP_VALUE_MAX];
#else
char* buffer = NULL;
#endif
library_name = JniInvocationGetLibrary(library_name, buffer);
DlLibrary library = DlOpenLibrary(library_name);
...
//三个if 会return false
DlSymbol JNI_GetDefaultJavaVMInitArgs_ = FindSymbol(library, "JNI_GetDefaultJavaVMInitArgs");
if (JNI_GetDefaultJavaVMInitArgs_ == NULL) {
return false;
}
DlSymbol JNI_CreateJavaVM_ = FindSymbol(library, "JNI_CreateJavaVM");
if (JNI_CreateJavaVM_ == NULL) {
return false;
}
DlSymbol JNI_GetCreatedJavaVMs_ = FindSymbol(library, "JNI_GetCreatedJavaVMs");
if (JNI_GetCreatedJavaVMs_ == NULL) {
return false;
}
return true;
}
Dlopenlibrary是指读取某个链接库,这个library是通过JniInvocationGetLibrary获得的.
const char* JniInvocationGetLibrary(const char* library, char* buffer) {
bool debuggable = IsDebuggable();
const char* system_preferred_library = NULL;
if (buffer != NULL && (GetLibrarySystemProperty(buffer) > 0)) {
system_preferred_library = buffer;
}
return JniInvocationGetLibraryWith(library, debuggable, system_preferred_library);
}
static int GetLibrarySystemProperty(char* buffer) {
#ifdef __ANDROID__
return __system_property_get("persist.sys.dalvik.vm.lib.2", buffer);
#else
// Host does not use properties.
UNUSED(buffer);
return 0;
#endif
}
通过读取SystemProperty下的属性,来确定加载什么so库,而这个so库就是虚拟机so库

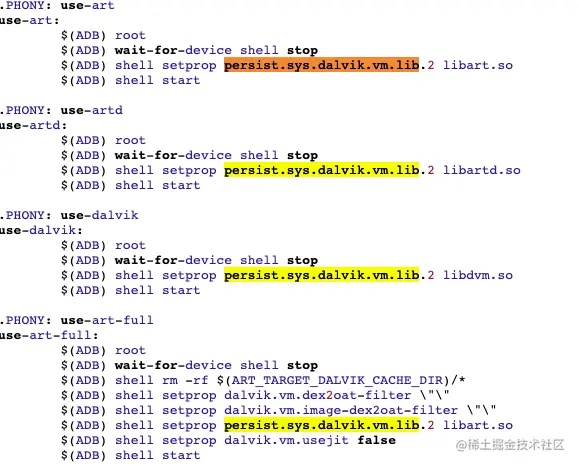

这个属性在/art/Android.mk中设定
可以看到根据系统选择是art虚拟机还是dvm虚拟机
当选择好虚拟机后,会检测以下三个函数
DlSymbol JNI_GetDefaultJavaVMInitArgs_ = FindSymbol(library, "JNI_GetDefaultJavaVMInitArgs");
if (JNI_GetDefaultJavaVMInitArgs_ == NULL) {
return false;
}
DlSymbol JNI_CreateJavaVM_ = FindSymbol(library, "JNI_CreateJavaVM");
if (JNI_CreateJavaVM_ == NULL) {
return false;
}
DlSymbol JNI_GetCreatedJavaVMs_ = FindSymbol(library, "JNI_GetCreatedJavaVMs");
if (JNI_GetCreatedJavaVMs_ == NULL) {
return false;
}
只有包含了这三个函数,Android初始化才会认可虚拟机进一步的初始化工作,因此,我们也可以自己编写虚拟机.
因此,JniInvocationImpl 定义了三个方法实现
struct JniInvocationImpl {
// Name of library providing JNI_ method implementations.
const char* jni_provider_library_name;
// Opaque pointer to shared library from dlopen / LoadLibrary.
void* jni_provider_library;
// Function pointers to methods in JNI provider.
jint (*JNI_GetDefaultJavaVMInitArgs)(void*);
jint (*JNI_CreateJavaVM)(JavaVM**, JNIEnv**, void*);
jint (*JNI_GetCreatedJavaVMs)(JavaVM**, jsize, jsize*);
};
此时,当我们已经初始化虚拟机,接下来就要启动虚拟机了
2.2.2 启动虚拟机
JNIEnv* env;
if (startVm(&mJavaVM, &env, zygote, primary_zygote) != 0) {
return;
}
onVmCreated(env);
2.2.2.1 startVm
int AndroidRuntime::startVm(JavaVM** pJavaVM, JNIEnv** pEnv, bool zygote, bool primary_zygote)
{
...
if (JNI_CreateJavaVM(pJavaVM, pEnv, &initArgs) < 0) {
ALOGE("JNI_CreateJavaVM failed\n");
return -1;
}
return 0;
}
可以看到,startVm时如果启动成功会返回0,否则返回-1
上面的if判断也会判断返回值是否为0
void AndroidRuntime::onVmCreated(JNIEnv* env)
{
// If AndroidRuntime had anything to do here, we'd have done it in 'start'.
}
2.2.2.2 注册jni方法
if (startReg(env) < 0) {
ALOGE("Unable to register all android natives\n");
return;
}
/*static*/ int AndroidRuntime::startReg(JNIEnv* env)
{
ATRACE_NAME("RegisterAndroidNatives");
/*
* This hook causes all future threads created in this process to be
* attached to the JavaVM. (This needs to go away in favor of JNI
* Attach calls.)
*/
androidSetCreateThreadFunc((android_create_thread_fn) javaCreateThreadEtc);
ALOGV("--- registering native functions ---\n");
/*
* Every "register" function calls one or more things that return
* a local reference (e.g. FindClass). Because we haven't really
* started the VM yet, they're all getting stored in the base frame
* and never released. Use Push/Pop to manage the storage.
*/
env->PushLocalFrame(200);
if (register_jni_procs(gRegJNI, NELEM(gRegJNI), env) < 0) {
env->PopLocalFrame(NULL);
return -1;
}
env->PopLocalFrame(NULL);
//createJavaThread("fubar", quickTest, (void*) "hello");
return 0;
}
核心方法是register_jni_procs方法,用来注册jni方法
static int register_jni_procs(const RegJNIRec array[], size_t count, JNIEnv* env)
{
for (size_t i = 0; i < count; i++) {
if (array[i].mProc(env) < 0) {
#ifndef NDEBUG
ALOGD("----------!!! %s failed to load\n", array[i].mName);
#endif
return -1;
}
}
return 0;
}
这里定义了RegJNIRec结构体的数据结构
#ifdef NDEBUG
#define REG_JNI(name) { name }
struct RegJNIRec {
int (*mProc)(JNIEnv*);
};
#else
#define REG_JNI(name) { name, #name }
struct RegJNIRec {
int (*mProc)(JNIEnv*);
const char* mName;
};
#endif
这是注册的JNI方法数组
static const RegJNIRec gRegJNI[] = {
REG_JNI(register_com_android_internal_os_RuntimeInit),
REG_JNI(register_com_android_internal_os_ZygoteInit_nativeZygoteInit),
REG_JNI(register_android_os_SystemClock),
REG_JNI(register_android_util_CharsetUtils),
REG_JNI(register_android_util_EventLog),
REG_JNI(register_android_util_Log),
REG_JNI(register_android_util_MemoryIntArray),
REG_JNI(register_android_app_admin_SecurityLog),
REG_JNI(register_android_content_AssetManager),
REG_JNI(register_android_content_StringBlock),
REG_JNI(register_android_content_XmlBlock),
REG_JNI(register_android_content_res_ApkAssets),
REG_JNI(register_android_text_AndroidCharacter),
REG_JNI(register_android_text_Hyphenator),
REG_JNI(register_android_view_InputDevice),
REG_JNI(register_android_view_KeyCharacterMap),
REG_JNI(register_android_os_Process),
REG_JNI(register_android_os_SystemProperties),
REG_JNI(register_android_os_Binder),
...
};
可以看到很多我们调用的java方法其实底层还是需要调用native的jni方法的
2.2.2.4 onVmCreated
void AndroidRuntime::onVmCreated(JNIEnv* env)
{
// If AndroidRuntime had anything to do here, we'd have done it in 'start'.
}
onVmCreated在虚拟机创建以后,android的源码提供了一个空函数实现,这个回调是在虚拟机已经创建好之后的回调.
2.2.3 反射启动ZygoteInit
/*
* Start VM. This thread becomes the main thread of the VM, and will
* not return until the VM exits.
*/
char* slashClassName = toSlashClassName(className != NULL ? className : "");
jclass startClass = env->FindClass(slashClassName);
if (startClass == NULL) {
ALOGE("JavaVM unable to locate class '%s'\n", slashClassName);
/* keep going */
} else {
jmethodID startMeth = env->GetStaticMethodID(startClass, "main",
"([Ljava/lang/String;)V");
if (startMeth == NULL) {
ALOGE("JavaVM unable to find main() in '%s'\n", className);
/* keep going */
} else {
env->CallStaticVoidMethod(startClass, startMeth, strArray);
#if 0
if (env->ExceptionCheck())
threadExitUncaughtException(env);
#endif
}
}
free(slashClassName);
ALOGD("Shutting down VM\n");
if (mJavaVM->DetachCurrentThread() != JNI_OK)
ALOGW("Warning: unable to detach main thread\n");
if (mJavaVM->DestroyJavaVM() != 0)
ALOGW("Warning: VM did not shut down cleanly\n");
此时就走到反射调用ZygoteInit流程,传进来的slashClassName就是ZygoteInit的包名
启动结束,就释放掉java层的String类,以及为JavaVm解除当前线程的绑定,并回收掉JavaVM的内存.
三、ZygoteInit
接下来我们来看下init进程启动的zygote进程后,启动虚拟机,想要启动的这个ZygoteInit java文件的Main函数
/frameworks/base/core/java/com/android/internal/os/ZygoteInit.java
public static void main(String[] argv) {
...
//解析传进来的命令,主要是确定是否要启动SystemServer
for (int i = 1; i < argv.length; i++) {
if ("start-system-server".equals(argv[i])) {
startSystemServer = true;
} else if ("--enable-lazy-preload".equals(argv[i])) {
enableLazyPreload = true;
} else if (argv[i].startsWith(ABI_LIST_ARG)) {
abiList = argv[i].substring(ABI_LIST_ARG.length());
} else if (argv[i].startsWith(SOCKET_NAME_ARG)) {
zygoteSocketName = argv[i].substring(SOCKET_NAME_ARG.length());
} else {
throw new RuntimeException("Unknown command line argument: " + argv[i]);
}
}
...
if (abiList == null) {
throw new RuntimeException("No ABI list supplied.");
}
// In some configurations, we avoid preloading resources and classes eagerly.
// In such cases, we will preload things prior to our first fork.
if (!enableLazyPreload) {
bootTimingsTraceLog.traceBegin("ZygotePreload");
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_START,
SystemClock.uptimeMillis());
//准备资源
preload(bootTimingsTraceLog);
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_END,
SystemClock.uptimeMillis());
bootTimingsTraceLog.traceEnd(); // ZygotePreload
}
// Do an initial gc to clean up after startup
bootTimingsTraceLog.traceBegin("PostZygoteInitGC");
//装载好虚拟机之后,做一次gc
gcAndFinalize();
bootTimingsTraceLog.traceEnd(); // PostZygoteInitGC
bootTimingsTraceLog.traceEnd(); // ZygoteInit
Zygote.initNativeState(isPrimaryZygote);
ZygoteHooks.stopZygoteNoThreadCreation();
zygoteServer = new ZygoteServer(isPrimaryZygote);
//启动SystemServer
if (startSystemServer) {
Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
Log.i(TAG, "Accepting command socket connections");
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
//启动循环
caller = zygoteServer.runSelectLoop(abiList);
} catch (Throwable ex) {
Log.e(TAG, "System zygote died with fatal exception", ex);
throw ex;
} finally {
if (zygoteServer != null) {
zygoteServer.closeServerSocket();
}
}
// We're in the child process and have exited the select loop. Proceed to execute the
// command.
if (caller != null) {
caller.run();
}
}
ZygoteInit的main函数主要
- 1、解析命令是否需要启动SystemServer
- 2、之前的源码通过registerZygoteSocket注册监听
zygoteServer = new ZygoteServer(isPrimaryZygote);
ZygoteServer(boolean isPrimaryZygote) {
mUsapPoolEventFD = Zygote.getUsapPoolEventFD();
if (isPrimaryZygote) {
mZygoteSocket = Zygote.createManagedSocketFromInitSocket(Zygote.PRIMARY_SOCKET_NAME);
mUsapPoolSocket =
Zygote.createManagedSocketFromInitSocket(
Zygote.USAP_POOL_PRIMARY_SOCKET_NAME);
}
...
}
static LocalServerSocket createManagedSocketFromInitSocket(String socketName) {
int fileDesc;
final String fullSocketName = ANDROID_SOCKET_PREFIX + socketName;
try {
String env = System.getenv(fullSocketName);
fileDesc = Integer.parseInt(env);
} catch (RuntimeException ex) {
throw new RuntimeException("Socket unset or invalid: " + fullSocketName, ex);
}
try {
FileDescriptor fd = new FileDescriptor();
fd.setInt$(fileDesc);
return new LocalServerSocket(fd);
} catch (IOException ex) {
throw new RuntimeException(
"Error building socket from file descriptor: " + fileDesc, ex);
}
}
可以看到,这里也是通过创建一个文件描述符,对这个文件描述符进行监听,判断是否需要孵化新的进程.
四、启动SystemServer
接下来就是binder通信机制里 我们比较熟悉的SystemServer进程了
if (startSystemServer) {
Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
private static Runnable forkSystemServer(String abiList, String socketName,
ZygoteServer zygoteServer) {
...
/* Request to fork the system server process */
//1.fork出SystemServer进程
pid = Zygote.forkSystemServer(
parsedArgs.mUid, parsedArgs.mGid,
parsedArgs.mGids,
parsedArgs.mRuntimeFlags,
null,
parsedArgs.mPermittedCapabilities,
parsedArgs.mEffectiveCapabilities);
} catch (IllegalArgumentException ex) {
throw new RuntimeException(ex);
}
/* For child process */
//初始化SystemServer进程
if (pid == 0) {
if (hasSecondZygote(abiList)) {
waitForSecondaryZygote(socketName);
}
zygoteServer.closeServerSocket();
return handleSystemServerProcess(parsedArgs);
}
return null;
}
4.1 fork出SystemServer进程
/frameworks/base/core/java/com/android/internal/os/Zygote.java
static int forkSystemServer(int uid, int gid, int[] gids, int runtimeFlags,
int[][] rlimits, long permittedCapabilities, long effectiveCapabilities) {
ZygoteHooks.preFork();
int pid = nativeForkSystemServer(
uid, gid, gids, runtimeFlags, rlimits,
permittedCapabilities, effectiveCapabilities);
// Set the Java Language thread priority to the default value for new apps.
Thread.currentThread().setPriority(Thread.NORM_PRIORITY);
ZygoteHooks.postForkCommon();
return pid;
}
private static native int nativeForkSystemServer(int uid, int gid, int[] gids, int runtimeFlags,
int[][] rlimits, long permittedCapabilities, long effectiveCapabilities);
这里需要调用的核心方法是nativeForkSystemServer
frameworks/base/core/jni/com_android_internal_os_Zygote.cpp
static jint com_android_internal_os_Zygote_nativeForkSystemServer(
JNIEnv* env, jclass, uid_t uid, gid_t gid, jintArray gids,
jint runtime_flags, jobjectArray rlimits, jlong permitted_capabilities,
jlong effective_capabilities) {
std::vector<int> fds_to_close(MakeUsapPipeReadFDVector()),
fds_to_ignore(fds_to_close);
fds_to_close.push_back(gUsapPoolSocketFD);
if (gUsapPoolEventFD != -1) {
fds_to_close.push_back(gUsapPoolEventFD);
fds_to_ignore.push_back(gUsapPoolEventFD);
}
if (gSystemServerSocketFd != -1) {
fds_to_close.push_back(gSystemServerSocketFd);
fds_to_ignore.push_back(gSystemServerSocketFd);
}
pid_t pid = zygote::ForkCommon(env, true,
fds_to_close,
fds_to_ignore,
true);
if (pid == 0) {
// System server prcoess does not need data isolation so no need to
// know pkg_data_info_list.
SpecializeCommon(env, uid, gid, gids, runtime_flags, rlimits, permitted_capabilities,
effective_capabilities, MOUNT_EXTERNAL_DEFAULT, nullptr, nullptr, true,
false, nullptr, nullptr, /* is_top_app= */ false,
/* pkg_data_info_list */ nullptr,
/* allowlisted_data_info_list */ nullptr, false, false);
} else if (pid > 0) {
// The zygote process checks whether the child process has died or not.
ALOGI("System server process %d has been created", pid);
gSystemServerPid = pid;
// There is a slight window that the system server process has crashed
// but it went unnoticed because we haven't published its pid yet. So
// we recheck here just to make sure that all is well.
int status;
if (waitpid(pid, &status, WNOHANG) == pid) {
ALOGE("System server process %d has died. Restarting Zygote!", pid);
RuntimeAbort(env, __LINE__, "System server process has died. Restarting Zygote!");
}
if (UsePerAppMemcg()) {
// Assign system_server to the correct memory cgroup.
// Not all devices mount memcg so check if it is mounted first
// to avoid unnecessarily printing errors and denials in the logs.
if (!SetTaskProfiles(pid, std::vector<std::string>{"SystemMemoryProcess"})) {
ALOGE("couldn't add process %d into system memcg group", pid);
}
}
}
return pid;
}
这个函数其实是调用linux的fork函数来拷贝出新的进程.
4.2 初始化SystemServer进程
当进程已经被fork出来
/* For child process */
if (pid == 0) {
if (hasSecondZygote(abiList)) {
waitForSecondaryZygote(socketName);
}
zygoteServer.closeServerSocket();
return handleSystemServerProcess(parsedArgs);
}
可以看到这个新的进程是不需要接收消息并且孵化新进程的,所以第一件事就是关闭socket的监听.
4.2.1 handleSystemServerProcess
private static Runnable handleSystemServerProcess(ZygoteArguments parsedArgs) {
// set umask to 0077 so new files and directories will default to owner-only permissions.
...
return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mDisabledCompatChanges,
parsedArgs.mRemainingArgs, cl);
}
/* should never reach here */
}
4.2.2 zygoteInit
public static Runnable zygoteInit(int targetSdkVersion, long[] disabledCompatChanges,
String[] argv, ClassLoader classLoader) {
if (RuntimeInit.DEBUG) {
Slog.d(RuntimeInit.TAG, "RuntimeInit: Starting application from zygote");
}
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ZygoteInit");
RuntimeInit.redirectLogStreams();
RuntimeInit.commonInit();
ZygoteInit.nativeZygoteInit();
return RuntimeInit.applicationInit(targetSdkVersion, disabledCompatChanges, argv,
classLoader);
}
4.2.3 applicationInit
protected static Runnable applicationInit(int targetSdkVersion, long[] disabledCompatChanges,
String[] argv, ClassLoader classLoader) {
...
return findStaticMain(args.startClass, args.startArgs, classLoader);
}
4.2.4 findStaticMain
protected static Runnable findStaticMain(String className, String[] argv,
ClassLoader classLoader) {
Class<?> cl;
try {
cl = Class.forName(className, true, classLoader);
} catch (ClassNotFoundException ex) {
throw new RuntimeException(
"Missing class when invoking static main " + className,
ex);
}
Method m;
try {
m = cl.getMethod("main", new Class[] { String[].class });
} catch (NoSuchMethodException ex) {
throw new RuntimeException(
"Missing static main on " + className, ex);
} catch (SecurityException ex) {
throw new RuntimeException(
"Problem getting static main on " + className, ex);
}
int modifiers = m.getModifiers();
if (! (Modifier.isStatic(modifiers) && Modifier.isPublic(modifiers))) {
throw new RuntimeException(
"Main method is not public and static on " + className);
}
/*
* This throw gets caught in ZygoteInit.main(), which responds
* by invoking the exception's run() method. This arrangement
* clears up all the stack frames that were required in setting
* up the process.
*/
return new MethodAndArgsCaller(m, argv);
}
可以看到,主要是把传入的参数com.android.server.SystemServer反射其main方法
public static void main(String[] args) {
new SystemServer().run();
}
4.2.5 SystemServer的run函数
private void run() {
...
//又看到Looper
Looper.prepareMainLooper();
...
// Initialize native services.
//load so库
System.loadLibrary("android_servers");
...
try {
t.traceBegin("StartServices");
startBootstrapServices(t);
startCoreServices(t);
startOtherServices(t);
startApexServices(t);
} catch (Throwable ex) {
Slog.e("System", "******************************************");
Slog.e("System", "************ Failure starting system services", ex);
throw ex;
} finally {
t.traceEnd(); // StartServices
}
...
// Loop forever.
Looper.loop();
throw new RuntimeException("Main thread loop unexpectedly exited");
}
在SystemServer的代码里我们又看到了熟悉的Looper机制,这里我们先不分析,这里主要注意Load了一个so库
// Initialize native services.
System.loadLibrary("android_servers");
4.2.6 startBootstrapServices
private void startBootstrapServices(@NonNull TimingsTraceAndSlog t) {
//我们熟悉的AMS
mActivityManagerService = ActivityManagerService.Lifecycle.startService(
mSystemServiceManager, atm);
mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
mActivityManagerService.setInstaller(installer);
// Display manager is needed to provide display metrics before package manager
// starts up.
t.traceBegin("StartDisplayManager");
//DisplayManagerService
mDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class);
private void startOtherServices(@NonNull TimingsTraceAndSlog t) {
t.traceBegin("startOtherServices");
mSystemServiceManager.updateOtherServicesStartIndex();
final Context context = mSystemContext;
DynamicSystemService dynamicSystem = null;
IStorageManager storageManager = null;
NetworkManagementService networkManagement = null;
VpnManagerService vpnManager = null;
VcnManagementService vcnManagement = null;
NetworkPolicyManagerService networkPolicy = null;
WindowManagerService wm = null;
SerialService serial = null;
NetworkTimeUpdateService networkTimeUpdater = null;
InputManagerService inputManager = null;
TelephonyRegistry telephonyRegistry = null;
ConsumerIrService consumerIr = null;
MmsServiceBroker mmsService = null;
HardwarePropertiesManagerService hardwarePropertiesService = null;
PacProxyService pacProxyService = null;
可以看到,Systemer进程创建了大量我们熟悉的系统服务,WMS,AMS,inputManager等等.
五、 runSelectLoop启动循环
frameworks/base/core/java/com/android/internal/os/ZygoteServer.java
Runnable runSelectLoop(String abiList) {
ArrayList<FileDescriptor> socketFDs = new ArrayList<>();
ArrayList<ZygoteConnection> peers = new ArrayList<>();
socketFDs.add(mZygoteSocket.getFileDescriptor());
peers.add(null);
mUsapPoolRefillTriggerTimestamp = INVALID_TIMESTAMP;
//死循环
while (true) {
fetchUsapPoolPolicyPropsWithMinInterval();
mUsapPoolRefillAction = UsapPoolRefillAction.NONE;
int[] usapPipeFDs = null;
StructPollfd[] pollFDs;
// Allocate enough space for the poll structs, taking into account
// the state of the USAP pool for this Zygote (could be a
// regular Zygote, a WebView Zygote, or an AppZygote).
if (mUsapPoolEnabled) {
usapPipeFDs = Zygote.getUsapPipeFDs();
pollFDs = new StructPollfd[socketFDs.size() + 1 + usapPipeFDs.length];
} else {
pollFDs = new StructPollfd[socketFDs.size()];
}
/*
* For reasons of correctness the USAP pool pipe and event FDs
* must be processed before the session and server sockets. This
* is to ensure that the USAP pool accounting information is
* accurate when handling other requests like API deny list
* exemptions.
*/
int pollIndex = 0;
for (FileDescriptor socketFD : socketFDs) {
pollFDs[pollIndex] = new StructPollfd();
pollFDs[pollIndex].fd = socketFD;
pollFDs[pollIndex].events = (short) POLLIN;
++pollIndex;
}
final int usapPoolEventFDIndex = pollIndex;
if (mUsapPoolEnabled) {
pollFDs[pollIndex] = new StructPollfd();
pollFDs[pollIndex].fd = mUsapPoolEventFD;
pollFDs[pollIndex].events = (short) POLLIN;
++pollIndex;
// The usapPipeFDs array will always be filled in if the USAP Pool is enabled.
assert usapPipeFDs != null;
for (int usapPipeFD : usapPipeFDs) {
FileDescriptor managedFd = new FileDescriptor();
managedFd.setInt$(usapPipeFD);
pollFDs[pollIndex] = new StructPollfd();
pollFDs[pollIndex].fd = managedFd;
pollFDs[pollIndex].events = (short) POLLIN;
++pollIndex;
}
}
int pollTimeoutMs;
if (mUsapPoolRefillTriggerTimestamp == INVALID_TIMESTAMP) {
pollTimeoutMs = -1;
} else {
long elapsedTimeMs = System.currentTimeMillis() - mUsapPoolRefillTriggerTimestamp;
if (elapsedTimeMs >= mUsapPoolRefillDelayMs) {
// The refill delay has elapsed during the period between poll invocations.
// We will now check for any currently ready file descriptors before refilling
// the USAP pool.
pollTimeoutMs = 0;
mUsapPoolRefillTriggerTimestamp = INVALID_TIMESTAMP;
mUsapPoolRefillAction = UsapPoolRefillAction.DELAYED;
} else if (elapsedTimeMs <= 0) {
// This can occur if the clock used by currentTimeMillis is reset, which is
// possible because it is not guaranteed to be monotonic. Because we can't tell
// how far back the clock was set the best way to recover is to simply re-start
// the respawn delay countdown.
pollTimeoutMs = mUsapPoolRefillDelayMs;
} else {
pollTimeoutMs = (int) (mUsapPoolRefillDelayMs - elapsedTimeMs);
}
}
int pollReturnValue;
try {
//阻塞式的等待
pollReturnValue = Os.poll(pollFDs, pollTimeoutMs);
} catch (ErrnoException ex) {
throw new RuntimeException("poll failed", ex);
}
if (pollReturnValue == 0) {
// The poll returned zero results either when the timeout value has been exceeded
// or when a non-blocking poll is issued and no FDs are ready. In either case it
// is time to refill the pool. This will result in a duplicate assignment when
// the non-blocking poll returns zero results, but it avoids an additional
// conditional in the else branch.
mUsapPoolRefillTriggerTimestamp = INVALID_TIMESTAMP;
mUsapPoolRefillAction = UsapPoolRefillAction.DELAYED;
} else {
boolean usapPoolFDRead = false;
while (--pollIndex >= 0) {
//读取的状态不是客户端连接或者数据请求时,进入下一次循环
if ((pollFDs[pollIndex].revents & POLLIN) == 0) {
continue;
}
if (pollIndex == 0) {
//表示跟客户端socket连接上了
// Zygote server socket
ZygoteConnection newPeer = acceptCommandPeer(abiList);
//添加到集合中
peers.add(newPeer);
//FD也保存到集合中 socketFDs.add(newPeer.getFileDescriptor());
} else if (pollIndex < usapPoolEventFDIndex) {
// Session socket accepted from the Zygote server socket
try {
//ZygoteServer接收到客户端请求
ZygoteConnection connection = peers.get(pollIndex);
boolean multipleForksOK = !isUsapPoolEnabled()
&& ZygoteHooks.isIndefiniteThreadSuspensionSafe();
//处理此次请求任务
final Runnable command =
connection.processCommand(this, multipleForksOK);
// TODO (chriswailes): Is this extra check necessary?
if (mIsForkChild) {
// We're in the child. We should always have a command to run at
// this stage if processCommand hasn't called "exec".
//在子进程中,如果没有命令进来,抛出异常.
if (command == null) {
throw new IllegalStateException("command == null");
}
return command;
} else {
//在Server进程中,我们不应该有命令需要执行
// We're in the server - we should never have any commands to run.
if (command != null) {
throw new IllegalStateException("command != null");
}
// We don't know whether the remote side of the socket was closed or
// not until we attempt to read from it from processCommand. This
// shows up as a regular POLLIN event in our regular processing
// loop.
//关闭socket
if (connection.isClosedByPeer()) {
connection.closeSocket();
peers.remove(pollIndex);
socketFDs.remove(pollIndex);
}
}
}
...
//处理异常情况
//关闭连接
这里面有两个关键的队列
ArrayList<FileDescriptor> socketFDs = new ArrayList<>();
ArrayList<ZygoteConnection> peers = new ArrayList<>();
socketFDs.add(mZygoteSocket.getFileDescriptor());
peers.add(null);
- fds文件描述符的队列,这个队列从头到尾只有一个,保证了当前只有一个Zygote在等待外面的监听
- peers是ZygoteConnection队列,这个队列决定了还有多少个socket事件还没处理.
5.1 processCommand
Runnable processCommand(ZygoteServer zygoteServer, boolean multipleOK) {
...
// 1.fork创建应用子进程
pid = Zygote.forkAndSpecialize(...);
try {
if (pid == 0) {
...
// 2.pid为0，当前处于新创建的子应用进程中，处理请求参数
return handleChildProc(parsedArgs, childPipeFd, parsedArgs.mStartChildZygote);
} else {
...
handleParentProc(pid, serverPipeFd);
}
} finally {
...
}
}
private Runnable handleChildProc(ZygoteArguments parsedArgs,
FileDescriptor pipeFd, boolean isZygote) {
...
// 关闭从父进程zygote继承过来的ZygoteServer服务端地址
closeSocket();
...
if (parsedArgs.mInvokeWith != null) {
...
} else {
if (!isZygote) {
// 继续进入ZygoteInit#zygoteInit继续完成子应用进程的相关初始化工作
return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mDisabledCompatChanges,
parsedArgs.mRemainingArgs, null /* classLoader */);
} else {
...
}
}
}
Zygote进程在启动了SystemServer进程后,进入了循环等待,等待其他Service请求Zygote进程创建fork出新的进程
总结
- 1、Zygote是init进程之后第一个诞生的孵化进程,所以可以说,Zygote是android系统一切进程的母亲.
- 2、Zygote第一个孵化的进程就是SystemServer进程
- 3、初始化虚拟机是通过jniInvoaction,加载对应的so库
- 4、SystemServer进程初始化后,启动新的服务,例如AMS,WMS,InputManager等系统服务
- 5、Zygote诞生的新的进程都是通过fork诞生的
- 6、Zygote在runselectloop中开启死循环,使用poll阻塞式的等待
