Python基础(十三) | 机器学习sklearn库详解与应用

293 阅读10分钟

持续创作,加速成长!这是我参与「掘金日新计划 · 10 月更文挑战」的第11天,点击查看活动详情

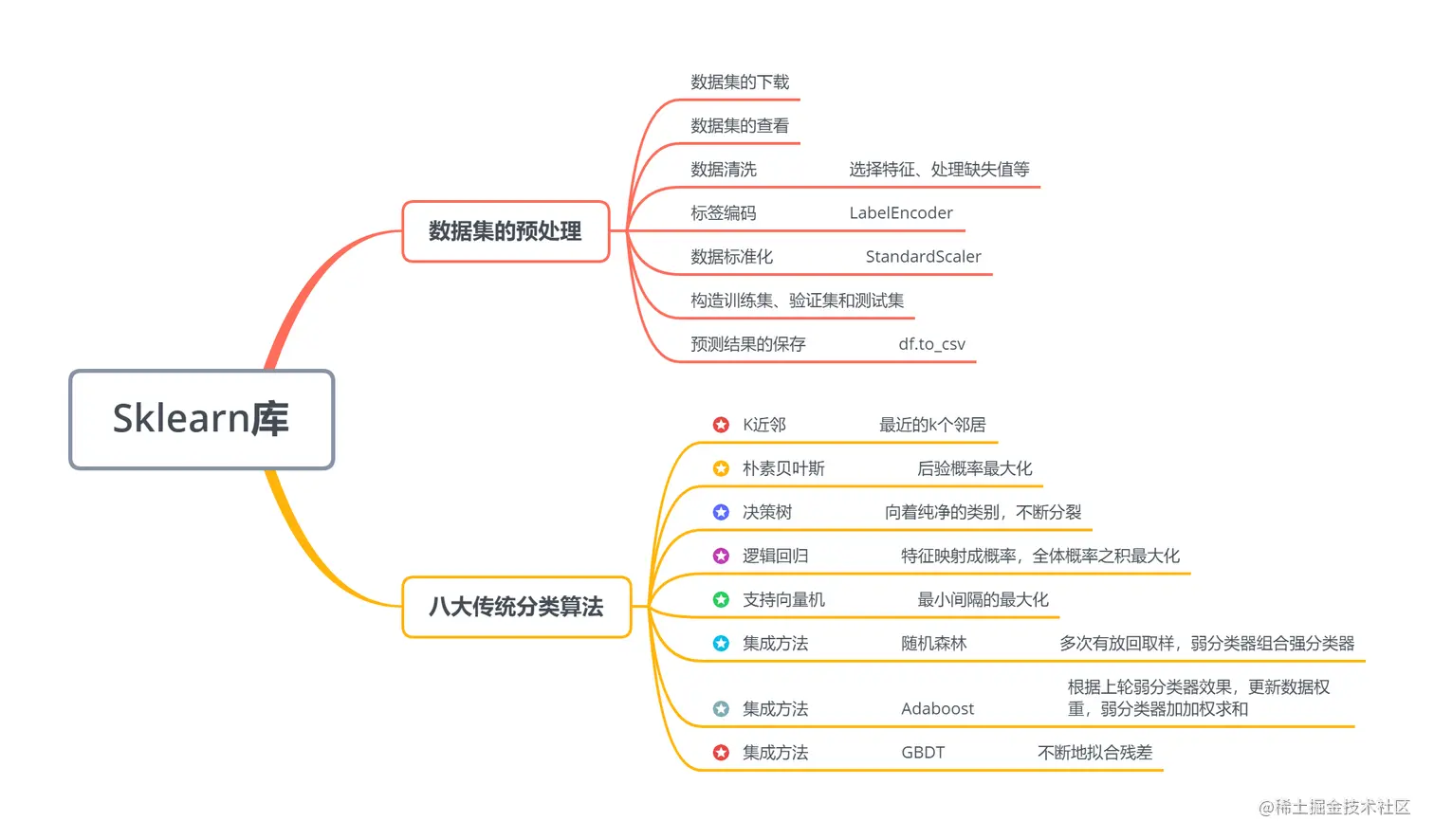

image-20221003185219463

scikit-learn 库是当今最流行的机器学习算法库之一

可用来解决分类与回归问题

本章以鸢尾花数据集为例,简单了解八大传统机器学习分类算法的sk-learn实现

欲深入了解传统机器算法的原理和公式推导,请继续学习《统计学习方法》或《西瓜书》

13.0 鸢尾花数据集

【1】下载数据集

import seaborn as sns
iris = sns.load_dataset("iris")

【2】数据集的查看

type(iris)
pandas.core.frame.DataFrame
iris.shape()
(150, 5)
iris.head()

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

sepal_lengthsepal_widthpetal_lengthpetal_widthspecies
05.13.51.40.2setosa
14.93.01.40.2setosa
24.73.21.30.2setosa
34.63.11.50.2setosa
45.03.61.40.2setosa

iris.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 150 entries, 0 to 149
Data columns (total 5 columns):
 #   Column        Non-Null Count  Dtype
---  ------        --------------  -----
 0   sepal_length  150 non-null    float64
 1   sepal_width   150 non-null    float64
 2   petal_length  150 non-null    float64
 3   petal_width   150 non-null    float64
 4   species       150 non-null    object
dtypes: float64(4), object(1)
memory usage: 6.0+ KB
iris.describe()

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

sepal_lengthsepal_widthpetal_lengthpetal_width
count150.000000150.000000150.000000150.000000
mean5.8433333.0573333.7580001.199333
std0.8280660.4358661.7652980.762238
min4.3000002.0000001.0000000.100000
25%5.1000002.8000001.6000000.300000
50%5.8000003.0000004.3500001.300000
75%6.4000003.3000005.1000001.800000
max7.9000004.4000006.9000002.500000

iris.species.value_counts()
virginica     50
versicolor    50
setosa        50
Name: species, dtype: int64
sns.pairplot(data=iris, hue="species")
<seaborn.axisgrid.PairGrid at 0x178f9d81160>

image-20221003185244228

可见,花瓣的长度和宽度有非常好的相关性。而花萼的长宽效果不好,因此考虑对他们丢弃。

【3】数据清洗

iris_simple = iris.drop(["sepal_length", "sepal_width"], axis=1)
iris_simple.head()

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

petal_lengthpetal_widthspecies
01.40.2setosa
11.40.2setosa
21.30.2setosa
31.50.2setosa
41.40.2setosa

【4】标签编码

from sklearn.preprocessing import LabelEncoder
​
encoder = LabelEncoder()
iris_simple["species"] = encoder.fit_transform(iris_simple["species"])
iris_simple

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

petal_lengthpetal_widthspecies
01.40.20
11.40.20
21.30.20
31.50.20
41.40.20
51.70.40
61.40.30
71.50.20
81.40.20
91.50.10
101.50.20
111.60.20
121.40.10
131.10.10
141.20.20
151.50.40
161.30.40
171.40.30
181.70.30
191.50.30
201.70.20
211.50.40
221.00.20
231.70.50
241.90.20
251.60.20
261.60.40
271.50.20
281.40.20
291.60.20
............
1205.72.32
1214.92.02
1226.72.02
1234.91.82
1245.72.12
1256.01.82
1264.81.82
1274.91.82
1285.62.12
1295.81.62
1306.11.92
1316.42.02
1325.62.22
1335.11.52
1345.61.42
1356.12.32
1365.62.42
1375.51.82
1384.81.82
1395.42.12
1405.62.42
1415.12.32
1425.11.92
1435.92.32
1445.72.52
1455.22.32
1465.01.92
1475.22.02
1485.42.32
1495.11.82

150 rows × 3 columns

【5】数据集的标准化(本数据集特征比较接近,实际处理过程中未标准化)

from sklearn.preprocessing import StandardScaler
import pandas as pd
trans = StandardScaler()
_iris_simple = trans.fit_transform(iris_simple[["petal_length", "petal_width"]])
_iris_simple = pd.DataFrame(_iris_simple, columns = ["petal_length", "petal_width"])
_iris_simple.describe()

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

petal_lengthpetal_width
count1.500000e+021.500000e+02
mean-8.652338e-16-4.662937e-16
std1.003350e+001.003350e+00
min-1.567576e+00-1.447076e+00
25%-1.226552e+00-1.183812e+00
50%3.364776e-011.325097e-01
75%7.627583e-017.906707e-01
max1.785832e+001.712096e+00

【6】构建训练集和测试集(本课暂不考虑验证集)

from sklearn.model_selection import train_test_split
​
train_set, test_set = train_test_split(iris_simple, test_size=0.2) # 20%的数据作为测试集
test_set.head()

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

petal_lengthpetal_widthspecies
31.50.20
1115.31.92
241.90.20
51.70.40
924.01.21

iris_x_train = train_set[["petal_length", "petal_width"]]
iris_x_train.head()

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

petal_lengthpetal_width
634.71.4
933.31.0
341.50.2
351.20.2
1264.81.8

iris_y_train = train_set["species"].copy()
iris_y_train.head()
63     1
93     1
34     0
35     0
126    2
Name: species, dtype: int32
iris_x_test = test_set[["petal_length", "petal_width"]]
iris_x_test.head()

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

petal_lengthpetal_width
31.50.2
1115.31.9
241.90.2
51.70.4
924.01.2

iris_y_test = test_set["species"].copy()
iris_y_test.head()
3      0
111    2
24     0
5      0
92     1
Name: species, dtype: int32

13.1 k近邻算法

【1】基本思想

与待预测点最近的训练数据集中的k个邻居

把k个近邻中最常见的类别预测为带预测点的类别

【2】sklearn实现

from sklearn.neighbors import KNeighborsClassifier
  • 构建分类器对象
clf = KNeighborsClassifier()
clf
KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
                     metric_params=None, n_jobs=None, n_neighbors=5, p=2,
                     weights='uniform')
  • 训练
clf.fit(iris_x_train, iris_y_train)
KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
                     metric_params=None, n_jobs=None, n_neighbors=5, p=2,
                     weights='uniform')
  • 预测
res = clf.predict(iris_x_test)
print(res)
print(iris_y_test.values)
[0 2 0 0 1 1 0 2 1 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
[0 2 0 0 1 1 0 2 2 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
  • 翻转
encoder.inverse_transform(res)
array(['setosa', 'virginica', 'setosa', 'setosa', 'versicolor',       'versicolor', 'setosa', 'virginica', 'versicolor', 'virginica',       'versicolor', 'virginica', 'virginica', 'virginica', 'versicolor',       'setosa', 'setosa', 'setosa', 'versicolor', 'setosa', 'virginica',       'setosa', 'virginica', 'versicolor', 'setosa', 'versicolor',       'setosa', 'setosa', 'versicolor', 'versicolor'], dtype=object)
  • 评估
accuracy = clf.score(iris_x_test, iris_y_test)
print("预测正确率:{:.0%}".format(accuracy))
预测正确率:97%
  • 存储数据
out = iris_x_test.copy()
out["y"] = iris_y_test
out["pre"] = res
out

​​

.dataframe tbody tr th {
    vertical-align: top;
}
​
.dataframe thead th {
    text-align: right;
}

petal_lengthpetal_widthypre
31.50.200
1115.31.922
241.90.200
51.70.400
924.01.211
573.31.011
11.40.200
1125.52.122
1064.51.721
1365.62.422
803.81.111
1316.42.022
1475.22.022
1135.02.022
844.51.511
391.50.200
401.30.300
171.40.300
564.71.611
21.30.200
1006.02.522
421.30.200
1445.72.522
793.51.011
191.50.300
754.41.411
441.90.400
371.40.100
643.61.311
904.41.211

out.to_csv("iris_predict.csv")

【3】可视化

import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
​
def draw(clf):
​
    # 网格化
    M, N = 500, 500
    x1_min, x2_min = iris_simple[["petal_length", "petal_width"]].min(axis=0)
    x1_max, x2_max = iris_simple[["petal_length", "petal_width"]].max(axis=0)
    t1 = np.linspace(x1_min, x1_max, M)
    t2 = np.linspace(x2_min, x2_max, N)
    x1, x2 = np.meshgrid(t1, t2)

    # 预测
    x_show = np.stack((x1.flat, x2.flat), axis=1)
    y_predict = clf.predict(x_show)

    # 配色
    cm_light = mpl.colors.ListedColormap(["#A0FFA0", "#FFA0A0", "#A0A0FF"])
    cm_dark = mpl.colors.ListedColormap(["g", "r", "b"])

    # 绘制预测区域图
    plt.figure(figsize=(10, 6))
    plt.pcolormesh(t1, t2, y_predict.reshape(x1.shape), cmap=cm_light)

    # 绘制原始数据点
    plt.scatter(iris_simple["petal_length"], iris_simple["petal_width"], label=None,
                c=iris_simple["species"], cmap=cm_dark, marker='o', edgecolors='k')
    plt.xlabel("petal_length")
    plt.ylabel("petal_width")

    # 绘制图例
    color = ["g", "r", "b"]
    species = ["setosa", "virginica", "versicolor"]
    for i in range(3):
        plt.scatter([], [], c=color[i], s=40, label=species[i])    # 利用空点绘制图例
    plt.legend(loc="best")
    plt.title('iris_classfier')
draw(clf)

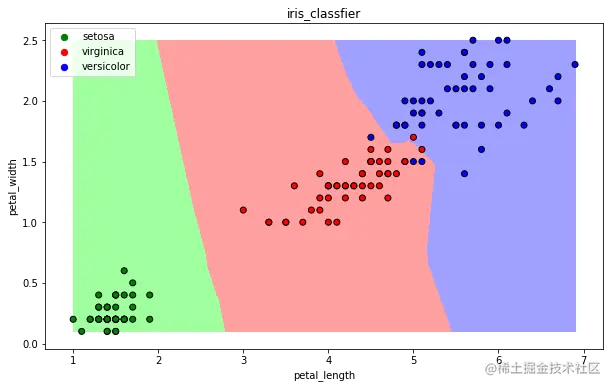

image-20221003185312401

13.2 朴素贝叶斯算法

【1】基本思想

当X=(x1, x2)发生的时候,哪一个yk发生的概率最大

【2】sklearn实现

from sklearn.naive_bayes import GaussianNB
  • 构建分类器对象
clf = GaussianNB()
clf
  • 训练
clf.fit(iris_x_train, iris_y_train)
  • 预测
res = clf.predict(iris_x_test)
print(res)
print(iris_y_test.values)
[0 2 0 0 1 1 0 2 1 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
[0 2 0 0 1 1 0 2 2 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
  • 评估
accuracy = clf.score(iris_x_test, iris_y_test)
print("预测正确率:{:.0%}".format(accuracy))
预测正确率:97%
  • 可视化
draw(clf)

image-20221003185331876

13.3 决策树算法

【1】基本思想

CART算法:每次通过一个特征,将数据尽可能的分为纯净的两类,递归的分下去

【2】sklearn实现

from sklearn.tree import DecisionTreeClassifier
  • 构建分类器对象
clf = DecisionTreeClassifier()
clf
DecisionTreeClassifier(class_weight=None, criterion='gini', max_depth=None,
                       max_features=None, max_leaf_nodes=None,
                       min_impurity_decrease=0.0, min_impurity_split=None,
                       min_samples_leaf=1, min_samples_split=2,
                       min_weight_fraction_leaf=0.0, presort=False,
                       random_state=None, splitter='best')
  • 训练
clf.fit(iris_x_train, iris_y_train)
DecisionTreeClassifier(class_weight=None, criterion='gini', max_depth=None,
                       max_features=None, max_leaf_nodes=None,
                       min_impurity_decrease=0.0, min_impurity_split=None,
                       min_samples_leaf=1, min_samples_split=2,
                       min_weight_fraction_leaf=0.0, presort=False,
                       random_state=None, splitter='best')
  • 预测
res = clf.predict(iris_x_test)
print(res)
print(iris_y_test.values)
[0 2 0 0 1 1 0 2 1 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
[0 2 0 0 1 1 0 2 2 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
  • 评估
accuracy = clf.score(iris_x_test, iris_y_test)
print("预测正确率:{:.0%}".format(accuracy))
预测正确率:97%
  • 可视化
draw(clf)

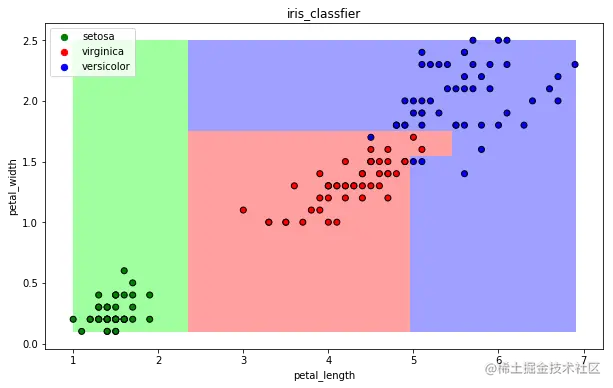

image-20221003185344894

13.4 逻辑回归算法

【1】基本思想

一种解释:

训练:通过一个映射方式,将特征X=(x1, x2) 映射成 P(y=ck), 求使得所有概率之积最大化的映射方式里的参数

预测:计算p(y=ck) 取概率最大的那个类别作为预测对象的分类

【2】sklearn实现

from sklearn.linear_model import LogisticRegression
  • 构建分类器对象
clf = LogisticRegression(solver='saga', max_iter=1000)
clf
LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
                   intercept_scaling=1, l1_ratio=None, max_iter=1000,
                   multi_class='warn', n_jobs=None, penalty='l2',
                   random_state=None, solver='saga', tol=0.0001, verbose=0,
                   warm_start=False)
  • 训练
clf.fit(iris_x_train, iris_y_train)
C:\Users\ibm\Anaconda3\lib\site-packages\sklearn\linear_model\logistic.py:469: FutureWarning: Default multi_class will be changed to 'auto' in 0.22. Specify the multi_class option to silence this warning.
  "this warning.", FutureWarning)
LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
                   intercept_scaling=1, l1_ratio=None, max_iter=1000,
                   multi_class='warn', n_jobs=None, penalty='l2',
                   random_state=None, solver='saga', tol=0.0001, verbose=0,
                   warm_start=False)
  • 预测
res = clf.predict(iris_x_test)
print(res)
print(iris_y_test.values)
[0 2 0 0 1 1 0 2 1 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
[0 2 0 0 1 1 0 2 2 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
  • 评估
accuracy = clf.score(iris_x_test, iris_y_test)
print("预测正确率:{:.0%}".format(accuracy))
预测正确率:97%
  • 可视化
draw(clf)

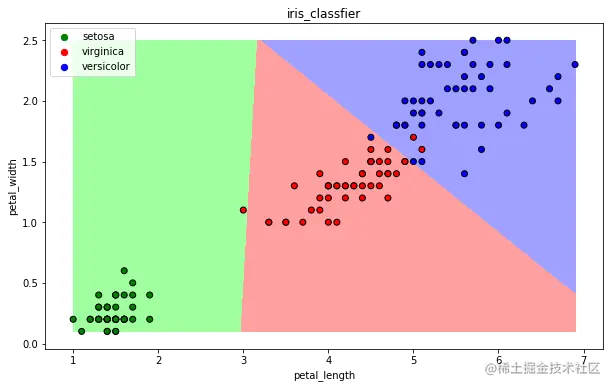

image-20221003185357659

13.5 支持向量机算法

【1】基本思想

以二分类为例,假设数据可用完全分开:

用一个超平面将两类数据完全分开,且最近点到平面的距离最大

【2】sklearn实现

from sklearn.svm import SVC
  • 构建分类器对象
clf = SVC()
clf
SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0,
    decision_function_shape='ovr', degree=3, gamma='auto_deprecated',
    kernel='rbf', max_iter=-1, probability=False, random_state=None,
    shrinking=True, tol=0.001, verbose=False)
  • 训练
clf.fit(iris_x_train, iris_y_train)
C:\Users\ibm\Anaconda3\lib\site-packages\sklearn\svm\base.py:193: FutureWarning: The default value of gamma will change from 'auto' to 'scale' in version 0.22 to account better for unscaled features. Set gamma explicitly to 'auto' or 'scale' to avoid this warning.
  "avoid this warning.", FutureWarning)
SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0,
    decision_function_shape='ovr', degree=3, gamma='auto_deprecated',
    kernel='rbf', max_iter=-1, probability=False, random_state=None,
    shrinking=True, tol=0.001, verbose=False)
  • 预测
res = clf.predict(iris_x_test)
print(res)
print(iris_y_test.values)
[0 2 0 0 1 1 0 2 1 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
[0 2 0 0 1 1 0 2 2 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
  • 评估
accuracy = clf.score(iris_x_test, iris_y_test)
print("预测正确率:{:.0%}".format(accuracy))
预测正确率:97%
  • 可视化
draw(clf)

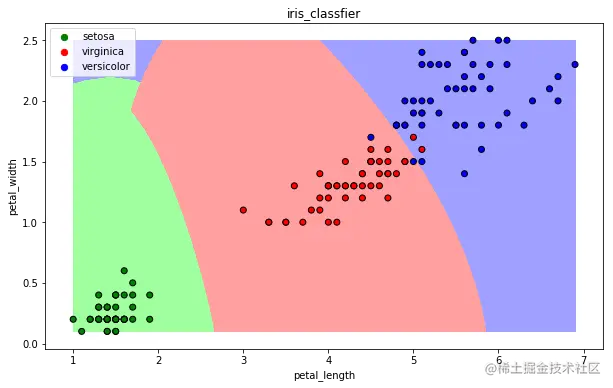

image-20221003185417865

13.6 集成方法——随机森林

【1】基本思想

训练集m,有放回的随机抽取m个数据,构成一组,共抽取n组采样集

n组采样集训练得到n个弱分类器 弱分类器一般用决策树或神经网络

将n个弱分类器进行组合得到强分类器

【2】sklearn实现

from sklearn.ensemble import RandomForestClassifier
  • 构建分类器对象
clf = RandomForestClassifier()
clf
RandomForestClassifier(bootstrap=True, class_weight=None, criterion='gini',
                       max_depth=None, max_features='auto', max_leaf_nodes=None,
                       min_impurity_decrease=0.0, min_impurity_split=None,
                       min_samples_leaf=1, min_samples_split=2,
                       min_weight_fraction_leaf=0.0, n_estimators='warn',
                       n_jobs=None, oob_score=False, random_state=None,
                       verbose=0, warm_start=False)
  • 训练
clf.fit(iris_x_train, iris_y_train)
C:\Users\ibm\Anaconda3\lib\site-packages\sklearn\ensemble\forest.py:245: FutureWarning: The default value of n_estimators will change from 10 in version 0.20 to 100 in 0.22.
  "10 in version 0.20 to 100 in 0.22.", FutureWarning)
RandomForestClassifier(bootstrap=True, class_weight=None, criterion='gini',
                       max_depth=None, max_features='auto', max_leaf_nodes=None,
                       min_impurity_decrease=0.0, min_impurity_split=None,
                       min_samples_leaf=1, min_samples_split=2,
                       min_weight_fraction_leaf=0.0, n_estimators=10,
                       n_jobs=None, oob_score=False, random_state=None,
                       verbose=0, warm_start=False)
  • 预测
res = clf.predict(iris_x_test)
print(res)
print(iris_y_test.values)
[0 2 0 0 1 1 0 2 1 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
[0 2 0 0 1 1 0 2 2 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
  • 评估
accuracy = clf.score(iris_x_test, iris_y_test)
print("预测正确率:{:.0%}".format(accuracy))
预测正确率:97%
  • 可视化
draw(clf)

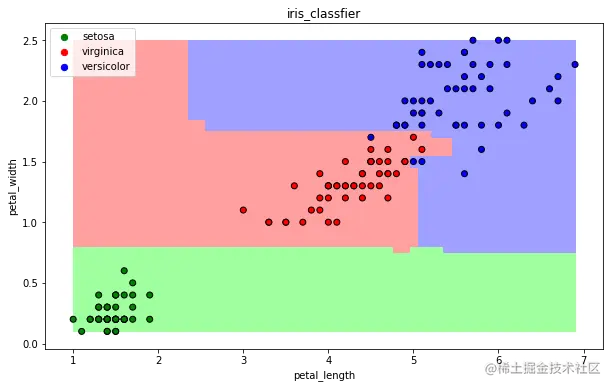

image-20221003185427636

13.7 集成方法——Adaboost

【1】基本思想

训练集m,用初始数据权重训练得到第一个弱分类器,根据误差率计算弱分类器系数,更新数据的权重

使用新的权重训练得到第二个弱分类器,以此类推

根据各自系数,将所有弱分类器加权求和获得强分类器

【2】sklearn实现

from sklearn.ensemble import AdaBoostClassifier
  • 构建分类器对象
clf = AdaBoostClassifier()
clf
AdaBoostClassifier(algorithm='SAMME.R', base_estimator=None, learning_rate=1.0,
                   n_estimators=50, random_state=None)
  • 训练
clf.fit(iris_x_train, iris_y_train)
AdaBoostClassifier(algorithm='SAMME.R', base_estimator=None, learning_rate=1.0,
                   n_estimators=50, random_state=None)
  • 预测
res = clf.predict(iris_x_test)
print(res)
print(iris_y_test.values)
[0 2 0 0 1 1 0 2 1 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
[0 2 0 0 1 1 0 2 2 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
  • 评估
accuracy = clf.score(iris_x_test, iris_y_test)
print("预测正确率:{:.0%}".format(accuracy))
预测正确率:97%
  • 可视化
draw(clf)

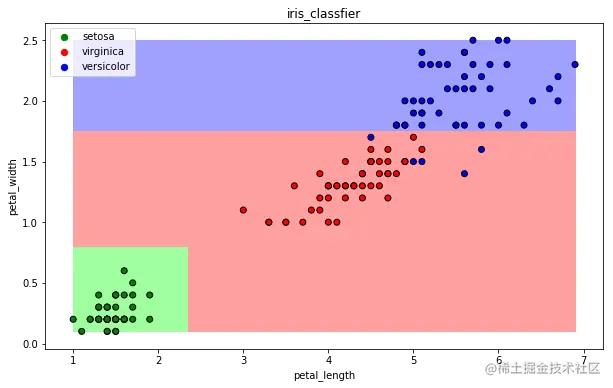

image-20221003185435042

13.8 集成方法——梯度提升树GBDT

【1】基本思想

训练集m,获得第一个弱分类器,获得残差,然后不断地拟合残差

所有弱分类器相加得到强分类器

【2】sklearn实现

from sklearn.ensemble import GradientBoostingClassifier
  • 构建分类器对象
clf = GradientBoostingClassifier()
clf
GradientBoostingClassifier(criterion='friedman_mse', init=None,
                           learning_rate=0.1, loss='deviance', max_depth=3,
                           max_features=None, max_leaf_nodes=None,
                           min_impurity_decrease=0.0, min_impurity_split=None,
                           min_samples_leaf=1, min_samples_split=2,
                           min_weight_fraction_leaf=0.0, n_estimators=100,
                           n_iter_no_change=None, presort='auto',
                           random_state=None, subsample=1.0, tol=0.0001,
                           validation_fraction=0.1, verbose=0,
                           warm_start=False)
  • 训练
clf.fit(iris_x_train, iris_y_train)
GradientBoostingClassifier(criterion='friedman_mse', init=None,
                           learning_rate=0.1, loss='deviance', max_depth=3,
                           max_features=None, max_leaf_nodes=None,
                           min_impurity_decrease=0.0, min_impurity_split=None,
                           min_samples_leaf=1, min_samples_split=2,
                           min_weight_fraction_leaf=0.0, n_estimators=100,
                           n_iter_no_change=None, presort='auto',
                           random_state=None, subsample=1.0, tol=0.0001,
                           validation_fraction=0.1, verbose=0,
                           warm_start=False)
  • 预测
res = clf.predict(iris_x_test)
print(res)
print(iris_y_test.values)
[0 2 0 0 1 1 0 2 1 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
[0 2 0 0 1 1 0 2 2 2 1 2 2 2 1 0 0 0 1 0 2 0 2 1 0 1 0 0 1 1]
  • 评估
accuracy = clf.score(iris_x_test, iris_y_test)
print("预测正确率:{:.0%}".format(accuracy))
预测正确率:97%
  • 可视化
draw(clf)

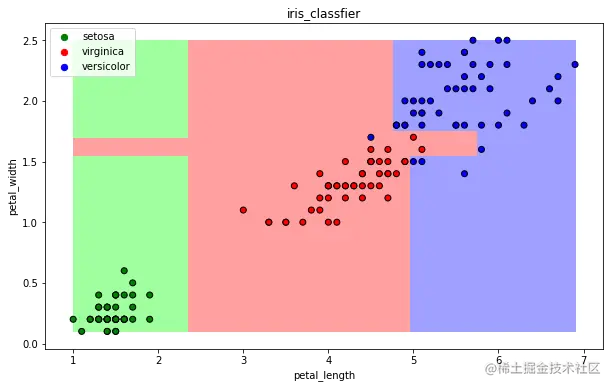

image-20221003185442850

13.9 常用方法

【1】xgboost

GBDT的损失函数只对误差部分做负梯度(一阶泰勒)展开

XGBoost损失函数对误差部分做二阶泰勒展开,更加准确,更快收敛

【2】lightgbm

微软:快速的,分布式的,高性能的基于决策树算法的梯度提升框架

速度更快

【3】stacking

堆叠或者叫模型融合

先建立几个简单的模型进行训练,第二级学习器会基于前级模型的预测结果进行再训练

【4】神经网络
