我们知道，Tomcat启动之后，就可以响应来自客户端的web请求了，本篇文章我们来看一下Tomcat容器是如何响应web请求的。
1. Servlet是如何生效的
做过Java Web的我们都知道，我们的具体业务处理逻辑是卸载Servlet中的，不难猜测，一次Tomcat的请求最后肯定是Servlet完成的。Tomcat设计了这么多层次的容器，Tomcat是怎么确定请求是由哪个Wrapper容器里的Servlet来处理的呢？答案是，Mapper组件。
Mapper组件的功能就是将用户请求的URL定位到一个Servlet，它的工作原理是: Mapper组件里保存了Web应用的配置信息,其实就是容器组件与访问路径的映射关系，比如Host容器里配置的域名、Context容器里的Web应用路径，以及 Wrapper容器里Servlet映射的路径，可以想象这些配置信息就是一个多层次的 Map。
当一个请求到来时，Mapper组件通过解析请求URL里的域名和路径，再到自己保存的Map里去查找，就能定位到一个 Servlet。需要注意的是，一个请求URL最后只会定位到一个Wrapper容器，也就是一个Servlet。接下来我通过一个例子来解释这个定位的过程。
假如有一个网购系，有面向网站管理人员的后台管理系统，还有面向终端客户的在线购物系统。这两个系统运行在在同一个Tomcat上（实际生产中肯定不会这么部署，这里仅作为示例），为了隔离它们的访问域名，配置了两个虚拟域名:manage.shopping.com和user.shopping.com，网站管理人员通过manage.shopping.com域名访问Tomcat去管理用户和商品，而用户管理和商品管理是两个单独的 Web 应用。终端客户通过user.shopping.com域名去搜索商品和下订单，搜索功能和订单管理也是两个独立的Web应用。
针对这样的部署了，Tomcat会创建一个Service 组件和一个 Engine 容器组件，在Engine容器下创建两个 Host 子容器，在每个Host容器下创建两个Context子容器。由于一个Web应用通常有多个Servlet，Tomcat还会在每个Context容器里创建多个Wrapper子容器。每个容器都有对应的访问路径，如下图所示：
假如有用户访问一个URL，比如图中的user.shopping.com:8080/order/buy，T… Servlet呢？主要包含以下几个步骤。
1.1 根据协议和端口号确定Service和Engine
Tomcat的每个连接器都监听不同的端口，比如Tomcat默认的HTTP连接器监听8080端口、默认的AJP连接器监听8009端口。上面例子中的URL访问的是8080端 口，因此这个请求会被HTTP连接器接收，而一个连接器是属于一个Service组件的，这 样Service组件就确定了。我们还知道一个Service组件里除了有多个连接器，还有一个容器组件，具体来说就是一个Engine容器，因此Service确定了也就意味着Engine也确定了。
1.2 根据域名确定Host
Service和Engine确定后，Mapper组件通过URL中的域名去查找相应的Host容器，比如例子中的URL访问的域名是user.shopping.com，因此Mapper会找到 Host2这个容器。
1.3 根据URL路径确定Context组件
Host确定以后，Mapper根据URL的路径来匹配相应的Web应用的路径，比如例子中访问的是/order，因此找到了Context4这个Context容器。
1.4 根据URL路径确定Wrapper(Servlet)
Context 确定后，Mapper再根据web.xml中配置的Servlet映射路径来找到具体的Wrapper和Servlet。
看到这里，相信我们都能明白了什么是容器，以及Tomcat如何通过一层一层的父子容器找到某个Servlet来处理请求。需要注意的是，并不是说只有Servlet才会去处理请求，实际上这个查找路径上的父子容器都会对请求做一些处理。比如，连接器中的Adapter会调用容器的Service方法来执行Servlet，最先拿到请求的是Engine容器， Engine容器对请求做一些处理后，会把请求传给自己子容器Host 继续处理，依次类推，最后这个请求会传给Wrapper容器，Wrapper会调用最终的Servlet来处理。
2. 源码分析
以上是Tomcat响应一次请求的宏观过程，接下来我们来看一下相关源码，源码的细节我们主要放在以下几个方面：
- Tomcat的工作线程是如何产生的
- 客户端请求是如何转化为内部对象的
- Servlet是如何生效的
- 响应时如何回写到客户端浏览器的

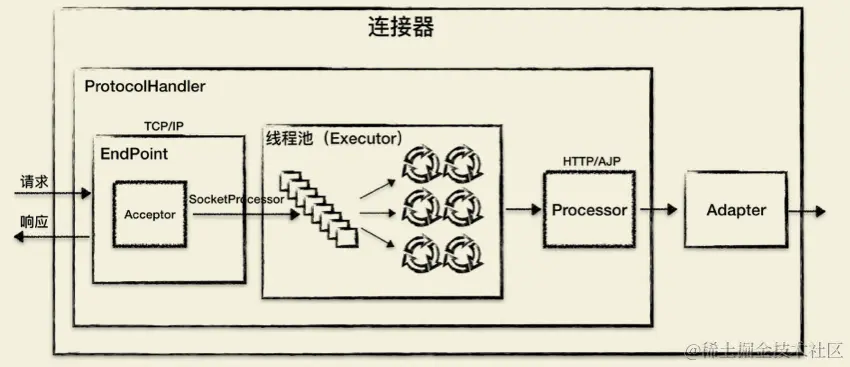

之前的文章Tomcat源码解读『基础类介绍』中我们提到，Tomcat通过Connector启动后台线程，监听指定socket端口请求，实现对外服务。具体如下图所示：
由于接下来的介绍跟上图的组件密切相关，我们把之前文章对这几个组件的介绍再这里再重复介绍一下：
- ProtocolHandler
ProtocolHandler成员变量初始化是在Connector构造函数中完成的，如果调用Connector无参构造函数，ProtocolHandler默认为HTTP/1.1 NIO类型，即Http11NioProtocol。这里我们也以Http11NioProtocol为例，介绍ProtocolHandler。
ProtocolHandler用来处理网络连接和应用层协议，包含了2个重要部件：EndPoint和Processor
- Endpoint
EndPoint是通信端点，即通信监听的接口，是具体的Socket接收和发送处理器，是对传输层的抽象，因此EndPoint是用来实现TCP/IP协议的。
EndPoint是一个接口，对应的抽象实现类是AbstractEndpoint，而 AbstractEndpoint的具体子类，比如在 NioEndpoint和Nio2Endpoint中，有两个重要的子组件：Acceptor和SocketProcessor。
其中Acceptor用于监听Socket连接请求。SocketProcessor用于处理接收到的 Socket请求，它实现Runnable接口，在run()方法里调用协议处理组件Processor 进行处理。为了提高处理能力，SocketProcessor被提交到线程池来执行。
- Processor
EndPoint用来实现TCP/IP协议，Processor则用来实现应用层协议的（HTTP协议、AJP协议等），负责接收来自EndPoint的Socket，读取字节流解析成Tomcat Request和Response对象，并通过Adapter将其提交到容器处理。
- Adapter
由于协议不同，客户端发过来的请求信息也不尽相同，Tomcat定义了自己的 Request类来存放这些请求信息。ProtocolHandler接口负责解析请求并生成Tomcat Request类。但是这个Request对象不是标准的ServletRequest，也就意味着，不能用Tomcat Request作为参数来调用容器。Tomcat设计者的解决方案是引入CoyoteAdapter，这是适配器模式的经典运用，连接器调用CoyoteAdapter 的 Sevice方法，传入的是Tomcat Request对象，CoyoteAdapter负责将Tomcat Request转成ServletRequest，再调用Engine容器的pipline方法（之前文章介绍的pipline-valve机制），实现对servlet的调用。
2.1 Tomcat工作线程
2.1.1 Connector组件类型
Tomcat连接器Connector，包含两大组件ProtocolHandler和Adapter，这两个组件的初始化分别位于Connector构造函数和Connector的initInternal方法中。
我们之前介绍Degister解析server.xml时，Connector节点解析规则如下：
digester.addRule("Server/Service/Connector", new ConnectorCreateRule());
所以在碰到server.xml文件中的”Server/Service/Connector”节点时将会触发 ConnectorCreateRule类的begin方法的调用：
public void begin(String namespace, String name, Attributes attributes)
throws Exception {
Service svc = (Service) digester.peek();
Executor ex = null;
String executorName = attributes.getValue("executor");
if (executorName != null ) {
ex = svc.getExecutor(executorName);
}
String protocolName = attributes.getValue("protocol");
Connector con = new Connector(protocolName);
if (ex != null) {
setExecutor(con, ex);
}
String sslImplementationName = attributes.getValue("sslImplementationName");
if (sslImplementationName != null) {
setSSLImplementationName(con, sslImplementationName);
}
digester.push(con);
}
所以这里Connector实例化，会先获取server.xml文件中Connector节点的protocol属性名称，调用Connector的有参构造函数实例化Connector。而这里protocol，对于HTTP协议来说，我们一般配置为”HTTP/1.1″。
public Connector(String protocol) {
boolean apr = AprLifecycleListener.isAprAvailable() &&
AprLifecycleListener.getUseAprConnector();
ProtocolHandler p = null;
try {
p = ProtocolHandler.create(protocol, apr);
} catch (Exception e) {
log.error(sm.getString(
"coyoteConnector.protocolHandlerInstantiationFailed"), e);
}
if (p != null) {
protocolHandler = p;
protocolHandlerClassName = protocolHandler.getClass().getName();
} else {
protocolHandler = null;
protocolHandlerClassName = protocol;
}
// Default for Connector depends on this system property
setThrowOnFailure(Boolean.getBoolean("org.apache.catalina.startup.EXIT_ON_INIT_FAILURE"));
}
public static ProtocolHandler create(String protocol, boolean apr)
throws ClassNotFoundException, InstantiationException, IllegalAccessException,
IllegalArgumentException, InvocationTargetException, NoSuchMethodException, SecurityException {
if (protocol == null || "HTTP/1.1".equals(protocol)
|| (!apr && org.apache.coyote.http11.Http11NioProtocol.class.getName().equals(protocol))
|| (apr && org.apache.coyote.http11.Http11AprProtocol.class.getName().equals(protocol))) {
if (apr) {
return new org.apache.coyote.http11.Http11AprProtocol();
} else {
return new org.apache.coyote.http11.Http11NioProtocol();
}
} else if ("AJP/1.3".equals(protocol)
|| (!apr && org.apache.coyote.ajp.AjpNioProtocol.class.getName().equals(protocol))
|| (apr && org.apache.coyote.ajp.AjpAprProtocol.class.getName().equals(protocol))) {
if (apr) {
return new org.apache.coyote.ajp.AjpAprProtocol();
} else {
return new org.apache.coyote.ajp.AjpNioProtocol();
}
} else {
// Instantiate protocol handler
Class<?> clazz = Class.forName(protocol);
return (ProtocolHandler) clazz.getConstructor().newInstance();
}
}
不难发现，Connector的内部组件ProtocolHandler类型为Http11NioProtocol。
而ProtocolHandler的实例化，是通过反射调用Http11NioProtocol类的无参构造函数实现的：
public Http11NioProtocol() {
super(new NioEndpoint());
}
所以ProtocolHandler的内部组件EndPoint类型为NioEndpoint。
在Connector的initInternal方法中，会为Connector的内部组件Adapter赋值，类型为CoyoteAdapter：
adapter = new CoyoteAdapter(this);
EndPoint的内部组件Processor的类型为Http11Processor，细节有点复杂，后面再介绍。
所以关于上述的组件，我们可以得出结论：
Connector = ProtocolHandler + Adapter
ProtocolHandler = Endpoint + Processor
ProtocolHandler = Http11NioProtocol
Adapter = CoyoteAdapter
Endpoint = NioEndpoint
Processor = Http11Processor
2.1.2 Connector处理线程启动
上面我们介绍了Connector的相关组件类型及构建的过程，接下来我们看一下Connector的工作线程。Connector启动方法中，会启动ProtocolHandler的start方法，根据我们上面分析的Connector子组件ProtocolHandler的类型为org.apache.coyote.http11.Http11NioProtocol，可以知道，会调用Http11NioProtocol的start方法，但是该类中没有覆盖父类AbstractProtocol的start方法，所以最终会调用到org.apache.coyote.AbstractProtocol#start方法，如下：
public void start() throws Exception {
if (getLog().isInfoEnabled()) {
getLog().info(sm.getString("abstractProtocolHandler.start", getName()));
logPortOffset();
}
endpoint.start();
monitorFuture = getUtilityExecutor().scheduleWithFixedDelay(
new Runnable() {
@Override
public void run() {
if (!isPaused()) {
startAsyncTimeout();
}
}
}, 0, 60, TimeUnit.SECONDS);
}
这里会调用EndPoint的start方法，上面我们已经介绍过Http11NioProtocol子组件EndPoint的类型为org.apache.tomcat.util.net.NioEndpoint，所以会调用最终会调用到该类的startInternal方法，如下：
/**
* Start the NIO endpoint, creating acceptor, poller threads.
*/
@Override
public void startInternal() throws Exception {
if (!running) {
running = true;
paused = false;
if (socketProperties.getProcessorCache() != 0) {
processorCache = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getProcessorCache());
}
if (socketProperties.getEventCache() != 0) {
eventCache = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getEventCache());
}
if (socketProperties.getBufferPool() != 0) {
nioChannels = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
socketProperties.getBufferPool());
}
// Create worker collection
if (getExecutor() == null) {
createExecutor();
}
initializeConnectionLatch();
// Start poller thread
poller = new Poller();
Thread pollerThread = new Thread(poller, getName() + "-ClientPoller");
pollerThread.setPriority(threadPriority);
pollerThread.setDaemon(true);
pollerThread.start();
// create acceptor
startAcceptorThread();
}
}
注释中描述的很清楚了，该方法中主要完成两件事：
-
创建Poller线程，Poller线程用于处理Acceptor线程获取的客户端请求
-
创建Acceptor线程，用于监听客户端Socket请求
protected void startAcceptorThread() { acceptor = new Acceptor<>(this); String threadName = getName() + "-Acceptor"; acceptor.setThreadName(threadName); Thread t = new Thread(acceptor, threadName); t.setPriority(getAcceptorThreadPriority()); t.setDaemon(getDaemon()); t.start(); }
startAcceptorThreads方法中，调用org.apache.tomcat.util.net.Acceptor的构造函数构建了Acceptor对象，并启动Acceptor线程，Acceptor线程用于获取客户端socket请求。NioEndPoint的内部处理线程Acceptor类型为org.apache.tomcat.util.net.Acceptor。
2.1.3 Acceptor线程

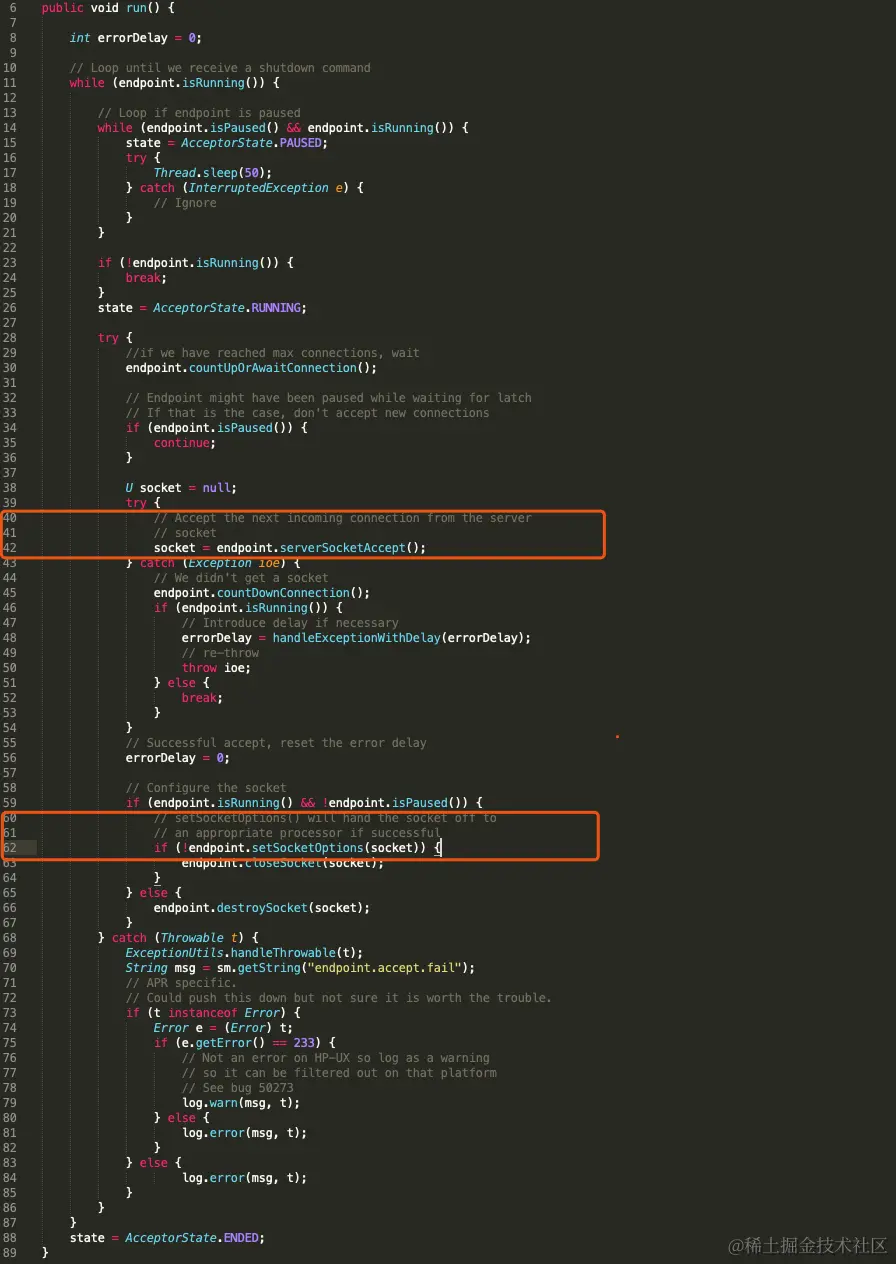

通过Acceptor的run方法，可以知道Acceptor线程核心就在获取socket并处理socket，分别在上图中红框处。
这里我们遗漏了一个问题，endpoint.serverSocketAccept()可以获取socket，肯定在NioEndPoint内部有个Nio相关的组件在监听某个端口，那么这个组件是如何实例化并初始化的？NioEndPoint的serverSocketAccept方法如下：
protected SocketChannel serverSocketAccept() throws Exception {
return serverSock.accept();
}
可以得知，上述Nio相关的组件为serverSock，类型为java.nio.channels.ServerSocketChannel。那么serverSock又是什么时候与端口绑定的呢？我们发现NioEndPoint类中有个bind方法，如下：
public void bind() throws Exception {
initServerSocket();
setStopLatch(new CountDownLatch(1));
// Initialize SSL if needed
initialiseSsl();
selectorPool.open(getName());
}
// Separated out to make it easier for folks that extend NioEndpoint to
// implement custom [server]sockets
protected void initServerSocket() throws Exception {
if (!getUseInheritedChannel()) {
serverSock = ServerSocketChannel.open();
socketProperties.setProperties(serverSock.socket());
InetSocketAddress addr = new InetSocketAddress(getAddress(), getPortWithOffset());
serverSock.socket().bind(addr,getAcceptCount());
} else {
// Retrieve the channel provided by the OS
Channel ic = System.inheritedChannel();
if (ic instanceof ServerSocketChannel) {
serverSock = (ServerSocketChannel) ic;
}
if (serverSock == null) {
throw new IllegalArgumentException(sm.getString("endpoint.init.bind.inherited"));
}
}
serverSock.configureBlocking(true); //mimic APR behavior
}
在该方法中完成了ServerSocketChannel和端口的绑定，那么该bind方法又是在什么时机被调用的？不难发现应该在Connector的initInternal方法中，该方法中会调用：
protocolHandler.init();
通脱protocolHandler的init方法到上述bind方法的调用路径如下：
接下来我们回到本节的主题，Acceptor是如何处理上面获取的Socket，也就是setSocketOptions方法，该方法在AbstractEndpoint类中是个抽象方法，我们上面说过EndPoint的类型为NioEndPoint，所以这里调用的方法也是NioEndPoint的setSocketOptions方法。
protected boolean setSocketOptions(SocketChannel socket) {
NioSocketWrapper socketWrapper = null;
try {
// Allocate channel and wrapper
NioChannel channel = null;
if (nioChannels != null) {
channel = nioChannels.pop();
}
if (channel == null) {
SocketBufferHandler bufhandler = new SocketBufferHandler(
socketProperties.getAppReadBufSize(),
socketProperties.getAppWriteBufSize(),
socketProperties.getDirectBuffer());
if (isSSLEnabled()) {
channel = new SecureNioChannel(bufhandler, selectorPool, this);
} else {
channel = new NioChannel(bufhandler);
}
}
NioSocketWrapper newWrapper = new NioSocketWrapper(channel, this);
channel.reset(socket, newWrapper);
connections.put(socket, newWrapper);
socketWrapper = newWrapper;
// Set socket properties
// Disable blocking, polling will be used
socket.configureBlocking(false);
socketProperties.setProperties(socket.socket());
socketWrapper.setReadTimeout(getConnectionTimeout());
socketWrapper.setWriteTimeout(getConnectionTimeout());
socketWrapper.setKeepAliveLeft(NioEndpoint.this.getMaxKeepAliveRequests());
poller.register(channel, socketWrapper);
return true;
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
try {
log.error(sm.getString("endpoint.socketOptionsError"), t);
} catch (Throwable tt) {
ExceptionUtils.handleThrowable(tt);
}
if (socketWrapper == null) {
destroySocket(socket);
}
}
// Tell to close the socket if needed
return false;
}
该方法构造了，然后调用poller.register(channel, socketWrapper);将需要处理的socket连接请求提交给poller处理。这里的Poller就是我们上面介绍NioEndPoint启动方法startInternal中pollerThread。
2.1.4 Poller线程
首先我们来看一下上面Acceptor调用Poller的register方法：
public void register(final NioChannel socket, final NioSocketWrapper socketWrapper) {
socketWrapper.interestOps(SelectionKey.OP_READ);//this is what OP_REGISTER turns into.
PollerEvent event = null;
if (eventCache != null) {
event = eventCache.pop();
}
if (event == null) {
event = new PollerEvent(socket, OP_REGISTER);
} else {
event.reset(socket, OP_REGISTER);
}
addEvent(event);
}
核心就是构造一个PollerEvent，然后调用addEvent方法，添加到Poller的成员events中，这里events类型为SynchronizedQueue，所以上述添加操作是线程安全的。也就是Acceptor通过调用Poller的register方法，将需要处理的Socket请求包装为PollerEvent，添加到Poller的成员变量events中，那么可以想象，Poller的run方法肯定在处理events中的PollerEvent：

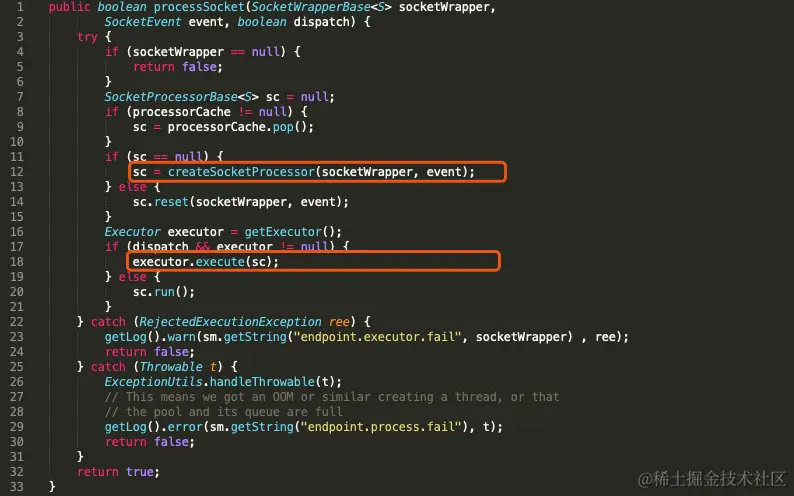

可以看到Poller线程对Acceptor线程提交的PollerEvent事件的处理，其实就是创建一个SocketProcessor线程，并提交到executor线程池处理。这里createSocketProcessor方法，由于我们的EndPoint类型为NioEndPoint，所以SocketProcessor类型为org.apache.tomcat.util.net.NioEndpoint.SocketProcessor。
2.1.5 SocketProcessor

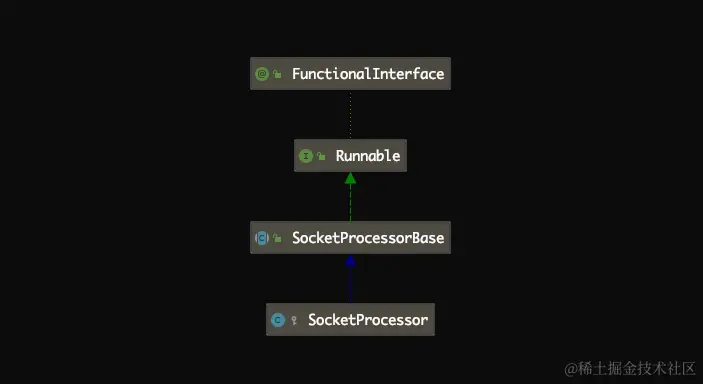

SocketProcessor继承了SocketProcessorBase，SocketProcessorBase是个抽象类，实现了Runnable接口。

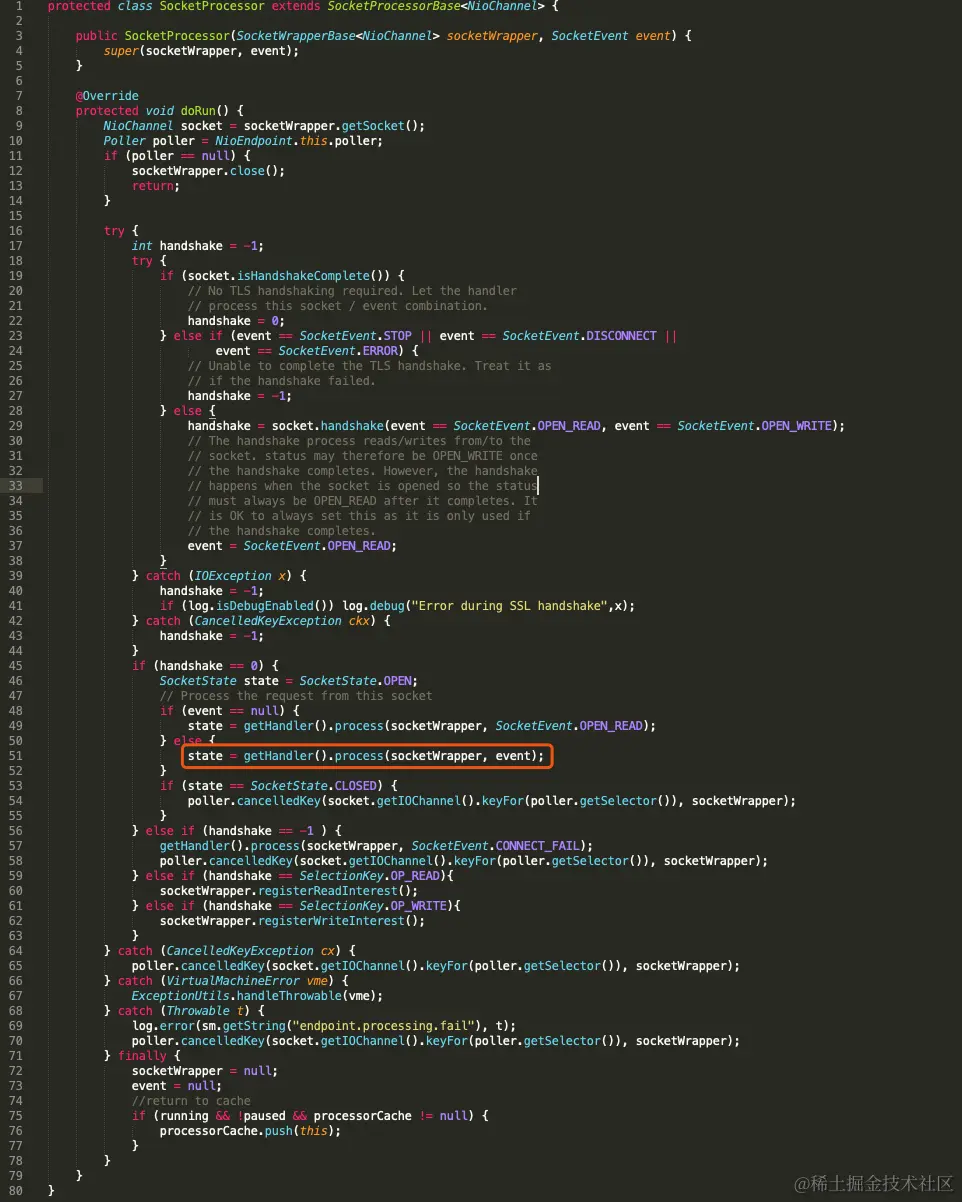

其中run方法调用了父类的模板方法doRun()，所以SocketProcessor最终生效的核心逻辑其实在org.apache.tomcat.util.net.NioEndpoint.SocketProcessor#duRun()。
可以看到核心逻辑是调用NioEndPoint的getHandler方法，并调用获取的Handler的process方法处理socketWrapper。
这里NioEndPoint的Handler成员变量是跟着Http11NioProtocol的构造函数初始化的，如下：
public Http11NioProtocol() {
super(new NioEndpoint());
}
public AbstractHttp11Protocol(AbstractEndpoint<S,?> endpoint) {
super(endpoint);
setConnectionTimeout(Constants.DEFAULT_CONNECTION_TIMEOUT);
ConnectionHandler<S> cHandler = new ConnectionHandler<>(this);
setHandler(cHandler);
getEndpoint().setHandler(cHandler);
}
所以handler类型为org.apache.coyote.AbstractProtocol.ConnectionHandler。接下来我们来看一下ConnectionHandler的process方法，如下：
@Override
public SocketState process(SocketWrapperBase<S> wrapper, SocketEvent status) {
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.process",
wrapper.getSocket(), status));
}
if (wrapper == null) {
// Nothing to do. Socket has been closed.
return SocketState.CLOSED;
}
S socket = wrapper.getSocket();
Processor processor = (Processor) wrapper.getCurrentProcessor();
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.connectionsGet",
processor, socket));
}
// Timeouts are calculated on a dedicated thread and then
// dispatched. Because of delays in the dispatch process, the
// timeout may no longer be required. Check here and avoid
// unnecessary processing.
if (SocketEvent.TIMEOUT == status &&
(processor == null ||
!processor.isAsync() && !processor.isUpgrade() ||
processor.isAsync() && !processor.checkAsyncTimeoutGeneration())) {
// This is effectively a NO-OP
return SocketState.OPEN;
}
if (processor != null) {
// Make sure an async timeout doesn't fire
getProtocol().removeWaitingProcessor(processor);
} else if (status == SocketEvent.DISCONNECT || status == SocketEvent.ERROR) {
// Nothing to do. Endpoint requested a close and there is no
// longer a processor associated with this socket.
return SocketState.CLOSED;
}
ContainerThreadMarker.set();
try {
if (processor == null) {
String negotiatedProtocol = wrapper.getNegotiatedProtocol();
// OpenSSL typically returns null whereas JSSE typically
// returns "" when no protocol is negotiated
if (negotiatedProtocol != null && negotiatedProtocol.length() > 0) {
UpgradeProtocol upgradeProtocol = getProtocol().getNegotiatedProtocol(negotiatedProtocol);
if (upgradeProtocol != null) {
processor = upgradeProtocol.getProcessor(wrapper, getProtocol().getAdapter());
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.processorCreate", processor));
}
} else if (negotiatedProtocol.equals("http/1.1")) {
// Explicitly negotiated the default protocol.
// Obtain a processor below.
} else {
// TODO:
// OpenSSL 1.0.2's ALPN callback doesn't support
// failing the handshake with an error if no
// protocol can be negotiated. Therefore, we need to
// fail the connection here. Once this is fixed,
// replace the code below with the commented out
// block.
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.negotiatedProcessor.fail",
negotiatedProtocol));
}
return SocketState.CLOSED;
/*
* To replace the code above once OpenSSL 1.1.0 is
* used.
// Failed to create processor. This is a bug.
throw new IllegalStateException(sm.getString(
"abstractConnectionHandler.negotiatedProcessor.fail",
negotiatedProtocol));
*/
}
}
}
if (processor == null) {
processor = recycledProcessors.pop();
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.processorPop", processor));
}
}
if (processor == null) {
processor = getProtocol().createProcessor();
register(processor);
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.processorCreate", processor));
}
}
processor.setSslSupport(
wrapper.getSslSupport(getProtocol().getClientCertProvider()));
// Associate the processor with the connection
wrapper.setCurrentProcessor(processor);
SocketState state = SocketState.CLOSED;
do {
state = processor.process(wrapper, status);
if (state == SocketState.UPGRADING) {
// Get the HTTP upgrade handler
UpgradeToken upgradeToken = processor.getUpgradeToken();
// Retrieve leftover input
ByteBuffer leftOverInput = processor.getLeftoverInput();
if (upgradeToken == null) {
// Assume direct HTTP/2 connection
UpgradeProtocol upgradeProtocol = getProtocol().getUpgradeProtocol("h2c");
if (upgradeProtocol != null) {
// Release the Http11 processor to be re-used
release(processor);
// Create the upgrade processor
processor = upgradeProtocol.getProcessor(wrapper, getProtocol().getAdapter());
wrapper.unRead(leftOverInput);
// Associate with the processor with the connection
wrapper.setCurrentProcessor(processor);
} else {
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString(
"abstractConnectionHandler.negotiatedProcessor.fail",
"h2c"));
}
// Exit loop and trigger appropriate clean-up
state = SocketState.CLOSED;
}
} else {
HttpUpgradeHandler httpUpgradeHandler = upgradeToken.getHttpUpgradeHandler();
// Release the Http11 processor to be re-used
release(processor);
// Create the upgrade processor
processor = getProtocol().createUpgradeProcessor(wrapper, upgradeToken);
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.upgradeCreate",
processor, wrapper));
}
wrapper.unRead(leftOverInput);
// Associate with the processor with the connection
wrapper.setCurrentProcessor(processor);
// Initialise the upgrade handler (which may trigger
// some IO using the new protocol which is why the lines
// above are necessary)
// This cast should be safe. If it fails the error
// handling for the surrounding try/catch will deal with
// it.
if (upgradeToken.getInstanceManager() == null) {
httpUpgradeHandler.init((WebConnection) processor);
} else {
ClassLoader oldCL = upgradeToken.getContextBind().bind(false, null);
try {
httpUpgradeHandler.init((WebConnection) processor);
} finally {
upgradeToken.getContextBind().unbind(false, oldCL);
}
}
if (httpUpgradeHandler instanceof InternalHttpUpgradeHandler) {
if (((InternalHttpUpgradeHandler) httpUpgradeHandler).hasAsyncIO()) {
// The handler will initiate all further I/O
state = SocketState.LONG;
}
}
}
}
} while ( state == SocketState.UPGRADING);
if (state == SocketState.LONG) {
// In the middle of processing a request/response. Keep the
// socket associated with the processor. Exact requirements
// depend on type of long poll
longPoll(wrapper, processor);
if (processor.isAsync()) {
getProtocol().addWaitingProcessor(processor);
}
} else if (state == SocketState.OPEN) {
// In keep-alive but between requests. OK to recycle
// processor. Continue to poll for the next request.
wrapper.setCurrentProcessor(null);
release(processor);
wrapper.registerReadInterest();
} else if (state == SocketState.SENDFILE) {
// Sendfile in progress. If it fails, the socket will be
// closed. If it works, the socket either be added to the
// poller (or equivalent) to await more data or processed
// if there are any pipe-lined requests remaining.
} else if (state == SocketState.UPGRADED) {
// Don't add sockets back to the poller if this was a
// non-blocking write otherwise the poller may trigger
// multiple read events which may lead to thread starvation
// in the connector. The write() method will add this socket
// to the poller if necessary.
if (status != SocketEvent.OPEN_WRITE) {
longPoll(wrapper, processor);
getProtocol().addWaitingProcessor(processor);
}
} else if (state == SocketState.SUSPENDED) {
// Don't add sockets back to the poller.
// The resumeProcessing() method will add this socket
// to the poller.
} else {
// Connection closed. OK to recycle the processor.
// Processors handling upgrades require additional clean-up
// before release.
wrapper.setCurrentProcessor(null);
if (processor.isUpgrade()) {
UpgradeToken upgradeToken = processor.getUpgradeToken();
HttpUpgradeHandler httpUpgradeHandler = upgradeToken.getHttpUpgradeHandler();
InstanceManager instanceManager = upgradeToken.getInstanceManager();
if (instanceManager == null) {
httpUpgradeHandler.destroy();
} else {
ClassLoader oldCL = upgradeToken.getContextBind().bind(false, null);
try {
httpUpgradeHandler.destroy();
} finally {
try {
instanceManager.destroyInstance(httpUpgradeHandler);
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
getLog().error(sm.getString("abstractConnectionHandler.error"), e);
}
upgradeToken.getContextBind().unbind(false, oldCL);
}
}
}
release(processor);
}
return state;
} catch(java.net.SocketException e) {
// SocketExceptions are normal
getLog().debug(sm.getString(
"abstractConnectionHandler.socketexception.debug"), e);
} catch (java.io.IOException e) {
// IOExceptions are normal
getLog().debug(sm.getString(
"abstractConnectionHandler.ioexception.debug"), e);
} catch (ProtocolException e) {
// Protocol exceptions normally mean the client sent invalid or
// incomplete data.
getLog().debug(sm.getString(
"abstractConnectionHandler.protocolexception.debug"), e);
}
// Future developers: if you discover any other
// rare-but-nonfatal exceptions, catch them here, and log as
// above.
catch (OutOfMemoryError oome) {
// Try and handle this here to give Tomcat a chance to close the
// connection and prevent clients waiting until they time out.
// Worst case, it isn't recoverable and the attempt at logging
// will trigger another OOME.
getLog().error(sm.getString("abstractConnectionHandler.oome"), oome);
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
// any other exception or error is odd. Here we log it
// with "ERROR" level, so it will show up even on
// less-than-verbose logs.
getLog().error(sm.getString("abstractConnectionHandler.error"), e);
} finally {
ContainerThreadMarker.clear();
}
// Make sure socket/processor is removed from the list of current
// connections
wrapper.setCurrentProcessor(null);
release(processor);
return SocketState.CLOSED;
}
该方法的核心调用processor的process方法处理socket，这里的processor其实就是之前讲的ProtocolHandler的组件之一（ProtocolHandler = EndPoint + Processor）。而processor是通过该方法内createProcessor方法创建出来的，如下：
# org.apache.coyote.AbstractProtocol.ConnectionHandler#process
processor = getProtocol().createProcessor();
# org.apache.coyote.http11.AbstractHttp11Protocol#createProcessor
protected Processor createProcessor() {
Http11Processor processor = new Http11Processor(this, adapter);
return processor;
}
# org.apache.coyote.http11.Http11Processor#Http11Processor
public Http11Processor(AbstractHttp11Protocol<?> protocol, Adapter adapter) {
super(adapter);
this.protocol = protocol;
httpParser = new HttpParser(protocol.getRelaxedPathChars(),
protocol.getRelaxedQueryChars());
inputBuffer = new Http11InputBuffer(request, protocol.getMaxHttpHeaderSize(),
protocol.getRejectIllegalHeader(), httpParser);
request.setInputBuffer(inputBuffer);
outputBuffer = new Http11OutputBuffer(response, protocol.getMaxHttpHeaderSize());
response.setOutputBuffer(outputBuffer);
// Create and add the identity filters.
inputBuffer.addFilter(new IdentityInputFilter(protocol.getMaxSwallowSize()));
outputBuffer.addFilter(new IdentityOutputFilter());
// Create and add the chunked filters.
inputBuffer.addFilter(new ChunkedInputFilter(protocol.getMaxTrailerSize(),
protocol.getAllowedTrailerHeadersInternal(), protocol.getMaxExtensionSize(),
protocol.getMaxSwallowSize()));
outputBuffer.addFilter(new ChunkedOutputFilter());
// Create and add the void filters.
inputBuffer.addFilter(new VoidInputFilter());
outputBuffer.addFilter(new VoidOutputFilter());
// Create and add buffered input filter
inputBuffer.addFilter(new BufferedInputFilter());
// Create and add the gzip filters.
//inputBuffer.addFilter(new GzipInputFilter());
outputBuffer.addFilter(new GzipOutputFilter());
pluggableFilterIndex = inputBuffer.getFilters().length;
}
所以ProtocolHandler的Processor组件类型为Http11Processor，Http11Processor继承了父类AbstractProcessorLight的process方法，如下：
核心在26行，调用service处理socketWrapper，service方法在AbstractProcessorLight中的定义是个抽象方法，具体实现在子类Http11Processor，如下：
public SocketState service(SocketWrapperBase<?> socketWrapper)
throws IOException {
RequestInfo rp = request.getRequestProcessor();
rp.setStage(org.apache.coyote.Constants.STAGE_PARSE);
// Setting up the I/O
setSocketWrapper(socketWrapper);
// Flags
keepAlive = true;
openSocket = false;
readComplete = true;
boolean keptAlive = false;
SendfileState sendfileState = SendfileState.DONE;
while (!getErrorState().isError() && keepAlive && !isAsync() && upgradeToken == null &&
sendfileState == SendfileState.DONE && !protocol.isPaused()) {
// Parsing the request header
try {
if (!inputBuffer.parseRequestLine(keptAlive, protocol.getConnectionTimeout(),
protocol.getKeepAliveTimeout())) {
if (inputBuffer.getParsingRequestLinePhase() == -1) {
return SocketState.UPGRADING;
} else if (handleIncompleteRequestLineRead()) {
break;
}
}
// Process the Protocol component of the request line
// Need to know if this is an HTTP 0.9 request before trying to
// parse headers.
prepareRequestProtocol();
if (protocol.isPaused()) {
// 503 - Service unavailable
response.setStatus(503);
setErrorState(ErrorState.CLOSE_CLEAN, null);
} else {
keptAlive = true;
// Set this every time in case limit has been changed via JMX
request.getMimeHeaders().setLimit(protocol.getMaxHeaderCount());
// Don't parse headers for HTTP/0.9
if (!http09 && !inputBuffer.parseHeaders()) {
// We've read part of the request, don't recycle it
// instead associate it with the socket
openSocket = true;
readComplete = false;
break;
}
if (!protocol.getDisableUploadTimeout()) {
socketWrapper.setReadTimeout(protocol.getConnectionUploadTimeout());
}
}
} catch (IOException e) {
if (log.isDebugEnabled()) {
log.debug(sm.getString("http11processor.header.parse"), e);
}
setErrorState(ErrorState.CLOSE_CONNECTION_NOW, e);
break;
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
UserDataHelper.Mode logMode = userDataHelper.getNextMode();
if (logMode != null) {
String message = sm.getString("http11processor.header.parse");
switch (logMode) {
case INFO_THEN_DEBUG:
message += sm.getString("http11processor.fallToDebug");
//$FALL-THROUGH$
case INFO:
log.info(message, t);
break;
case DEBUG:
log.debug(message, t);
}
}
// 400 - Bad Request
response.setStatus(400);
setErrorState(ErrorState.CLOSE_CLEAN, t);
}
// Has an upgrade been requested?
if (isConnectionToken(request.getMimeHeaders(), "upgrade")) {
// Check the protocol
String requestedProtocol = request.getHeader("Upgrade");
UpgradeProtocol upgradeProtocol = protocol.getUpgradeProtocol(requestedProtocol);
if (upgradeProtocol != null) {
if (upgradeProtocol.accept(request)) {
response.setStatus(HttpServletResponse.SC_SWITCHING_PROTOCOLS);
response.setHeader("Connection", "Upgrade");
response.setHeader("Upgrade", requestedProtocol);
action(ActionCode.CLOSE, null);
getAdapter().log(request, response, 0);
InternalHttpUpgradeHandler upgradeHandler =
upgradeProtocol.getInternalUpgradeHandler(
socketWrapper, getAdapter(), cloneRequest(request));
UpgradeToken upgradeToken = new UpgradeToken(upgradeHandler, null, null);
action(ActionCode.UPGRADE, upgradeToken);
return SocketState.UPGRADING;
}
}
}
if (getErrorState().isIoAllowed()) {
// Setting up filters, and parse some request headers
rp.setStage(org.apache.coyote.Constants.STAGE_PREPARE);
try {
prepareRequest();
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
if (log.isDebugEnabled()) {
log.debug(sm.getString("http11processor.request.prepare"), t);
}
// 500 - Internal Server Error
response.setStatus(500);
setErrorState(ErrorState.CLOSE_CLEAN, t);
}
}
int maxKeepAliveRequests = protocol.getMaxKeepAliveRequests();
if (maxKeepAliveRequests == 1) {
keepAlive = false;
} else if (maxKeepAliveRequests > 0 &&
socketWrapper.decrementKeepAlive() <= 0) {
keepAlive = false;
}
// Process the request in the adapter
if (getErrorState().isIoAllowed()) {
try {
rp.setStage(org.apache.coyote.Constants.STAGE_SERVICE);
getAdapter().service(request, response);
// Handle when the response was committed before a serious
// error occurred. Throwing a ServletException should both
// set the status to 500 and set the errorException.
// If we fail here, then the response is likely already
// committed, so we can't try and set headers.
if(keepAlive && !getErrorState().isError() && !isAsync() &&
statusDropsConnection(response.getStatus())) {
setErrorState(ErrorState.CLOSE_CLEAN, null);
}
} catch (InterruptedIOException e) {
setErrorState(ErrorState.CLOSE_CONNECTION_NOW, e);
} catch (HeadersTooLargeException e) {
log.error(sm.getString("http11processor.request.process"), e);
// The response should not have been committed but check it
// anyway to be safe
if (response.isCommitted()) {
setErrorState(ErrorState.CLOSE_NOW, e);
} else {
response.reset();
response.setStatus(500);
setErrorState(ErrorState.CLOSE_CLEAN, e);
response.setHeader("Connection", "close"); // TODO: Remove
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
log.error(sm.getString("http11processor.request.process"), t);
// 500 - Internal Server Error
response.setStatus(500);
setErrorState(ErrorState.CLOSE_CLEAN, t);
getAdapter().log(request, response, 0);
}
}
// Finish the handling of the request
rp.setStage(org.apache.coyote.Constants.STAGE_ENDINPUT);
if (!isAsync()) {
// If this is an async request then the request ends when it has
// been completed. The AsyncContext is responsible for calling
// endRequest() in that case.
endRequest();
}
rp.setStage(org.apache.coyote.Constants.STAGE_ENDOUTPUT);
// If there was an error, make sure the request is counted as
// and error, and update the statistics counter
if (getErrorState().isError()) {
response.setStatus(500);
}
if (!isAsync() || getErrorState().isError()) {
request.updateCounters();
if (getErrorState().isIoAllowed()) {
inputBuffer.nextRequest();
outputBuffer.nextRequest();
}
}
if (!protocol.getDisableUploadTimeout()) {
int connectionTimeout = protocol.getConnectionTimeout();
if(connectionTimeout > 0) {
socketWrapper.setReadTimeout(connectionTimeout);
} else {
socketWrapper.setReadTimeout(0);
}
}
rp.setStage(org.apache.coyote.Constants.STAGE_KEEPALIVE);
sendfileState = processSendfile(socketWrapper);
}
rp.setStage(org.apache.coyote.Constants.STAGE_ENDED);
if (getErrorState().isError() || (protocol.isPaused() && !isAsync())) {
return SocketState.CLOSED;
} else if (isAsync()) {
return SocketState.LONG;
} else if (isUpgrade()) {
return SocketState.UPGRADING;
} else {
if (sendfileState == SendfileState.PENDING) {
return SocketState.SENDFILE;
} else {
if (openSocket) {
if (readComplete) {
return SocketState.OPEN;
} else {
return SocketState.LONG;
}
} else {
return SocketState.CLOSED;
}
}
}
}
该方法核心在做两件事情：
- 获取socket中请求的输入流，解析输入流，并设置request（org.apache.coyote.Request）
- 调用adapter的service方法，将request和response交给CoyoteAdapter处理，随后经过CoyoteAdapter适配之后，交给容器处理请求
我们先来看一下request的解析，主要在parseRequestLine()方法、inputBuffer.parseHeaders()方法、prepareRequest()方法和postParseRequest()方法调用中实现，其中parseRequestLine方法用于解析Http协议的请求行，parseHeaders方法用于解析Http协议的请求头，prepareRequest方法中实现对请求体的解析，postParseRequest()方法实现request关联的Container和Pipline信息初始化，这里实现细节比较多，具体可以参考Tomcat之Http11Processor源码分析。
其次就是调用getAdapter().service(request, response);方法，将request和response交给Adapter处理，之前我们讲过Adapter的类型为org.apache.catalina.connector.CoyoteAdapter，其service方法如下：
public void service(org.apache.coyote.Request req, org.apache.coyote.Response res)
throws Exception {
Request request = (Request) req.getNote(ADAPTER_NOTES);
Response response = (Response) res.getNote(ADAPTER_NOTES);
if (request == null) {
// Create objects
request = connector.createRequest();
request.setCoyoteRequest(req);
response = connector.createResponse();
response.setCoyoteResponse(res);
// Link objects
request.setResponse(response);
response.setRequest(request);
// Set as notes
req.setNote(ADAPTER_NOTES, request);
res.setNote(ADAPTER_NOTES, response);
// Set query string encoding
req.getParameters().setQueryStringCharset(connector.getURICharset());
}
if (connector.getXpoweredBy()) {
response.addHeader("X-Powered-By", POWERED_BY);
}
boolean async = false;
boolean postParseSuccess = false;
req.getRequestProcessor().setWorkerThreadName(THREAD_NAME.get());
try {
// Parse and set Catalina and configuration specific
// request parameters
postParseSuccess = postParseRequest(req, request, res, response);
if (postParseSuccess) {
//check valves if we support async
request.setAsyncSupported(
connector.getService().getContainer().getPipeline().isAsyncSupported());
// Calling the container
connector.getService().getContainer().getPipeline().getFirst().invoke(
request, response);
}
if (request.isAsync()) {
async = true;
ReadListener readListener = req.getReadListener();
if (readListener != null && request.isFinished()) {
// Possible the all data may have been read during service()
// method so this needs to be checked here
ClassLoader oldCL = null;
try {
oldCL = request.getContext().bind(false, null);
if (req.sendAllDataReadEvent()) {
req.getReadListener().onAllDataRead();
}
} finally {
request.getContext().unbind(false, oldCL);
}
}
Throwable throwable =
(Throwable) request.getAttribute(RequestDispatcher.ERROR_EXCEPTION);
// If an async request was started, is not going to end once
// this container thread finishes and an error occurred, trigger
// the async error process
if (!request.isAsyncCompleting() && throwable != null) {
request.getAsyncContextInternal().setErrorState(throwable, true);
}
} else {
request.finishRequest();
response.finishResponse();
}
} catch (IOException e) {
// Ignore
} finally {
AtomicBoolean error = new AtomicBoolean(false);
res.action(ActionCode.IS_ERROR, error);
if (request.isAsyncCompleting() && error.get()) {
// Connection will be forcibly closed which will prevent
// completion happening at the usual point. Need to trigger
// call to onComplete() here.
res.action(ActionCode.ASYNC_POST_PROCESS, null);
async = false;
}
// Access log
if (!async && postParseSuccess) {
// Log only if processing was invoked.
// If postParseRequest() failed, it has already logged it.
Context context = request.getContext();
// If the context is null, it is likely that the endpoint was
// shutdown, this connection closed and the request recycled in
// a different thread. That thread will have updated the access
// log so it is OK not to update the access log here in that
// case.
if (context != null) {
context.logAccess(request, response,
System.currentTimeMillis() - req.getStartTime(), false);
}
}
req.getRequestProcessor().setWorkerThreadName(null);
// Recycle the wrapper request and response
if (!async) {
request.recycle();
response.recycle();
}
}
}
首先构建org.apache.catalina.connector.Request和org.apache.catalina.connector.Response对象，这里其实就是从上述Http11Processor生成的org.apache.coyote.Request和org.apache.coyote.Response对象中获取的。
其次是调用顶层容器Engine的pipline的invoke方法，通过pipline-valve机制，将请求提交给各级容器处理。
// Calling the container
connector.getService().getContainer().getPipeline().getFirst().invoke(
request, response);
至此，我们明白了tomcat是如何接收请求，并转发给顶层容器Engine的。由于篇幅限制，下篇文章我们继续来介绍servert如何在容器中生效的。
