一、SPI传输概述
1.1 数据组织方式
使用SPI传输时，最小的传输单位是spi_transfer
对于一个设备，可以发起多个spi_transfer
这些spi_transfer，会放入一个spi_message里
- spi_transfer : 指定tx_buf、rx_buf、len
- 同一个SPI设备的spi_transfer，使用spi_message管理
- 同一个SPI Master下的spi_message，如在一个队列里：
反过来传输也是类似的：
- 从spi_master的队列里取出每一个spi_message
- 从spi_message的队列里取出一个spi_transfer
- 处理spi_transfer
1.2 SPI控制器数据结构
参考文件：include\linux\spi\spi.h Linux中使用spi_master结构体描述SPI控制器，有两套传输方法：
struct spi_controller {
struct device dev;
struct list_head list;
/* other than negative (== assign one dynamically), bus_num is fully
* board-specific. usually that simplifies to being SOC-specific.
* example: one SOC has three SPI controllers, numbered 0..2,
* and one board's schematics might show it using SPI-2. software
* would normally use bus_num=2 for that controller.
*/
s16 bus_num;
/* chipselects will be integral to many controllers; some others
* might use board-specific GPIOs.
*/
u16 num_chipselect;
/* some SPI controllers pose alignment requirements on DMAable
* buffers; let protocol drivers know about these requirements.
*/
u16 dma_alignment;
/* spi_device.mode flags understood by this controller driver */
u16 mode_bits;
/* bitmask of supported bits_per_word for transfers */
u32 bits_per_word_mask;
#define SPI_BPW_MASK(bits) BIT((bits) - 1)
#define SPI_BIT_MASK(bits) (((bits) == 32) ? ~0U : (BIT(bits) - 1))
#define SPI_BPW_RANGE_MASK(min, max) (SPI_BIT_MASK(max) - SPI_BIT_MASK(min - 1))
/* limits on transfer speed */
u32 min_speed_hz;
u32 max_speed_hz;
/* other constraints relevant to this driver */
u16 flags;
#define SPI_CONTROLLER_HALF_DUPLEX BIT(0) /* can't do full duplex */
#define SPI_CONTROLLER_NO_RX BIT(1) /* can't do buffer read */
#define SPI_CONTROLLER_NO_TX BIT(2) /* can't do buffer write */
#define SPI_CONTROLLER_MUST_RX BIT(3) /* requires rx */
#define SPI_CONTROLLER_MUST_TX BIT(4) /* requires tx */
#define SPI_MASTER_GPIO_SS BIT(5) /* GPIO CS must select slave */
/* flag indicating this is an SPI slave controller */
bool slave;
/*
* on some hardware transfer / message size may be constrained
* the limit may depend on device transfer settings
*/
size_t (*max_transfer_size)(struct spi_device *spi);
size_t (*max_message_size)(struct spi_device *spi);
/* I/O mutex */
struct mutex io_mutex;
/* lock and mutex for SPI bus locking */
spinlock_t bus_lock_spinlock;
struct mutex bus_lock_mutex;
/* flag indicating that the SPI bus is locked for exclusive use */
bool bus_lock_flag;
/* Setup mode and clock, etc (spi driver may call many times).
*
* IMPORTANT: this may be called when transfers to another
* device are active. DO NOT UPDATE SHARED REGISTERS in ways
* which could break those transfers.
*/
int (*setup)(struct spi_device *spi);
/* bidirectional bulk transfers
*
* + The transfer() method may not sleep; its main role is
* just to add the message to the queue.
* + For now there's no remove-from-queue operation, or
* any other request management
* + To a given spi_device, message queueing is pure fifo
*
* + The controller's main job is to process its message queue,
* selecting a chip (for masters), then transferring data
* + If there are multiple spi_device children, the i/o queue
* arbitration algorithm is unspecified (round robin, fifo,
* priority, reservations, preemption, etc)
*
* + Chipselect stays active during the entire message
* (unless modified by spi_transfer.cs_change != 0).
* + The message transfers use clock and SPI mode parameters
* previously established by setup() for this device
*/
int (*transfer)(struct spi_device *spi,
struct spi_message *mesg); //这里是老方法
/* called on release() to free memory provided by spi_controller */
void (*cleanup)(struct spi_device *spi);
/*
* Used to enable core support for DMA handling, if can_dma()
* exists and returns true then the transfer will be mapped
* prior to transfer_one() being called. The driver should
* not modify or store xfer and dma_tx and dma_rx must be set
* while the device is prepared.
*/
bool (*can_dma)(struct spi_controller *ctlr,
struct spi_device *spi,
struct spi_transfer *xfer);
/*
* These hooks are for drivers that want to use the generic
* controller transfer queueing mechanism. If these are used, the
* transfer() function above must NOT be specified by the driver.
* Over time we expect SPI drivers to be phased over to this API.
*/
bool queued;
struct kthread_worker kworker;
struct task_struct *kworker_task;
struct kthread_work pump_messages;
spinlock_t queue_lock;
struct list_head queue;
struct spi_message *cur_msg;
bool idling;
bool busy;
bool running;
bool rt;
bool auto_runtime_pm;
bool cur_msg_prepared;
bool cur_msg_mapped;
struct completion xfer_completion;
size_t max_dma_len;
int (*prepare_transfer_hardware)(struct spi_controller *ctlr);
int (*transfer_one_message)(struct spi_controller *ctlr,
struct spi_message *mesg);
int (*unprepare_transfer_hardware)(struct spi_controller *ctlr);
int (*prepare_message)(struct spi_controller *ctlr,
struct spi_message *message);
int (*unprepare_message)(struct spi_controller *ctlr,
struct spi_message *message);
int (*slave_abort)(struct spi_controller *ctlr);
/*
* These hooks are for drivers that use a generic implementation
* of transfer_one_message() provied by the core.
*/
void (*set_cs)(struct spi_device *spi, bool enable);
int (*transfer_one)(struct spi_controller *ctlr, struct spi_device *spi,
struct spi_transfer *transfer); //这里是新方法
void (*handle_err)(struct spi_controller *ctlr,
struct spi_message *message);
/* Optimized handlers for SPI memory-like operations. */
const struct spi_controller_mem_ops *mem_ops;
/* gpio chip select */
int *cs_gpios;
/* statistics */
struct spi_statistics statistics;
/* DMA channels for use with core dmaengine helpers */
struct dma_chan *dma_tx;
struct dma_chan *dma_rx;
/* dummy data for full duplex devices */
void *dummy_rx;
void *dummy_tx;
int (*fw_translate_cs)(struct spi_controller *ctlr, unsigned cs);
};
每个spi设备，会构造一个spi_message。 对于每一个spi_master，都有一个queue，队列里可以放多个spi_message。spi_message结构体中有一个spi_device，用来表示要传输给哪一个设备，这些spi_message里又有一个或者多个spi_transfer。
二、SPI传输函数的两种方法
//driver/spi/spi.c
//发起一次同步的spi传输，
//1.根据spi_device找到master
//2.把spi_message放入spi_master的队列中
//3.会用线程去触发一次传输，会从队列里执行取出message，启动一次传输，会等待执行完毕（schedule_work）
//执行完毕通过中断唤醒。唤醒应用程序
//4.等待message完成，或者出错
int spi_sync(struct spi_device *spi, struct spi_message *message)
{
int ret;
mutex_lock(&spi->controller->bus_lock_mutex);
ret = __spi_sync(spi, message);
mutex_unlock(&spi->controller->bus_lock_mutex);
return ret;
}
EXPORT_SYMBOL_GPL(spi_sync);
static void spi_complete(void *arg)
{
complete(arg);
}
static int __spi_sync(struct spi_device *spi, struct spi_message *message)
{
DECLARE_COMPLETION_ONSTACK(done);
int status;
struct spi_controller *ctlr = spi->controller;
unsigned long flags;
status = __spi_validate(spi, message);
if (status != 0)
return status;
message->complete = spi_complete; //提供了一个完成函数，等线程或者中断完成后，执行这个完成函数。（在上面）
message->context = &done;
message->spi = spi;
SPI_STATISTICS_INCREMENT_FIELD(&ctlr->statistics, spi_sync);
SPI_STATISTICS_INCREMENT_FIELD(&spi->statistics, spi_sync);
/* If we're not using the legacy transfer method then we will
* try to transfer in the calling context so special case.
* This code would be less tricky if we could remove the
* support for driver implemented message queues.
*/
if (ctlr->transfer == spi_queued_transfer) { //走这个分支使用新方法，spi_queued_transfer是管理队列的函数
spin_lock_irqsave(&ctlr->bus_lock_spinlock, flags);
trace_spi_message_submit(message);
status = __spi_queued_transfer(spi, message, false); //新方法放入队列
spin_unlock_irqrestore(&ctlr->bus_lock_spinlock, flags);
} else { //走这个分支使用老方法
status = spi_async_locked(spi, message); //自己实现transfer函数，自己管理队列
}
if (status == 0) {
/* Push out the messages in the calling context if we
* can.
*/
if (ctlr->transfer == spi_queued_transfer) {
SPI_STATISTICS_INCREMENT_FIELD(&ctlr->statistics,
spi_sync_immediate);
SPI_STATISTICS_INCREMENT_FIELD(&spi->statistics,
spi_sync_immediate);
__spi_pump_messages(ctlr, false); //新方法使用pump取出队列
}
wait_for_completion(&done); //这里等待结果
status = message->status;
}
message->context = NULL;
return status;
}
//kernel/schedule/completion.c
void complete(struct completion *x)
{
unsigned long flags;
spin_lock_irqsave(&x->wait.lock, flags);
if (x->done != UINT_MAX)
x->done++;
__wake_up_locked(&x->wait, TASK_NORMAL, 1); //唤醒当前的任务
spin_unlock_irqrestore(&x->wait.lock, flags);
}
EXPORT_SYMBOL(complete);

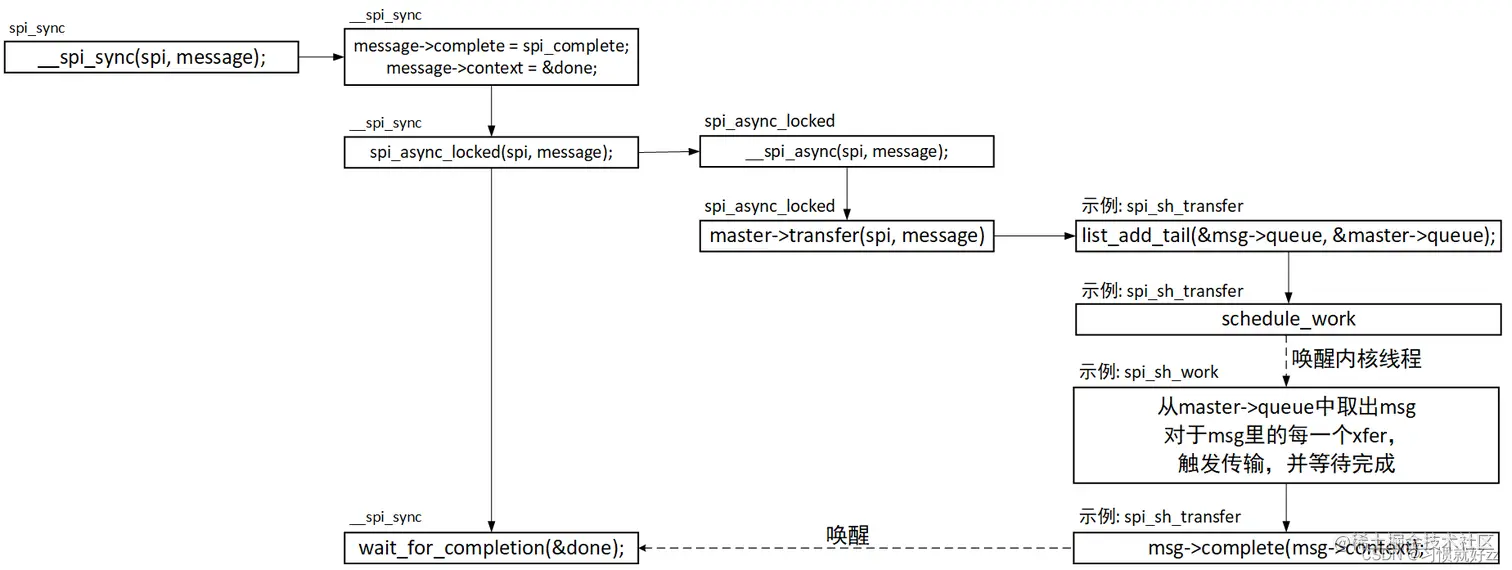

2.1 老方法
int spi_async_locked(struct spi_device *spi, struct spi_message *message)
{
struct spi_controller *ctlr = spi->controller;
//...
ret = __spi_async(spi, message);
//...
return ret;
}
EXPORT_SYMBOL_GPL(spi_async_locked);
static int __spi_async(struct spi_device *spi, struct spi_message *message)
{
struct spi_controller *ctlr = spi->controller;
//...
return ctlr->transfer(spi, message); //使用transfer函数，自己提供的。自己管理队列，自己触发传输
}
transfer函数示例（spi_sh_transfer）： 需要自己管理队列，自己实现work函数，work函数要从队列里取出数据，从message里获取xfer，然后触发传输。
2.2 新方法
//__spi_sync-->__spi_queued_transfer
static int __spi_queued_transfer(struct spi_device *spi,
struct spi_message *msg,
bool need_pump)
{
struct spi_controller *ctlr = spi->controller;
//....
list_add_tail(&msg->queue, &ctlr->queue); //把spi_message放入queue队列
if (!ctlr->busy && need_pump)
kthread_queue_work(&ctlr->kworker, &ctlr->pump_messages);
spin_unlock_irqrestore(&ctlr->queue_lock, flags);
return 0;
}
//__spi_sync-->__spi_pump_messages
static void __spi_pump_messages(struct spi_controller *ctlr, bool in_kthread)
{
unsigned long flags;
bool was_busy = false;
int ret;
if (ctlr->cur_msg) { //如果有message在使用，就唤醒下一次
spin_unlock_irqrestore(&ctlr->queue_lock, flags);
return;
}
//....
/* Extract head of queue */
ctlr->cur_msg =
list_first_entry(&ctlr->queue, struct spi_message, queue); //获取queue队列的头部message
list_del_init(&ctlr->cur_msg->queue); //把msg移出队列
if (ctlr->busy)
was_busy = true;
else
ctlr->busy = true;
spin_unlock_irqrestore(&ctlr->queue_lock, flags);
mutex_lock(&ctlr->io_mutex);
//....
if (!was_busy)
trace_spi_controller_busy(ctlr);
if (!was_busy && ctlr->prepare_transfer_hardware) {
ret = ctlr->prepare_transfer_hardware(ctlr); //准备操作，根据spi_master设置硬件（比如DMA等）
//...
}
trace_spi_message_start(ctlr->cur_msg);
if (ctlr->prepare_message) {
ret = ctlr->prepare_message(ctlr, ctlr->cur_msg); //准备操作，根据msg设置硬件（比如片选等）
//...
ctlr->cur_msg_prepared = true;
}
ret = spi_map_msg(ctlr, ctlr->cur_msg); //分配dummy buf、为DMA映射内存
//...
ret = ctlr->transfer_one_message(ctlr, ctlr->cur_msg); //传输一个msg，等待传输完成。这里的函数使用spi_transfer_one_message
//...
out:
mutex_unlock(&ctlr->io_mutex);
/* Prod the scheduler in case transfer_one() was busy waiting */
if (!ret)
cond_resched();
}
默认的传输一个message函数
static int spi_transfer_one_message(struct spi_controller *ctlr,
struct spi_message *msg)
{
struct spi_transfer *xfer;
bool keep_cs = false;
int ret = 0;
unsigned long long ms = 1;
struct spi_statistics *statm = &ctlr->statistics;
struct spi_statistics *stats = &msg->spi->statistics;
spi_set_cs(msg->spi, true); //设置片选信号
SPI_STATISTICS_INCREMENT_FIELD(statm, messages);
SPI_STATISTICS_INCREMENT_FIELD(stats, messages);
list_for_each_entry(xfer, &msg->transfers, transfer_list) { //对于msg中的每一个xfer
trace_spi_transfer_start(msg, xfer);
spi_statistics_add_transfer_stats(statm, xfer, ctlr);
spi_statistics_add_transfer_stats(stats, xfer, ctlr);
if (xfer->tx_buf || xfer->rx_buf) {
reinit_completion(&ctlr->xfer_completion); //似乎是重置信号量
ret = ctlr->transfer_one(ctlr, msg->spi, xfer); //传输一个xfer
if (ret < 0) {
SPI_STATISTICS_INCREMENT_FIELD(statm,
errors);
SPI_STATISTICS_INCREMENT_FIELD(stats,
errors);
dev_err(&msg->spi->dev,
"SPI transfer failed: %d\n", ret);
goto out;
}
if (ret > 0) {
ret = 0;
ms = 8LL * 1000LL * xfer->len;
do_div(ms, xfer->speed_hz);
ms += ms + 200; /* some tolerance */
if (ms > UINT_MAX)
ms = UINT_MAX;
ms = wait_for_completion_timeout(&ctlr->xfer_completion,
msecs_to_jiffies(ms)); //等待xfer完成
}
if (ms == 0) {
SPI_STATISTICS_INCREMENT_FIELD(statm,
timedout);
SPI_STATISTICS_INCREMENT_FIELD(stats,
timedout);
dev_err(&msg->spi->dev,
"SPI transfer timed out\n");
msg->status = -ETIMEDOUT;
}
} else {
if (xfer->len)
dev_err(&msg->spi->dev,
"Bufferless transfer has length %u\n",
xfer->len);
}
trace_spi_transfer_stop(msg, xfer);
if (msg->status != -EINPROGRESS)
goto out;
if (xfer->delay_usecs) {
u16 us = xfer->delay_usecs;
if (us <= 10)
udelay(us);
else
usleep_range(us, us + DIV_ROUND_UP(us, 10));
}
if (xfer->cs_change) {
if (list_is_last(&xfer->transfer_list,
&msg->transfers)) {
keep_cs = true;
} else {
spi_set_cs(msg->spi, false);
udelay(10);
spi_set_cs(msg->spi, true);
}
}
msg->actual_length += xfer->len;
}
out:
if (ret != 0 || !keep_cs)
spi_set_cs(msg->spi, false); //取消片选
if (msg->status == -EINPROGRESS)
msg->status = ret;
if (msg->status && ctlr->handle_err)
ctlr->handle_err(ctlr, msg);
spi_res_release(ctlr, msg);
spi_finalize_current_message(ctlr); //结束当前msg
return ret;
}
在drivers/spi/spi-bitbang.c 中查看示例：
static int spi_bitbang_transfer_one(struct spi_master *master,
struct spi_device *spi,
struct spi_transfer *transfer)
{
struct spi_bitbang *bitbang = spi_master_get_devdata(master);
int status = 0;
if (bitbang->setup_transfer) {
status = bitbang->setup_transfer(spi, transfer); //需要实现的函数
if (status < 0)
goto out;
}
if (transfer->len)
status = bitbang->txrx_bufs(spi, transfer); //需要实现的函数，1启动传输，2等待传输完毕，通过中断唤醒
if (status == transfer->len)
status = 0;
else if (status >= 0)
status = -EREMOTEIO;
out:
spi_finalize_current_transfer(master); //这里会去执行complete函数，去唤醒wait_for_completion_timeout
return status;
}
void spi_finalize_current_message(struct spi_controller *ctlr)
{
struct spi_message *mesg;
unsigned long flags;
int ret;
spin_lock_irqsave(&ctlr->queue_lock, flags);
mesg = ctlr->cur_msg;
spin_unlock_irqrestore(&ctlr->queue_lock, flags);
spi_unmap_msg(ctlr, mesg); //反向的操作，对应前面的map操作
if (ctlr->cur_msg_prepared && ctlr->unprepare_message) {
ret = ctlr->unprepare_message(ctlr, mesg); //反向的操作，对应前面的prepare操作
if (ret) {
dev_err(&ctlr->dev, "failed to unprepare message: %d\n",
ret);
}
}
spin_lock_irqsave(&ctlr->queue_lock, flags);
ctlr->cur_msg = NULL;
ctlr->cur_msg_prepared = false;
kthread_queue_work(&ctlr->kworker, &ctlr->pump_messages); //如果还有其他消息，就唤醒一个内核线程，取出队列来处理
spin_unlock_irqrestore(&ctlr->queue_lock, flags);
trace_spi_message_done(mesg);
mesg->state = NULL;
if (mesg->complete) //唤醒wait_for_completion
mesg->complete(mesg->context);
}
EXPORT_SYMBOL_GPL(spi_finalize_current_message);
新方法需要提供一些传输函数
