类的继承关系
ReentrantReadWriteLock实现了ReadWriterLock接口,同时还实现了Serializable，ReadWriterLock接口中定义了读写锁的规范。
public class ReentrantReadWriteLock
implements ReadWriteLock, java.io.Serializable
类的内部组成

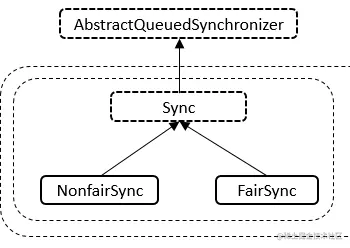

类的内部共有5个内部类 分别为Sync，NonfairSync,FairSync,ReadLock,WriterLock 前三个和ReentrantLock类似

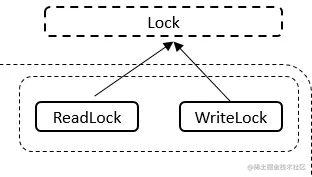

后两个类则实现了Lock接口
下面开始逐步分析这5个类
Sync
abstract static class Sync extends AbstractQueuedSynchronizer{
private static final long serialVersionUID = 6317671515068378041L;
//高16位为读锁，低16位为写锁
static final int SHARED_SHIFT = 16;
//读锁单位
static final int SHARED_UNIT = (1 << SHARED_SHIFT);
//读锁最大数量
static final int MAX_COUNT = (1 << SHARED_SHIFT) - 1;
//写锁最大数量
static final int EXCLUSIVE_MASK = (1 << SHARED_SHIFT) - 1;
//表示占有读锁的线程数量
static int sharedCount(int c) { return c >>> SHARED_SHIFT; }
//表示占有写锁的线程数量
static int exclusiveCount(int c) { return c & EXCLUSIVE_MASK; }
/**
*
* 这是一个计数器的内部类
*/
static final class HoldCounter {
//计数
int count = 0;
// 获得当前线程的tid值
final long tid = getThreadId(Thread.currentThread());
}
/**
* 本地线程计数器类
*/
static final class ThreadLocalHoldCounter
extends ThreadLocal<HoldCounter> {
//重写了初始化的方法
public HoldCounter initialValue() {
return new HoldCounter();
}
}
// 本地线程计数器
private transient ThreadLocalHoldCounter readHolds;
//缓存计数器
private transient HoldCounter cachedHoldCounter;
//第一个读线程
private transient Thread firstReader = null;
//第一个读线程的计数
private transient int firstReaderHoldCount;
Sync() {
// 本地线程计数器
readHolds = new ThreadLocalHoldCounter();
//设置AQS的状态
setState(getState()); // ensures visibility of readHolds
}
abstract boolean readerShouldBlock();
abstract boolean writerShouldBlock();
//释放写锁资源
protected final boolean tryRelease(int releases) {
//判断是否为独占线程
if (!isHeldExclusively())
throw new IllegalMonitorStateException();
//计算释放后的写锁数量
int nextc = getState() - releases;
//是否释放成功
boolean free = exclusiveCount(nextc) == 0;
if (free)
//设置独占线程为空
setExclusiveOwnerThread(null);
//设置AQS状态
setState(nextc);
return free;
}
//获取写锁
protected final boolean tryAcquire(int acquires) {
//获取当前线程
Thread current = Thread.currentThread();
//获取AQS状态
int c = getState();
//写线程数量
int w = exclusiveCount(c);
if (c != 0) {
// 写线程数量为0或者当前线程没有占有独占资源
if (w == 0 || current != getExclusiveOwnerThread())
return false;
// 判断是否超过最高写线程数量
if (w + exclusiveCount(acquires) > MAX_COUNT)
throw new Error("Maximum lock count exceeded");
// 设置AQS状态
setState(c + acquires);
return true;
}
//写线程是否应该被阻塞
if (writerShouldBlock() ||
!compareAndSetState(c, c + acquires))
return false;
//设置独占线程
setExclusiveOwnerThread(current);
return true;
}
//读锁线程释放锁
protected final boolean tryReleaseShared(int unused) {
Thread current = Thread.currentThread();
if (firstReader == current) {
// 读线程占用的资源数为1
if (firstReaderHoldCount == 1)
firstReader = null;
else //减少占用的资源
firstReaderHoldCount--;
} else {
//获取当前线程计数器
HoldCounter rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current))
//获取当前线程对应的计算器
rh = readHolds.get();
//获取计数
int count = rh.count;
if (count <= 1) {
readHolds.remove();
if (count <= 0)
throw unmatchedUnlockException();
}
--rh.count;
}
for (;;) {
int c = getState();
int nextc = c - SHARED_UNIT;
if (compareAndSetState(c, nextc))
return nextc == 0;
}
}
private IllegalMonitorStateException unmatchedUnlockException() {
return new IllegalMonitorStateException(
"attempt to unlock read lock, not locked by current thread");
}
//读锁线程获取读锁
protected final int tryAcquireShared(int unused) {
Thread current = Thread.currentThread();
int c = getState();
if (exclusiveCount(c) != 0 &&
getExclusiveOwnerThread() != current)
return -1;
int r = sharedCount(c);
//写线程数不为0并且占有资源的不是当前线程
if (!readerShouldBlock() &&
r < MAX_COUNT &&
compareAndSetState(c, c + SHARED_UNIT)) {
if (r == 0) {
firstReader = current;
firstReaderHoldCount = 1;
} else if (firstReader == current) {
firstReaderHoldCount++;
} else {
HoldCounter rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current))
cachedHoldCounter = rh = readHolds.get();
else if (rh.count == 0)
readHolds.set(rh);
rh.count++;
}
return 1;
}
return fullTryAcquireShared(current);
}
final int fullTryAcquireShared(Thread current) {
HoldCounter rh = null;
for (;;) {
int c = getState();
if (exclusiveCount(c) != 0) {
if (getExclusiveOwnerThread() != current)
return -1;
// else we hold the exclusive lock; blocking here
// would cause deadlock.
} else if (readerShouldBlock()) {
// Make sure we're not acquiring read lock reentrantly
if (firstReader == current) {
// assert firstReaderHoldCount > 0;
} else {
if (rh == null) {
rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current)) {
rh = readHolds.get();
if (rh.count == 0)
readHolds.remove();
}
}
if (rh.count == 0)
return -1;
}
}
if (sharedCount(c) == MAX_COUNT)
throw new Error("Maximum lock count exceeded");
if (compareAndSetState(c, c + SHARED_UNIT)) {
if (sharedCount(c) == 0) {
firstReader = current;
firstReaderHoldCount = 1;
} else if (firstReader == current) {
firstReaderHoldCount++;
} else {
if (rh == null)
rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current))
rh = readHolds.get();
else if (rh.count == 0)
readHolds.set(rh);
rh.count++;
cachedHoldCounter = rh; // cache for release
}
return 1;
}
}
}
。。。。。
}
ReadLock和WriterLock中调用的方法均为Sync中的，不在赘述
构造函数
ReentrantReadWriteLock() 空参构造函数，默认是非公平锁
public ReentrantReadWriteLock() {
this(false);
}
ReentrantReadWriteLock(boolean) 有参构造函数，可以根据传入参数设置
public ReentrantReadWriteLock(boolean fair) {
sync = fair ? new FairSync() : new NonfairSync();
readerLock = new ReadLock(this);
writerLock = new WriteLock(this);
}
ReentrantReadWriteLock示例
import java.util.concurrent.locks.ReentrantReadWriteLock;
class ReadThread extends Thread {
private ReentrantReadWriteLock rrwLock;
public ReadThread(String name, ReentrantReadWriteLock rrwLock) {
super(name);
this.rrwLock = rrwLock;
}
public void run() {
System.out.println(Thread.currentThread().getName() + " trying to lock");
try {
rrwLock.readLock().lock();
System.out.println(Thread.currentThread().getName() + " lock successfully");
Thread.sleep(5000);
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
rrwLock.readLock().unlock();
System.out.println(Thread.currentThread().getName() + " unlock successfully");
}
}
}
class WriteThread extends Thread {
private ReentrantReadWriteLock rrwLock;
public WriteThread(String name, ReentrantReadWriteLock rrwLock) {
super(name);
this.rrwLock = rrwLock;
}
public void run() {
System.out.println(Thread.currentThread().getName() + " trying to lock");
try {
rrwLock.writeLock().lock();
System.out.println(Thread.currentThread().getName() + " lock successfully");
} finally {
rrwLock.writeLock().unlock();
System.out.println(Thread.currentThread().getName() + " unlock successfully");
}
}
}
public class ReentrantReadWriteLockDemo {
public static void main(String[] args) {
ReentrantReadWriteLock rrwLock = new ReentrantReadWriteLock();
ReadThread rt1 = new ReadThread("rt1", rrwLock);
ReadThread rt2 = new ReadThread("rt2", rrwLock);
WriteThread wt1 = new WriteThread("wt1", rrwLock);
rt1.start();
rt2.start();
wt1.start();
}
}
