spark集群基本搭建

第一步： 1、spark下载地址：

archive.apache.org/dist/spark

这里采用spark-3.1.2-bin-hadoop3.2.tgz

2、Scala安装

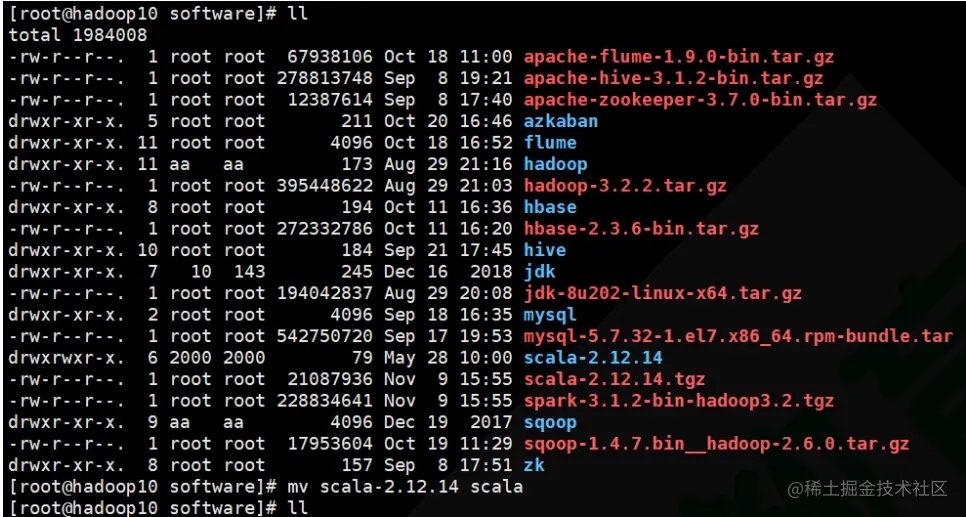

[root@hadoop10 software]# tar -zxvf scala-2.12.14.tgz
[root@hadoop10 software]# mv scala-2.12.14 scala

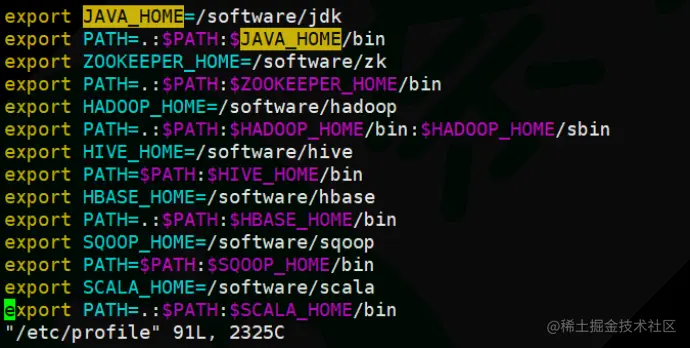

3、配置环境变量

export SCALA_HOME=/software/scala
export PATH=.:$PATH:$SCALA_HOME/bin

4、验证

[root@hadoop10 software]# source /etc/profile
[root@hadoop10 software]# scala -version
Scala code runner version 2.12.14 -- Copyright 2002-2021, LAMP/EPFL and
Lightbend, Inc.
[root@hadoop10 software]# scala
Welcome to Scala 2.12.14 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_202).
Type in expressions for evaluation. Or try :help.
scala> 6+6
res0: Int = 12
scala>

分发其他节点

scp -r /software/scala hadoop11:/software/
scp -r /software/scala hadoop12:/software/


export SCALA_HOME=/software/scala
export PATH=.:$PATH:$SCALA_HOME/bin

进行source
[root@hadoop12 software]# source /etc/profile

集群

hadoop10： master

hadoop11： worker/slave

hadoop12： worker/slave

第二步： spark安装 下载地址

archive.apache.org/dist/spark/…

[root@hadoop10 software]# tar -zxvf spark-3.1.2-bin-hadoop3.2.tgz
[root@hadoop10 software]# mv spark-3.1.2-bin-hadoop3.2 spark

配置文件

修改配置文件名称

[root@hadoop0 conf]# mv workers.template workers

vim workers

内容如下：
hadoop11
hadoop12

进入配置目录

cd /software/spark/conf

修改配置文件名称

mv spark-env.sh.template spark-env.sh

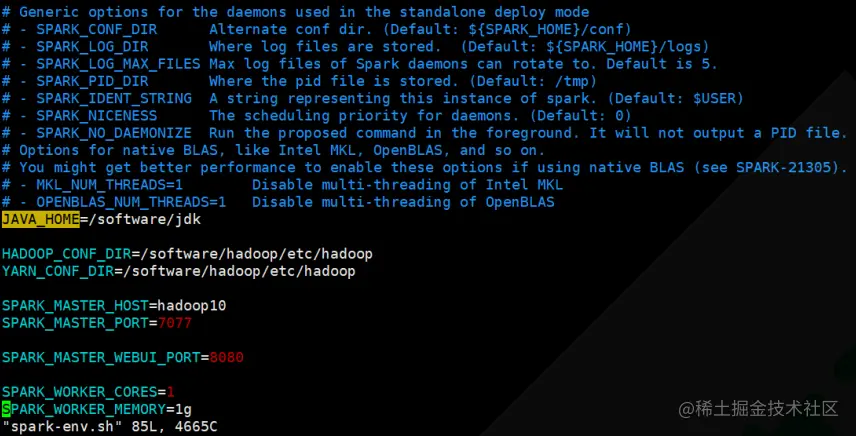

修改配置文件

vim spark-env.sh

增加如下内容：

## 设置JAVA安装目录

JAVA_HOME=/software/jdk

## HADOOP软件配置文件目录，读取HDFS上文件和运行Spark在YARN集群时需要,先提前配上

HADOOP_CONF_DIR=/software/hadoop/etc/hadoop

YARN_CONF_DIR=/software/hadoop/etc/hadoop

## 指定spark老大Master的IP和提交任务的通信端口

SPARK_MASTER_HOST=hadoop10

SPARK_MASTER_PORT=7077

SPARK_MASTER_WEBUI_PORT=8080

SPARK_WORKER_CORES=1

SPARK_WORKER_MEMORY=1g

分发到其他节点：

scp -r /software/spark hadoop11:/software/
scp -r /software/spark hadoop12:/software/

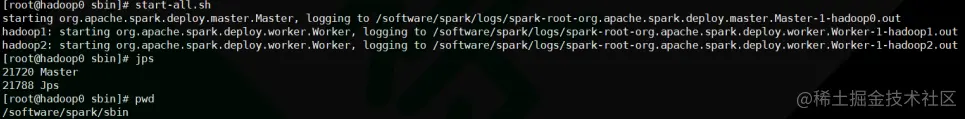

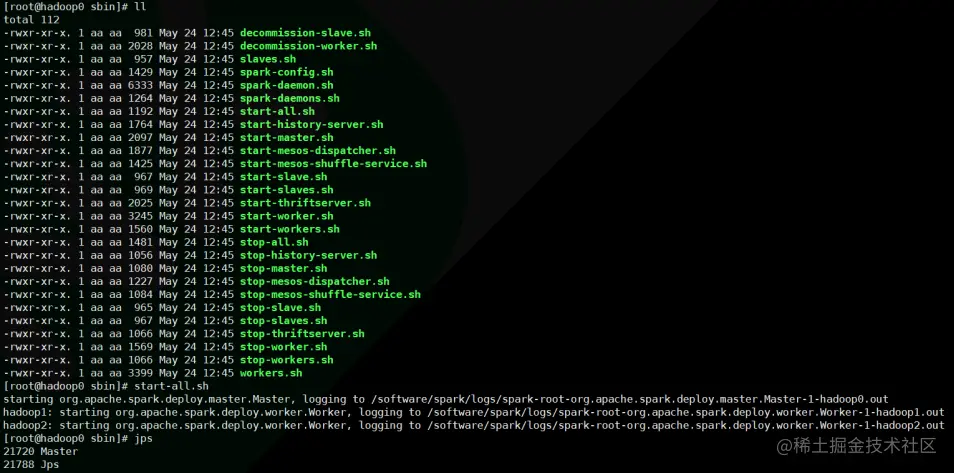

启动：

cd /software/spark/sbin
start-all.sh

/software/spark/sbin/start-all.sh

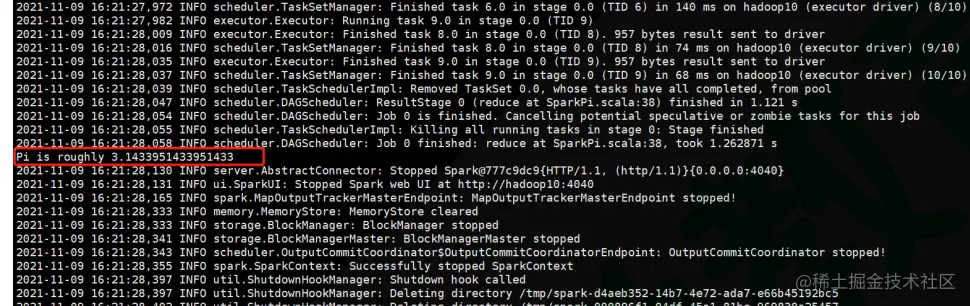

运行一个求PI的例子：

[root@hadoop10 bin]# cd /software/spark/bin/
[root@hadoop10 bin]# pwd
/software/spark/bin
[root@hadoop10 bin]# run-example SparkPi 10

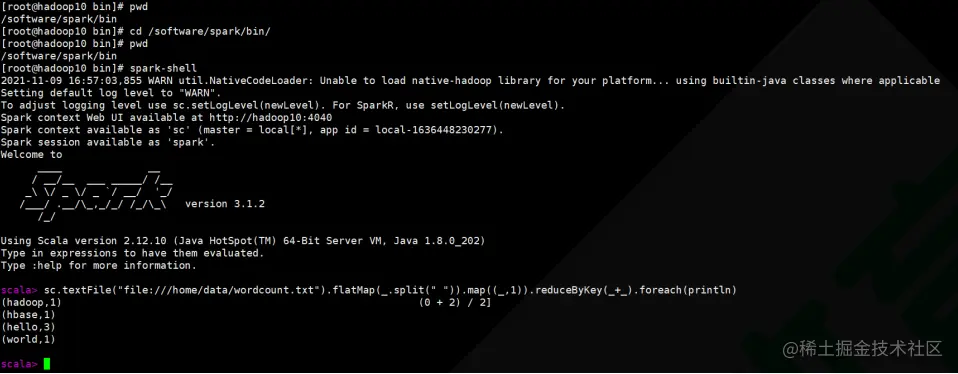

运行个WordCount的例子

[root@hadoop10 bin]# cd /software/spark/bin/

[root@hadoop10 bin]# pwd

/software/spark/bin

[root@hadoop10 bin]# spark-shell

2021-11-09 16:57:03,855 WARN util.NativeCodeLoader: Unable to load native-hadoop

library for your platform... using builtin-java classes where applicable

Setting default log level to "WARN".

To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use

setLogLevel(newLevel).

Spark context Web UI available at http://hadoop10:4040

Spark context available as 'sc' (master = local[*], app id = local-

1636448230277).

Spark session available as 'spark'.

Welcome to

____ __

/ __/__ ___ _____/ /__

_\ \/ _ \/ _ `/ __/ '_/

/___/ .__/\_,_/_/ /_/\_\ version 3.1.2

/_/

Using Scala version 2.12.10 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_202)

Type in expressions to have them evaluated.

Type :help for more information.

scala> sc.textFile("file:///home/data/wordcount.txt").flatMap(_.split("

")).map((_,1)).reduceByKey(_+_).foreach(println)

(hadoop,1) (0 + 2) / 2]

(hbase,1)

(hello,3)

(world,1)2.3.7.2 Spark集群模式

这种集群模式需要先启动Spark集群。

在/software/spark/bin 目录下面运行下面的命令

完整过程如下：

scala>
