1.docker基于二进制 roles

源码下载地址：github.com/raymond9999…

[root@ansible-server ansible]# mkdir -p roles/docker-binary/{tasks,files,vars}
[root@ansible-server ansible]# cd roles/docker-binary/
[root@ansible-server docker-binary]# ls
files  tasks  vars

[root@ansible-server docker-binary]# wget https://mirrors.cloud.tencent.com/docker-ce/linux/static/stable/x86_64/docker-20.10.9.tgz -P files/

[root@ansible-server docker-binary]# vim vars/main.yml
DOCKER_VERSION: 20.10.9

[root@ansible-server docker-binary]# vim files/docker.service
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
# the default is not to use systemd for cgroups because the delegate issues still
# exists and systemd currently does not support the cgroup feature set required
# for containers run by docker
ExecStart=/usr/bin/dockerd -H unix://var/run/docker.sock
ExecReload=/bin/kill -s HUP \$MAINPID
# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
# Uncomment TasksMax if your systemd version supports it.
# Only systemd 226 and above support this version.
#TasksMax=infinity
TimeoutStartSec=0
# set delegate yes so that systemd does not reset the cgroups of docker containers
Delegate=yes
# kill only the docker process, not all processes in the cgroup
KillMode=process
# restart the docker process if it exits prematurely
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target

[root@ansible-server docker-binary]# vim files/daemon.json
{
    "registry-mirrors": [
        "https://hzw5xiv7.mirror.aliyuncs.com",
        "https://docker.mirrors.ustc.edu.cn",
        "http://f1361db2.m.daocloud.io",
        "https://registry.docker-cn.com",
        "https://dockerhub.azk8s.cn",
        "https://reg-mirror.qiniu.com",
        "https://hub-mirror.c.163.com",
        "https://mirror.ccs.tencentyun.com"
    ]
}

[root@ansible-server docker-binary]# vim tasks/docker_files.yml
- name: unarchive  docker package
  unarchive:
    src: "docker-{{ DOCKER_VERSION }}.tgz"
    dest: /usr/local/src
- name: move docker files
  shell:
    cmd: mv /usr/local/src/docker/* /usr/bin/

[root@ansible-server docker-binary]# vim tasks/service_file.yml
- name: copy docker.service file
  copy:
    src: docker.service
    dest: /lib/systemd/system/docker.service

[root@ansible-server docker-binary]# vim tasks/set_mirror_accelerator.yml
- name: mkdir /etc/docker
  file:
    path: /etc/docker
    state: directory
- name: set mirror_accelerator
  copy:
    src: daemon.json
    dest: /etc/docker/

[root@ansible-server docker-binary]# vim tasks/set_alias.yml
- name: set docker alias
  lineinfile:
    path: ~/.bashrc
    line: "{{ item }}"
  loop:
    - "alias rmi=\"docker images -qa|xargs docker rmi -f\""
    - "alias rmc=\"docker ps -qa|xargs docker rm -f\""

[root@ansible-server docker-binary]# vim tasks/service.yml
- name: start docker
  systemd:
    name: docker
    state: started
    enabled: yes
    daemon_reload: yes

[root@ansible-server docker-binary]# vim tasks/set_swap.yml
- name: set WARNING No swap limit support
  replace:
    path: /etc/default/grub
    regexp: '^(GRUB_CMDLINE_LINUX=.*)\"$'
    replace: '\1 swapaccount=1"'
  when:
    - ansible_distribution=="Ubuntu"
- name: update-grub
  shell:
    cmd: update-grub
  when:
    - ansible_distribution=="Ubuntu"
- name: reboot Ubuntu system
  reboot:
  when:
    - ansible_distribution=="Ubuntu"

[root@ansible-server docker-binary]# vim tasks/main.yml
- include: docker_files.yml
- include: service_file.yml
- include: set_mirror_accelerator.yml
- include: set_alias.yml
- include: service.yml
- include: set_swap.yml

[root@ansible-server docker-binary]# cd ../../
[root@ansible-server ansible]# tree roles/docker-binary/
roles/docker-binary/
├── files
│   ├── daemon.json
│   ├── docker-20.10.9.tgz
│   └── docker.service
├── tasks
│   ├── docker_files.yml
│   ├── main.yml
│   ├── service_file.yml
│   ├── service.yml
│   ├── set_alias.yml
│   ├── set_mirror_accelerator.yml
│   └── set_swap.yml
└── vars
    └── main.yml

3 directories, 11 files

2.docker-compose roles

[root@ansible-server ansible]# mkdir -p roles/docker-compose/{tasks,files}
[root@ansible-server ansible]# cd roles/docker-compose/
[root@ansible-server docker-compose]# ls
files  tasks

[root@ansible-server docker-compose]# wget https://github.com/docker/compose/releases/download/1.29.2/docker-compose-Linux-x86_64 -P files

[root@ansible-server docker-compose]# vim tasks/install_docker_compose.yml
- name: copy docker compose file
  copy:
    src: docker-compose-linux-x86_64
    dest: /usr/bin/docker-compose
    mode: 755

[root@ansible-server docker-compose]# vim tasks/main.yml
- include: install_docker_compose.yml

[root@ansible-server ansible]# tree roles/docker-compose/
roles/docker-compose/
├── files
│   └── docker-compose-linux-x86_64
└── tasks
    ├── install_docker_compose.yml
    └── main.yml

2 directories, 3 files

3.harbor-https roles

[root@ansible-server ansible]# mkdir -p roles/harbor-https/{tasks,files,templates,vars,meta}
[root@ansible-server ansible]# cd roles/harbor-https/
[root@ansible-server harbor-https]# ls
files  meta  tasks  templates  vars

[root@ansible-server harbor-https]# wget https://github.com/goharbor/harbor/releases/download/v2.3.5/harbor-offline-installer-v2.3.5.tgz -P files/

[root@ansible-server harbor-https]# vim templates/harbor.service.j2
[Unit]
Description=Harbor
After=docker.service systemd-networkd.service systemd-resolved.service
Requires=docker.service
Documentation=http://github.com/vmware/harbor

[Service]
Type=simple
Restart=on-failure
RestartSec=5
ExecStart=/usr/bin/docker-compose -f {{ HARBOR_INSTALL_DIR }}/harbor/docker-compose.yml up
ExecStop=/usr/bin/docker-compose -f {{ HARBOR_INSTALL_DIR }}/harbor/docker-compose.yml down

[Install]
WantedBy=multi-user.target

[root@ansible-server harbor-https]# vim vars/main.yml
HARBOR_INSTALL_DIR: /apps
HARBOR_VERSION: 2.3.5
HARBOR_ADMIN_PASSWORD: 123456
DOMAIN: raymonds.cc
HARBOR_DOMAIN: harbor.raymonds.cc

[root@ansible-server harbor-https]# vim tasks/harbor_files.yml
- name: create HARBOR_INSTALL_DIR directory
  file:
    path: "{{ HARBOR_INSTALL_DIR }}"
    state: directory
- name: unarchive  harbor package
  unarchive:
    src: "harbor-offline-installer-v{{ HARBOR_VERSION }}.tgz"
    dest: "{{ HARBOR_INSTALL_DIR }}/"
    creates: "{{ HARBOR_INSTALL_DIR }}/harbor"

[root@ansible-server harbor-https]# vim tasks/create_certs.yml
- name: touch file
  file:
    path: /root/.rnd
    state: touch
- name: create certs directory
  file:
    path: "{{ HARBOR_INSTALL_DIR }}/harbor/certs/"
    state: directory
- name: create ca.crt file
  shell:
    chdir: "{{ HARBOR_INSTALL_DIR }}/harbor/certs/"
    cmd: openssl req -newkey rsa:4096 -nodes -sha256 -keyout ca.key -x509 -subj "/CN=ca.{{ DOMAIN }}" -days 365 -out ca.crt
- name: create hostname.csr file
  shell:
    chdir: "{{ HARBOR_INSTALL_DIR }}/harbor/certs/"
    cmd: openssl req -newkey rsa:4096 -nodes -sha256  -subj "/CN={{ HARBOR_DOMAIN }}" -keyout {{ HARBOR_DOMAIN }}.key -out {{ HARBOR_DOMAIN }}.csr
- name: create hostname.csr file
  shell:
    chdir: "{{ HARBOR_INSTALL_DIR }}/harbor/certs/"
    cmd: openssl x509 -req -in {{ HARBOR_DOMAIN }}.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out {{ HARBOR_DOMAIN }}.crt

[root@ansible-server harbor-https]# vim tasks/config.yml
- name: mv harbor.yml
  shell:
    cmd: mv {{ HARBOR_INSTALL_DIR }}/harbor/harbor.yml.tmpl {{ HARBOR_INSTALL_DIR }}/harbor/harbor.yml
    creates: "{{ HARBOR_INSTALL_DIR }}/harbor/harbor.yml"
- name: set harbor.yml file 'hostname' string line
  replace:
    path: "{{ HARBOR_INSTALL_DIR }}/harbor/harbor.yml"
    regexp: '^(hostname:) .*'
    replace: '\1 {{ ansible_default_ipv4.address }}'
- name: set harbor.yml file 'harbor_admin_password' string line
  replace:
    path: "{{ HARBOR_INSTALL_DIR }}/harbor/harbor.yml"
    regexp: '^(harbor_admin_password:) .*'
    replace: '\1 {{ HARBOR_ADMIN_PASSWORD }}'
- name: set harbor.yml file 'certificate' string line
  replace:
    path: "{{ HARBOR_INSTALL_DIR }}/harbor/harbor.yml"
    regexp: '  (certificate:) .*'
    replace: '  \1 {{ HARBOR_INSTALL_DIR }}/harbor/certs/{{ HARBOR_DOMAIN }}.crt'
- name: set harbor.yml file 'private_key' string line
  replace:
    path: "{{ HARBOR_INSTALL_DIR }}/harbor/harbor.yml"
    regexp: '  (private_key:) .*'
    replace: '  \1 {{ HARBOR_INSTALL_DIR }}/harbor/certs/{{ HARBOR_DOMAIN }}.key'

[root@ansible-server harbor-https]# vim tasks/install_python.yml
- name: install CentOS or Rocky python
  yum:
    name: python3
  when:
    - (ansible_distribution=="CentOS" or ansible_distribution=="Rocky")
- name: delete lock files
  file:
    path: "{{ item }}"
    state: absent
  loop:
    - /var/lib/dpkg/lock
    - /var/lib/apt/lists/lock
    - /var/cache/apt/archives/lock
  when:
    - ansible_distribution=="Ubuntu"
- name: apt update
  apt:
    update_cache: yes
    force: yes
  when:
    - ansible_distribution=="Ubuntu"
- name: install Ubuntu python
  apt:
    name: python3
  when:
    - ansible_distribution=="Ubuntu"

[root@ansible-server harbor-https]# vim tasks/install_harbor.yml
- name: install harbor
  shell:
    cmd: "{{ HARBOR_INSTALL_DIR }}/harbor/install.sh"

[root@ansible-server harbor-https]# vim tasks/service_file.yml
- name: copy harbor.service
  template:
    src: harbor.service.j2
    dest: /lib/systemd/system/harbor.service

[root@ansible-server harbor-https]# vim tasks/service.yml
- name: service enable
  systemd:
    name: harbor
    state: started
    enabled: yes
    daemon_reload: yes

[root@ansible-server harbor-https]# vim tasks/main.yml
- include: harbor_files.yml
- include: create_certs.yml
- include: config.yml
- include: install_python.yml
- include: install_harbor.yml
- include: service_file.yml
- include: service.yml

#这里是harbor依赖的角色，docker-binary就是docker基于二进制安装,根据情况修改
[root@ansible-server harbor-https]# vim meta/main.yml
dependencies:
  - role: docker-binary
  - role: docker-compose

[root@ansible-server harbor-https]# cd ../../
[root@ansible-server ansible]# tree roles/harbor-https/
roles/harbor-https/
├── files
│   └── harbor-offline-installer-v2.3.5.tgz
├── meta
│   └── main.yml
├── tasks
│   ├── config.yml
│   ├── create_certs.yml
│   ├── harbor_files.yml
│   ├── install_harbor.yml
│   ├── install_python.yml
│   ├── main.yml
│   ├── service_file.yml
│   └── service.yml
├── templates
│   └── harbor.service.j2
└── vars
    └── main.yml

5 directories, 12 files

[root@ansible-server ansible]# vim harbor_https_role.yml
---
- hosts: all

  roles:
    - role: harbor-https

[root@ansible-server ansible]# ansible-playbook harbor_https_role.yml

PLAY [all] ************************************************************************************************************************************

TASK [Gathering Facts] ************************************************************************************************************************
ok: [172.31.0.103]
ok: [172.31.0.104]
ok: [172.31.0.105]
ok: [172.31.0.101]
ok: [172.31.0.102]

TASK [docker-binary : unarchive  docker package] **********************************************************************************************
changed: [172.31.0.101]
changed: [172.31.0.102]
changed: [172.31.0.105]
changed: [172.31.0.104]
changed: [172.31.0.103]

TASK [docker-binary : move docker files] ******************************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.104]
changed: [172.31.0.102]
changed: [172.31.0.101]

TASK [docker-binary : copy docker.service file] ***********************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.104]
changed: [172.31.0.102]
changed: [172.31.0.101]

TASK [docker-binary : mkdir /etc/docker] ******************************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.105]
changed: [172.31.0.102]
changed: [172.31.0.101]

TASK [docker-binary : set mirror_accelerator] *************************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.104]
changed: [172.31.0.101]
changed: [172.31.0.102]

TASK [docker-binary : set docker alias] *******************************************************************************************************
changed: [172.31.0.103] => (item=alias rmi="docker images -qa|xargs docker rmi -f")
changed: [172.31.0.104] => (item=alias rmi="docker images -qa|xargs docker rmi -f")
changed: [172.31.0.102] => (item=alias rmi="docker images -qa|xargs docker rmi -f")
changed: [172.31.0.105] => (item=alias rmi="docker images -qa|xargs docker rmi -f")
changed: [172.31.0.101] => (item=alias rmi="docker images -qa|xargs docker rmi -f")
changed: [172.31.0.103] => (item=alias rmc="docker ps -qa|xargs docker rm -f")
changed: [172.31.0.104] => (item=alias rmc="docker ps -qa|xargs docker rm -f")
changed: [172.31.0.105] => (item=alias rmc="docker ps -qa|xargs docker rm -f")
changed: [172.31.0.101] => (item=alias rmc="docker ps -qa|xargs docker rm -f")
changed: [172.31.0.102] => (item=alias rmc="docker ps -qa|xargs docker rm -f")

TASK [docker-binary : start docker] ***********************************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.101]
changed: [172.31.0.102]
changed: [172.31.0.104]
changed: [172.31.0.105]

TASK [docker-binary : set WARNING No swap limit support] **************************************************************************************
skipping: [172.31.0.101]
skipping: [172.31.0.102]
skipping: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.104]

TASK [docker-binary : update-grub] ************************************************************************************************************
skipping: [172.31.0.102]
skipping: [172.31.0.101]
skipping: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.104]

TASK [docker-binary : reboot Ubuntu system] ***************************************************************************************************
skipping: [172.31.0.101]
skipping: [172.31.0.102]
skipping: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.105]

TASK [docker-compose : copy docker compose file] **********************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.104]
changed: [172.31.0.101]
changed: [172.31.0.102]

TASK [harbor-https : create HARBOR_INSTALL_DIR directory] *************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.105]
changed: [172.31.0.101]
changed: [172.31.0.102]

TASK [harbor-https : unarchive  harbor package] ***********************************************************************************************
changed: [172.31.0.102]
changed: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.101]
changed: [172.31.0.104]

TASK [harbor-https : touch file] **************************************************************************************************************
changed: [172.31.0.104]
changed: [172.31.0.105]
changed: [172.31.0.103]
changed: [172.31.0.101]
changed: [172.31.0.102]

TASK [harbor-https : create certs directory] **************************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.105]
changed: [172.31.0.102]
changed: [172.31.0.101]

TASK [harbor-https : create ca.crt file] ******************************************************************************************************
changed: [172.31.0.105]
changed: [172.31.0.103]
changed: [172.31.0.101]
changed: [172.31.0.102]
changed: [172.31.0.104]

TASK [harbor-https : create hostname.csr file] ************************************************************************************************
changed: [172.31.0.102]
changed: [172.31.0.104]
changed: [172.31.0.101]
changed: [172.31.0.105]
changed: [172.31.0.103]

TASK [harbor-https : create hostname.csr file] ************************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.101]
changed: [172.31.0.105]
changed: [172.31.0.102]

TASK [harbor-https : mv harbor.yml] ***********************************************************************************************************
changed: [172.31.0.104]
changed: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.101]
changed: [172.31.0.102]

TASK [harbor-https : set harbor.yml file 'hostname' string line] ******************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.104]
changed: [172.31.0.101]
changed: [172.31.0.102]

TASK [harbor-https : set harbor.yml file 'harbor_admin_password' string line] *****************************************************************
changed: [172.31.0.103]
changed: [172.31.0.101]
changed: [172.31.0.104]
changed: [172.31.0.105]
changed: [172.31.0.102]

TASK [harbor-https : set harbor.yml file 'certificate' string line] ***************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.105]
changed: [172.31.0.101]
changed: [172.31.0.102]

TASK [harbor-https : set harbor.yml file 'private_key' string line] ***************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.105]
changed: [172.31.0.104]
changed: [172.31.0.101]
changed: [172.31.0.102]

TASK [harbor-https : install CentOS or Rocky python] ******************************************************************************************
skipping: [172.31.0.104]
skipping: [172.31.0.105]
changed: [172.31.0.102]
changed: [172.31.0.101]
changed: [172.31.0.103]

TASK [harbor-https : delete lock files] *******************************************************************************************************
skipping: [172.31.0.101] => (item=/var/lib/dpkg/lock)
skipping: [172.31.0.101] => (item=/var/lib/apt/lists/lock)
skipping: [172.31.0.101] => (item=/var/cache/apt/archives/lock)
skipping: [172.31.0.102] => (item=/var/lib/dpkg/lock)
skipping: [172.31.0.102] => (item=/var/lib/apt/lists/lock)
skipping: [172.31.0.102] => (item=/var/cache/apt/archives/lock)
skipping: [172.31.0.103] => (item=/var/lib/dpkg/lock)
skipping: [172.31.0.103] => (item=/var/lib/apt/lists/lock)
skipping: [172.31.0.103] => (item=/var/cache/apt/archives/lock)
changed: [172.31.0.104] => (item=/var/lib/dpkg/lock)
changed: [172.31.0.105] => (item=/var/lib/dpkg/lock)
changed: [172.31.0.104] => (item=/var/lib/apt/lists/lock)
changed: [172.31.0.105] => (item=/var/lib/apt/lists/lock)
changed: [172.31.0.105] => (item=/var/cache/apt/archives/lock)
changed: [172.31.0.104] => (item=/var/cache/apt/archives/lock)

TASK [harbor-https : apt update] **************************************************************************************************************
skipping: [172.31.0.101]
skipping: [172.31.0.102]
skipping: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.105]

TASK [harbor-https : install Ubuntu python] ***************************************************************************************************
skipping: [172.31.0.101]
skipping: [172.31.0.102]
skipping: [172.31.0.103]
ok: [172.31.0.105]
ok: [172.31.0.104]

TASK [harbor-https : install harbor] **********************************************************************************************************
changed: [172.31.0.102]
changed: [172.31.0.101]
changed: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.105]

TASK [harbor-https : copy harbor.service] *****************************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.104]
changed: [172.31.0.101]
changed: [172.31.0.102]
changed: [172.31.0.105]

TASK [harbor-https : service enable] **********************************************************************************************************
changed: [172.31.0.103]
changed: [172.31.0.102]
changed: [172.31.0.101]
changed: [172.31.0.105]
changed: [172.31.0.104]

PLAY RECAP ************************************************************************************************************************************
172.31.0.101               : ok=25   changed=24   unreachable=0    failed=0    skipped=6    rescued=0    ignored=0
172.31.0.102               : ok=25   changed=24   unreachable=0    failed=0    skipped=6    rescued=0    ignored=0
172.31.0.103               : ok=25   changed=24   unreachable=0    failed=0    skipped=6    rescued=0    ignored=0
172.31.0.104               : ok=30   changed=28   unreachable=0    failed=0    skipped=1    rescued=0    ignored=0
172.31.0.105               : ok=30   changed=28   unreachable=0    failed=0    skipped=1    rescued=0    ignored=0

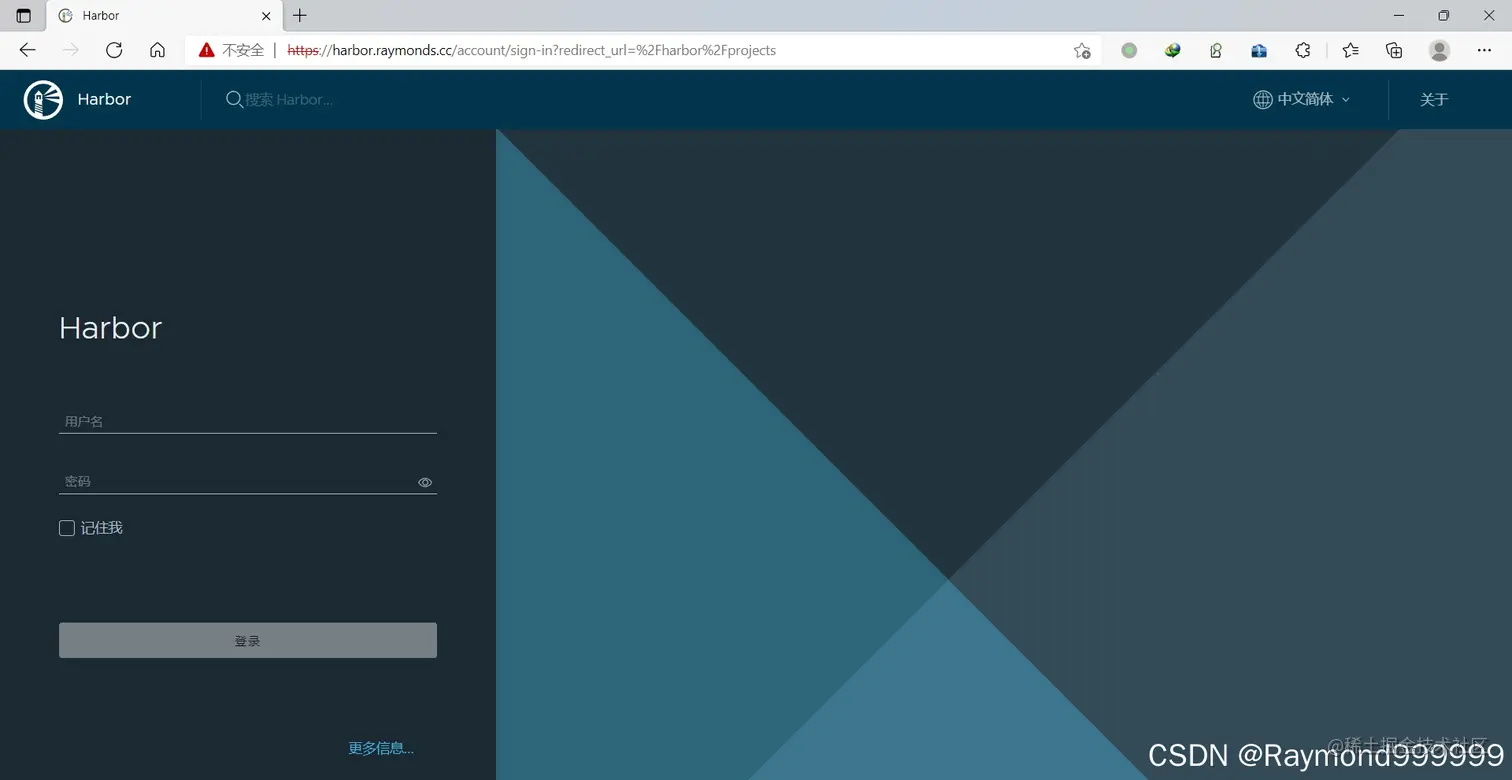

在这里插入图片描述

avatar
文章
阅读
粉丝
