概述
SpringBoot整合RabbitMq思考一个问题,为什么只用在配置类里配置一下交换机/队列/绑定关系,在项目启动后就会自动创建对应的交换机/队列/绑定关系?
@Configuration
public class RabbitConfig {
@Bean
public FanoutExchange exchange(){
return new FanoutExchange("TEST");
}
}
创建交换机/队列/绑定关系的时机到底是什么时候?如何创建的?
测试

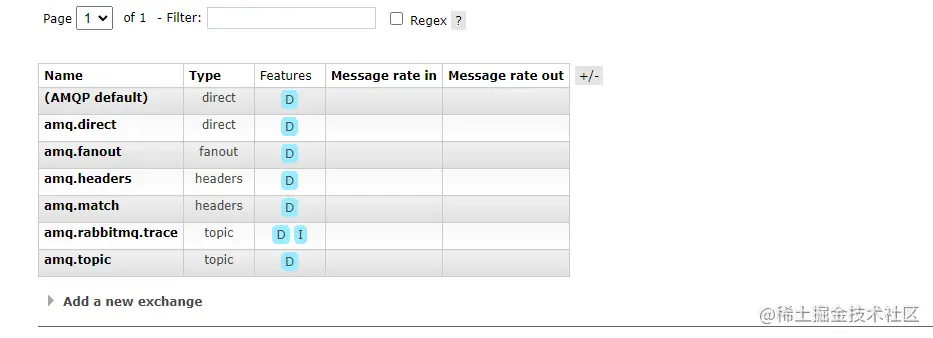

- 配置如上bean后,启动项目,观察Rabbitmq控制台是否创建该交换机
-
并未创建
- 发送一条消息到该交换机,观察是否能成功
package com.zy.rabbitmq.controller;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**
* @Author: Zy
* @Date: 2022/3/14 15:04
*/
@RestController
@RequestMapping("test")
public class TestController {
@Autowired
RabbitTemplate rabbitTemplate;
@GetMapping
public void test(){
rabbitTemplate.convertAndSend("TEST","","HHHH");
}
}

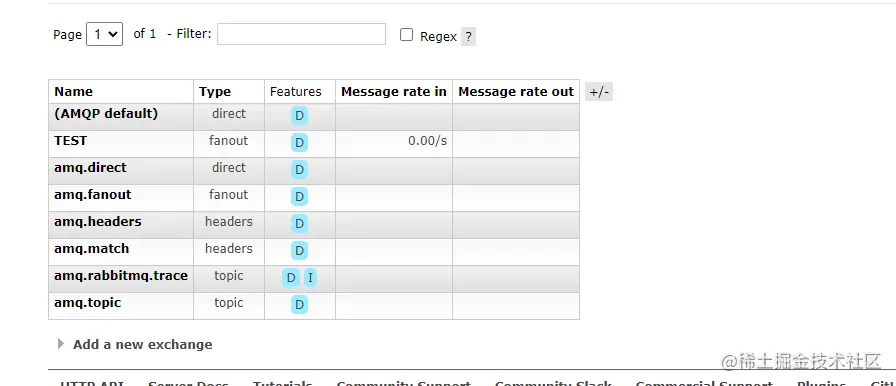

再次观察管理控制台,惊奇的发现: 有了!
猜想
那么其实并不是在项目启动后就进行的交换机的创建吗?而是在发送消息时才创建的交换机吗?
源码在哪里?
参考文章: cloud.tencent.com/developer/a…
源码解析

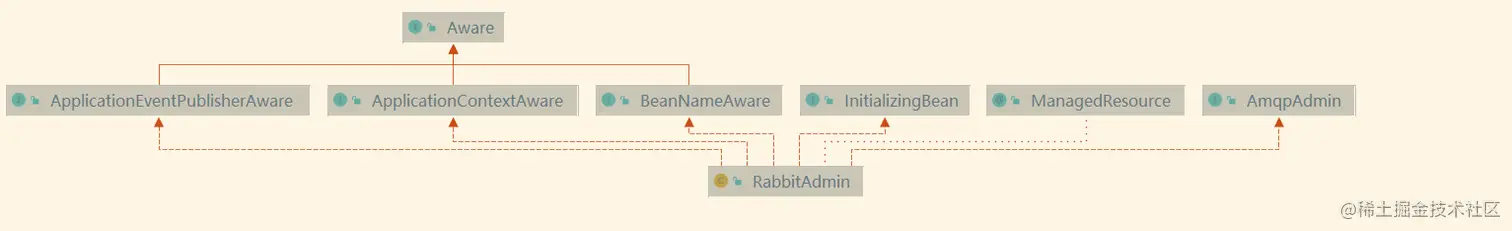

上篇文章中提到了一个很重要的类: RabbitAdmin
这个类封装了对队列/交换机/绑定关系等一系列的增删改查操作
而在initialize() 方法里,就进行了如下操作:
/**
* Declares all the exchanges, queues and bindings in the enclosing application context, if any. It should be safe
* (but unnecessary) to call this method more than once.
*/
@Override // NOSONAR complexity
public void initialize() {
if (this.applicationContext == null) {
this.logger.debug("no ApplicationContext has been set, cannot auto-declare Exchanges, Queues, and Bindings");
return;
}
// 获取spring注册的bean
this.logger.debug("Initializing declarations");
Collection<Exchange> contextExchanges = new LinkedList<Exchange>(
this.applicationContext.getBeansOfType(Exchange.class).values());
Collection<Queue> contextQueues = new LinkedList<Queue>(
this.applicationContext.getBeansOfType(Queue.class).values());
Collection<Binding> contextBindings = new LinkedList<Binding>(
this.applicationContext.getBeansOfType(Binding.class).values());
Collection<DeclarableCustomizer> customizers =
this.applicationContext.getBeansOfType(DeclarableCustomizer.class).values();
processDeclarables(contextExchanges, contextQueues, contextBindings);
final Collection<Exchange> exchanges = filterDeclarables(contextExchanges, customizers);
final Collection<Queue> queues = filterDeclarables(contextQueues, customizers);
final Collection<Binding> bindings = filterDeclarables(contextBindings, customizers);
for (Exchange exchange : exchanges) {
if ((!exchange.isDurable() || exchange.isAutoDelete()) && this.logger.isInfoEnabled()) {
this.logger.info("Auto-declaring a non-durable or auto-delete Exchange ("
+ exchange.getName()
+ ") durable:" + exchange.isDurable() + ", auto-delete:" + exchange.isAutoDelete() + ". "
+ "It will be deleted by the broker if it shuts down, and can be redeclared by closing and "
+ "reopening the connection.");
}
}
for (Queue queue : queues) {
if ((!queue.isDurable() || queue.isAutoDelete() || queue.isExclusive()) && this.logger.isInfoEnabled()) {
this.logger.info("Auto-declaring a non-durable, auto-delete, or exclusive Queue ("
+ queue.getName()
+ ") durable:" + queue.isDurable() + ", auto-delete:" + queue.isAutoDelete() + ", exclusive:"
+ queue.isExclusive() + ". "
+ "It will be redeclared if the broker stops and is restarted while the connection factory is "
+ "alive, but all messages will be lost.");
}
}
if (exchanges.size() == 0 && queues.size() == 0 && bindings.size() == 0 && this.manualDeclarables.size() == 0) {
this.logger.debug("Nothing to declare");
return;
}
this.rabbitTemplate.execute(channel -> {
declareExchanges(channel, exchanges.toArray(new Exchange[exchanges.size()]));
declareQueues(channel, queues.toArray(new Queue[queues.size()]));
declareBindings(channel, bindings.toArray(new Binding[bindings.size()]));
return null;
});
if (this.manualDeclarables.size() > 0) {
synchronized (this.manualDeclarables) {
this.logger.debug("Redeclaring manually declared Declarables");
for (Declarable dec : this.manualDeclarables.values()) {
if (dec instanceof Queue) {
declareQueue((Queue) dec);
}
else if (dec instanceof Exchange) {
declareExchange((Exchange) dec);
}
else {
declareBinding((Binding) dec);
}
}
}
}
this.logger.debug("Declarations finished");
}
可以看到从Spring中获取所有注册的交换机/队列/绑定关系的bean,然后进行创建.
而还有另外一个方法afterPropertiesSet(),这个方法就很常见了,在Spring中这个方法在Bean初始化完会进行调用:
而就在这个方法里调用上面的initialize() 方法,进行了交换机的初始化绑定操作
/**
* If {@link #setAutoStartup(boolean) autoStartup} is set to true, registers a callback on the
* {@link ConnectionFactory} to declare all exchanges and queues in the enclosing application context. If the
* callback fails then it may cause other clients of the connection factory to fail, but since only exchanges,
* queues and bindings are declared failure is not expected.
*
* @see InitializingBean#afterPropertiesSet()
* @see #initialize()
*/
@Override
public void afterPropertiesSet() {
synchronized (this.lifecycleMonitor) {
if (this.running || !this.autoStartup) {
return;
}
if (this.retryTemplate == null && !this.retryDisabled) {
this.retryTemplate = new RetryTemplate();
this.retryTemplate.setRetryPolicy(new SimpleRetryPolicy(DECLARE_MAX_ATTEMPTS));
ExponentialBackOffPolicy backOffPolicy = new ExponentialBackOffPolicy();
backOffPolicy.setInitialInterval(DECLARE_INITIAL_RETRY_INTERVAL);
backOffPolicy.setMultiplier(DECLARE_RETRY_MULTIPLIER);
backOffPolicy.setMaxInterval(DECLARE_MAX_RETRY_INTERVAL);
this.retryTemplate.setBackOffPolicy(backOffPolicy);
}
if (this.connectionFactory instanceof CachingConnectionFactory &&
((CachingConnectionFactory) this.connectionFactory).getCacheMode() == CacheMode.CONNECTION) {
this.logger.warn("RabbitAdmin auto declaration is not supported with CacheMode.CONNECTION");
return;
}
// Prevent stack overflow...
final AtomicBoolean initializing = new AtomicBoolean(false);
this.connectionFactory.addConnectionListener(connection -> {
if (!initializing.compareAndSet(false, true)) {
// If we are already initializing, we don't need to do it again...
return;
}
// 调用初始化方法
try {
/*
* ...but it is possible for this to happen twice in the same ConnectionFactory (if more than
* one concurrent Connection is allowed). It's idempotent, so no big deal (a bit of network
* chatter). In fact it might even be a good thing: exclusive queues only make sense if they are
* declared for every connection. If anyone has a problem with it: use auto-startup="false".
*/
if (this.retryTemplate != null) {
this.retryTemplate.execute(c -> {
initialize();
return null;
});
}
else {
initialize();
}
}
finally {
initializing.compareAndSet(true, false);
}
});
this.running = true;
}
}
那么这个调用链就很清楚了
RabbitAdmin创建后调用afterPropertiesSet方法,afterPropertiesSet方法调用initialize()方法,在initialize方法内部进行了交换机的创建操作
那么RabbitAdmin是什么时候创建的呢?
对于SpringBoot来说,当然是自动配置类里创建的 RabbitAutoConfiguration
@Bean
@ConditionalOnSingleCandidate(ConnectionFactory.class)
@ConditionalOnProperty(prefix = "spring.rabbitmq", name = "dynamic", matchIfMissing = true)
@ConditionalOnMissingBean
public AmqpAdmin amqpAdmin(ConnectionFactory connectionFactory) {
return new RabbitAdmin(connectionFactory);
}
创建之后,就会进入afterPropertiesSet方法
对于afterPropertiesSet方法,还有一点要注意,并不是进入afterPropertiesSet就会调用initialize,而是添加了一个连接监听器,当有一个新的连接创建时,才会进入initialize方法.
this.connectionFactory.addConnectionListener(connection -> {
if (!initializing.compareAndSet(false, true)) {
// If we are already initializing, we don't need to do it again...
return;
}
try {
/*
* ...but it is possible for this to happen twice in the same ConnectionFactory (if more than
* one concurrent Connection is allowed). It's idempotent, so no big deal (a bit of network
* chatter). In fact it might even be a good thing: exclusive queues only make sense if they are
* declared for every connection. If anyone has a problem with it: use auto-startup="false".
*/
if (this.retryTemplate != null) {
this.retryTemplate.execute(c -> {
initialize();
return null;
});
}
else {
initialize();
}
}
finally {
initializing.compareAndSet(true, false);
}
});
总结
- 对于SpringBoot的源码分析,一般都可以从自动配置类中找到源码的入口,结合整个框架的结构debug,才能分析源码的走向.
- RabbitMq项目启动后创建对应的交换机/队列/绑定关系看似简单,其实也经过了复杂的过程,特别是看源码的过程中还有很多Spring加载bean的方法,比较吃力,需要加强Spring源码的学习和阅读能力.
