Ureport2使用和springBoot集成

第一步：我们在使用Ureport2我们要导入他的maven依赖

<dependency>
    <groupId>com.bstek.ureport</groupId>
    <artifactId>ureport2-console</artifactId>
    <version>2.3.0-SNAPSHOT</version>
</dependency>

<dependency>
    <groupId>com.bstek.ureport</groupId>
    <artifactId>ureport2-core</artifactId>
    <version>2.3.0-SNAPSHOT</version>
</dependency>

第二步：我们需要在启动类中将ServletRegistrationBean交给Spring来管理

@Bean
public ServletRegistrationBean servletRegistrationBean() {
    return new ServletRegistrationBean(new UReportServlet(), "/ureport/*");
}

第三步：创建一个WebMvcConfig实现WebMvcConfigurer来加载``` classpath:ureport-console-context.xml文件

@Configuration
@ImportResource(locations = "classpath:ureport-console-context.xml")
public class WebMvcConfig implements WebMvcConfigurer {}

第四步:配置ureport访问拦截配置

public class UReportSecurityConfig {
    @Autowired
    private ReportProperties reportProperties;
    @Bean
    public FilterRegistrationBean testFilterRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new UReportFilter(reportProperties.isDebug()));
        registration.addUrlPatterns("/ureport/*");
        registration.setName("UReportFilter");
        return registration;
    }
}


class UReportFilter implements Filter {

    private boolean isDebug;

    Logger logger = LoggerFactory.getLogger(UReportFilter.class);


    UReportFilter() {

    }

    UReportFilter(boolean isDebug) {
        this.isDebug = isDebug;
    }

    @Override
    public void destroy() {
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain
            filterChain)
            throws IOException, ServletException {
        HttpServletRequest request = (HttpServletRequest) servletRequest;
        HttpServletResponse response = (HttpServletResponse) servletResponse;



            logger.info("this is MyFilter,url :" + request.getRequestURI());


            if(request.getRequestURI().startsWith("/ureport/designer")) {
                PrintWriter writer = response.getWriter();
                if (writer != null) {
                    writer.print("Not allowed in prod env!");
                }
                return;
            }
            if(request.getRequestURI().startsWith("/ureport/datasource")) {
                PrintWriter writer = response.getWriter();
                if (writer != null) {
                    writer.print("Not allowed in prod env!");
                }
                return;
            }
-

        filterChain.doFilter(servletRequest, servletResponse);
    }

    @Override
    public void init(FilterConfig arg0) throws ServletException {
    }
}

5.第五步配置Ureport的内置数据源

@Component
public class ReportDatesource implements BuildinDatasource {
    @Autowired
    SqlSession sqlSession;

    @Override
    public String name() {
        return "内置数据源";
    }
    /**
     * @return 返回当前采用数据源的一个连接
     */
    @Override
    public Connection getConnection() {
        Connection conn = null;
        try {
            conn =  sqlSession.getConfiguration().getEnvironment().getDataSource().getConnection();
        } catch (Exception e) {
            e.printStackTrace();
        }
        return conn;
    }
}

第6步重写Ureport2中的保存方式使的保存xml文件的时候保存在我们创建好的数据库中

@Component
public class DatabaseReportProvider implements ReportProvider {
    private String prefix="database:";
    private boolean disabled;

    @Autowired
    IReportService reportService;

    /**
     * 根据报表名加载报表文件
     * @param file 报表名称
     * @return 返回的InputStream
     */
    @Override
    public InputStream loadReport(String file) {
        if(file.startsWith(prefix)){
            file=file.substring(prefix.length(),file.length());
        }

        Report reportStore = reportService.getByName(file);
        try {
            if (reportStore != null) {
                InputStream in = new ByteArrayInputStream(reportStore.getContent().getBytes());
                return in;
            }
            throw new ReportException("Not found!");
        }
        catch (Exception e){
            throw new ReportException(e);
        }

    }
    /**
     * 根据报表名，删除指定的报表文件
     * @param file 报表名称
     */
    @Override
    public void deleteReport(String file) {
        if(file.startsWith(prefix)){
            file=file.substring(prefix.length(),file.length());
            Report reportStore = reportService.getByName(file);
            if (reportStore != null) {
                reportStore.deleteById();
            }
        }
    }
    /**
     * 获取所有的报表文件
     * @return 返回报表文件列表
     */
    @Override
    public List<ReportFile> getReportFiles() {
        List<ReportFile> reportFileList = new ArrayList<>();
        List<Report> reportStoreList = reportService.list();
        if(reportStoreList != null) {
            for(Report reportStore:reportStoreList) {
                ReportFile reportFile = new ReportFile(reportStore.getName(),reportStore.getCreateDate());
                reportFileList.add(reportFile);
            }
        }
        return reportFileList;
    }
    /**
     * 保存报表文件
     * @param file 报表名称
     * @param content 报表的XML内容
     */
    @Override
    public void saveReport(String file,String content) {
        if(file.startsWith(prefix)) {
            file = file.substring(prefix.length(), file.length());
        }
        Report reportStore = reportService.getByName(file);
        if(reportStore == null) {
            reportStore = new Report();
        }
        reportStore.setName(file);
        reportStore.setContent(content);
        reportService.saveOrUpdate(reportStore);
    }

    @Override
    public String getName() {
        return "Mysql-数据存储";
    }

    /**
     * @return 返回是否禁用
     */
    @Override
    public boolean disabled() {
        return false;
     }
    /**
     * @return 返回报表文件名前缀
     */
    @Override
    public String getPrefix() {
        return prefix;
    }
}

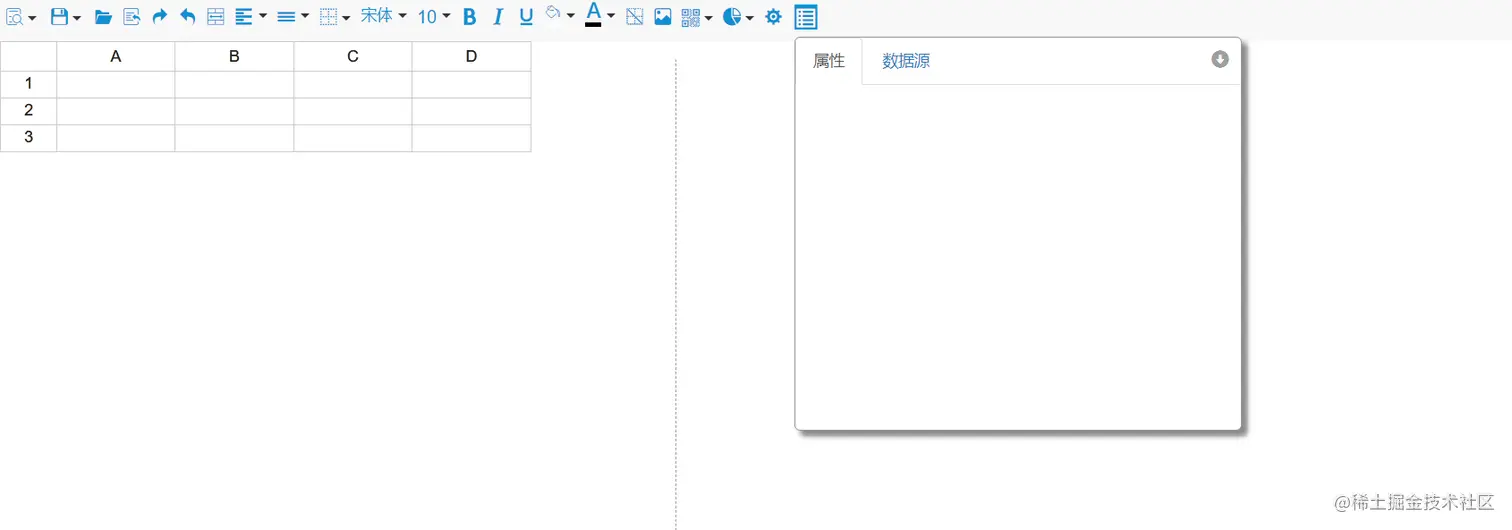

7.现在我们就可以访问Ureport2地址 (http://localhost:项目端口/ureport/designer)

使用Ureport总体流程：我们在创建好业务所需要的XML文件。
我们要把他的文件名，文件内容保存在我们的数据库中。因为我们自定义了保存过程会自动保存在我们配置好的数据库中，服务器文件保存是基于tomcat我们在下次访问的时候我们保存的文件就是消失

10.我们只需要把http://localhost:项目端口/ureport/preview?_u=（设置的ureport前缀）:（文件名）就可以访问到我们的预览模型；数据字段名:
