Filebeat 自定义索引名以实现索引生命周期管理

1,005 阅读2分钟

分类说明:

A:不支持索引声明周期管理

B:支持索引声明周期管理

C:支持日期格式的支持索引声明周期管理

A:Filebeat 自定义索引名

本文中涉及的配置文件非完整,只是针对性的在普通版基础上进行修改

# 对filebeat.yaml配置文件修改
# 1 添加 tags: ["test"],作为筛选标识
filebeat.inputs:
- type: log
  enabled: true
  tags: ["test"]
  paths:
  - /var/log/nginx/*

# 2 筛选并定义索引(该方法确实能改变默认索引名,但是不支持索引生命周期管理)
output.elasticsearch:
  hosts: ['192.168.10.10:9200']
  indices:
  - index: "test"
    when.contains:
      tags: "test"

B:Filebeat 自定义索引名

前奏:创建索引生命周期策略及索引模板

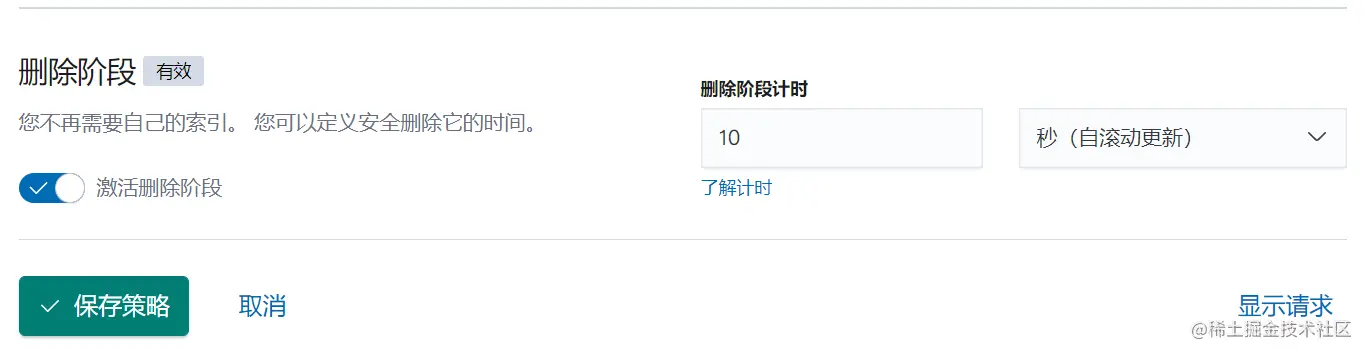

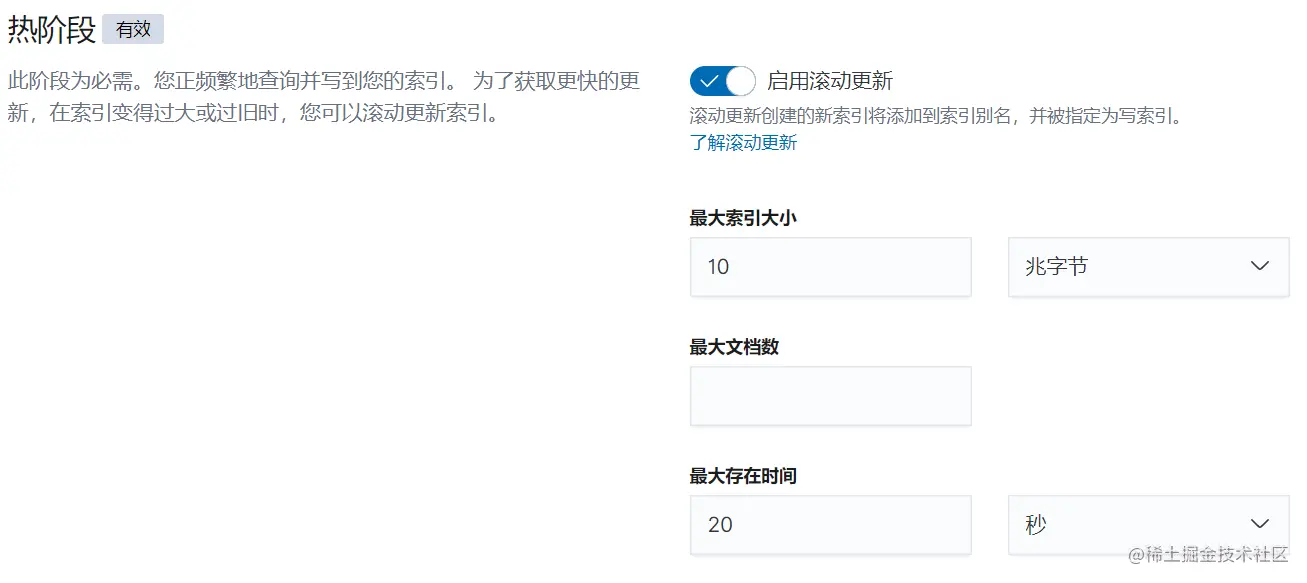

# 1 创建索引生命周期策略 test_policy (本文采用Kiban图形界面创建)
image.png image.png

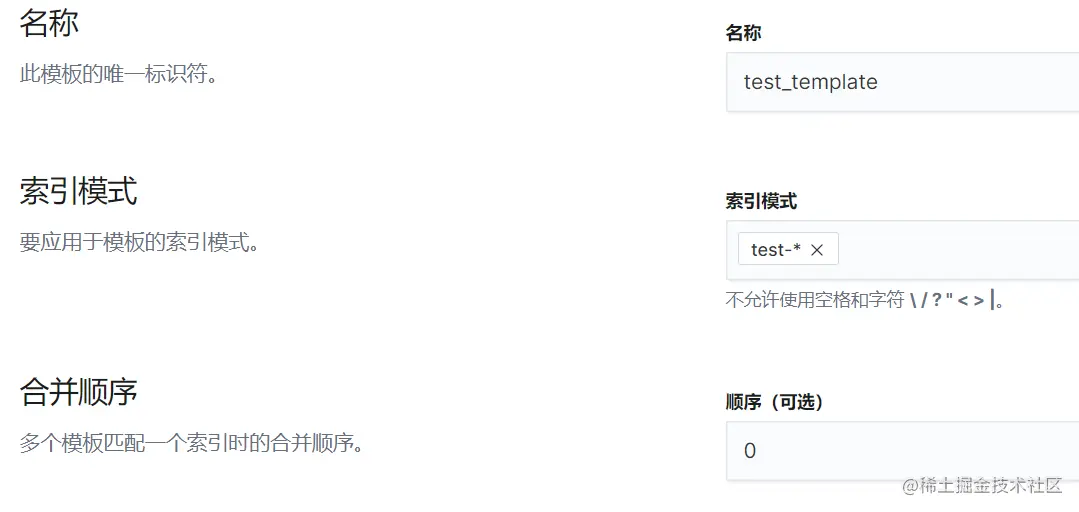

# 2 创建索引模板 test_(本文采用Kiban图形界面创建)

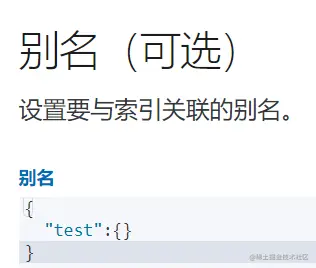

# 其中,设置别名是必须要做的,关键
image.png image.png image.png

主题:配置 Filebeat

# 1 filebeat.yaml 修改
# 1.1 添加 tags: ["test"],作为筛选标识
filebeat.inputs:
- type: log
  enabled: true
  tags: ["test"]
  paths:
  - /var/log/nginx/*
# 1.2 筛选并定义索引
output.elasticsearch:
  hosts: ['192.168.10.10:9200']
  indices:
  - index: "test-000001"
    when.contains:
      tags: "test"
# 2 启动 filebeat
# 3 filebeat.yaml 修改
output.elasticsearch:
  hosts: ['192.168.10.10:9200']
  indices:
  - index: "test"
    when.contains:
      tags: "test"
# 4 重启 filebeat

前四步目的是 首先创建索引test-000001,再改索引名是为了以后推送消息至索引test*,不然,会一直向test-000001推送消息,就无法实现滚动更新的效果

尾声:Kibana 操作

# 1 索引模板修改-去掉刚才设置的别名
# 目的:为了使刚才创建的索引test-000001有别名test
# 问:  为什么有删了索引模板的别名
# 答:  再赋予索引test-000001别名test后,在滚动更新是,该别名和设置的rollover_alias冲突,因此要删掉别名
# 2 刷新索引
# 此时会看到索引test-000001有别名,并且绑定了索引声明周期策略test_policy

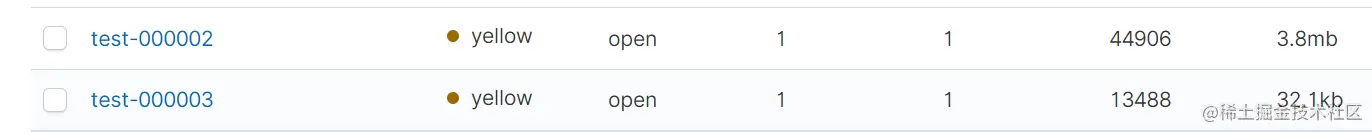

# 3 不断的向/var/log/nginx/目录下的log文件写日志
# 此时会看到索引的动态更新

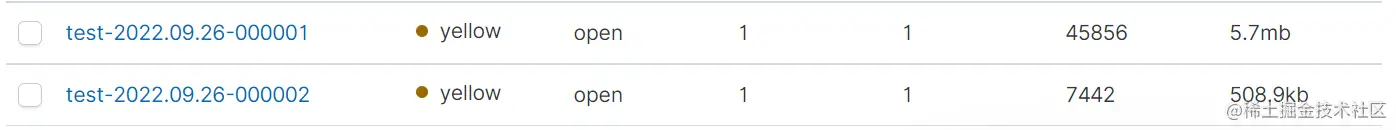

C:Filebeat 自定义索引名支持日期格式

前奏:创建索引生命周期策略及索引模板(同B)

主题:配置 Filebeat

# 1 filebeat.yaml 修改
# 1.1 添加 tags: ["test"],作为筛选标识
filebeat.inputs:
- type: log
  enabled: true
  tags: ["test"]
  paths:
  - /var/log/nginx/*
# 1.2 筛选并定义索引
output.elasticsearch:
  hosts: ['192.168.10.10:9200']
  indices:
  - index: "<test-{now/d}-000001>"
    when.contains:
      tags: "test"
# 2 启动 filebeat
# 3 filebeat.yaml 修改
output.elasticsearch:
  hosts: ['192.168.10.10:9200']
  indices:
  - index: "test"
    when.contains:
      tags: "test"
# 4 重启 filebeat

尾声:Kibana 操作(同B)


说明

C中,一些原理还没搞清楚,欢迎各位指导,但不影响使用。比如多有文章建议 Filebeat 的支持日期的自定义索引名格式为test-%{+yyyy.MM.dd}-000001,但多次实验后发现行不通;报错:虽然会更新,但内容总会写在000001的索引。

如有侵权,请联系删除;如有错误,请批评指正。
