6.安装 Containerd

6.1 内核参数调整

如果是安装 Docker 会自动配置以下的内核参数，而无需手动实现

但是如果安装Contanerd，还需手动配置

允许 iptables 检查桥接流量,若要显式加载此模块，需运行 modprobe br_netfilter

为了让 Linux 节点的 iptables 能够正确查看桥接流量，还需要确认net.bridge.bridge-nf-call-iptables 设置为 1。

配置Containerd所需的模块：

[root@k8s-master01 ~]# cat <<EOF | sudo tee /etc/modules-load.d/containerd.conf
overlay
br_netfilter
EOF

加载模块：

[root@k8s-master01 ~]# modprobe -- overlay
[root@k8s-master01 ~]# modprobe -- br_netfilter

配置Containerd所需的内核：

[root@k8s-master01 ~]# cat <<EOF | sudo tee /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-iptables  = 1
net.ipv4.ip_forward                 = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF

加载内核：

[root@k8s-master01 ~]# sysctl --system

6.2 二进制安装 Containerd

官方下载链接：

https://github.com/containerd/containerd

Containerd有三种二进制安装包:

containerd-xxx ：不包含runC，需要单独安装runC

[root@k8s-master01 ~]# tar tf containerd-1.6.8-linux-amd64.tar.gz
bin/
bin/containerd-stress
bin/containerd-shim-runc-v2
bin/containerd-shim
bin/ctr
bin/containerd
bin/containerd-shim-runc-v1

cri-containerd-xxx：包含runC，ctr、crictl、systemd 配置文件等相关文件，不包含cni插件，k8s不需要containerd的cni插件，所以选择这个二进制包安装

[root@k8s-master01 ~]# tar tf cri-containerd-1.6.8-linux-amd64.tar.gz
etc/crictl.yaml
etc/systemd/
etc/systemd/system/
etc/systemd/system/containerd.service
usr/
usr/local/
usr/local/sbin/
usr/local/sbin/runc
usr/local/bin/
usr/local/bin/containerd-stress
usr/local/bin/containerd-shim-runc-v2
usr/local/bin/containerd-shim
usr/local/bin/ctr
usr/local/bin/containerd
usr/local/bin/critest
usr/local/bin/ctd-decoder
usr/local/bin/crictl
usr/local/bin/containerd-shim-runc-v1
opt/containerd/
opt/containerd/cluster/
opt/containerd/cluster/gce/
opt/containerd/cluster/gce/env
opt/containerd/cluster/gce/cloud-init/
opt/containerd/cluster/gce/cloud-init/master.yaml
opt/containerd/cluster/gce/cloud-init/node.yaml
opt/containerd/cluster/gce/cni.template
opt/containerd/cluster/gce/configure.sh
opt/containerd/cluster/version

cri-containerd-cni-xxx：包含runc、ctr、crictl、cni插件、systemd 配置文件等相关文件

[root@k8s-master01 ~]# tar tf cri-containerd-cni-1.6.8-linux-amd64.tar.gz
etc/
etc/crictl.yaml
etc/systemd/
etc/systemd/system/
etc/systemd/system/containerd.service
etc/cni/
etc/cni/net.d/
etc/cni/net.d/10-containerd-net.conflist
usr/
usr/local/
usr/local/sbin/
usr/local/sbin/runc
usr/local/bin/
usr/local/bin/containerd-stress
usr/local/bin/containerd-shim-runc-v2
usr/local/bin/containerd-shim
usr/local/bin/ctr
usr/local/bin/containerd
usr/local/bin/critest
usr/local/bin/ctd-decoder
usr/local/bin/crictl
usr/local/bin/containerd-shim-runc-v1
opt/
opt/containerd/
opt/containerd/cluster/
opt/containerd/cluster/gce/
opt/containerd/cluster/gce/env
opt/containerd/cluster/gce/cloud-init/
opt/containerd/cluster/gce/cloud-init/master.yaml
opt/containerd/cluster/gce/cloud-init/node.yaml
opt/containerd/cluster/gce/cni.template
opt/containerd/cluster/gce/configure.sh
opt/containerd/cluster/version
opt/cni/
opt/cni/bin/
opt/cni/bin/bandwidth
opt/cni/bin/loopback
opt/cni/bin/ipvlan
opt/cni/bin/host-local
opt/cni/bin/static
opt/cni/bin/vlan
opt/cni/bin/tuning
opt/cni/bin/host-device
opt/cni/bin/firewall
opt/cni/bin/portmap
opt/cni/bin/sbr
opt/cni/bin/macvlan
opt/cni/bin/bridge
opt/cni/bin/dhcp
opt/cni/bin/ptp
opt/cni/bin/vrf

安装Containerd：

[root@k8s-master01 ~]# wget https://github.com/containerd/containerd/releases/download/v1.6.8/cri-containerd-1.6.8-linux-amd64.tar.gz

#cri-containerd-1.6.8-linux-amd64.tar.gz 压缩包中已经按照官方二进制部署推荐的目录结构布局好。 里面包含了 systemd 配置文件，containerd 和ctr、crictl等部署文件。 将解压缩到系统的根目录 / 中:
[root@k8s-master01 ~]# tar xf cri-containerd-1.6.8-linux-amd64.tar.gz -C /

配置Containerd的配置文件：

[root@k8s-master01 ~]# mkdir -p /etc/containerd
[root@k8s-master01 ~]# containerd config default | tee /etc/containerd/config.toml

将Containerd的Cgroup改为Systemd和修改containerd配置sandbox_image 镜像源设置为阿里google_containers镜像源：

[root@k8s-master01 ~]# vim /etc/containerd/config.toml
...
          [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
...
            SystemdCgroup = true #SystemdCgroup改成true
...
    sandbox_image = "harbor.raymonds.cc/google_containers/pause:3.8" #sandbox_image的镜像改为私有仓库“harbor.raymonds.cc/google_containers/pause:3.8”，如果没有私有仓库改为阿里镜像源“registry.aliyuncs.com/google_containers/pause:3.8”

#使用下面命令修改
sed -ri -e 's/(.*SystemdCgroup = ).*/\1true/' -e 's@(.*sandbox_image = ).*@\1"harbor.raymonds.cc/google_containers/pause:3.8"@' /etc/containerd/config.toml

#如果没有harbor，请执行下面命令
sed -ri -e 's/(.*SystemdCgroup = ).*/\1true/' -e 's@(.*sandbox_image = ).*@\1"registry.aliyuncs.com/google_containers/pause:3.8"@' /etc/containerd/config.toml

配置镜像加速和配置私有镜像仓库：

参考文档：github.com/containerd/…

[root@k8s-master01 ~]# vim /etc/containerd/config.toml
...
    [plugins."io.containerd.grpc.v1.cri".registry]
...
#下面几行是配置私有仓库授权，如果没有私有仓库下面的不用设置
      [plugins."io.containerd.grpc.v1.cri".registry.configs]
        [plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.raymonds.cc".tls]
          insecure_skip_verify = true
        [plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.raymonds.cc".auth]
          username = "admin"
          password = "123456"
...
      [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
#下面两行是配置镜像加速
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = ["https://registry.docker-cn.com" ,"http://hub-mirror.c.163.com" ,"https://docker.mirrors.ustc.edu.cn"]
#下面两行是配置私有仓库，如果没有私有仓库下面的不用设置
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."harbor.raymonds.cc"]
          endpoint = ["http://harbor.raymonds.cc"]
...

#使用下面命令修改
sed -i -e '/.*registry.mirrors.*/a\        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]\n          endpoint = ["https://registry.docker-cn.com" ,"http://hub-mirror.c.163.com" ,"https://docker.mirrors.ustc.edu.cn"]\n        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."harbor.raymonds.cc"]\n          endpoint = ["http://harbor.raymonds.cc"]' -e '/.*registry.configs.*/a\        [plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.raymonds.cc".tls]\n          insecure_skip_verify = true\n        [plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.raymonds.cc".auth]\n          username = "admin"\n          password = "123456"' /etc/containerd/config.toml

#如果没有harbor不需要设置私有仓库相关配置，只需要设置镜像加速，请使用下面命令执行
sed -i '/.*registry.mirrors.*/a\        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]\n          endpoint = ["https://registry.docker-cn.com" ,"http://hub-mirror.c.163.com" ,"https://docker.mirrors.ustc.edu.cn"]' /etc/containerd/config.toml

配置crictl客户端连接的运行时位置：

[root@k8s-master01 ~]# cat > /etc/crictl.yaml <<EOF
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
EOF

启动Containerd，并配置开机自启动：

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now containerd

查看信息：

[root@k8s-master01 ~]# ctr version
Client:
  Version:  v1.6.8
  Revision: 9cd3357b7fd7218e4aec3eae239db1f68a5a6ec6
  Go version: go1.17.13

Server:
  Version:  v1.6.8
  Revision: 9cd3357b7fd7218e4aec3eae239db1f68a5a6ec6
  UUID: 18d9c9c1-27cc-4883-be10-baf17a186aad

[root@k8s-master01 ~]# crictl version
Version:  0.1.0
RuntimeName:  containerd
RuntimeVersion:  v1.6.8
RuntimeApiVersion:  v1

[root@k8s-master01 ~]# crictl info
...
  },
...
  "lastCNILoadStatus": "cni config load failed: no network config found in /etc/cni/net.d: cni plugin not initialized: failed to load cni config",
  "lastCNILoadStatus.default": "cni config load failed: no network config found in /etc/cni/net.d: cni plugin not initialized: failed to load cni config"
}
#这里cni插件报错，不用管，因为没有装containerd的CNI插件，kubernetes里不需要containerd的CNI插件，装上了还会冲突，后边安装flannel或calico的CNI插件

6.3 containerd 客户端工具 nerdctl

推荐使用 nerdctl，使用效果与 docker 命令的语法一致，github 下载链接：

github.com/containerd/…

精简 (nerdctl--linux-amd64.tar.gz): 只包含 nerdctl
完整 (nerdctl-full--linux-amd64.tar.gz): 包含 containerd, runc, and CNI 等依赖

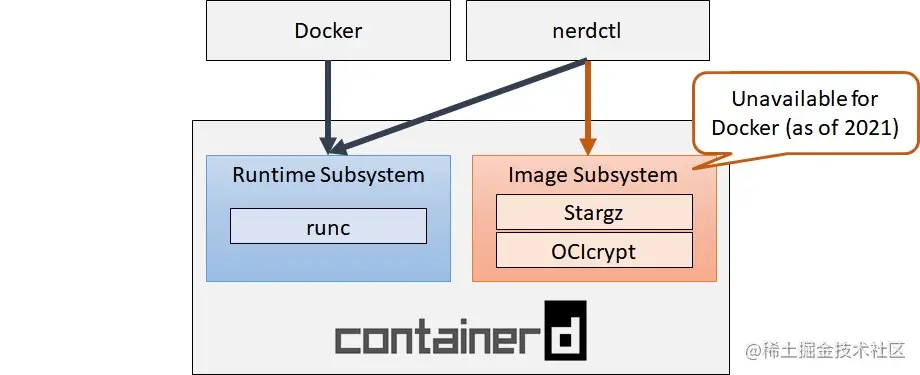

nerdctl 的目标并不是单纯地复制 docker 的功能，它还实现了很多 docker 不具备的功能，例如延迟拉取镜像（lazy-pulling）、镜像加密（imgcrypt）等。具体看 nerdctl。

延迟拉取镜像功能可以参考这篇文章：Containerd 使用 Stargz Snapshotter 延迟拉取镜像

icloudnative.io/posts/start…

1）安装 nerdctl（精简版）：

[root@k8s-master01 ~]# wget https://github.com/containerd/nerdctl/releases/download/v0.23.0/nerdctl-0.23.0-linux-amd64.tar.gz

[root@k8s-master01 ~]# tar xf nerdctl-0.23.0-linux-amd64.tar.gz -C /usr/local/bin/

#配置nerdctl
[root@k8s-master01 ~]# mkdir -p /etc/nerdctl/
[root@k8s-master01 ~]# cat > /etc/nerdctl/nerdctl.toml <<EOF
namespace      = "k8s.io" #设置nerdctl工具默认namespace
insecure_registry = true #跳过安全镜像仓库检测
EOF

2）安装 buildkit 支持构建镜像：

buildkit GitHub 地址：

github.com/moby/buildk…

使用精简版 nerdctl 无法直接通过 containerd 构建镜像，需要与 buildkit 组全使用以实现镜像构建。当然你也可以安装上面的完整 nerdctl；buildkit 项目是 Docker 公司开源出来的一个构建工具包，支持 OCI 标准的镜像构建。它主要包含以下部分:

服务端 buildkitd，当前支持 runc 和 containerd 作为 worker，默认是 runc；
客户端 buildctl，负责解析 Dockerfile，并向服务端 buildkitd 发出构建请求。

buildkit 是典型的C/S 架构，client 和 server 可以不在一台服务器上。而 nerdctl 在构建镜像方面也可以作为 buildkitd 的客户端。

[root@k8s-master01 ~]# wget https://github.com/moby/buildkit/releases/download/v0.10.4/buildkit-v0.10.4.linux-amd64.tar.gz

[root@k8s-master01 ~]# tar xf buildkit-v0.10.4.linux-amd64.tar.gz -C /usr/local/

配置 buildkit 的启动文件，可以从这里下载：

github.com/moby/buildk…

buildkit 需要配置两个文件

/usr/lib/systemd/system/buildkit.socket

[root@k8s-master01 ~]# cat > /usr/lib/systemd/system/buildkit.socket <<EOF
[Unit]
Description=BuildKit
Documentation=https://github.com/moby/buildkit

[Socket]
ListenStream=%t/buildkit/buildkitd.sock
SocketMode=0660

[Install]
WantedBy=sockets.target
EOF

/usr/lib/systemd/system/buildkit.service

[root@k8s-master01 ~]# cat > /usr/lib/systemd/system/buildkit.service << EOF
[Unit]
Description=BuildKit
Requires=buildkit.socket
After=buildkit.socket
Documentation=https://github.com/moby/buildkit

[Service]
Type=notify
ExecStart=/usr/local/bin/buildkitd --addr fd://

[Install]
WantedBy=multi-user.target
EOF

启动 buildkit：

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now buildkit

root@k8s-master01:~# systemctl status buildkit
● buildkit.service - BuildKit
     Loaded: loaded (/lib/systemd/system/buildkit.service; enabled; vendor preset: enabled)
     Active: active (running) since Tue 2022-09-13 16:47:14 CST; 21s ago
TriggeredBy: ● buildkit.socket
       Docs: https://github.com/moby/buildkit
   Main PID: 3303 (buildkitd)
      Tasks: 7 (limit: 4575)
     Memory: 14.5M
     CGroup: /system.slice/buildkit.service
             └─3303 /usr/local/bin/buildkitd --addr fd://

Sep 13 16:47:14 k8s-master01.example.local systemd[1]: Started BuildKit.
Sep 13 16:47:14 k8s-master01.example.local buildkitd[3303]: time="2022-09-13T16:47:14+08:00" level=info msg="auto snapshotter: using overlayfs"
Sep 13 16:47:14 k8s-master01.example.local buildkitd[3303]: time="2022-09-13T16:47:14+08:00" level=warning msg="using host network as the defa>
Sep 13 16:47:14 k8s-master01.example.local buildkitd[3303]: time="2022-09-13T16:47:14+08:00" level=info msg="found worker "sgqr1t2c81tj7ec7w3>
Sep 13 16:47:14 k8s-master01.example.local buildkitd[3303]: time="2022-09-13T16:47:14+08:00" level=warning msg="using host network as the defa>
Sep 13 16:47:14 k8s-master01.example.local buildkitd[3303]: time="2022-09-13T16:47:14+08:00" level=info msg="found worker "w4fzprdjtuqtj3f3wd>
Sep 13 16:47:14 k8s-master01.example.local buildkitd[3303]: time="2022-09-13T16:47:14+08:00" level=info msg="found 2 workers, default="sgqr1t>
Sep 13 16:47:14 k8s-master01.example.local buildkitd[3303]: time="2022-09-13T16:47:14+08:00" level=warning msg="currently, only the default wo>
Sep 13 16:47:14 k8s-master01.example.local buildkitd[3303]: time="2022-09-13T16:47:14+08:00" level=info msg="running server on /run/buildkit/b>

[root@k8s-master01 ~]# nerdctl version
Client:
 Version:   v0.23.0
 OS/Arch:   linux/amd64
 Git commit:    660680b7ddfde1d38a66ec1c7f08f8d89ab92c68
 buildctl:
  Version:  v0.10.4
  GitCommit:    a2ba6869363812a210fcc3ded6926757ab780b5f

Server:
 containerd:
  Version:  v1.6.8
  GitCommit:    9cd3357b7fd7218e4aec3eae239db1f68a5a6ec6
 runc:
  Version:  1.1.3
  GitCommit:    v1.1.3-0-g6724737f

[root@k8s-master01 ~]# buildctl --version
buildctl github.com/moby/buildkit v0.10.4 a2ba6869363812a210fcc3ded6926757ab780b5f

[root@k8s-master01 ~]# nerdctl info
Client:
 Namespace: default
 Debug Mode:    false

Server:
 Server Version: v1.6.8
 Storage Driver: overlayfs
 Logging Driver: json-file
 Cgroup Driver: cgroupfs
 Cgroup Version: 1
 Plugins:
  Log: fluentd journald json-file
  Storage: aufs native overlayfs
 Security Options:
  apparmor
  seccomp
   Profile: default
 Kernel Version: 5.4.0-107-generic
 Operating System: Ubuntu 20.04.4 LTS
 OSType: linux
 Architecture: x86_64
 CPUs: 2
 Total Memory: 3.81GiB
 Name: k8s-master01.example.local
 ID: ab901e55-fa37-496e-9920-ee6eff687687

WARNING: No swap limit support #系统警告信息 (没有开启 swap 资源限制 )

解决上述SWAP报警提示：

#SWAP报警提示，只有在ubuntu系统有，centos系统里没有不用设置
root@k8s-master01:~# sed -ri '/^GRUB_CMDLINE_LINUX=/s@"$@ swapaccount=1"@' /etc/default/grub

root@k8s-master01:~# update-grub
root@k8s-master01:~# reboot

root@k8s-master01:~# nerdctl info
Client:
 Namespace: default
 Debug Mode:    false

Server:
 Server Version: v1.6.8
 Storage Driver: overlayfs
 Logging Driver: json-file
 Cgroup Driver: cgroupfs
 Cgroup Version: 1
 Plugins:
  Log: fluentd journald json-file
  Storage: aufs native overlayfs
 Security Options:
  apparmor
  seccomp
   Profile: default
 Kernel Version: 5.4.0-125-generic
 Operating System: Ubuntu 20.04.4 LTS
 OSType: linux
 Architecture: x86_64
 CPUs: 2
 Total Memory: 3.81GiB
 Name: k8s-master01.example.local
 ID: ab901e55-fa37-496e-9920-ee6eff687687
#现在就没有SWAP报警提示

nerdctl命令补全：

#CentOS
[root@k8s-master01 ~]# yum -y install bash-completion

#Ubuntu
[root@k8s-master01 ~]# apt -y install bash-completion

[root@k8s-master01 ~]# echo "source <(nerdctl completion bash)" >> ~/.bashrc

master02、master03和node安装containerd：

[root@k8s-master02 ~]# cat install_containerd_binary.sh
#!/bin/bash
#
#**********************************************************************************************
#Author:        Raymond
#QQ:            88563128
#Date:          2022-09-13
#FileName:      install_containerd_binary.sh
#URL:           raymond.blog.csdn.net
#Description:   install_containerd_binary for centos 7/8 & ubuntu 18.04/20.04 & Rocky 8
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
SRC_DIR=/usr/local/src
COLOR="echo -e \033[01;31m"
END='\033[0m'

#Containerd下载地址：https://github.com/containerd/containerd/releases/download/v1.6.8/cri-containerd-1.6.8-linux-amd64.tar.gz
CONTAINERD_FILE=cri-containerd-1.6.8-linux-amd64.tar.gz
PAUSE_VERSION=3.8
HARBOR_DOMAIN=harbor.raymonds.cc
USERNAME=admin
PASSWORD=123456

#Netdctl下载地址：https://github.com/containerd/nerdctl/releases/download/v0.23.0/nerdctl-0.23.0-linux-amd64.tar.gz
NETDCTL_FILE=nerdctl-0.23.0-linux-amd64.tar.gz
#Buildkit下载地址：https://github.com/moby/buildkit/releases/download/v0.10.4/buildkit-v0.10.4.linux-amd64.tar.gz
BUILDKIT_FILE=buildkit-v0.10.4.linux-amd64.tar.gz

os(){
    OS_ID=`sed -rn '/^NAME=/s@.*="([[:alpha:]]+).*"$@\1@p' /etc/os-release`
}

check_file (){
    cd ${SRC_DIR}
    if [ ! -e ${CONTAINERD_FILE} ];then
        ${COLOR}"缺少${CONTAINERD_FILE}文件,请把文件放到${SRC_DIR}目录下"${END}
        exit
    elif [ ! -e ${NETDCTL_FILE} ];then
        ${COLOR}"缺少${NETDCTL_FILE}文件,请把文件放到${SRC_DIR}目录下"${END}
        exit
    elif [ ! -e ${BUILDKIT_FILE} ];then
        ${COLOR}"缺少${BUILDKIT_FILE}文件,请把文件放到${SRC_DIR}目录下"${END}
        exit
    else
        ${COLOR}"相关文件已准备好"${END}
    fi
}

install_containerd(){
    [ -f /usr/local/bin/containerd ] && { ${COLOR}"Containerd已存在，安装失败"${END};exit; }
    cat > /etc/modules-load.d/containerd.conf <<-EOF
overlay
br_netfilter
EOF
    modprobe -- overlay
    modprobe -- br_netfilter

    cat > /etc/sysctl.d/99-kubernetes-cri.conf <<-EOF
net.bridge.bridge-nf-call-iptables  = 1
net.ipv4.ip_forward                 = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF
    sysctl --system &> /dev/null

    ${COLOR}"开始安装Containerd..."${END}
    tar xf ${CONTAINERD_FILE} -C /

    mkdir -p /etc/containerd
    containerd config default | tee /etc/containerd/config.toml &> /dev/null
    sed -ri -e 's/(.*SystemdCgroup = ).*/\1true/' -e 's@(.*sandbox_image = ).*@\1"'''${HARBOR_DOMAIN}'''/google_containers/pause:'''${PAUSE_VERSION}'''"@' -e '/.*registry.mirrors.*/a\        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]\n          endpoint = ["https://registry.docker-cn.com" ,"http://hub-mirror.c.163.com" ,"https://docker.mirrors.ustc.edu.cn"]\n        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."'''${HARBOR_DOMAIN}'''"]\n          endpoint = ["http://'''${HARBOR_DOMAIN}'''"]' -e '/.*registry.configs.*/a\        [plugins."io.containerd.grpc.v1.cri".registry.configs."'''${HARBOR_DOMAIN}'''".tls]\n          insecure_skip_verify = true\n        [plugins."io.containerd.grpc.v1.cri".registry.configs."'''${HARBOR_DOMAIN}'''".auth]\n          username = "'''${USERNAME}'''"\n          password = "'''${PASSWORD}'''"' /etc/containerd/config.toml
    cat > /etc/crictl.yaml <<-EOF
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
EOF
    systemctl daemon-reload && systemctl enable --now containerd &> /dev/null
    systemctl is-active containerd &> /dev/null && ${COLOR}"Containerd 服务启动成功"${END} || { ${COLOR}"Containerd 启动失败"${END};exit; }
    ctr version &&  ${COLOR}"Containerd 安装成功"${END} || ${COLOR}"Containerd 安装失败"${END}
}

set_alias(){
    echo 'alias rmi="nerdctl images -qa|xargs nerdctl rmi -f"' >> ~/.bashrc
    echo 'alias rmc="nerdctl ps -qa|xargs nerdctl rm -f"' >> ~/.bashrc
}

install_netdctl_buildkit(){
    ${COLOR}"开始安装Netdctl..."${END}
    tar xf ${NETDCTL_FILE} -C /usr/local/bin/
    mkdir -p /etc/nerdctl/
    cat > /etc/nerdctl/nerdctl.toml <<-EOF
namespace      = "k8s.io"
insecure_registry = true
EOF

    ${COLOR}"开始安装Buildkit..."${END}
    tar xf ${BUILDKIT_FILE} -C /usr/local/
    cat > /usr/lib/systemd/system/buildkit.socket <<-EOF
[Unit]
Description=BuildKit
Documentation=https://github.com/moby/buildkit

[Socket]
ListenStream=%t/buildkit/buildkitd.sock
SocketMode=0660

[Install]
WantedBy=sockets.target
EOF
    cat > /usr/lib/systemd/system/buildkit.service <<-EOF
[Unit]
Description=BuildKit
Requires=buildkit.socket
After=buildkit.socket
Documentation=https://github.com/moby/buildkit

[Service]
Type=notify
ExecStart=/usr/local/bin/buildkitd --addr fd://

[Install]
WantedBy=multi-user.target
EOF
    systemctl daemon-reload && systemctl enable --now buildkit &> /dev/null
    systemctl is-active buildkit &> /dev/null && ${COLOR}"Buildkit 服务启动成功"${END} || { ${COLOR}"Buildkit 启动失败"${END};exit; }
    buildctl --version &&  ${COLOR}"Buildkit 安装成功"${END} || ${COLOR}"Buildkit 安装失败"${END}
}

nerdctl_command_completion(){
    if [ ${OS_ID} == "CentOS" -o ${OS_ID} == "Rocky" ];then
        yum -y install bash-completion
    else
        apt -y install bash-completion
    fi
    echo "source <(nerdctl completion bash)" >> ~/.bashrc
    . ~/.bashrc
}

set_swap_limit(){
    if [ ${OS_ID} == "Ubuntu" ];then
        ${COLOR}'设置Docker的"WARNING: No swap limit support"警告'${END}
        sed -ri '/^GRUB_CMDLINE_LINUX=/s@"$@ swapaccount=1"@' /etc/default/grub
        update-grub &> /dev/null
        ${COLOR}"10秒后，机器会自动重启"${END}
        sleep 10
        reboot
    fi
}

main(){
    os
    check_file
    install_containerd
    set_alias
    install_netdctl_buildkit
    nerdctl_command_completion
    set_swap_limit
}

main

[root@k8s-master02 ~]# bash install_containerd_binary.sh
[root@k8s-master03 ~]# bash install_containerd_binary.sh

[root@k8s-node01 ~]# bash install_containerd_binary.sh
[root@k8s-node02 ~]# bash install_containerd_binary.sh
[root@k8s-node03 ~]# bash install_containerd_binary.sh

7.部署master

7.1 创建etcd相关目录和复制etcd证书

master节点创建etcd证书目录

[root@k8s-master01 ~]# mkdir /etc/etcd/ssl -p
[root@k8s-master02 ~]# mkdir /etc/etcd/ssl -p
[root@k8s-master03 ~]# mkdir /etc/etcd/ssl -p

将etcd证书复制到master节点

[root@k8s-etcd01 pki]# for NODE in k8s-master01 k8s-master02 k8s-master03; do
     ssh -o StrictHostKeyChecking=no $NODE "mkdir -p /etc/etcd/ssl"
     for FILE in etcd-ca-key.pem  etcd-ca.pem  etcd-key.pem  etcd.pem; do
       scp -o StrictHostKeyChecking=no /etc/etcd/ssl/${FILE} $NODE:/etc/etcd/ssl/${FILE}
     done
 done

所有master节点创建etcd的证书目录

[root@k8s-master01 ~]# mkdir /etc/kubernetes/pki/etcd -p
[root@k8s-master02 ~]# mkdir /etc/kubernetes/pki/etcd -p
[root@k8s-master03 ~]# mkdir /etc/kubernetes/pki/etcd -p

[root@k8s-master01 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-master02 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-master03 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/

7.2 安装kubernetes组件

需要下载最新的1.25.x版本：

github.com/kubernetes/…

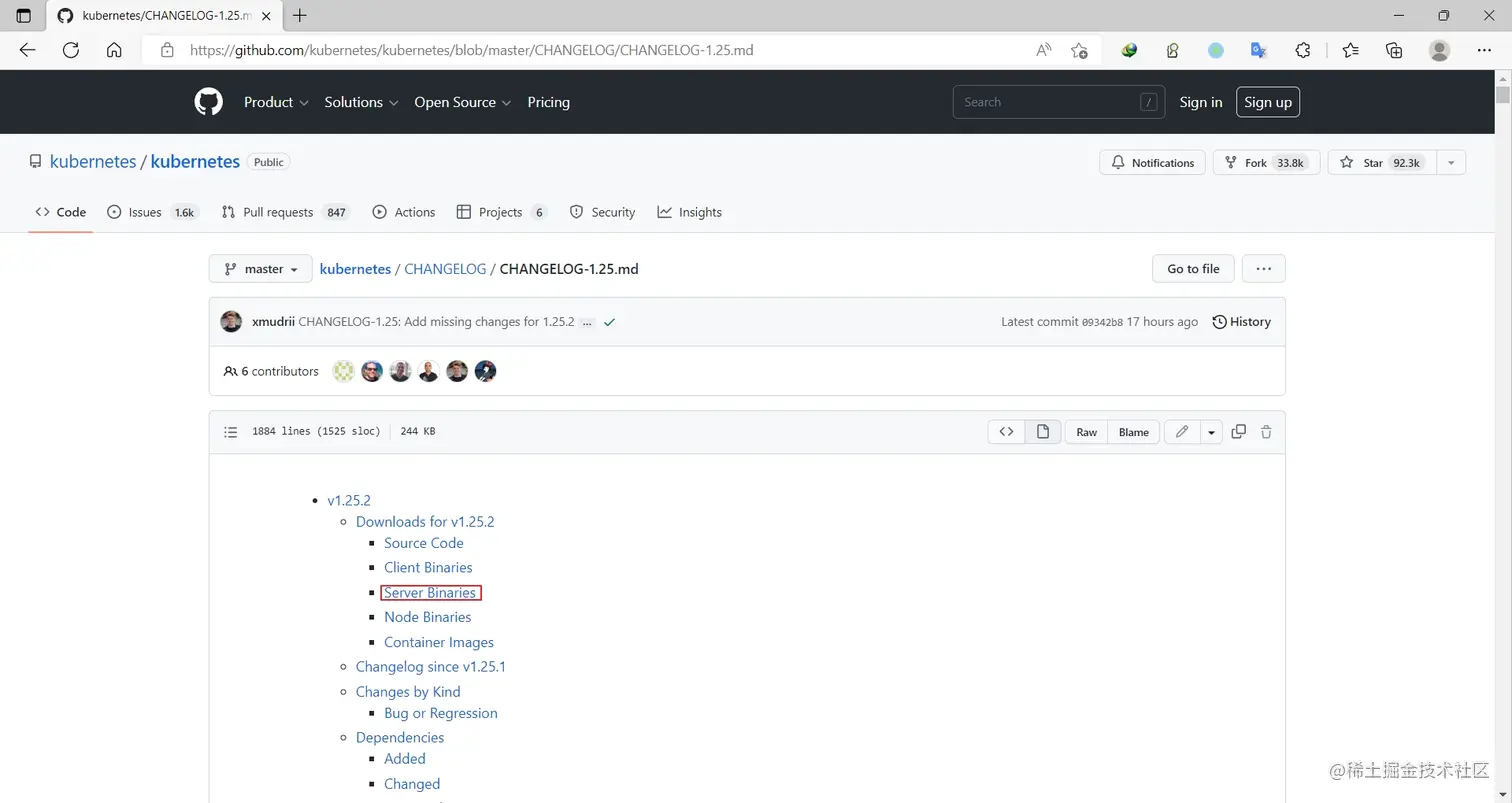

打开页面后点击：

下载kubernetes安装包

[root@k8s-master01 ~]# wget https://dl.k8s.io/v1.25.2/kubernetes-server-linux-amd64.tar.gz

解压kubernetes安装文件

[root@k8s-master01 ~]# tar -xf kubernetes-server-linux-amd64.tar.gz  --strip-components=3 -C /usr/local/bin kubernetes/server/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy}

版本查看

[root@k8s-master01 ~]# kubelet --version
Kubernetes v1.25.2

将组件发送到其他master节点

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do echo $NODE; scp -o StrictHostKeyChecking=no /usr/local/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy} $NODE:/usr/local/bin/; done

master节点创建/opt/cni/bin目录

[root@k8s-master01 ~]# mkdir -p /opt/cni/bin
[root@k8s-master02 ~]# mkdir -p /opt/cni/bin
[root@k8s-master03 ~]# mkdir -p /opt/cni/bin

7.3 生成k8s组件证书

二进制安装最关键步骤，一步错误全盘皆输，一定要注意每个步骤都要是正确的

master节点创建kubernetes相关目录

[root@k8s-master01 ~]# mkdir -p /etc/kubernetes/pki
[root@k8s-master02 ~]# mkdir -p /etc/kubernetes/pki
[root@k8s-master03 ~]# mkdir -p /etc/kubernetes/pki

master01下载生成证书工具

[root@k8s-master01 ~]# wget https://github.com/cloudflare/cfssl/releases/download/v1.6.1/cfssl_1.6.1_linux_amd64

[root@k8s-master01 ~]# wget https://github.com/cloudflare/cfssl/releases/download/v1.6.1/cfssljson_1.6.1_linux_amd64

[root@k8s-master01 ~]# mv cfssl_1.6.1_linux_amd64 /usr/local/bin/cfssl
[root@k8s-master01 ~]# mv cfssljson_1.6.1_linux_amd64 /usr/local/bin/cfssljson

[root@k8s-master01 ~]# chmod +x /usr/local/bin/cfssl /usr/local/bin/cfssljson

7.3.1 生成ca证书

[root@k8s-master01 ~]# mkdir pki
[root@k8s-master01 ~]# cd pki/

[root@k8s-master01 pki]# cat > ca-csr.json <<EOF
{
  "CN": "kubernetes",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "Kubernetes",
      "OU": "Kubernetes-manual"
    }
  ],
  "ca": {
    "expiry": "876000h"
  }
}
EOF

[root@k8s-master01 pki]# cfssl gencert -initca ca-csr.json | cfssljson -bare /etc/kubernetes/pki/ca
#执行结果
2022/09/25 16:39:54 [INFO] generating a new CA key and certificate from CSR
2022/09/25 16:39:54 [INFO] generate received request
2022/09/25 16:39:54 [INFO] received CSR
2022/09/25 16:39:54 [INFO] generating key: rsa-2048
2022/09/25 16:39:54 [INFO] encoded CSR
2022/09/25 16:39:54 [INFO] signed certificate with serial number 144467388419643602118985040994832054816132660567

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/ca*
-rw-r--r-- 1 root root 1070 Sep 25 16:39 /etc/kubernetes/pki/ca.csr
-rw------- 1 root root 1679 Sep 25 16:39 /etc/kubernetes/pki/ca-key.pem
-rw-r--r-- 1 root root 1363 Sep 25 16:39 /etc/kubernetes/pki/ca.pem

7.3.2 生成apiserver证书

10.96.0.是k8s service的网段，如果说需要更改k8s service网段，那就需要更改10.96.0.1，

如果不是高可用集群，172.31.3.188为Master01的IP

[root@k8s-master01 pki]# cat > ca-config.json <<EOF
{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "kubernetes": {
        "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ],
        "expiry": "876000h"
      }
    }
  }
}
EOF

[root@k8s-master01 pki]# cat > apiserver-csr.json <<EOF
{
  "CN": "kube-apiserver",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "Kubernetes",
      "OU": "Kubernetes-manual"
    }
  ]
}
EOF

[root@k8s-master01 pki]# cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem -config=ca-config.json -hostname=10.96.0.1,172.31.3.188,127.0.0.1,kubernetes,kubernetes.default,kubernetes.default.svc,kubernetes.default.svc.cluster,kubernetes.default.svc.cluster.local,172.31.3.101,172.31.3.102,172.31.3.103 -profile=kubernetes apiserver-csr.json | cfssljson -bare /etc/kubernetes/pki/apiserver
#执行结果
2022/09/25 16:40:41 [INFO] generate received request
2022/09/25 16:40:41 [INFO] received CSR
2022/09/25 16:40:41 [INFO] generating key: rsa-2048
2022/09/25 16:40:41 [INFO] encoded CSR
2022/09/25 16:40:41 [INFO] signed certificate with serial number 430981208956747841835012330139928202432283184832

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/apiserver*
-rw-r--r-- 1 root root 1297 Sep 25 16:40 /etc/kubernetes/pki/apiserver.csr
-rw------- 1 root root 1675 Sep 25 16:40 /etc/kubernetes/pki/apiserver-key.pem
-rw-r--r-- 1 root root 1692 Sep 25 16:40 /etc/kubernetes/pki/apiserver.pem

7.3.3 生成apiserver的聚合证书

生成apiserver的聚合证书。Requestheader-client-xxx requestheader-allowwd-xxx:aggerator

[root@k8s-master01 pki]# cat > front-proxy-ca-csr.json <<EOF
{
  "CN": "kubernetes",
  "key": {
     "algo": "rsa",
     "size": 2048
  }
}
EOF

[root@k8s-master01 pki]# cfssl gencert -initca front-proxy-ca-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-ca
#执行结果
2022/09/25 16:41:21 [INFO] generating a new CA key and certificate from CSR
2022/09/25 16:41:21 [INFO] generate received request
2022/09/25 16:41:21 [INFO] received CSR
2022/09/25 16:41:21 [INFO] generating key: rsa-2048
2022/09/25 16:41:22 [INFO] encoded CSR
2022/09/25 16:41:22 [INFO] signed certificate with serial number 673709205875970548123940386290897802924816968201

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/front-proxy-ca*
-rw-r--r-- 1 root root  891 Sep 25 16:41 /etc/kubernetes/pki/front-proxy-ca.csr
-rw------- 1 root root 1679 Sep 25 16:41 /etc/kubernetes/pki/front-proxy-ca-key.pem
-rw-r--r-- 1 root root 1094 Sep 25 16:41 /etc/kubernetes/pki/front-proxy-ca.pem

[root@k8s-master01 pki]# cat > front-proxy-client-csr.json <<EOF
{
  "CN": "front-proxy-client",
  "key": {
     "algo": "rsa",
     "size": 2048
  }
}
EOF

[root@k8s-master01 pki]# cfssl gencert -ca=/etc/kubernetes/pki/front-proxy-ca.pem -ca-key=/etc/kubernetes/pki/front-proxy-ca-key.pem -config=ca-config.json -profile=kubernetes front-proxy-client-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-client
#返回结果（忽略警告）
2022/09/25 16:42:01 [INFO] generate received request
2022/09/25 16:42:01 [INFO] received CSR
2022/09/25 16:42:01 [INFO] generating key: rsa-2048
2022/09/25 16:42:01 [INFO] encoded CSR
2022/09/25 16:42:01 [INFO] signed certificate with serial number 85560094871910737940366819468847340063056850525
2022/09/25 16:42:01 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/front-proxy-client*
-rw-r--r-- 1 root root  903 Sep 25 16:42 /etc/kubernetes/pki/front-proxy-client.csr
-rw------- 1 root root 1675 Sep 25 16:42 /etc/kubernetes/pki/front-proxy-client-key.pem
-rw-r--r-- 1 root root 1188 Sep 25 16:42 /etc/kubernetes/pki/front-proxy-client.pem

7.3.4 生成controller-manage的证书和配置文件

[root@k8s-master01 pki]# cat > manager-csr.json <<EOF
{
  "CN": "system:kube-controller-manager",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [    {      "C": "CN",      "ST": "Beijing",      "L": "Beijing",      "O": "system:kube-controller-manager",      "OU": "Kubernetes-manual"    }  ]
}
EOF

[root@k8s-master01 pki]# cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem  -config=ca-config.json -profile=kubernetes manager-csr.json | cfssljson -bare /etc/kubernetes/pki/controller-manager
#执行结果
2022/09/25 16:42:37 [INFO] generate received request
2022/09/25 16:42:37 [INFO] received CSR
2022/09/25 16:42:37 [INFO] generating key: rsa-2048
2022/09/25 16:42:37 [INFO] encoded CSR
2022/09/25 16:42:37 [INFO] signed certificate with serial number 730142395596434023542887289901373515374508177240
2022/09/25 16:42:37 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/controller-manager*
-rw-r--r-- 1 root root 1082 Sep 25 16:42 /etc/kubernetes/pki/controller-manager.csr
-rw------- 1 root root 1675 Sep 25 16:42 /etc/kubernetes/pki/controller-manager-key.pem
-rw-r--r-- 1 root root 1501 Sep 25 16:42 /etc/kubernetes/pki/controller-manager.pem

# 注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址
# set-cluster：设置一个集群项，
[root@k8s-master01 pki]# kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://172.31.3.188:6443 --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
#执行结果
Cluster "kubernetes" set.

# set-credentials 设置一个用户项
[root@k8s-master01 pki]# kubectl config set-credentials system:kube-controller-manager --client-certificate=/etc/kubernetes/pki/controller-manager.pem --client-key=/etc/kubernetes/pki/controller-manager-key.pem --embed-certs=true --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
#执行结果
User "system:kube-controller-manager" set.

# 设置一个环境项，一个上下文
[root@k8s-master01 pki]# kubectl config set-context system:kube-controller-manager@kubernetes --cluster=kubernetes --user=system:kube-controller-manager --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
#执行结果
Context "system:kube-controller-manager@kubernetes" created.

# 使用某个环境当做默认环境
[root@k8s-master01 pki]# kubectl config use-context system:kube-controller-manager@kubernetes --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
#执行结果
Switched to context "system:kube-controller-manager@kubernetes".

7.3.5 生成scheduler的证书和配置文件

[root@k8s-master01 pki]# cat > scheduler-csr.json <<EOF
{
  "CN": "system:kube-scheduler",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [    {      "C": "CN",      "ST": "Beijing",      "L": "Beijing",      "O": "system:kube-scheduler",      "OU": "Kubernetes-manual"    }  ]
}
EOF

[root@k8s-master01 pki]# cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   scheduler-csr.json | cfssljson -bare /etc/kubernetes/pki/scheduler
#执行结果
2022/09/25 16:48:53 [INFO] generate received request
2022/09/25 16:48:53 [INFO] received CSR
2022/09/25 16:48:53 [INFO] generating key: rsa-2048
2022/09/25 16:48:53 [INFO] encoded CSR
2022/09/25 16:48:53 [INFO] signed certificate with serial number 228881838573494475296244558577950441626719203074
2022/09/25 16:48:53 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/scheduler*
-rw-r--r-- 1 root root 1058 Sep 25 16:48 /etc/kubernetes/pki/scheduler.csr
-rw------- 1 root root 1679 Sep 25 16:48 /etc/kubernetes/pki/scheduler-key.pem
-rw-r--r-- 1 root root 1476 Sep 25 16:48 /etc/kubernetes/pki/scheduler.pem

# 注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址
[root@k8s-master01 pki]# kubectl config set-cluster kubernetes \
     --certificate-authority=/etc/kubernetes/pki/ca.pem \
     --embed-certs=true \
     --server=https://172.31.3.188:6443 \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
#执行结果
Cluster "kubernetes" set.

[root@k8s-master01 pki]# kubectl config set-credentials system:kube-scheduler \
     --client-certificate=/etc/kubernetes/pki/scheduler.pem \
     --client-key=/etc/kubernetes/pki/scheduler-key.pem \
     --embed-certs=true \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
#执行结果
User "system:kube-scheduler" set.

[root@k8s-master01 pki]# kubectl config set-context system:kube-scheduler@kubernetes \
     --cluster=kubernetes \
     --user=system:kube-scheduler \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
#执行结果
Context "system:kube-scheduler@kubernetes" created.

[root@k8s-master01 pki]# kubectl config use-context system:kube-scheduler@kubernetes \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
#执行结果
Switched to context "system:kube-scheduler@kubernetes".

7.3.6 生成admin证书和配置文件

[root@k8s-master01 pki]# cat > admin-csr.json <<EOF
{
  "CN": "admin",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [    {      "C": "CN",      "ST": "Beijing",      "L": "Beijing",      "O": "system:masters",      "OU": "Kubernetes-manual"    }  ]
}
EOF

[root@k8s-master01 pki]# cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   admin-csr.json | cfssljson -bare /etc/kubernetes/pki/admin
#执行结果
2022/09/25 16:50:04 [INFO] generate received request
2022/09/25 16:50:04 [INFO] received CSR
2022/09/25 16:50:04 [INFO] generating key: rsa-2048
2022/09/25 16:50:04 [INFO] encoded CSR
2022/09/25 16:50:04 [INFO] signed certificate with serial number 42182691318354263130529298881094841114488241757
2022/09/25 16:50:04 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/admin*
-rw-r--r-- 1 root root 1025 Sep 25 16:50 /etc/kubernetes/pki/admin.csr
-rw------- 1 root root 1675 Sep 25 16:50 /etc/kubernetes/pki/admin-key.pem
-rw-r--r-- 1 root root 1444 Sep 25 16:50 /etc/kubernetes/pki/admin.pem

# 注意，如果不是高可用集群，172.31.3.188:8443改为master01的地址
[root@k8s-master01 pki]# kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://172.31.3.188:6443 --kubeconfig=/etc/kubernetes/admin.kubeconfig
#执行结果
Cluster "kubernetes" set.

[root@k8s-master01 pki]# kubectl config set-credentials kubernetes-admin --client-certificate=/etc/kubernetes/pki/admin.pem --client-key=/etc/kubernetes/pki/admin-key.pem --embed-certs=true --kubeconfig=/etc/kubernetes/admin.kubeconfig
#执行结果
User "kubernetes-admin" set.

[root@k8s-master01 pki]# kubectl config set-context kubernetes-admin@kubernetes --cluster=kubernetes     --user=kubernetes-admin --kubeconfig=/etc/kubernetes/admin.kubeconfig
#执行结果
Context "kubernetes-admin@kubernetes" created.

[root@k8s-master01 pki]# kubectl config use-context kubernetes-admin@kubernetes --kubeconfig=/etc/kubernetes/admin.kubeconfig
#执行结果
Switched to context "kubernetes-admin@kubernetes".

7.3.7 创建sa key

创建ServiceAccount Key à secret

[root@k8s-master01 pki]# openssl genrsa -out /etc/kubernetes/pki/sa.key 2048
#返回结果
Generating RSA private key, 2048 bit long modulus
..............................+++
....................................+++
e is 65537 (0x10001)

[root@k8s-master01 pki]# openssl rsa -in /etc/kubernetes/pki/sa.key -pubout -out /etc/kubernetes/pki/sa.pub
#执行结果
writing RSA key

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/sa*
-rw------- 1 root root 1679 Sep 25 16:51 /etc/kubernetes/pki/sa.key
-rw-r--r-- 1 root root  451 Sep 25 16:51 /etc/kubernetes/pki/sa.pub

发送证书至其他master节点

[root@k8s-master01 pki]# for NODE in k8s-master02 k8s-master03; do
    for FILE in $(ls /etc/kubernetes/pki | grep -v etcd); do
        scp /etc/kubernetes/pki/${FILE} $NODE:/etc/kubernetes/pki/${FILE};
    done;
    for FILE in admin.kubeconfig controller-manager.kubeconfig scheduler.kubeconfig; do
        scp /etc/kubernetes/${FILE} $NODE:/etc/kubernetes/${FILE};
    done;
done

查看证书文件

[root@k8s-master01 pki]# ll -R /etc/kubernetes/pki/
/etc/kubernetes/pki/:
total 92
-rw-r--r-- 1 root root 1025 Sep 25 16:50 admin.csr
-rw------- 1 root root 1675 Sep 25 16:50 admin-key.pem
-rw-r--r-- 1 root root 1444 Sep 25 16:50 admin.pem
-rw-r--r-- 1 root root 1297 Sep 25 16:40 apiserver.csr
-rw------- 1 root root 1675 Sep 25 16:40 apiserver-key.pem
-rw-r--r-- 1 root root 1692 Sep 25 16:40 apiserver.pem
-rw-r--r-- 1 root root 1070 Sep 25 16:39 ca.csr
-rw------- 1 root root 1679 Sep 25 16:39 ca-key.pem
-rw-r--r-- 1 root root 1363 Sep 25 16:39 ca.pem
-rw-r--r-- 1 root root 1082 Sep 25 16:42 controller-manager.csr
-rw------- 1 root root 1675 Sep 25 16:42 controller-manager-key.pem
-rw-r--r-- 1 root root 1501 Sep 25 16:42 controller-manager.pem
drwxr-xr-x 2 root root   84 Sep 25 16:37 etcd
-rw-r--r-- 1 root root  891 Sep 25 16:41 front-proxy-ca.csr
-rw------- 1 root root 1679 Sep 25 16:41 front-proxy-ca-key.pem
-rw-r--r-- 1 root root 1094 Sep 25 16:41 front-proxy-ca.pem
-rw-r--r-- 1 root root  903 Sep 25 16:42 front-proxy-client.csr
-rw------- 1 root root 1675 Sep 25 16:42 front-proxy-client-key.pem
-rw-r--r-- 1 root root 1188 Sep 25 16:42 front-proxy-client.pem
-rw------- 1 root root 1679 Sep 25 16:51 sa.key
-rw-r--r-- 1 root root  451 Sep 25 16:51 sa.pub
-rw-r--r-- 1 root root 1058 Sep 25 16:48 scheduler.csr
-rw------- 1 root root 1679 Sep 25 16:48 scheduler-key.pem
-rw-r--r-- 1 root root 1476 Sep 25 16:48 scheduler.pem

/etc/kubernetes/pki/etcd:
total 0
lrwxrwxrwx 1 root root 29 Sep 25 16:37 etcd-ca-key.pem -> /etc/etcd/ssl/etcd-ca-key.pem
lrwxrwxrwx 1 root root 25 Sep 25 16:37 etcd-ca.pem -> /etc/etcd/ssl/etcd-ca.pem
lrwxrwxrwx 1 root root 26 Sep 25 16:37 etcd-key.pem -> /etc/etcd/ssl/etcd-key.pem
lrwxrwxrwx 1 root root 22 Sep 25 16:37 etcd.pem -> /etc/etcd/ssl/etcd.pe

[root@k8s-master01 pki]# ls /etc/kubernetes/pki | grep -v etcd |wc -l
23
# 一共23个就对了

7.4 Kubernetes组件配置

master节点创建相关目录

[root@k8s-master01 pki]# cd
[root@k8s-master01 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

[root@k8s-master02 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

[root@k8s-master03 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

7.4.1 Apiserver

所有Master节点创建kube-apiserver service，# 注意，如果不是高可用集群，172.31.3.188改为master01的地址

7.4.1.1 Master01配置

注意本文档使用的k8s service网段为10.96.0.0/12，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

[root@k8s-master01 ~]# cat > /lib/systemd/system/kube-apiserver.service <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --advertise-address=172.31.3.101 \
      --service-cluster-ip-range=10.96.0.0/12  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

7.4.1.2 Master02配置

注意本文档使用的k8s service网段为10.96.0.0/12，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

[root@k8s-master02 ~]# cat > /lib/systemd/system/kube-apiserver.service <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --advertise-address=172.31.3.102 \
      --service-cluster-ip-range=10.96.0.0/12  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

7.4.1.3 Master03配置

注意本文档使用的k8s service网段为10.96.0.0/12，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

[root@k8s-master03 ~]# cat > /lib/systemd/system/kube-apiserver.service <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --advertise-address=172.31.3.103 \
      --service-cluster-ip-range=10.96.0.0/12  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

7.4.1.4 启动apiserver

所有Master节点开启kube-apiserver

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kube-apiserver

[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kube-apiserver

[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kube-apiserver

检测kube-server状态

[root@k8s-master01 ~]# systemctl status kube-apiserver
● kube-apiserver.service - Kubernetes API Server
   Loaded: loaded (/usr/lib/systemd/system/kube-apiserver.service; enabled; vendor preset: disabled)
   Active: active (running) since Sun 2022-09-25 16:53:11 CST; 12s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 6154 (kube-apiserver)
    Tasks: 14 (limit: 23474)
   Memory: 259.5M
   CGroup: /system.slice/kube-apiserver.service
           └─6154 /usr/local/bin/kube-apiserver --v=2 --logtostderr=true --allow-privileged=true --bind-address=0.0.0.0 --secure-port=6443 --a>

Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: I0925 16:53:19.657786    6154 storage_rbac.go:321] created rolebinding.rbac.a>
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: I0925 16:53:19.672982    6154 storage_rbac.go:321] created rolebinding.rbac.a>
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: I0925 16:53:19.684131    6154 healthz.go:257] poststarthook/rbac/bootstrap-ro>
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: [-]poststarthook/rbac/bootstrap-roles failed: not finished
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: I0925 16:53:19.689793    6154 storage_rbac.go:321] created rolebinding.rbac.a>
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: I0925 16:53:19.705317    6154 storage_rbac.go:321] created rolebinding.rbac.a>
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: I0925 16:53:19.817048    6154 alloc.go:327] "allocated clusterIPs" service="d>
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: W0925 16:53:19.839303    6154 lease.go:250] Resetting endpoints for master se>
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: I0925 16:53:19.840909    6154 controller.go:616] quota admission added evalua>
Sep 25 16:53:19 k8s-master01.example.local kube-apiserver[6154]: I0925 16:53:19.878881    6154 controller.go:616] quota admission added evalua>

[root@k8s-master02 ~]# systemctl status kube-apiserver
[root@k8s-master03 ~]# systemctl status kube-apiserver

7.4.2 ControllerManager

所有Master节点配置kube-controller-manager service

注意本文档使用的k8s Pod网段为192.168.0.0/12，该网段不能和宿主机的网段、k8s Service网段的重复，请按需修改

[root@k8s-master01 ~]# cat > /lib/systemd/system/kube-controller-manager.service <<EOF
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-controller-manager \
      --v=2 \
      --logtostderr=true \
      --bind-address=127.0.0.1 \
      --root-ca-file=/etc/kubernetes/pki/ca.pem \
      --cluster-signing-cert-file=/etc/kubernetes/pki/ca.pem \
      --cluster-signing-key-file=/etc/kubernetes/pki/ca-key.pem \
      --service-account-private-key-file=/etc/kubernetes/pki/sa.key \
      --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig \
      --leader-elect=true \
      --use-service-account-credentials=true \
      --node-monitor-grace-period=40s \
      --node-monitor-period=5s \
      --pod-eviction-timeout=2m0s \
      --controllers=*,bootstrapsigner,tokencleaner \
      --allocate-node-cidrs=true \
      --cluster-cidr=192.168.0.0/12 \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem \
      --node-cidr-mask-size=24

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target
EOF

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /lib/systemd/system/kube-controller-manager.service $NODE:/lib/systemd/system/; done

所有Master节点启动kube-controller-manager

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kube-controller-manager
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kube-controller-manager
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kube-controller-manager

查看启动状态

[root@k8s-master01 ~]# systemctl status kube-controller-manager
● kube-controller-manager.service - Kubernetes Controller Manager
   Loaded: loaded (/usr/lib/systemd/system/kube-controller-manager.service; enabled; vendor preset: disabled)
   Active: active (running) since Sun 2022-09-25 16:54:21 CST; 16s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 6212 (kube-controller)
    Tasks: 11 (limit: 23474)
   Memory: 35.3M
   CGroup: /system.slice/kube-controller-manager.service
           └─6212 /usr/local/bin/kube-controller-manager --v=2 --logtostderr=true --bind-address=127.0.0.1 --root-ca-file=/etc/kubernetes/pki/>

Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.274767    6212 shared_informer.go:262] Caches are syn>
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.274835    6212 taint_manager.go:204] "Starting NoExec>
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.274896    6212 taint_manager.go:209] "Sending events >
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.302454    6212 shared_informer.go:262] Caches are syn>
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.303795    6212 shared_informer.go:262] Caches are syn>
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.303859    6212 resource_quota_controller.go:462] sync>
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.643168    6212 shared_informer.go:262] Caches are syn>
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.643226    6212 garbagecollector.go:263] synced garbag>
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.680675    6212 shared_informer.go:262] Caches are syn>
Sep 25 16:54:35 k8s-master01.example.local kube-controller-manager[6212]: I0925 16:54:35.680732    6212 garbagecollector.go:163] Garbage colle>

[root@k8s-master02 ~]# systemctl status kube-controller-manager
[root@k8s-master03 ~]# systemctl status kube-controller-manager

7.4.3 Scheduler

所有Master节点配置kube-scheduler service

[root@k8s-master01 ~]# cat > /lib/systemd/system/kube-scheduler.service <<EOF
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-scheduler \
      --v=2 \
      --logtostderr=true \
      --bind-address=127.0.0.1 \
      --leader-elect=true \
      --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target
EOF

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /lib/systemd/system/kube-scheduler.service $NODE:/lib/systemd/system/; done

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kube-scheduler
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kube-scheduler
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kube-scheduler

[root@k8s-master01 ~]# systemctl status kube-scheduler
● kube-scheduler.service - Kubernetes Scheduler
   Loaded: loaded (/usr/lib/systemd/system/kube-scheduler.service; enabled; vendor preset: disabled)
   Active: active (running) since Sun 2022-09-25 16:55:26 CST; 14s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 6268 (kube-scheduler)
    Tasks: 7 (limit: 23474)
   Memory: 13.9M
   CGroup: /system.slice/kube-scheduler.service
           └─6268 /usr/local/bin/kube-scheduler --v=2 --logtostderr=true --bind-address=127.0.0.1 --leader-elect=true --kubeconfig=/etc/kubern>

Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]:           schedulerName: default-scheduler
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]:  >
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]: I0925 16:55:27.648331    6268 server.go:148] "Starting Kubernetes Scheduler" >
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]: I0925 16:55:27.648349    6268 server.go:150] "Golang settings" GOGC="" GOMAXP>
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]: I0925 16:55:27.650630    6268 tlsconfig.go:200] "Loaded serving cert" certNam>
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]: I0925 16:55:27.650785    6268 named_certificates.go:53] "Loaded SNI cert" ind>
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]: I0925 16:55:27.650811    6268 secure_serving.go:210] Serving securely on 127.>
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]: I0925 16:55:27.651921    6268 tlsconfig.go:240] "Starting DynamicServingCerti>
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]: I0925 16:55:27.752899    6268 leaderelection.go:248] attempting to acquire le>
Sep 25 16:55:27 k8s-master01.example.local kube-scheduler[6268]: I0925 16:55:27.771438    6268 leaderelection.go:258] successfully acquired le>

[root@k8s-master02 ~]# systemctl status kube-scheduler
[root@k8s-master03 ~]# systemctl status kube-scheduler

7.4.4 TLS Bootstrapping配置

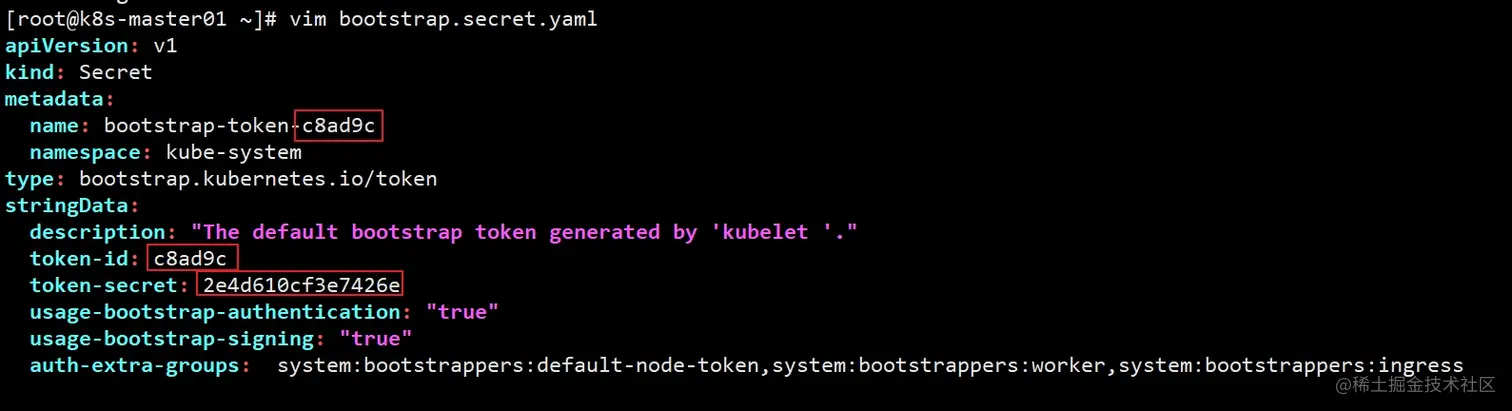

在Master01创建bootstrap

[root@k8s-master01 ~]# cat > bootstrap.secret.yaml <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: bootstrap-token-c8ad9c
  namespace: kube-system
type: bootstrap.kubernetes.io/token
stringData:
  description: "The default bootstrap token generated by 'kubelet '."
  token-id: c8ad9c
  token-secret: 2e4d610cf3e7426e
  usage-bootstrap-authentication: "true"
  usage-bootstrap-signing: "true"
  auth-extra-groups:  system:bootstrappers:default-node-token,system:bootstrappers:worker,system:bootstrappers:ingress

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubelet-bootstrap
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:node-bootstrapper
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:bootstrappers:default-node-token
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: node-autoapprove-bootstrap
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:certificates.k8s.io:certificatesigningrequests:nodeclient
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:bootstrappers:default-node-token
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: node-autoapprove-certificate-rotation
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:certificates.k8s.io:certificatesigningrequests:selfnodeclient
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:nodes
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:kube-apiserver-to-kubelet
rules:
  - apiGroups:
      - ""
    resources:
      - nodes/proxy
      - nodes/stats
      - nodes/log
      - nodes/spec
      - nodes/metrics
    verbs:
      - "*"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:kube-apiserver
  namespace: ""
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:kube-apiserver-to-kubelet
subjects:
  - apiGroup: rbac.authorization.k8s.io
    kind: User
    name: kube-apiserver
EOF

# 注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址
[root@k8s-master01 ~]# kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://172.31.3.188:6443 --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
Cluster "kubernetes" set.

[root@k8s-master01 ~]# kubectl config set-credentials tls-bootstrap-token-user --token=c8ad9c.2e4d610cf3e7426e --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
User "tls-bootstrap-token-user" set.

[root@k8s-master01 ~]# kubectl config set-context tls-bootstrap-token-user@kubernetes --cluster=kubernetes --user=tls-bootstrap-token-user --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
Context "tls-bootstrap-token-user@kubernetes" modified.

[root@k8s-master01 ~]# kubectl config use-context tls-bootstrap-token-user@kubernetes --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
Switched to context "tls-bootstrap-token-user@kubernetes".

注意：如果要修改bootstrap.secret.yaml的token-id和token-secret，需要保证下图红圈内的字符串一致的，并且位数是一样的。还要保证上个命令的黄色字体：c8ad9c.2e4d610cf3e7426e与你修改的字符串要一致

[root@k8s-master01 ~]# mkdir -p /root/.kube ; cp /etc/kubernetes/admin.kubeconfig /root/.kube/config

#查看集群状态，没问题的话继续后续操作
[root@k8s-master01 ~]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE                         ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-1               Healthy   {"health":"true","reason":""}
etcd-2               Healthy   {"health":"true","reason":""}
etcd-0               Healthy   {"health":"true","reason":""}

[root@k8s-master01 ~]# kubectl create -f bootstrap.secret.yaml

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do
     for FILE in bootstrap-kubelet.kubeconfig; do
       scp /etc/kubernetes/$FILE $NODE:/etc/kubernetes/${FILE}
     done
 done

7.4.5 Kubelet配置

master节点配置kubelet.service

[root@k8s-master01 ~]# cat > /lib/systemd/system/kubelet.service <<EOF
[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes
After=containerd.service
Requires=containerd.service

[Service]
ExecStart=/usr/local/bin/kubelet

Restart=always
StartLimitInterval=0
RestartSec=10

[Install]
WantedBy=multi-user.target
EOF

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /lib/systemd/system/kubelet.service $NODE:/lib/systemd/system/ ;done

master节点配置10-kubelet.conf的配置文件

[root@k8s-master01 ~]# cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=172.31.3.101"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS $KUBELET_RINTIME
EOF

[root@k8s-master02 ~]# cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=172.31.3.102"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS $KUBELET_RINTIME
EOF

[root@k8s-master03 ~]# cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=172.31.3.103"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS $KUBELET_RINTIME
EOF

下载镜像并上传至harbor：

[root@k8s-master01 ~]# nerdctl login harbor.raymonds.cc
Enter Username: admin
Enter Password:
WARN[0003] skipping verifying HTTPS certs for "harbor.raymonds.cc"
WARNING: Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

[root@k8s-master01 ~]# cat download_pause_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author:        Raymond
#QQ:            88563128
#Date:          2022-01-11
#FileName:      download_pause_images.sh
#URL:           raymond.blog.csdn.net
#Description:   The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \033[01;31m"
END='\033[0m'

PAUSE_VERSION=3.8
HARBOR_DOMAIN=harbor.raymonds.cc

images_download(){
    ${COLOR}"开始下载Pause镜像"${END}
        nerdctl pull registry.aliyuncs.com/google_containers/pause:${PAUSE_VERSION}
        nerdctl tag registry.aliyuncs.com/google_containers/pause:${PAUSE_VERSION} ${HARBOR_DOMAIN}/google_containers/pause:${PAUSE_VERSION}
        nerdctl rmi registry.aliyuncs.com/google_containers/pause:${PAUSE_VERSION}
        nerdctl push ${HARBOR_DOMAIN}/google_containers/pause:${PAUSE_VERSION}
    ${COLOR}"Pause镜像下载完成"${END}
}

images_download

[root@k8s-master01 ~]# bash download_pause_images.sh

[root@k8s-master01 ~]# nerdctl images
REPOSITORY                                    TAG       IMAGE ID        CREATED           PLATFORM       SIZE         BLOB SIZE
harbor.raymonds.cc/google_containers/pause    3.8       900118502363    22 seconds ago    linux/amd64    696.0 KiB    304.0 KiB

master创建kubelet的配置文件

注意：如果更改了k8s的service网段，需要更改kubelet-conf.yml 的clusterDNS:配置，改成k8s Service网段的第十个地址，比如10.96.0.10

[root@k8s-master01 ~]# cat > /etc/kubernetes/kubelet-conf.yml <<EOF
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
cgroupDriver: systemd
cgroupsPerQOS: true
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
containerLogMaxFiles: 5
containerLogMaxSize: 10Mi
contentType: application/vnd.kubernetes.protobuf
cpuCFSQuota: true
cpuManagerPolicy: none
cpuManagerReconcilePeriod: 10s
enableControllerAttachDetach: true
enableDebuggingHandlers: true
enforceNodeAllocatable:
- pods
eventBurst: 10
eventRecordQPS: 5
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
evictionPressureTransitionPeriod: 5m0s
failSwapOn: true
fileCheckFrequency: 20s
hairpinMode: promiscuous-bridge
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 20s
imageGCHighThresholdPercent: 85
imageGCLowThresholdPercent: 80
imageMinimumGCAge: 2m0s
iptablesDropBit: 15
iptablesMasqueradeBit: 14
kubeAPIBurst: 10
kubeAPIQPS: 5
makeIPTablesUtilChains: true
maxOpenFiles: 1000000
maxPods: 110
nodeStatusUpdateFrequency: 10s
oomScoreAdj: -999
podPidsLimit: -1
registryBurst: 10
registryPullQPS: 5
resolvConf: /etc/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 2m0s
serializeImagePulls: true
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 4h0m0s
syncFrequency: 1m0s
volumeStatsAggPeriod: 1m0s
EOF

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /etc/kubernetes/kubelet-conf.yml $NODE:/etc/kubernetes/ ;done

启动master节点kubelet

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kubelet
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kubelet
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kubelet

[root@k8s-master01 ~]# systemctl status kubelet
● kubelet.service - Kubernetes Kubelet
   Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; vendor preset: disabled)
  Drop-In: /etc/systemd/system/kubelet.service.d
           └─10-kubelet.conf
   Active: active (running) since Sun 2022-09-25 17:18:36 CST; 30s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 6441 (kubelet)
    Tasks: 14 (limit: 23474)
   Memory: 34.6M
   CGroup: /system.slice/kubelet.service
           └─6441 /usr/local/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kube>

Sep 25 17:18:50 k8s-master01.example.local kubelet[6441]: E0925 17:18:50.215908    6441 kubelet.go:2448] "Error getting node" err="node "172.>
Sep 25 17:18:50 k8s-master01.example.local kubelet[6441]: I0925 17:18:50.317300    6441 kuberuntime_manager.go:1050] "Updating runtime config >
Sep 25 17:18:50 k8s-master01.example.local kubelet[6441]: I0925 17:18:50.318585    6441 kubelet_network.go:60] "Updating Pod CIDR" originalPod>
Sep 25 17:18:50 k8s-master01.example.local kubelet[6441]: E0925 17:18:50.318962    6441 kubelet.go:2373] "Container runtime network not ready">
Sep 25 17:18:50 k8s-master01.example.local kubelet[6441]: I0925 17:18:50.577724    6441 apiserver.go:52] "Watching apiserver"
Sep 25 17:18:50 k8s-master01.example.local kubelet[6441]: I0925 17:18:50.593173    6441 reconciler.go:169] "Reconciler: start to sync state"
Sep 25 17:18:51 k8s-master01.example.local kubelet[6441]: E0925 17:18:51.875100    6441 kubelet.go:2373] "Container runtime network not ready">
Sep 25 17:18:56 k8s-master01.example.local kubelet[6441]: E0925 17:18:56.879725    6441 kubelet.go:2373] "Container runtime network not ready">
Sep 25 17:19:01 k8s-master01.example.local kubelet[6441]: E0925 17:19:01.881566    6441 kubelet.go:2373] "Container runtime network not ready">
Sep 25 17:19:06 k8s-master01.example.local kubelet[6441]: E0925 17:19:06.882411    6441 kubelet.go:2373] "Container runtime network not ready">

[root@k8s-master02 ~]# systemctl status kubelet
[root@k8s-master03 ~]# systemctl status kubelet

此时系统日志

#显示只有如下信息为正常
[root@k8s-master01 ~]# tail -f /var/log/messages #ubuntu命令为"tail -f /var/log/syslog"
...
Sep 23 15:11:22 localhost kubelet[16173]: E0923 15:11:22.503340   16173 kubelet.go:2373] "Container runtime network not ready" networkReady="NetworkReady=false reason:NetworkPluginNotReady message:docker: network plugin is not ready: cni config uninitialized"

查看集群状态

[root@k8s-master01 ~]# kubectl get nodes
NAME           STATUS     ROLES    AGE   VERSION
172.31.3.101   NotReady   <none>   38s   v1.25.2
172.31.3.102   NotReady   <none>   35s   v1.25.2
172.31.3.103   NotReady   <none>   33s   v1.25.2

7.4.6 kube-proxy配置

注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址

[root@k8s-master01 ~]# kubectl -n kube-system create serviceaccount kube-proxy
#执行结果
serviceaccount/kube-proxy created

[root@k8s-master01 ~]# kubectl create clusterrolebinding system:kube-proxy --clusterrole system:node-proxier --serviceaccount kube-system:kube-proxy
#执行结果
clusterrolebinding.rbac.authorization.k8s.io/system:kube-proxy created

[root@k8s-master01 ~]# cat > kube-proxy-scret.yml <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: kube-proxy
  namespace: kube-system
  annotations:
    kubernetes.io/service-account.name: "kube-proxy"
type: kubernetes.io/service-account-token
EOF

[root@k8s-master01 ~]# kubectl apply -f kube-proxy-scret.yml
#执行结果
secret/kube-proxy created

[root@k8s-master01 ~]# JWT_TOKEN=$(kubectl -n kube-system get secret/kube-proxy \
--output=jsonpath='{.data.token}' | base64 -d)

[root@k8s-master01 ~]# kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.pem --embed-certs=true --server=https://172.31.3.188:6443  --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
#执行结果
Cluster "kubernetes" set.

[root@k8s-master01 ~]# kubectl config set-credentials kubernetes --token=${JWT_TOKEN} --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
#执行结果
User "kubernetes" set.

[root@k8s-master01 ~]# kubectl config set-context kubernetes --cluster=kubernetes --user=kubernetes --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
#执行结果
Context "kubernetes" created.

[root@k8s-master01 ~]# kubectl config use-context kubernetes --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
#执行结果
Switched to context "kubernetes".

在master01将kube-proxy的systemd Service文件发送到其他节点

如果更改了集群Pod的网段，需要更改kube-proxy/kube-proxy.conf的clusterCIDR: 192.168.0.0/12参数为pod的网段。

[root@k8s-master01 ~]# cat > /etc/kubernetes/kube-proxy.conf <<EOF
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
clientConnection:
  acceptContentTypes: ""
  burst: 10
  contentType: application/vnd.kubernetes.protobuf
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
  qps: 5
clusterCIDR: 192.168.0.0/12
configSyncPeriod: 15m0s
conntrack:
  max: null
  maxPerCore: 32768
  min: 131072
  tcpCloseWaitTimeout: 1h0m0s
  tcpEstablishedTimeout: 24h0m0s
enableProfiling: false
healthzBindAddress: 0.0.0.0:10256
hostnameOverride: ""
iptables:
  masqueradeAll: false
  masqueradeBit: 14
  minSyncPeriod: 0s
  syncPeriod: 30s
ipvs:
  masqueradeAll: true
  minSyncPeriod: 5s
  scheduler: "rr"
  syncPeriod: 30s
kind: KubeProxyConfiguration
metricsBindAddress: 127.0.0.1:10249
mode: "ipvs"
nodePortAddresses: null
oomScoreAdj: -999
portRange: ""
udpIdleTimeout: 250ms
EOF

[root@k8s-master01 ~]# cat > /lib/systemd/system/kube-proxy.service <<EOF
[Unit]
Description=Kubernetes Kube Proxy
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-proxy \
  --config=/etc/kubernetes/kube-proxy.conf \
  --v=2

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target
EOF

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do
     scp /etc/kubernetes/kube-proxy.kubeconfig $NODE:/etc/kubernetes/kube-proxy.kubeconfig
     scp /etc/kubernetes/kube-proxy.conf $NODE:/etc/kubernetes/kube-proxy.conf
     scp /lib/systemd/system/kube-proxy.service $NODE:/lib/systemd/system/kube-proxy.service
 done

master节点启动kube-proxy

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy

[root@k8s-master01 ~]# systemctl status kube-proxy
● kube-proxy.service - Kubernetes Kube Proxy
   Loaded: loaded (/usr/lib/systemd/system/kube-proxy.service; enabled; vendor preset: disabled)
   Active: active (running) since Sun 2022-09-25 17:21:25 CST; 31s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 6633 (kube-proxy)
    Tasks: 6 (limit: 23474)
   Memory: 10.5M
   CGroup: /system.slice/kube-proxy.service
           └─6633 /usr/local/bin/kube-proxy --config=/etc/kubernetes/kube-proxy.conf --v=2

Sep 25 17:21:25 k8s-master01.example.local kube-proxy[6633]: I0925 17:21:25.255233    6633 flags.go:64] FLAG: --write-config-to=""
Sep 25 17:21:25 k8s-master01.example.local kube-proxy[6633]: I0925 17:21:25.256063    6633 server.go:442] "Using lenient decoding as strict de>
Sep 25 17:21:25 k8s-master01.example.local kube-proxy[6633]: I0925 17:21:25.256192    6633 feature_gate.go:245] feature gates: &{map[]}
Sep 25 17:21:25 k8s-master01.example.local kube-proxy[6633]: I0925 17:21:25.256265    6633 feature_gate.go:245] feature gates: &{map[]}
Sep 25 17:21:25 k8s-master01.example.local kube-proxy[6633]: I0925 17:21:25.275422    6633 proxier.go:666] "Failed to load kernel module with >
Sep 25 17:21:25 k8s-master01.example.local kube-proxy[6633]: E0925 17:21:25.295761    6633 node.go:152] Failed to retrieve node info: nodes "k>
Sep 25 17:21:26 k8s-master01.example.local kube-proxy[6633]: E0925 17:21:26.318886    6633 node.go:152] Failed to retrieve node info: nodes "k>
Sep 25 17:21:28 k8s-master01.example.local kube-proxy[6633]: E0925 17:21:28.497970    6633 node.go:152] Failed to retrieve node info: nodes "k>
Sep 25 17:21:32 k8s-master01.example.local kube-proxy[6633]: E0925 17:21:32.991308    6633 node.go:152] Failed to retrieve node info: nodes "k>
Sep 25 17:21:41 k8s-master01.example.local kube-proxy[6633]: E0925 17:21:41.810292    6633 node.go:152] Failed to retrieve node info: nodes "k>

[root@k8s-master02 ~]# systemctl status kube-proxy
[root@k8s-master03 ~]# systemctl status kube-proxy

[root@k8s-master01 ~]# kubectl get nodes
NAME           STATUS     ROLES    AGE     VERSION
172.31.3.101   NotReady   <none>   3m29s   v1.25.2
172.31.3.102   NotReady   <none>   3m26s   v1.25.2
172.31.3.103   NotReady   <none>   3m24s   v1.25.2

8.部署node

8.1 安装node组件

将组件发送到node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do echo $NODE; scp -o StrictHostKeyChecking=no /usr/local/bin/kube{let,-proxy} $NODE:/usr/local/bin/ ; done

node节点创建/opt/cni/bin目录

[root@k8s-node01 ~]# mkdir -p /opt/cni/bin
[root@k8s-node02 ~]# mkdir -p /opt/cni/bin
[root@k8s-node03 ~]# mkdir -p /opt/cni/bin

8.2 复制etcd证书

node节点创建etcd证书目录

[root@k8s-node01 ~]# mkdir /etc/etcd/ssl -p
[root@k8s-node02 ~]# mkdir /etc/etcd/ssl -p
[root@k8s-node03 ~]# mkdir /etc/etcd/ssl -p

将etcd证书复制到node节点

[root@k8s-etcd01 pki]# for NODE in k8s-node01 k8s-node02 k8s-node03; do
     ssh -o StrictHostKeyChecking=no $NODE "mkdir -p /etc/etcd/ssl"
     for FILE in etcd-ca-key.pem  etcd-ca.pem  etcd-key.pem  etcd.pem; do
       scp -o StrictHostKeyChecking=no /etc/etcd/ssl/${FILE} $NODE:/etc/etcd/ssl/${FILE}
     done
 done

所有master节点创建etcd的证书目录

[root@k8s-node01 ~]# mkdir /etc/kubernetes/pki/etcd -p
[root@k8s-node02 ~]# mkdir /etc/kubernetes/pki/etcd -p
[root@k8s-node03 ~]# mkdir /etc/kubernetes/pki/etcd -p

[root@k8s-node01 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-node02 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-node03 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/

8.3 复制kubernetes证书和配置文件

node节点创建kubernetes相关目录

[root@k8s-node01 ~]# mkdir -p /etc/kubernetes/pki
[root@k8s-node02 ~]# mkdir -p /etc/kubernetes/pki
[root@k8s-node03 ~]# mkdir -p /etc/kubernetes/pki

Master01节点复制证书至Node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do
     for FILE in pki/ca.pem pki/ca-key.pem pki/front-proxy-ca.pem bootstrap-kubelet.kubeconfig; do
       scp /etc/kubernetes/$FILE $NODE:/etc/kubernetes/${FILE}
     done
 done

8.4 配置kubelet

node节点创建相关目录

[root@k8s-node01 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

[root@k8s-node02 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

[root@k8s-node03 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

Master01节点复制配置文件kubelet service至Node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do scp /lib/systemd/system/kubelet.service $NODE:/lib/systemd/system/ ;done

node节点配置10-kubelet.conf的配置文件

[root@k8s-node01 ~]# cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=172.31.3.111"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS $KUBELET_RINTIME
EOF

[root@k8s-node02 ~]# cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=172.31.3.112"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS $KUBELET_RINTIME
EOF

[root@k8s-node03 ~]# cat > /etc/systemd/system/kubelet.service.d/10-kubelet.conf <<EOF
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--hostname-override=172.31.3.113"
Environment="KUBELET_RINTIME=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node=''"
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS $KUBELET_RINTIME
EOF

Master01节点kubelet的配置文件至Node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do scp /etc/kubernetes/kubelet-conf.yml $NODE:/etc/kubernetes/ ;done

启动node节点kubelet

[root@k8s-node01 ~]# systemctl daemon-reload && systemctl enable --now kubelet
[root@k8s-node02 ~]# systemctl daemon-reload && systemctl enable --now kubelet
[root@k8s-node03 ~]# systemctl daemon-reload && systemctl enable --now kubelet

[root@k8s-node01 ~]# systemctl status kubelet
● kubelet.service - Kubernetes Kubelet
   Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; vendor preset: disabled)
  Drop-In: /etc/systemd/system/kubelet.service.d
           └─10-kubelet.conf
   Active: active (running) since Sun 2022-09-25 17:26:52 CST; 13s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 5957 (kubelet)
    Tasks: 14 (limit: 23474)
   Memory: 34.9M
   CGroup: /system.slice/kubelet.service
           └─5957 /usr/local/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kube>

Sep 25 17:26:53 k8s-node01.example.local kubelet[5957]: I0925 17:26:53.683391    5957 kubelet_network_linux.go:63] "Initialized iptables rules>
Sep 25 17:26:53 k8s-node01.example.local kubelet[5957]: I0925 17:26:53.766025    5957 kubelet_network_linux.go:63] "Initialized iptables rules>
Sep 25 17:26:53 k8s-node01.example.local kubelet[5957]: I0925 17:26:53.766047    5957 status_manager.go:161] "Starting to sync pod status with>
Sep 25 17:26:53 k8s-node01.example.local kubelet[5957]: I0925 17:26:53.766064    5957 kubelet.go:2010] "Starting kubelet main sync loop"
Sep 25 17:26:53 k8s-node01.example.local kubelet[5957]: E0925 17:26:53.766104    5957 kubelet.go:2034] "Skipping pod synchronization" err="PLE>
Sep 25 17:26:54 k8s-node01.example.local kubelet[5957]: I0925 17:26:54.279327    5957 apiserver.go:52] "Watching apiserver"
Sep 25 17:26:54 k8s-node01.example.local kubelet[5957]: I0925 17:26:54.305974    5957 reconciler.go:169] "Reconciler: start to sync state"
Sep 25 17:26:58 k8s-node01.example.local kubelet[5957]: E0925 17:26:58.602184    5957 kubelet.go:2373] "Container runtime network not ready" n>
Sep 25 17:27:03 k8s-node01.example.local kubelet[5957]: I0925 17:27:03.232179    5957 transport.go:135] "Certificate rotation detected, shutti>
Sep 25 17:27:03 k8s-node01.example.local kubelet[5957]: E0925 17:27:03.603901    5957 kubelet.go:2373] "Container runtime network not ready" n>

[root@k8s-node02 ~]# systemctl status kubelet
[root@k8s-node03 ~]# systemctl status kubelet

查看集群状态

[root@k8s-master01 ~]# kubectl get nodes
NAME           STATUS     ROLES    AGE    VERSION
172.31.3.101   NotReady   <none>   9m8s   v1.25.2
172.31.3.102   NotReady   <none>   9m5s   v1.25.2
172.31.3.103   NotReady   <none>   9m3s   v1.25.2
172.31.3.111   NotReady   <none>   64s    v1.25.2
172.31.3.112   NotReady   <none>   48s    v1.25.2
172.31.3.113   NotReady   <none>   46s    v1.25.2

8.5 配置kube-proxy

Master01节点复制kube-proxy相关文件到node

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do
     scp /etc/kubernetes/kube-proxy.kubeconfig $NODE:/etc/kubernetes/kube-proxy.kubeconfig
     scp /etc/kubernetes/kube-proxy.conf $NODE:/etc/kubernetes/kube-proxy.conf
     scp /lib/systemd/system/kube-proxy.service $NODE:/lib/systemd/system/kube-proxy.service
 done

node节点启动kube-proxy

[root@k8s-node01 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy
[root@k8s-node02 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy
[root@k8s-node03 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy

[root@k8s-node01 ~]# systemctl status kube-proxy
● kube-proxy.service - Kubernetes Kube Proxy
   Loaded: loaded (/usr/lib/systemd/system/kube-proxy.service; enabled; vendor preset: disabled)
   Active: active (running) since Sun 2022-09-25 17:28:29 CST; 26s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 6162 (kube-proxy)
    Tasks: 5 (limit: 23474)
   Memory: 10.8M
   CGroup: /system.slice/kube-proxy.service
           └─6162 /usr/local/bin/kube-proxy --config=/etc/kubernetes/kube-proxy.conf --v=2

Sep 25 17:28:29 k8s-node01.example.local kube-proxy[6162]: I0925 17:28:29.391982    6162 flags.go:64] FLAG: --write-config-to=""
Sep 25 17:28:29 k8s-node01.example.local kube-proxy[6162]: I0925 17:28:29.393147    6162 server.go:442] "Using lenient decoding as strict deco>
Sep 25 17:28:29 k8s-node01.example.local kube-proxy[6162]: I0925 17:28:29.393298    6162 feature_gate.go:245] feature gates: &{map[]}
Sep 25 17:28:29 k8s-node01.example.local kube-proxy[6162]: I0925 17:28:29.393365    6162 feature_gate.go:245] feature gates: &{map[]}
Sep 25 17:28:29 k8s-node01.example.local kube-proxy[6162]: I0925 17:28:29.407927    6162 proxier.go:666] "Failed to load kernel module with mo>
Sep 25 17:28:29 k8s-node01.example.local kube-proxy[6162]: E0925 17:28:29.427017    6162 node.go:152] Failed to retrieve node info: nodes "k8s>
Sep 25 17:28:30 k8s-node01.example.local kube-proxy[6162]: E0925 17:28:30.464338    6162 node.go:152] Failed to retrieve node info: nodes "k8s>
Sep 25 17:28:32 k8s-node01.example.local kube-proxy[6162]: E0925 17:28:32.508065    6162 node.go:152] Failed to retrieve node info: nodes "k8s>
Sep 25 17:28:36 k8s-node01.example.local kube-proxy[6162]: E0925 17:28:36.760898    6162 node.go:152] Failed to retrieve node info: nodes "k8s>
Sep 25 17:28:45 k8s-node01.example.local kube-proxy[6162]: E0925 17:28:45.067601    6162 node.go:152] Failed to retrieve node info: nodes "k8s>

[root@k8s-node02 ~]# systemctl status kube-proxy
[root@k8s-node03 ~]# systemctl status kube-proxy

查看haproxy状态

kubeapi.raymonds.cc:9999/haproxy-sta…

10.基于 Kubernetes v1.25 (二进制) 和 Containerd部署高可用集群（二）

6.安装 Containerd

6.1 内核参数调整

6.2 二进制安装 Containerd

6.3 containerd 客户端工具 nerdctl

7.部署master

7.1 创建etcd相关目录和复制etcd证书

7.2 安装kubernetes组件

7.3 生成k8s组件证书

7.3.1 生成ca证书

7.3.2 生成apiserver证书

10.96.0.是k8s service的网段，如果说需要更改k8s service网段，那就需要更改10.96.0.1，

如果不是高可用集群，172.31.3.188为Master01的IP

7.3.3 生成apiserver的聚合证书

7.3.4 生成controller-manage的证书和配置文件

7.3.5 生成scheduler的证书和配置文件

7.3.6 生成admin证书和配置文件

7.3.7 创建sa key

7.4 Kubernetes组件配置

7.4.1 Apiserver

7.4.1.1 Master01配置

7.4.1.2 Master02配置

7.4.1.3 Master03配置

7.4.1.4 启动apiserver

7.4.2 ControllerManager

7.4.3 Scheduler

7.4.4 TLS Bootstrapping配置

7.4.5 Kubelet配置

7.4.6 kube-proxy配置

注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址

8.部署node

8.1 安装node组件

8.2 复制etcd证书

8.3 复制kubernetes证书和配置文件

8.4 配置kubelet

8.5 配置kube-proxy
