一、服务发现
RocketMQ有下面几个角色
NameSrv: 注册中心
Broker: 消息服务器
Producer: 消息生产者
Consumer: 消息消费者

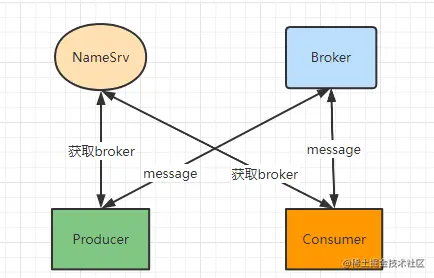

RocketMQ没有使用Zookeeper作为服务的注册中心，而是自研的NameSrv，每个NameSrv都是无关联的节点。
当消息服务器启动后，会将自己的地址信息等，注册到所有的NameSrv。
当Producer和Consumer启动后，会主动连接NameServer，获取可用的Broker列表，并选取Broker进行连接，进行消息发送与拉取。
二、源码分析
2.1 路由注册

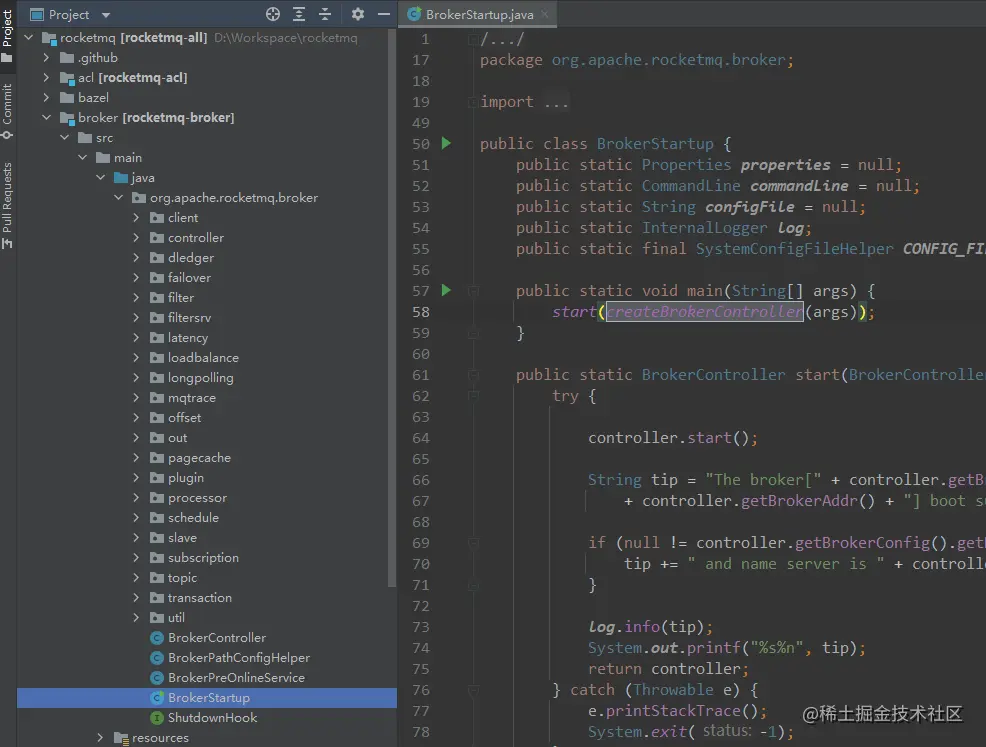

在源码的broker包根目录下，有一个BrokerStartup启动类。
入口代码如下：
public static void main(String[] args) {
start(createBrokerController(args));
}
主要进行了两件事：
- 创建BrokerController，用来管理Broker节点
- 启动BrokerController
第一步：创建BrokerController过程，主要是分析配置信息，比如：NameSrv集群的地址表、Broker信的角色信息(Master/Salve)等，并对其进行初始化。
final BrokerController controller = new BrokerController(
brokerConfig,
nettyServerConfig,
nettyClientConfig,
messageStoreConfig);
Runtime.getRuntime().addShutdownHook(new Thread(new Runnable() {
private volatile boolean hasShutdown = false;
private AtomicInteger shutdownTimes = new AtomicInteger(0);
@Override
public void run() {
synchronized (this) {
log.info("Shutdown hook was invoked, {}", this.shutdownTimes.incrementAndGet());
if (!this.hasShutdown) {
this.hasShutdown = true;
long beginTime = System.currentTimeMillis();
controller.shutdown();
long consumingTimeTotal = System.currentTimeMillis() - beginTime;
log.info("Shutdown hook over, consuming total time(ms): {}", consumingTimeTotal);
}
}
}
}, "ShutdownHook"));
如果代码中使用了线程池，一种优雅的停机方式是注册一个JVM钩子函数，在JVM进程关闭之前，先将线程池关闭，及时释放资源。
第二步是主要的，启动各种服务。
public void start() throws Exception {
if (this.messageStore != null) {
// 这里的messageStore是在创建controller时初始化的，controller.initialize(); 是DefaultMessageStore类
// 启动消息存储服务，包括启动Broker的高可用机制；启动以下任务：
// 1. 启动把内存当中的消息刷到磁盘中的任务
// 2. 把 commitLog 中的消息分发到 consumerQueue 文件中任务
// 3. cleanFilesPeriodically(): 清除过期的 commitLog/ consumerQueue 日志文件, 10s
// 4. checkSelf(): 检查 commitLog/ consumerQueue 的 映射文件，10min
// 5. 如果 commitLog 锁时间超过了阈值，持久化它的锁信息, 1s
// 6. isSpaceFull(): 检测磁盘空间是否足够, 10s
// 需要掌握的java的知识点：scheduleAtFixedRate, RandomAccessFile
this.messageStore.start();
}
if (this.remotingServer != null) {
// 使用Netty暴露Socket服务处理外部请求的调用
this.remotingServer.start();
}
if (this.fastRemotingServer != null) {
// 使用Netty暴露Socket服务处理外部请求的调用
this.fastRemotingServer.start();
}
if (this.fileWatchService != null) {
// 启动文件监听服务
this.fileWatchService.start();
}
if (this.brokerOuterAPI != null) {
// 启动 brokerOuterAPI 也就是 RemotingClient，使得 Broker 可以调用其它方
this.brokerOuterAPI.start();
}
if (this.pullRequestHoldService != null) {
// 启动 pullRequestHoldService 服务用于处理 Consumer 拉取消息
this.pullRequestHoldService.start();
}
if (this.clientHousekeepingService != null) {
// 启动 clientHousekeepingService 服务用于处理 Producer、Consumer、FilterServer 的存活
this.clientHousekeepingService.start();
}
if (this.filterServerManager != null) {
// 启动 filterServerManager 服务用于定时更新 FilterServer
this.filterServerManager.start();
}
if (!messageStoreConfig.isEnableDLegerCommitLog()) {
startProcessorByHa(messageStoreConfig.getBrokerRole());
handleSlaveSynchronize(messageStoreConfig.getBrokerRole());
// 注册 Broker 信息到 NameServer
this.registerBrokerAll(true, false, true);
}
// 在注册完后，会创建定时任务发送心跳包
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
// 每10s向NameSrv发送心跳包，NameSrv会定时扫描broker列表，去掉长时间没发送心跳包的broker
BrokerController.this.registerBrokerAll(true, false, brokerConfig.isForceRegister());
} catch (Throwable e) {
log.error("registerBrokerAll Exception", e);
}
}
}, 1000 * 10, Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)), TimeUnit.MILLISECONDS);
if (this.brokerStatsManager != null) {
// 启动 Broker 中的指标统计
this.brokerStatsManager.start();
}
if (this.brokerFastFailure != null) {
// 启动 Broker 请求列表的过期请求清除任务
this.brokerFastFailure.start();
}
}
调用this.registerBrokerAll方法注册broker到NameSrv上，在其内部调用doRegisterBrokerAll方法。doRegisterBrokerAll方法内部调用this.brokerOuterAPI.registerBrokerAll方法封装请求头，然后遍历NameSrv列表，向每个NameSrv发起注册请求。
Broker启动时会向集群中所有NameServer发送心跳语句，每隔30s想集群中所有NameServer发送心跳包，NameServer收到心跳包时会更新brokerLiveTable缓存中BrokerLiveInfo的lastUpdateTimeStamp，然后NameServer每隔10s扫描brokerLiveTable，如果连续120s没有收到心跳包，NameServer将移除broker信息同时关闭Socket连接
public synchronized void registerBrokerAll(final boolean checkOrderConfig, boolean oneway, boolean forceRegister) {
TopicConfigSerializeWrapper topicConfigWrapper = this.getTopicConfigManager().buildTopicConfigSerializeWrapper();
if (!PermName.isWriteable(this.getBrokerConfig().getBrokerPermission())
|| !PermName.isReadable(this.getBrokerConfig().getBrokerPermission())) {
ConcurrentHashMap<String, TopicConfig> topicConfigTable = new ConcurrentHashMap<>();
for (TopicConfig topicConfig : topicConfigWrapper.getTopicConfigTable().values()) {
TopicConfig tmp =
new TopicConfig(topicConfig.getTopicName(), topicConfig.getReadQueueNums(), topicConfig.getWriteQueueNums(),
this.brokerConfig.getBrokerPermission());
topicConfigTable.put(topicConfig.getTopicName(), tmp);
}
topicConfigWrapper.setTopicConfigTable(topicConfigTable);
}
if (forceRegister || needRegister(this.brokerConfig.getBrokerClusterName(),
this.getBrokerAddr(),
this.brokerConfig.getBrokerName(),
this.brokerConfig.getBrokerId(),
this.brokerConfig.getRegisterBrokerTimeoutMills())) {
doRegisterBrokerAll(checkOrderConfig, oneway, topicConfigWrapper);
}
}
private void doRegisterBrokerAll(boolean checkOrderConfig, boolean oneway,
TopicConfigSerializeWrapper topicConfigWrapper) {
// 注册broker的信息到NameSrv上
List<RegisterBrokerResult> registerBrokerResultList = this.brokerOuterAPI.registerBrokerAll(
this.brokerConfig.getBrokerClusterName(),
this.getBrokerAddr(),
this.brokerConfig.getBrokerName(),
this.brokerConfig.getBrokerId(),
this.getHAServerAddr(),
topicConfigWrapper,
this.filterServerManager.buildNewFilterServerList(),
oneway,
this.brokerConfig.getRegisterBrokerTimeoutMills(),
this.brokerConfig.isCompressedRegister());
if (registerBrokerResultList.size() > 0) {
RegisterBrokerResult registerBrokerResult = registerBrokerResultList.get(0);
if (registerBrokerResult != null) {
if (this.updateMasterHAServerAddrPeriodically && registerBrokerResult.getHaServerAddr() != null) {
this.messageStore.updateHaMasterAddress(registerBrokerResult.getHaServerAddr());
}
this.slaveSynchronize.setMasterAddr(registerBrokerResult.getMasterAddr());
if (checkOrderConfig) {
this.getTopicConfigManager().updateOrderTopicConfig(registerBrokerResult.getKvTable());
}
}
}
}
进入this.brokerOuterAPI.registerBrokerAll方法：
public List<RegisterBrokerResult> registerBrokerAll(
final String clusterName,
final String brokerAddr,
final String brokerName,
final long brokerId,
final String haServerAddr,
final TopicConfigSerializeWrapper topicConfigWrapper,
final List<String> filterServerList,
final boolean oneway,
final int timeoutMills,
final boolean compressed) {
// 线程安全的List 适用于写操作少的场景，因为每次都要复制副本
final List<RegisterBrokerResult> registerBrokerResultList = new CopyOnWriteArrayList<>();
// 获取NameServerAddress列表
List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
if (nameServerAddressList != null && nameServerAddressList.size() > 0) {
final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
requestHeader.setBrokerAddr(brokerAddr);
requestHeader.setBrokerId(brokerId);
requestHeader.setBrokerName(brokerName);
requestHeader.setClusterName(clusterName);
requestHeader.setHaServerAddr(haServerAddr);
requestHeader.setCompressed(compressed);
RegisterBrokerBody requestBody = new RegisterBrokerBody();
requestBody.setTopicConfigSerializeWrapper(topicConfigWrapper);
requestBody.setFilterServerList(filterServerList);
final byte[] body = requestBody.encode(compressed);
final int bodyCrc32 = UtilAll.crc32(body);
requestHeader.setBodyCrc32(bodyCrc32);
// 多线程批量发送请求，使用CountDownLatch同步返回
final CountDownLatch countDownLatch = new CountDownLatch(nameServerAddressList.size());
for (final String namesrvAddr : nameServerAddressList) {
brokerOuterExecutor.execute(() -> {
try {
RegisterBrokerResult result = registerBroker(namesrvAddr, oneway, timeoutMills, requestHeader, body);
if (result != null) {
registerBrokerResultList.add(result);
}
log.info("register broker[{}]to name server {} OK", brokerId, namesrvAddr);
} catch (Exception e) {
log.warn("registerBroker Exception, {}", namesrvAddr, e);
} finally {
countDownLatch.countDown();
}
});
}
try {
// 如果等待一定时间后不再等待，主线程继续执行
countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
} catch (InterruptedException e) {
}
}
return registerBrokerResultList;
}
接下来就是发送网络请求的registerBroker方法，主要用到基于Netty封装的NettyRemotingClient，该方法设置请求的Code为REGISTER_BROKER(103) 。
然后NameSrv会接收到该注册消息，根据Code是REGISTER_BROKER(103) 调用org.apache.rocketmq.namesrv.routeinfo.RouteInfoManager#registerBroker方法将Broker信息保存起来，使用了读写锁。
NameServer存储信息
先看看NameServer存储了哪些路由信息，在RouteInfoManager类中：
private final static long BROKER_CHANNEL_EXPIRED_TIME = 1000 * 60 * 2;
private final ReadWriteLock lock = new ReentrantReadWriteLock();
private final HashMap<String/* topic */, Map<String /* brokerName */ , QueueData>> topicQueueTable;
private final HashMap<String/* brokerName */, BrokerData> brokerAddrTable;
private final HashMap<String/* clusterName */, Set<String/* brokerName */>> clusterAddrTable;
private final HashMap<String/* brokerAddr */, BrokerLiveInfo> brokerLiveTable;
private final HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable;
- topicQueueTable：Topic消息队列路由信息，消息发送时根据路由表进行负载均衡。
- brokerAddrTable：Broker基础信息，包含brokerName、所属集群名字，主备Broker地址。
- clusterAddrTable：Broker集群信息，存储集群中所有Broker名称。
- brokerLiveTable：Broker状态信息。NameServer每次收到心跳包时会替换该信息。
- filterServerTable：Broker上的FilterServer列表，用于类模式消息过滤。
RocketMQ一个Topic拥有多个消息队列，一个Broker为每一主题默认创建4个读队列4个写队列。多个Broker组成一个集群，BrokerName由相同的多台Broker组成的Master-Slave架构，brokerId为0代表Master，大于0代表Slave。BrokerLiveInfo中的lastUpdateTimestamp存储上次收到Broker心跳包的时间。

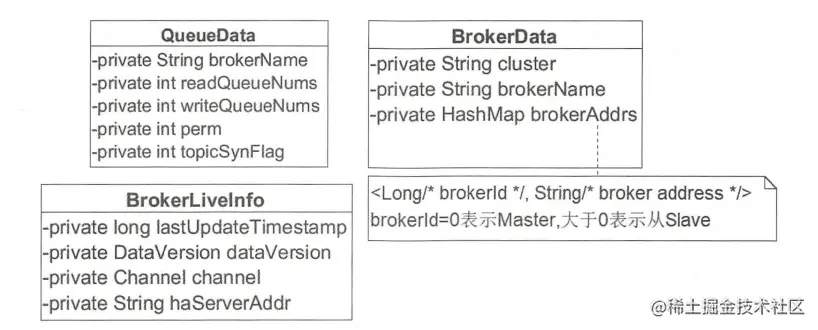

类图如下：
topicQueueTable、brokerAddrTable运行时结构如下：

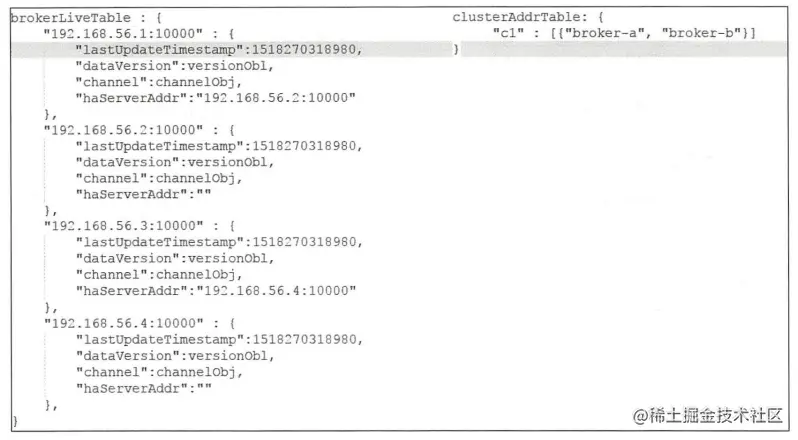

brokerLiveTable、clusterAddrTable运行时结构如下：
NameServer处理心跳包
RouteInfoManager#registerBroker方法。分为下面几步执行：
1. clusterAddrTable表维护：
// 防止并发修改路由表
this.lock.writeLock().lockInterruptibly();
// 该broker集群如果不存在，则创建新的
Set<String> brokerNames = this.clusterAddrTable.computeIfAbsent(clusterName, k -> new HashSet<>());
brokerNames.add(brokerName);
2. brokerAddrTable表维护
首先从bokerAddrTable根据brokerName尝试获取broker信息，如果不存在，则新建BrokerData并放入到bookerAddrTable中，registerFirst设置为true，表示第一次注册，否则直接替换原来的，registerFirst设置为false，表示非第一次注册
BrokerData brokerData = this.brokerAddrTable.get(brokerName);
if (null == brokerData) {
// 表示第一次注册
registerFirst = true;
brokerData = new BrokerData(clusterName, brokerName, new HashMap<>());
this.brokerAddrTable.put(brokerName, brokerData);
}
Map<Long, String> brokerAddrsMap = brokerData.getBrokerAddrs();
//Switch slave to master: first remove <1, IP:PORT> in namesrv, then add <0, IP:PORT>
//The same IP:PORT must only have one record in brokerAddrTable
// 移除旧的broker映射关系
Iterator<Entry<Long, String>> it = brokerAddrsMap.entrySet().iterator();
while (it.hasNext()) {
Entry<Long, String> item = it.next();
if (null != brokerAddr && brokerAddr.equals(item.getValue()) && brokerId != item.getKey()) {
log.debug("remove entry {} from brokerData", item);
it.remove();
}
}
String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr);
if (MixAll.MASTER_ID == brokerId) {
log.info("cluster [{}] brokerName [{}] master address change from {} to {}",
brokerData.getCluster(), brokerData.getBrokerName(), oldAddr, brokerAddr);
}
// 该broker之前是否注册过
registerFirst = registerFirst || (null == oldAddr);
3. topicQueueTable维护
if (null != topicConfigWrapper
&& MixAll.MASTER_ID == brokerId) {
if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion())
|| registerFirst) {
ConcurrentMap<String, TopicConfig> tcTable =
topicConfigWrapper.getTopicConfigTable();
if (tcTable != null) {
for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
this.createAndUpdateQueueData(brokerName, entry.getValue());
}
}
}
}
如果broker是Master，并且BrokerTopic的信息发生变化或者是初次注册，则需要创建或更新Topic路由信息，为默认Topic自动注册路由信息。
4. 更新brokerLiveTable，broker存活信息，是路由删除的重要依据
BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,
new BrokerLiveInfo(
System.currentTimeMillis(),
topicConfigWrapper.getDataVersion(),
channel,
haServerAddr));
if (null == prevBrokerLiveInfo) {
log.info("new broker registered, {} HAServer: {}", brokerAddr, haServerAddr);
}
5.注册Broker的过滤器Server地址列表
if (filterServerList != null) {
if (filterServerList.isEmpty()) {
this.filterServerTable.remove(brokerAddr);
} else {
this.filterServerTable.put(brokerAddr, filterServerList);
}
}
if (MixAll.MASTER_ID != brokerId) {
String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTER_ID);
if (masterAddr != null) {
BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr);
if (brokerLiveInfo != null) {
result.setHaServerAddr(brokerLiveInfo.getHaServerAddr());
result.setMasterAddr(masterAddr);
}
}
}
一个Broker上会关联多个FilterServer消息过滤器。如果此Broker为从节点，则需要查找该Broker的Master节点信息，并更新对应的masterAddr属性。
设计亮点
NameServer每收到一个心跳包，都会更细上述表的信息。上面源码更新各种表信息时，使用了锁粒度较小的读写锁，允许多个消息发送者并发读，保证消息高并发。但同一时刻NameServer只处理一个Broker心跳包，多个心跳包请求穿行执行。这是读写锁经典使用场景。
2.2 路由删除
NameServer会每隔10s来扫描brokerLiveTable状态表，如果BrokerLive的lastUpdateTimestamp的时间戳距当前时间超过120s，则认为Broker失效，移除该Broker，同时更新topicQueueTable、brokerAddrTable、brokerLiveTable、filterServerTable
RocketMQ有两个触发点触发路由删除：
- NameServer定时扫描brokerLiveTable检测上次心跳包与当前系统时间的时间差，如果时间戳大于120s，则需要移除该Broker信息
- Broker在正常被关闭的情况下，会执行unregisterBroker指令
下面介绍第一种方式：
public int scanNotActiveBroker() {
int removeCount = 0;
Iterator<Entry<String, BrokerLiveInfo>> it = this.brokerLiveTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, BrokerLiveInfo> next = it.next();
long last = next.getValue().getLastUpdateTimestamp();
// 判断是否
if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) {
RemotingUtil.closeChannel(next.getValue().getChannel());
it.remove();
log.warn("The broker channel expired, {} {}ms", next.getKey(), BROKER_CHANNEL_EXPIRED_TIME);
this.onChannelDestroy(next.getKey(), next.getValue().getChannel());
removeCount++;
}
}
return removeCount;
}
RouteInfoManager#onChannelDestroy方法核心处理：关闭channel，删除与该broker相关的路由信息。
第一步：申请写锁，将brokerAddress从brokerLiveTable表和filterServerTable表中移除
this.lock.writeLock().lockInterruptibly();
this.brokerLiveTable.remove(brokerAddrFound);
this.filterServerTable.remove(brokerAddrFound);
第二步：维护brokerAddrTable。从brokerData中的brokerAddr中找到具体的broker，从BrokerData中移除。最后如果移除后BrokerData中不再包含其他Broker，则从brokerAddrTable中移除该brokerName对应条目。
String brokerNameFound = null;
boolean removeBrokerName = false;
Iterator<Entry<String, BrokerData>> itBrokerAddrTable =
this.brokerAddrTable.entrySet().iterator();
while (itBrokerAddrTable.hasNext() && (null == brokerNameFound)) {
BrokerData brokerData = itBrokerAddrTable.next().getValue();
Iterator<Entry<Long, String>> it = brokerData.getBrokerAddrs().entrySet().iterator();
while (it.hasNext()) {
Entry<Long, String> entry = it.next();
Long brokerId = entry.getKey();
String brokerAddr = entry.getValue();
if (brokerAddr.equals(brokerAddrFound)) {
brokerNameFound = brokerData.getBrokerName();
it.remove();
log.info("remove brokerAddr[{}, {}] from brokerAddrTable, because channel destroyed",
brokerId, brokerAddr);
break;
}
}
if (brokerData.getBrokerAddrs().isEmpty()) {
removeBrokerName = true;
itBrokerAddrTable.remove();
log.info("remove brokerName[{}] from brokerAddrTable, because channel destroyed",
brokerData.getBrokerName());
}
}
第三步：根据brokerName，从clusterAddrTable表中找到Broker并从集群中移除。移除后集群（brokerNames）中不包含任何Broker，则将该集群从clusterAddrTable中移除
if (brokerNameFound != null && removeBrokerName) {
Iterator<Entry<String, Set<String>>> it = this.clusterAddrTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, Set<String>> entry = it.next();
String clusterName = entry.getKey();
Set<String> brokerNames = entry.getValue();
boolean removed = brokerNames.remove(brokerNameFound);
if (removed) {
log.info("remove brokerName[{}], clusterName[{}] from clusterAddrTable, because channel destroyed",
brokerNameFound, clusterName);
if (brokerNames.isEmpty()) {
log.info("remove the clusterName[{}] from clusterAddrTable, because channel destroyed and no broker in this cluster",
clusterName);
it.remove();
}
break;
}
}
}
第四步：根据brokerName，遍历所有主题队列，如果队列中包含了当前Broker的队列，则移除。如果topic只包含待移除Broker的队列，从路由表中删除该topic.
if (removeBrokerName) {
String finalBrokerNameFound = brokerNameFound;
Set<String> needRemoveTopic = new HashSet<>();
topicQueueTable.forEach((topic, queueDataMap) -> {
QueueData old = queueDataMap.remove(finalBrokerNameFound);
log.info("remove topic[{} {}], from topicQueueTable, because channel destroyed",
topic, old);
if (queueDataMap.size() == 0) {
log.info("remove topic[{}] all queue, from topicQueueTable, because channel destroyed",
topic);
needRemoveTopic.add(topic);
}
});
needRemoveTopic.forEach(topicQueueTable::remove);
}
第五步：释放锁
this.lock.writeLock().unlock();
2.3 路由发现
启动一个生产者很简单，代码如下：
DefaultMQProducer producer = new DefaultMQProducer("Producer");
producer.setNamesrvAddr("127.0.0.1:9876");
producer.start();

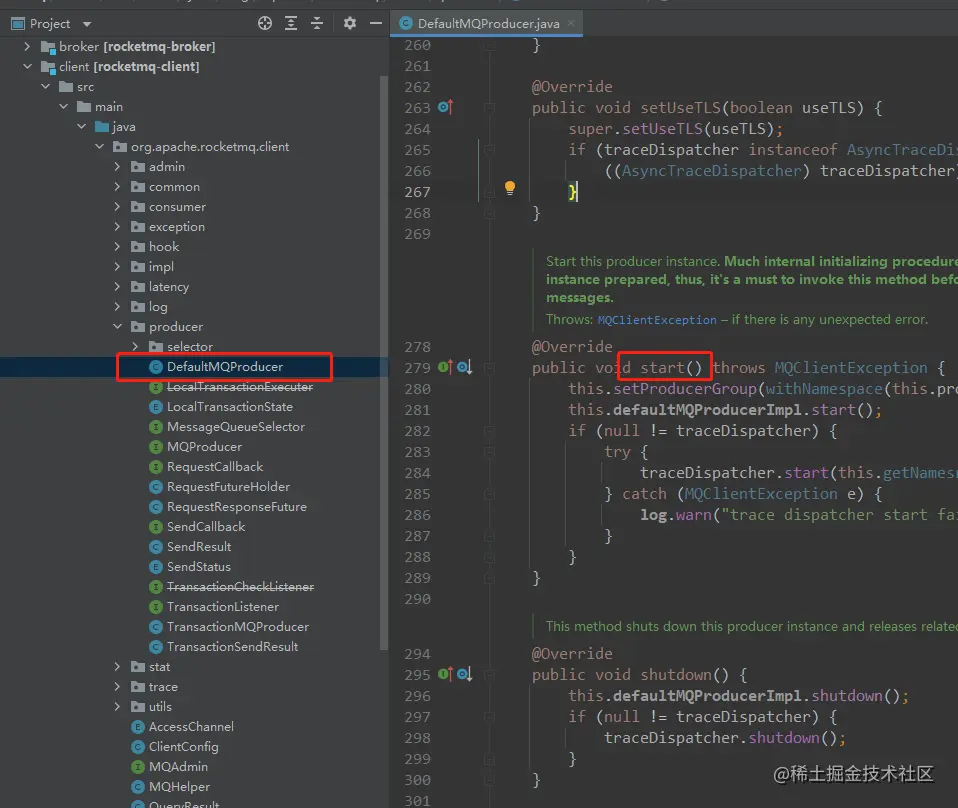

上面先告知Producer NameSrv 的地址，紧接着调用了start启动生产者。
下面会执行到org.apache.rocketmq.client.impl.factory.MQClientInstance#startScheduledTask方法，该方法也启动了一些任务：
private void startScheduledTask() {
......
// 这里主要看这个方法
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
// 更新Topic的路由信息
MQClientInstance.this.updateTopicRouteInfoFromNameServer();
} catch (Exception e) {
log.error("ScheduledTask updateTopicRouteInfoFromNameServer exception", e);
}
}
}, 10, this.clientConfig.getPollNameServerInterval(), TimeUnit.MILLISECONDS);
......
}
主要看updateTopicRouteInfoFromNameServer这个任务：
public void updateTopicRouteInfoFromNameServer() {
Set<String> topicList = new HashSet<String>();
// Consumer
{
Iterator<Entry<String, MQConsumerInner>> it = this.consumerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQConsumerInner> entry = it.next();
MQConsumerInner impl = entry.getValue();
if (impl != null) {
Set<SubscriptionData> subList = impl.subscriptions();
if (subList != null) {
for (SubscriptionData subData : subList) {
topicList.add(subData.getTopic());
}
}
}
}
}
// Producer
{
Iterator<Entry<String, MQProducerInner>> it = this.producerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQProducerInner> entry = it.next();
MQProducerInner impl = entry.getValue();
if (impl != null) {
Set<String> lst = impl.getPublishTopicList();
topicList.addAll(lst);
}
}
}
for (String topic : topicList) {
this.updateTopicRouteInfoFromNameServer(topic);
}
}
从生产者和消费者收集Topic信息，然后遍历Topic列表，调用this.updateTopicRouteInfoFromNameServer(topic) 方法获取每个Topic的路由信息，保存到TopicRouteData中，包含Topic对应的Broker和Queue。然后将Brooker信息保存到brokerAddrTable表中。
public class TopicRouteData extends RemotingSerializable {
private String orderTopicConf;
private List<QueueData> queueDatas;
private List<BrokerData> brokerDatas;
private HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable;
......
}
到这里，生产者就成功从NameSrv获取到了Broker信息。
小结
知识点
- ReentrantReadWriteLock读写锁使用
- CopyOnWriteArrayList
- CountDownLatch
- HashMap的computeIfAbsent方法
- scheduleAtFixedRate
- RandomAccessFile
- Runtime.getRuntime().addShutdownHook 关闭线程池
