9.安装Calico
docs.projectcalico.org/maintenance…
calico安装：docs.projectcalico.org/getting-sta…
[root@k8s-master01 ~]# curl https://docs.projectcalico.org/manifests/calico-etcd.yaml -O
修改calico-etcd.yaml的以下位置
[root@k8s-master01 ~]# grep "etcd_endpoints:.*" calico-etcd.yaml
etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"
[root@k8s-master01 ~]# sed -i 's#etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"#etcd_endpoints: "https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379"#g' calico-etcd.yaml
[root@k8s-master01 ~]# grep "etcd_endpoints:.*" calico-etcd.yaml
etcd_endpoints: "https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379"
[root@k8s-master01 ~]# grep -E "(.*etcd-key:.*|.*etcd-cert:.*|.*etcd-ca:.*)" calico-etcd.yaml
# etcd-key: null
# etcd-cert: null
# etcd-ca: null
[root@k8s-master01 ~]# ETCD_KEY=`cat /etc/kubernetes/pki/etcd/etcd-key.pem | base64 | tr -d '\n'`
[root@k8s-master01 ~]# ETCD_CERT=`cat /etc/kubernetes/pki/etcd/etcd.pem | base64 | tr -d '\n'`
[root@k8s-master01 ~]# ETCD_CA=`cat /etc/kubernetes/pki/etcd/etcd-ca.pem | base64 | tr -d '\n'`
[root@k8s-master01 ~]# sed -i "s@# etcd-key: null@etcd-key: ${ETCD_KEY}@g; s@# etcd-cert: null@etcd-cert: ${ETCD_CERT}@g; s@# etcd-ca: null@etcd-ca: ${ETCD_CA}@g" calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*etcd-key:.*|.*etcd-cert:.*|.*etcd-ca:.*)" calico-etcd.yaml
etcd-key: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcEFJQkFBS0NBUUVBdldFU2FVU2ZXVms1WXEvSVlqREtlNHdFUFVMMFlBaUJjWHRDUzlWWDJRbzFvUm5WCnRLMFQvbm02Mnl2NDh0Q0R6amoxOElyR2lyZXk1TVBaYzhJYnJmK3VWZFBtSzJPNXh2bFZSam9Xb0FwNkFlMWQKMU9YLzBlQjkreFJSbTlXNVM3Y3RDNTJCcmRLZTQrTnlnejBlWjFGdnU5dWFvWXI3djJ3V3lkTnlSc0FJNzFBdApWYUhMeWZrdU9OaWVtUCs5WmdOSHdxdVhYVHZQZDk5cTRtSFM3NGRuTTdRNGs5ekoyWitmaEtIcTdUY1RwalV4CmR0Rk5DeEo0TUYvcTdsbVVnMzVvRjY4UzBmL2F2c0xPK0dQa3p3QWxTREUycWovRy9ISWIzVnVjWHRtL1ZOSGsKTERMMmMrVE55cEwzSmFaOFdkMlRvTm9QbGYwV2VmYXFxYVZCSHdJREFRQUJBb0lCQUVoay9HSExmdExzSGRqUQo4OXc5WkpvNEcwTEQvcUZiZndnL28wZFVCaUlOR2hVOHlBb3FnOU1xKzdoZkplckV0UzQzYmlVSEdBRGRXb0RECk1iUmp4cXNNYTd1WnBvcDlzLzRSUUh6NUpiOEdZaitzV3N0UkpTczVFMC9SSTZWYjNWckphbW5mU3p5RW9JTGoKWnRvdW1obks4dGl3aVhzcG96VTQvN2tsb0xEVWZmMlVDTGpFb2swTXVRV3VRa3pNbkF0eTJ2SENGcVpaUi9CRApLYWorOWMxb3NnelZLK0lnaHE0b2pWM0pUbVdNSUxJcWx4d3A4blRCTnRYSXpkL001cURTSHI5dWozeXRGUVd6ClBCMGh0V2hGZU5FL09Bck10NDJrZGNJK29ub3p0UVNCUDZtbWpJdEEyY1BYbGczNjhVSHNDYm0wNjJuVDQxbzQKdUIwZUpiRUNnWUVBMnpSL3c5SFFKSUFVdFdQTWlLSnJybzVWb0NyZU11U3hHS0I4amhXbTZycWF6a29yaEcyZQpvVThqMC85alVqU005enBsa2NQblRTbXkvMS8ybSt4cTA4RlJ6YUsyb2dQNEFzVENkakdFbmNLSllsc0tORjR5CnJjWEIxZkhORldsVGNMYStEMlRYR1BGeExtOHBjclBUWGFqSHk3a1VqZGV4UU5DV0lpNmpWZWtDZ1lFQTNTcnIKVXY3bnlTS1AxVEVQZW4yWUd5VVFGWG1HYVdiZ0E1TlV2ZFlud1QyTnViK2k5Ui92RktPTCtibHUwME9CZ3RZbQpmTEdBMjFKN3F5T3h5bkJhc2ZIYkJra1BJdXNRdWZwT0pxN01zZkZpOVJkUUdBMDkwMzJBWXNvN0VRL0RjUEJQCjJocUExK3dURnZTa2pMeHpBUGZObk1RaU1qVFdDU2t5a1UrUkVjY0NnWUVBak1Bai9iZWVINkhDS2twL2pZaEUKL2x0VWJiaTQzaExzQi9VY3BSc1FCNDUwVWx0Ym4vZkhNS3FoUmNHcG82SXNsWjZBazEwb0N1cm9qWU92MUtTMApYMjIxT2dYdG9SQk5VbkhHcjUvU0dINU9Pc0pjUmczcUdweHRmeE40N1BPcGFTbGQxb0tZZnVLaEd3Q3pxM3YrCkR4aU4yYWpvb3I5SmlHV20wU0lETE9rQ2dZRUFtb1J3MHBScXBiaHkydFNpNXNZMmJjaVFHeUREU29Kb1FiYysKUGo4UG1VK0M0K0pDWEpXSitGWm01ZnFxdGdqMHc4OFFKby93NGNvWHdySjJkV1BYeVhpYXVDSjA0OFZzOHpJdwpSWkJjVEhuRDFFNE1WREYwSDMwUUpIVDduV2p3OThlOVVqaXdDYXJTajNndU9uRXl1OXRsR0lCakQ4YWdQdGc4Cmp3OFM0R01DZ1lCOE4rOXdzQzVoZGkyZ1FiVlAwUzcrVWpDK0xETHYwdEJVUEl2VTJrNDg0eGxDb3lRK1o2d2wKNzFZQXFnL3IrZzl6RzVhU3A5Vm95STVvM3RsVkwrYUZWU0x0MnB1ZHRtTUhGTGsyZ09nMGtDZzJxTW1BVHBOUgpTR3ZwdGs1LzIyQlpBZzFnR3Ewa3dRSTc4MnAvKzR4SWRnL29OZlI0VFVlSzVOakxJZEFjdXc9PQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=
etcd-cert: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUVCVENDQXUyZ0F3SUJBZ0lVQ2YwZmQrSlVuTXY0Y2J3MUdDLzNzN09qRmkwd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1p6RUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeERUQUxCZ05WQkFvVEJHVjBZMlF4RmpBVUJnTlZCQXNURFVWMFkyUWdVMlZqZFhKcGRIa3hEVEFMCkJnTlZCQU1UQkdWMFkyUXdJQmNOTWpJd09USXpNVEF6TVRBd1doZ1BNakV5TWpBNE16QXhNRE14TURCYU1HY3gKQ3pBSkJnTlZCQVlUQWtOT01SQXdEZ1lEVlFRSUV3ZENaV2xxYVc1bk1SQXdEZ1lEVlFRSEV3ZENaV2xxYVc1bgpNUTB3Q3dZRFZRUUtFd1JsZEdOa01SWXdGQVlEVlFRTEV3MUZkR05rSUZObFkzVnlhWFI1TVEwd0N3WURWUVFECkV3UmxkR05rTUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUF2V0VTYVVTZldWazUKWXEvSVlqREtlNHdFUFVMMFlBaUJjWHRDUzlWWDJRbzFvUm5WdEswVC9ubTYyeXY0OHRDRHpqajE4SXJHaXJleQo1TVBaYzhJYnJmK3VWZFBtSzJPNXh2bFZSam9Xb0FwNkFlMWQxT1gvMGVCOSt4UlJtOVc1UzdjdEM1MkJyZEtlCjQrTnlnejBlWjFGdnU5dWFvWXI3djJ3V3lkTnlSc0FJNzFBdFZhSEx5Zmt1T05pZW1QKzlaZ05Id3F1WFhUdlAKZDk5cTRtSFM3NGRuTTdRNGs5ekoyWitmaEtIcTdUY1RwalV4ZHRGTkN4SjRNRi9xN2xtVWczNW9GNjhTMGYvYQp2c0xPK0dQa3p3QWxTREUycWovRy9ISWIzVnVjWHRtL1ZOSGtMREwyYytUTnlwTDNKYVo4V2QyVG9Ob1BsZjBXCmVmYXFxYVZCSHdJREFRQUJvNEdtTUlHak1BNEdBMVVkRHdFQi93UUVBd0lGb0RBZEJnTlZIU1VFRmpBVUJnZ3IKQmdFRkJRY0RBUVlJS3dZQkJRVUhBd0l3REFZRFZSMFRBUUgvQkFJd0FEQWRCZ05WSFE0RUZnUVVLMnVTay81bgp1T1ZiZ2tsQ01XVytHalBtNWxVd1JRWURWUjBSQkQ0d1BJSUthemh6TFdWMFkyUXdNWUlLYXpoekxXVjBZMlF3Ck1vSUthemh6TFdWMFkyUXdNNGNFZndBQUFZY0VyQjhEYkljRXJCOERiWWNFckI4RGJqQU5CZ2txaGtpRzl3MEIKQVFzRkFBT0NBUUVBdE9FMmVxNU41RkgrTE5uK0NhNkZCbWdML1VkL0FodDdXblh1ekpFVFdORWxUR3VuVjdRawp1SXJpNXlOY05uUU5LNjVDVjlheGtRbGMweVQyOE9nVERKVG9zRHhWWDhhR2N6Q1FiOFNjcm55cUgvL1VERXA4Cm5yd2hUTklvVjRJR29EOG9vcGJrTCtvcW42Y0ROZkRNTW5GY0FzWlBPajJkUUh2RmN6MVNPR3ZjUmpKVnVDL1AKY1IzdldIWGlFSlNYcVVoTFFtZnpBZXl4MGszWkhxWGN3TWd6K1hVUkkwM1c4R0NOZFM0dklSSDE0TktxOW9XQwpBMTdPNk1CRUVzWkVlNW4vSXRCeDhNRGllL25VSmIrRmx6RWtZZ1dBVXBuZkIvRUVibUdUei92Sk5IdUVZbG9nCmVlY3ZNcUlOMCttajFjWlBqbWRLNXRydXg1YVp6R3lFQ3c9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
etcd-ca: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURvRENDQW9pZ0F3SUJBZ0lVQzNWUnJTdHBzTmRJMm5ZVUFaTW9ncGdGWWpNd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1p6RUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeERUQUxCZ05WQkFvVEJHVjBZMlF4RmpBVUJnTlZCQXNURFVWMFkyUWdVMlZqZFhKcGRIa3hEVEFMCkJnTlZCQU1UQkdWMFkyUXdJQmNOTWpJd09USXpNVEF6TURBd1doZ1BNakV5TWpBNE16QXhNRE13TURCYU1HY3gKQ3pBSkJnTlZCQVlUQWtOT01SQXdEZ1lEVlFRSUV3ZENaV2xxYVc1bk1SQXdEZ1lEVlFRSEV3ZENaV2xxYVc1bgpNUTB3Q3dZRFZRUUtFd1JsZEdOa01SWXdGQVlEVlFRTEV3MUZkR05rSUZObFkzVnlhWFI1TVEwd0N3WURWUVFECkV3UmxkR05rTUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUF3UWZGdGpvR2JqclkKN0dRbkpvc2pYdVp1ZUJGemVXK0laUXRHeDdoREpGQnpMcHBGVGdoNUltUmhHRUg3ZVFxdEIwaU5SZ0NseG9mRApLKzRRdWVwZjhDMTZGd3BrSi81dk1FNXRETGd6eUYzMXFKZlBUNG5DZWRjR2NzSm55NnFNSXZRNzZ5cGI1SGN4ClA2cEduZXVsU3Y4RktSMVQ1ekJRSzJZMmgrdzZqWUZYWGVoajBXVVRmbVpnYUpEMGdoM0Q0NkVPWCtQbEE5VlYKdko1NFkyMlNOWklCZndLL1dhOFI5dGlISlJsZnk0ZHVFY1h6Njl6TnhCeHIwdU1lZGxoREQvMVlqQnRseVBDaAprWi9EUC9vWHRrYlhlT0FTYlVWK1JqLzlaSnhRYUptZnN0Z1Iwc0VaTDl6QW1McndpejlwQ00yZVQ4aHdwZVRxClNjNUY5RHhReVFJREFRQUJvMEl3UURBT0JnTlZIUThCQWY4RUJBTUNBUVl3RHdZRFZSMFRBUUgvQkFVd0F3RUIKL3pBZEJnTlZIUTRFRmdRVWViMEVyTGhIajVRV2NGVHdRSXZYeFBlL0lKWXdEUVlKS29aSWh2Y05BUUVMQlFBRApnZ0VCQUFJdytybXhnSi9ZZXU0emQ5OEFmNktzRHQvbGlNMXBDMGNBTUVUSEE3VDRxL1o2TFo3LzFuTlQydVhnCmppbWF2c0xaU1BXb1lJZUtLUmRiVzFlMUxCdFBCd0svVytsdS9zdVpGZkVWTjhPbUk4ajk5eld5N1VNM0V0K1gKMjNXKzZ2a3A1QmRMemt6Z015ajNuT3pEdzNpc05penZZMElOeEc3MnlmZ0lQQ0ZUVU1aaHlGYkFOYjZrTG1ZSgpheEwyZzFTYmJCM3ZQYmNYRUVsMnA1SHM2S3ZUTkZOQXh0aU5MTkpMUTUxY2hWenZkZEM3WFVhdTZwUWhjb2krCmlvMGdNL3FocEVacEpvc3ZBeXgrSDRGNEFjWkV0YUxmUWEveWI4b2txMXBWYzF6dVhLVEVhNm1GSGhrWVgxMTMKbzBpMEhsT0lsQmRzUk84dEVsemJQWjBldW9ZPQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
[root@k8s-master01 ~]# grep -E "(.*etcd_ca:.*|.*etcd_cert:.*|.*etcd_key:.*)" calico-etcd.yaml
etcd_ca: "" # "/calico-secrets/etcd-ca"
etcd_cert: "" # "/calico-secrets/etcd-cert"
etcd_key: "" # "/calico-secrets/etcd-key"
[root@k8s-master01 ~]# sed -i 's#etcd_ca: ""#etcd_ca: "/calico-secrets/etcd-ca"#g; s#etcd_cert: ""#etcd_cert: "/calico-secrets/etcd-cert"#g; s#etcd_key: "" #etcd_key: "/calico-secrets/etcd-key" #g' calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*etcd_ca:.*|.*etcd_cert:.*|.*etcd_key:.*)" calico-etcd.yaml
etcd_ca: "/calico-secrets/etcd-ca" # "/calico-secrets/etcd-ca"
etcd_cert: "/calico-secrets/etcd-cert" # "/calico-secrets/etcd-cert"
etcd_key: "/calico-secrets/etcd-key" # "/calico-secrets/etcd-key"
# 更改此处为自己的pod网段
[root@k8s-master01 ~]# POD_SUBNET="192.168.0.0/12"
注意下面的这个步骤是把calico-etcd.yaml文件里面的CALICO_IPV4POOL_CIDR下的网段改成自己的Pod网段，也就是把192.168.x.x/16改成自己的集群网段，并打开注释：
[root@k8s-master01 ~]# grep -E "(.*CALICO_IPV4POOL_CIDR.*|.*192.168.0.0.*)" calico-etcd.yaml
# - name: CALICO_IPV4POOL_CIDR
# value: "192.168.0.0/16"
[root@k8s-master01 ~]# sed -i 's@# - name: CALICO_IPV4POOL_CIDR@- name: CALICO_IPV4POOL_CIDR@g; s@# value: "192.168.0.0/16"@ value: '"${POD_SUBNET}"'@g' calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*CALICO_IPV4POOL_CIDR.*|.*192.168.0.0.*)" calico-etcd.yaml
- name: CALICO_IPV4POOL_CIDR
value: 192.168.0.0/12
[root@k8s-master01 ~]# grep "image:" calico-etcd.yaml
image: docker.io/calico/cni:v3.24.1
image: docker.io/calico/node:v3.24.1
image: docker.io/calico/node:v3.24.1
image: docker.io/calico/kube-controllers:v3.24.1
下载calico镜像并上传harbor
[root@k8s-master01 ~]# cat download_calico_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_calico_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' calico-etcd.yaml | uniq)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Calico镜像"${END}
for i in ${images};do
docker pull registry.cn-beijing.aliyuncs.com/raymond9/$i
docker tag registry.cn-beijing.aliyuncs.com/raymond9/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.cn-beijing.aliyuncs.com/raymond9/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Calico镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_calico_images.sh
[root@k8s-master01 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
harbor.raymonds.cc/google_containers/kube-controllers v3.24.1 f9c3c1813269 3 weeks ago 71.3MB
harbor.raymonds.cc/google_containers/cni v3.24.1 67fd9ab48451 3 weeks ago 197MB
harbor.raymonds.cc/google_containers/node v3.24.1 75392e3500e3 3 weeks ago 223MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) docker.io/calico(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' calico-etcd.yaml
[root@k8s-master01 ~]# grep "image:" calico-etcd.yaml
image: harbor.raymonds.cc/google_containers/cni:v3.24.1
image: harbor.raymonds.cc/google_containers/node:v3.24.1
image: harbor.raymonds.cc/google_containers/node:v3.24.1
image: harbor.raymonds.cc/google_containers/kube-controllers:v3.24.1
[root@k8s-master01 ~]# kubectl apply -f calico-etcd.yaml
#查看容器状态
[root@k8s-master01 ~]# kubectl get pod -n kube-system |grep calico
calico-kube-controllers-67bd695c56-vvwn9 1/1 Running 0 42s
calico-node-4drls 1/1 Running 0 42s
calico-node-8gfq4 1/1 Running 0 42s
calico-node-ctx8q 1/1 Running 0 42s
calico-node-cvqxn 1/1 Running 0 42s
calico-node-g77nk 1/1 Running 0 42s
calico-node-nnn5l 1/1 Running 0 42s
#查看集群状态
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
172.31.3.101 Ready <none> 43m v1.25.2
172.31.3.102 Ready <none> 42m v1.25.2
172.31.3.103 Ready <none> 42m v1.25.2
172.31.3.111 Ready <none> 16m v1.25.2
172.31.3.112 Ready <none> 16m v1.25.2
172.31.3.113 Ready <none> 16m v1.25.2
10.安装CoreDNS
在官网查看kubernetes v1.25的coredns版本是v1.9.3
[root@k8s-master01 ~]# wget https://dl.k8s.io/v1.25.2/kubernetes.tar.gz
[root@k8s-master01 ~]# tar xf kubernetes.tar.gz
[root@k8s-master01 ~]# cp kubernetes/cluster/addons/dns/coredns/coredns.yaml.base /root/coredns.yaml
[root@k8s-master01 ~]# vim coredns.yaml
...
data:
Corefile: |
.:53 {
errors
health {
lameduck 5s
}
ready
kubernetes cluster.local in-addr.arpa ip6.arpa { #修改Cluster DNS Domain
pods insecure
fallthrough in-addr.arpa ip6.arpa
ttl 30
}
prometheus :9153
forward . /etc/resolv.conf {
max_concurrent 1000
}
cache 30
loop
reload
loadbalance
}
...
containers:
- name: coredns
image: registry.k8s.io/coredns/coredns:v1.9.3
imagePullPolicy: IfNotPresent
resources:
limits:
memory: 256Mi #设置内存大小，生产一般内存设置2-3G，CPU会分到2-4核，如果再高就开多副本
requests:
cpu: 100m
memory: 70Mi
...
spec:
selector:
k8s-app: kube-dns
clusterIP: 10.96.0.10 #如果更改了k8s service的网段需要将coredns的serviceIP改成k8s service网段的第十个IP
ports:
- name: dns
port: 53
protocol: UDP
- name: dns-tcp
port: 53
protocol: TCP
- name: metrics
port: 9153
protocol: TCP
安装coredns
[root@k8s-master01 ~]# grep "image:" coredns.yaml
image: registry.k8s.io/coredns/coredns:v1.9.3
[root@k8s-master01 ~]# cat download_coredns_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_metrics_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' coredns.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Coredns镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Coredns镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_coredns_images.sh
[root@k8s-master01 ~]# docker images |grep coredns
harbor.raymonds.cc/google_containers/coredns v1.9.3 5185b96f0bec 3 months ago 48.8MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) .*coredns(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' coredns.yaml
[root@k8s-master01 ~]# grep "image:" coredns.yaml
image: harbor.raymonds.cc/google_containers/coredns:v1.9.3
[root@k8s-master01 ~]# kubectl apply -f coredns.yaml
#查看状态
[root@k8s-master01 ~]# kubectl get pod -n kube-system |grep coredns
coredns-8668f8476d-2t5wj 1/1 Running 0 16s
ubuntu会出现如下问题：
root@k8s-master01:~# kubectl get pod -A -o wide|grep coredns
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-847c895554-9jqq5 0/1 CrashLoopBackOff 1 8s 192.171.30.65 k8s-master02.example.local <none> <none>
#由于ubuntu系统有dns本地缓存,造成coredns不能正常解析
#具体问题请参考官方https://coredns.io/plugins/loop/#troubleshooting
root@k8s-master01:~# kubectl edit -n kube-system cm coredns
...
# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
.:53 {
errors
health {
lameduck 5s
}
ready
kubernetes cluster.local in-addr.arpa ip6.arpa {
fallthrough in-addr.arpa ip6.arpa
}
prometheus :9153
forward . /etc/resolv.conf {
max_concurrent 1000
}
cache 30
loop #将loop插件直接删除，避免内部循环
reload
loadbalance
}
root@k8s-master01:~# kubectl get pod -A -o wide |grep coredns
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-847c895554-r9tsd 0/1 CrashLoopBackOff 4 3m4s 192.170.21.195 k8s-node03.example.local <none> <none>
root@k8s-master01:~# kubectl delete pod coredns-847c895554-r9tsd -n kube-system
pod "coredns-847c895554-r9tsd" deleted
root@k8s-master01:~# kubectl get pod -A -o wide |greo coredns
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-847c895554-cqwl5 1/1 Running 0 13s 192.167.195.130 k8s-node02.example.local <none> <none>
#现在就正常了
11.安装Metrics Server
在新版的Kubernetes中系统资源的采集均使用Metrics-server，可以通过Metrics采集节点和Pod的内存、磁盘、CPU和网络的使用率。
[root@k8s-master01 ~]# wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml
修改下面内容：
[root@k8s-master01 ~]# vim components.yaml
...
spec:
containers:
- args:
- --cert-dir=/tmp
- --secure-port=4443
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
- --kubelet-use-node-status-port
- --metric-resolution=15s
#添加下面内容
- --kubelet-insecure-tls
- --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem #注意二进制包证书文件是front-proxy-ca.pem
- --requestheader-username-headers=X-Remote-User
- --requestheader-group-headers=X-Remote-Group
- --requestheader-extra-headers-prefix=X-Remote-Extra-
...
volumeMounts:
- mountPath: /tmp
name: tmp-dir
#添加下面内容
- name: ca-ssl
mountPath: /etc/kubernetes/pki
...
volumes:
- emptyDir: {}
name: tmp-dir
#添加下面内容
- name: ca-ssl
hostPath:
path: /etc/kubernetes/pki
下载镜像并修改镜像地址
[root@k8s-master01 ~]# grep "image:" components.yaml
image: k8s.gcr.io/metrics-server/metrics-server:v0.6.1
[root@k8s-master01 ~]# cat download_metrics_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_metrics_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' components.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Metrics镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Metrics镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_metrics_images.sh
[root@k8s-master01 ~]# docker images |grep metrics
harbor.raymonds.cc/google_containers/metrics-server v0.6.1 e57a417f15d3 7 months ago 68.8MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) .*metrics-server(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' components.yaml
[root@k8s-master01 ~]# grep "image:" components.yaml
image: harbor.raymonds.cc/google_containers/metrics-server:v0.6.1
安装metrics server
[root@k8s-master01 ~]# kubectl apply -f components.yaml
查看状态
[root@k8s-master01 ~]# kubectl get pod -n kube-system |grep metrics
metrics-server-785dd7cc54-wzbdc 1/1 Running 0 31s
[root@k8s-master01 ~]# kubectl top node
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
172.31.3.101 224m 11% 1708Mi 47%
172.31.3.102 206m 10% 997Mi 27%
172.31.3.103 117m 5% 926Mi 25%
172.31.3.111 124m 6% 643Mi 17%
172.31.3.112 96m 4% 603Mi 16%
172.31.3.113 90m 4% 606Mi 16%
12.安装dashboard
12.1 Dashboard部署
Dashboard用于展示集群中的各类资源，同时也可以通过Dashboard实时查看Pod的日志和在容器中执行一些命令等。

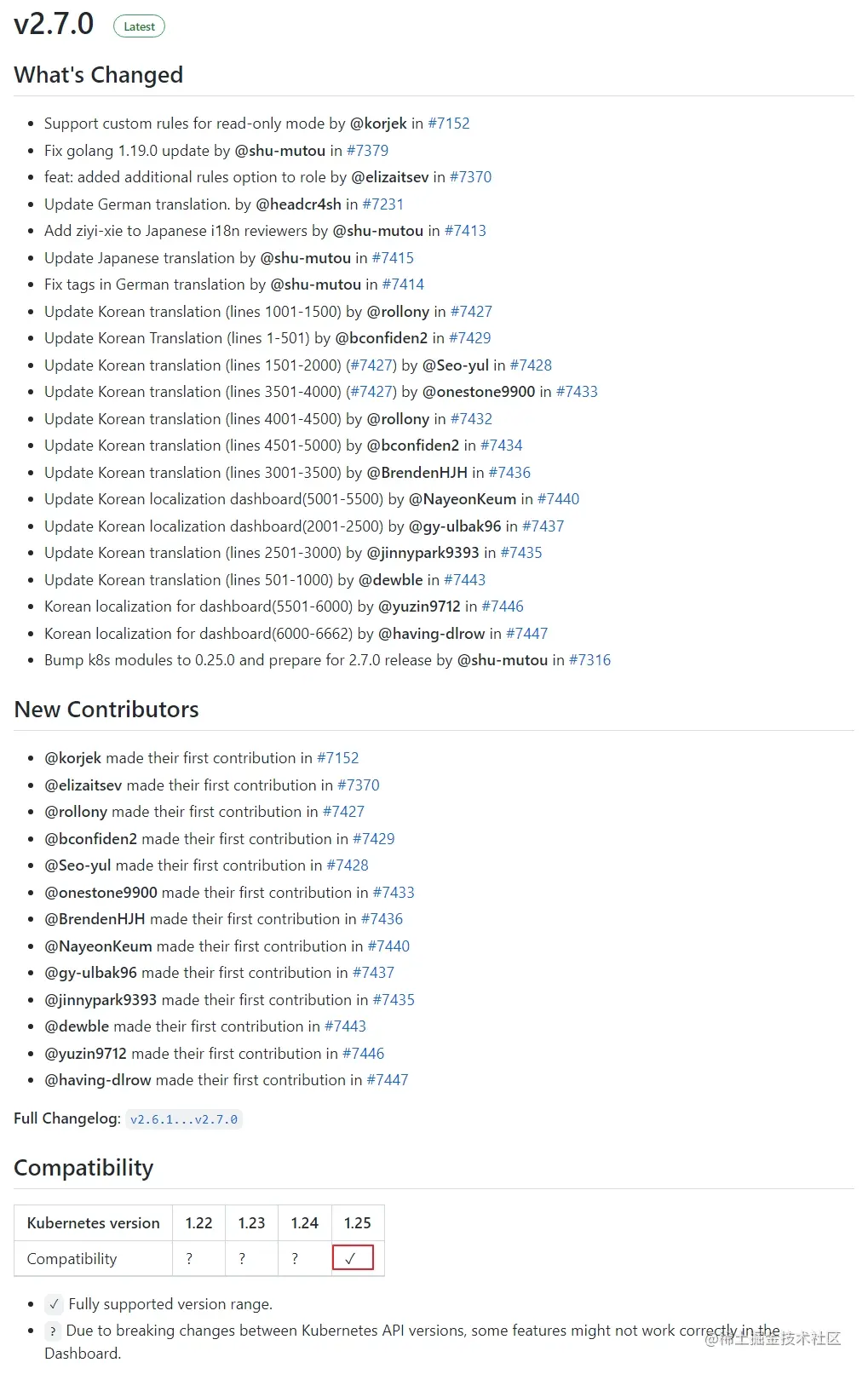

查看对应版本兼容的kubernetes版本
可以看到上图dashboard v2.7.0是支持kuberneres 1.25版本的
[root@k8s-master01 ~]# wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.7.0/aio/deploy/recommended.yaml
[root@k8s-master01 ~]# vim recommended.yaml
...
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
type: NodePort #添加这行
ports:
- port: 443
targetPort: 8443
nodePort: 30005 #添加这行
selector:
k8s-app: kubernetes-dashboard
...
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: kubernetesui/dashboard:v2.7.0
image: kubernetesui/metrics-scraper:v1.0.8
下载镜像并上传到harbor
[root@k8s-master01 ~]# cat download_dashboard_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_dashboard_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' recommended.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Dashboard镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Dashboard镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_dashboard_images.sh
[root@k8s-master01 ~]# docker images |grep -E "(dashboard|metrics-scraper)"
harbor.raymonds.cc/google_containers/dashboard v2.7.0 07655ddf2eeb 7 days ago 246MB
harbor.raymonds.cc/google_containers/metrics-scraper v1.0.8 115053965e86 3 months ago 43.8MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) kubernetesui(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' recommended.yaml
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: harbor.raymonds.cc/google_containers/dashboard:v2.7.0
image: harbor.raymonds.cc/google_containers/metrics-scraper:v1.0.8
[root@k8s-master01 ~]# kubectl create -f recommended.yaml
创建管理员用户admin.yaml
[root@k8s-master01 ~]# cat > admin.yaml <<EOF
apiVersion: v1
kind: ServiceAccount
metadata:
name: admin-user
namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: admin-user
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: admin-user
namespace: kubernetes-dashboard
EOF
[root@k8s-master01 ~]# kubectl apply -f admin.yaml
12.2 登录dashboard

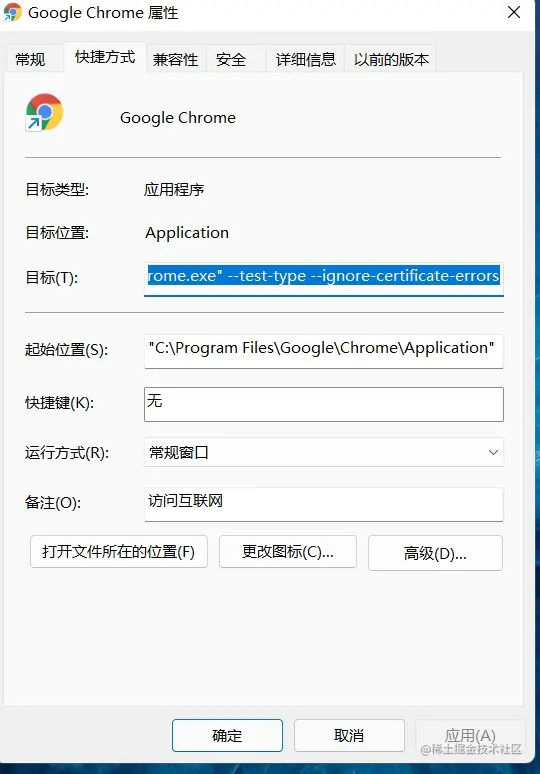

在谷歌浏览器（Chrome）启动文件中加入启动参数，用于解决无法访问Dashboard的问题，参考图1-1：
--test-type --ignore-certificate-errors
图1-1 谷歌浏览器 Chrome的配置
[root@k8s-master01 ~]# kubectl get svc kubernetes-dashboard -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard NodePort 10.106.156.213 <none> 443:30005/TCP 83s

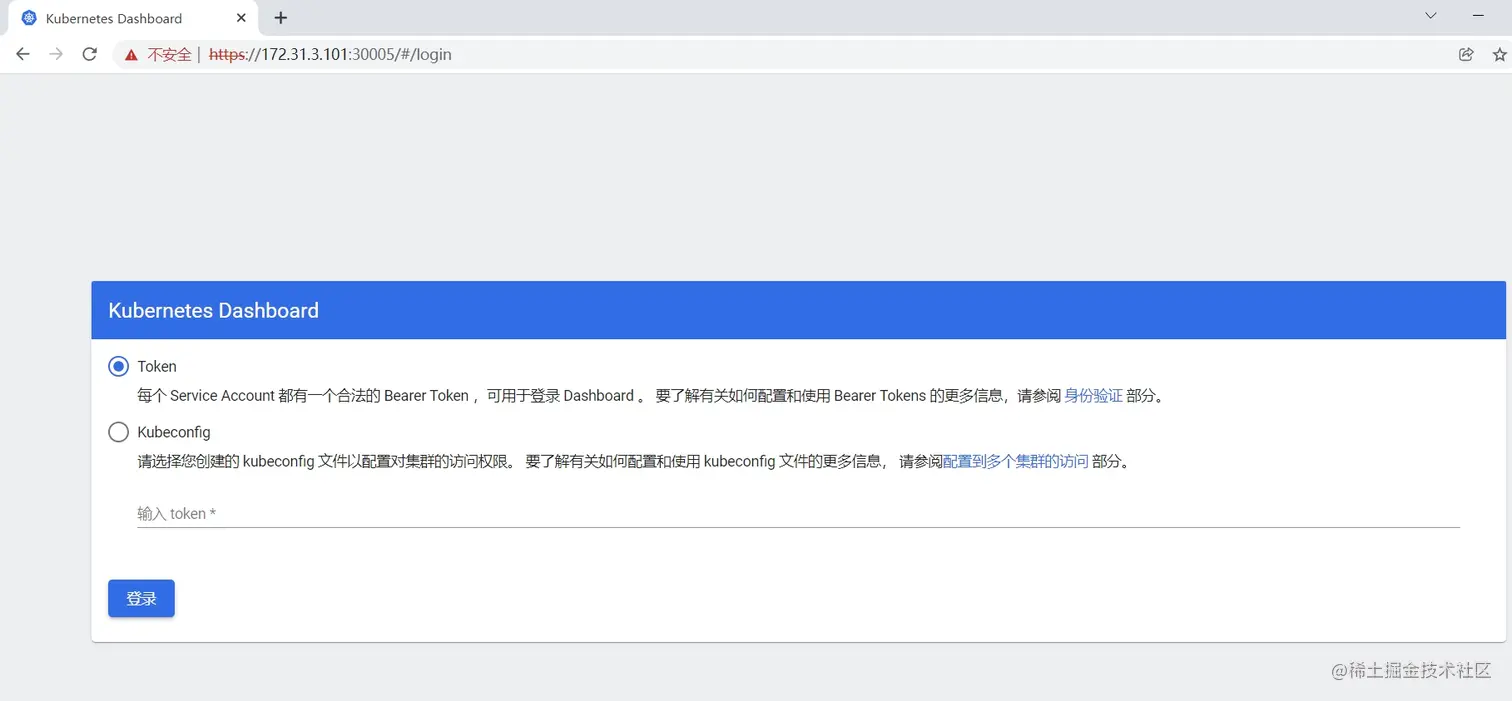

访问Dashboard：https://172.31.3.101:30005，参考图1-2
图1-2 Dashboard登录方式
12.2.1 token登录
创建token:
[root@k8s-master01 ~]# kubectl -n kubernetes-dashboard create token admin-user
eyJhbGciOiJSUzI1NiIsImtpZCI6Im5NTTViMlpDcy0zWGh2Tm5hbDA0N3ItZHFDWVRZUnpldW5pOFFSdHdsNTQifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNjYzOTQ0MTQ3LCJpYXQiOjE2NjM5NDA1NDcsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsInNlcnZpY2VhY2NvdW50Ijp7Im5hbWUiOiJhZG1pbi11c2VyIiwidWlkIjoiMWQwZjU4MmEtMTZlZi00ZTc2LTk0MTYtMWQxYmVlMDViNTFjIn19LCJuYmYiOjE2NjM5NDA1NDcsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlcm5ldGVzLWRhc2hib2FyZDphZG1pbi11c2VyIn0.K189UqhW2WkExVAxmebrcZZBLyOQUFIgrdmRglSAv6wJPnWxlK2QDdZ4aOtHt8D_FxhsalDfshzTBsbSM-Z-azoARinjJl8umIF8NIokOK38rFr5LcYm1B-oN97hIdnU9gjPZOcUzWCQU_lIdGIj-PTZCM3SKf-ursnofO6HEUlF0J47Q2MJn14z2AQv8BL9ivPU3mHKpIqFJYkyr4mhvUOtwRS1Tk5ZNxTsNJm5Ce_lqNgT_32JvStwMIxDHiMogWxhPabh8-S5RDhMqTvc4AgY1GffNRWmJ5wIsY7PIULeaCrPeC7TkE7M4lhduCR358f8J6G7KhsTb95CwumYOQ

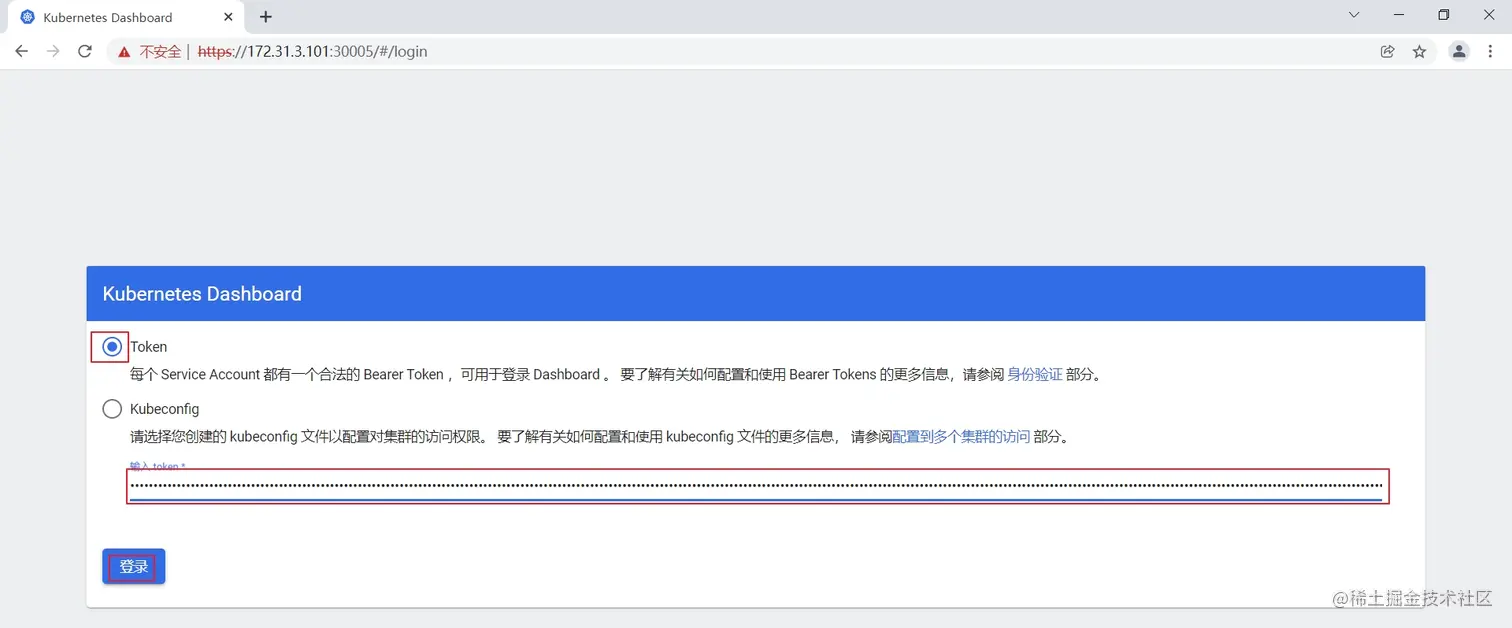

将token值输入到令牌后，单击登录即可访问Dashboard，参考图1-3：

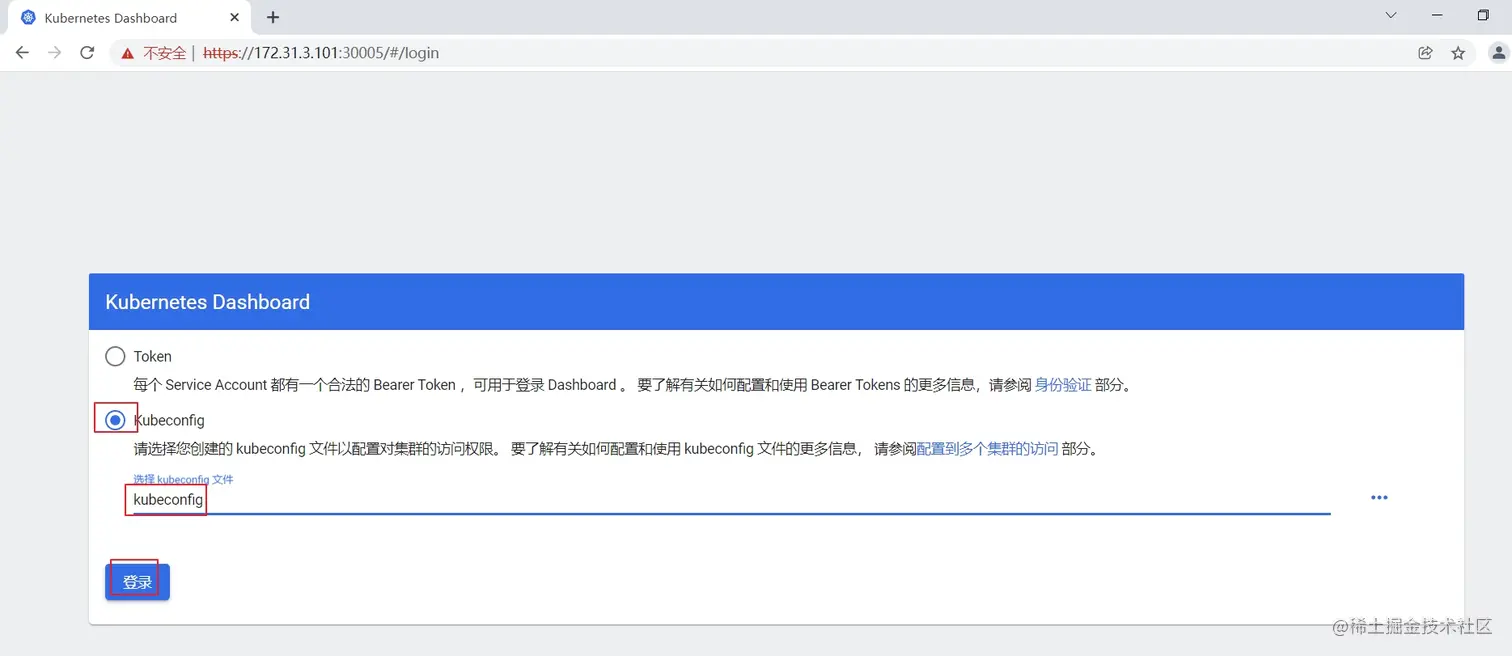

12.2.2 使用kubeconfig文件登录dashboard
[root@k8s-master01 ~]# cp /etc/kubernetes/admin.kubeconfig kubeconfig
[root@k8s-master01 ~]# vim kubeconfig
...
#在最下面添加token
token: eyJhbGciOiJSUzI1NiIsImtpZCI6Im5NTTViMlpDcy0zWGh2Tm5hbDA0N3ItZHFDWVRZUnpldW5pOFFSdHdsNTQifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNjYzOTQ0MTQ3LCJpYXQiOjE2NjM5NDA1NDcsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsInNlcnZpY2VhY2NvdW50Ijp7Im5hbWUiOiJhZG1pbi11c2VyIiwidWlkIjoiMWQwZjU4MmEtMTZlZi00ZTc2LTk0MTYtMWQxYmVlMDViNTFjIn19LCJuYmYiOjE2NjM5NDA1NDcsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlcm5ldGVzLWRhc2hib2FyZDphZG1pbi11c2VyIn0.K189UqhW2WkExVAxmebrcZZBLyOQUFIgrdmRglSAv6wJPnWxlK2QDdZ4aOtHt8D_FxhsalDfshzTBsbSM-Z-azoARinjJl8umIF8NIokOK38rFr5LcYm1B-oN97hIdnU9gjPZOcUzWCQU_lIdGIj-PTZCM3SKf-ursnofO6HEUlF0J47Q2MJn14z2AQv8BL9ivPU3mHKpIqFJYkyr4mhvUOtwRS1Tk5ZNxTsNJm5Ce_lqNgT_32JvStwMIxDHiMogWxhPabh8-S5RDhMqTvc4AgY1GffNRWmJ5wIsY7PIULeaCrPeC7TkE7M4lhduCR358f8J6G7KhsTb95CwumYOQ
13.集群验证
安装busybox
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: busybox
namespace: default
spec:
containers:
- name: busybox
image: busybox:1.28
command:
- sleep
- "3600"
imagePullPolicy: IfNotPresent
restartPolicy: Always
EOF
- Pod必须能解析Service
- Pod必须能解析跨namespace的Service
- 每个节点都必须要能访问Kubernetes的kubernetes svc 443和kube-dns的service 53
- Pod和Pod之前要能通
a) 同namespace能通信
b) 跨namespace能通信
c) 跨机器能通信
验证解析
[root@k8s-master01 ~]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3h9m
#Pod必须能解析Service
[root@k8s-master01 ~]# kubectl exec busybox -n default -- nslookup kubernetes
Server: 10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
Name: kubernetes
Address 1: 10.96.0.1 kubernetes.default.svc.cluster.local
#Pod必须能解析跨namespace的Service
[root@k8s-master01 ~]# kubectl exec busybox -n default -- nslookup kube-dns.kube-system
Server: 10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
Name: kube-dns.kube-system
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
每个节点都必须要能访问Kubernetes的kubernetes svc 443和kube-dns的service 53
[root@k8s-master01 ~]# telnet 10.96.0.1 443
Trying 10.96.0.1...
Connected to 10.96.0.1.
Escape character is '^]'.
^CConnection closed by foreign host.
[root@k8s-master02 ~]# telnet 10.96.0.1 443
[root@k8s-master03 ~]# telnet 10.96.0.1 443
[root@k8s-node01 ~]# telnet 10.96.0.1 443
[root@k8s-node02 ~]# telnet 10.96.0.1 443
[root@k8s-node03 ~]# telnet 10.96.0.1 443
[root@k8s-master01 ~]# kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 39m
metrics-server ClusterIP 10.102.94.81 <none> 443/TCP 28m
[root@k8s-master01 ~]# telnet 10.96.0.10 53
Trying 10.96.0.10...
Connected to 10.96.0.10.
Escape character is '^]'.
^CConnection closed by foreign host.
[root@k8s-master02 ~]# telnet 10.96.0.10 53
[root@k8s-master03 ~]# telnet 10.96.0.10 53
[root@k8s-node01 ~]# telnet 10.96.0.10 53
[root@k8s-node02 ~]# telnet 10.96.0.10 53
[root@k8s-node03 ~]# telnet 10.96.0.10 53
[root@k8s-master01 ~]# curl 10.96.0.10:53
curl: (52) Empty reply from server
[root@k8s-master02 ~]# curl 10.96.0.10:53
[root@k8s-master03 ~]# curl 10.96.0.10:53
[root@k8s-node01 ~]# curl 10.96.0.10:53
[root@k8s-node02 ~]# curl 10.96.0.10:53
[root@k8s-node03 ~]# curl 10.96.0.10:53
Pod和Pod之前要能通
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
calico-kube-controllers-67bd695c56-vvwn9 1/1 Running 0 96m 172.31.3.101 172.31.3.101 <none> <none>
calico-node-4drls 1/1 Running 0 96m 172.31.3.111 172.31.3.111 <none> <none>
calico-node-8gfq4 1/1 Running 0 96m 172.31.3.113 172.31.3.113 <none> <none>
calico-node-ctx8q 1/1 Running 0 96m 172.31.3.101 172.31.3.101 <none> <none>
calico-node-cvqxn 1/1 Running 0 96m 172.31.3.103 172.31.3.103 <none> <none>
calico-node-g77nk 1/1 Running 0 96m 172.31.3.102 172.31.3.102 <none> <none>
calico-node-nnn5l 1/1 Running 0 96m 172.31.3.112 172.31.3.112 <none> <none>
coredns-8668f8476d-2t5wj 1/1 Running 0 41m 192.171.30.65 172.31.3.102 <none> <none>
metrics-server-785dd7cc54-wzbdc 1/1 Running 0 30m 192.169.111.129 172.31.3.111 <none> <none>
[root@k8s-master01 ~]# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
busybox 1/1 Running 0 4m54s 192.170.21.193 172.31.3.113 <none> <none>
[root@k8s-master01 ~]# kubectl exec -it busybox -- sh
/ # ping 192.169.111.129
PING 192.169.111.129 (192.169.111.129): 56 data bytes
64 bytes from 192.169.111.129: seq=0 ttl=62 time=1.241 ms
64 bytes from 192.169.111.129: seq=1 ttl=62 time=0.810 ms
^C
--- 192.169.111.129 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 0.810/1.025/1.241 ms
/ # exit
[root@k8s-master01 ~]# kubectl create deploy nginx --image=nginx --replicas=3
deployment.apps/nginx created
[root@k8s-master01 ~]# kubectl get deploy
NAME READY UP-TO-DATE AVAILABLE AGE
nginx 3/3 3 3 93s
[root@k8s-master01 ~]# kubectl get pod -o wide |grep nginx
nginx-76d6c9b8c-g29fr 1/1 Running 0 116s 192.162.55.65 172.31.3.101 <none> <none>
nginx-76d6c9b8c-pf9pm 1/1 Running 0 116s 192.169.111.130 172.31.3.111 <none> <none>
nginx-76d6c9b8c-xphs2 1/1 Running 0 116s 192.170.21.194 172.31.3.113 <none> <none>
[root@k8s-master01 ~]# kubectl delete deploy nginx
deployment.apps "nginx" deleted
[root@k8s-master01 ~]# kubectl delete pod busybox
pod "busybox" deleted
14.生产环境关键性配置
docker参数配置：
vim /etc/docker/daemon.json
{
"registry-mirrors": [ #docker镜像加速
"https://registry.docker-cn.com",
"http://hub-mirror.c.163.com",
"https://docker.mirrors.ustc.edu.cn"
],
"exec-opts": ["native.cgroupdriver=systemd"], #k8s需要systemd启动docker
"max-concurrent-downloads": 10, #并发下载线程数
"max-concurrent-uploads": 5, #并发上传线程数
"log-opts": {
"max-size": "300m", #docker日志文件最大300m
"max-file": "2" #最大2个文件
},
"live-restore": true #docker服务重启，容器不会重启
}
controller-manager 参数配置：
[root@k8s-master01 ~]# vim /lib/systemd/system/kube-controller-manager.service
# --feature-gates=RotateKubeletClientCertificate=true,RotateKubeletServerCertificate=true \ #这个是bootstrap自动颁发证书，新版默认就是true，不用设置
--cluster-signing-duration=876000h0m0s \ #用来控制签发证书的有效期限。
[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp -o StrictHostKeyChecking=no /lib/systemd/system/kube-controller-manager.service $NODE:/lib/systemd/system/; done
kube-controller-manager.service 100% 1113 670.4KB/s 00:00
kube-controller-manager.service 100% 1113 1.0MB/s 00:00
[root@k8s-master01 ~]# systemctl daemon-reload && systemctl restart kube-controller-manager
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl restart kube-controller-manager
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl restart kube-controller-manager
10-kubelet.conf 参数配置：
[root@k8s-master01 ~]# vim /etc/systemd/system/kubelet.service.d/10-kubelet.conf
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node='' --tls-cipher-suites=TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 --image-pull-progress-deadline=30m"
#--tls-cipher-suites=TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 #更改k8s的加密算法
#--image-pull-progress-deadline=30m #如果在该参数值所设置的期限之前没有拉取镜像的进展，镜像拉取操作将被取消。仅当容器运行环境设置为 docker 时，此特定于 docker 的参数才有效。
[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03 k8s-node01 k8s-node02 k8s-node03; do scp -o StrictHostKeyChecking=no /etc/systemd/system/kubelet.service.d/10-kubelet.conf $NODE:/etc/systemd/system/kubelet.service.d/ ;done
kubelet-conf.yml 参数配置：
[root@k8s-master01 ~]# vim /etc/kubernetes/kubelet-conf.yml
#添加如下配置
rotateServerCertificates: true
allowedUnsafeSysctls: #允许容器设置内核，有安全风险，根据实际需求设置
- "net.core*"
- "net.ipv4.*"
kubeReserved: #k8s预留资源
cpu: "1"
memory: 1Gi
ephemeral-storage: 10Gi
systemReserved: #系统预留资源
cpu: "1"
memory: 1Gi
ephemeral-storage: 10Gi
#rotateServerCertificates: true #当证书即将过期时自动从 kube-apiserver 请求新的证书进行轮换。要求启用 RotateKubeletServerCertificate 特性开关，以及对提交的 CertificateSigningRequest 对象进行批复（approve）操作。
[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03 k8s-node01 k8s-node02 k8s-node03; do scp /etc/kubernetes/kubelet-conf.yml $NODE:/etc/kubernetes/ ;done
[root@k8s-master01 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-node01 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-node02 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-node03 ~]# systemctl daemon-reload && systemctl restart kubelet
添加label：
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
172.31.3.101 Ready <none> 151m v1.25.2
172.31.3.102 Ready <none> 150m v1.25.2
172.31.3.103 Ready <none> 150m v1.25.2
172.31.3.111 Ready <none> 124m v1.25.2
172.31.3.112 Ready <none> 124m v1.25.2
172.31.3.113 Ready <none> 124m v1.25.2
[root@k8s-master01 ~]# kubectl get node --show-labels
NAME STATUS ROLES AGE VERSION LABELS
172.31.3.101 Ready <none> 151m v1.25.2 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=172.31.3.101,kubernetes.io/os=linux,node.kubernetes.io/node=
172.31.3.102 Ready <none> 150m v1.25.2 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=172.31.3.102,kubernetes.io/os=linux,node.kubernetes.io/node=
172.31.3.103 Ready <none> 150m v1.25.2 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=172.31.3.103,kubernetes.io/os=linux,node.kubernetes.io/node=
172.31.3.111 Ready <none> 124m v1.25.2 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=172.31.3.111,kubernetes.io/os=linux,node.kubernetes.io/node=
172.31.3.112 Ready <none> 124m v1.25.2 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=172.31.3.112,kubernetes.io/os=linux,node.kubernetes.io/node=
172.31.3.113 Ready <none> 124m v1.25.2 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=172.31.3.113,kubernetes.io/os=linux,node.kubernetes.io/node=
[root@k8s-master01 ~]# kubectl label node 172.31.3.101 node-role.kubernetes.io/control-plane='' node-role.kubernetes.io/master=''
node/172.31.3.101 labeled
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
172.31.3.101 Ready control-plane,master 152m v1.25.2
172.31.3.102 Ready <none> 151m v1.25.2
172.31.3.103 Ready <none> 151m v1.25.2
172.31.3.111 Ready <none> 125m v1.25.2
172.31.3.112 Ready <none> 125m v1.25.2
172.31.3.113 Ready <none> 125m v1.25.2
[root@k8s-master01 ~]# kubectl label node 172.31.3.102 node-role.kubernetes.io/control-plane='' node-role.kubernetes.io/master=''
node/172.31.3.102 labeled
[root@k8s-master01 ~]# kubectl label node 172.31.3.103 node-role.kubernetes.io/control-plane='' node-role.kubernetes.io/master=''
node/172.31.3.103 labeled
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
172.31.3.101 Ready control-plane,master 152m v1.25.2
172.31.3.102 Ready control-plane,master 152m v1.25.2
172.31.3.103 Ready control-plane,master 151m v1.25.2
172.31.3.111 Ready <none> 125m v1.25.2
172.31.3.112 Ready <none> 125m v1.25.2
172.31.3.113 Ready <none> 125m v1.25.2
安装总结：
1、 kubeadm
2、 二进制
3、 自动化安装
a) Ansible
i. Master节点安装不需要写自动化。
ii. 添加Node节点，playbook。
4、 安装需要注意的细节
a) 上面的细节配置
b) 生产环境中etcd一定要和系统盘分开，一定要用ssd硬盘。
c) Docker数据盘也要和系统盘分开，有条件的话可以使用ssd硬盘
