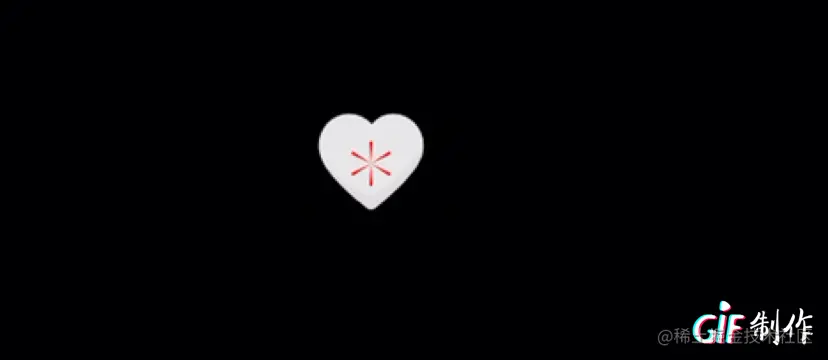

上效果图：
上代码
#import <UIKit/UIKit.h>
@interface ZanLikeView : UIView
//点赞前图片
@property (nonatomic, strong) UIImageView *likeBefore;
//点赞后图片
@property (nonatomic, strong) UIImageView *likeAfter;
//点赞时长
@property (nonatomic, assign) CGFloat likeDuration;
//点赞按钮填充颜色
@property (nonatomic, strong) UIColor *zanFillColor;
@end
#import "ZanLikeView.h"
#define CCFavoriteViewLikeBeforeTag 1 //点赞
#define CCFavoriteViewLikeAfterTag 2 //取消点赞
@implementation ZanLikeView
- (id)initWithFrame:(CGRect)frame{
self = [super initWithFrame:frame];
if(self) {
//为点赞图片之前添加图片以及手势
_likeBefore = [[UIImageView alloc]initWithFrame:frame];
_likeBefore.contentMode = UIViewContentModeCenter;
_likeBefore.image = [UIImage imageNamed:@"icon_home_like_before"];
_likeBefore.userInteractionEnabled = YES;
_likeBefore.tag = CCFavoriteViewLikeBeforeTag;
[_likeBefore addGestureRecognizer:[[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(handleGesture:)]];
[self addSubview:_likeBefore];
//为点赞图片之后添加图片以及手势
_likeAfter = [[UIImageView alloc]initWithFrame:frame];
_likeAfter.contentMode = UIViewContentModeCenter;
_likeAfter.image = [UIImage imageNamed:@"icon_home_like_after"];
_likeAfter.userInteractionEnabled = YES;
_likeAfter.tag = CCFavoriteViewLikeAfterTag;
[_likeAfter setHidden:YES];
[_likeAfter addGestureRecognizer:[[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(handleGesture:)]];
[self addSubview:_likeAfter];
}
return self;
}
- (void)handleGesture:(UITapGestureRecognizer *)sender {
switch (sender.view.tag) {
case CCFavoriteViewLikeBeforeTag: {
//开始动画(点赞)
[self startLikeAnim:YES];
break;
}
case CCFavoriteViewLikeAfterTag: {
//开始动画(取消点赞)
[self startLikeAnim:NO];
break;
}
}
}
-(void)startLikeAnim:(BOOL)isLike {
_likeBefore.userInteractionEnabled = NO;
_likeAfter.userInteractionEnabled = NO;
//判断点赞/取消点赞
if(isLike) {
//length:三角形贝塞尔曲线中的length.
CGFloat length = 30;
//动画时长:
CGFloat duration = self.likeDuration > 0? self.likeDuration :0.5f;
//for循环每 30°角创建一个上述的三角形.我们需要创建 6个 就循环6次
for(int i=0;i<6;i++) {
//创建shapeLayer
CAShapeLayer *layer = [[CAShapeLayer alloc]init];
//指定layer的位置 ,以_likeBefore图片为中心._likeBefore 是我们看到白色的❤️背景视图(UIImageView)
layer.position = _likeBefore.center;
//填充颜色,默认为红色
layer.fillColor = self.zanFillColor == nil?[UIColor redColor].CGColor: self.zanFillColor.CGColor;
//创建起始路径--路径就是一个倒三角形.
UIBezierPath *startPath = [UIBezierPath bezierPath];
[startPath moveToPoint:CGPointMake(-2, -length)];
[startPath addLineToPoint:CGPointMake(2, -length)];
[startPath addLineToPoint:CGPointMake(0, 0)];
//将startPath转化为CGPath,添加到layer上.
layer.path = startPath.CGPath;
//注: 当x,y,z值为0时,代表在该轴方向上不进行旋转,当值为-1时,代表在该轴方向上进行逆时针旋转,当值为1时,代表在该轴方向上进行顺时针旋转
/*
注: CATransform3DMakeRotation()函数 当x,y,z值为0时,代表在该轴方向上不进行旋转,当值为-1时,代表在该轴方向上进行逆时针旋转,当值为1时,代表在该轴方向上进行顺时针旋转
因为我们是需要60°创建一个layer所以需要顺时针 M_PI / 3.0f = 60°. 每循环一次则创建第N个角度乘60°.
*/
layer.transform = CATransform3DMakeRotation(M_PI / 3.0f * i, 0.0, 0.0, 1.0);
[self.layer addSublayer:layer];
//创建动画组
CAAnimationGroup *group = [[CAAnimationGroup alloc] init];
//是否在播放完成后移除。这是一个非常重要的属性，有的时候我们希望动画播放完成，但是保留最终的播放效果是，这个属性一定要改为NO，否则无效。
group.removedOnCompletion = NO;
//动画的节奏
/*
所谓节奏是什么什么意思呢？就是动画执行的快慢交替。有如下几个可选项
kCAMediaTimingFunctionLinear//线性节奏，就是匀速
kCAMediaTimingFunctionEaseIn//淡入，缓慢加速进入，然后匀速
kCAMediaTimingFunctionEaseOut//淡出，匀速，然后缓慢减速移除
kCAMediaTimingFunctionEaseInEaseOut//淡入淡出，结合以上两者
kCAMediaTimingFunctionDefault//默认效果
*/
group.timingFunction = [CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut];
//是播放结束后的状态
/*
它有四个枚举值
kCAFillModeForwards//保持结束时状态
kCAFillModeBackwards//保持开始时状态
kCAFillModeBoth//保持两者，我没懂两者是什么概念，实际使用中与kCAFillModeBackwards相同
kCAFillModeRemoved//移除
这个属性使用的时候要设置removedOnCompletion = NO，否则你是看不到效果的
*/
group.fillMode = kCAFillModeForwards;
//时长
group.duration = duration;
/*
CABasicAnimation用来创建基于两个状态的动画，你只需要给出两个状态，一个初始状态一个终止状态，系统自动为你将中间的动画补全
from就是指定初始状态
toValue就是终止状态
by就是状态的增量
*/
CABasicAnimation *scaleAnim = [CABasicAnimation animationWithKeyPath:@"transform.scale"];
scaleAnim.fromValue = @(0.0);
scaleAnim.toValue = @(1.0);
scaleAnim.duration = duration * 0.2f;
//创建
UIBezierPath *endPath = [UIBezierPath bezierPath];
[endPath moveToPoint:CGPointMake(-2, -length)];
[endPath addLineToPoint:CGPointMake(2, -length)];
[endPath addLineToPoint:CGPointMake(0, -length)];
/*
从我们上一个layer的path位置开始向我们结束位置的path过渡,并且注意开始时间
pathAnim.beginTime是 duration 0.2也就是说 在上一个动画结束的时间点才开始结束过渡,过渡的时长剩余是duration 0.8.这样两个连贯在一起的动画就执行完了,最后把动画加到动画组 天加给layer.
*/
//结束点路径
CABasicAnimation *pathAnim = [CABasicAnimation animationWithKeyPath:@"path"];
pathAnim.fromValue = (__bridge id)layer.path;
pathAnim.toValue = (__bridge id)endPath.CGPath;
pathAnim.beginTime = duration * 0.2f;
pathAnim.duration = duration * 0.8f;
//给动画组添加2个动画(scaleAnim,pathAnim)
[group setAnimations:@[scaleAnim, pathAnim]];
//给图层添加动画组
[layer addAnimation:group forKey:nil];
}
//_likeAfter 取消隐藏
[_likeAfter setHidden:NO];
//透明度为0.
_likeAfter.alpha = 0.0f;
//旋转120,并缩小0.5倍
_likeAfter.transform = CGAffineTransformScale(CGAffineTransformMakeRotation(-M_PI/3*2), 0.5f, 0.5f);
//创建基础动画
/*
Duration: 时长
delay:延时
Damping:弹簧效果时长
velocity:速度
animation:动画内容
completion:动画结束
*/
[UIView animateWithDuration:0.4f
delay:0.2f
usingSpringWithDamping:0.6f
initialSpringVelocity:0.8f
options:UIViewAnimationOptionCurveEaseIn
animations:^{
self.likeBefore.alpha = 0.0f;
self.likeAfter.alpha = 1.0f;
self.likeAfter.transform = CGAffineTransformScale(CGAffineTransformMakeRotation(0), 1.0f, 1.0f);
}
completion:^(BOOL finished) {
self.likeBefore.alpha = 1.0f;
self.likeBefore.userInteractionEnabled = YES;
self.likeAfter.userInteractionEnabled = YES;
}];
}else {
//取消点赞
_likeAfter.alpha = 1.0f;
_likeAfter.transform = CGAffineTransformScale(CGAffineTransformMakeRotation(0), 1.0f, 1.0f);
[UIView animateWithDuration:0.35f
delay:0.0f
options:UIViewAnimationOptionCurveEaseIn
animations:^{
self.likeAfter.transform = CGAffineTransformScale(CGAffineTransformMakeRotation(-M_PI_4), 0.1f, 0.1f);
}
completion:^(BOOL finished) {
[self.likeAfter setHidden:YES];
self.likeBefore.userInteractionEnabled = YES;
self.likeAfter.userInteractionEnabled = YES;
}];
}
}
