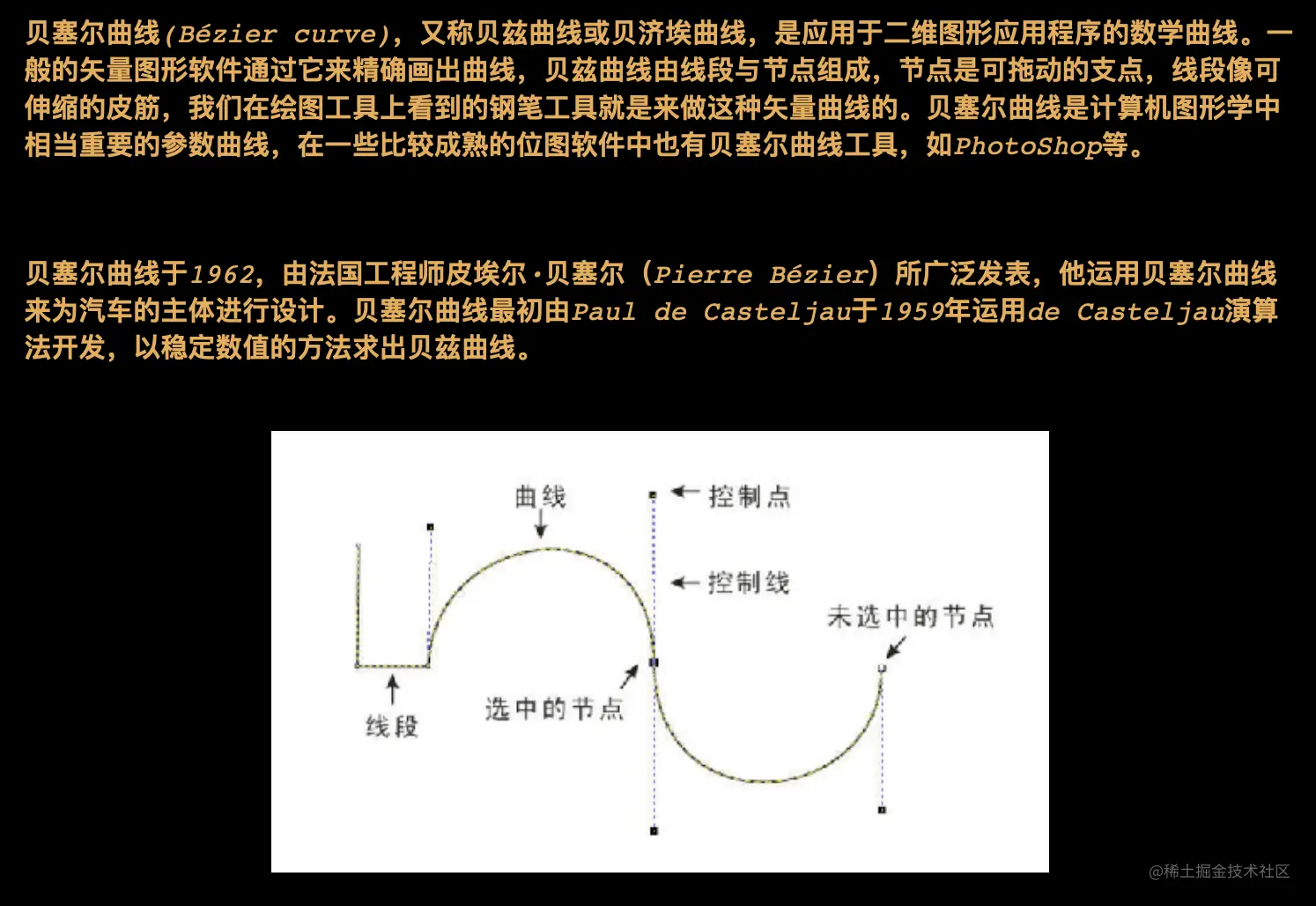

贝塞尔曲线
1. 播放器图片旋转
代码：
#import "ViewController.h"
#import <AVFoundation/AVFoundation.h>
#define DEGREES_TO_RADIANS(d) (d * M_PI / 180)
@interface ViewController ()
@end
@implementation ViewController
- (void)viewDidLoad {
[super viewDidLoad];
// Do any additional setup after loading the view, typically from a nib.
//设置背景颜色
self.view.backgroundColor = [UIColor colorWithRed:0.972 green:0.134 blue:0.173 alpha:1.000];
self.view.tintColor = [UIColor whiteColor];
// Setup AVPlayer
//1.视频地址
NSString *moviePath = [[NSBundle mainBundle] pathForResource:@"cyborg" ofType:@"m4v"];
//2.创建player对象
self.player = [AVPlayer playerWithURL:[NSURL fileURLWithPath:moviePath]];
//3.播放
[self.player play];
//4.创建和配置AvPlayerlayer
AVPlayerLayer *playerLayer = [AVPlayerLayer playerLayerWithPlayer:self.player];
playerLayer.bounds = CGRectMake(0, 0, 300, 170);
playerLayer.position = CGPointMake(210, 200);
playerLayer.borderColor = [UIColor whiteColor].CGColor;
playerLayer.borderWidth = 3.0;
playerLayer.shadowOffset = CGSizeMake(0, 3);
playerLayer.shadowOpacity = 0.80;
//5.添加透视投影
self.view.layer.sublayerTransform = CATransform3DMakePerspective(1000);
[self.view.layer addSublayer:playerLayer];
// Set up slider used to rotate video around Y-axis
UISlider *slider = [[UISlider alloc] initWithFrame:CGRectMake(60, 300, 300, 23)];
slider.minimumValue = -1.0;
slider.maximumValue = 1.0;
slider.continuous = NO;
slider.value = 0.0;
[slider addTarget:self action:@selector(sliderValueChanged:) forControlEvents:UIControlEventTouchDragInside];
[self.view addSubview:slider];
// Spin button to spin the video around the X-axis
UIButton *spinButton = [UIButton buttonWithType:UIButtonTypeRoundedRect];
spinButton.frame = CGRectMake(0, 0, 50, 31);
spinButton.center = CGPointMake(210, 350);
[spinButton setTitle:@"Spin" forState:UIControlStateNormal];
[spinButton addTarget:self action:@selector(spinIt) forControlEvents:UIControlEventTouchUpInside];
[self.view addSubview:spinButton];
}
// Animate spinning video around X-axis
- (void)spinIt {
CALayer *layer = [self.view.layer sublayers][0];
CABasicAnimation *animation = [CABasicAnimation animationWithKeyPath:@"transform.rotation.x"];
animation.duration = 1.25f;
animation.toValue = @(DEGREES_TO_RADIANS(360));
[layer addAnimation:animation forKey:@"spinAnimation"];
}
// Rotate the layer around the Y-axis as slider value is changed
-(void)sliderValueChanged:(UISlider *)sender{
CALayer *layer = [self.view.layer sublayers][0];
layer.transform = CATransform3DMakeRotation([sender value], 0, 1, 0);
}
static CATransform3D CATransform3DMakePerspective(CGFloat z) {
CATransform3D t = CATransform3DIdentity;
t.m34 = - 1.0 / z;
return t;
}
- (void)dealloc {
[self.player pause];
}

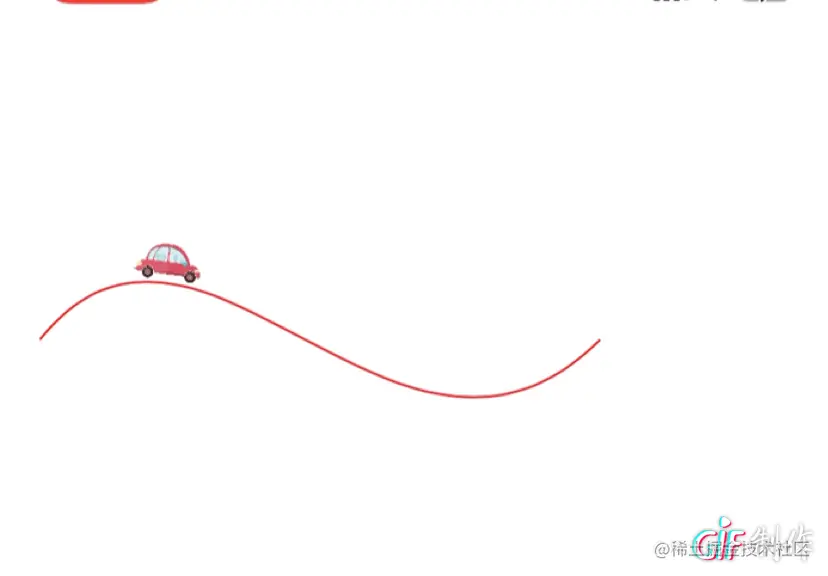

2. 实现汽车轨迹移动
可以借鉴实现下啦刷新控件
- (void)test{
//1.定义贝塞尔曲线
UIBezierPath *path = [UIBezierPath bezierPath];
//起始点
[path moveToPoint:CGPointMake(20, 200)];
//终点和控制点
[path addCurveToPoint:CGPointMake(300, 200) controlPoint1:CGPointMake(100, 100) controlPoint2:CGPointMake(200, 300)];
//2.为了显示贝塞尔曲线->shapeLayer(显示路径)
CAShapeLayer *shapeLayer = [CAShapeLayer layer];
shapeLayer.path = path.CGPath;
shapeLayer.fillColor = nil;
shapeLayer.strokeColor = [UIColor redColor].CGColor;
[self.view.layer addSublayer:shapeLayer];
//添加图层
CALayer *carLayer = [CALayer layer];
carLayer.frame = CGRectMake(15, 200-18,36,36);
//寄宿图
carLayer.contents = (id)[UIImage imageNamed:@"car.png"].CGImage;
carLayer.anchorPoint = CGPointMake(0.5, 0.8);
[self.view.layer addSublayer:carLayer];
//关键帧动画
CAKeyframeAnimation *anim = [CAKeyframeAnimation animation];
//路径! keypath
anim.keyPath = @"position";
//path
anim.path = path.CGPath;
anim.duration = 4.0;
anim.rotationMode = kCAAnimationRotateAuto;
[carLayer addAnimation:anim forKey:nil];
}

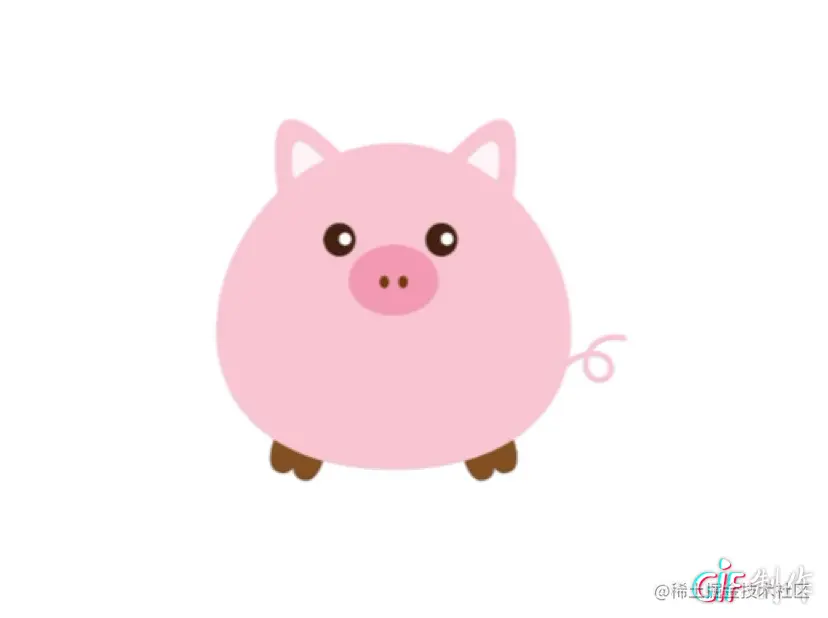

小猪摇晃
- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
CAKeyframeAnimation *anim = [CAKeyframeAnimation animation];
anim.keyPath = @"transform.rotation";
anim.values = @[@angleToRadians(-3),
@angleToRadians(5),
@angleToRadians(-3),
];
anim.autoreverses = YES;
anim.speed = 2;
anim.duration = 1;
anim.repeatCount = MAXFLOAT;
[_pigView.layer addAnimation:anim forKey:nil];
}

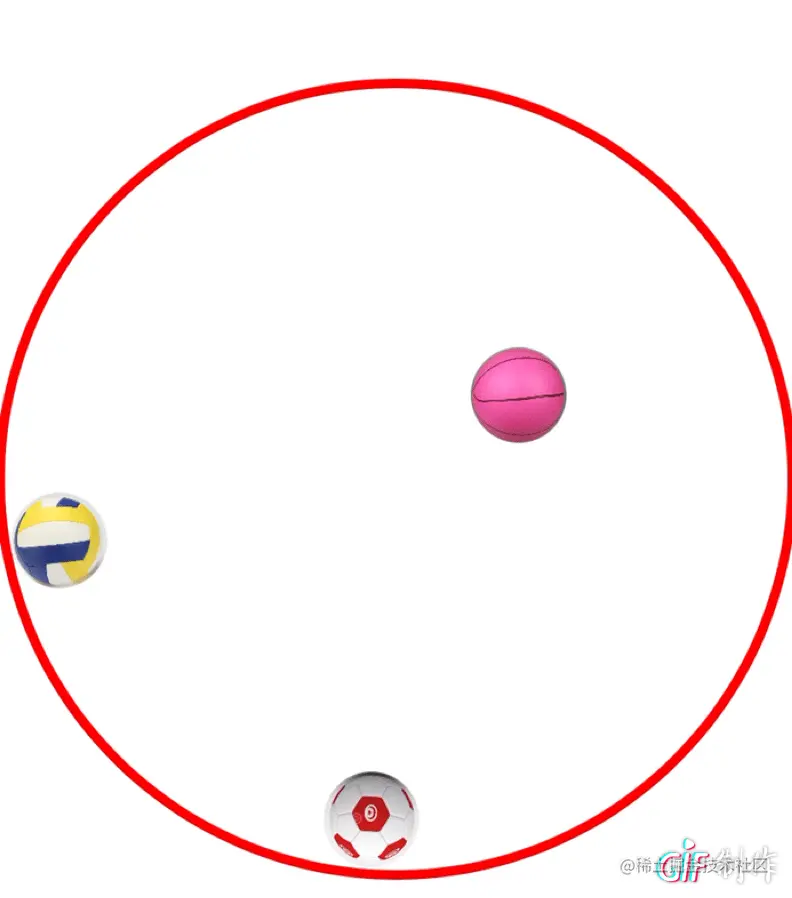

重力 UIGravityBehavior
/*
**使用2D物理引擎分两个步骤：**
1.添加行为（绑定view）
2.把行为添加在容器中（绑定view的父view）
*/
@interface ViewController ()
@property(nonatomic,strong)UIDynamicAnimator * animator;
@property(nonatomic,strong)UIDynamicAnimator * animator2;
@property(nonatomic,strong)UIAttachmentBehavior * attachmentBehavior;
@property(nonatomic,strong)UIImageView * redView;
@property(nonatomic,strong)UIImageView * greenView;
@property(nonatomic,strong)UIImageView * yellowView;
@end
@implementation ViewController
- (void)viewDidLoad {
[super viewDidLoad];
// Do any additional setup after loading the view, typically from a nib.
//UI实现
self.view.backgroundColor = [UIColor whiteColor];
//红色View
_redView =[[UIImageView alloc]initWithFrame:CGRectMake(100, 200, 50, 50)];
_redView.image = [UIImage imageNamed:@"ball.png"];
_redView.userInteractionEnabled = YES;
_redView.backgroundColor =[UIColor redColor];
_redView.layer.masksToBounds = YES;
_redView.layer.cornerRadius = 25;
[self.view addSubview:_redView];
//绿色View
_greenView =[[UIImageView alloc]initWithFrame:CGRectMake(100, 400, 50, 50)];
_greenView.backgroundColor =[UIColor greenColor];
_greenView.image = [UIImage imageNamed:@"ball2.png"];
_greenView.userInteractionEnabled = YES;
_greenView.layer.masksToBounds = YES;
_greenView.layer.cornerRadius = 25;
[self.view addSubview:_greenView];
//黄色View
_yellowView =[[UIImageView alloc]initWithFrame:CGRectMake(200, 500, 50, 50)];
_yellowView.backgroundColor =[UIColor yellowColor];
_yellowView.image = [UIImage imageNamed:@"ball3.png"];
_yellowView.userInteractionEnabled = YES;
_yellowView.layer.masksToBounds = YES;
_yellowView.layer.cornerRadius = 25;
[self.view addSubview:_yellowView];
//物理引擎
[self animator];
_animator2 = [[UIDynamicAnimator alloc]initWithReferenceView:self.view];
//创建自由落体行为-重力
UIGravityBehavior *gravity = [[UIGravityBehavior alloc]initWithItems:@[_redView,_yellowView,_greenView]];
//重力行为有一个属性是重力加速度，设置越大速度增长越快。默认是1
gravity.magnitude = 2;
//添加到容器
[_animator addBehavior:gravity];
//碰撞行为
UICollisionBehavior *collision =[[UICollisionBehavior alloc]initWithItems:@[_redView,_yellowView,_greenView]];
//设置边缘（父View的bounds）
collision.translatesReferenceBoundsIntoBoundary = YES;
//可以利用贝塞尔曲线限制边界
UIBezierPath *path = [UIBezierPath bezierPathWithOvalInRect:
CGRectMake(0,150, self.view.frame.size.width, self.view.frame.size.width)];
CAShapeLayer * shapeLayer =[CAShapeLayer layer];
shapeLayer.path =path.CGPath;
//画笔颜色
shapeLayer.strokeColor =[UIColor redColor].CGColor;
shapeLayer.lineWidth = 5;
//填充颜色
shapeLayer.fillColor = nil;
[self.view.layer addSublayer:shapeLayer];
[collision addBoundaryWithIdentifier:@"circle" forPath:path];
[_animator addBehavior:collision];
//模拟捕捉行为
//捕捉行为需要在创建时就给与一个点
//捕捉行为有一个防震系数属性，设置的越大，振幅就越小
CGPoint point = CGPointMake(10, 400);
UISnapBehavior *snap = [[UISnapBehavior alloc] initWithItem:_greenView snapToPoint:point];
snap.damping = 1;
[_animator addBehavior:snap];
//其他行为的拓展
UIDynamicItemBehavior *itemBehavior =[[UIDynamicItemBehavior alloc]initWithItems:@[_redView]];
/*
elasticity 弹性系数
friction 摩擦系数
density 密度
resistance 抵抗性
angularResistance 角度阻力
charge 冲击
anchored 锚定
allowsRotation 允许旋转
*/
itemBehavior.elasticity =.6;//弹性系数
[_animator addBehavior:itemBehavior];
//添加手势
UIPanGestureRecognizer *pan =[[UIPanGestureRecognizer alloc]initWithTarget:self action:@selector(panAuction:)];
[_redView addGestureRecognizer:pan];
}
-(void)panAuction:(UIPanGestureRecognizer *)ges{
if (ges.state == UIGestureRecognizerStateBegan) {
UIOffset offset = UIOffsetMake(-10, -10);
/*
offsetFromCenter:偏离中心幅度
attachedToAnchor:附加到锚点 手势点击的位置
*/
//UIAttachmentBehavior 附着行为
_attachmentBehavior =[[UIAttachmentBehavior alloc]initWithItem:_redView offsetFromCenter:offset attachedToAnchor:[ges locationInView:self.view]];
[_animator addBehavior:_attachmentBehavior];
}else if (ges.state == UIGestureRecognizerStateChanged){
//设置锚点
[_attachmentBehavior setAnchorPoint:[ges locationInView:self.view]];
}else if (ges.state ==UIGestureRecognizerStateEnded || ges.state == UIGestureRecognizerStateFailed || ges.state == UIGestureRecognizerStateCancelled){
[_animator removeBehavior:_attachmentBehavior];
}
}
- (void)touchesBegan:(NSSet *)touches withEvent:(UIEvent *)event
{
// 1.获得手指对应的触摸对象
UITouch *touch = [touches anyObject];
// 2.获得触摸点
CGPoint point = [touch locationInView:self.view];
// 3.创建捕捉行为
UISnapBehavior *snap = [[UISnapBehavior alloc] initWithItem:_yellowView snapToPoint:point];
// 防震系数，damping越大，振幅越小
snap.damping = 1;
// 4.清空之前的并再次开始
[_animator2 removeAllBehaviors];
[_animator2 addBehavior:snap];
}
//懒加载
- (UIDynamicAnimator *)animator
{
if (!_animator) {
// 创建一个物理仿真器
//容器（里面放一些行为）
/*
ReferenceView:关联的view
*/
_animator = [[UIDynamicAnimator alloc] initWithReferenceView:self.view];
}
return _animator;
}
