官方教程见：archerydms.com/home/ 本文参考官方教程实现并附上踩坑记录。

1、安装docker和docker-compose

可参考juejin.cn/post/714648…

2、实践安装archery

在github.com/hhyo/archer… 找到需要的版本，复制下载地址并下载到虚拟机目标位置，1.9.0部署过程中archery有报错，所以我选择1.8.5版本

mkdir archery

cd archery

wget https://github.com/hhyo/Archery/archive/refs/tags/v1.8.5.tar.gz

解压后进入src/docker-compose 目录，

tar -zxvf v1.8.5.tar.gz

cd Archery-1.8.5/src/docker-compose

执行启动脚本：

docker-compose -f docker-compose.yml up -d

踩坑1

查看服务状态

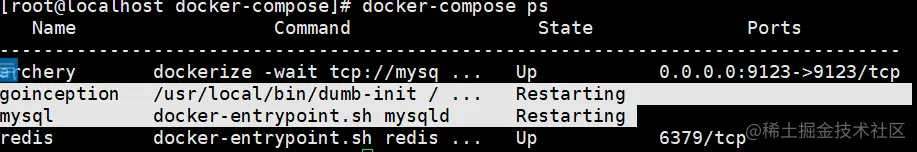

docker-compose ps

可以看到mysql和goinception一直在重启

docker logs mysql 查看mysql的日志

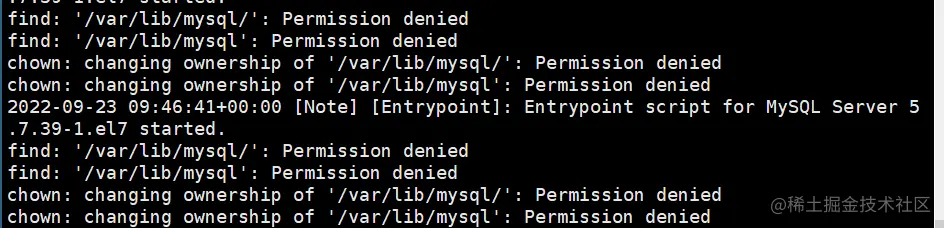

查看容器日志看到 chown: changing ownership of '/var/lib/mysql/': Permission denied，搜索后发现Centos7的安全Selinux禁止了一些安全权限，导致挂载信息时出现权限不足解决办法是关闭selinux

setenforce 0

关闭服务后重启 docker-compose down docker-compose -f docker-compose.yml up -d

踩坑2

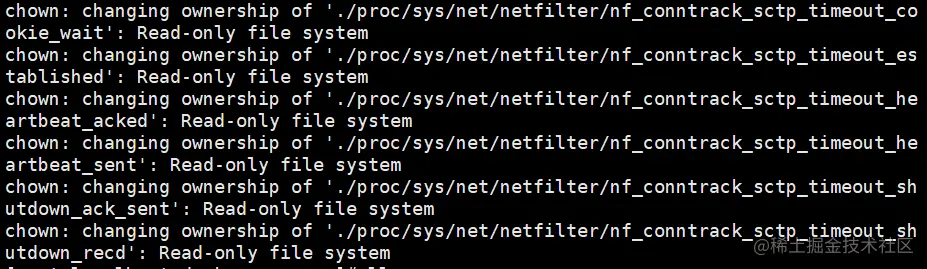

然后看到服务启动了查看mysql日志发现有chown: changing ownership of './proc/sys/net/netfilter/nf_conntrack_sctp_timeout_shutdown_recd': Read-only file system，没有写入权限

于是给mysql目录页设置权限：

chmod -R 777 ./mysql

关闭服务后重启 docker-compose down docker-compose -f docker-compose.yml up -d

查看mysql和archery的日志终于正常启动。

3、mysql表结构和数据初始化

表结构初始化

docker exec -ti archery /bin/bash

cd /opt/archery

source /opt/venv4archery/bin/activate

python3 manage.py makemigrations sql

python3 manage.py migrate

数据初始化

python3 manage.py dbshell<sql/fixtures/auth_group.sql

python3 manage.py dbshell<src/init_sql/mysql_slow_query_review.sql

踩坑3

表结构初始化后检查数据库和表和字段的编码是不是utf8，不是则需要修改编码，参考最后的修改编码语句。

4、创建用户登录系统使用

创建管理用户，此时会让设置账号和登录密码 python3 manage.py createsuperuser

重启服务 docker restart archery

日志查看和问题排查 docker logs archery -f --tail=10

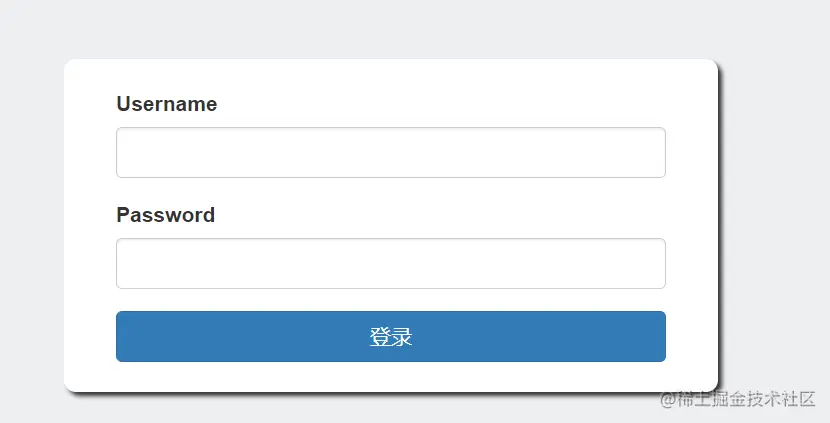

我的虚拟机ip是192.168.23.134，上面执行完重启archery服务后访问http://192.168.23.134:9123/，成功看到登录界面。

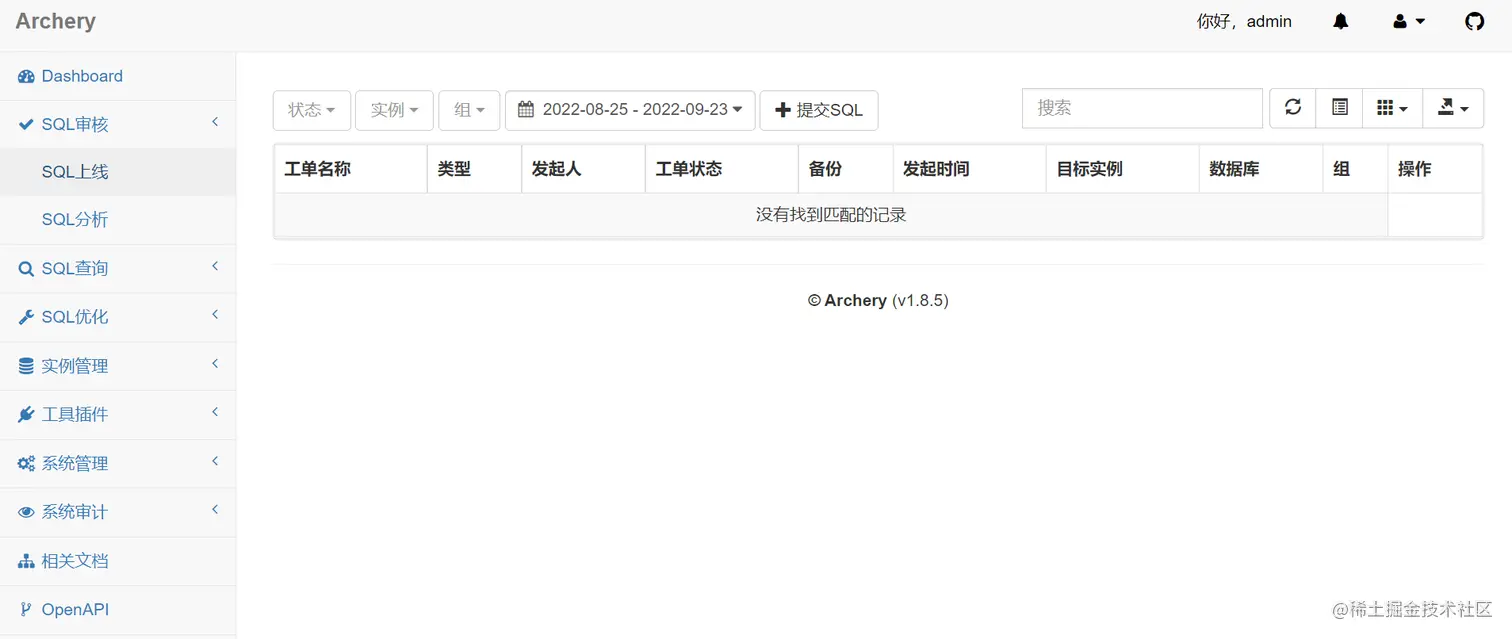

用之前设置的账号和登录密码登录后：

至此部署完成。

附：修改编码语句（数据库，表，字段编码不是utf-8时使用）

alter database archery character set utf8;

alter table 2fa_config convert to  character set utf8;
alter table aliyun_rds_config convert to  character set utf8;
alter table archive_config convert to  character set utf8;
alter table archive_log convert to  character set utf8;
alter table audit_log convert to  character set utf8;
alter table auth_group convert to  character set utf8;
alter table auth_group_permissions convert to  character set utf8;
alter table auth_permission convert to  character set utf8;
alter table cloud_access_key convert to  character set utf8;
alter table data_masking_columns convert to  character set utf8;
alter table data_masking_rules convert to  character set utf8;
alter table django_admin_log convert to  character set utf8;
alter table django_content_type convert to  character set utf8;
alter table django_migrations convert to  character set utf8;
alter table django_q_ormq convert to  character set utf8;
alter table django_q_schedule convert to  character set utf8;
alter table django_q_task convert to  character set utf8;
alter table django_session convert to  character set utf8;
alter table instance_account convert to  character set utf8;
alter table instance_database convert to  character set utf8;
alter table param_history convert to  character set utf8;
alter table param_template convert to  character set utf8;
alter table query_log convert to  character set utf8;
alter table query_privileges convert to  character set utf8;
alter table query_privileges_apply convert to  character set utf8;
alter table resource_group convert to  character set utf8;
alter table sql_config convert to  character set utf8;
alter table sql_instance convert to  character set utf8;
alter table sql_instance_instance_tag convert to  character set utf8;
alter table sql_instance_resource_group convert to  character set utf8;
alter table sql_instance_tag convert to  character set utf8;
alter table sql_permission convert to  character set utf8;
alter table sql_users convert to  character set utf8;
alter table sql_users_groups convert to  character set utf8;
alter table sql_users_resource_group convert to  character set utf8;
alter table sql_users_user_permissions   convert to  character set utf8;
alter table sql_workflow convert to  character set utf8;
alter table sql_workflow_content convert to  character set utf8;
alter table ssh_tunnel convert to  character set utf8;
alter table workflow_audit convert to  character set utf8;
alter table workflow_audit_detail convert to  character set utf8;
alter table workflow_audit_setting convert to  character set utf8;
alter table workflow_log convert to  character set utf8;
