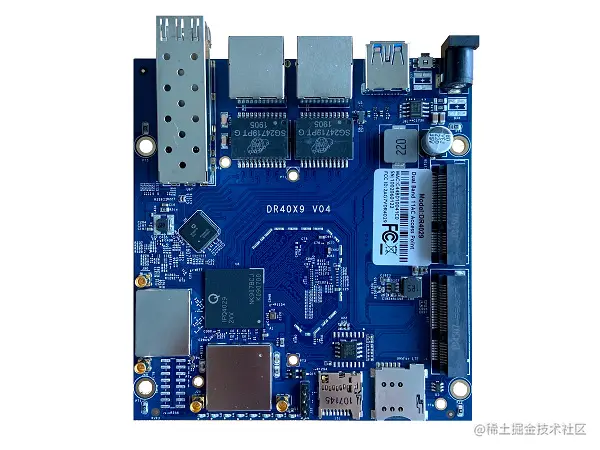

Wallys industrial wifi5 router/IPQ4019 IPQ4029 ,802.11AC 2x2 2.4G&5G
APPLICATIONS
Profi WiFi hotspot coverage
Commercial radio coverage
Hotel Wireless application
Country coverage
Internet for passengers (bus, train, plane, …)
Security Surveillance
Some special scene application
Featuring with industrial-grade IPQ4019 /IPQ4029 chipset
Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module
Support 4.940GHz to 5.825GHz Frequency Range
Support 2.400GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/AC
Support fixed data rate
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

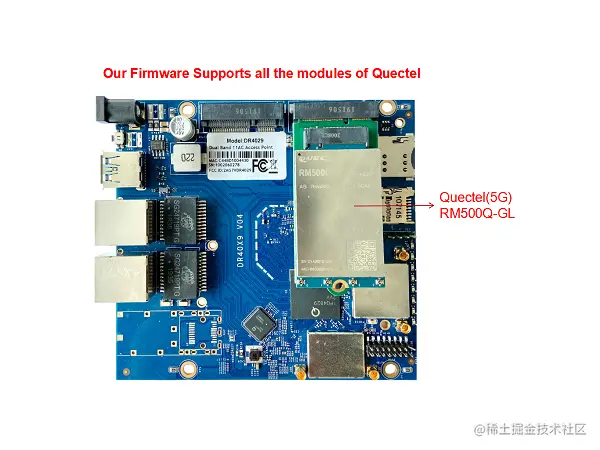

Our Firmware supports all the modules of Quectel
-
\
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 24V~48 V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % Storage Humidity Range 0 to +90 (non-condensing) % -
\
-
Hardware Specifications -
\
-
Symbol**** Parameter**** CPU IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz） Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX 10/100/1000Mbps Gigabit Ethernet ****2xRJ45 SFP connector 1xSFP fiber module connector (optional) 3G/4G connector 1xminipcie 3G/4G connector support with two sim card USB connector 1xUSB 3.0 connector POE 24V~48V passive POE DC Jack 24V~48V power supply ROHS Compliance YES Dimension 115mm x 105mm x 16mm Max Power 48.1V x 0.180A= 8.658W Nor Flash 2MB~32MB Nand Flash 128MB DDR 256MB~512MB -
\
-
Radio TX ****Specifications(5180MHz-5825MHz) -
\
-
Operating Mode Data Rate Power Tolerance 1 Chain**** 2 Chains**** 802.11a 6 Mbps 27dBm 30dbm ±2dB 54 Mbps 23dBm 26dbm ±2dB 802.11n HT20 MCS0, MCS8 26dBm 29dbm ±2dB MCS7, MCS15 22dBm 25dbm ±2dB 802.11n HT40 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 21dBm 24dbm ±2dB 802.11ac MCS0, MCS10,MCS20 25dBm 28dbm ±2dB MCS9,MCS19,MCS29 19dBm 22dbm ±2dB -
\
-
Radio RX ****Specifications(5180MHz-5825MHz) -
\
-
Operating Mode**** Data Rate Sensitivity 802.11a 6 Mbps -96dBm 54 Mbps -78dBm 802.11n HT20 MCS0, MCS8 -93dBm MCS7, MCS15 -73dBm 802.11n HT40 MCS0, MCS8 -90dBm MCS7, MCS15 -70dBm 802.11AC HT40 MCS0, MCS10,MCS20 -90dBm MCS9,MCS19,MCS29 -67dBm 802.11AC HT80 MCS0, MCS10,MCS20 -88dBm MCS9,MCS19,MCS29 -62dBm -
\
\
Stable networks guarantee for the ongoing continuity of your video surveillance. Our boards could establish a stable connected wireless environment which is critical for a security surveillance system.
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We’re a supplier to Facebook.
