Wallys industrial wifi6 2x2 2.4G&5G router/IPQ6018 802.11ax 1x**M.2** E key
APPLICATIONS
Profi WiFi hotspot coverage
Commercial radio coverage
Hotel Wireless application
Country coverage
Internet for passengers (bus, train, plane, …)
Security Surveillance
Some special scene application
Heavy-duty industrial environment use
Qualcomm-Atheros IPQ6018
Quad-core ARM 64bit A53 @1.8GHz Processor
1GB DDRL3L System Memory
32MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 24V~48 V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % -
\
-
****Hardware Specifications -
\
-

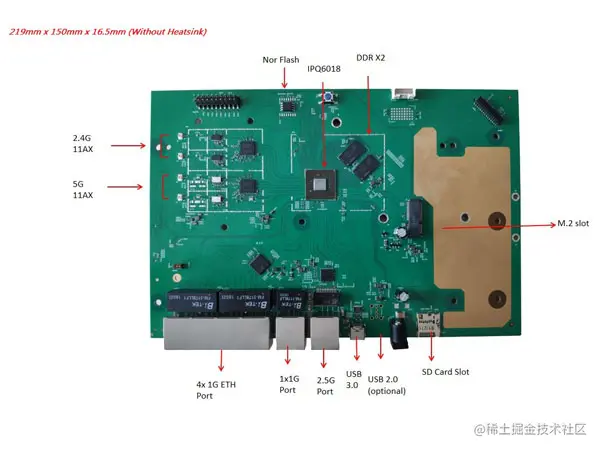

Symbol**** Parameter**** CPU Qualcomm-Atheros IPQ6018 CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 5x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port NGFF Slot M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0 SD Card Slot 1x SD Card Slot USB /header 1x USB 2.0 Port, 1x USB 3.0 Type-C Port POE 24V~48V passive POE DC Jack 12V power supply LED header FFC/FPC Connector Serial Port 1x Serial Port 12 Pin Connector Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/802.11n/802.11ac/802.11ax, max 20dBm per chain 4x U.FL Connectors Nor Flash 32MB Nand Flash 256MB DDR 256MB~512MB Dimension (W x H x D) 219mm x 150mm x 16.5mm (Without Heatsink) -
\
-
Radio TX Specifications(5180MHz-5825MHz) -
\
-
Operating Mode Data Rate Power Tolerance 1 Chain**** 2 Chains**** 5Ghz 802.11ax HE20 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB 5Ghz 802.11ax HE400 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB 5Ghz 802.11ax HE80 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB -
\
-
We'll start with a quick review of how Wi-Fi has changed over the years.
In fact, the earliest generation of 802.11 standard can be traced back to 1997, when the wireless speed is very low, only 2Mbps, it is an original standard of the first generation .
With the introduction of 802.11b in 1999, the physical layer speed was increased to 11Mbps and there were very few commercial applications. At that time, Wi-Fi was still far away from people's lives
In 2003, the third generation of the standard, 802.11a/ g. Laptop began to configure wireless network card and home wireless router appeared in large quantity . Wi-fi comes into ordinary family.
