效果：
链接: pan.baidu.com/s/14UxH8lzo… 提取码: t1hc
步骤：
第一步：下载并运行桌面app appuim service 的
/Applications/Appium\ Server\ GUI.app/Contents/Resources/app/node_modules/appium/node_modules/appium-webdriveragent目录下的xcode项目到设备
1.1 确保lib 和 runner 的boundID和配置文件包含了当前的设备
1.2 选择 runner ，在command+u运行测试用例，只到看到控制台出现对应的地址即可,设备上有弹框需要同意下
关于下载地址和webdriveragent配置错误问题的修复以参考：配置webdriveragent
配置webdriveragent不需要用公司的证书信息，用自己的开发证书就行，只需要把runner跑到自己手机即可；
第二步：选择mac的桌面app appuim service（host:127.0.0.1 port:4327），启动session

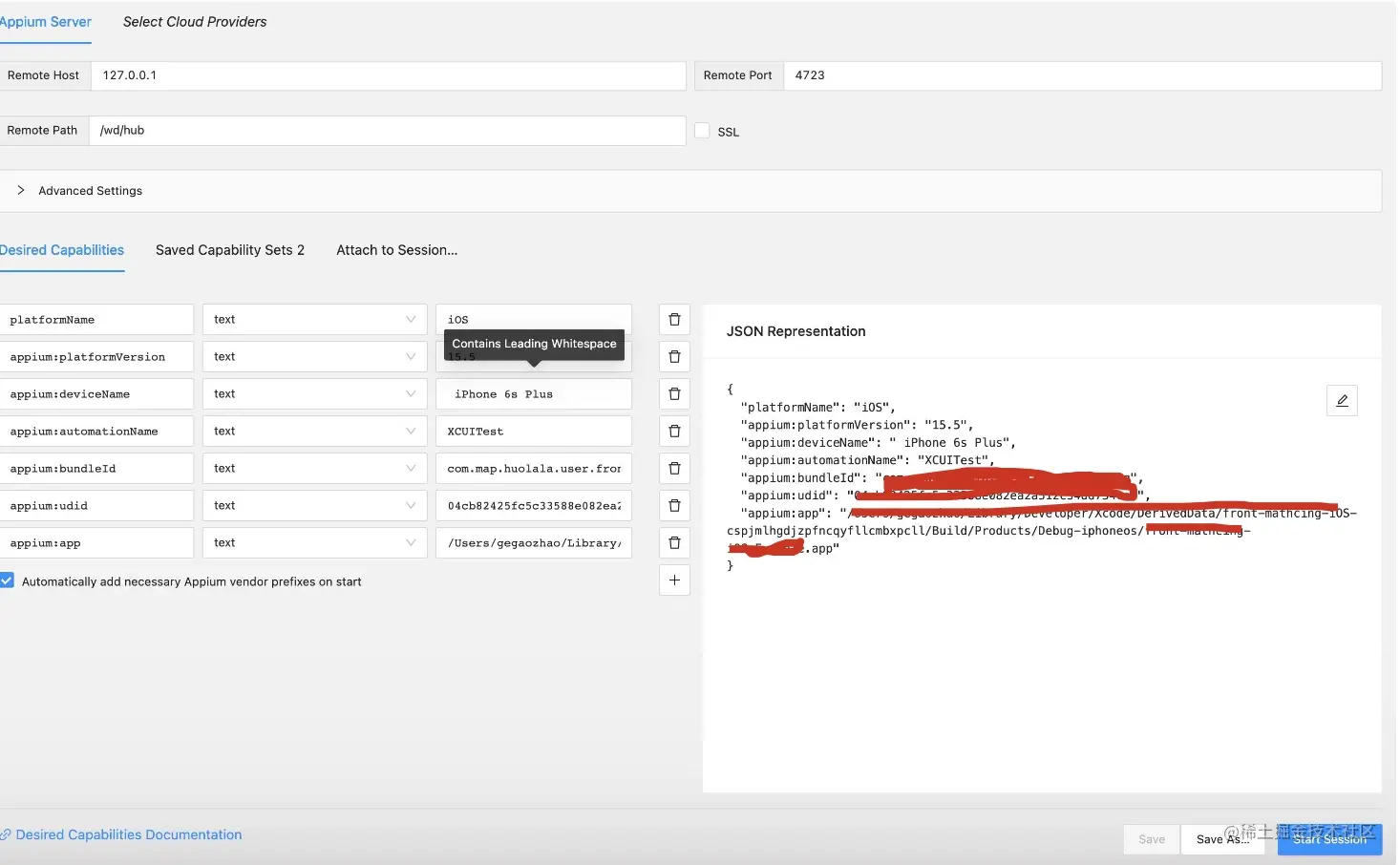

第三步：选择appuim inspector 配置(可以选择界面元素信息，用于脚本匹配到指定的元素) 可选运行
#真机：
{
"platformName": "iOS",
"appium:platformVersion": "15.5",
"appium:deviceName": " iPhone 6s Plus",
"appium:automationName": "XCUITest",
"appium:bundleId": "xxx", #app boundle id 必须设置
"appium:udid": "xxx", #真机设备的udid
"appium:app": "xxx/xxx.app" #app的路径这里是绝对路径，可以在xcode项目的product找到app地址
}
#测试机：
{ "platformName": "iOS", "deviceName": "iPhone Simulator", "automationName": "XCUITest", "platformVersion": "14.5", "app": "xxx/xxx.app" }
第四步：可以执行脚本 （如果不知道元素的信息可以运行mac appuim 分析工具里面有元素的详细信息）
from appium import webdriver
from selenium.webdriver.common.keys import Keys
from selenium.webdriver.support.wait import WebDriverWait
from appium.webdriver.common.touch_action import TouchAction
import time
import sys
import os
def end_app():
driver.terminate_app('xxx') # xxx为bound id
def installApp():
is_install=driver.is_app_installed('xxx'); # xxx为bound id
if is_install==1:
driver.install_app('xxx/xxx.app'); #app的路径这里是绝对路径，可以在xcode项目的product找到app地址
def createSession():
desired_caps = {
'platformName': 'iOS',
'platformVersion': '15.5',
'deviceName': 'iPhone 6s Plus',
'udid': 'xxx', # 设备udid
'app': 'xxx/xxx.app', #app的路径这里是绝对路径，可以在xcode项目的product找到app地址
'bundleId':'xxx', # xxx为bound id
'newCommandTimeout': 60,
'automationName': 'Appium',
'noReset': True
}
global driver
driver=webdriver.Remote('http://localhost:4723/wd/hub', desired_caps)
time.sleep(3)
def stopSesssion():
driver.quit()
def snapScreen():
screenshotBase64=driver.get_screenshot_as_base64()
def write_start_address():
start_address_field=driver.find_element_by_ios_predicate("value == '输入起点地址'")
start_address_field.click()
address_poi_img=driver.find_element_by_ios_predicate("type == 'XCUIElementTypeImage'")
address_poi_field=driver.find_element_by_ios_predicate("label == '请输入关键字'")
address_poi_field.send_keys("弘源首著大厦")
time.sleep(3)
search_poi_cell=driver.find_element_by_xpath("//XCUIElementTypeApplication[@name='前端路测']/XCUIElementTypeWindow[1]/XCUIElementTypeOther[2]/XCUIElementTypeOther[1]/XCUIElementTypeTable/XCUIElementTypeCell[2]")
search_poi_cell.click()
time.sleep(2)
def write_end_address():
end_address_field=driver.find_element_by_ios_predicate("value == '输入终点地址'")
end_address_field.click()
address_poi_img=driver.find_element_by_ios_predicate("type == 'XCUIElementTypeImage'")
address_poi_field=driver.find_element_by_ios_predicate("label == '弘源首著大厦'")
address_poi_field.send_keys("金隅嘉华大厦")
time.sleep(3)
search_poi_cell=driver.find_element_by_xpath("//XCUIElementTypeApplication[@name='前端路测']/XCUIElementTypeWindow[1]/XCUIElementTypeOther[2]/XCUIElementTypeOther[1]/XCUIElementTypeTable/XCUIElementTypeCell[1]")
search_poi_cell.click()
time.sleep(2)
def start_navi():
startBtn=driver.find_element_by_ios_predicate("label == '开始导航' AND name == '开始导航' AND value == '开始导航'")
startBtn.click()
time.sleep(2)
def stop_navi():
stopBtn=driver.find_element_by_ios_predicate("label == '结束导航' AND name == '结束导航' AND type == 'XCUIElementTypeButton'")
stopBtn.click()
time.sleep(2)
def simulate_navi_start():
start_simulate_naviBtn=driver.find_element_by_ios_predicate("label == '模拟导航' AND name == '模拟导航' AND type == 'XCUIElementTypeButton'")
start_simulate_naviBtn.click()
time.sleep(2)
start_play_loc_Btn=driver.find_element_by_ios_predicate("label == '开启GPS回放' AND name == '开启GPS回放' AND type == 'XCUIElementTypeButton'")
start_play_loc_Btn.click()
time.sleep(2)
def simulate_navi_stop():
start_simulate_naviBtn=driver.find_element_by_ios_predicate("label == '模拟导航' AND name == '模拟导航' AND type == 'XCUIElementTypeButton'")
start_simulate_naviBtn.click()
time.sleep(2)
stop_play_loc_Btn=driver.find_element_by_ios_predicate("label == '关闭GPS回放' AND name == '关闭GPS回放' AND type == 'XCUIElementTypeButton'")
stop_play_loc_Btn.click()
time.sleep(2)
def swipe():
# 默认没找到元素
is_find = False
# 默认顺序查找，即左滑
is_sequential_search = True
app_list=driver.find_element_by_ios_predicate("type == 'XCUIElementTypeScrollView'")
#获取seekbar控件本身的（尺寸）宽度
startX=app_list.size.get('width')
#获取控件中间位置y坐标，（试过后验发现不加尺寸的一半也能操作）
#控件的坐标Y(应该是左上角的坐标)+控件本身高度的一半
startY=app_list.location.get('y')+(app_list.size.get('height'))/2
while is_find is not True:
try:
driver.find_element_by_xpath("//XCUIElementTypeCell[@name='Feishu']/XCUIElementTypeOther/XCUIElementTypeOther[2]")
is_find = True
except BaseException:
print("找元素失败 ")
if is_sequential_search:
driver.swipe(startX*0.9,startY,startX*0.1,startY, 1000)
else:
driver.swipe(startX*0.1,startY,startX*0.9,startY, 1000)
return is_find
def share_log():
select_Btn=driver.find_element_by_ios_predicate("label == 'unselect'")
select_Btn.click()
share_Btn=driver.find_element_by_ios_predicate("label == '分享'")
share_Btn.click()
time.sleep(2)
is_find = swipe()
if is_find:
print("找到飞书按钮啦")
feishu_cell=driver.find_element_by_xpath("//XCUIElementTypeCell[@name='Feishu']/XCUIElementTypeOther/XCUIElementTypeOther[2]")
feishu_cell.click()
time.sleep(2)
send_self_cell=driver.find_element_by_xpath("//XCUIElementTypeApplication[@name='前端路测']/XCUIElementTypeWindow[4]/XCUIElementTypeOther[3]/XCUIElementTypeOther[2]/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeOther/XCUIElementTypeTable/XCUIElementTypeCell[1]")
send_self_cell.click()
time.sleep(5)
else:
print("飞书按钮寻找失败，终止后续流程！")
if __name__ == '__main__':
createSession()
time.sleep(2)
write_start_address()
time.sleep(2)
write_end_address()
time.sleep(10)
start_navi()
time.sleep(2)
simulate_navi_start()
time.sleep(2)
simulate_navi_stop()
stop_navi()
time.sleep(2)
share_log()
time.sleep(2)
end_app()
