前言
效果仿照 CSS聚光灯效果
实现思路：
1. 设置底部Canvas背景色 #222222 。
2. 准备两个 TextBlock 控件在同一位置。
3. 设置底部 TextBlock 字体颜色Foreground="#323232"。
4. 设置上层 TextBlock 字体颜色为渐变色。
5. 设置上层 TextBlock.Clip 针对 EllipseGeometry 做 TranslateTransform 的X轴移动动画。
6. DoubleAnimation的To值为上层或者下层控件的ActualWidth获取此元素的呈现宽度。
7. 故事板初始化 Storyboard RepeatBehavior =RepeatBehavior.Forever,AutoReverse = true。`

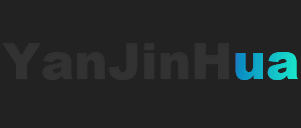

效果预览（更多效果请下载源码体验）
一、SpotLight.cs 代码如下
using System; using System.Collections.Generic; using System.Linq; using System.Text; using System.Windows; using System.Windows.Controls; using System.Windows.Media; using System.Windows.Media.Animation;
namespace WPFDevelopers.Controls { [TemplatePart(Name = TextBlockBottomTemplateName, Type = typeof(TextBlock))] [TemplatePart(Name = TextBlockTopTemplateName, Type = typeof(TextBlock))] [TemplatePart(Name = EllipseGeometryTemplateName, Type = typeof(EllipseGeometry))] public class SpotLight : Control { private const string TextBlockBottomTemplateName = "PART_TextBlockBottom"; private const string TextBlockTopTemplateName = "PART_TextBlockTop"; private const string EllipseGeometryTemplateName = "PART_EllipseGeometry"; private TextBlock _textBlockBottom, _textBlockTop; private EllipseGeometry _ellipseGeometry; public string Text { get { return (string)GetValue(TextProperty); } set { SetValue(TextProperty, value); } }
public static readonly DependencyProperty TextProperty =
DependencyProperty.Register("Text", typeof(string), typeof(SpotLight), new PropertyMetadata("WPFDevelopers"));
static SpotLight()
{
DefaultStyleKeyProperty.OverrideMetadata(typeof(SpotLight), new FrameworkPropertyMetadata(typeof(SpotLight)));
}
public SpotLight()
{
this.Loaded += SpotLight_Loaded;
}
private void SpotLight_Loaded(object sender, RoutedEventArgs e)
{
Canvas.SetLeft(_textBlockBottom, ActualWidth / 3);
Canvas.SetTop(_textBlockBottom, ActualHeight / 3);
Canvas.SetLeft(_textBlockTop, ActualWidth / 3);
Canvas.SetTop(_textBlockTop, ActualHeight / 3);
}
public override void OnApplyTemplate()
{
base.OnApplyTemplate();
_textBlockBottom = GetTemplateChild(TextBlockBottomTemplateName) as TextBlock;
_textBlockTop = GetTemplateChild(TextBlockTopTemplateName) as TextBlock;
_ellipseGeometry = GetTemplateChild(EllipseGeometryTemplateName) as EllipseGeometry;
var center = new Point(FontSize/2, FontSize/2);
_ellipseGeometry.RadiusX = FontSize;
_ellipseGeometry.RadiusY = FontSize;
_ellipseGeometry.Center = center;
if (_textBlockBottom != null && _textBlockTop != null && _ellipseGeometry != null)
_textBlockTop.Loaded += _textBlockTop_Loaded;
}
private void _textBlockTop_Loaded(object sender, RoutedEventArgs e)
{
var doubleAnimation = new DoubleAnimation
{
To = _textBlockTop.ActualWidth,
Duration = TimeSpan.FromSeconds(3)
};
Storyboard.SetTarget(doubleAnimation, _textBlockTop);
Storyboard.SetTargetProperty(doubleAnimation, new PropertyPath("(UIElement.Clip).(EllipseGeometry.Transform).(TranslateTransform.X)"));
var storyboard = new Storyboard
{
RepeatBehavior = RepeatBehavior.Forever,
AutoReverse = true
};
storyboard.Children.Add(doubleAnimation);
storyboard.Completed += (s, q) =>
{
};
storyboard.Begin();
}
}
}
二、SpotLight.xaml 代码如下
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="Basic/ControlBasic.xaml"/>
</ResourceDictionary.MergedDictionaries>
<Style TargetType="{x:Type controls:SpotLight}" BasedOn="{StaticResource ControlBasicStyle}">
<Setter Property="Background" Value="#222222"/>
<Setter Property="FontSize" Value="60"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type controls:SpotLight}">
<Canvas x:Name="PART_Canvas" Background="{TemplateBinding Background}">
<TextBlock x:Name="PART_TextBlockBottom" Text="{TemplateBinding Text}"
FontSize="{TemplateBinding FontSize}" FontFamily="Arial Black"
FontWeight="Bold" Foreground="#323232"/>
<TextBlock x:Name="PART_TextBlockTop" Text="{TemplateBinding Text}"
FontSize="{TemplateBinding FontSize}" FontFamily="Arial Black"
FontWeight="Bold">
<TextBlock.Foreground>
<LinearGradientBrush EndPoint="1,1" MappingMode="RelativeToBoundingBox" StartPoint="0,0">
<GradientStop Color="#FF9C1031" Offset="0.1"/>
<GradientStop Color="#FFBE0E20" Offset="0.2"/>
<GradientStop Color="#FF9C12AC" Offset="0.7"/>
<GradientStop Color="#FF0A8DC3" Offset="0.8"/>
<GradientStop Color="#FF1AEBCC" Offset="1"/>
</LinearGradientBrush>
</TextBlock.Foreground>
<TextBlock.Clip>
<EllipseGeometry x:Name="PART_EllipseGeometry">
<EllipseGeometry.Transform>
<TranslateTransform/>
</EllipseGeometry.Transform>
</EllipseGeometry>
</TextBlock.Clip>
</TextBlock>
</Canvas>
</ControlTemplate>
</Setter.Value>
</Setter>
三、SpotLightExample.Xaml 代码如下
<UserControl x:Class="WPFDevelopers.Samples.ExampleViews.SpotLightExample"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:WPFDevelopers.Samples.ExampleViews"
xmlns:wpfdev="https://github.com/yanjinhuagood/WPFDevelopers"
mc:Ignorable="d"
d:DesignHeight="450" d:DesignWidth="800">
<UniformGrid Rows="2">
<wpfdev:SpotLight FontSize="50" Text="YanJinHua"/>
<wpfdev:SpotLight/>
</UniformGrid>
</UserControl>
