项目---外卖

小小微光
122 阅读4分钟

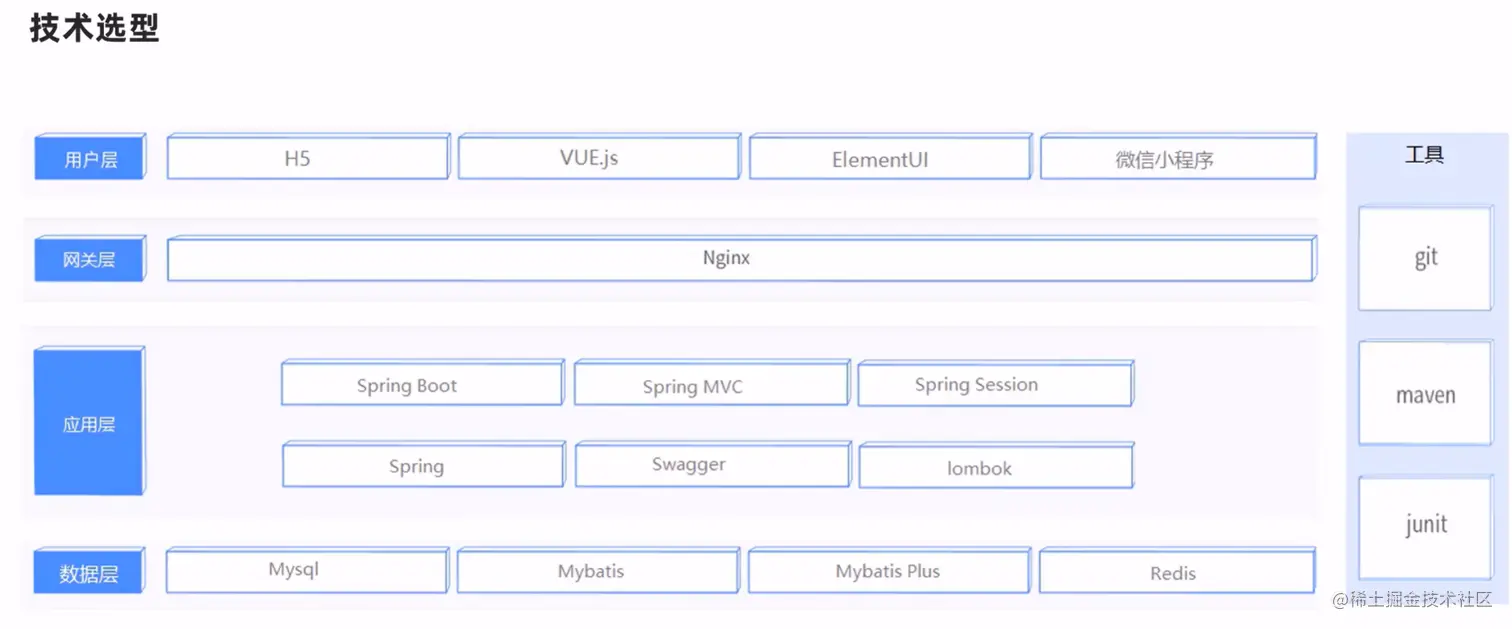

整体介绍

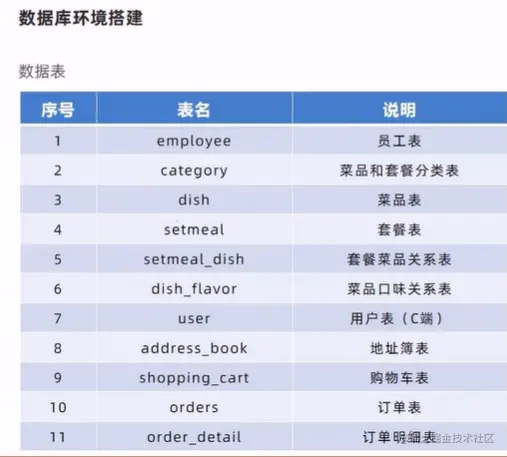

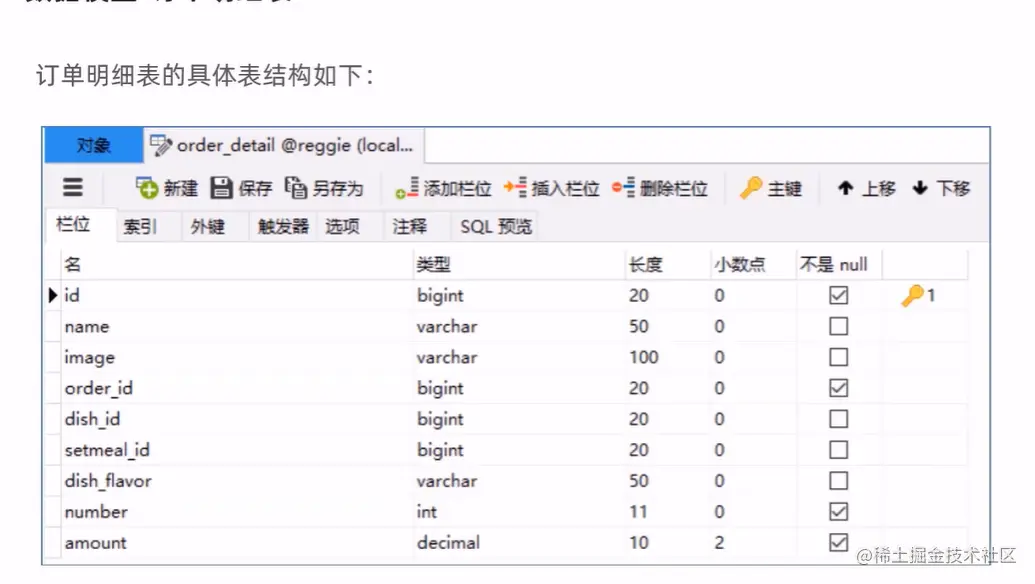

04 数据库表


05 maven搭建


设置静态资源映射

@Slf4j
@Configuration
public class WebMvcConfig extends WebMvcConfigurationSupport {
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        log.info("开始进行静态支援映射 ");
        registry.addResourceHandler("/backend/**").addResourceLocations("classpath:/backend/");
        registry.addResourceHandler("/front/**").addResourceLocations("classpath:/front/");

    }
}

06 后台登录

结构


泛型方法

public static <T> R<T> error(String msg) {
    R r = new R();
    r.msg = msg;
    r.code = 0;
    return r;

public  R<T> add(String key, Object value) {
    map.put(key, value);
    return this;   //返回当前对象的引用
}

}

blog.csdn.net/weixin_4381…

业务逻辑


p12 退出

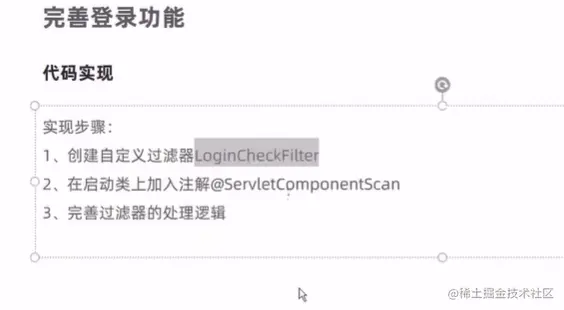

p15 完善登录

过滤器


@WebFilter(filterName = "LoginCheckFilter",urlPatterns = "/*")
@Slf4j
public class LoginCheckFilter implements Filter {
    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest request = (HttpServletRequest)servletRequest;
        HttpServletResponse response = (HttpServletResponse)servletResponse;
        log.info("拦截到请求：{}",request.getRequestURI());
        filterChain.doFilter(request,response);  //放行

    }
}

@Slf4j
@SpringBootApplication
@ServletComponentScan
public class ReggieApplication {
    public static void main(String[] args) {
        SpringApplication.run(ReggieApplication.class,args);
        log.info("项目启动成功");
    }
}
  • SpringBootApplication 上使用@ServletComponentScan 注解后
  • Servlet可以直接通过@WebServlet注解自动注册
  • Filter可以直接通过@WebFilter注解自动注册
  • Listener可以直接通过@WebListener 注解自动注册

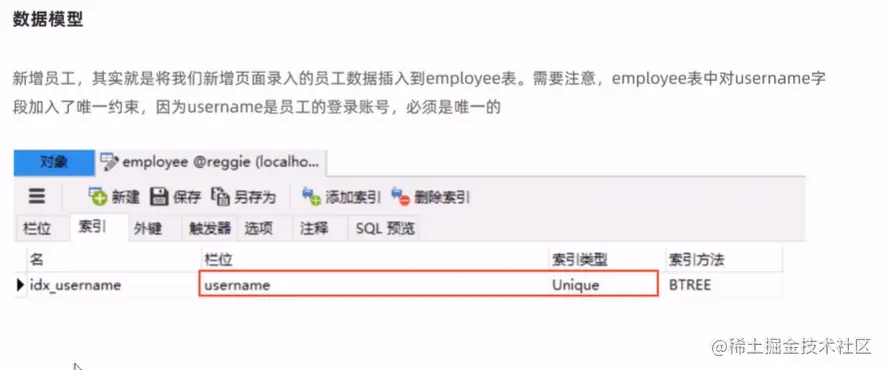

p18 新增员工

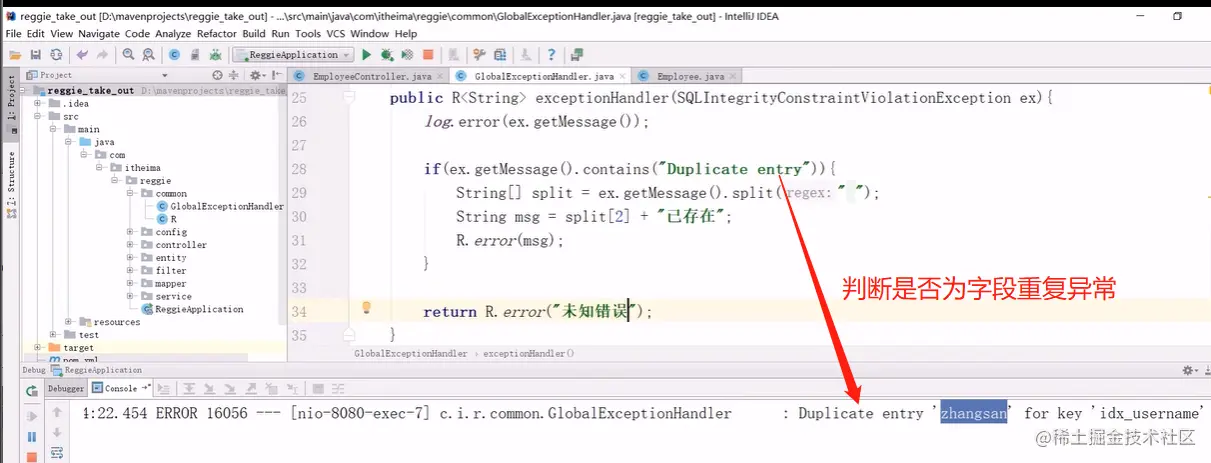

异常处理

以为username是唯一的，所以对于相同的username需要异常处理


p26 员工信息分页


配置分页信息

@Configuration
public class MybatisPlusConfig {

    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor(){
        MybatisPlusInterceptor mybatisPlusInterceptor = new MybatisPlusInterceptor();
        mybatisPlusInterceptor.addInnerInterceptor(new PaginationInnerInterceptor());
        return mybatisPlusInterceptor;
    }
}

分页代码

@GetMapping("/page")
public R<Page> page(int page,int pageSize,String name){
    log.info("page={},pageSize={},name={}",page,pageSize,name);

    // 构造分页条件
    Page pageInfo = new Page(page,pageSize);
    //构造条件构造器
    LambdaQueryWrapper<Employee> queryWrapper = new LambdaQueryWrapper<Employee>();
    // StringUtils.isNotEmpty(name)意为 当name不为空的时候，后边的条件才成立
    queryWrapper.like(StringUtils.isNotEmpty(name),Employee::getName,name);
    // 添加排序条件
    queryWrapper.orderByDesc(Employee::getUpdateTime);

    employeeService.page(pageInfo,queryWrapper);

    return R.success(pageInfo);
}

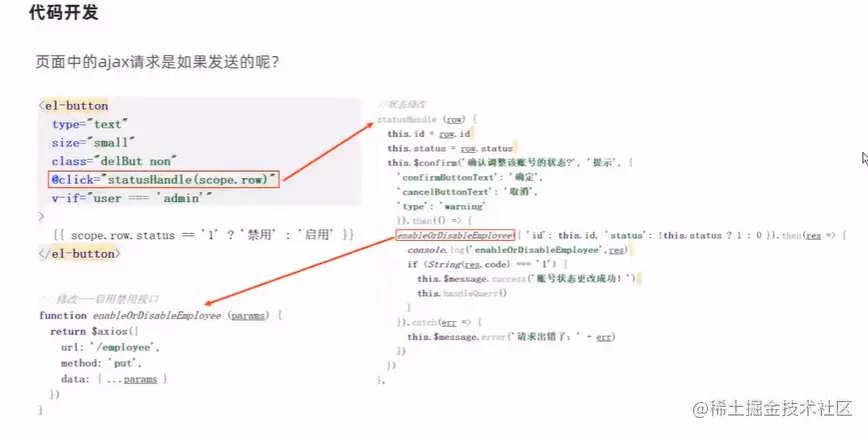

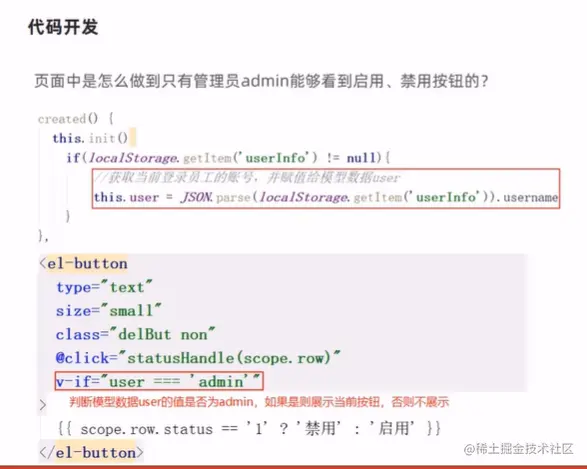

p30 禁用员工状态

03ab096972cbc171c69b6d8ad848c15.png 1660132825180.png

前端


后端


出现的问题

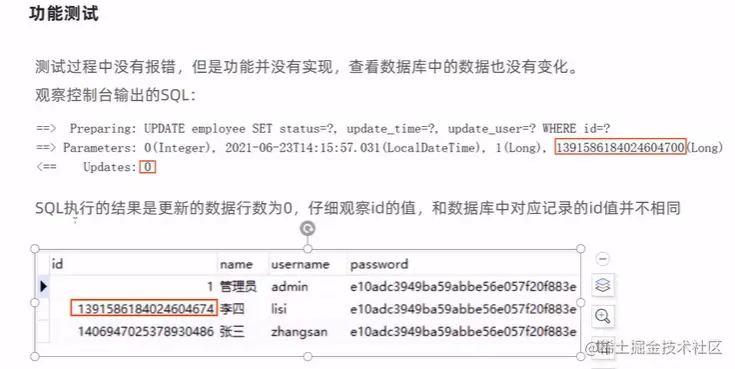

1f49636d436717a5db191eb9d0e0d9b.png 原因：js只对前16位精确，丢失了精度

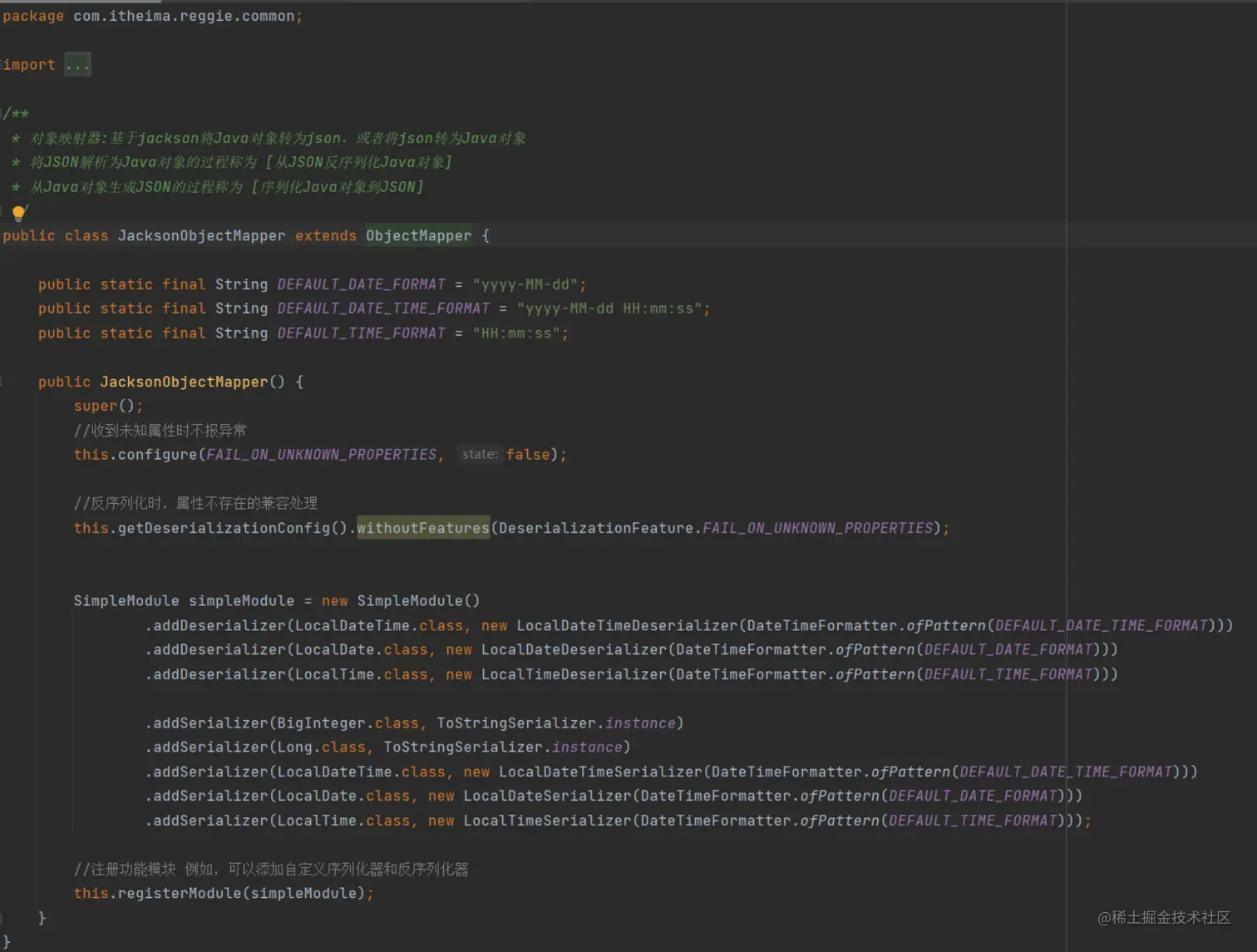

解决方法




/**
 * 扩展mvc框架的消息转换器
 * @param converters
 */
@Override
protected void extendMessageConverters(List<HttpMessageConverter<?>> converters) {
    // 创建消息转换器对象
    MappingJackson2HttpMessageConverter messageConverter = new MappingJackson2HttpMessageConverter();
    //设置对象转换器 底层使用jackson将java对象转为json
    messageConverter.setObjectMapper(new JacksonObjectMapper());
    //将上边的消息转换器对象追加到mvc框架的转换器集合中  0代表第一个 即优先使用
    converters.add(0,messageConverter);
}

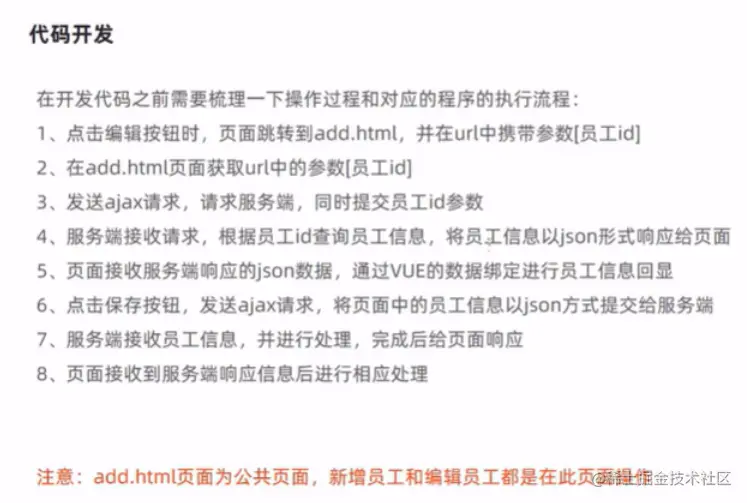

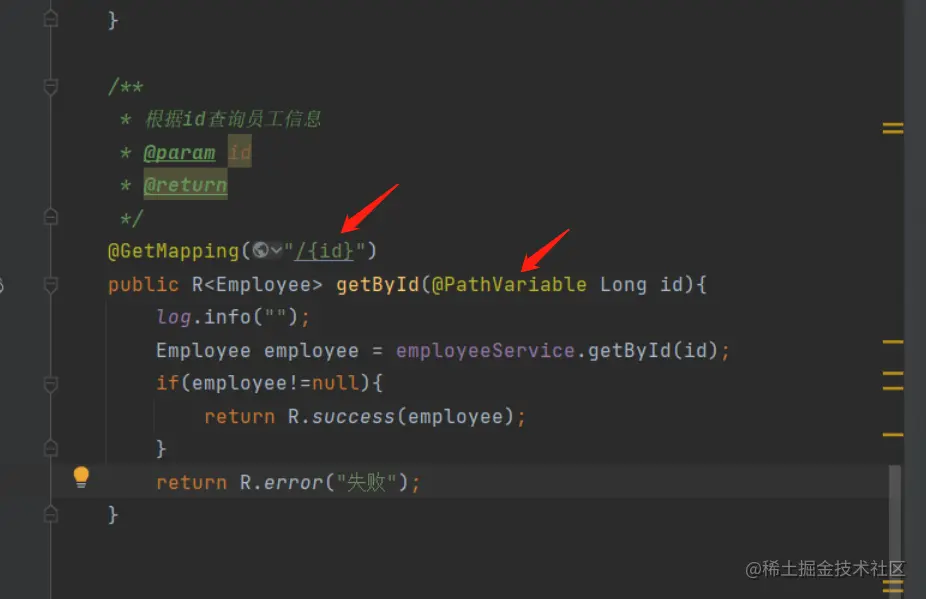

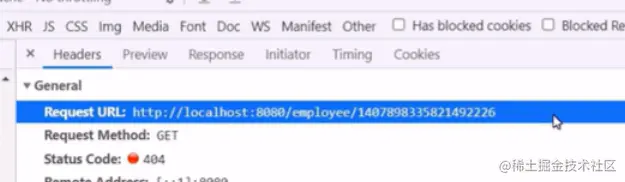

p36 编辑员工信息

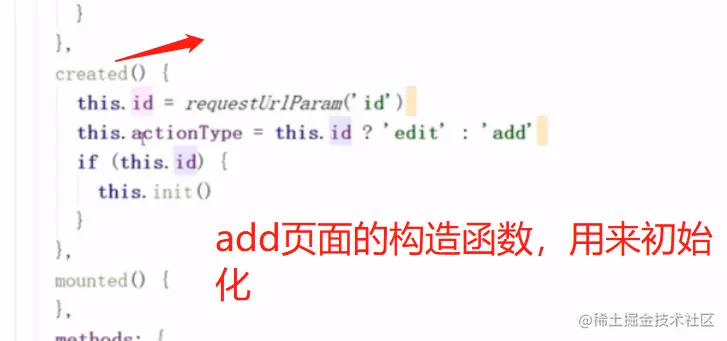

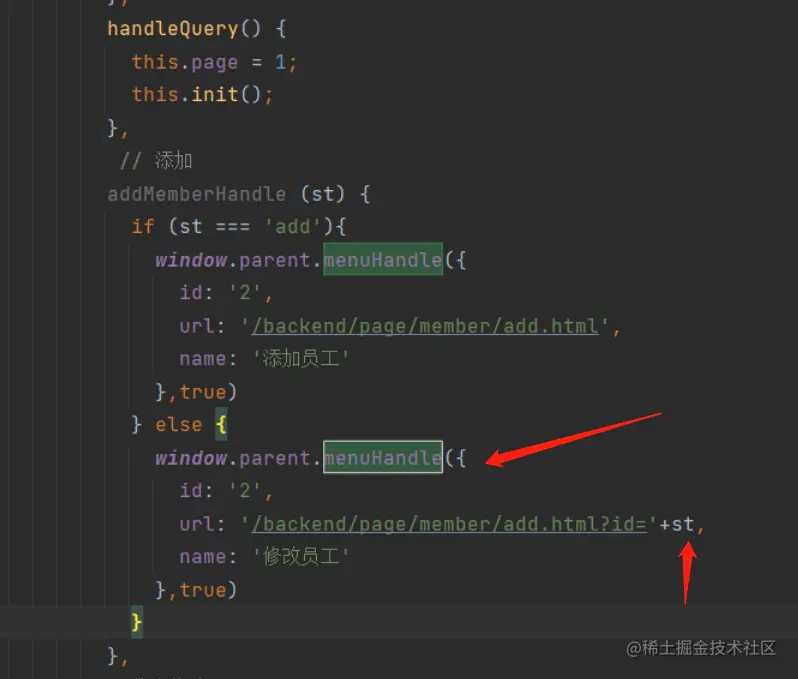

90770a34b89b1558ced986fc8d0881b.png aeaea54dc05afb6e618853588e93f79.png 500b49548e9b186a95ac3b6e09a14e0.png 1d56e7150fd4e98bedccb3f7afddfc1.png

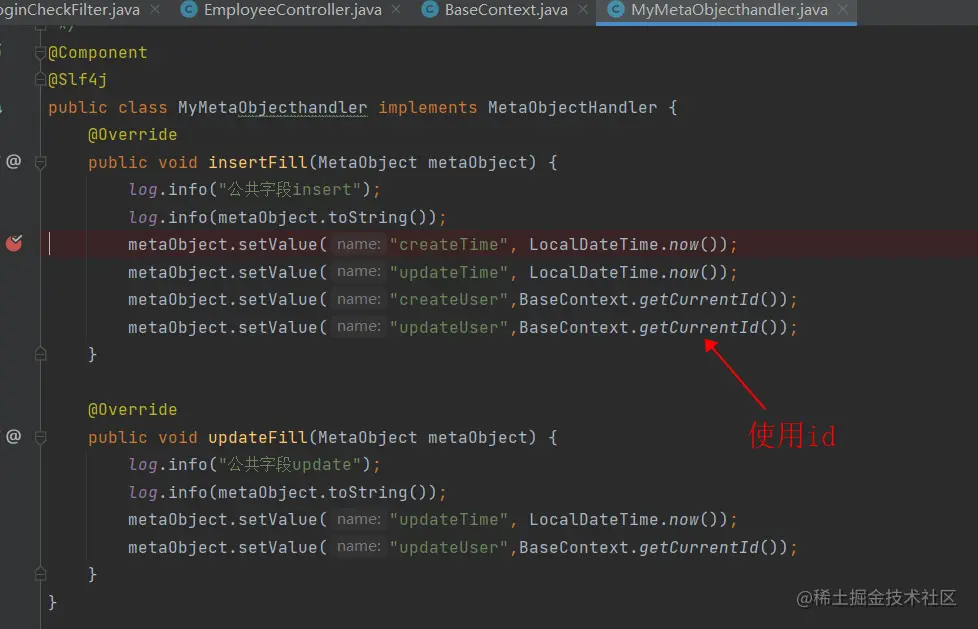

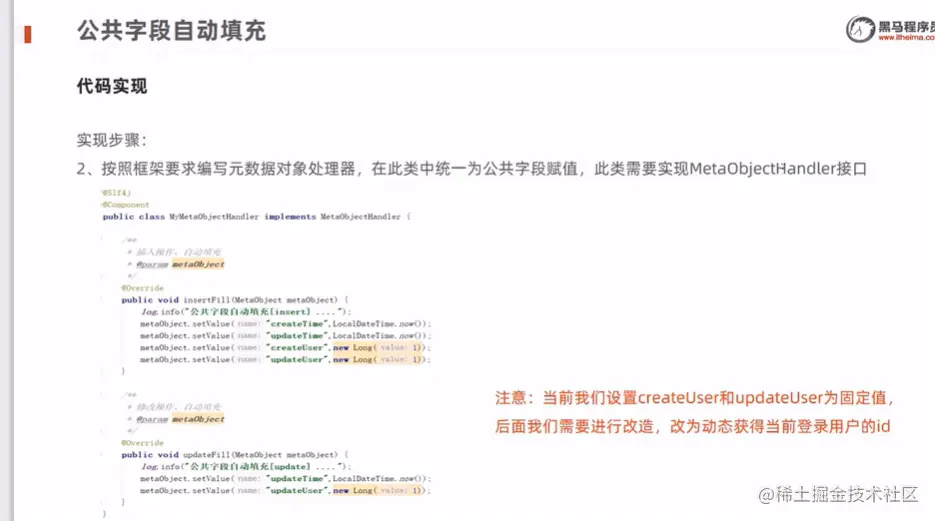

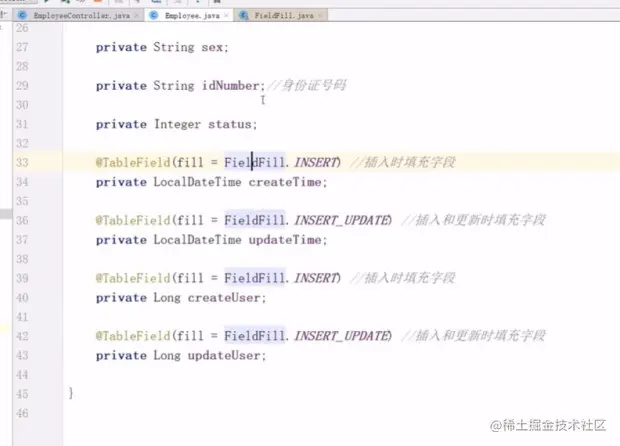

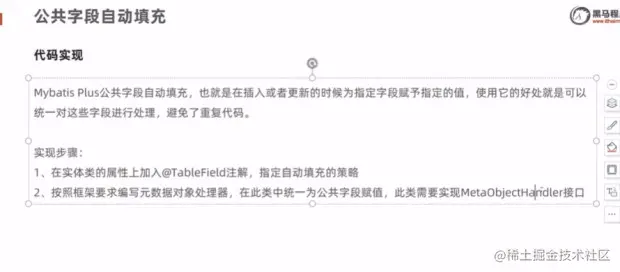

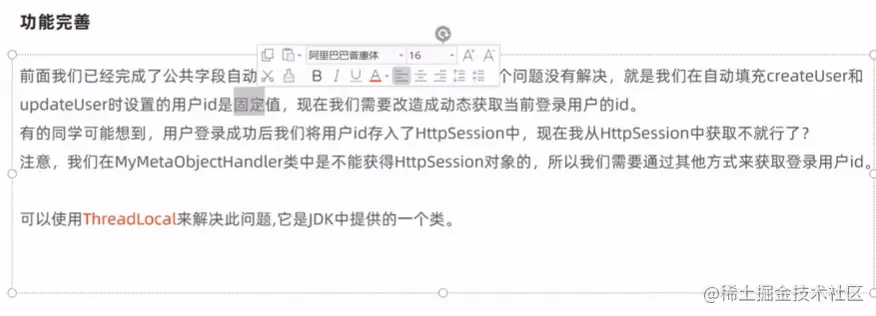

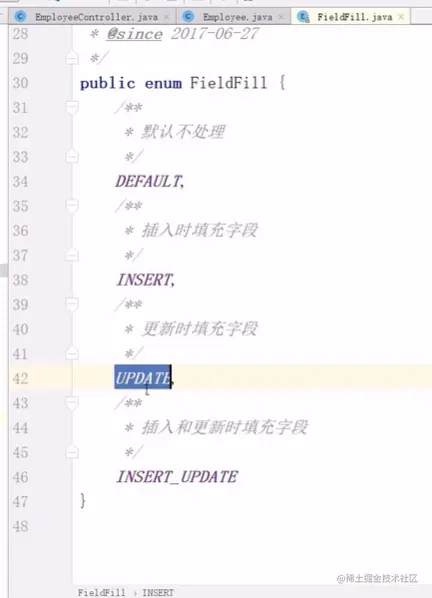

公共字段自动填充








/**
 * 基于ThreadLocal封装工具类，用户保存和获取当前登录用户id
 * 已一个线程为作用域
 */
public class BaseContext {
    private static ThreadLocal<Long> threadLocal = new ThreadLocal<>();
    public static void setCurrentId(Long id){
        threadLocal.set(id);
    }
    public static Long getCurrentId(){
        return threadLocal.get();
    }

}

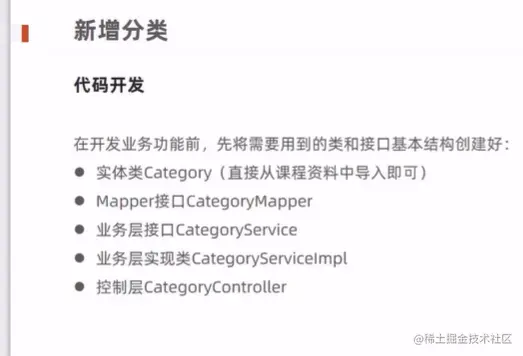

p43 新增分类

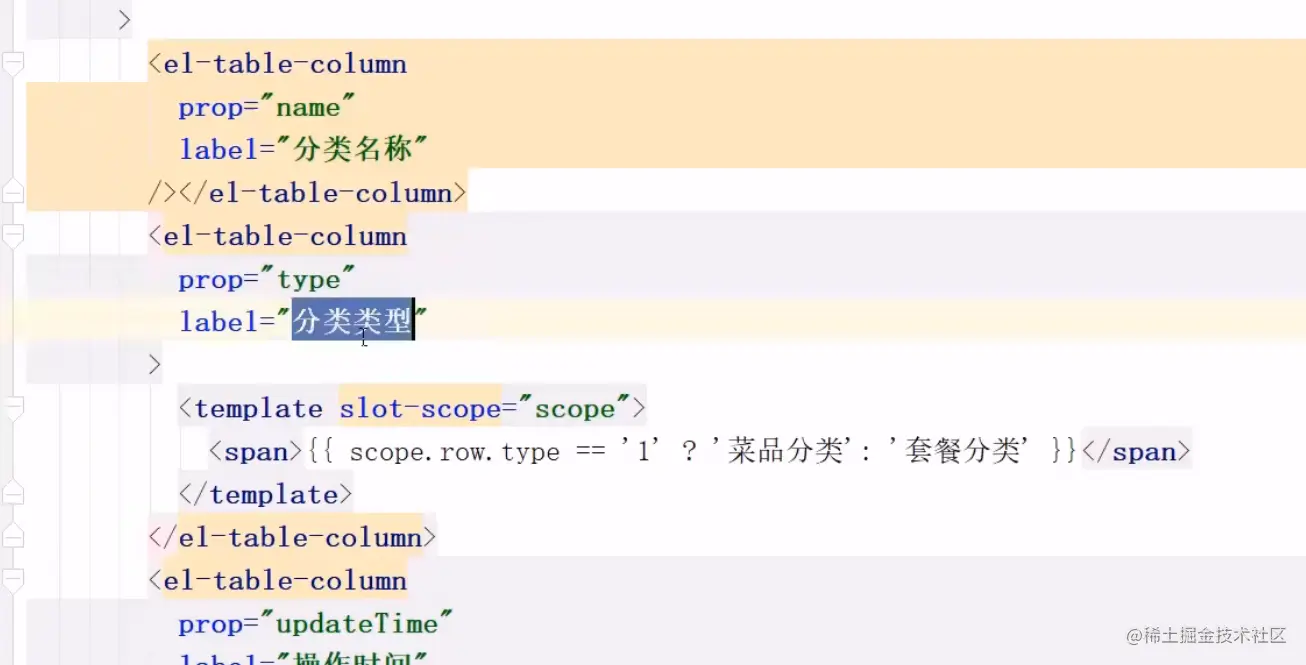

分类信息的分页查询


@GetMapping("/page")
public R<Page> page(int page,int pageSize){
    Page<Category> pageInfo = new Page<>(page,pageSize);

    LambdaQueryWrapper<Category> queryWrapper = new LambdaQueryWrapper<>();
    queryWrapper.orderByDesc(Category::getSort);
    categoryService.page(pageInfo,queryWrapper);
    return R.success(pageInfo);

}

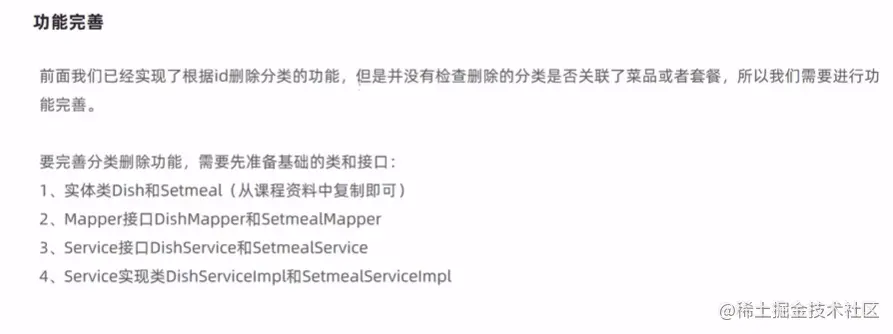

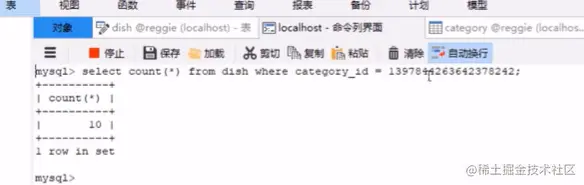

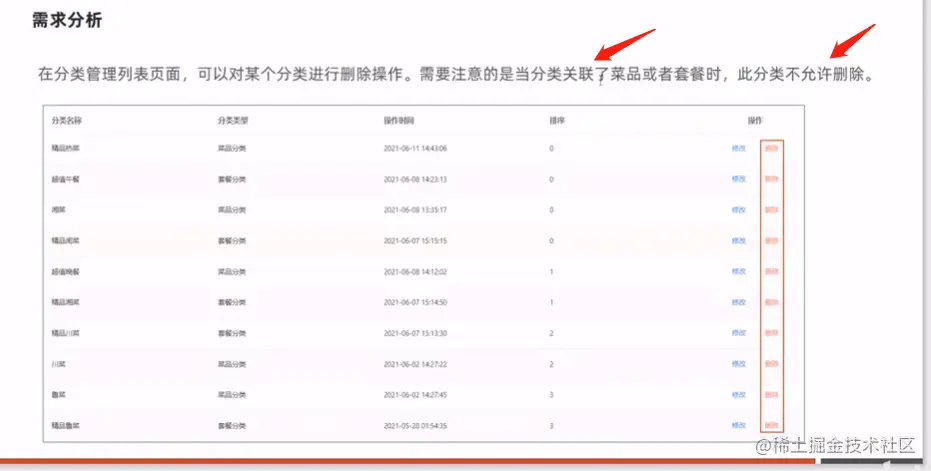

删除分类

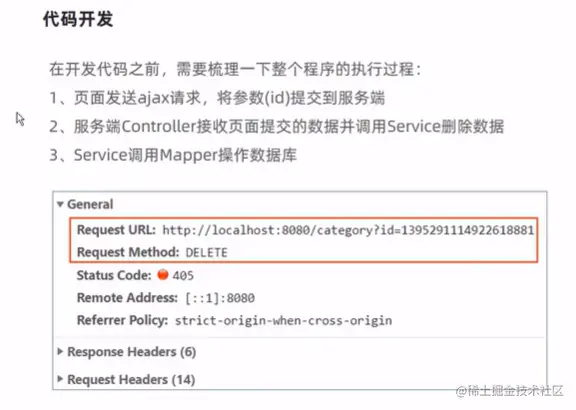

5e37eafe0ad5d854ffcc52213df7833.png f36044c0ece6af21fda2fe06517a1a5.png 87b9cfe36fe7e85bcf7c6035b3b0856.png image.png 执行的带条件查询如下 977a258220a948e70afc79993a10bf1.png

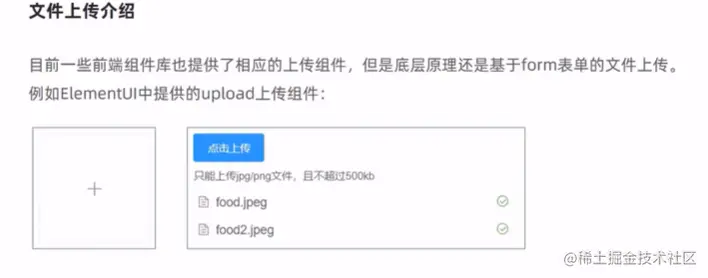

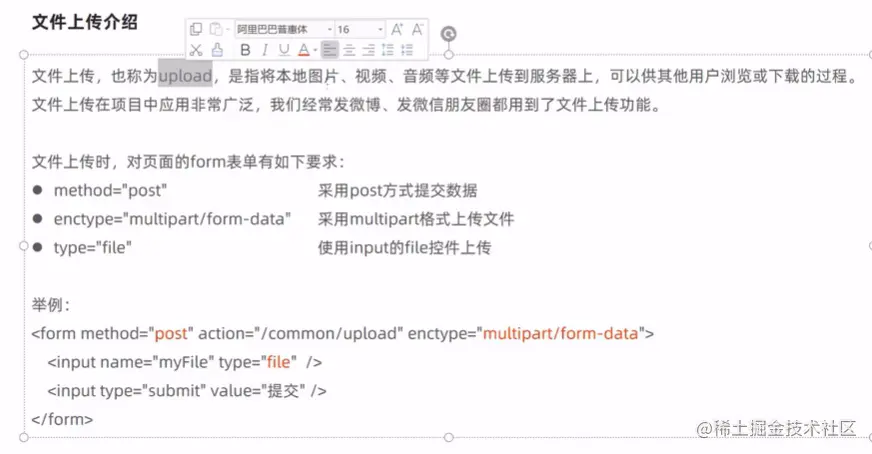

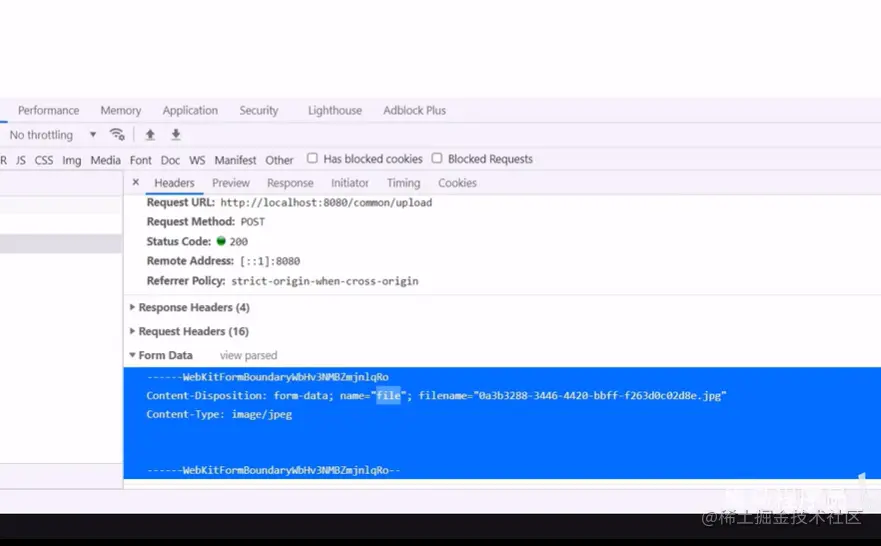

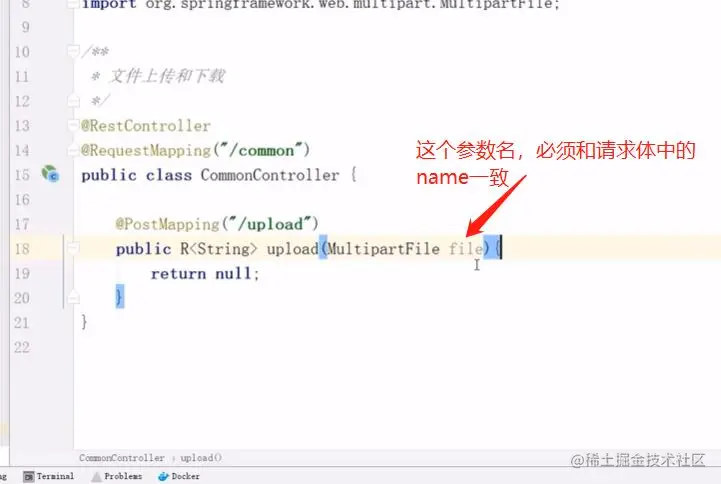

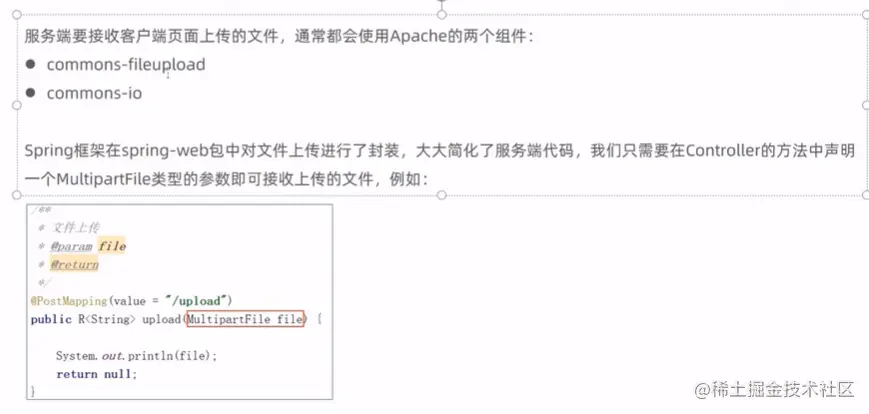

p49 文件的上传下载







@PostMapping("/upload")
public R<String> upload(MultipartFile file){
    // 当前的file是一个临时文件，需要转储到指定位置，否则本次请求完成后临时文件会删除
    log.info(file.toString());
    String originakFilename = file.getOriginalFilename();
    String suffix = originakFilename.substring(originakFilename.lastIndexOf("."));
    //生成随机字符串
    String filename = UUID.randomUUID().toString()+suffix;
    File dir = new File(basePath);
    // 判断目录是否存在，不存在就创建
    if (!dir.exists()){
        dir.mkdir();
    }
    try {
        // 将临时文件转存
        file.transferTo(new File(basePath+filename));
    } catch (IOException e) {
        e.printStackTrace();
    }
    return R.success(filename);
}

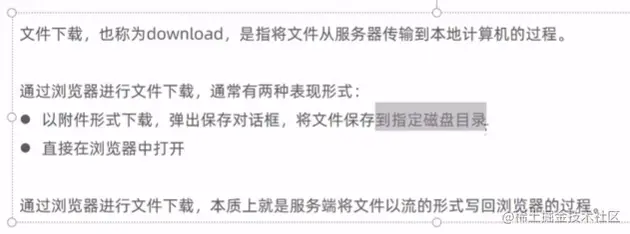

下载文件

回显图片

@GetMapping("/download")
public void download(String name, HttpServletResponse response){
    //输入流，通过输入流读取文件内容
    try {
        FileInputStream fileInputStream = new FileInputStream(new File(basePath+name));
        // 输出流 通过输出流将文件写回浏览器 在浏览器展示
        ServletOutputStream outputStream = response.getOutputStream();
        int len = 0;
        byte[] bytes = new byte[1024];
        while ((len=fileInputStream.read(bytes))!=-1){
            outputStream.write(bytes,0,len);
            outputStream.flush();
        }
        // 关闭资源
        outputStream.close();
        fileInputStream.close();
    } catch (Exception e) {
        e.printStackTrace();
    }

}

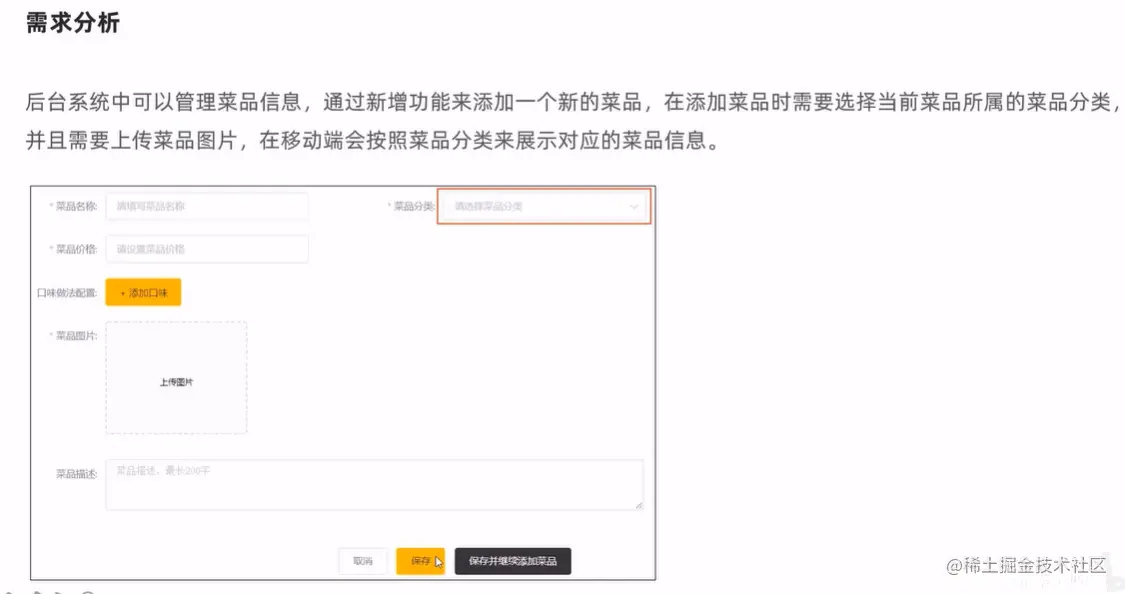

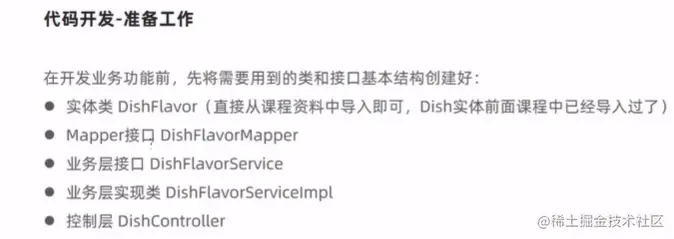

新增菜品




保存菜品

1660985114086_A1E8ED66-4447-456d-AD29-15B6460038DC.png 1660984789354_2836931E-EE37-4640-87B4-98C6065C1964.png

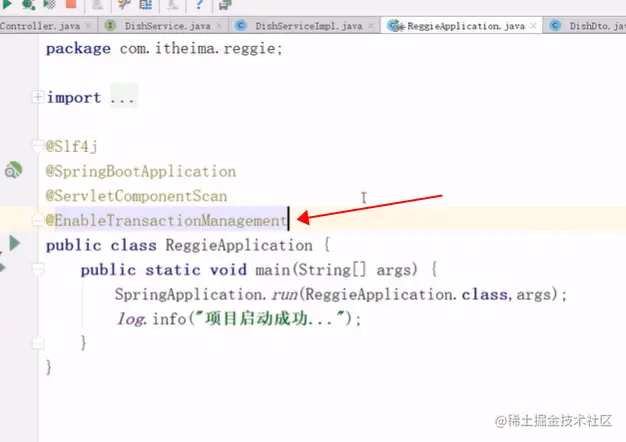

多表操作记得开启事物

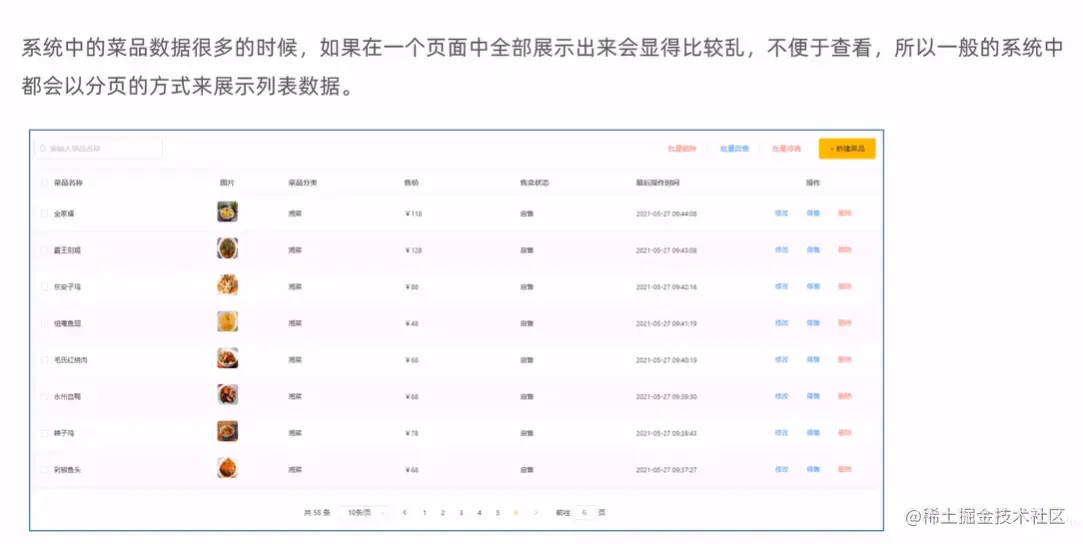

菜品分页

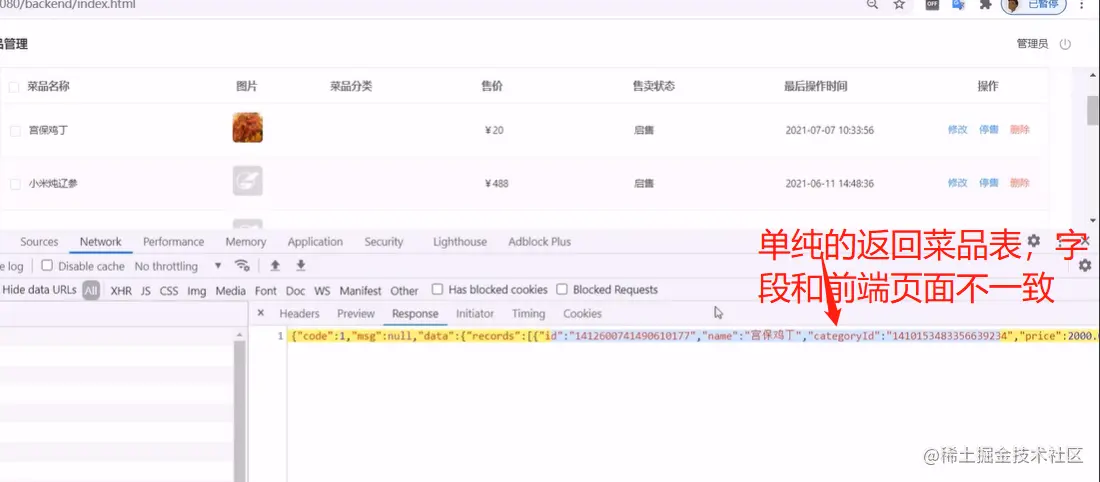

32c896e857a693c9b0ef9d50b4b535f.png 所以要进行转换

@GetMapping("/page")
public R<Page> page(int page,int pageSize,String name){
    //构建分页构造器对象
    Page<Dish> pageInfo = new Page<>(page,pageSize);
    //DishDto中含有categoryName
    Page<DishDto> dishDtoPage = new Page<>();


    LambdaQueryWrapper<Dish> queryWrapper = new LambdaQueryWrapper<>();
    queryWrapper.like(name!=null,Dish::getName,name);
    queryWrapper.orderByDesc(Dish::getUpdateTime);
    dishService.page(pageInfo,queryWrapper);

    // 对象拷贝 不拷贝records
    BeanUtils.copyProperties(pageInfo,dishDtoPage,"records");
    List<Dish> records = pageInfo.getRecords();

    // 转化  类似于for循环
    List<DishDto> list = records.stream().map((item)->{
        DishDto dishDto = new DishDto();
        BeanUtils.copyProperties(item,dishDto);
        Long categoryId = item.getCategoryId();
        Category category = categoryService.getById(categoryId);
        String categoryName = category.getName();
        dishDto.setCategoryName(categoryName);

        return dishDto;
    }).collect(Collectors.toList());
    dishDtoPage.setRecords(list);
    return R.success(dishDtoPage);
}

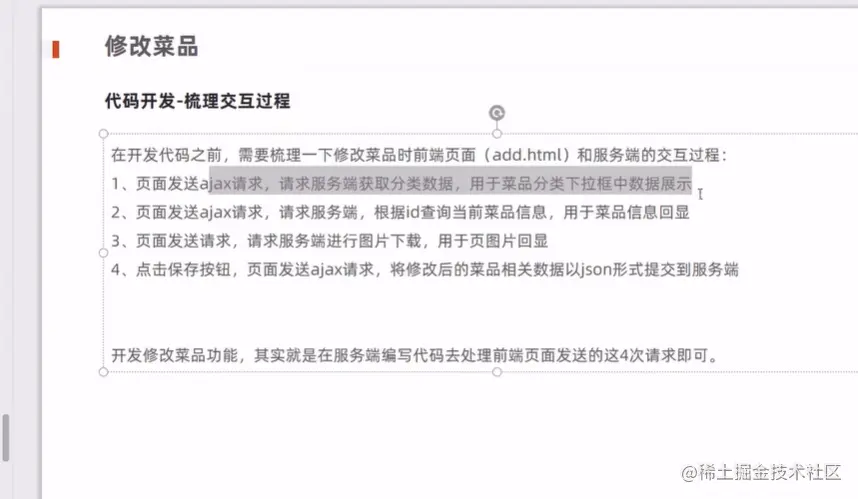

菜品修改



自定义查询同时查询菜品和口味 用于回显数据

@Override
public DishDto getByIdWithFlavor(Long id) {
    //查询菜品信息
    Dish dish = this.getById(id);

    DishDto dishDto = new DishDto();
    BeanUtils.copyProperties(dish,dishDto);


    LambdaQueryWrapper<DishFlavor> queryWrapper = new LambdaQueryWrapper<>();
    queryWrapper.eq(DishFlavor::getDishId,dish.getId());
    List<DishFlavor> flavors = dishFlavorService.list(queryWrapper);
    dishDto.setFlavors(flavors);
    return dishDto;
}

@GetMapping("/{id}")
public R<DishDto> get(@PathVariable Long id){
    DishDto dishDto = dishService.getByIdWithFlavor(id);
    return R.success(dishDto);
}

更新数据

@Override
@Transactional
public void updateWithFlayor(DishDto dishDto) {
    // 更新dish表基本信息
    this.updateById(dishDto);
    // 清理当前菜品对应口味数据---dish_flavor表的delete操作
    LambdaQueryWrapper<DishFlavor> queryWrapper = new LambdaQueryWrapper<>();
    queryWrapper.eq(DishFlavor::getDishId,dishDto.getId());
    dishFlavorService.remove(queryWrapper);
    // 添加当前提交过来的口味数据---dish_flavor表的insert操作
    List<DishFlavor> flavors = dishDto.getFlavors();
    flavors = flavors.stream().map((item)->{
        item.setDishId(dishDto.getId());
        return item;
    }).collect(Collectors.toList());

    dishFlavorService.saveBatch(flavors);

}

@PutMapping
public R<String> update(@RequestBody DishDto dishDto){
    log.info(dishDto.toString());
    dishService.updateWithFlayor(dishDto);
    return R.success("新增菜品成功");
}

day5 套餐管理业务开发

新增套餐

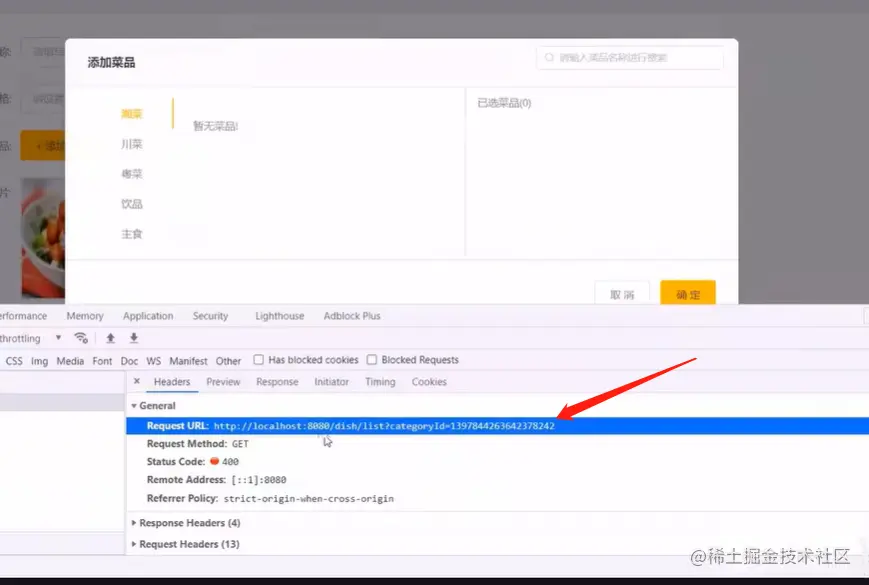

964c1631e1afc17f85fd3fcec160cf1.png 显示菜品 0bcd05bb1d7870914892486c86c19f7.png

/**
 * 根据条件查询对应的菜品数据
 */
@GetMapping("/list")
public R<List<Dish>> list(Dish dish){   //使用dish为参数是为了增加可扩展性
    LambdaQueryWrapper<Dish> lambdaQueryWrapper = new LambdaQueryWrapper<>();
    lambdaQueryWrapper.eq(dish.getCategoryId()!=null,Dish::getCategoryId,dish.getCategoryId());
    // 添加条件 查询状态为1的菜品
    lambdaQueryWrapper.eq(Dish::getStatus,1);
    //添加排序
    lambdaQueryWrapper.orderByAsc(Dish::getSort).orderByDesc(Dish::getUpdateTime);
    List<Dish> list = dishService.list(lambdaQueryWrapper);
    return R.success(list);
}

分页

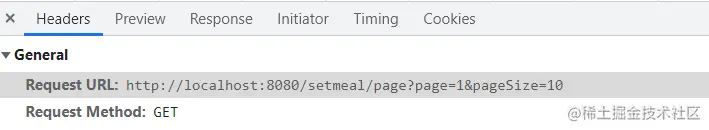

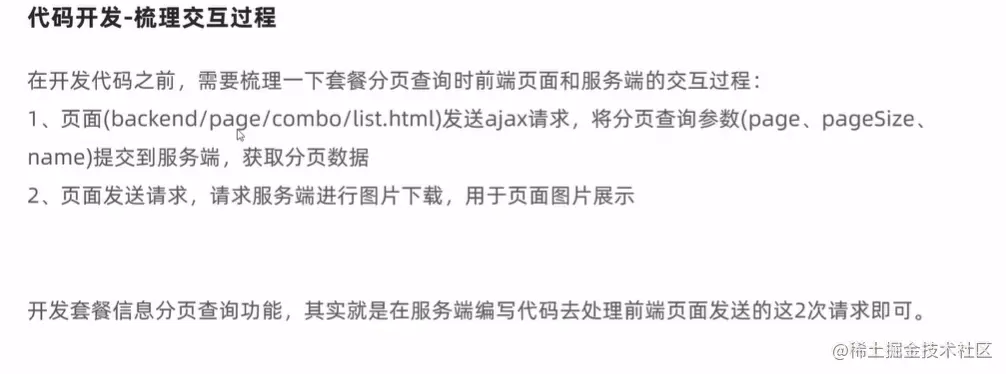

1661348130590.png 0f46a4018847c8399164fc0b466a0b1.png

/**
 * 分页查询
 */
@GetMapping("/page")
public R<Page> page(int page,int pageSize,String name){
    //分页构造器
    Page<Setmeal> pageInfo = new Page<>(page,pageSize);
    Page<SetmealDto> pagDto = new Page<>();  //解决categoryName字段不对应的问题
    LambdaQueryWrapper<Setmeal> queryWrapper = new LambdaQueryWrapper<>();
    // 添加查询条件
    queryWrapper.like(name!=null,Setmeal::getName,name);
    queryWrapper.orderByDesc(Setmeal::getUpdateTime);
    setmealService.page(pageInfo,queryWrapper);
    // 对象拷贝
    BeanUtils.copyProperties(pageInfo,pagDto,"records");
    List<Setmeal> records = pageInfo.getRecords();
    List<SetmealDto> list =records.stream().map((item)->{
        SetmealDto setmealDto = new SetmealDto();
        BeanUtils.copyProperties(item,setmealDto);
        // 分类id
        Long categoryid = item.getCategoryId();
        // 根据分类id查询分类对象
        Category category = categoryService.getById(categoryid);
        if (category!=null){
            String categoryName = category.getName();
            setmealDto.setCategoryName(categoryName);
        }
        return setmealDto;
    }).collect(Collectors.toList());
    pagDto.setRecords(list);
    return R.success(pagDto);
}

删除操作

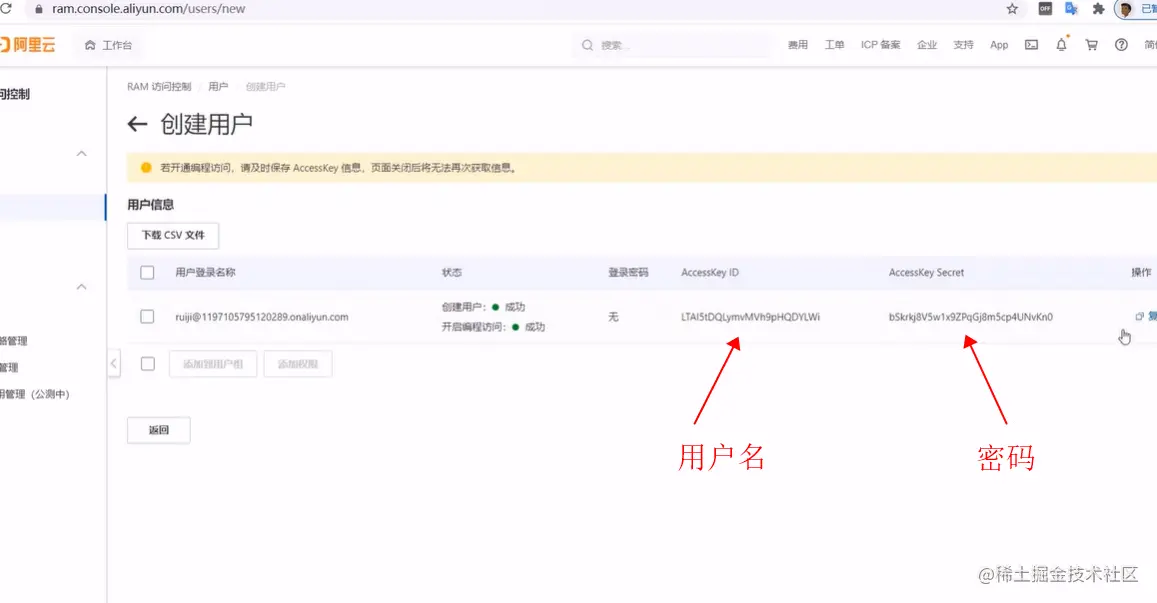

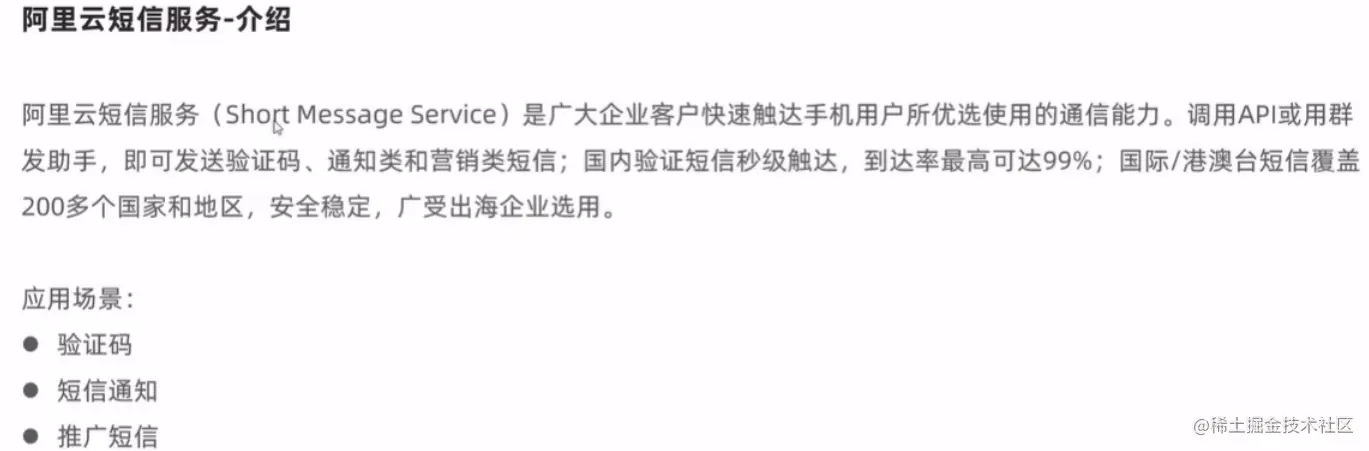

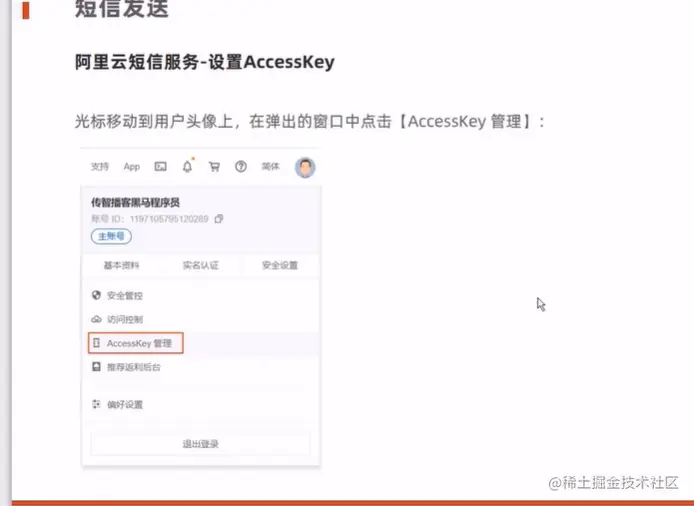

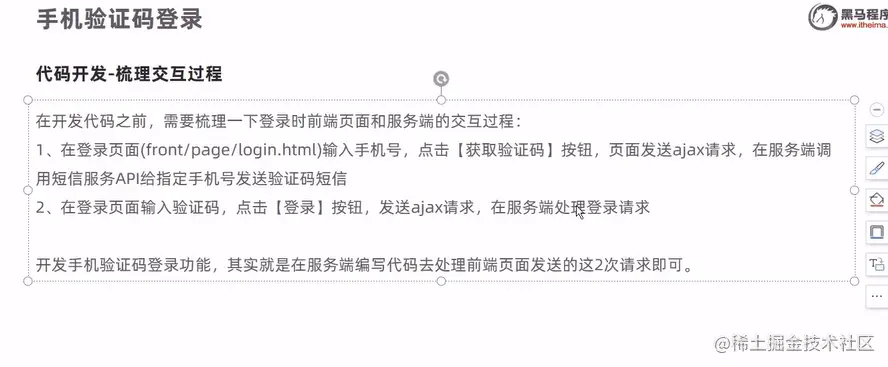

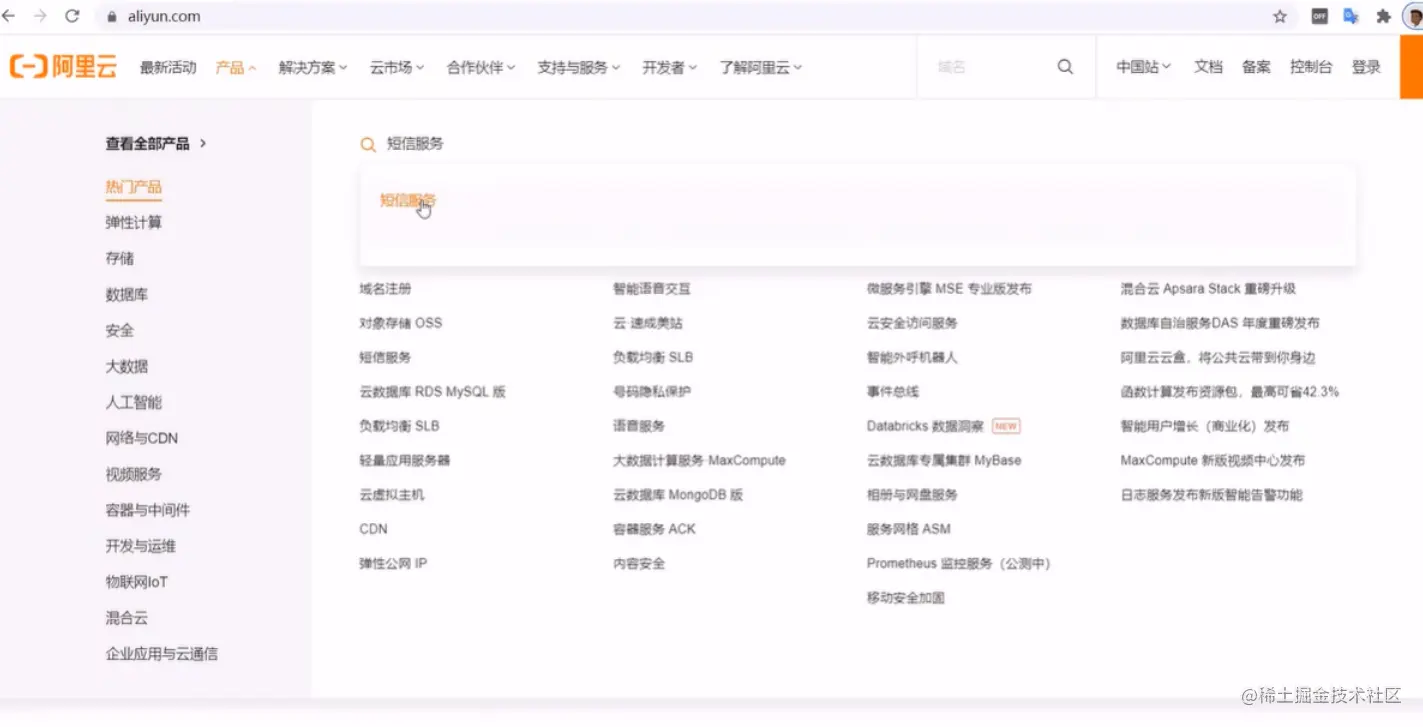

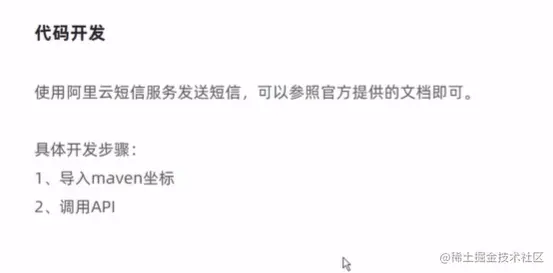

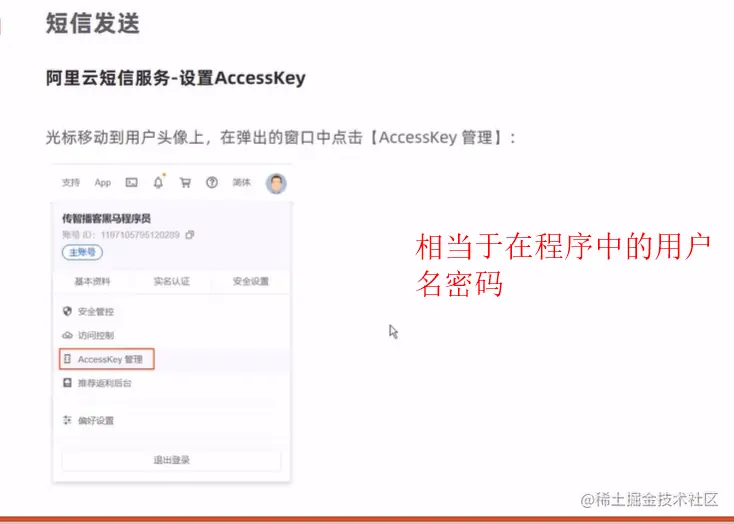

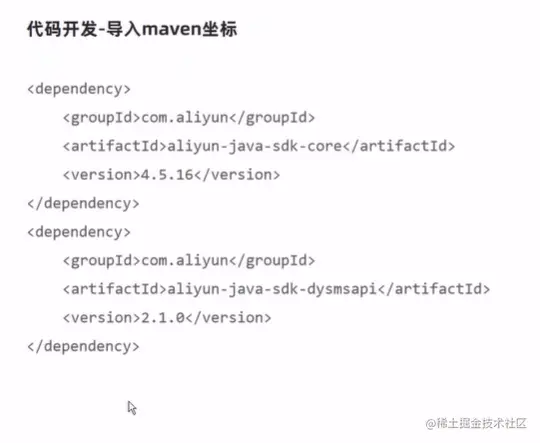

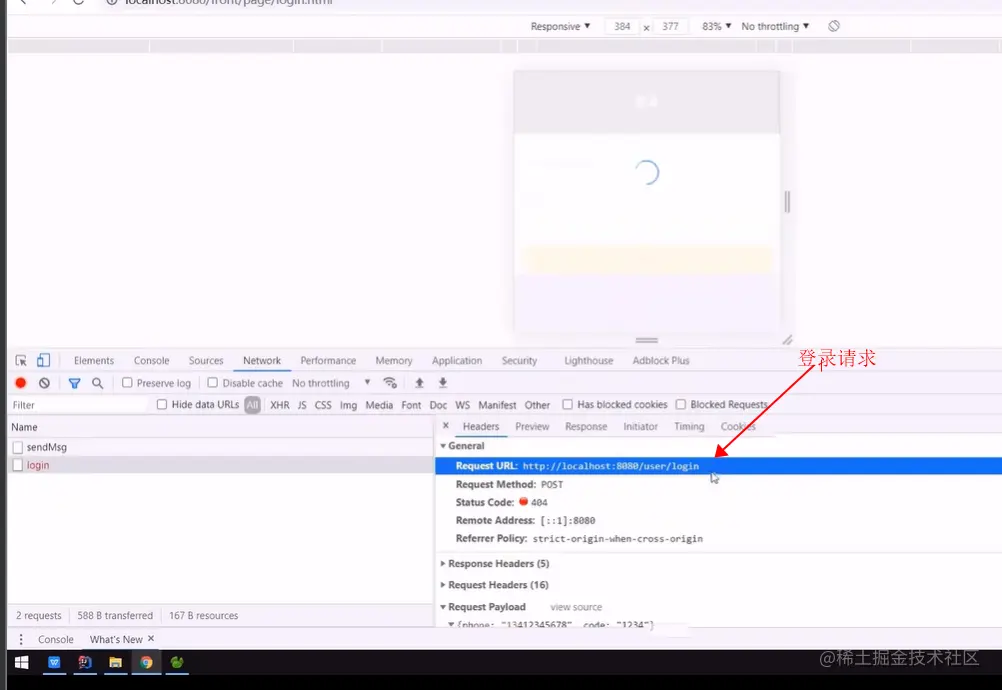

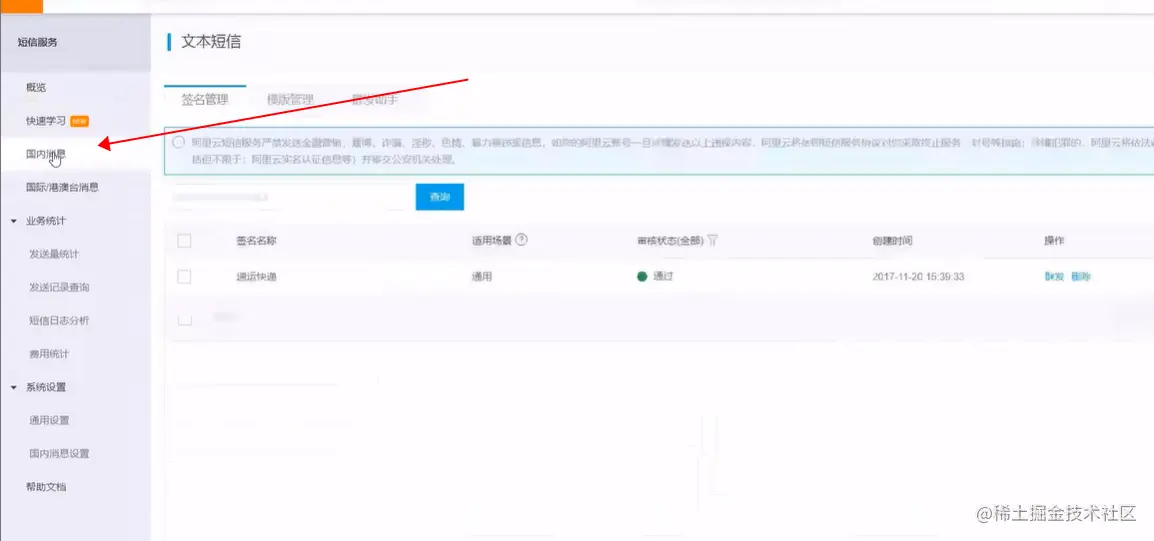

p79 手机发送验证码登录

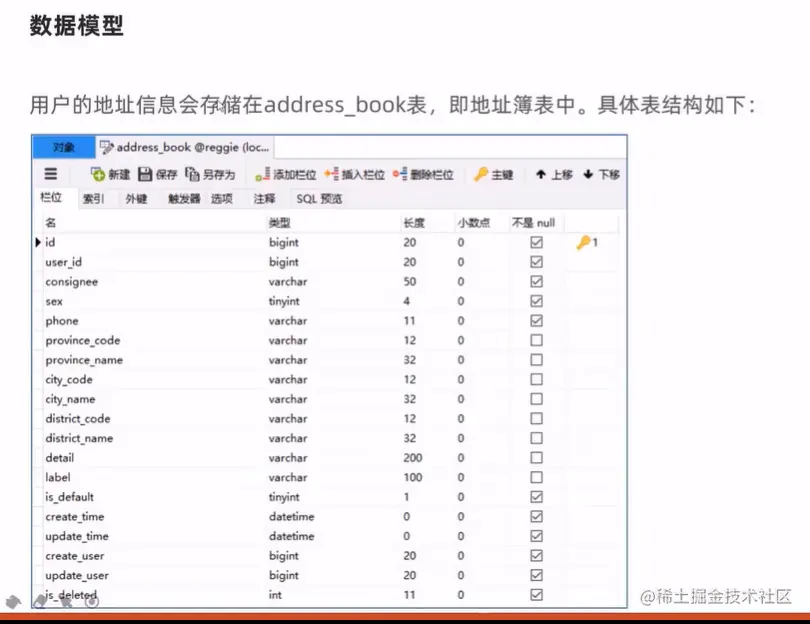

导入用户地址簿




设置默认地址

LambdaUpdateWrapper

/**
 * 设置默认地址
 */
@PutMapping("default")
public R<AddressBook> setDefault(@RequestBody AddressBook addressBook) {
    log.info("addressBook:{}", addressBook);
    LambdaUpdateWrapper<AddressBook> wrapper = new LambdaUpdateWrapper<>();
    wrapper.eq(AddressBook::getUserId, BaseContext.getCurrentId());
    wrapper.set(AddressBook::getIsDefault, 0);
    //SQL:update address_book set is_default = 0 where user_id = ?
    addressBookService.update(wrapper);

    addressBook.setIsDefault(1);
    //SQL:update address_book set is_default = 1 where id = ?
    addressBookService.updateById(addressBook);
    return R.success(addressBook);
}

移动端菜品展示


请求路径

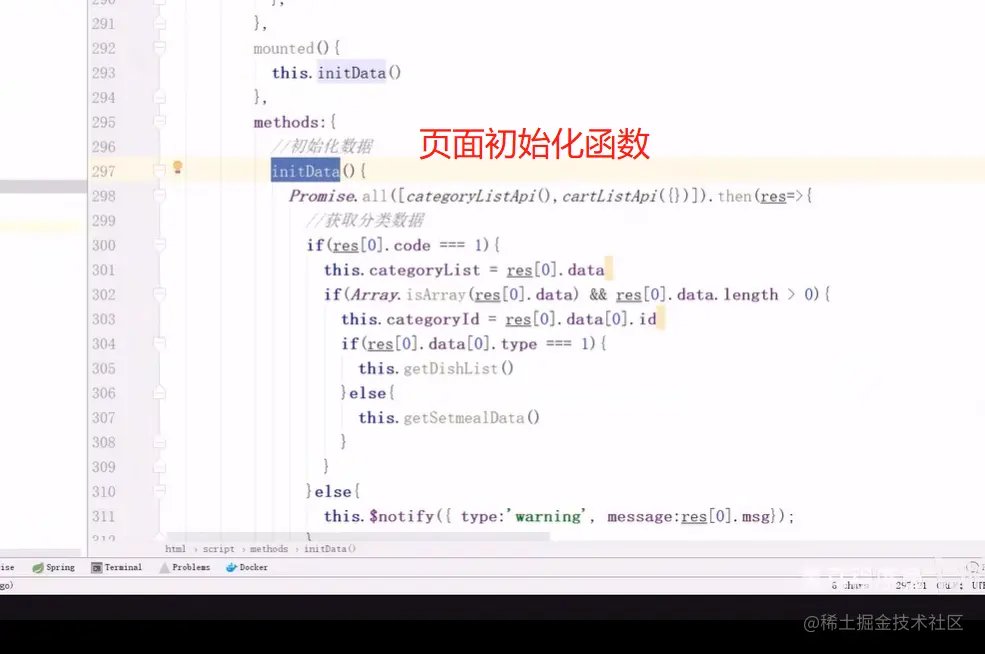

初始化函数

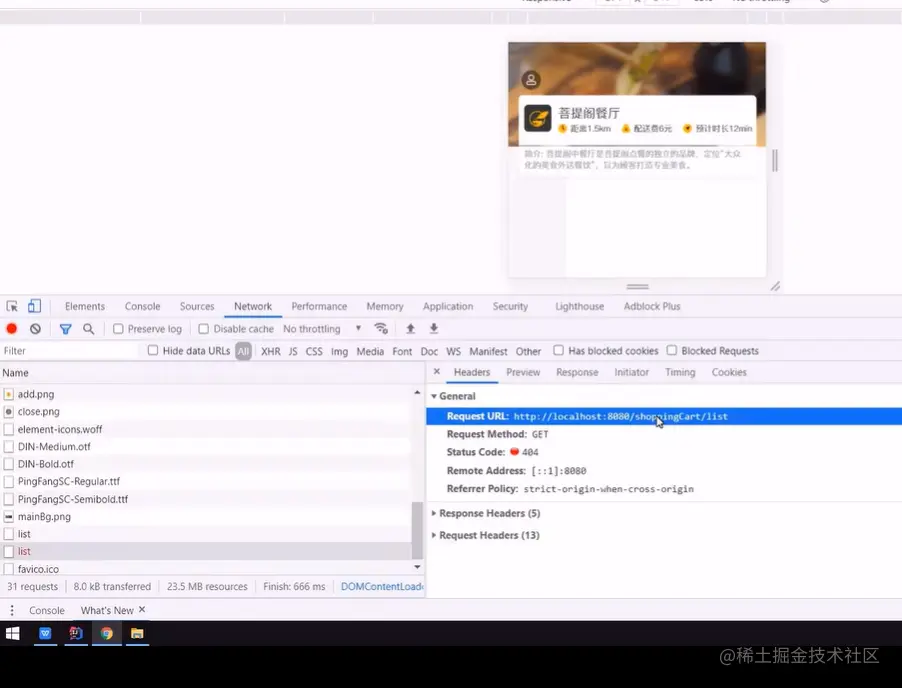

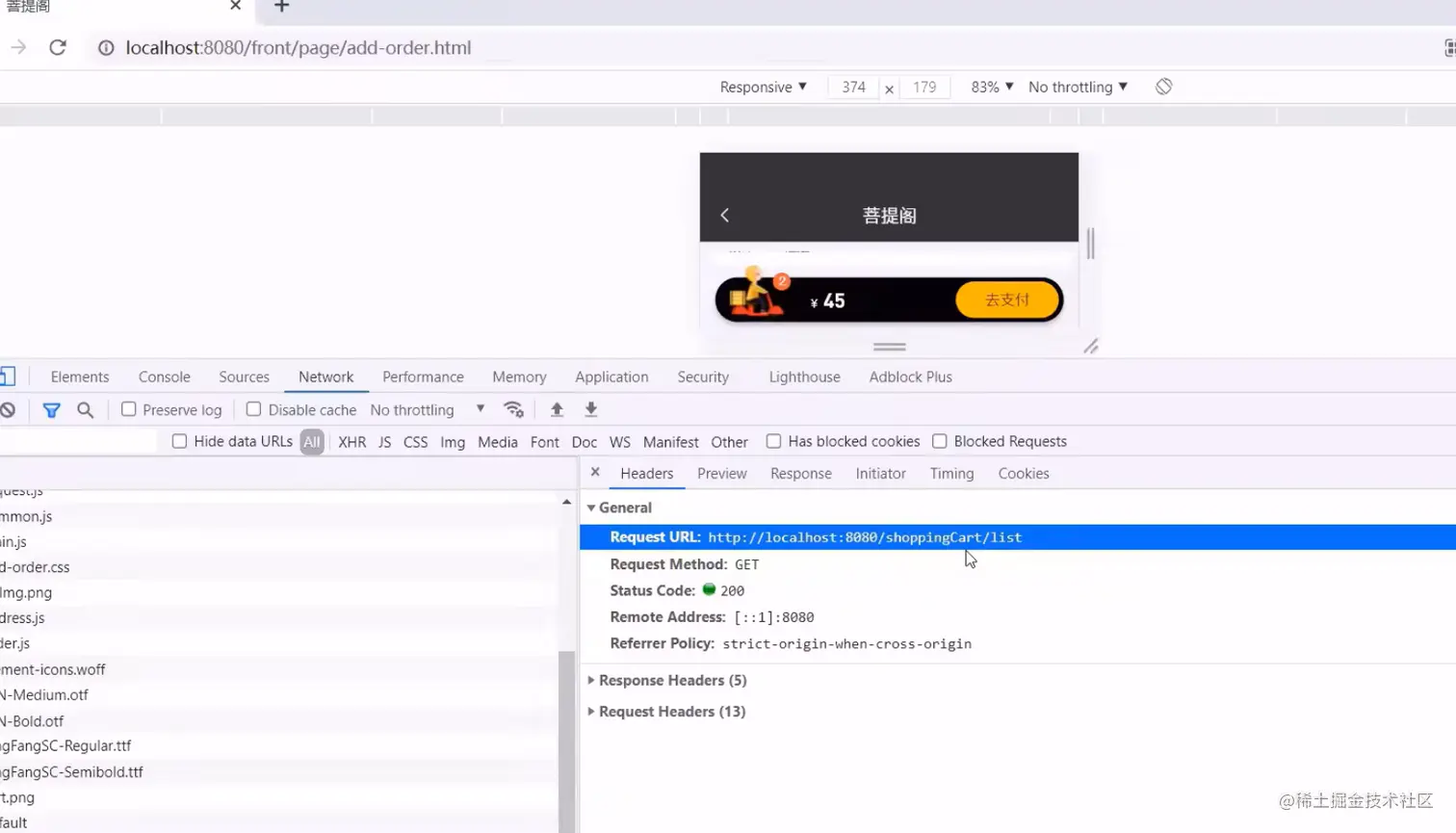

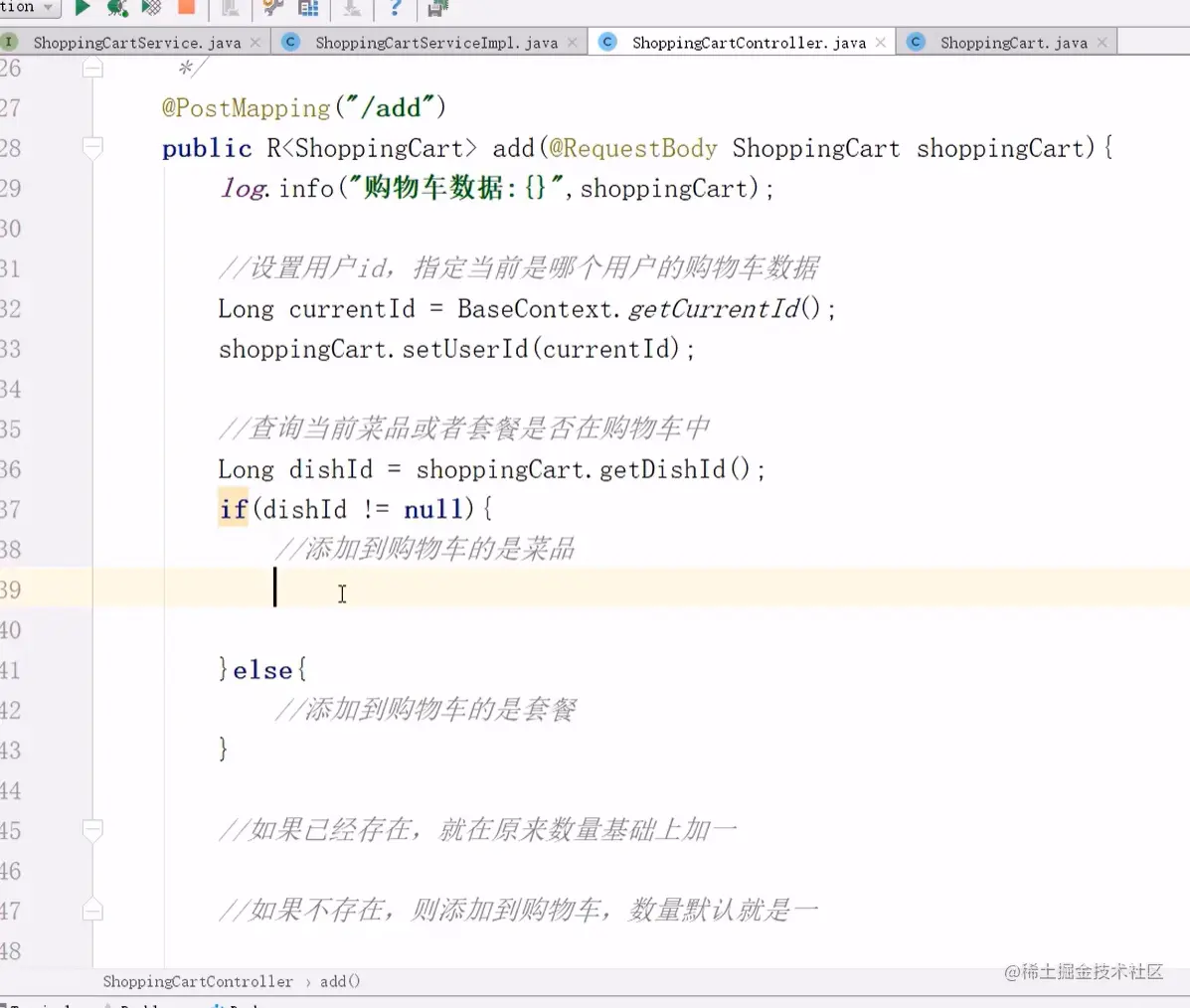

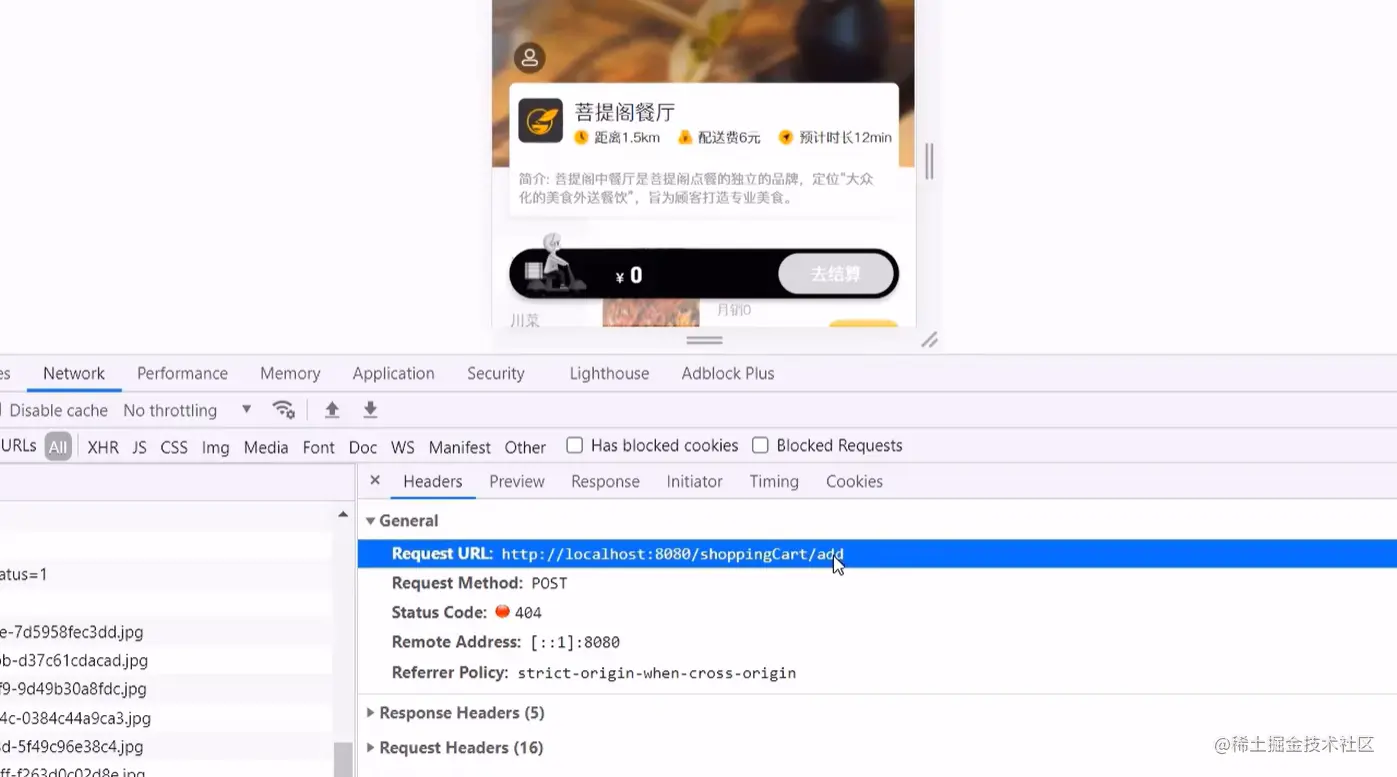

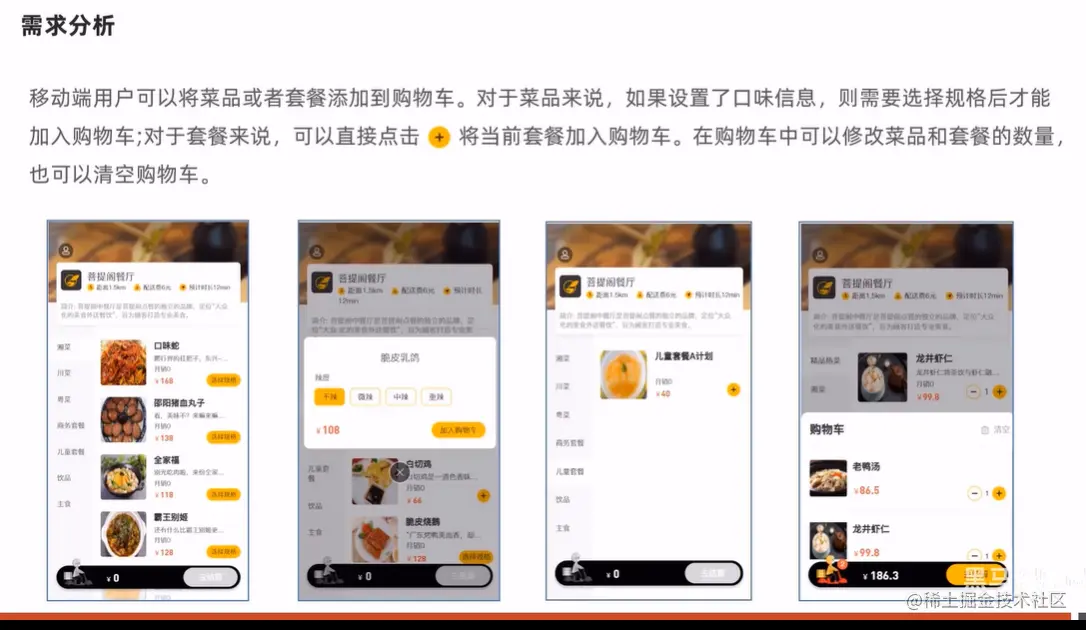

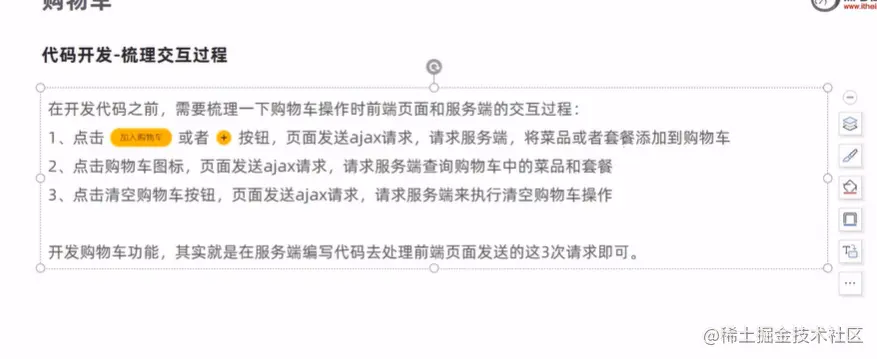

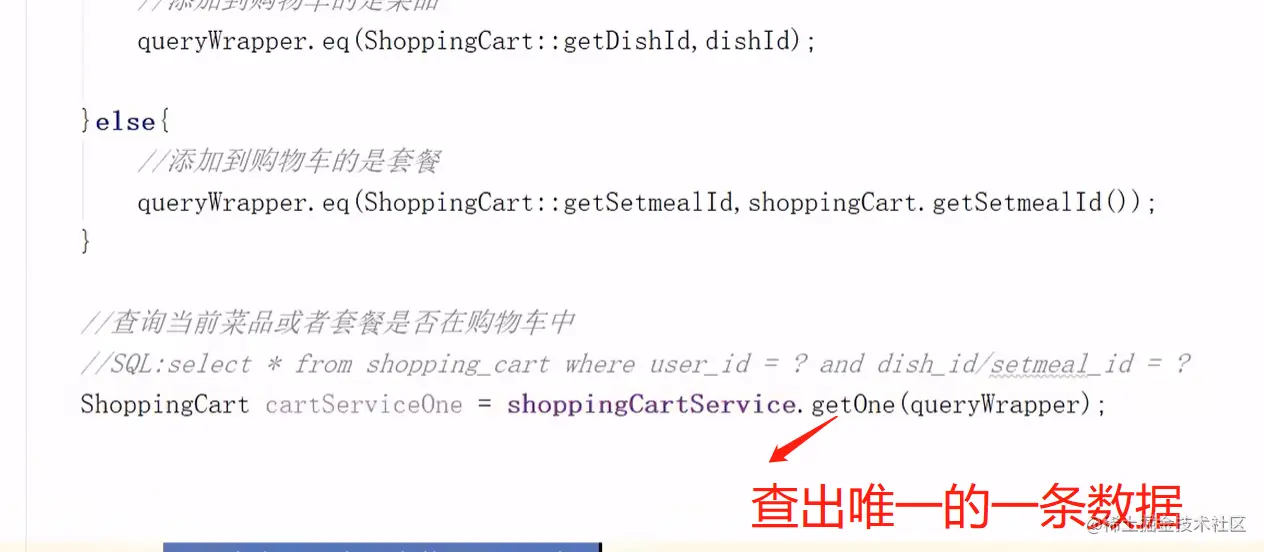

添加购物车

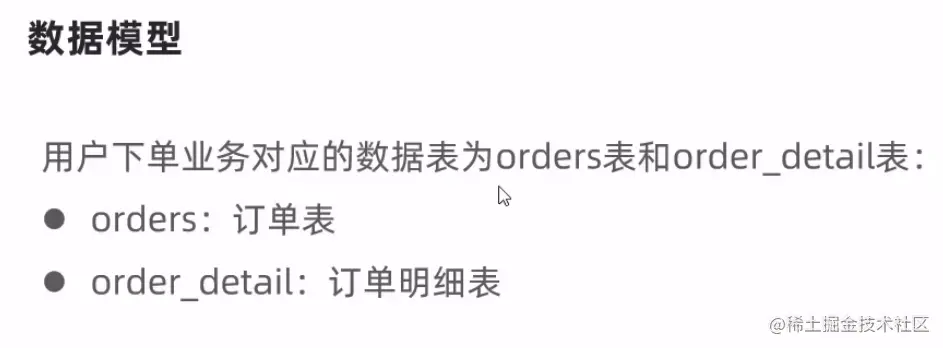

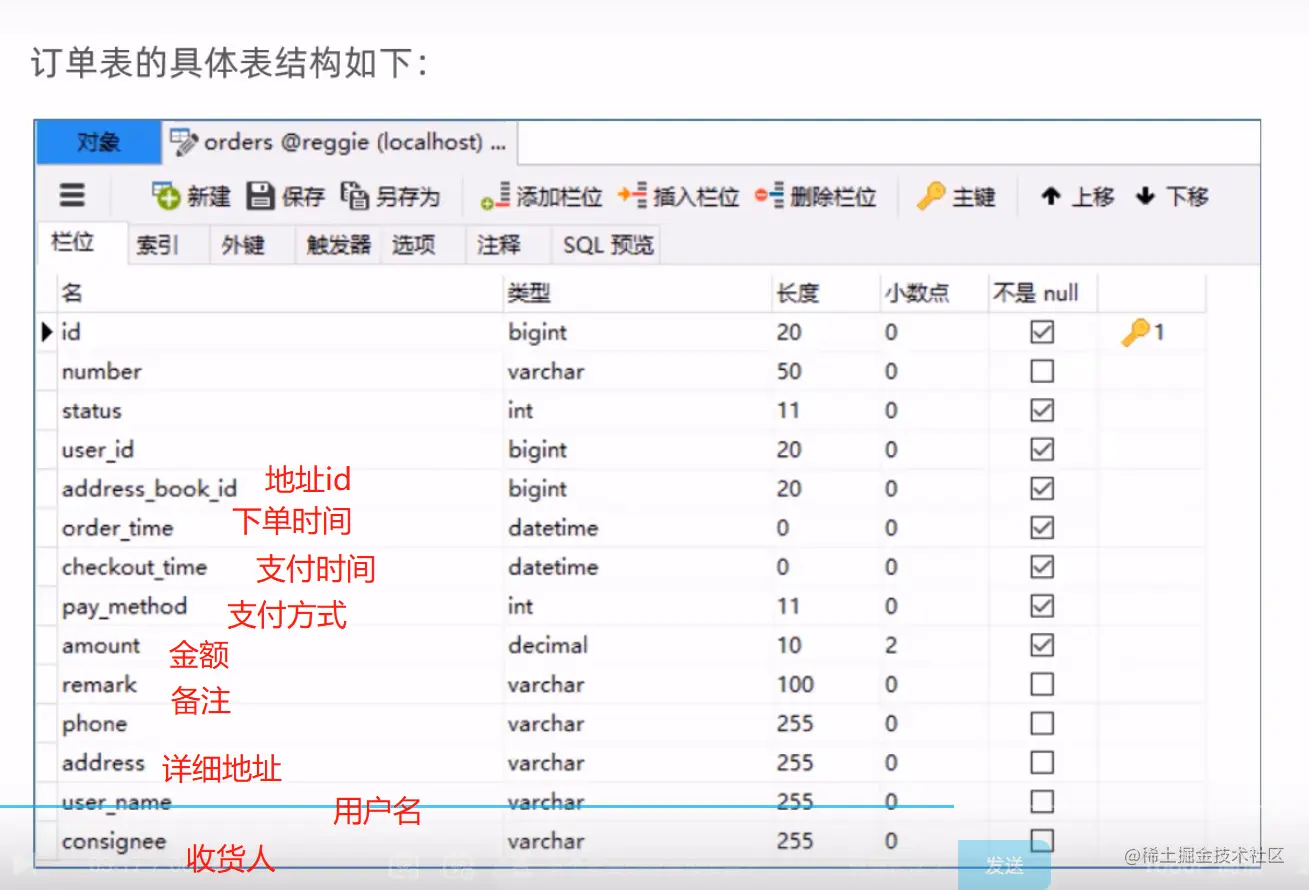

用户下单



表单



首页面

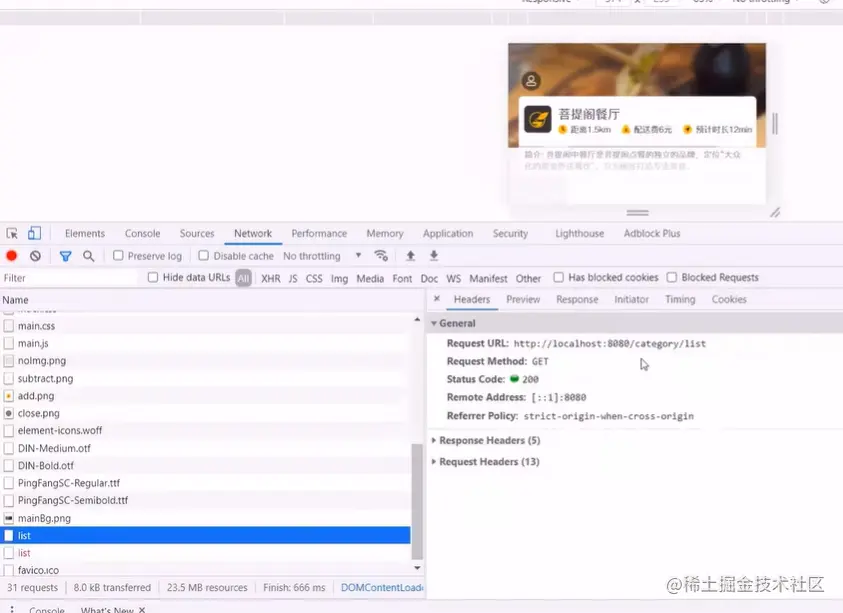

初始化页面的两个请求



---------------项目优化------------

缓存相关的优化


环境搭建

image.png 自己创建redisTemplate 方便序列化 也可以直接使用StringRedisTemplate 1662882361383.png

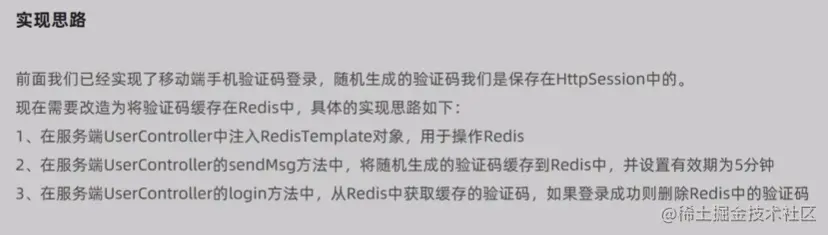

缓存短信验证码_思路梳理&代码改造&功能测试

1662883759200.png 9333b85290b4f2607ee7ba544fea96c.png 设置值 26507a0ab8b8961d81fea0257ae1e13.png 获取值

1662885219471.png 删除值

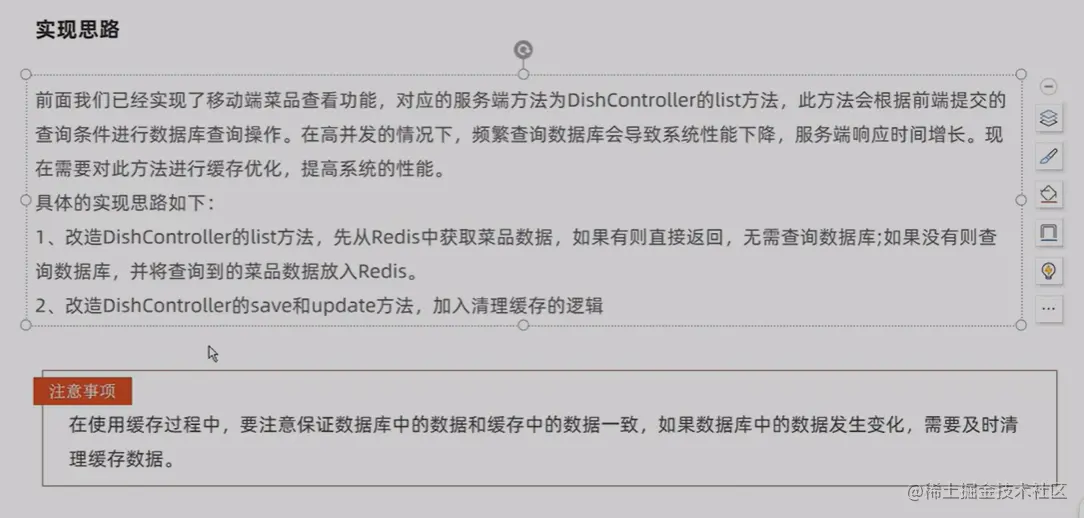

缓存菜品

  • 每次点击分类都会查询一边数据库，导致性能下降
  • 要按分类进行菜品缓存
  • 要防止脏数据，当菜品信息发生改变时，要对缓存进行清空 image.png
List<DishDto> dishDtoList =null;
//动态构造key
String key = "dish_"+dish.getCategoryId()+"_"+dish.getStatus();
// 先从redis中获取缓存数据
dishDtoList = (List<DishDto>) redisTemplate.opsForValue().get(key);
if (dishDtoList != null){
    // 如果存在，直接返回 无需查询数据库
    return R.success(dishDtoList);
}
 // 如果不存在 查询数据库 把查询到的菜品缓存到redis,注意这里的dishDtoList是查完数据库的dishDtoList和上边的不是一个
redisTemplate.opsForValue().set(key,dishDtoList,60, TimeUnit.MINUTES);

缓存菜品数据_清理缓存思路分析&代码改造并测试


直接清理全部缓存

@PutMapping
public R<String> update(@RequestBody DishDto dishDto){
    log.info(dishDto.toString());
    dishService.updateWithFlayor(dishDto);
    // 清理所有菜品的缓存
    Set keys = redisTemplate.keys("dish_*");
    redisTemplate.delete(keys);
    return R.success("新增菜品成功");
}

精确清理


上传到git并且合并到主分支

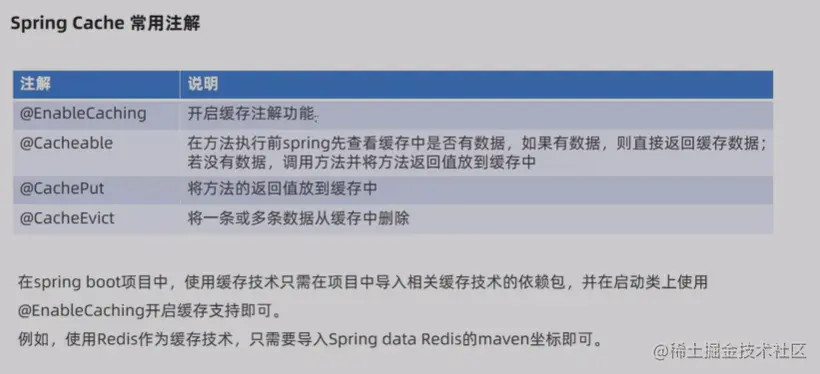

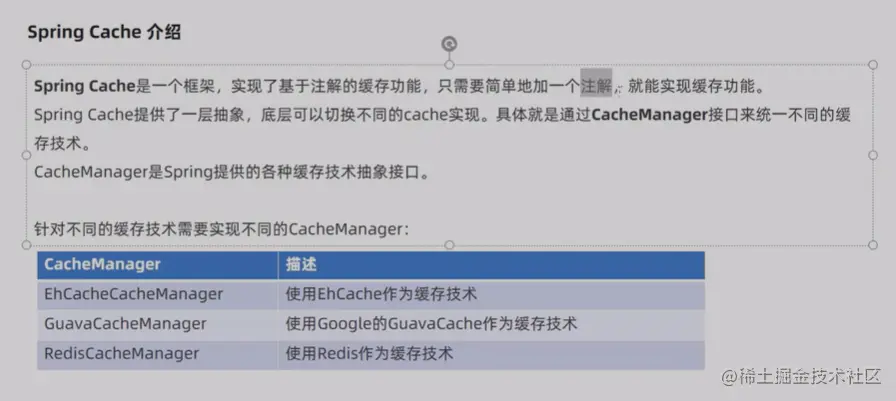

Spring Cache_框架介绍&常用注释

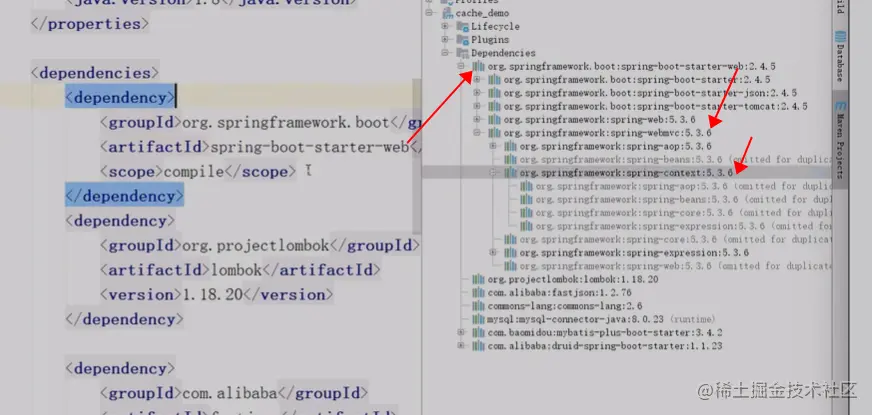

Spring Cache的基本包都在spring-context下所以不需要特意导入

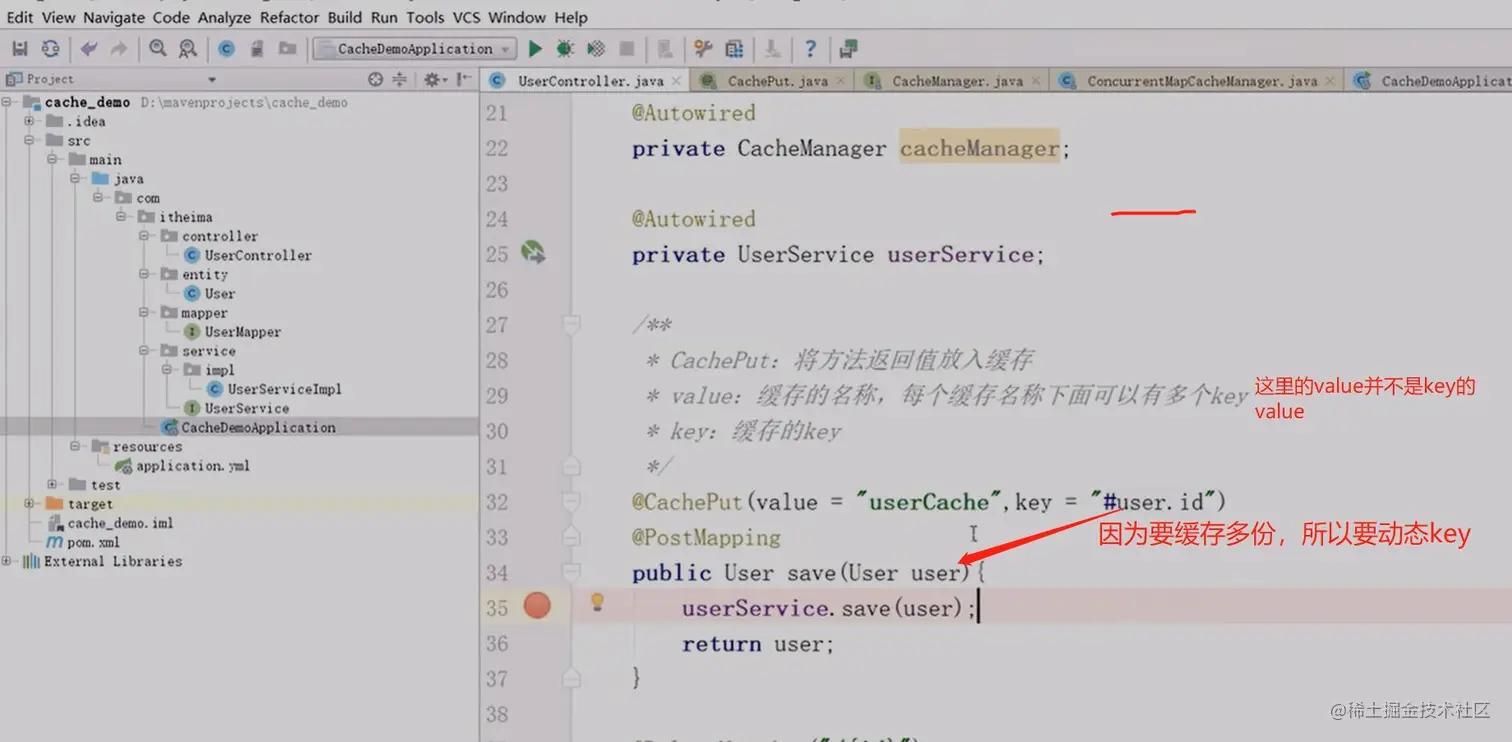

CachePut注解


CacheEvict注解

见下一章
