Android WebView JS交互传Json格式参数问题最近有个WebView 通过JS交互传Json参数到We

最近接到个需求，需要在WebView中通过JS交互将Json数据传给Web端，碰到了一个问题，记录一下。

接到需求的时候跟Web端的同事沟通了一下，他说传Json字符串就可以，于是我按照之前传字符串的方式传参发现html页面无法接收到参数，示例如下：

// 示例html
<!DOCTYPE html>
<html lang=zh-CN>
<head>
    <meta charset=utf-8>
    <title>test</title>
    <script>
        function getPersonJsonArray(){
           JsInteractive.getPersonJsonArray()
        }

        function getPersonJsonArrayResult(personJsonArray){
           document.getElementById("message").innerHTML = 'receive: getPersonJsonArrayResult personJsonArray:'+(personJsonArray)+' , parse:'+ (JSON.stringify(personJsonArray));
        }
    </script>
</head>
<body>
<div style="position:relative;left:40px;top:150px">
    <p id='message' style="font-size:24px">receive:</p>
    <button type="button" style="width:280px;height:88px;font-size:24px;position:relative;left:20px"
            onclick="getPersonJsonArray()">
        getPersonJsonArray
    </button>
</div>
</body>
</html>

// 实体类
@Parcelize
data class PersonEntity(
    val name: String,
    val age: Int,
    val gender: Int,
    val weight: Float,
    val height: Float
) : Parcelable {

    override fun toString(): String {
        return "PersonEntity(name='$name', age=$age, gender=$gender, weight=$weight, height=$height)"
    }
}

// 测试页面
class WebViewActivity : Activity() {

    private lateinit var layoutWebViewActivityBinding: LayoutWebViewActivityBinding

    private val gson = Gson()

    private var mainWebView: WebView? = null

    /**
     * JavaScript interface
     */
    private val jsInteractive: JsInteractive = object : JsInteractive {

        @JavascriptInterface
        override fun getPersonJsonArray() {
            // 填充10个数据
            val personList = ArrayList<PersonEntity>()
            for (index in 0 until 10) {
                personList.add(PersonEntity("测试$index", 20 + index, if (index % 2 == 0) 0 else 1, 160f, 175f))
            }
            invokeJsCallback("javascript:getPersonJsonArrayResult(\"${gson.toJson(personList)}\")")
        }
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        layoutWebViewActivityBinding = DataBindingUtil.setContentView(this, R.layout.layout_web_view_activity)
        layoutWebViewActivityBinding.ivBack.setOnClickListener { onBackPressed() }
        mainWebView = WebView(this)
        mainWebView?.let {
            it.layoutParams = FrameLayout.LayoutParams(FrameLayout.LayoutParams.MATCH_PARENT, FrameLayout.LayoutParams.MATCH_PARENT)
            initWebViewSetting(it)
            layoutWebViewActivityBinding.webViewContainer.addView(it)
        }
        mainWebView?.addJavascriptInterface(jsInteractive, "JsInteractive")
        mainWebView?.loadUrl("file:///android_asset/index.html")
    }

    private fun invokeJsCallback(script: String) {
        mainWebView?.run { runOnUiThread { loadUrl(script) } }
    }
}

看了日志发现WebView给了异常信息，如下：

chromium: [INFO:CONSOLE(1)] "Uncaught SyntaxError: missing ) after argument list", source: file:///android_asset/index.html (1)

根据异常信息查询了一下，将"修改为'后，html可以接收到参数并解析出来。

//修改前
"javascript:getPersonJsonArrayResult(\"${gson.toJson(personList)}\""
//修改后
"javascript:getPersonJsonArrayResult(\'${gson.toJson(personList)}\'"

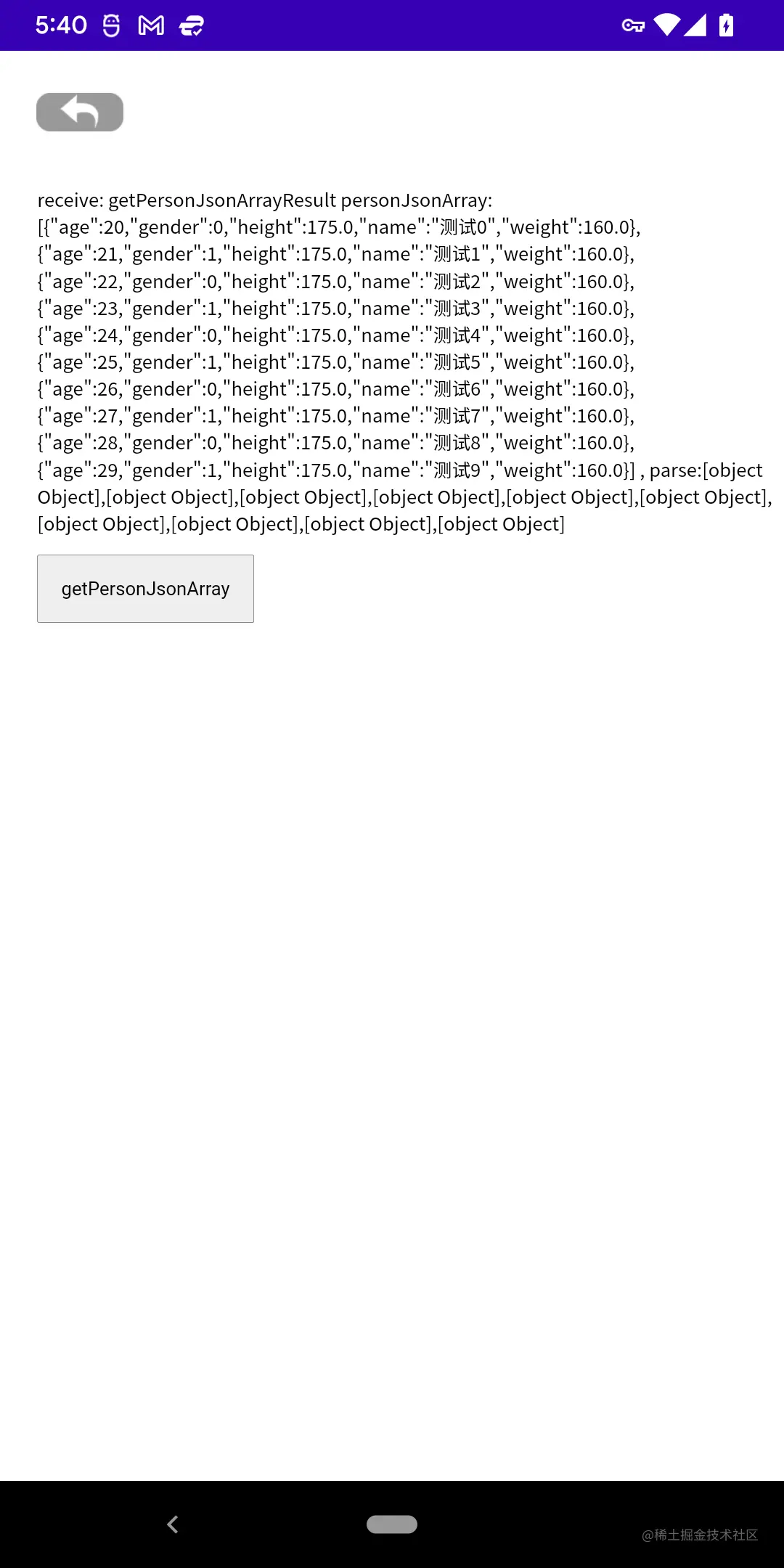

效果如图：

之后我又尝试去掉'，发现html也能接收到参数并解析出来。

//修改前
function getPersonJsonArrayResult(personJsonArray){
    document.getElementById("message").innerHTML = 'receive: getPersonJsonArrayResult personJsonArray:'+(personJsonArray)+' , parse:'+ (JSON.parse(personJsonArray));
}

"javascript:getPersonJsonArrayResult(\'${gson.toJson(personList)}\'"

//修改后
function getPersonJsonArrayResult(personJsonArray){
    document.getElementById("message").innerHTML = 'receive: getPersonJsonArrayResult personJsonArray:'+(personJsonArray)+' , stringify:'+ (JSON.stringify(personJsonArray));
}

"javascript:getPersonJsonArrayResult(${gson.toJson(personList)}"

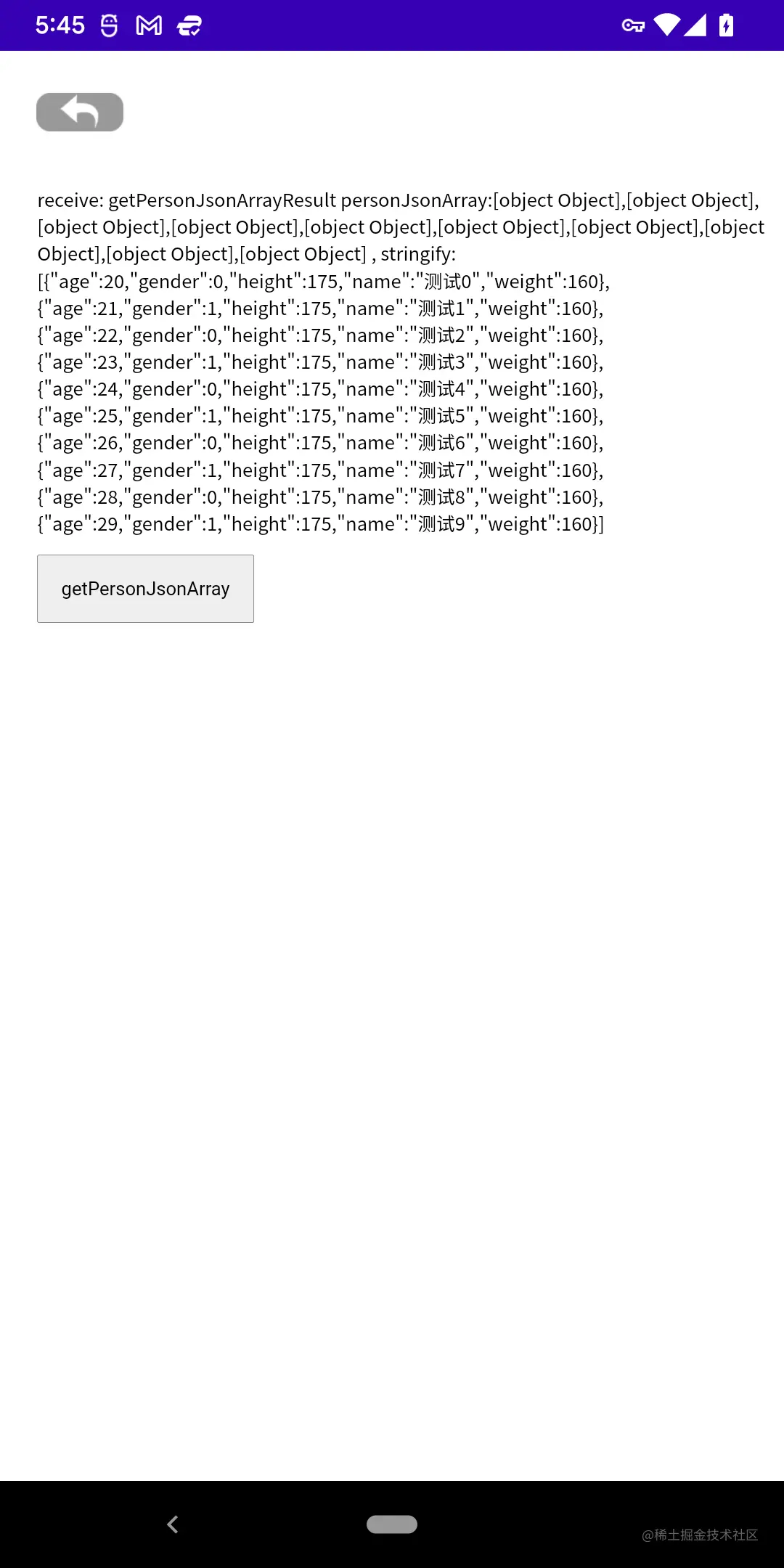

效果如图：
