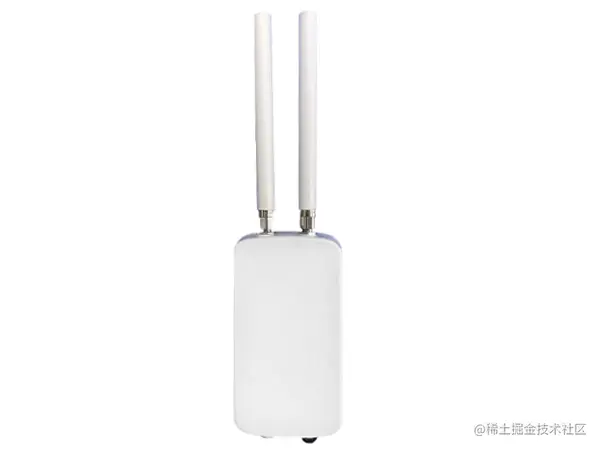

DR-AP4029(Outdoor) is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR40X9 (IPQ4019 / IPQ4029) Board;1 x Onmi Antenna; 1 x POE Adapter(24V^1A~48V^0.6A);1 x Enclosure.

Planar Antenna

■  2 x 5G Antenna

■  5G: 16dbi

DRA25 Antenna

ElectricalProperties :

Frequency Range：2.42.5&5.155.85GHz

Impedance：50Ω

VSWR：2.0 Max （≤2.0）

Gain(peak)：6±0.5dBi

Polarization：Linear; Vertical

Physical Properties :

Cable：RG-141 Cable

Connector：N-type PLUG

Antenna CAP：ABS

OperatingTemp：-40℃~+65℃

Storage Temp：-40℃~+75℃

CableTemp：＜+250℃

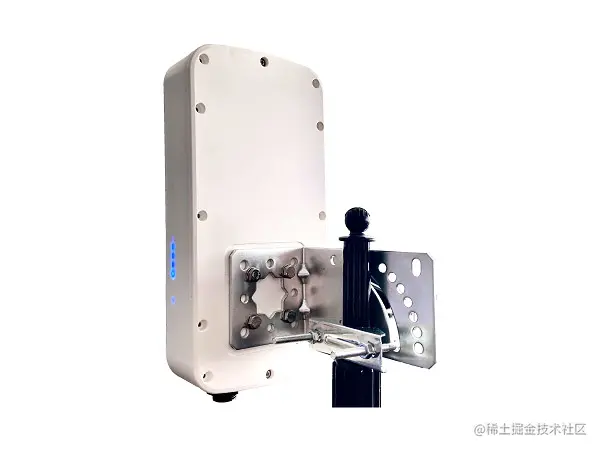

Enclosure

■  Dimension: 275x140x48mm

■  UV Protected and Durable ABS Radome

■  IP67 Waterproof Level

■  Support Wallys  DR4029

• 	Absolute Maximum Rating

• \

• Parameter****	Rating****	Unit****
  Supply Voltage	24V~48	V
  Operating Temperature Range	-40 to +70	ºC
  Storage Temperature Range	-45 to +105	ºC
  Operating Humidity Range	5 to +95 (non-condensing)	%
  Storage Humidity Range	0 to +90 (non-condensing)	%

• \

• 	****Hardware Specifications

• \

• Symbol****	Parameter****
  CPU	IPQ4029/IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz）
  Antenna Connector	2 x 5G MMCX connectors;2x2.4G MMCX
  10/100/1000Mbps Gigabit Ethernet	****2xRJ45
  SFP connector	1xSFP fiber module connector (optional)
  3G/4G connector	1xminipcie 3G/4G connector support with two sim card
  USB connector	1xUSB 3.0 connector
  POE	24V~48V passive POE
  DC Jack	24V~48V power supply
  ROHS Compliance	YES
  Dimension	115mm x 105mm x 16mm
  Max Power	48.1V x 0.180A= 8.658W
  Nor Flash	2MB~32MB
  Nand Flash	128MB
  DDR	256MB~512MB

• \

• 	****Radio TX Specifications(5180MHz-5825MHz)

• \

• Operating Mode	Data Rate	Power	Tolerance
  1 Chain****	2 Chains****
  802.11a	6 Mbps	27dBm	30dbm	±2dB
  54 Mbps	23dBm	26dbm	±2dB
  802.11n HT20	MCS0, MCS8	26dBm	29dbm	±2dB
  MCS7, MCS15	22dBm	25dbm	±2dB
  802.11n HT40	MCS0, MCS8	25dBm	28dbm	±2dB
  MCS7, MCS15	21dBm	24dbm	±2dB
  802.11ac	MCS0, MCS10,MCS20	25dBm	28dbm	±2dB
  MCS9,MCS19,MCS29	19dBm	22dbm	±2dB

• \

• 	****Radio RX Specifications(5180MHz-5825MHz)

• Operating Mode****	Data Rate	Sensitivity
  802.11a	6 Mbps	-96dBm
  54 Mbps	-78dBm
  802.11n HT20	MCS0, MCS8	-93dBm
  MCS7, MCS15	-73dBm
  802.11n HT40	MCS0, MCS8	-90dBm
  MCS7, MCS15	-70dBm
  802.11AC HT40	MCS0, MCS10,MCS20	-90dBm
  MCS9,MCS19,MCS29	-67dBm
  802.11AC HT80	MCS0, MCS10,MCS20	-88dBm
  MCS9,MCS19,MCS29	-62dBm

• \

• 	****Radio TX Specifications(2412MHz-2482MHz)

• \

• Operating Mode	Data Rate	Power	Tolerance
  1 Chain****	2 Chains****
  802.11g	6 Mbps	27dbm	30dbm	±2dB
  54 Mbps	25dbm	28dbm	±2dB
  802.11n HT20	MCS0, MCS8	26dbm	29dbm	±2dB
  MCS7, MCS15	25dbm	28dbm	±2dB
  802.11n HT40	MCS0, MCS8	26dbm	29dbm	±2dB
  MCS7, MCS15	24dbm	27dbm	±2dB

• \

Stable networks guarantee for the ongoing continuity of your video surveillance. Our boards could establish a stable connected wireless environment which is critical for a security surveillance system. Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook. EMAIL:sales@wallystech.com WEB:www.wallystech.com/ www.youtube.com/channel/UCl…
