老项目vue2+webpack3项目升级教程

戎码1生
245 阅读4分钟

去年接手了公司一个项目，前一段时间，收到产品反馈说线上打开菜单非常的慢，点了几个列表页，网站就卡死了，再点击就没有反应了。用的 vue2.6.10 + webpack3 + element-ui2.15.7 项目很大，业务代码中使用了很多体积比较大的库，还有封装了大量的组件。

本地构建花费了 5 分钟，打包完 dist 文件有 16M 这么大，首屏加载大概有 7-8s，打开项目线上地址，我进去一看点了几个页面，果然出现产品和用户反馈的一样，卡顿明显，没几分钟，整个网站卡住了，刷新也还是卡。

那就开始整吧。

  • 如何排查问题

    • 使用 chrome 的开发者工具(打开网站，按 F12)

      如何使用可看官网文档，这里不赘述了

      developer.chrome.com/docs/devtoo…

      • Performance
      • Lighthouse
      • Network 勾选 Preverse Log 保留日志，勾选 Disable Cache 屏蔽浏览器的接口缓存机制，No throtting 选择器 slow3G 可以对当前网络状态进行检测，查看接口的响应体积和顺序

    • npm run preview -- --report 来分析 webpack 打包之后的各个静态资源的大小。你可以发现占用空间最多的是第三方依赖，前提是安装了包 webpack-bundle-analyzer

  • 接口慢
    因为这部分需要后端同事协助，所以在我发现存在一部分接口没有分页，前端数据量很大，记录下接口地址，然后开会和后端负责人讨论改造工作。（工作需要及时的安排和协调，让前后端同事工作并行，效率会比较高。
    经接口调整后，接口整个速度都更上去了,页面卡顿有所缓解

  • 减少 HTTP 请求

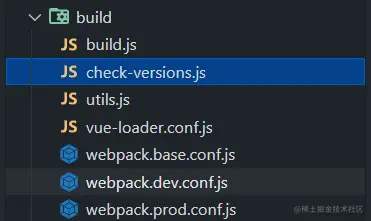

  • 升级 webpack 之前的项目结构 image.png

    yarn upgrade webpack@5.37.0
yarn add webpack-dev-server webpack-cli -D
npm-check-updates 一键升级所需的组件

    由于各种考虑 vue 和 element-ui 没有升级

    // package.json

"scripts": {
    - "dev": "webpack-dev-server --inline --progress --config build/webpack.dev.conf.js",
    + "dev": "npx webpack serve --config build/webpack.dev.conf.js --color --progress",
    "start": "npm run dev",
    "build": "node --max_old_space_size=2048 build/build.js"
},

    webpack.base.conf.js

    - const merge = require('webpack-merge')
+ const { merge } = require('webpack-merge')

    新增 mode 选项

    module.exports = {
    + mode: process.env.NODE_ENV,
}

    + const VueLoaderPlugin = require('vue-loader/lib/plugin');

...
 cacheGroups 对 chunks 的拆分起着关键的作用。可以通过 cacheGroups 来定制 chunks 拆分策略, 由于我们项目中存在很多插件，我们这里都把它单独拆分出来，配合cdn使用

optimization: {
    splitChunks: {
    chunks: 'all',
    cacheGroups: {
        elementUI: {
            name: "chunk-elementUI",
            priority: 20,
            test: /[\\/]node_modules[\\/]element-ui[\\/]/
        },
        wangeditor: {
            name: "chunk-wangeditor",
            priority: 21,
            test: /[\\/]node_modules[\\/]wangeditor[\\/]/,
        },
        vue: {
            name: "chunk-vue",
            priority: 20,
            test: /[\\/]node_modules[\\/]vue[\\/]/
        },
        moment: {
            name: "chunk-moment",
            priority: 15,
            test: /[\\/]node_modules[\\/]moment[\\/]/,
        },
        lodash: {
            name: "chunk-lodash",
            priority: 15,
            test: /[\\/]node_modules[\\/]lodash[\\/]/,
        },
        axios: {
            name: "chunk-axios",
            priority: 15,
            test: /[\\/]node_modules[\\/]axios[\\/]/,
        },
        idValidator: {
            name: "chunk-idValidator",
            priority: 15,
            test: /[\\/]node_modules[\\/]id-validator[\\/]/,
        },
        libs: {
            name: "chunk-libs",
            test: /[\\/]node_modules[\\/]/,
            minChunks: 4,
            priority: 10,
            reuseExistingChunk: true,
        },
        common: {
            name: "chunk-common",
            test: resolve("src/components"), // 可自定义拓展你的规则
            minChunks: 4, // 最小共用次数
            priority: 5,
            reuseExistingChunk: true
        }
    }
    },
    runtimeChunk: {
        name: 'runtime'
    }
},
module: {
    rules: [
        {
            test: /\.vue$/,
            loader: 'vue-loader',
            options: vueLoaderConfig
        },
        {
            test: /\.js$/,
            loader: 'babel-loader',
            include: [resolve('src'), resolve('test')],
            exclude: /node_modules/
        },
        {
            test: /\.(png|jpe?g|gif|svg)(\?.*)?$/,
            loader: 'url-loader',
            options: {
                limit: 10000,
                name: utils.assetsPath('img/[name].[hash:7].[ext]'),
            }
        },
        {
            test: /\.(mp4|webm|ogg|mp3|wav|flac|aac)(\?.*)?$/,
            loader: 'url-loader',
            options: {
                limit: 10000,
                name: utils.assetsPath('media/[name].[hash:7].[ext]')
            }
        },
        {
            test: /\.(woff2?|eot|ttf|otf)(\?.*)?$/,
            loader: 'url-loader',
            options: {

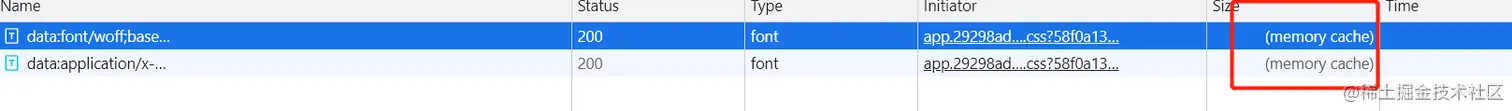

                limit: 10000000, // 注意到这里我设置的很大，因为字体文件太大，大概28k,也采取转换成base64，减少http请求
                name: utils.assetsPath('fonts/[name].[hash:7].[ext]')
            }
        }
    ]
},
plugins: [
　  - new webpack.optimize.CommonsChunkPlugin('common.js'),
    + new VueLoaderPlugin(),
    -  　　new webpack.optimize.CommonsChunkPlugin('common.js'),
    -  　　new webpack.ProvidePlugin({
    -  　　　jQuery: "jquery",
    -       jquery: "jquery",
    -       "window.jQuery":"jQuery",
    -  　　　$: "jquery"
    -    }),
],
+ externals: require('./cdn').externals
...

    webpack.dev.conf.js

    新增 mode 选项

    module.exports = {
    + mode: 'development',  // 'production', 'development' or '无 (none)'
    + externals: require('./cdn').externals
}

    webpack.prod.conf.js

    - const ExtractTextPlugin = require('extract-text-webpack-plugin')
+ const MiniCssExtractPlugin = require("mini-css-extract-plugin")
- const UglifyJsPlugin = require('uglifyjs-webpack-plugin')

 plugins: [
// http://vuejs.github.io/vue-loader/en/workflow/production.html
new webpack.DefinePlugin({
  'process.env': env
}),
// new UglifyJsPlugin({
//   uglifyOptions: {
//     compress: {
//       warnings: false,
//       drop_debugger: true,
//       drop_console: true
//     }
//   },
//   sourceMap: config.build.productionSourceMap,
//   parallel: true
// }),
// extract css into its own file
new MiniCssExtractPlugin({
  filename: utils.assetsPath('css/[name].[contenthash].css'),
  // Setting the following option to `false` will not extract CSS from codesplit chunks.
  // Their CSS will instead be inserted dynamically with style-loader when the codesplit chunk has been loaded by webpack.
  // It's currently set to `true` because we are seeing that sourcemaps are included in the codesplit bundle as well when it's `false`,
  // increasing file size: https://github.com/vuejs-templates/webpack/issues/1110
  allChunks: true,
}),

// Compress extracted CSS. We are using this plugin so that possible
// duplicated CSS from different components can be deduped.
new OptimizeCSSPlugin({
  cssProcessorOptions: config.build.productionSourceMap
    ? { safe: true, map: { inline: false } }
    : { safe: true }
}),
// generate dist index.html with correct asset hash for caching.
// you can customize output by editing /index.html
// see https://github.com/ampedandwired/html-webpack-plugin
new HtmlWebpackPlugin({
  filename: config.build.index,
  template: 'index.html',
  inject: true,
  hash: version,
  minify: {
    removeComments: true,
    collapseWhitespace: true,
    removeAttributeQuotes: true,
    // more options:
    // https://github.com/kangax/html-minifier#options-quick-reference
  },
  cdn: require('./cdn').cdn,
  // necessary to consistently work with multiple chunks via CommonsChunkPlugin
  chunksSortMode: 'dependency'
}),
// keep module.id stable when vendor modules does not change
new webpack.HashedModuleIdsPlugin(),
// enable scope hoisting
new webpack.optimize.ModuleConcatenationPlugin(),
// split vendor js into its own file
// new webpack.optimize.CommonsChunkPlugin({
//   name: 'vendor',
//   minChunks (module) {
//     // any required modules inside node_modules are extracted to vendor
//     return (
//       module.resource &&
//       /\.js$/.test(module.resource) &&
//       module.resource.indexOf(
//         path.join(__dirname, '../node_modules')
//       ) === 0
//     )
//   }
// }),
// // extract webpack runtime and module manifest to its own file in order to
// // prevent vendor hash from being updated whenever app bundle is updated
// new webpack.optimize.CommonsChunkPlugin({
//   name: 'manifest',
//   minChunks: Infinity
// }),
// // This instance extracts shared chunks from code splitted chunks and bundles them
// // in a separate chunk, similar to the vendor chunk
// // see: https://webpack.js.org/plugins/commons-chunk-plugin/#extra-async-commons-chunk
// new webpack.optimize.CommonsChunkPlugin({
//   name: 'app',
//   async: 'vendor-async',
//   children: true,
//   minChunks: 3
// }),

// copy custom static assets
new CopyWebpackPlugin([
  {
    from: path.resolve(__dirname, '../static'),
    to: config.build.assetsSubDirectory,
    ignore: ['.*']
  }
])
]

    build/util.js

    const ExtractTextPlugin = require('extract-text-webpack-plugin')
- const ExtractTextPlugin = require('extract-text-webpack-plugin')
+ const MiniCssExtractPlugin = require("mini-css-extract-plugin")

function generateLoaders(loader, loaderOptions) {
    const loaders = options.usePostCSS ? [cssLoader, postcssLoader] : [cssLoader]

    if (loader) {
        loaders.push({
            loader: loader + '-loader',
            options: Object.assign({}, loaderOptions, {
                sourceMap: options.sourceMap
            })
        })
    }

    // Extract CSS when that option is specified
    // (which is the case during production build)
    if (options.extract) {
        return [MiniCssExtractPlugin.loader].concat(loaders)
        // return ExtractTextPlugin.extract({
        //     use: loaders,
        //     publicPath: '../../',
        //     fallback: 'vue-style-loader'
        // })
    } else {
        return ['vue-style-loader'].concat(loaders)
    }
}

    splitChunks分离代码后，过大的插件被提取出来

  • 合理使用缓存

    • 静态图片和字体尽量缓存

    • cdn
    const isProduction = process.env.NODE_ENV === 'production';

module.exports = {
  cdn: {
    css: [
      'https://unpkg.com/element-ui@2.15.9/lib/theme-chalk/descriptions.css',
    ],
    js: [
      // "https://unpkg.com/vue@2.6.10/dist/vue.min.js",
      // "https://unpkg.com/element-ui@2.15.7/lib/index.js",
      'https://unpkg.com/vuex@3.6.2/dist/vuex.min.js',
      'https://unpkg.com/wangeditor@4.7.11/dist/wangEditor.min.js',
      'https://unpkg.com/xlsx@0.15.6/dist/xlsx.full.min.js',
      'https://unpkg.com/echarts@4.9.0/dist/echarts.min.js',
      'https://map.qq.com/api/gljs?v=1.exp&key=BSVBZ-5XSCX-EMQ4D-TIK2X-SIE2T-E6FQ5',
      // 'https://cdnjs.cloudflare.com/ajax/libs/moment.js/2.29.1/moment.min.js',
      // 'https://cdnjs.cloudflare.com/ajax/libs/moment.js/2.29.1/locale/zh-cn.min.js'
    ],
  },
  externals: {
    // vue: "Vue",
    // "element-ui": "ElementUI",
    vuex: 'Vuex',
    wangeditor: 'wangEditor',
    XLSX: 'xlsx',
    echarts: 'echarts',
    TMap: 'TMap',
    // moment: "moment",
  },
};

    找到 public/index.html。将 js 和 css 资源注入。

    <head>
    <title>${process.env.APP_ENV_NAME}</title>
    <!-- 引入样式 -->
    <% for(var css of htmlWebpackPlugin.options.cdn.css) { %>
        <link rel="stylesheet" href="<%=css%>">
    <% } %>
</head>

<body>
    <% for(var js of htmlWebpackPlugin.options.cdn.js) { %>
        <script src="<%=js%>"></script>
    <% } %>

    <!-- built files will be auto injected -->
    <div id="app"></div>
</body>

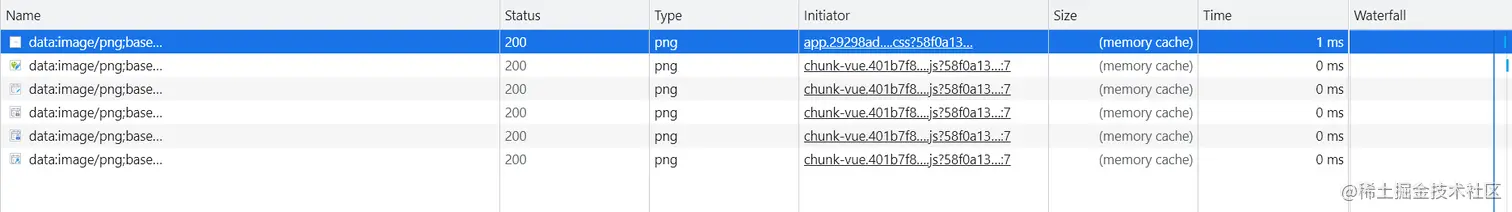

  • 文件压缩 - 图片压缩

    免费的web端工具[TinyPNG](https://tinify.cn/)将images拖进去，替换掉你的图片，尺寸大幅度压缩并保证质量。
![](https://s6.jpg.cm/2022/09/05/PA0KQi.png)
- gzip压缩

![](https://s6.jpg.cm/2022/09/05/PA0hYk.png)

```js
if (config.build.productionGzip) {
    const CompressionWebpackPlugin = require('compression-webpack-plugin')

    webpackConfig.plugins.push(
        new CompressionWebpackPlugin({
            asset: '[path].gz[query]',
            algorithm: 'gzip',
            test: new RegExp(
                '\\.(' +
                config.build.productionGzipExtensions.join('|') +
                ')$'
            ),
            threshold: 100,
            minRatio: 0.8
        })
    )
}
```

    折腾到这里，构建速度 40 左右，dist 压缩到 4M。首屏加载控制在 1s。效果显著！

  • 组件升级，支持虚拟加载 老项目中，使用 el-select，el-table 都不支持大数据虚拟加载，低版本存在卡顿现象 封装列表组件比较费时费力，版本 element-ui plus 支持虚拟加载。目前仅 keep-alive 来降低 dom 渲染消耗


原文：xuxia2013.github.io/2022/08/31/…
