在之前的两章里面，我们已经过了一遍关于连接器处理请求的部分，接下来的这章我们将正式进入tomcat实际处理请求的流程中。在这之前我们需要先了解一个很重要的概念 --> 管道
pipeline
tomcat中container（容器）是所有逻辑的基石。在生命周期的时候，有提过容器的层级关系，如图

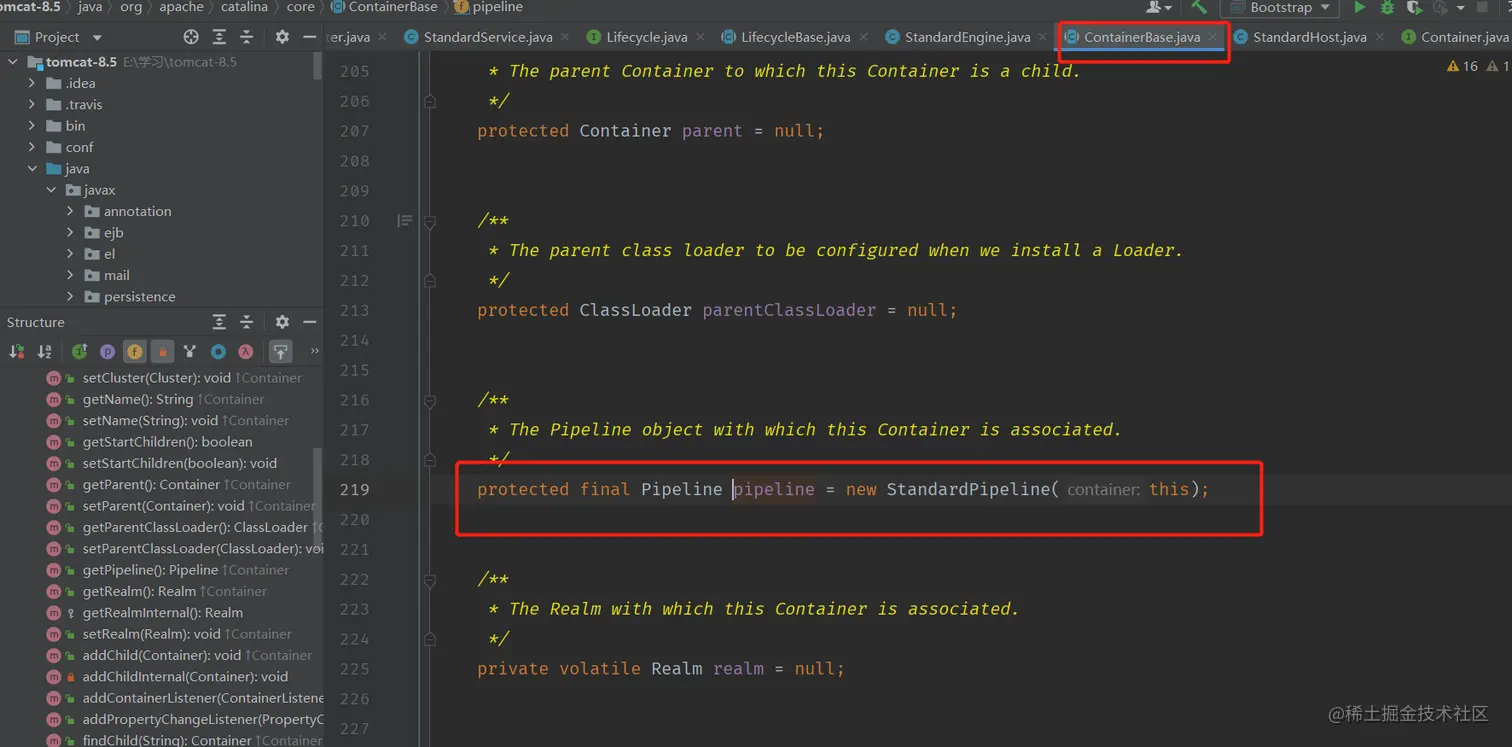

他们都是实现container接口，里面有个重要的参数就是我们的管道，每一容器里面都会有一个管道

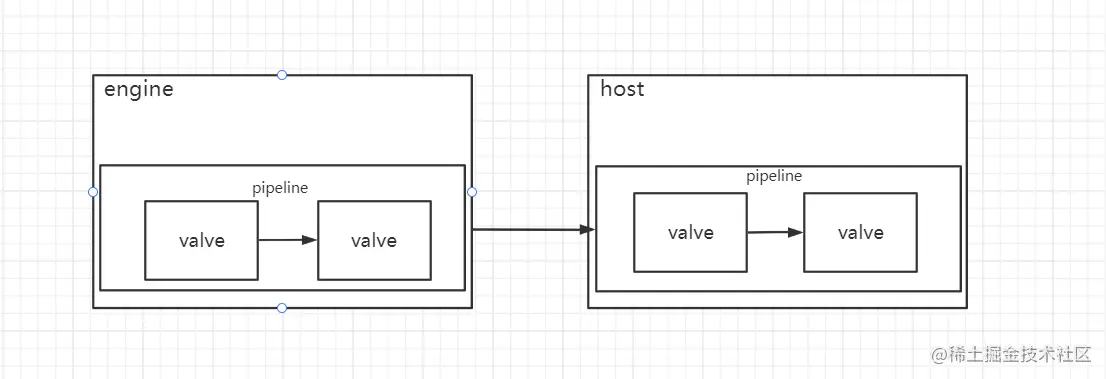

如果了解过servlet过滤器工作机制的人应该不难理解管道的概念。管道就像是过滤器链，里面的valve(阀门)就是过滤器。我们的请求执行的时候，就先经过第一个容器的管道，执行完阀门的逻辑后，进入到下一个容器的管道中。
阀门中分为两种，一种是普通阀门，一种是基础阀门。基础阀门是要放在最后执行的
那么管道中阀门中的执行顺序应该怎么控制，直接用foreach遍历吗。这里tomcat换了一种方式，管道中有一个内部类valveContext，他通过自己的invokeNext方法来保证阀门的执行。这里有点类似aop中拦截器链中的基类拦截器，来控制before after throw的执行顺序。
connector.getService().getContainer().getPipeline().getFirst().invoke( request, response);
经过之前的知识，我们应该知道
getService -> standardService
getContainer() -> standardEngine
getPipeline -> standardPipeline
public StandardEngine() {
super();
pipeline.setBasic(new StandardEngineValve());
/* Set the jmvRoute using the system property jvmRoute */
try {
setJvmRoute(System.getProperty("jvmRoute"));
} catch(Exception ex) {
log.warn(sm.getString("standardEngine.jvmRouteFail"));
}
// By default, the engine will hold the reloading thread
backgroundProcessorDelay = 10;
}
我们看到了engine的基础阀standardEngineValve。阀门只有一个方法就是invoke
@Override
public final void invoke(Request request, Response response)
throws IOException, ServletException {
// Select the Host to be used for this Request
Host host = request.getHost();
if (host == null) {
// HTTP 0.9 or HTTP 1.0 request without a host when no default host
// is defined.
// Don't overwrite an existing error
if (!response.isError()) {
response.sendError(404);
}
return;
}
if (request.isAsyncSupported()) {
request.setAsyncSupported(host.getPipeline().isAsyncSupported());
}
// Ask this Host to process this request
host.getPipeline().getFirst().invoke(request, response);
}
这里的逻辑很简单，如注释所说，http0.9或者1.0的协议，如果没有默认的host地址情况下，请求里面不带host信息是会直接返回404。这里就见到了我们开发中经常遇到的404了。如果没问题就会进入host的valve中，这里开始是不是有责任链的味道了。
public StandardHost() {
super();
pipeline.setBasic(new StandardHostValve());
}
在host中有两个valve是肯定出现的，一个是在构造方法里面是初始化的stanard。还有一个在startInternal里面实例化的ErrorReportValve
protected synchronized void startInternal() throws LifecycleException {
// Set error report valve
String errorValve = getErrorReportValveClass();
if ((errorValve != null) && (!errorValve.equals(""))) {
try {
boolean found = false;
Valve[] valves = getPipeline().getValves();
for (Valve valve : valves) {
if (errorValve.equals(valve.getClass().getName())) {
found = true;
break;
}
}
if(!found) {
Valve valve =
(Valve) Class.forName(errorValve).getConstructor().newInstance();
getPipeline().addValve(valve);
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
log.error(sm.getString(
"standardHost.invalidErrorReportValveClass",
errorValve), t);
}
}
super.startInternal();
}
ErrorReportValve主要是检测 Http 请求过程中是否出现过什么异常, 有异常的话, 直接拼装 html 页面, 输出到客户端。
ErrorReportValve.invoke
public void invoke(Request request, Response response) throws IOException, ServletException {
// 执行下一个valve
getNext().invoke(request, response);
if (response.isCommitted()) {
if (response.setErrorReported()) {
// Error wasn't previously reported but we can't write an error
// page because the response has already been committed.
// See if IO is allowed
AtomicBoolean ioAllowed = new AtomicBoolean(true);
response.getCoyoteResponse().action(ActionCode.IS_IO_ALLOWED, ioAllowed);
if (ioAllowed.get()) {
// I/O is currently still allowed. Flush any data that is
// still to be written to the client.
try {
response.flushBuffer();
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
}
// Now close immediately to signal to the client that
// something went wrong
response.getCoyoteResponse().action(ActionCode.CLOSE_NOW,
request.getAttribute(RequestDispatcher.ERROR_EXCEPTION));
}
}
return;
}
Throwable throwable = (Throwable) request.getAttribute(RequestDispatcher.ERROR_EXCEPTION);
// If an async request is in progress and is not going to end once this
// container thread finishes, do not process any error page here.
if (request.isAsync() && !request.isAsyncCompleting()) {
return;
}
if (throwable != null && !response.isError()) {
// 清空响应体里面的信息，因为经历了前面的操作，响应体里面是有了一部分的数据
// 经典500！！
response.reset();
response.sendError(HttpServletResponse.SC_INTERNAL_SERVER_ERROR);
}
// One way or another, response.sendError() will have been called before
// execution reaches this point and suspended the response. Need to
// reverse that so this valve can write to the response.
response.setSuspended(false);
try {
// 这里就是将 异常的堆栈信息组合成 html 页面, 输出到前台
report(request, response, throwable);
} catch (Throwable tt) {
ExceptionUtils.handleThrowable(tt);
}
}
standardHostValve.invoke
public final void invoke(Request request, Response response)
throws IOException, ServletException {
// Select the Context to be used for this Request
Context context = request.getContext();
if (context == null) {
// Don't overwrite an existing error
if (!response.isError()) {
response.sendError(404);
}
return;
}
if (request.isAsyncSupported()) {
request.setAsyncSupported(context.getPipeline().isAsyncSupported());
}
boolean asyncAtStart = request.isAsync();
try {
context.bind(Globals.IS_SECURITY_ENABLED, MY_CLASSLOADER);
if (!asyncAtStart && !context.fireRequestInitEvent(request.getRequest())) {
// Don't fire listeners during async processing (the listener
// fired for the request that called startAsync()).
// If a request init listener throws an exception, the request
// is aborted.
return;
}
// Ask this Context to process this request. Requests that are
// already in error must have been routed here to check for
// application defined error pages so DO NOT forward them to the the
// application for processing.
try {
if (!response.isErrorReportRequired()) {
context.getPipeline().getFirst().invoke(request, response);
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
container.getLogger().error("Exception Processing " + request.getRequestURI(), t);
// If a new error occurred while trying to report a previous
// error allow the original error to be reported.
if (!response.isErrorReportRequired()) {
request.setAttribute(RequestDispatcher.ERROR_EXCEPTION, t);
throwable(request, response, t);
}
}
// Now that the request/response pair is back under container
// control lift the suspension so that the error handling can
// complete and/or the container can flush any remaining data
response.setSuspended(false);
Throwable t = (Throwable) request.getAttribute(RequestDispatcher.ERROR_EXCEPTION);
// Protect against NPEs if the context was destroyed during a
// long running request.
if (!context.getState().isAvailable()) {
return;
}
// Look for (and render if found) an application level error page
if (response.isErrorReportRequired()) {
// If an error has occurred that prevents further I/O, don't waste time
// producing an error report that will never be read
AtomicBoolean result = new AtomicBoolean(false);
response.getCoyoteResponse().action(ActionCode.IS_IO_ALLOWED, result);
if (result.get()) {
if (t != null) {
throwable(request, response, t);
} else {
status(request, response);
}
}
}
if (!request.isAsync() && !asyncAtStart) {
context.fireRequestDestroyEvent(request.getRequest());
}
} finally {
// Access a session (if present) to update last accessed time, based
// on a strict interpretation of the specification
if (ACCESS_SESSION) {
request.getSession(false);
}
context.unbind(Globals.IS_SECURITY_ENABLED, MY_CLASSLOADER);
}
}
这里也是检查前面在请求体里面赋值的context存不存在，如果不存在直接报404
standardContextValve.invoke()
public final void invoke(Request request, Response response)
throws IOException, ServletException {
// Disallow any direct access to resources under WEB-INF or META-INF
MessageBytes requestPathMB = request.getRequestPathMB();
if ((requestPathMB.startsWithIgnoreCase("/META-INF/", 0))
|| (requestPathMB.equalsIgnoreCase("/META-INF"))
|| (requestPathMB.startsWithIgnoreCase("/WEB-INF/", 0))
|| (requestPathMB.equalsIgnoreCase("/WEB-INF"))) {
response.sendError(HttpServletResponse.SC_NOT_FOUND);
return;
}
// Select the Wrapper to be used for this Request
Wrapper wrapper = request.getWrapper();
if (wrapper == null || wrapper.isUnavailable()) {
response.sendError(HttpServletResponse.SC_NOT_FOUND);
return;
}
// Acknowledge the request
try {
response.sendAcknowledgement(ContinueResponseTiming.IMMEDIATELY);
} catch (IOException ioe) {
container.getLogger().error(sm.getString(
"standardContextValve.acknowledgeException"), ioe);
request.setAttribute(RequestDispatcher.ERROR_EXCEPTION, ioe);
response.sendError(HttpServletResponse.SC_INTERNAL_SERVER_ERROR);
return;
}
if (request.isAsyncSupported()) {
request.setAsyncSupported(wrapper.getPipeline().isAsyncSupported());
}
wrapper.getPipeline().getFirst().invoke(request, response);
}
standardWrapperValve.invoke()
public final void invoke(Request request, Response response)
throws IOException, ServletException {
// Initialize local variables we may need
boolean unavailable = false;
Throwable throwable = null;
// This should be a Request attribute...
long t1=System.currentTimeMillis();
requestCount.incrementAndGet();
StandardWrapper wrapper = (StandardWrapper) getContainer();
Servlet servlet = null;
Context context = (Context) wrapper.getParent();
// Check for the application being marked unavailable
if (!context.getState().isAvailable()) {
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE,
sm.getString("standardContext.isUnavailable"));
unavailable = true;
}
// Check for the servlet being marked unavailable
if (!unavailable && wrapper.isUnavailable()) {
container.getLogger().info(sm.getString("standardWrapper.isUnavailable",
wrapper.getName()));
long available = wrapper.getAvailable();
if ((available > 0L) && (available < Long.MAX_VALUE)) {
response.setDateHeader("Retry-After", available);
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE,
sm.getString("standardWrapper.isUnavailable",
wrapper.getName()));
} else if (available == Long.MAX_VALUE) {
response.sendError(HttpServletResponse.SC_NOT_FOUND,
sm.getString("standardWrapper.notFound",
wrapper.getName()));
}
unavailable = true;
}
// Allocate a servlet instance to process this request
try {
if (!unavailable) {
servlet = wrapper.allocate();
}
} catch (UnavailableException e) {
container.getLogger().error(
sm.getString("standardWrapper.allocateException",
wrapper.getName()), e);
long available = wrapper.getAvailable();
if ((available > 0L) && (available < Long.MAX_VALUE)) {
response.setDateHeader("Retry-After", available);
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE,
sm.getString("standardWrapper.isUnavailable",
wrapper.getName()));
} else if (available == Long.MAX_VALUE) {
response.sendError(HttpServletResponse.SC_NOT_FOUND,
sm.getString("standardWrapper.notFound",
wrapper.getName()));
}
} catch (ServletException e) {
container.getLogger().error(sm.getString("standardWrapper.allocateException",
wrapper.getName()), StandardWrapper.getRootCause(e));
throwable = e;
exception(request, response, e);
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
container.getLogger().error(sm.getString("standardWrapper.allocateException",
wrapper.getName()), e);
throwable = e;
exception(request, response, e);
servlet = null;
}
MessageBytes requestPathMB = request.getRequestPathMB();
DispatcherType dispatcherType = DispatcherType.REQUEST;
if (request.getDispatcherType()==DispatcherType.ASYNC) {
dispatcherType = DispatcherType.ASYNC;
}
request.setAttribute(Globals.DISPATCHER_TYPE_ATTR,dispatcherType);
request.setAttribute(Globals.DISPATCHER_REQUEST_PATH_ATTR,
requestPathMB);
// Create the filter chain for this request
ApplicationFilterChain filterChain =
ApplicationFilterFactory.createFilterChain(request, wrapper, servlet);
// Call the filter chain for this request
// NOTE: This also calls the servlet's service() method
Container container = this.container;
try {
if ((servlet != null) && (filterChain != null)) {
// Swallow output if needed
if (context.getSwallowOutput()) {
try {
SystemLogHandler.startCapture();
if (request.isAsyncDispatching()) {
request.getAsyncContextInternal().doInternalDispatch();
} else {
filterChain.doFilter(request.getRequest(),
response.getResponse());
}
} finally {
String log = SystemLogHandler.stopCapture();
if (log != null && log.length() > 0) {
context.getLogger().info(log);
}
}
} else {
if (request.isAsyncDispatching()) {
request.getAsyncContextInternal().doInternalDispatch();
} else {
filterChain.doFilter
(request.getRequest(), response.getResponse());
}
}
}
} catch (ClientAbortException | CloseNowException e) {
if (container.getLogger().isDebugEnabled()) {
container.getLogger().debug(sm.getString(
"standardWrapper.serviceException", wrapper.getName(),
context.getName()), e);
}
throwable = e;
exception(request, response, e);
} catch (IOException e) {
container.getLogger().error(sm.getString(
"standardWrapper.serviceException", wrapper.getName(),
context.getName()), e);
throwable = e;
exception(request, response, e);
} catch (UnavailableException e) {
container.getLogger().error(sm.getString(
"standardWrapper.serviceException", wrapper.getName(),
context.getName()), e);
// throwable = e;
// exception(request, response, e);
wrapper.unavailable(e);
long available = wrapper.getAvailable();
if ((available > 0L) && (available < Long.MAX_VALUE)) {
response.setDateHeader("Retry-After", available);
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE,
sm.getString("standardWrapper.isUnavailable",
wrapper.getName()));
} else if (available == Long.MAX_VALUE) {
response.sendError(HttpServletResponse.SC_NOT_FOUND,
sm.getString("standardWrapper.notFound",
wrapper.getName()));
}
// Do not save exception in 'throwable', because we
// do not want to do exception(request, response, e) processing
} catch (ServletException e) {
Throwable rootCause = StandardWrapper.getRootCause(e);
if (!(rootCause instanceof ClientAbortException)) {
container.getLogger().error(sm.getString(
"standardWrapper.serviceExceptionRoot",
wrapper.getName(), context.getName(), e.getMessage()),
rootCause);
}
throwable = e;
exception(request, response, e);
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
container.getLogger().error(sm.getString(
"standardWrapper.serviceException", wrapper.getName(),
context.getName()), e);
throwable = e;
exception(request, response, e);
} finally {
// Release the filter chain (if any) for this request
if (filterChain != null) {
filterChain.release();
}
// Deallocate the allocated servlet instance
try {
if (servlet != null) {
wrapper.deallocate(servlet);
}
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
container.getLogger().error(sm.getString("standardWrapper.deallocateException",
wrapper.getName()), e);
if (throwable == null) {
throwable = e;
exception(request, response, e);
}
}
// If this servlet has been marked permanently unavailable,
// unload it and release this instance
try {
if ((servlet != null) &&
(wrapper.getAvailable() == Long.MAX_VALUE)) {
wrapper.unload();
}
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
container.getLogger().error(sm.getString("standardWrapper.unloadException",
wrapper.getName()), e);
if (throwable == null) {
exception(request, response, e);
}
}
long t2=System.currentTimeMillis();
long time=t2-t1;
processingTime += time;
if( time > maxTime) {
maxTime=time;
}
if( time < minTime) {
minTime=time;
}
}
}
通过阅读源码，我们发现了几个关键点。现罗列如下，后面我们会逐一分析这些关键点相关的源码。
- 关键点1：这儿调用Wrapper的allocate()方法分配一个Servlet实例
- 关键点2，创建过滤器链，类似于Pipeline的功能
- 关键点3，调用过滤器链的doFilter，最终会调用到Servlet的service方法
- 关键点4，释放掉过滤器链及其相关资源
- 关键点5，释放掉Servlet及相关资源
- 关键点6，如果servlet被标记为永远不可达，则需要卸载掉它，并释放这个servlet实例
wrapper.allocate()
public Servlet allocate() throws ServletException {
// If we are currently unloading this servlet, throw an exception
if (unloading) {
throw new ServletException(sm.getString("standardWrapper.unloading", getName()));
}
boolean newInstance = false;
// singleThreadModel这种实现方式已经废弃了。主要作用是一个请求new一个servlet来处理
if (!singleThreadModel) {
// Load and initialize our instance if necessary
if (instance == null || !instanceInitialized) {
synchronized (this) {
if (instance == null) {
try {
if (log.isDebugEnabled()) {
log.debug("Allocating non-STM instance");
}
// Note: We don't know if the Servlet implements
// SingleThreadModel until we have loaded it.
instance = loadServlet();
newInstance = true;
if (!singleThreadModel) {
// For non-STM, increment here to prevent a race
// condition with unload. Bug 43683, test case
// #3
countAllocated.incrementAndGet();
}
} catch (ServletException e) {
throw e;
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
throw new ServletException(sm.getString("standardWrapper.allocate"), e);
}
}
if (!instanceInitialized) {
initServlet(instance);
}
}
}
if (singleThreadModel) {
if (newInstance) {
// Have to do this outside of the sync above to prevent a
// possible deadlock
synchronized (instancePool) {
instancePool.push(instance);
nInstances++;
}
}
} else {
if (log.isTraceEnabled()) {
log.trace(" Returning non-STM instance");
}
// For new instances, count will have been incremented at the
// time of creation
if (!newInstance) {
countAllocated.incrementAndGet();
}
return instance;
}
}
synchronized (instancePool) {
while (countAllocated.get() >= nInstances) {
// Allocate a new instance if possible, or else wait
if (nInstances < maxInstances) {
try {
instancePool.push(loadServlet());
nInstances++;
} catch (ServletException e) {
throw e;
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
throw new ServletException(sm.getString("standardWrapper.allocate"), e);
}
} else {
try {
instancePool.wait();
} catch (InterruptedException e) {
// Ignore
}
}
}
if (log.isTraceEnabled()) {
log.trace(" Returning allocated STM instance");
}
countAllocated.incrementAndGet();
return instancePool.pop();
}
}
总结下来，注意以下几点即可：
- 如果不是单线程模式，则每次都会返回同一个Servlet（默认Servlet实现方式），并完成servlet的初始化
Servlet实例为null或者Servlet实例还未初始化，使用synchronized来保证并发时的原子性- 如果是单线程模式，则使用servlet对象池技术来加载多个Servlet
ApplicationFilterFactory.createFilterChain(request, wrapper, servlet) 创建拦截器链
这个应该是大伙很熟悉的东西了，filterchain我们在很多地方都见过
public static ApplicationFilterChain createFilterChain(ServletRequest request,
Wrapper wrapper, Servlet servlet) {
// If there is no servlet to execute, return null
if (servlet == null) {
return null;
}
// Create and initialize a filter chain object
ApplicationFilterChain filterChain = null;
if (request instanceof Request) {
Request req = (Request) request;
if (Globals.IS_SECURITY_ENABLED) {
// Security: Do not recycle
filterChain = new ApplicationFilterChain();
} else {
filterChain = (ApplicationFilterChain) req.getFilterChain();
if (filterChain == null) {
filterChain = new ApplicationFilterChain();
req.setFilterChain(filterChain);
}
}
} else {
// Request dispatcher in use
filterChain = new ApplicationFilterChain();
}
filterChain.setServlet(servlet);
filterChain.setServletSupportsAsync(wrapper.isAsyncSupported());
// Acquire the filter mappings for this Context
StandardContext context = (StandardContext) wrapper.getParent();
FilterMap filterMaps[] = context.findFilterMaps();
// If there are no filter mappings, we are done
if ((filterMaps == null) || (filterMaps.length == 0)) {
return filterChain;
}
// Acquire the information we will need to match filter mappings
DispatcherType dispatcher =
(DispatcherType) request.getAttribute(Globals.DISPATCHER_TYPE_ATTR);
String requestPath = null;
Object attribute = request.getAttribute(Globals.DISPATCHER_REQUEST_PATH_ATTR);
if (attribute != null){
requestPath = attribute.toString();
}
String servletName = wrapper.getName();
// Add the relevant path-mapped filters to this filter chain
for (FilterMap filterMap : filterMaps) {
if (!matchDispatcher(filterMap, dispatcher)) {
continue;
}
if (!matchFiltersURL(filterMap, requestPath)) {
continue;
}
ApplicationFilterConfig filterConfig = (ApplicationFilterConfig)
context.findFilterConfig(filterMap.getFilterName());
if (filterConfig == null) {
// FIXME - log configuration problem
continue;
}
filterChain.addFilter(filterConfig);
}
// Add filters that match on servlet name second
for (FilterMap filterMap : filterMaps) {
if (!matchDispatcher(filterMap, dispatcher)) {
continue;
}
if (!matchFiltersServlet(filterMap, servletName)) {
continue;
}
ApplicationFilterConfig filterConfig = (ApplicationFilterConfig)
context.findFilterConfig(filterMap.getFilterName());
if (filterConfig == null) {
// FIXME - log configuration problem
continue;
}
filterChain.addFilter(filterConfig);
}
// Return the completed filter chain
return filterChain;
}
filterChain.doFilter(request.getRequest(),response.getResponse())
public void doFilter(ServletRequest request, ServletResponse response)
throws IOException, ServletException {
if( Globals.IS_SECURITY_ENABLED ) {
final ServletRequest req = request;
final ServletResponse res = response;
try {
java.security.AccessController.doPrivileged(
new java.security.PrivilegedExceptionAction<Void>() {
@Override
public Void run()
throws ServletException, IOException {
internalDoFilter(req,res);
return null;
}
}
);
} catch( PrivilegedActionException pe) {
Exception e = pe.getException();
if (e instanceof ServletException) {
throw (ServletException) e;
} else if (e instanceof IOException) {
throw (IOException) e;
} else if (e instanceof RuntimeException) {
throw (RuntimeException) e;
} else {
throw new ServletException(e.getMessage(), e);
}
}
} else {
internalDoFilter(request,response);
}
}
internalDofilter()
private void internalDoFilter(ServletRequest request,
ServletResponse response)
throws IOException, ServletException {
// 通过pos和n两个变量控制便利filter的执行。等执行完全部filter的逻辑后再往下走
if (pos < n) {
ApplicationFilterConfig filterConfig = filters[pos++];
try {
Filter filter = filterConfig.getFilter();
if (request.isAsyncSupported() && "false".equalsIgnoreCase(
filterConfig.getFilterDef().getAsyncSupported())) {
request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR, Boolean.FALSE);
}
if( Globals.IS_SECURITY_ENABLED ) {
final ServletRequest req = request;
final ServletResponse res = response;
Principal principal =
((HttpServletRequest) req).getUserPrincipal();
Object[] args = new Object[]{req, res, this};
SecurityUtil.doAsPrivilege ("doFilter", filter, classType, args, principal);
} else {
filter.doFilter(request, response, this);
}
} catch (IOException | ServletException | RuntimeException e) {
throw e;
} catch (Throwable e) {
e = ExceptionUtils.unwrapInvocationTargetException(e);
ExceptionUtils.handleThrowable(e);
throw new ServletException(sm.getString("filterChain.filter"), e);
}
return;
}
// We fell off the end of the chain -- call the servlet instance
try {
if (ApplicationDispatcher.WRAP_SAME_OBJECT) {
lastServicedRequest.set(request);
lastServicedResponse.set(response);
}
if (request.isAsyncSupported() && !servletSupportsAsync) {
request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR,
Boolean.FALSE);
}
// Use potentially wrapped request from this point
if ((request instanceof HttpServletRequest) &&
(response instanceof HttpServletResponse) &&
Globals.IS_SECURITY_ENABLED ) {
final ServletRequest req = request;
final ServletResponse res = response;
Principal principal =
((HttpServletRequest) req).getUserPrincipal();
Object[] args = new Object[]{req, res};
SecurityUtil.doAsPrivilege("service",
servlet,
classTypeUsedInService,
args,
principal);
} else {
// 懂得都懂！！！
servlet.service(request, response);
}
} catch (IOException | ServletException | RuntimeException e) {
throw e;
} catch (Throwable e) {
e = ExceptionUtils.unwrapInvocationTargetException(e);
ExceptionUtils.handleThrowable(e);
throw new ServletException(sm.getString("filterChain.servlet"), e);
} finally {
if (ApplicationDispatcher.WRAP_SAME_OBJECT) {
lastServicedRequest.set(null);
lastServicedResponse.set(null);
}
}
}
在这里可以总结为两步
- 遍历执行完所有的filter的操作，也就是filter.dofilter()
- 执行完filter后最终执行servlet的service方法
总结
- tomcat处理请求的流程其实就是利用父子容器之间的管道形成一条类似拦截器链的链路，进行一些请求的检查。如果在管道里面就已经出现了问题则直接返回报错信息。
- 在走完了管道之后，tomcat会以默认单例的方式生成对应servlet，然后将他放到对象池里面方便复用
- 然后生成过滤器链，过滤器链和管道我们可以理解成。管道是系统的前置的判断，过滤器则是业务方面的检查。
- 将所有的过滤器执行完之后，最终调用servlet.service（），然后沿着过滤器 --> 管道返回请求方
