在上一章中，我们看到了processSocket()这个方法，他就是tomcat处理连接的代码入口了。通过线程的方式来启动，今天我们接着上一章的内容继续讲。
createSocketProcessor（）
我们先看看这个方法
这是一个抽象方法，具体的实现交给子类来完成

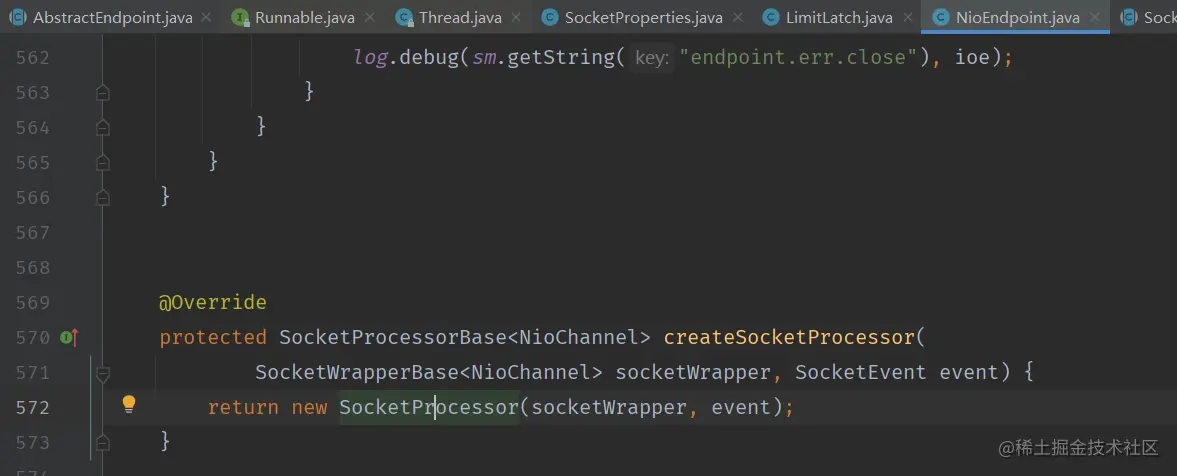

我们nioEndPoint的实现里面就是new了一个对象
protected class SocketProcessor extends SocketProcessorBase<NioChannel> {
public SocketProcessor(SocketWrapperBase<NioChannel> socketWrapper, SocketEvent event) {
super(socketWrapper, event);
}
@Override
protected void doRun() {
NioChannel socket = socketWrapper.getSocket();
SelectionKey key = socket.getIOChannel().keyFor(socket.getPoller().getSelector());
try {
int handshake = -1;
try {
if (key != null) {
if (socket.isHandshakeComplete()) {
// No TLS handshaking required. Let the handler
// process this socket / event combination.
handshake = 0;
} else if (event == SocketEvent.STOP || event == SocketEvent.DISCONNECT ||
event == SocketEvent.ERROR) {
// Unable to complete the TLS handshake. Treat it as
// if the handshake failed.
handshake = -1;
} else {
handshake = socket.handshake(key.isReadable(), key.isWritable());
// The handshake process reads/writes from/to the
// socket. status may therefore be OPEN_WRITE once
// the handshake completes. However, the handshake
// happens when the socket is opened so the status
// must always be OPEN_READ after it completes. It
// is OK to always set this as it is only used if
// the handshake completes.
event = SocketEvent.OPEN_READ;
}
}
} catch (IOException x) {
handshake = -1;
if (log.isDebugEnabled()) {
log.debug("Error during SSL handshake",x);
}
} catch (CancelledKeyException ckx) {
handshake = -1;
}
if (handshake == 0) {
SocketState state = SocketState.OPEN;
// Process the request from this socket
if (event == null) {
state = getHandler().process(socketWrapper, SocketEvent.OPEN_READ);
} else {
state = getHandler().process(socketWrapper, event);
}
if (state == SocketState.CLOSED) {
close(socket, key);
}
} else if (handshake == -1 ) {
getHandler().process(socketWrapper, SocketEvent.CONNECT_FAIL);
close(socket, key);
} else if (handshake == SelectionKey.OP_READ){
socketWrapper.registerReadInterest();
} else if (handshake == SelectionKey.OP_WRITE){
socketWrapper.registerWriteInterest();
}
} catch (CancelledKeyException cx) {
socket.getPoller().cancelledKey(key);
} catch (VirtualMachineError vme) {
ExceptionUtils.handleThrowable(vme);
} catch (Throwable t) {
log.error("", t);
socket.getPoller().cancelledKey(key);
} finally {
socketWrapper = null;
event = null;
//return to cache
if (running && !paused) {
processorCache.push(this);
}
}
}
}
这个地方会发现，他好像没有run方法。然而这里又是使用了模板方法，dorun的具体调用时交给父类，也就是在上一章末尾看到的SocketProcessorBase()。
@Override
public final void run() {
synchronized (socketWrapper) {
// It is possible that processing may be triggered for read and
// write at the same time. The sync above makes sure that processing
// does not occur in parallel. The test below ensures that if the
// first event to be processed results in the socket being closed,
// the subsequent events are not processed.
if (socketWrapper.isClosed()) {
return;
}
doRun();
}
}
回到doRun里面，里面的核心方法其实就是handler.process（），因为process方法代码很长，这里只截取中间核心调用的一块
SocketState state = SocketState.CLOSED;
do {
state = processor.process(wrapper, status);
if (state == SocketState.UPGRADING) {
// Get the HTTP upgrade handler
UpgradeToken upgradeToken = processor.getUpgradeToken();
// Restore leftover input to the wrapper so the upgrade
// processor can process it.
ByteBuffer leftOverInput = processor.getLeftoverInput();
wrapper.unRead(leftOverInput);
if (upgradeToken == null) {
// Assume direct HTTP/2 connection
UpgradeProtocol upgradeProtocol = getProtocol().getUpgradeProtocol("h2c");
if (upgradeProtocol != null) {
// Release the Http11 processor to be re-used
release(processor);
// Create the upgrade processor
processor = upgradeProtocol.getProcessor(wrapper, getProtocol().getAdapter());
// Associate with the processor with the connection
connections.put(socket, processor);
} else {
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString(
"abstractConnectionHandler.negotiatedProcessor.fail",
"h2c"));
}
// Exit loop and trigger appropriate clean-up
state = SocketState.CLOSED;
}
} else {
HttpUpgradeHandler httpUpgradeHandler = upgradeToken.getHttpUpgradeHandler();
// Release the Http11 processor to be re-used
release(processor);
// Create the upgrade processor
processor = getProtocol().createUpgradeProcessor(wrapper, upgradeToken);
if (getLog().isDebugEnabled()) {
getLog().debug(sm.getString("abstractConnectionHandler.upgradeCreate",
processor, wrapper));
}
// Associate with the processor with the connection
connections.put(socket, processor);
// Initialise the upgrade handler (which may trigger
// some IO using the new protocol which is why the lines
// above are necessary)
// This cast should be safe. If it fails the error
// handling for the surrounding try/catch will deal with
// it.
if (upgradeToken.getInstanceManager() == null) {
httpUpgradeHandler.init((WebConnection) processor);
} else {
ClassLoader oldCL = upgradeToken.getContextBind().bind(false, null);
try {
httpUpgradeHandler.init((WebConnection) processor);
} finally {
upgradeToken.getContextBind().unbind(false, oldCL);
}
}
}
}
} while ( state == SocketState.UPGRADING);
这里我们看他的关键方法processor.process
SocketState state = SocketState.CLOSED;
Iterator<DispatchType> dispatches = null;
do {
if (dispatches != null) {
DispatchType nextDispatch = dispatches.next();
if (getLog().isDebugEnabled()) {
getLog().debug("Processing dispatch type: [" + nextDispatch + "]");
}
state = dispatch(nextDispatch.getSocketStatus());
if (!dispatches.hasNext()) {
state = checkForPipelinedData(state, socketWrapper);
}
} else if (status == SocketEvent.DISCONNECT) {
// Do nothing here, just wait for it to get recycled
} else if (isAsync() || isUpgrade() || state == SocketState.ASYNC_END) {
state = dispatch(status);
state = checkForPipelinedData(state, socketWrapper);
} else if (status == SocketEvent.OPEN_WRITE) {
// Extra write event likely after async, ignore
state = SocketState.LONG;
} else if (status == SocketEvent.OPEN_READ) {
state = service(socketWrapper);
} else if (status == SocketEvent.CONNECT_FAIL) {
logAccess(socketWrapper);
} else {
// Default to closing the socket if the SocketEvent passed in
// is not consistent with the current state of the Processor
state = SocketState.CLOSED;
}
if (getLog().isDebugEnabled()) {
getLog().debug("Socket: [" + socketWrapper +
"], Status in: [" + status +
"], State out: [" + state + "]");
}
if (isAsync()) {
state = asyncPostProcess();
if (getLog().isDebugEnabled()) {
getLog().debug("Socket: [" + socketWrapper +
"], State after async post processing: [" + state + "]");
}
}
if (dispatches == null || !dispatches.hasNext()) {
// Only returns non-null iterator if there are
// dispatches to process.
dispatches = getIteratorAndClearDispatches();
}
} while (state == SocketState.ASYNC_END ||
dispatches != null && state != SocketState.CLOSED);
return state;
这里if有很多的分支，但是源码里面都有注释。当我们请求进来的时候走的是OPEN_READ这个分支。然后我们就见到了熟悉的service方法
RequestInfo rp = request.getRequestProcessor();
rp.setStage(org.apache.coyote.Constants.STAGE_PARSE);
// Setting up the I/O
setSocketWrapper(socketWrapper);
// Flags
keepAlive = true;
openSocket = false;
readComplete = true;
boolean keptAlive = false;
SendfileState sendfileState = SendfileState.DONE;
while (!getErrorState().isError() && keepAlive && !isAsync() && upgradeToken == null &&
sendfileState == SendfileState.DONE && !endpoint.isPaused()) {
// Parsing the request header
try {
if (!inputBuffer.parseRequestLine(keptAlive)) {
if (inputBuffer.getParsingRequestLinePhase() == -1) {
return SocketState.UPGRADING;
} else if (handleIncompleteRequestLineRead()) {
break;
}
}
// Process the Protocol component of the request line
// Need to know if this is an HTTP 0.9 request before trying to
// parse headers.
prepareRequestProtocol();
if (endpoint.isPaused()) {
// 503 - Service unavailable
response.setStatus(503);
setErrorState(ErrorState.CLOSE_CLEAN, null);
} else {
keptAlive = true;
// Set this every time in case limit has been changed via JMX
request.getMimeHeaders().setLimit(endpoint.getMaxHeaderCount());
// Don't parse headers for HTTP/0.9
if (!http09 && !inputBuffer.parseHeaders()) {
// We've read part of the request, don't recycle it
// instead associate it with the socket
openSocket = true;
readComplete = false;
break;
}
if (!disableUploadTimeout) {
socketWrapper.setReadTimeout(connectionUploadTimeout);
}
}
} catch (IOException e) {
if (log.isDebugEnabled()) {
log.debug(sm.getString("http11processor.header.parse"), e);
}
setErrorState(ErrorState.CLOSE_CONNECTION_NOW, e);
break;
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
UserDataHelper.Mode logMode = userDataHelper.getNextMode();
if (logMode != null) {
String message = sm.getString("http11processor.header.parse");
switch (logMode) {
case INFO_THEN_DEBUG:
message += sm.getString("http11processor.fallToDebug");
//$FALL-THROUGH$
case INFO:
log.info(message, t);
break;
case DEBUG:
log.debug(message, t);
}
}
// 400 - Bad Request
response.setStatus(400);
setErrorState(ErrorState.CLOSE_CLEAN, t);
}
// Has an upgrade been requested?
if (isConnectionToken(request.getMimeHeaders(), "upgrade")) {
// Check the protocol
String requestedProtocol = request.getHeader("Upgrade");
UpgradeProtocol upgradeProtocol = protocol.getUpgradeProtocol(requestedProtocol);
if (upgradeProtocol != null) {
if (upgradeProtocol.accept(request)) {
// TODO Figure out how to handle request bodies at this
// point.
response.setStatus(HttpServletResponse.SC_SWITCHING_PROTOCOLS);
response.setHeader("Connection", "Upgrade");
response.setHeader("Upgrade", requestedProtocol);
action(ActionCode.CLOSE, null);
getAdapter().log(request, response, 0);
InternalHttpUpgradeHandler upgradeHandler =
upgradeProtocol.getInternalUpgradeHandler(
getAdapter(), cloneRequest(request));
UpgradeToken upgradeToken = new UpgradeToken(upgradeHandler, null, null, requestedProtocol);
action(ActionCode.UPGRADE, upgradeToken);
return SocketState.UPGRADING;
}
}
}
if (getErrorState().isIoAllowed()) {
// Setting up filters, and parse some request headers
rp.setStage(org.apache.coyote.Constants.STAGE_PREPARE);
try {
prepareRequest();
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
if (log.isDebugEnabled()) {
log.debug(sm.getString("http11processor.request.prepare"), t);
}
// 500 - Internal Server Error
response.setStatus(500);
setErrorState(ErrorState.CLOSE_CLEAN, t);
}
}
if (maxKeepAliveRequests == 1) {
keepAlive = false;
} else if (maxKeepAliveRequests > 0 &&
socketWrapper.decrementKeepAlive() <= 0) {
keepAlive = false;
}
// Process the request in the adapter
if (getErrorState().isIoAllowed()) {
try {
rp.setStage(org.apache.coyote.Constants.STAGE_SERVICE);
getAdapter().service(request, response);
// Handle when the response was committed before a serious
// error occurred. Throwing a ServletException should both
// set the status to 500 and set the errorException.
// If we fail here, then the response is likely already
// committed, so we can't try and set headers.
if(keepAlive && !getErrorState().isError() && !isAsync() &&
statusDropsConnection(response.getStatus())) {
setErrorState(ErrorState.CLOSE_CLEAN, null);
}
} catch (InterruptedIOException e) {
setErrorState(ErrorState.CLOSE_CONNECTION_NOW, e);
} catch (HeadersTooLargeException e) {
log.error(sm.getString("http11processor.request.process"), e);
// The response should not have been committed but check it
// anyway to be safe
if (response.isCommitted()) {
setErrorState(ErrorState.CLOSE_NOW, e);
} else {
response.reset();
response.setStatus(500);
setErrorState(ErrorState.CLOSE_CLEAN, e);
response.setHeader("Connection", "close"); // TODO: Remove
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
log.error(sm.getString("http11processor.request.process"), t);
// 500 - Internal Server Error
response.setStatus(500);
setErrorState(ErrorState.CLOSE_CLEAN, t);
getAdapter().log(request, response, 0);
}
}
// Finish the handling of the request
rp.setStage(org.apache.coyote.Constants.STAGE_ENDINPUT);
if (!isAsync()) {
// If this is an async request then the request ends when it has
// been completed. The AsyncContext is responsible for calling
// endRequest() in that case.
endRequest();
}
rp.setStage(org.apache.coyote.Constants.STAGE_ENDOUTPUT);
// If there was an error, make sure the request is counted as
// and error, and update the statistics counter
if (getErrorState().isError()) {
response.setStatus(500);
}
if (!isAsync() || getErrorState().isError()) {
request.updateCounters();
if (getErrorState().isIoAllowed()) {
inputBuffer.nextRequest();
outputBuffer.nextRequest();
}
}
if (!disableUploadTimeout) {
int soTimeout = endpoint.getConnectionTimeout();
if(soTimeout > 0) {
socketWrapper.setReadTimeout(soTimeout);
} else {
socketWrapper.setReadTimeout(0);
}
}
rp.setStage(org.apache.coyote.Constants.STAGE_KEEPALIVE);
sendfileState = processSendfile(socketWrapper);
}
rp.setStage(org.apache.coyote.Constants.STAGE_ENDED);
if (getErrorState().isError() || (endpoint.isPaused() && !isAsync())) {
return SocketState.CLOSED;
} else if (isAsync()) {
return SocketState.LONG;
} else if (isUpgrade()) {
return SocketState.UPGRADING;
} else {
if (sendfileState == SendfileState.PENDING) {
return SocketState.SENDFILE;
} else {
if (openSocket) {
if (readComplete) {
return SocketState.OPEN;
} else {
return SocketState.LONG;
}
} else {
return SocketState.CLOSED;
}
}
}
这里面代码很长，我做一个简单的总结。有以下几步操作
- 对请求做一些预处理，想如果说端口未打开，直接报503然后返回等等的操作。
- 后调用adapter的service方法，这也是真正进入请求处理阶段的入口。
adapter.service()
Request request = (Request) req.getNote(ADAPTER_NOTES);
Response response = (Response) res.getNote(ADAPTER_NOTES);
if (request == null) {
// Create objects
request = connector.createRequest();
request.setCoyoteRequest(req);
response = connector.createResponse();
response.setCoyoteResponse(res);
// Link objects
request.setResponse(response);
response.setRequest(request);
// Set as notes
req.setNote(ADAPTER_NOTES, request);
res.setNote(ADAPTER_NOTES, response);
// Set query string encoding
req.getParameters().setQueryStringCharset(connector.getURICharset());
}
if (connector.getXpoweredBy()) {
response.addHeader("X-Powered-By", POWERED_BY);
}
boolean async = false;
boolean postParseSuccess = false;
req.getRequestProcessor().setWorkerThreadName(THREAD_NAME.get());
try {
// Parse and set Catalina and configuration specific
// request parameters
postParseSuccess = postParseRequest(req, request, res, response);
if (postParseSuccess) {
//check valves if we support async
request.setAsyncSupported(
connector.getService().getContainer().getPipeline().isAsyncSupported());
// Calling the container
connector.getService().getContainer().getPipeline().getFirst().invoke(
request, response);
}
if (request.isAsync()) {
async = true;
ReadListener readListener = req.getReadListener();
if (readListener != null && request.isFinished()) {
// Possible the all data may have been read during service()
// method so this needs to be checked here
ClassLoader oldCL = null;
try {
oldCL = request.getContext().bind(false, null);
if (req.sendAllDataReadEvent()) {
req.getReadListener().onAllDataRead();
}
} finally {
request.getContext().unbind(false, oldCL);
}
}
Throwable throwable =
(Throwable) request.getAttribute(RequestDispatcher.ERROR_EXCEPTION);
// If an async request was started, is not going to end once
// this container thread finishes and an error occurred, trigger
// the async error process
if (!request.isAsyncCompleting() && throwable != null) {
request.getAsyncContextInternal().setErrorState(throwable, true);
}
} else {
request.finishRequest();
response.finishResponse();
}
} catch (IOException e) {
// Ignore
} finally {
AtomicBoolean error = new AtomicBoolean(false);
res.action(ActionCode.IS_ERROR, error);
if (request.isAsyncCompleting() && error.get()) {
// Connection will be forcibly closed which will prevent
// completion happening at the usual point. Need to trigger
// call to onComplete() here.
res.action(ActionCode.ASYNC_POST_PROCESS, null);
async = false;
}
// Access log
if (!async && postParseSuccess) {
// Log only if processing was invoked.
// If postParseRequest() failed, it has already logged it.
Context context = request.getContext();
Host host = request.getHost();
// If the context is null, it is likely that the endpoint was
// shutdown, this connection closed and the request recycled in
// a different thread. That thread will have updated the access
// log so it is OK not to update the access log here in that
// case.
// The other possibility is that an error occurred early in
// processing and the request could not be mapped to a Context.
// Log via the host or engine in that case.
long time = System.currentTimeMillis() - req.getStartTime();
if (context != null) {
context.logAccess(request, response, time, false);
} else if (response.isError()) {
if (host != null) {
host.logAccess(request, response, time, false);
} else {
connector.getService().getContainer().logAccess(
request, response, time, false);
}
}
}
req.getRequestProcessor().setWorkerThreadName(null);
// Recycle the wrapper request and response
if (!async) {
updateWrapperErrorCount(request, response);
request.recycle();
response.recycle();
}
}
这里总结下来是以下的几步。
- 通过coyote框架生成对应的request response对象。也就是servletrequest转换成httpServletRequest
- 补充请求头的信息。
- 解析请求并补充信息，postParseRequest()
- connector.getService().getContainer().getPipeline().getFirst().invoke( request, response) 真正进去到容器的管道处理并处理请求。
- 通过request.finishRequest 与 response.finishResponse(刷OutputBuffer中的数据到浏览器) 来完成整个请求
总结
到了这里关于连接池的内容我们就讲完了。总的下来我们看到连接池和配置文件里面的线程池，连接器协议对应上了。他的本质就是接受通过socketStream监听对应IP端口的请求，然后通过nio（默认）进行连接并且讲request response解析成httpServletRequest 和response。一个请求对应一个处理线程。最后讲request和response传到容器的管道里面进行调用。
