生产环境下sentinel规则持久化方案

本文已参与「新人创作礼」活动，一起开启掘金创作之路。 ​

参考文档：在生产环境中使用 Sentinel · alibaba/Sentinel Wiki · GitHub

一，背景

sentinel 官方规则管理 提供三种模式

推送模式

说明

优点

缺点

原始模式

API 将规则推送至客户端并直接更新到内存中，扩展写数据源（WritableDataSource）

简单，无任何依赖

不保证一致性；规则保存在内存中，重启即消失。严重不建议用于生产环境

Pull 模式

扩展写数据源（WritableDataSource）， 客户端主动向某个规则管理中心定期轮询拉取规则，这个规则中心可以是 RDBMS、文件 等

简单，无任何依赖；规则持久化

不保证一致性；实时性不保证，拉取过于频繁也可能会有性能问题。

Push 模式

扩展读数据源（ReadableDataSource），规则中心统一推送，客户端通过注册监听器的方式时刻监听变化，比如使用 Nacos、Zookeeper 等配置中心。这种方式有更好的实时性和一致性保证。生产环境下一般采用 push 模式的数据源。

规则持久化；一致性；快速

引入第三方依赖

默认我们引入

   <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>

各种规则是默认保存到内存中的，每次项目重启之后规则都会消失不见。在这我们提供两种解决方案。Pull 模式 和 Push 模式

二，方案

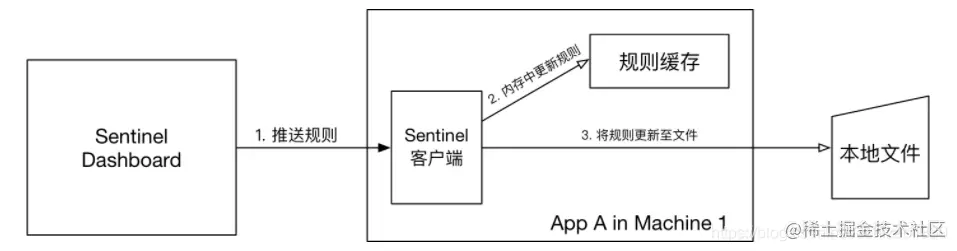

1，Pull 模式 (将各种规则添加进不同的文件中)

​编辑

package com.example.demo.config;

import com.alibaba.csp.sentinel.command.handler.ModifyParamFlowRulesCommandHandler;
import com.alibaba.csp.sentinel.datasource.FileRefreshableDataSource;
import com.alibaba.csp.sentinel.datasource.FileWritableDataSource;
import com.alibaba.csp.sentinel.datasource.ReadableDataSource;
import com.alibaba.csp.sentinel.datasource.WritableDataSource;
import com.alibaba.csp.sentinel.init.InitFunc;
import com.alibaba.csp.sentinel.slots.block.authority.AuthorityRule;
import com.alibaba.csp.sentinel.slots.block.authority.AuthorityRuleManager;
import com.alibaba.csp.sentinel.slots.block.degrade.DegradeRule;
import com.alibaba.csp.sentinel.slots.block.degrade.DegradeRuleManager;
import com.alibaba.csp.sentinel.slots.block.flow.FlowRule;
import com.alibaba.csp.sentinel.slots.block.flow.FlowRuleManager;
import com.alibaba.csp.sentinel.slots.block.flow.param.ParamFlowRule;
import com.alibaba.csp.sentinel.slots.block.flow.param.ParamFlowRuleManager;
import com.alibaba.csp.sentinel.slots.system.SystemRule;
import com.alibaba.csp.sentinel.slots.system.SystemRuleManager;
import com.alibaba.csp.sentinel.transport.util.WritableDataSourceRegistry;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.TypeReference;

import java.io.File;
import java.io.IOException;
import java.util.List;

/**
 * 拉模式规则持久化
 *
 * @author lwc
 */
public class FileDataSourceInit implements InitFunc {

    @Override
    public void init() throws Exception {

        String ruleDir = System.getProperty("user.dir") + "/src/main/resources/sentinel/rules";
        String flowRulePath = ruleDir + "/flow-rule.json";
        String degradeRulePath = ruleDir + "/degrade-rule.json";
        String systemRulePath = ruleDir + "/system-rule.json";
        String authorityRulePath = ruleDir + "/authority-rule.json";
        String paramFlowRulePath = ruleDir + "/param-flow-rule.json";

        this.mkdirIfNotExits(ruleDir);
        this.createFileIfNotExits(flowRulePath);
        this.createFileIfNotExits(degradeRulePath);
        this.createFileIfNotExits(systemRulePath);
        this.createFileIfNotExits(authorityRulePath);
        this.createFileIfNotExits(paramFlowRulePath);

        //流控规则
        ReadableDataSource<String, List<FlowRule>> flowRuleRds = new FileRefreshableDataSource<>(flowRulePath, source -> JSON.parseObject(source, new TypeReference<List<FlowRule>>() {
        })
        );
        //将可读数据源注册至FlowRuleManager 这样当规则文件发生变化时，就会更新规则到内存
        FlowRuleManager.register2Property(flowRuleRds.getProperty());
        WritableDataSource<List<FlowRule>> flowRuleWds = new FileWritableDataSource<>(flowRulePath, JSON::toJSONString);
        //将可写数据源注册至transport模块的WritableDataSourceRegistry中 这样收到控制台推送的规则时，Sentinel会先更新到内存，然后将规则写入到文件中
        WritableDataSourceRegistry.registerFlowDataSource(flowRuleWds);

        //降级规则
        ReadableDataSource<String, List<DegradeRule>> degradeRuleRds = new FileRefreshableDataSource<>(degradeRulePath, source -> JSON.parseObject(source, new TypeReference<List<DegradeRule>>() {
        }));
        DegradeRuleManager.register2Property(degradeRuleRds.getProperty());
        WritableDataSource<List<DegradeRule>> degradeRuleWds = new FileWritableDataSource<>(degradeRulePath, JSON::toJSONString);
        WritableDataSourceRegistry.registerDegradeDataSource(degradeRuleWds);

        //系统规则
        ReadableDataSource<String, List<SystemRule>> systemRuleRds = new FileRefreshableDataSource<>(systemRulePath, source -> JSON.parseObject(source, new TypeReference<List<SystemRule>>() {
        }));
        SystemRuleManager.register2Property(systemRuleRds.getProperty());
        WritableDataSource<List<SystemRule>> systemRuleWds = new FileWritableDataSource<>(systemRulePath, JSON::toJSONString);
        WritableDataSourceRegistry.registerSystemDataSource(systemRuleWds);

        //授权规则
        ReadableDataSource<String, List<AuthorityRule>> authorityRuleRds = new FileRefreshableDataSource<>(authorityRulePath, source -> JSON.parseObject(source, new TypeReference<List<AuthorityRule>>() {
        }));
        AuthorityRuleManager.register2Property(authorityRuleRds.getProperty());
        WritableDataSource<List<AuthorityRule>> authorityRuleWds = new FileWritableDataSource<>(authorityRulePath, JSON::toJSONString);
        WritableDataSourceRegistry.registerAuthorityDataSource(authorityRuleWds);

        //热点参数规则
        ReadableDataSource<String, List<ParamFlowRule>> paramFlowRuleRds = new FileRefreshableDataSource<>(paramFlowRulePath, source -> JSON.parseObject(source, new TypeReference<List<ParamFlowRule>>() {
        }));
        ParamFlowRuleManager.register2Property(paramFlowRuleRds.getProperty());
        WritableDataSource<List<ParamFlowRule>> paramFlowRuleWds = new FileWritableDataSource<>(paramFlowRulePath, JSON::toJSONString);
        ModifyParamFlowRulesCommandHandler.setWritableDataSource(paramFlowRuleWds);
    }

    private void mkdirIfNotExits(String filePath) {
        File file = new File(filePath);
        if (!file.exists()) {
            boolean mkdirs = file.mkdirs();
        }
    }

    private void createFileIfNotExits(String filePath) throws IOException {
        File file = new File(filePath);
        if (!file.exists()) {
            boolean newFile = file.createNewFile();
        }
    }
}

配置加载，这里使用的是 SPI 加载， SPI全称Service Provider Interface，是Java提供的一套用来被第三方实现或者扩展的接口，它可以用来启用框架扩展和替换组件。 SPI的作用就是为这些被扩展的API寻找服务实现。感兴趣的可以去学习学习。

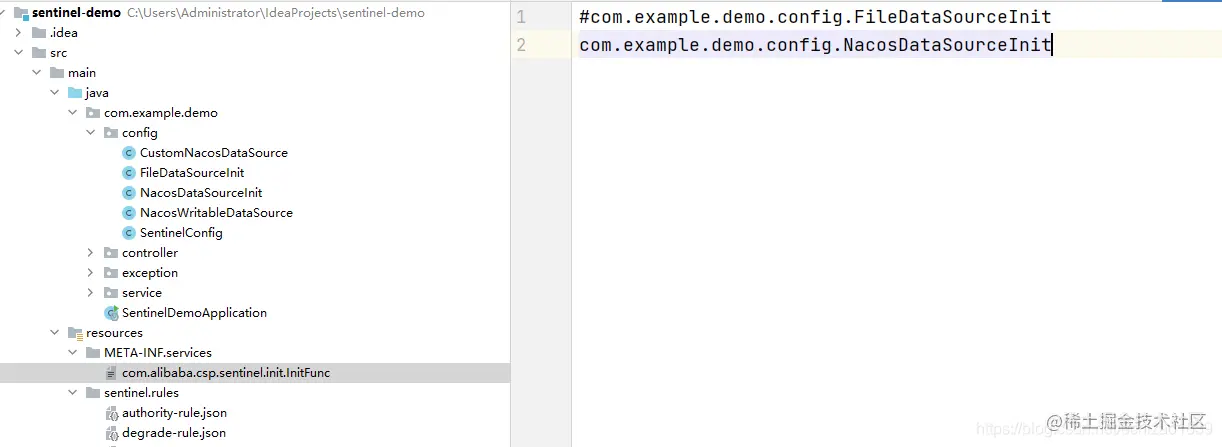

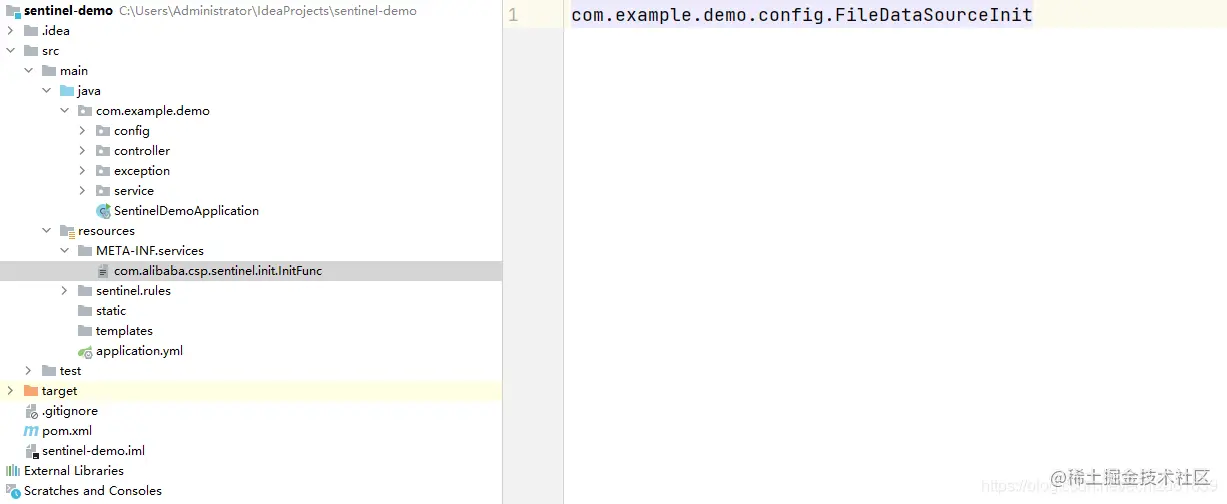

在resources 目录创建 META-INF\services，创建加载文件，文件名为接口名 com.alibaba.csp.sentinel.init.InitFunc ,内容为实现类路径 com.example.demo.config.FileDataSourceInit

​编辑

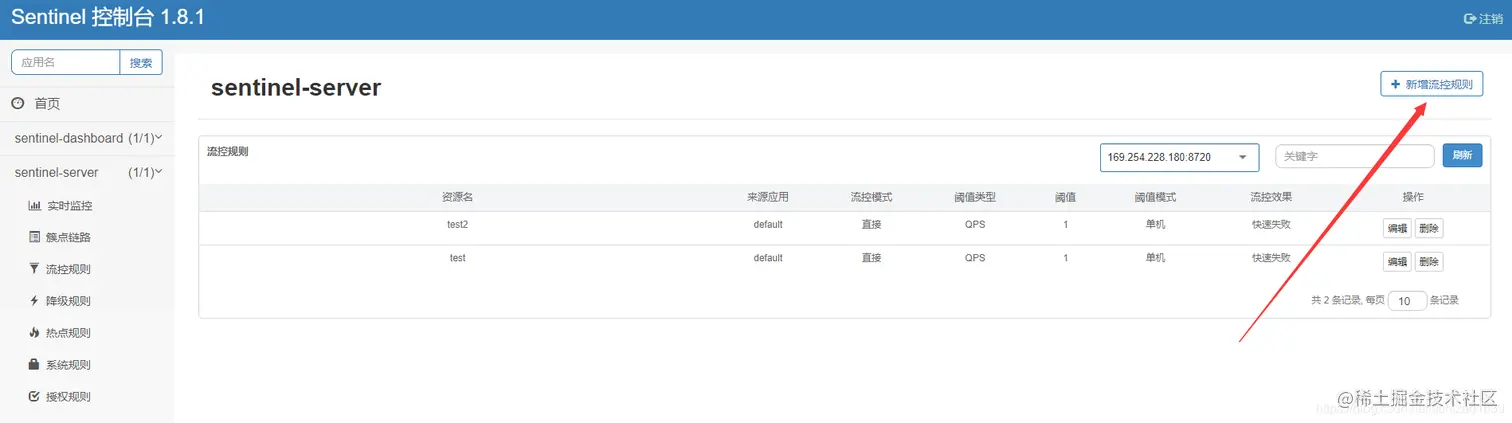

重启项目，添加规则

​编辑

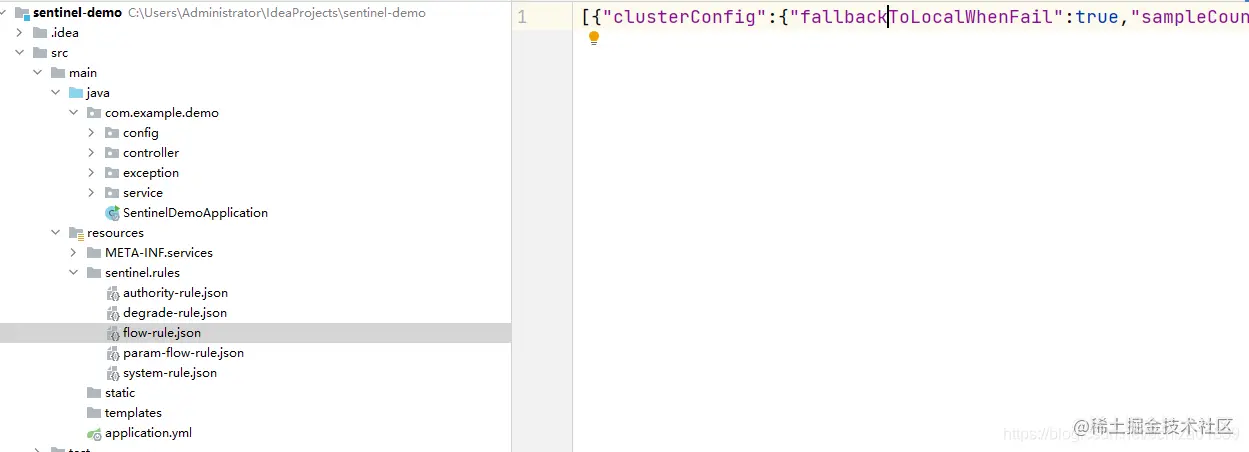

我们发现文件已经创建

​编辑

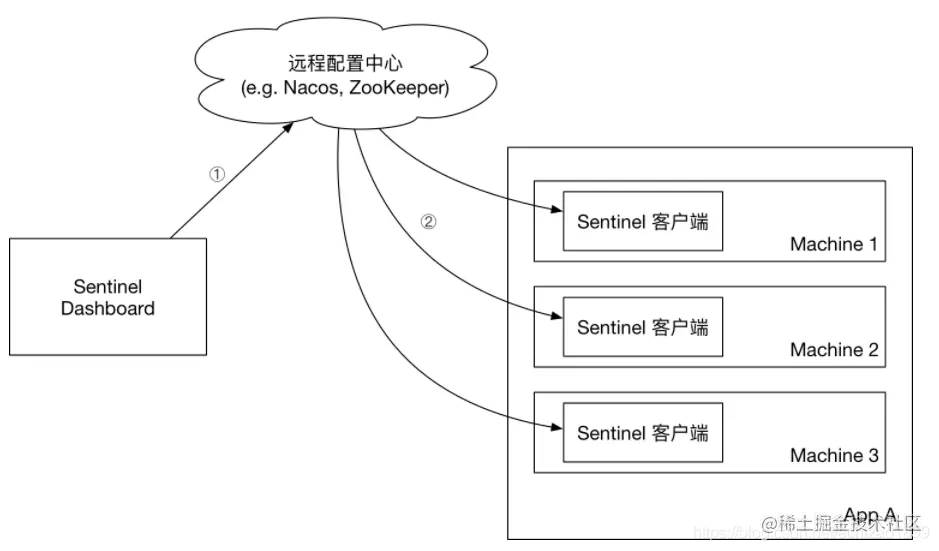

2，Push 模式 (将各种规则添加进nacos)

​编辑

引入依赖

 <dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-datasource-nacos</artifactId>
        </dependency>

package com.example.demo.config;

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//

import com.alibaba.csp.sentinel.concurrent.NamedThreadFactory;
import com.alibaba.csp.sentinel.datasource.AbstractDataSource;
import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.csp.sentinel.log.RecordLog;
import com.alibaba.csp.sentinel.util.AssertUtil;
import com.alibaba.csp.sentinel.util.StringUtil;
import com.alibaba.nacos.api.NacosFactory;
import com.alibaba.nacos.api.config.ConfigService;
import com.alibaba.nacos.api.config.listener.Listener;

import java.util.Properties;
import java.util.concurrent.*;
import java.util.concurrent.ThreadPoolExecutor.DiscardOldestPolicy;

/**
 * @author lwc
 */
public class CustomNacosDataSource<T> extends AbstractDataSource<String, T> {
    private static final int DEFAULT_TIMEOUT = 3000;
    private final ExecutorService pool;
    private final Listener configListener;
    protected final String groupId;
    protected final String dataId;
    private final Properties properties;
    protected ConfigService configService;

    public CustomNacosDataSource(String serverAddr, String groupId, String dataId, Converter<String, T> parser) {
        this(buildProperties(serverAddr), groupId, dataId, parser);
    }

    public CustomNacosDataSource(final Properties properties, final String groupId, final String dataId, Converter<String, T> parser) {
        super(parser);
        this.pool = new ThreadPoolExecutor(1, 1, 0L, TimeUnit.MILLISECONDS, new ArrayBlockingQueue(1), new NamedThreadFactory("sentinel-nacos-ds-update"), new DiscardOldestPolicy());
        this.configService = null;
        if (!StringUtil.isBlank(groupId) && !StringUtil.isBlank(dataId)) {
            AssertUtil.notNull(properties, "Nacos properties must not be null, you could put some keys from PropertyKeyConst");
            this.groupId = groupId;
            this.dataId = dataId;
            this.properties = properties;
            this.configListener = new Listener() {
                @Override
                public Executor getExecutor() {
                    return CustomNacosDataSource.this.pool;
                }

                @Override
                public void receiveConfigInfo(String configInfo) {
                    RecordLog.info(String.format("[CustomNacosDataSource] New property value received for (properties: %s) (dataId: %s, groupId: %s): %s", properties, dataId, groupId, configInfo), new Object[0]);
                    T newValue = CustomNacosDataSource.this.parser.convert(configInfo);
                    CustomNacosDataSource.this.getProperty().updateValue(newValue);
                }
            };
            this.initNacosListener();
            this.loadInitialConfig();
        } else {
            throw new IllegalArgumentException(String.format("Bad argument: groupId=[%s], dataId=[%s]", groupId, dataId));
        }
    }

    private void loadInitialConfig() {
        try {
            T newValue = this.loadConfig();
            if (newValue == null) {
                RecordLog.warn("[CustomNacosDataSource] WARN: initial config is null, you may have to check your data source", new Object[0]);
            }

            this.getProperty().updateValue(newValue);
        } catch (Exception var2) {
            RecordLog.warn("[CustomNacosDataSource] Error when loading initial config", var2);
        }

    }

    private void initNacosListener() {
        try {
            this.configService = NacosFactory.createConfigService(this.properties);
            this.configService.addListener(this.dataId, this.groupId, this.configListener);
        } catch (Exception var2) {
            RecordLog.warn("[CustomNacosDataSource] Error occurred when initializing Nacos data source", var2);
            var2.printStackTrace();
        }

    }

    @Override
    public String readSource() throws Exception {
        if (this.configService == null) {
            throw new IllegalStateException("Nacos config service has not been initialized or error occurred");
        } else {
            return this.configService.getConfig(this.dataId, this.groupId, 3000L);
        }
    }

    @Override
    public void close() {
        if (this.configService != null) {
            this.configService.removeListener(this.dataId, this.groupId, this.configListener);
        }

        this.pool.shutdownNow();
    }

    private static Properties buildProperties(String serverAddr) {
        Properties properties = new Properties();
        properties.setProperty("serverAddr", serverAddr);
        return properties;
    }
}

package com.example.demo.config;

import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.csp.sentinel.datasource.WritableDataSource;

import java.util.concurrent.locks.Lock;
import java.util.concurrent.locks.ReentrantLock;

/**
 * @author lwc
 */
public class NacosWritableDataSource<T> extends CustomNacosDataSource implements WritableDataSource<T> {

    private final Lock lock = new ReentrantLock(true);

    private final Converter<T, String> configEncoder;

    public NacosWritableDataSource(String serverAddr, String groupId, String dataId, Converter<T, String> configEncoder) {
        super(serverAddr, groupId, dataId, configEncoder);
        this.configEncoder = configEncoder;
    }

    @Override
    public void write(T value) throws Exception {
        lock.lock();
        try {
            String convertResult = configEncoder.convert(value);
            configService.publishConfig(dataId, groupId, convertResult);
        } finally {
            lock.unlock();
        }
    }

    @Override
    public void close() {
        super.close();
    }
}

package com.example.demo.config;

import com.alibaba.csp.sentinel.command.handler.ModifyParamFlowRulesCommandHandler;
import com.alibaba.csp.sentinel.datasource.ReadableDataSource;
import com.alibaba.csp.sentinel.datasource.WritableDataSource;
import com.alibaba.csp.sentinel.init.InitFunc;
import com.alibaba.csp.sentinel.slots.block.authority.AuthorityRule;
import com.alibaba.csp.sentinel.slots.block.authority.AuthorityRuleManager;
import com.alibaba.csp.sentinel.slots.block.degrade.DegradeRule;
import com.alibaba.csp.sentinel.slots.block.degrade.DegradeRuleManager;
import com.alibaba.csp.sentinel.slots.block.flow.FlowRule;
import com.alibaba.csp.sentinel.slots.block.flow.FlowRuleManager;
import com.alibaba.csp.sentinel.slots.block.flow.param.ParamFlowRule;
import com.alibaba.csp.sentinel.slots.block.flow.param.ParamFlowRuleManager;
import com.alibaba.csp.sentinel.slots.system.SystemRule;
import com.alibaba.csp.sentinel.slots.system.SystemRuleManager;
import com.alibaba.csp.sentinel.transport.util.WritableDataSourceRegistry;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.TypeReference;

import java.util.List;

/**
 * @author lwc
 */
public class NacosDataSourceInit implements InitFunc {

    private static final String SERVER_ADDR = "localhost:8848";
    private static final String GROUP_ID = "RENREN_CLOUD_GROUP";
    private static final String FLOW_DATA_ID = "sentinel-flow-rule.json";
    private static final String AUTHORITY_DATA_ID = "sentinel-authority-rule.json";
    private static final String DEGRADE_DATA_ID = "sentinel-degrade-rule.json";
    private static final String PARAM_DATA_ID = "sentinel-param-flow-rule.json";
    private static final String SYSTEM_DATA_ID = "sentinel-system-rule.json";

    @Override
    public void init() {

        //流控规则
        ReadableDataSource<String, List<FlowRule>> flowRuleDataSource = new CustomNacosDataSource<>(SERVER_ADDR, GROUP_ID, FLOW_DATA_ID, source -> JSON.parseObject(source, new TypeReference<List<FlowRule>>() {
        }));
        FlowRuleManager.register2Property(flowRuleDataSource.getProperty());

        WritableDataSource<List<FlowRule>> writableFlowRuleDataSource = new NacosWritableDataSource<>(SERVER_ADDR, GROUP_ID, FLOW_DATA_ID, JSON::toJSONString);
        WritableDataSourceRegistry.registerFlowDataSource(writableFlowRuleDataSource);

        //降级规则
        ReadableDataSource<String, List<DegradeRule>> degradeRuleDataSource = new CustomNacosDataSource<>(SERVER_ADDR, GROUP_ID, DEGRADE_DATA_ID, source -> JSON.parseObject(source, new TypeReference<List<DegradeRule>>() {
        }));
        DegradeRuleManager.register2Property(degradeRuleDataSource.getProperty());

        WritableDataSource<List<DegradeRule>> writableDegradeRuleDataSource = new NacosWritableDataSource<>(SERVER_ADDR, GROUP_ID, DEGRADE_DATA_ID, JSON::toJSONString);
        WritableDataSourceRegistry.registerDegradeDataSource(writableDegradeRuleDataSource);

        //系统规则
        ReadableDataSource<String, List<SystemRule>> systemRuleDataSource = new CustomNacosDataSource<>(SERVER_ADDR, GROUP_ID, SYSTEM_DATA_ID, source -> JSON.parseObject(source, new TypeReference<List<SystemRule>>() {
        }));
        SystemRuleManager.register2Property(systemRuleDataSource.getProperty());

        WritableDataSource<List<SystemRule>> writableSystemRuleDataSource = new NacosWritableDataSource<>(SERVER_ADDR, GROUP_ID, SYSTEM_DATA_ID, JSON::toJSONString);
        WritableDataSourceRegistry.registerSystemDataSource(writableSystemRuleDataSource);

        //授权规则
        ReadableDataSource<String, List<AuthorityRule>> authorityRuleDataSource = new CustomNacosDataSource<>(SERVER_ADDR, GROUP_ID, AUTHORITY_DATA_ID, source -> JSON.parseObject(source, new TypeReference<List<AuthorityRule>>() {
        }));
        AuthorityRuleManager.register2Property(authorityRuleDataSource.getProperty());

        WritableDataSource<List<AuthorityRule>> writableAuthorityRuleDataSource = new NacosWritableDataSource<>(SERVER_ADDR, GROUP_ID, FLOW_DATA_ID, JSON::toJSONString);
        WritableDataSourceRegistry.registerAuthorityDataSource(writableAuthorityRuleDataSource);

        //热点参数规则
        ReadableDataSource<String, List<ParamFlowRule>> paramFlowRuleDataSource = new CustomNacosDataSource<>(SERVER_ADDR, GROUP_ID, PARAM_DATA_ID, source -> JSON.parseObject(source, new TypeReference<List<ParamFlowRule>>() {
        }));
        ParamFlowRuleManager.register2Property(paramFlowRuleDataSource.getProperty());

        WritableDataSource<List<ParamFlowRule>> writableParamFlowRuleDataSource = new NacosWritableDataSource<>(SERVER_ADDR, GROUP_ID, PARAM_DATA_ID, JSON::toJSONString);
        ModifyParamFlowRulesCommandHandler.setWritableDataSource(writableParamFlowRuleDataSource);

    }
}

指定加载

​编辑

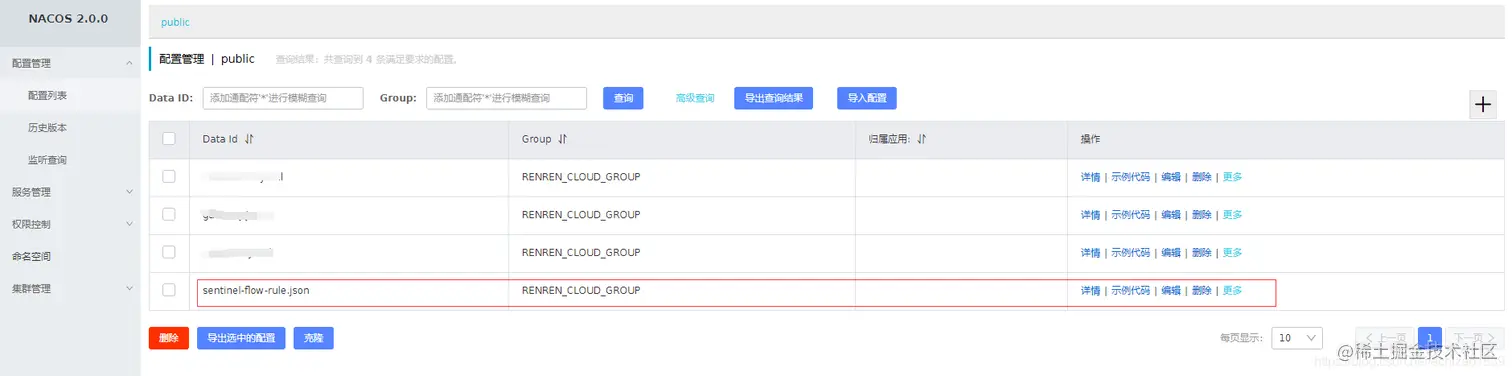

去nacos 创建文件

​编辑

去sentinel 添加规则

​编辑

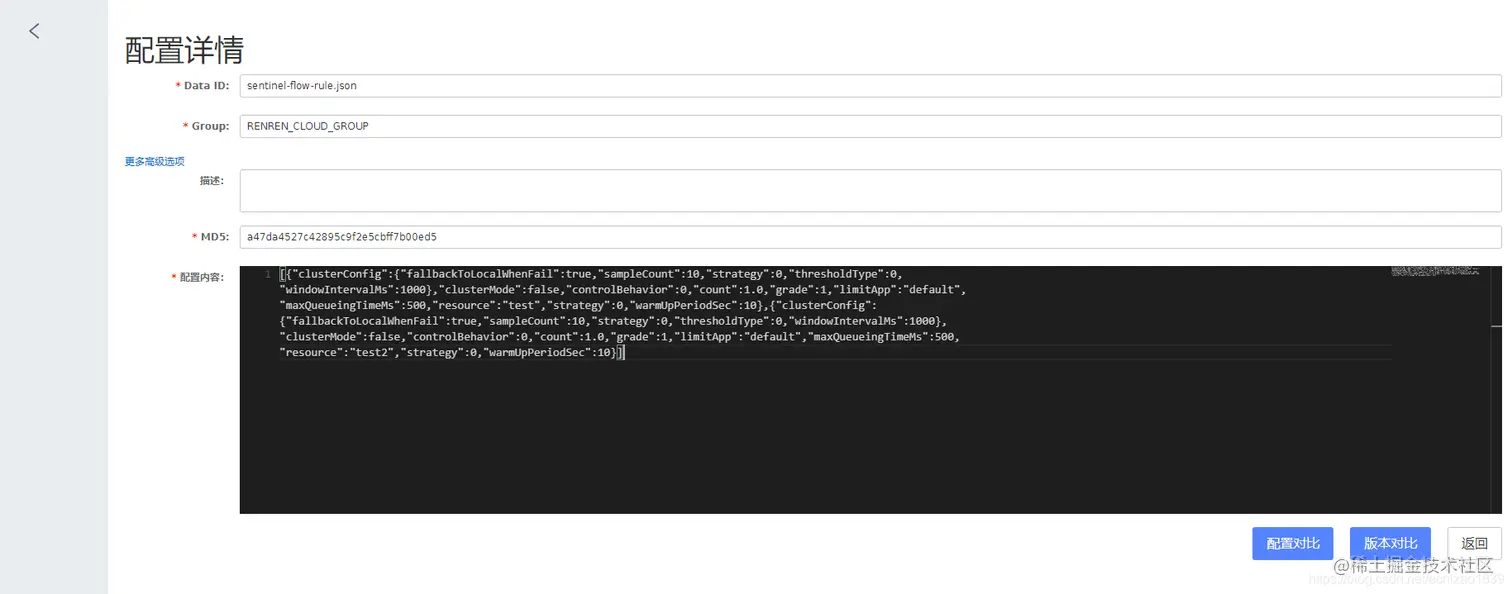

去nacos查看，发现数据已经更新

​编辑

项目地址：李文超/sentinel-demo-test

3，直接修改sentinel 面板端源码，添加按按钮或者直接修改保存按钮，把数据同步到nacos等地方 源码重新打包

这种方法网上解决方案较多，这里不再赘述。

​
