1，准备3台 2核4G的虚拟机
k8s-master 172.18.245.85
k8s-work01 172.22.202.116
k8s-work02 172.22.202.117
三台机器需要保证IP相互都能ping通
2，更新一下yum源
yum -y update
yum install -y conntrack ipvsadm ipset jq sysstat curl iptables libseccomp
3，安装Docker环境
查看docker版本：
[root@hostname-B ~]# docker version
Client: Docker Engine - Community
Version: 20.10.17
API version: 1.41
Go version: go1.17.11
Git commit: 100c701
Built: Mon Jun 6 23:05:12 2022
OS/Arch: linux/amd64
Context: default
Experimental: true
Server: Docker Engine - Community
Engine:
Version: 20.10.17
API version: 1.41 (minimum version 1.12)
Go version: go1.17.11
Git commit: a89b842
Built: Mon Jun 6 23:03:33 2022
OS/Arch: linux/amd64
Experimental: false
containerd:
Version: 1.6.8
GitCommit: 9cd3357b7fd7218e4aec3eae239db1f68a5a6ec6
runc:
Version: 1.1.4
GitCommit: v1.1.4-0-g5fd4c4d
docker-init:
Version: 0.19.0
GitCommit: de40ad0
4，修改host文件
三台机器上各自执行以下命令：
k8s-master：sudo hostnamectl set-hostname m
k8s-work01：sudo hostnamectl set-hostname w1
k8s-work02：sudo hostnamectl set-hostname w2
然后在每台机器上修改host文件：
vi /etc/hosts
172.18.245.85 m
172.22.202.116 w1
172.22.202.117 w2
然后相互ping每个hostname通过。
5，前置配置
1，关闭防火墙
systemctl stop firewalld && systemctl disable firewalld
2，关闭selinux
setenforce 0
sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config
3，关闭swap
swapoff -a
sed -i '/swap/s/^\(.*\)$/#\1/g' /etc/fstab
4，配置iptables的ACCEPT规则
iptables -F && iptables -X && iptables -F -t nat && iptables -X -t nat && iptables -P FORWARD ACCEPT
5，将桥接的IPv4流量传递到iptables的链
cat > /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system
6，Installing kubeadm, kubelet and kubectl
cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
查看kubeadm版本
yum list kubeadm --showduplicates | sort -r
安装
yum install -y kubelet-1.23.0 kubeadm-1.23.0 kubectl-1.23.0
systemctl enable kubelet
7，将docker和k8s设置为同一个cgroup
# docker
vi /etc/docker/daemon.json
增加："exec-opts": ["native.cgroupdriver=systemd"],
最终daemon.json如下：
{
"exec-opts": ["native.cgroupdriver=systemd"],
"registry-mirrors": [
"https://b9pmyelo.mirror.aliyuncs.com"
]
}
注意：如果registry-mirrors都链接不能用了，要及时更新一下，记得是去阿里云哪个地方去找，找不到在网上找一个最新的能访问的也行。
然后：
systemctl daemon-reload
systemctl restart docker
# kubelet
sed -i "s/cgroup-driver=systemd/cgroup-driver=cgroupfs/g" /etc/systemd/system/kubelet.service.d/10-kubeadm.conf
这句命令的意思是： 检验kubelet的cgroup的方式是否为systemd，如果不是，就修改，如果是，就找不到文件。
所以如果报No such file or directory 也没关系。
systemctl enable kubelet && systemctl start kubelet
8，拉取proxy/pause/scheduler等镜像
1,查看kubeadm使用的镜像
[root@hostname-B system]# kubeadm config images list
k8s.gcr.io/kube-apiserver:v1.23.10
k8s.gcr.io/kube-controller-manager:v1.23.10
k8s.gcr.io/kube-scheduler:v1.23.10
k8s.gcr.io/kube-proxy:v1.23.10
k8s.gcr.io/pause:3.6
k8s.gcr.io/etcd:3.5.1-0
k8s.gcr.io/coredns/coredns:v1.8.6
2，解决国外镜像不能访问的问题
创建kubeadm.sh脚本，用于拉取镜像/打tag/删除原有镜像，在三台机器上都执行一下。
-------------------------------脚本start-------------------------
#!/bin/bash
set -e
KUBE_VERSION=v1.23.10
KUBE_PAUSE_VERSION=3.6
ETCD_VERSION=3.5.1-0
CORE_DNS_VERSION=v1.8.6
GCR_URL=k8s.gcr.io
ALIYUN_URL=registry.cn-hangzhou.aliyuncs.com/google_containers
images=(kube-proxy:${KUBE_VERSION}
kube-scheduler:${KUBE_VERSION}
kube-controller-manager:${KUBE_VERSION}
kube-apiserver:${KUBE_VERSION}
pause:${KUBE_PAUSE_VERSION}
etcd:${ETCD_VERSION}
coredns:${CORE_DNS_VERSION})
for imageName in ${images[@]} ; do
docker pull $ALIYUN_URL/$imageName
docker tag $ALIYUN_URL/$imageName $GCR_URL/$imageName
docker rmi $ALIYUN_URL/$imageName
done
-------------------------------脚本end-------------------------
拉取完镜像后查询一下，看看是不是7个
[root@hostname-B k8s]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
k8s.gcr.io/kube-apiserver v1.25.0 4d2edfd10d3e 12 days ago 128MB
k8s.gcr.io/kube-scheduler v1.25.0 bef2cf311509 12 days ago 50.6MB
k8s.gcr.io/kube-controller-manager v1.25.0 1a54c86c03a6 12 days ago 117MB
k8s.gcr.io/kube-proxy v1.25.0 58a9a0c6d96f 12 days ago 61.7MB
k8s.gcr.io/pause 3.8 4873874c08ef 2 months ago 711kB
k8s.gcr.io/etcd 3.5.4-0 a8a176a5d5d6 3 months ago 300MB
k8s.gcr.io/coredns v1.9.3 5185b96f0bec 3 months ago 48.8MB
9，kube init初始化master
kubeadm init \
--apiserver-advertise-address=172.18.245.85 \
--image-repository registry.aliyuncs.com/google_containers \
--pod-network-cidr=10.244.0.0/16 \
--service-cidr=10.96.0.0/12

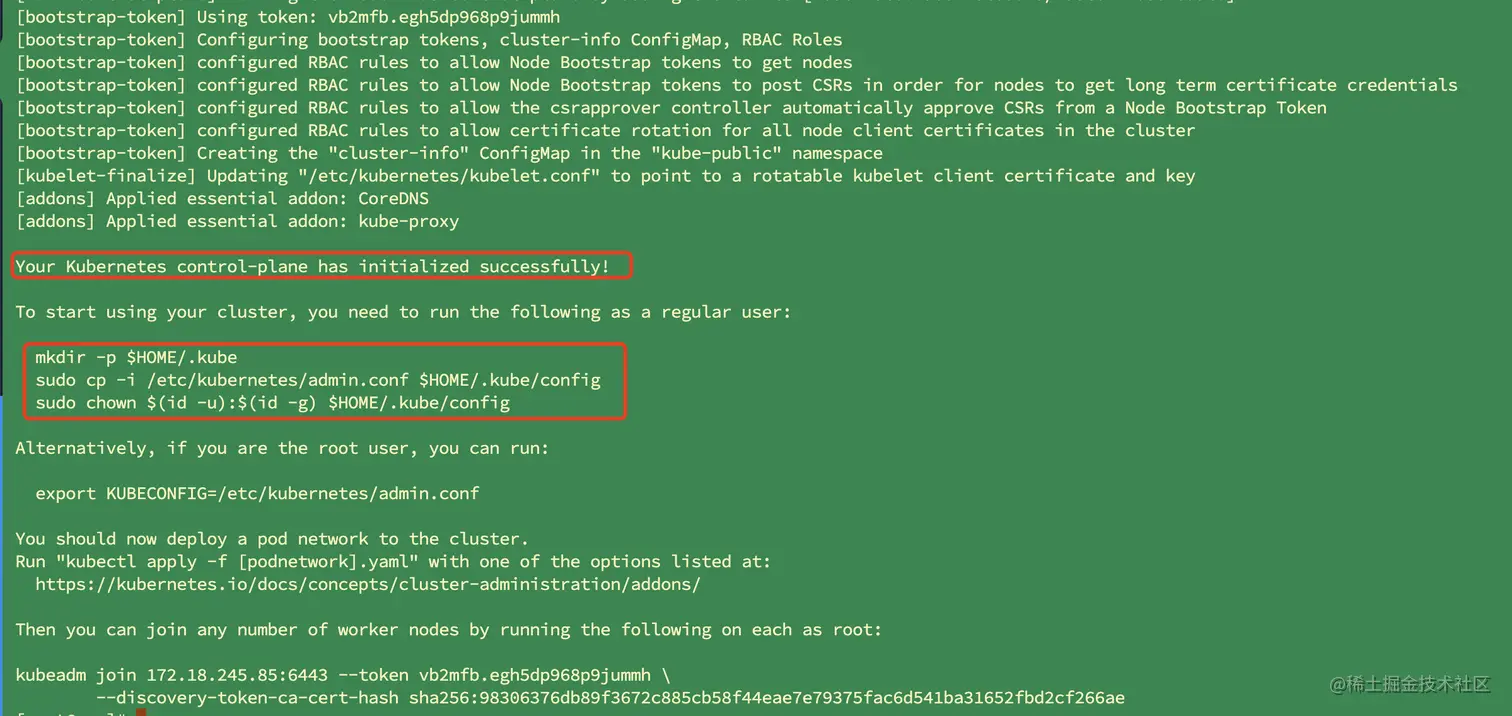

成功了！
这个时候需要配置一下：
master机器：
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
echo 'export KUBECONFIG=$HOME/.kube/config' >> $HOME/.bashrc
source ~/.bashrc
10，在master上安装flannel网络插件 (用calico也是可以的哈)
下载flannel插件的yml
wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
修改kube-flannel.yml中的镜像仓库地址为国内源
sed -i 's/quay.io/quay-mirror.qiniu.com/g' kube-flannel.yml
安装网络插件
kubectl apply -f kube-flannel.yml
11，两个worker节点都执行 kubeadm join
kubeadm join 172.18.245.85:6443 --token vb2mfb.egh5dp968p9jummh \
--discovery-token-ca-cert-hash sha256:98306376db89f3672c885cb58f44eae7e79375fac6d541ba31652fbd2cf266ae
然后在master上执行 ： kubectl get nodes
[root@m flannel]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
m Ready control-plane,master 28m v1.23.0
w1 Ready <none> 7m16s v1.23.0
w2 Ready <none> 6m56s v1.23.0
如果w1和w2是 NOT Ready,则就重新执行以下命令：
systemctl daemon-reload
systemctl restart docker
systemctl restart kubelet
这样就成功了！

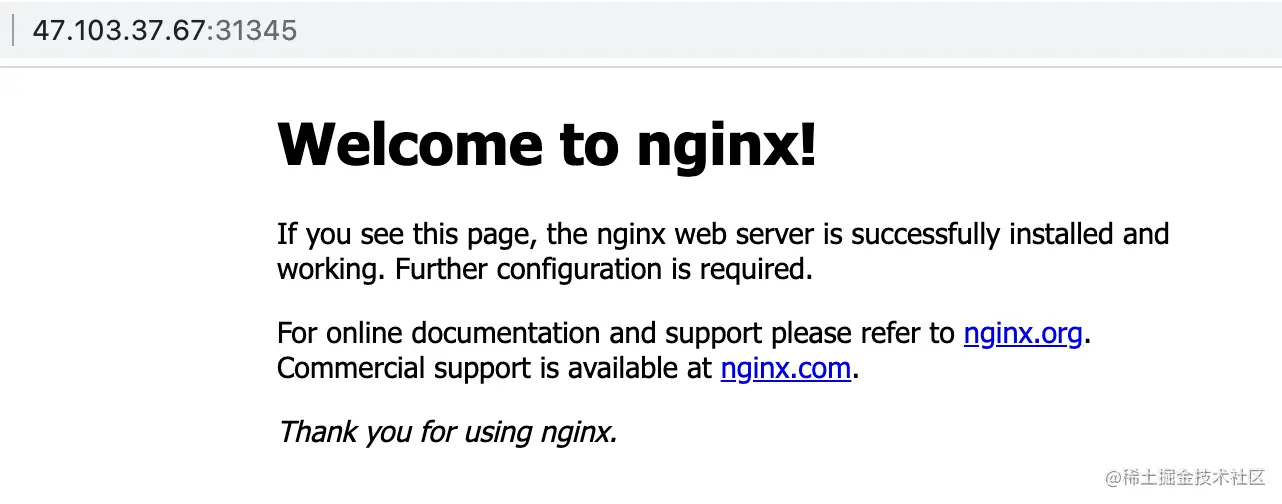

12，测试安装nginx，
kubectl create deployment nginx --image=nginx
kubectl expose deployment nginx --port=80 --type=NodePort
查询
执行：kubectl get pod,svc
[root@m flannel]# kubectl get pod,svc
NAME READY STATUS RESTARTS AGE
pod/nginx-85b98978db-lwbhs 0/1 ContainerCreating 0 11s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 37m
service/nginx NodePort 10.100.222.221 <none> 80:31345/TCP 5s
