如何通过虚拟DOM更新页面？

<div id="app">
  <p>hello world</p>
  <Rate :value="4"></Rate>
</div>

会被解析成:

function render(){
  return h('div',{id:"app"},children:[
    h('p',{},'hello world'),
    h(Rate,{value:4}),
  ])
}

createVNode创建虚拟DOM, 通过type props children 等属性描述整个节点:

const vnode = createVNode(
  rootComponent as ConcreteComponent,
  rootProps
)
function _createVNode() {

  // 处理属性和class
  if (props) {
    ...
  }

  // 标记vnode信息
  const shapeFlag = isString(type)
    ? ShapeFlags.ELEMENT
    : __FEATURE_SUSPENSE__ && isSuspense(type)
    ? ShapeFlags.SUSPENSE
    : isTeleport(type)
    ? ShapeFlags.TELEPORT
    : isObject(type)
    ? ShapeFlags.STATEFUL_COMPONENT
    : isFunction(type)
    ? ShapeFlags.FUNCTIONAL_COMPONENT
    : 0

  return createBaseVNode(
    type,
    props,
    children,
    patchFlag,
    dynamicProps,
    shapeFlag,
    isBlockNode,
    true
  )
}

function createBaseVNode(type,props,children,...){
    const vnode = {
    type,
    props,
    key: props && normalizeKey(props),
    ref: props && normalizeRef(props),
    children,
    shapeFlag,
    patchFlag,
    dynamicProps,
     ...
  } as VNode
  // 标准化子节点
  if (needFullChildrenNormalization) {
    normalizeChildren(vnode, children)
  } else if (children) {
    vnode.shapeFlag |= isString(children)
      ? ShapeFlags.TEXT_CHILDREN
      : ShapeFlags.ARRAY_CHILDREN
  }
  return vnode
}componentUpdateFn

更新:

const componentUpdateFn = ()=>{
  if (!instance.isMounted) {
      //首次渲染
      instance,
        parentSuspense,
        isSVG
      )
      。。。
  }else{
    let { next, bu, u, parent, vnode } = instance
    if (next) {
      next.el = vnode.el
      updateComponentPreRender(instance, next, optimized)
    } else {
      next = vnode
    }
    const nextTree = renderComponentRoot(instance)
      patch(
        prevTree,
        nextTree,
        // parent may have changed if it's in a teleport
        hostParentNode(prevTree.el!)!,
        // anchor may have changed if it's in a fragment
        getNextHostNode(prevTree),
        instance,
        parentSuspense,
        isSVG
      )
    }
}

// 注册effect函数
const effect = new ReactiveEffect(
  componentUpdateFn,
  () => queueJob(instance.update),
  instance.scope // track it in component's effect scope
)
const update = (instance.update = effect.run.bind(effect) as S      chedulerJob)
update()

  const updateComponentPreRender = (
    instance: ComponentInternalInstance,
    nextVNode: VNode,
    optimized: boolean
  ) => {
    nextVNode.component = instance
    const prevProps = instance.vnode.props
    instance.vnode = nextVNode
    instance.next = null
    updateProps(instance, nextVNode.props, prevProps, optimized)
    updateSlots(instance, nextVNode.children, optimized)

    pauseTracking()
    // props update may have triggered pre-flush watchers.
    // flush them before the render update.
    flushPreFlushCbs(undefined, instance.update)
    resetTracking()
  }

更新以后就不是首次渲染了, 如何判断?

shouldUpdateComponent判断组件是否需要更新, 实际执行的是instance.update

const instance = (n2.component = n1.component)!
if (shouldUpdateComponent(n1, n2, optimized)) {

  // normal update
  instance.next = n2
  // in case the child component is also queued, remove it to avoid
  // double updating the same child component in the same flush.
  invalidateJob(instance.update)
  // instance.update is the reactive effect.
  instance.update()

} else {
  // no update needed. just copy over properties
  n2.component = n1.component
  n2.el = n1.el
  instance.vnode = n2
}

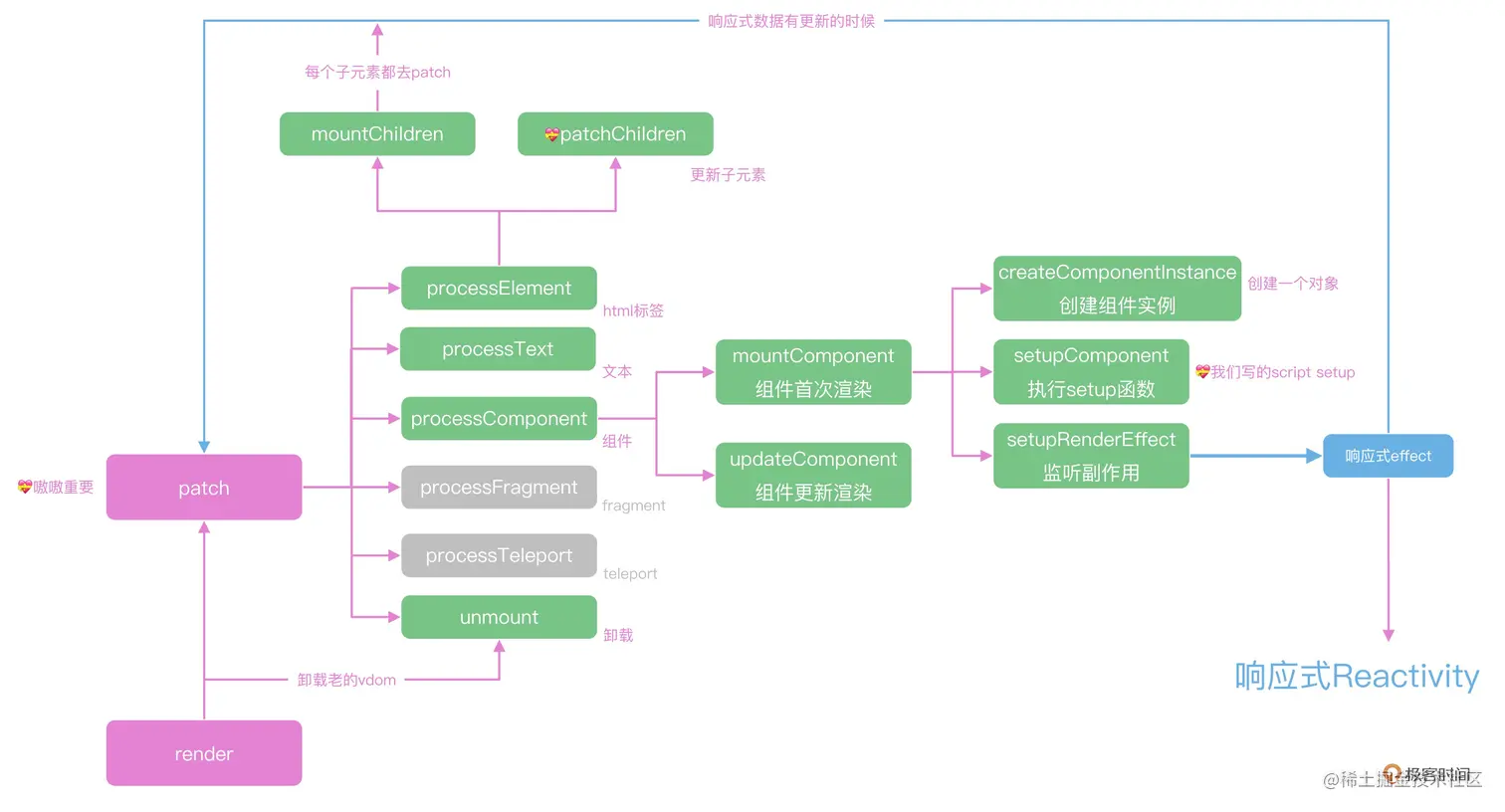

组件的子元素是由HTML标签和组件构成的, 组件内部的递归处理最终也是对HTML标签的处理, 所以, 最后组件的更新都会进到processElement 内部的patchElement函数(更新节点自己的属性和更新子元素)中

节点自身属性的更新: patchFlag 做到按需更新

• 如果标记了FULL_PROPS, 就直接调用patchProps

• 如果标记了CLASS, 说明节点只有class属性是动态的, 其他的style等属性都不需要进行判断和DOM操作

  const patchElement = ( n1: VNode, n2: VNode, parentComponent: ComponentInternalInstance | null, parentSuspense: SuspenseBoundary | null, isSVG: boolean, slotScopeIds: string[] | null, optimized: boolean ) => { const el = (n2.el = n1.el!) let { patchFlag, dynamicChildren, dirs } = n2 patchFlag |= n1.patchFlag & PatchFlags.FULL_PROPS

  const oldProps = n1.props || EMPTY_OBJ
  const newProps = n2.props || EMPTY_OBJ

  // full diff
  patchChildren(
    n1,
    n2,
    el,
    null,
    parentComponent,
    parentSuspense,
    areChildrenSVG,
    slotScopeIds,
    false
  )

  if (patchFlag > 0) {

    if (patchFlag & PatchFlags.FULL_PROPS) {
      patchProps(
        el,
        n2,
        oldProps,
        newProps,
        parentComponent,
        parentSuspense,
        isSVG
      )
    } else {
      // class是动态的
      if (patchFlag & PatchFlags.CLASS) {
        if (oldProps.class !== newProps.class) {
          hostPatchProp(el, 'class', null, newProps.class, isSVG)
        }
      }

      // style样式是动态的
      if (patchFlag & PatchFlags.STYLE) {
        hostPatchProp(el, 'style', oldProps.style, newProps.style, isSVG)
      }

      // 属性需要diff
      if (patchFlag & PatchFlags.PROPS) {
        //
        const propsToUpdate = n2.dynamicProps!
        for (let i = 0; i < propsToUpdate.length; i++) {
          const key = propsToUpdate[i]
          const prev = oldProps[key]
          const next = newProps[key]
          // #1471 force patch value
          if (next !== prev || key === 'value') {
            hostPatchProp(
              el,
              key,
              prev,
              next,
              isSVG,
              n1.children as VNode[],
              parentComponent,
              parentSuspense,
              unmountChildren
            )
          }
        }
      }
    }
    //文本是动态的
    if (patchFlag & PatchFlags.TEXT) {
      if (n1.children !== n2.children) {
        hostSetElementText(el, n2.children as string)
      }
    }
  }


  }

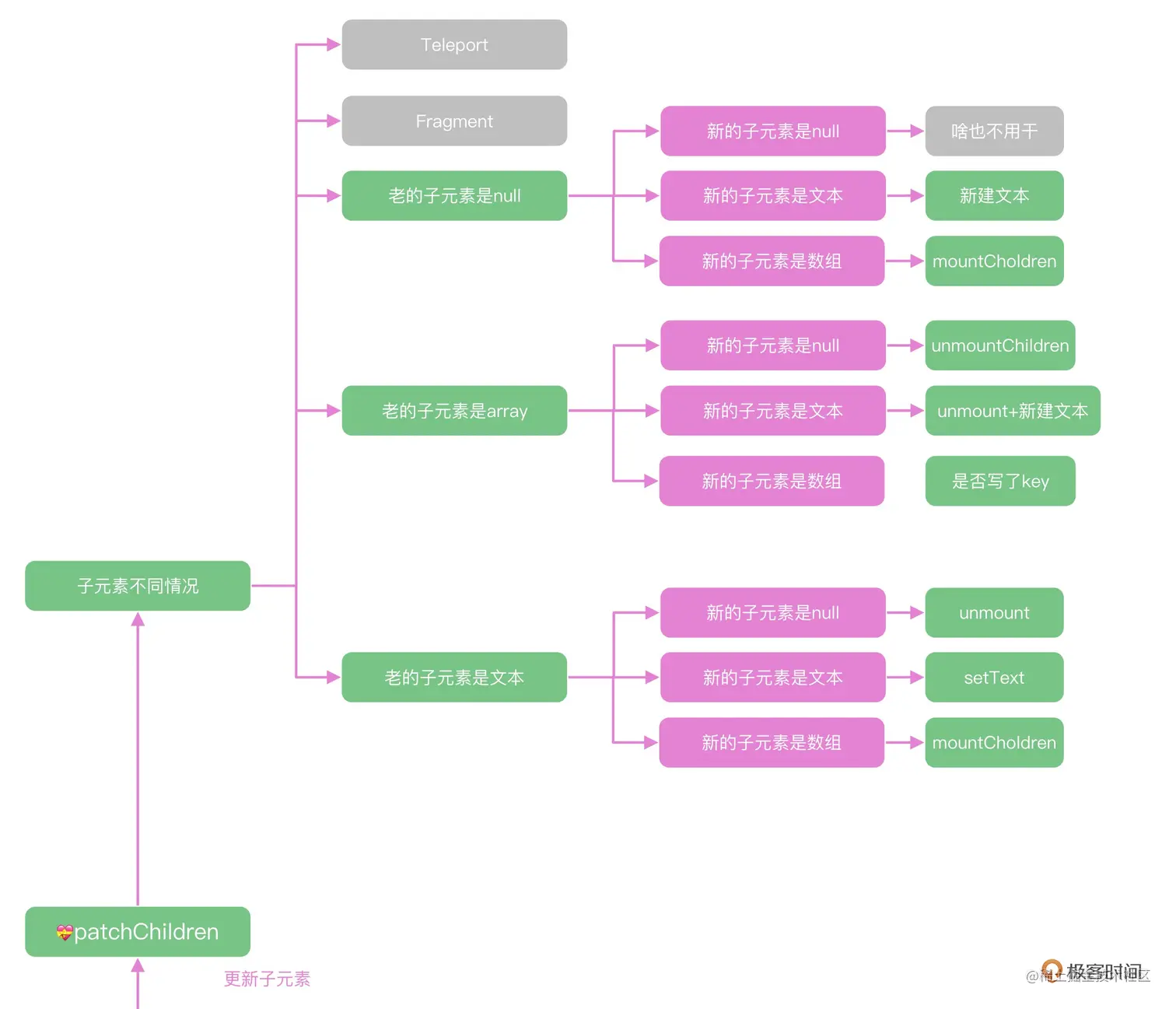

子元素的更新: patchChildren函数

• 如果新的子元素是空, 老的子元素不为空, 直接卸载unmount 即可
• 如果新的子元素不为空, 老的子元素是空, 直接创建加载即可
• 如果新的子元素是文本, 老的子元素如果是数组就需要全部unmount, 是文本的话就需要执行hostSetElementText
• 如果新的子元素是数组, 比如是使用v-for渲染出的列表, 老的子元素如果是空或者文本, 直接unmount后, 渲染新的数组即可

    最复杂的莫过于新的子元素和老的子元素都是数组

patchChildren函数, 判断出复用的DOM元素

 const patchChildren: PatchChildrenFn = (
    n1,
    n2,
    container,
    anchor,
    parentComponent,
    parentSuspense,
    isSVG,
    slotScopeIds,
    optimized = false
  ) => {
    const c1 = n1 && n1.children
    const prevShapeFlag = n1 ? n1.shapeFlag : 0
    const c2 = n2.children

    const { patchFlag, shapeFlag } = n2
    // fast path
    if (patchFlag > 0) {
      if (patchFlag & PatchFlags.KEYED_FRAGMENT) {
        // this could be either fully-keyed or mixed (some keyed some not)
        // presence of patchFlag means children are guaranteed to be arrays
        patchKeyedChildren(
          c1 as VNode[],
          c2 as VNodeArrayChildren,
          container,
          anchor,
          parentComponent,
          parentSuspense,
          isSVG,
          slotScopeIds,
          optimized
        )
        return
      } else if (patchFlag & PatchFlags.UNKEYED_FRAGMENT) {
        // unkeyed
        patchUnkeyedChildren(
          c1 as VNode[],
          c2 as VNodeArrayChildren,
          container,
          anchor,
          parentComponent,
          parentSuspense,
          isSVG,
          slotScopeIds,
          optimized
        )
        return
      }
    }

    // children has 3 possibilities: text, array or no children.
    if (shapeFlag & ShapeFlags.TEXT_CHILDREN) {
      // text children fast path
      if (prevShapeFlag & ShapeFlags.ARRAY_CHILDREN) {
        unmountChildren(c1 as VNode[], parentComponent, parentSuspense)
      }
      if (c2 !== c1) {
        hostSetElementText(container, c2 as string)
      }
    } else {
      if (prevShapeFlag & ShapeFlags.ARRAY_CHILDREN) {
        // prev children was array
        if (shapeFlag & ShapeFlags.ARRAY_CHILDREN) {
          // two arrays, cannot assume anything, do full diff
          patchKeyedChildren(
            c1 as VNode[],
            c2 as VNodeArrayChildren,
            container,
            anchor,
            parentComponent,
            parentSuspense,
            isSVG,
            slotScopeIds,
            optimized
          )
        } else {
          // no new children, just unmount old
          unmountChildren(c1 as VNode[], parentComponent, parentSuspense, true)
        }
      } else {
        // prev children was text OR null
        // new children is array OR null
        if (prevShapeFlag & ShapeFlags.TEXT_CHILDREN) {
          hostSetElementText(container, '')
        }
        // mount new if array
        if (shapeFlag & ShapeFlags.ARRAY_CHILDREN) {
          mountChildren(
            c2 as VNodeArrayChildren,
            container,
            anchor,
            parentComponent,
            parentSuspense,
            isSVG,
            slotScopeIds,
            optimized
          )
        }
      }
    }
  }

patchChildren: 尽可能少的更新次数, 来实现从老的子元素到新的子元素的更新

在 React 中，这种场景的处理逻辑是先进行循环，使用的是单侧插入的算法，我们在排队的时候挨个对比，如果你站我右边，并且个头比我高一点，说明咱俩的相对位置和最终队伍的位置是一致的，暂时不需要变化，如果你比我个头矮，就需要去我左边找到一个正确的位置插队进去。

由于都只向单侧插入，最后我们就会把所有的节点移动到正确的位置之上，这就是 React15 框架内虚拟节点 diff 的逻辑，初步实现了 DOM 的复用；而 Vue 2 借鉴了 snabbdom 的算法，在此基础上做了第一层双端对比的优化。

比如，在下面的例子中，新的节点就是在老的节点中新增和删除了几个元素，我们在循环之前，先进行头部元素的判断。在这个例子里，可以预判出头部元素的 a、b、c、d 是一样的节点，说明节点不需要重新创建，我们只需要进行属性的更新，然后进行队尾元素的预判，可以判断出 g 和元素也是一样的：

a b c d e f g h
a b c d i f j g h

这样我们虚拟 DOM diff 的逻辑就变成了下面的结构, 现在只需要比较 ef 和 ifg 的区别：

(a b c d) e f (g h)
(a b c) d) i f j (g h)

而且，有很多场景比如新增一行或者删除一行的简单场景，预判完毕之后，新老元素有一个处于没有元素的状态，我们就可以直接执行 mount 或者 unmout 完成对比的全过程，不需要再进行复杂的遍历：

(a b c d)
(a b c d) e

(a b c) d
(a b c
