- 运行该 SQL，如 q38，并截图该 SQL 的 SQL 执行图
- 该 SQL 用到了哪些优化规则（optimizer rules）
- 请各用不少于 200 字描述其中的两条优化规则
- SQL 从中任意选择一条：
SELECT count(*) | |
| --------------- | -------------------------------------------------------------- |
| | FROM ( |
| | SELECT DISTINCT |
| | c_last_name, |
| | c_first_name, |
| | d_date |
| | FROM store_sales, date_dim, customer |
| | WHERE store_sales.ss_sold_date_sk = date_dim.d_date_sk |
| | AND store_sales.ss_customer_sk = customer.c_customer_sk |
| | AND d_month_seq BETWEEN 1200 AND 1200 + 11 |
| | INTERSECT |
| | SELECT DISTINCT |
| | c_last_name, |
| | c_first_name, |
| | d_date |
| | FROM catalog_sales, date_dim, customer |
| | WHERE catalog_sales.cs_sold_date_sk = date_dim.d_date_sk |
| | AND catalog_sales.cs_bill_customer_sk = customer.c_customer_sk |
| | AND d_month_seq BETWEEN 1200 AND 1200 + 11 |
| | INTERSECT |
| | SELECT DISTINCT |
| | c_last_name, |
| | c_first_name, |
| | d_date |
| | FROM web_sales, date_dim, customer |
| | WHERE web_sales.ws_sold_date_sk = date_dim.d_date_sk |
| | AND web_sales.ws_bill_customer_sk = customer.c_customer_sk |
| | AND d_month_seq BETWEEN 1200 AND 1200 + 11 |
| | ) hot_cust |
| | LIMIT 100

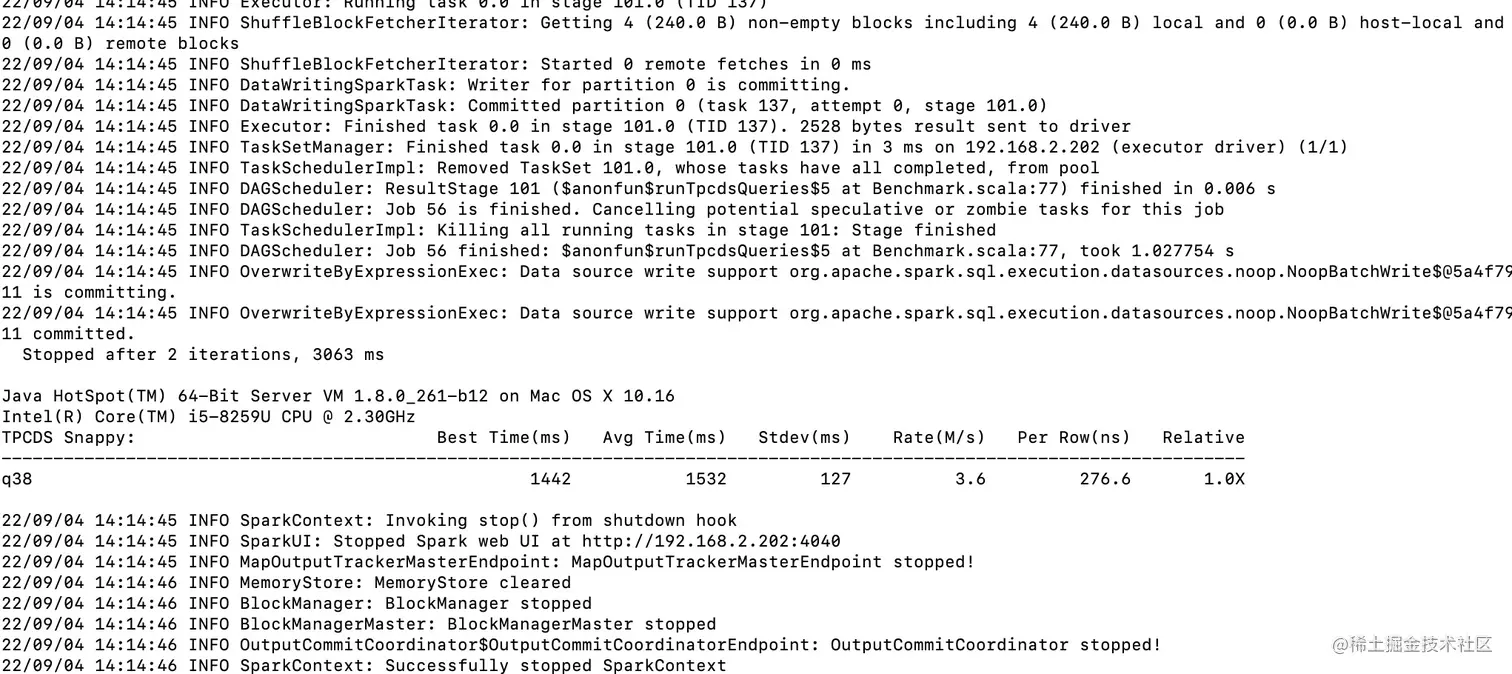

执行后的结果：
优化规则：
org.apache.spark.sql.catalyst.optimizer.CollapseProject
org.apache.spark.sql.catalyst.optimizer.ColumnPruning
org.apache.spark.sql.catalyst.optimizer.ConstantFolding
org.apache.spark.sql.catalyst.optimizer.EliminateLimits
org.apache.spark.sql.catalyst.optimizer.InferFiltersFromConstraints
org.apache.spark.sql.catalyst.optimizer.PushDownLeftSemiAntiJoin
org.apache.spark.sql.catalyst.optimizer.PushDownPredicates
org.apache.spark.sql.catalyst.optimizer.RemoveNoopOperators
org.apache.spark.sql.catalyst.optimizer.ReorderJoin
org.apache.spark.sql.catalyst.optimizer.ReplaceDistinctWithAggregate
org.apache.spark.sql.catalyst.optimizer.ReplaceIntersectWithSemiJoin
org.apache.spark.sql.catalyst.optimizer.RewritePredicateSubquery
CollapseProject: 合并两个确定且独立的列
/**
* 将两个[[project]]运算符合并为一个，并进行别名替换。
* 在以下情况下，将表达式合并为一个单一的表达式。
* 1. 当两个[[project]]运算符相邻时。
* 2. 当两个[[project]]运算符之间有LocalLimit/Sample/Repartition运算符时
* 并且上层项目由相同数量的列组成，这些列是相等的或别离的。
* `GlobalLimit(LocalLimit)`模式也被考虑。
*/
object CollapseProject extends Rule[LogicalPlan] with AliasHelper {
def apply(plan: LogicalPlan): LogicalPlan = plan.transformUpWithPruning(
_.containsPattern(PROJECT), ruleId) {
两个select操作会被合并成一个，并且和数据来源的逻辑计划进行合并，两个前后依赖的select列的运算也被合并在一起。
PushDownPredicates:合并两个相邻的Filters,谓词下推的一种形式，目的就是把filters过滤条件下推到底层的部分，从表现形式上来看就是在越在join的前进行过滤，就越可以提高整个计划的执行效率。
/**
* 下推项目的计算元到union操作的两边
* Operations that are safe to pushdown are listed as follows.
* Union:
* Right now, Union means UNION ALL, which does not de-duplicate rows. So, it is
* safe to pushdown Filters and Projections through it. Filter pushdown is handled by another
* rule PushDownPredicates. Once we add UNION DISTINCT, we will not be able to pushdown Projections.
*/
object PushProjectionThroughUnion extends Rule[LogicalPlan] with PredicateHelper {
/**
* 将左边的属性映射到右边的相应属性。
*/
private def buildRewrites(left: LogicalPlan, right: LogicalPlan): AttributeMap[Attribute] = {
assert(left.output.size == right.output.size)
AttributeMap(left.output.zip(right.output))
}
/**
* 重写一个表达式，以便它可以被push到一个
union或除法运算符的右边。
*这个方法依赖于这样一个事实：联合/相交/排除的输出属性
的输出属性总是等于左边子句的输出
*/
private def pushToRight[A <: Expression](e: A, rewrites: AttributeMap[Attribute]) = {
val result = e transform {
case a: Attribute => rewrites(a)
} match {
// Make sure exprId is unique in each child of Union.
case Alias(child, alias) => Alias(child, alias)()
case other => other
}
result.asInstanceOf[A]
}
def apply(plan: LogicalPlan): LogicalPlan = plan.transformWithPruning(
_.containsAllPatterns(UNION, PROJECT)) {
// 下推 确定性的投影 来取代全部都union
case p @ Project(projectList, u: Union) =>
assert(u.children.nonEmpty)
if (projectList.forall(_.deterministic)) {
val newFirstChild = Project(projectList, u.children.head)
val newOtherChildren = u.children.tail.map { child =>
val rewrites = buildRewrites(u.children.head, child)
Project(projectList.map(pushToRight(_, rewrites)), child)
}
u.copy(children = newFirstChild +: newOtherChildren)
} else {
p
}
}
}
从代码上来看PushDownPredicates 就是通过判断 条件是否可以下推，并且尽量的下推在所有的union操作之前，这样来加快整个计算的方式。
